  1. The Fail-Safe C to Java translator Yuhki Kamijima (Tohoku Univ.)

  2. Background • The programming language C does not guarantee memory safety • This is the cause of memory attacks ex. buffer overflow attacks • Attackers can obtain root privilege and operate freely We want to execute C programs safely!

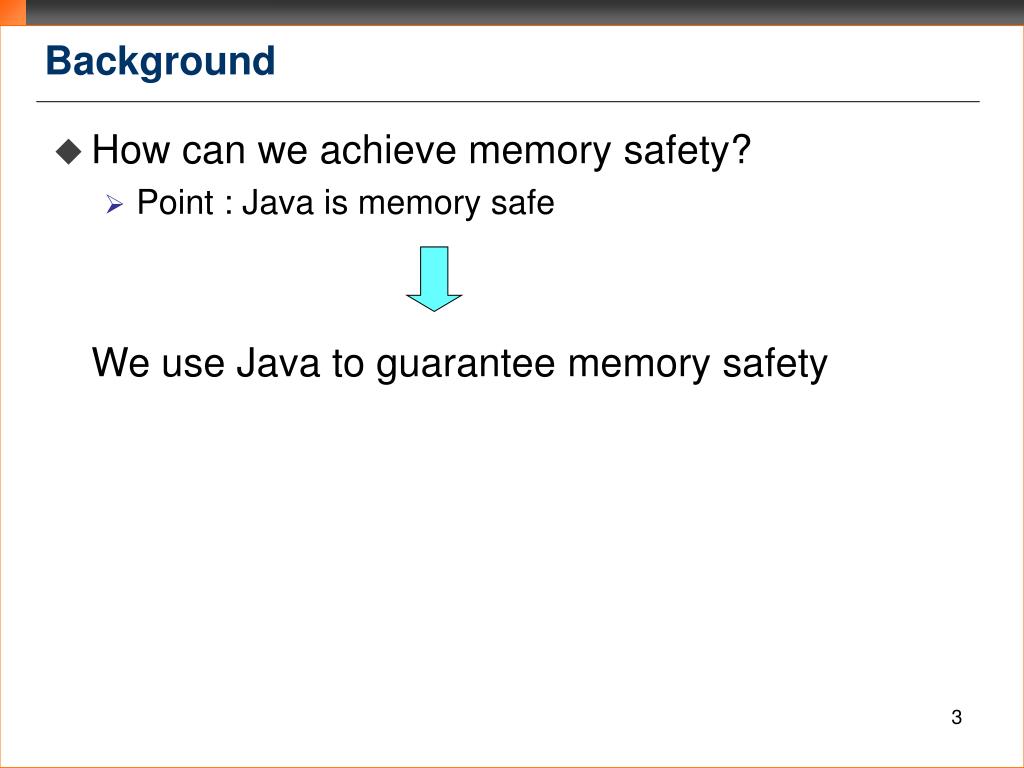

  3. Background • How can we achieve memory safety? • Point : Java is memory safe We use Java to guarantee memory safety

  4. Goal • Source to source, C to Java translation with memory safety and ANSI conformance • Save a lot of work spent on rewriting programs • Java rejects dangerous programs Prevent memory bugs and attacks

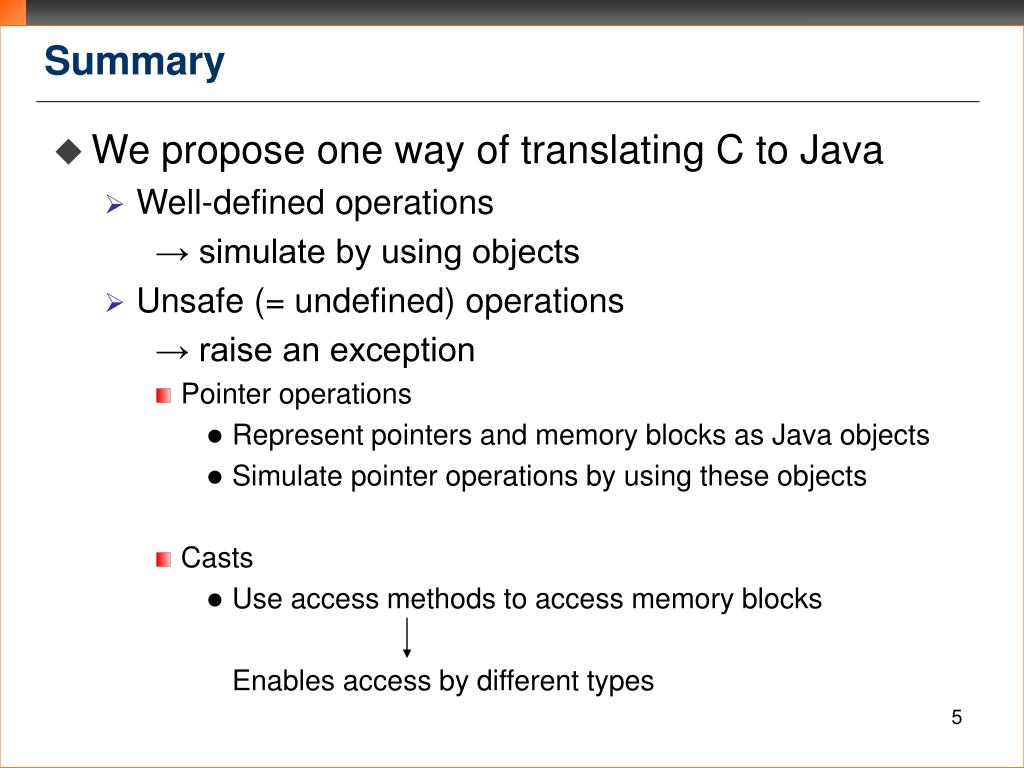

  5. Summary • We propose one way of translating C to Java • Well-defined operations → simulate by using objects • Unsafe (= undefined) operations → raise an exception • Pointer operations • Represent pointers and memory blocks as Java objects • Simulate pointer operations by using these objects • Casts • Use access methods to access memory blocks Enables access by different types

  6. Outline • C to Java translation by using Java objects • Representation of pointer operations • Examples of translation • Class details • Fat pointer, block • Access methods • Fat integer • Implementation of the translator • Experiments and considerations • Related work • Conclusion and future work

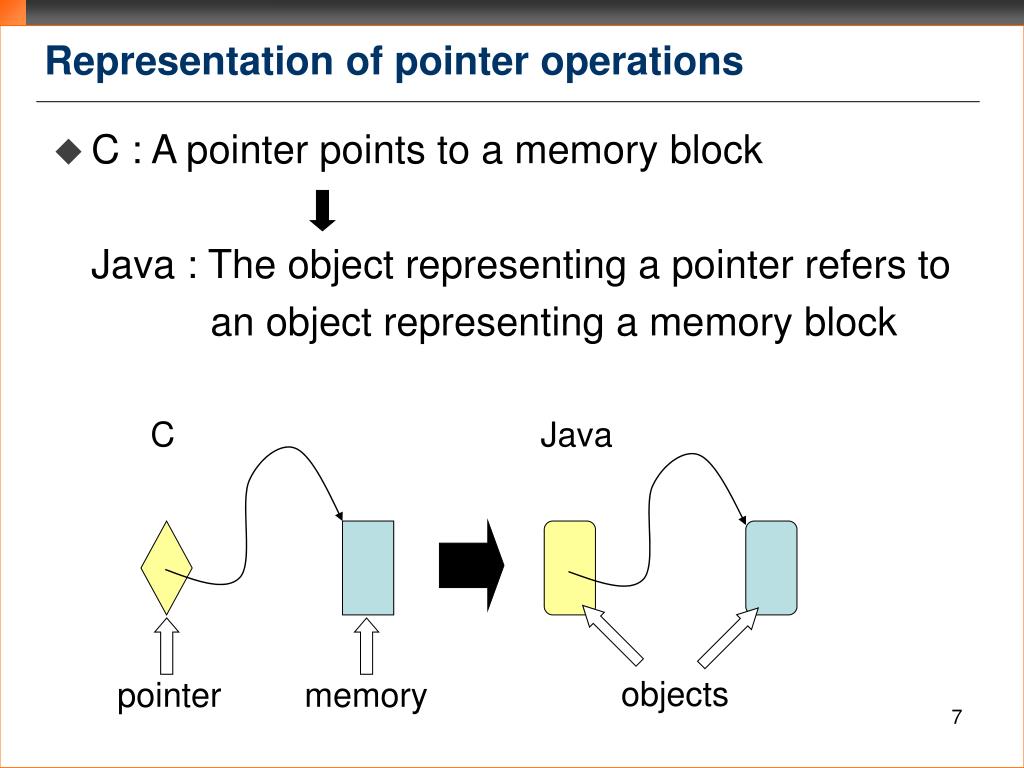

  7. Representation of pointer operations • C : A pointer points to a memory block Java : The object representing a pointer refers to an object representing a memory block C Java objects pointer memory

  8. Java classes • Pointer : FatPointer • Fields : base, offset • 1 word memory block : FatBlock • Field : contents • Method : access methods FatPointer base offset FatBlock access methods contents

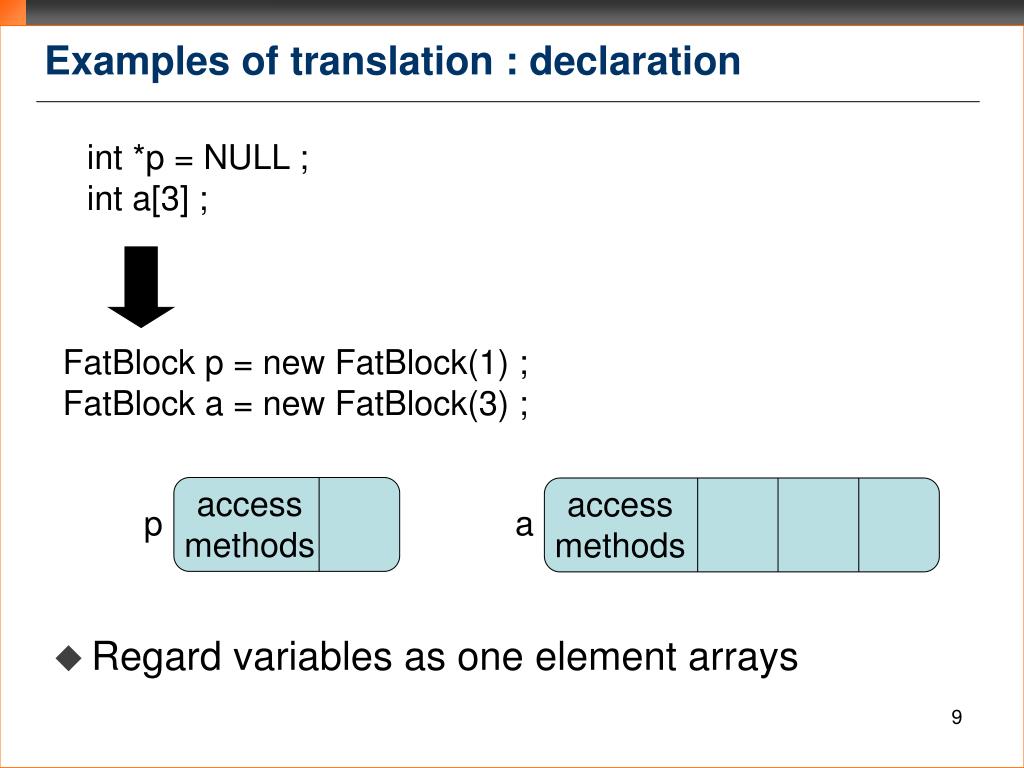

  9. Examples of translation : declaration • Regard variables as one element arrays int *p = NULL ; int a[3] ; FatBlock p = new FatBlock(1) ; FatBlock a = new FatBlock(3) ; access methods access methods p a

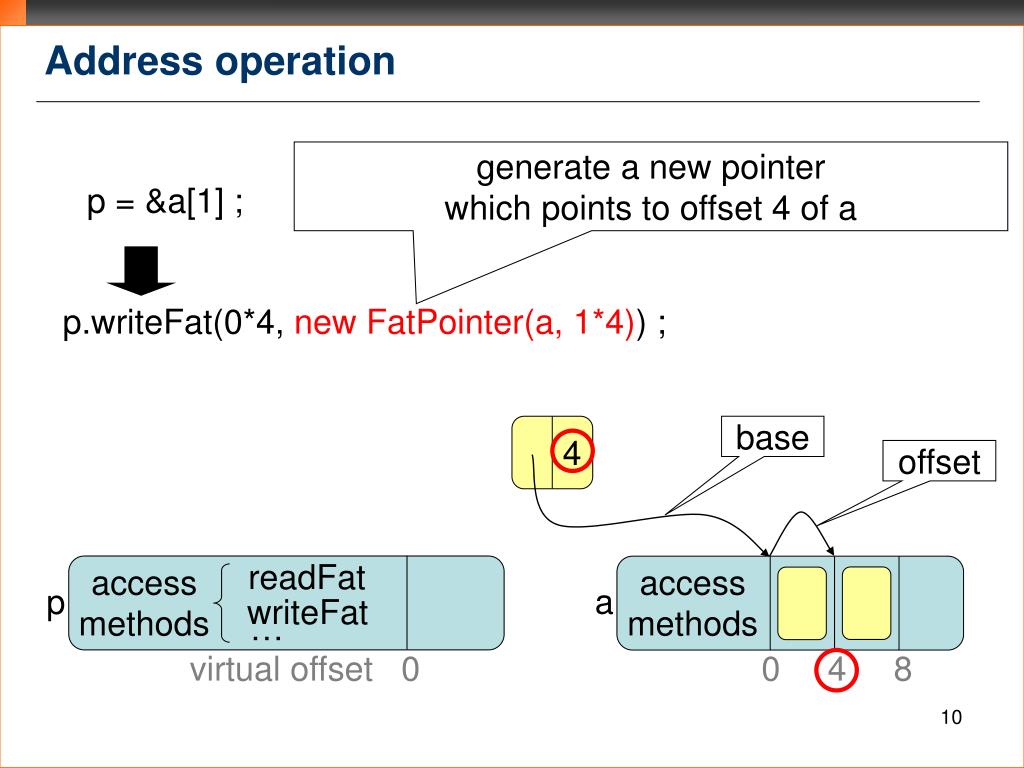

  10. 4 Address operation generate a new pointer which points to offset 4 of a p = &a[1] ; p.writeFat(0*4, new FatPointer(a, 1*4)) ; base offset readFat access methods access methods a p writeFat … virtual offset 0 0 4 8

  11. 4 Address operation write the pointer on offset 0 of p p = &a[1] ; p.writeFat(0*4, new FatPointer(a, 1*4)) ; access method for 1 word write base offset readFat access methods access methods a p writeFat … virtual offset 0 0 4 8

  12. Addition of pointer and integer read the pointer contained at offset 0 of p p + 1; i = p.readFat(0*4) ; new FatPointer(i.base, i.offset+1*4) ; 1 word read base i 4 offset access methods access methods readFat a p 4 writeFat … virtual offset 0 0 4 8

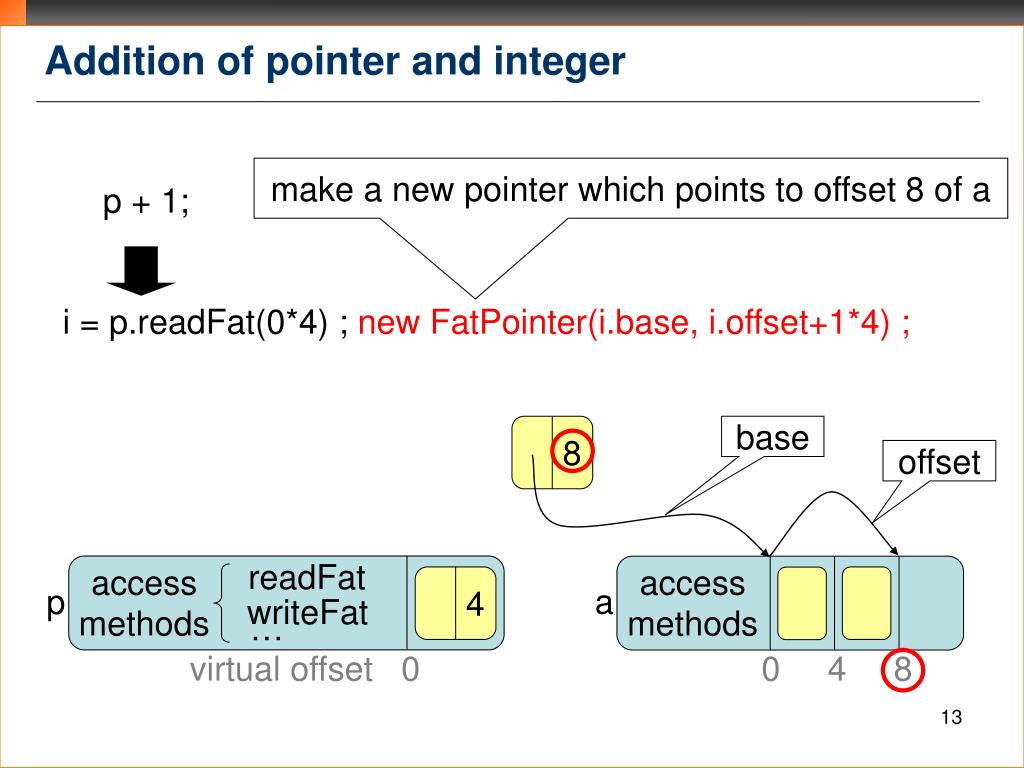

  13. Addition of pointer and integer make a new pointer which points to offset 8 of a p + 1; i = p.readFat(0*4) ; new FatPointer(i.base, i.offset+1*4) ; base 8 offset readFat access methods access methods a p 4 writeFat … virtual offset 0 0 4 8

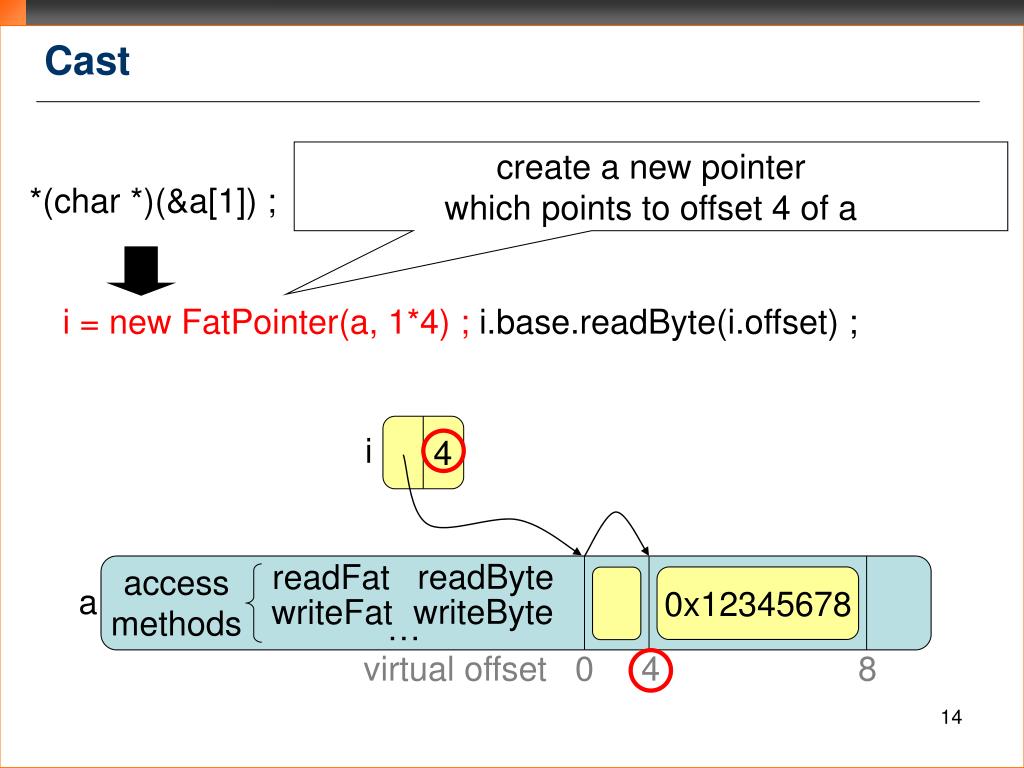

  14. Cast create a new pointer which points to offset 4 of a *(char *)(&a[1]) ; i = new FatPointer(a, 1*4) ; i.base.readByte(i.offset) ; i 4 readByte readFat access methods 0x12345678 a writeByte writeFat … virtual offset 0 4 8

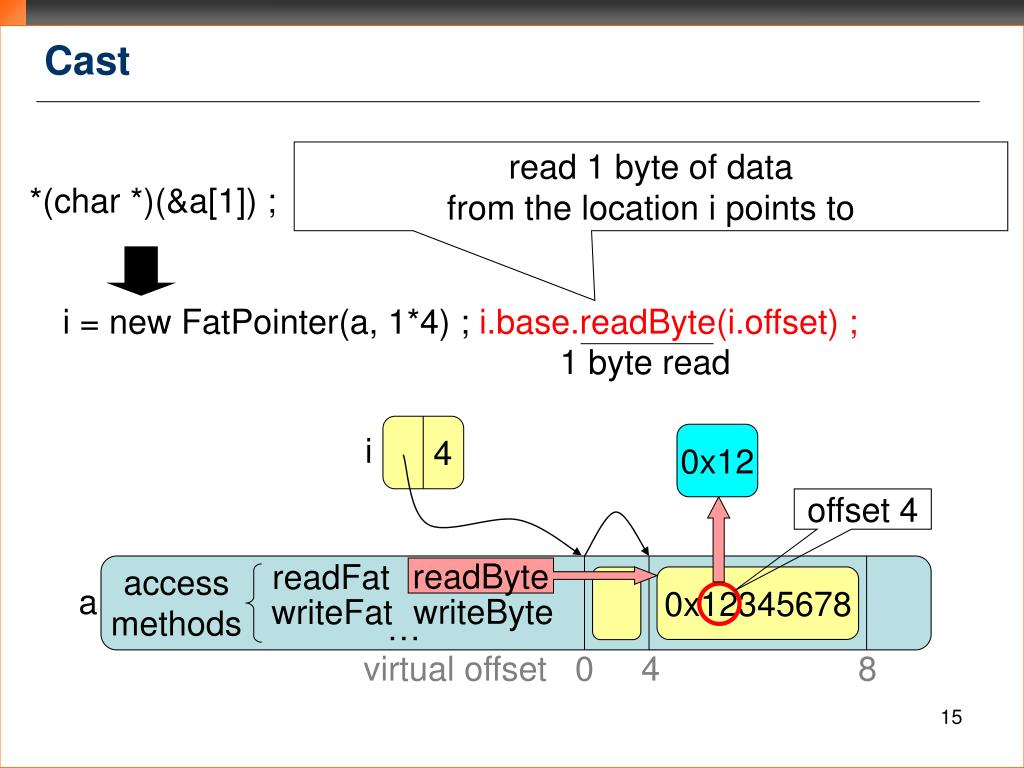

  15. Cast read 1 byte of data from the location i points to *(char *)(&a[1]) ; i = new FatPointer(a, 1*4) ; i.base.readByte(i.offset) ; 1 byte read i 0x12 4 offset 4 readFat access methods readByte 0x12345678 a writeByte writeFat … virtual offset 0 4 8

  16. Outline • C to Java translation by using Java objects • Representation of pointer operations • Examples of translation • Class details • Fat pointer, block • Access methods • Fat integer • Implementation of the translator • Experiments and considerations • Related work • Conclusion and future work

  17. Pointer operation • How to simulate a pointer which points to the middle of a memory block? • References in Java cannot point to the middle of an object × C Java • Use fat pointers

  18. Fat Pointer [Austin et al. 94] [Oiwa et al. 01] et al. • Represent a pointer as two words • base : always points to the front of a memory block • offset : contains an integer meaning the distance from base to the address pointed to by the pointer base offset means 8 byte distance 8 the location we want to point to offset 0 4 8 12 16 20 24 28 32

  19. FatPointer class • Simulate fat pointers in Java • base : refers to a Block object • offset : contains an integer base offset FatPointer 8 Block access methods contents virtual offset 0 4 8 12 16 20 24 28 32

  20. Block (abstract) access methods contents Block abstract class • Simulate memory blocks • contents : contains an array of data objects • access methods : deal with memory accesses • Has concrete subclasses FatBlock ByteBlock ・・・ access methods access methods : Byte object (1 byte of data) : FatPointer object

  21. Access methods • Memory accesses are implemented using access methods • Block class has several methods for reading and writing • readFat : 1 word read • writeFat : 1 word write • readByte : 1 byte read • writeShort : 2 byte write • … • Enables memory accesses by different types readFat readByte readShort access methods contents writeFat writeByte writeShort …

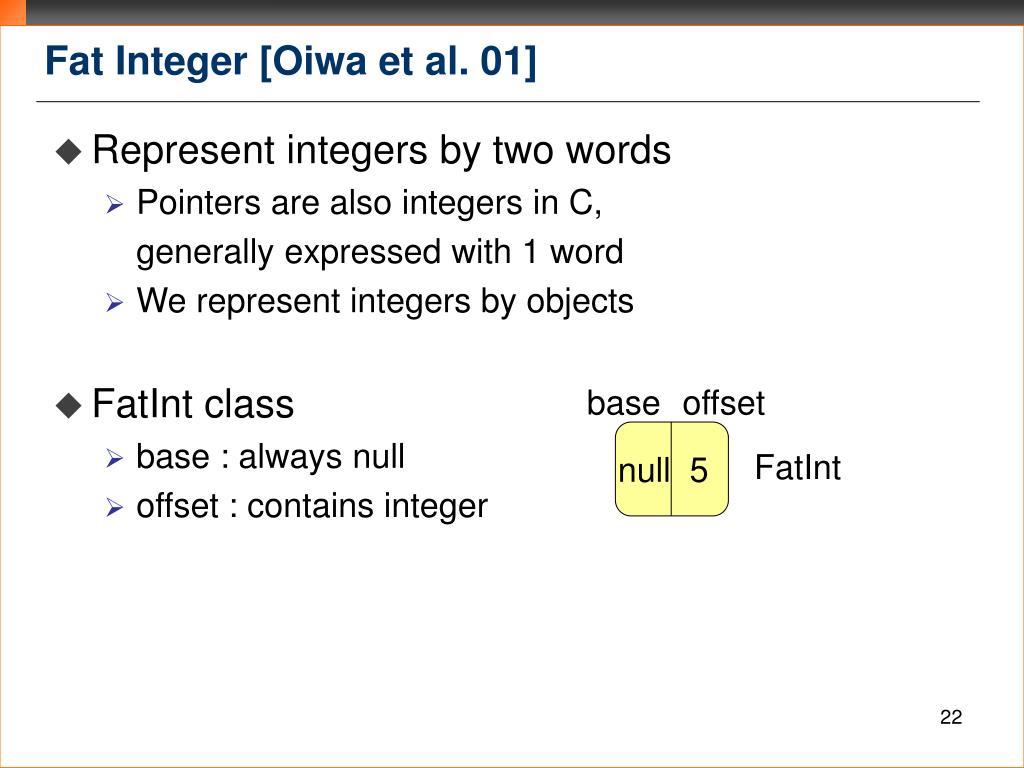

  22. Fat Integer [Oiwa et al. 01] • Represent integers by two words • Pointers are also integers in C, generally expressed with 1 word • We represent integers by objects • FatInt class • base : always null • offset : contains integer base offset FatInt null 5

  23. Fat class • Common parent class of FatPointer and FatInt • FatBlock contents contains Fat objects Fat (abstract) base offset FatPointer FatInt base offset base offset FatBlock access methods FatPointer or FatInt

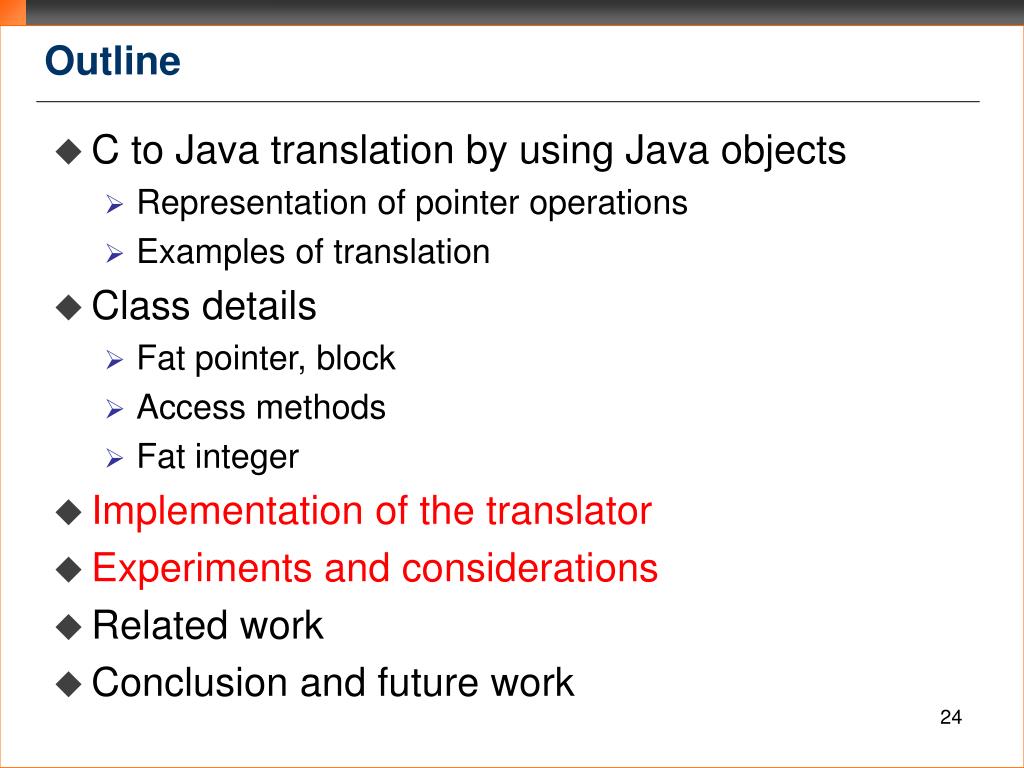

  24. Outline • C to Java translation by using Java objects • Representation of pointer operations • Examples of translation • Class details • Fat pointer, block • Access methods • Fat integer • Implementation of the translator • Experiments and considerations • Related work • Conclusion and future work

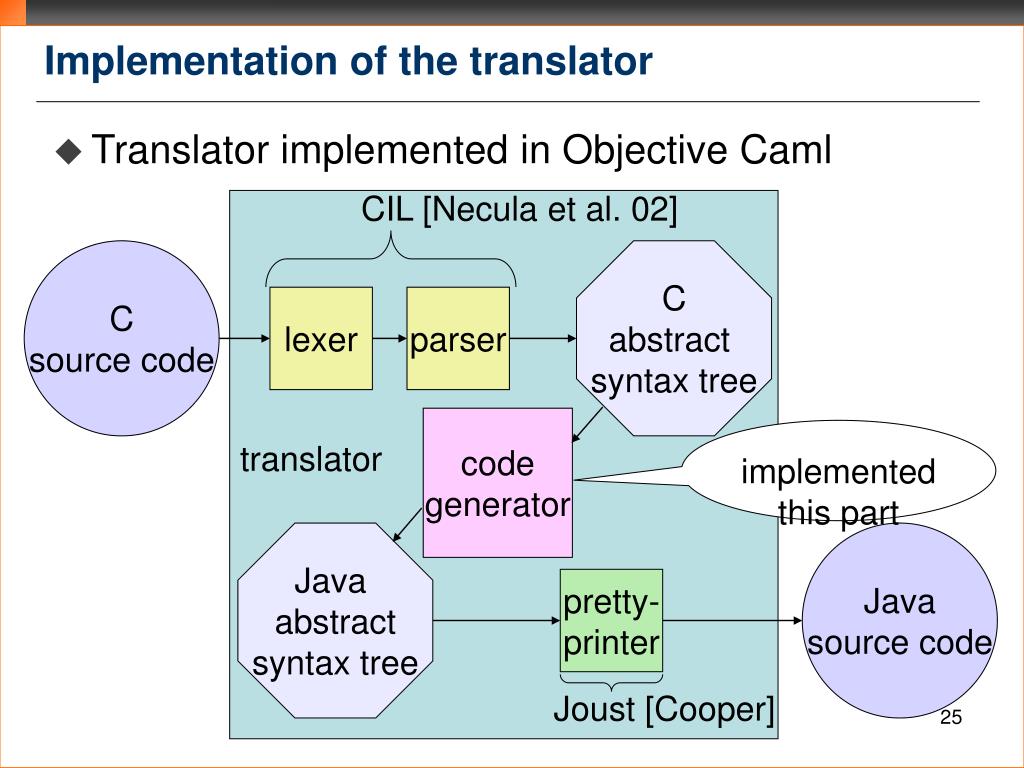

  25. Implementation of the translator • Translator implemented in Objective Caml CIL [Necula et al. 02] C source code C abstract syntax tree lexer parser code generator implemented this part translator Java abstract syntax tree Java source code pretty- printer Joust [Cooper]

  26. Experiments • Benchmark programs taken from The Computer Language Shootout • Values in the graph means overheads • Fail-Safe C to Java user time / C user time • Handwritten Java user time / C user time • Environments • 2.80GHz Intel Pentium 4 CPU, 2GB memory • Linux 2.6 • gcc ： version 4.0.0 with –O2 option • javac, java ： Sun JDK version 1.5.0 with –O option

  27. Experiments

  28. Consideration • All pointers, integers and memory blocks are translated to objects • Lots of object creations and method calls • Reduce these by optimizations • Translate variables to FatBlock only if they are pointed to by a pointer • Translate integers to FatInt only if they cannot be distinguished from pointers • Eliminate redundant calls to the same access method

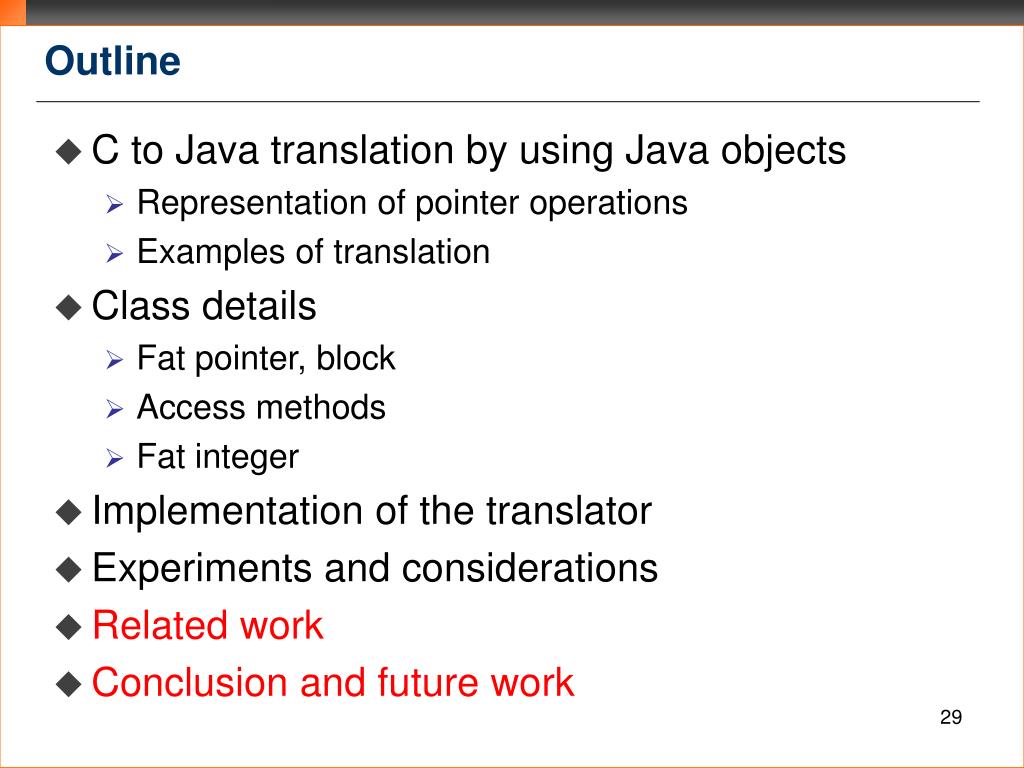

  29. Outline • C to Java translation by using Java objects • Representation of pointer operations • Examples of translation • Class details • Fat pointer, block • Access methods • Fat integer • Implementation of the translator • Experiments and considerations • Related work • Conclusion and future work

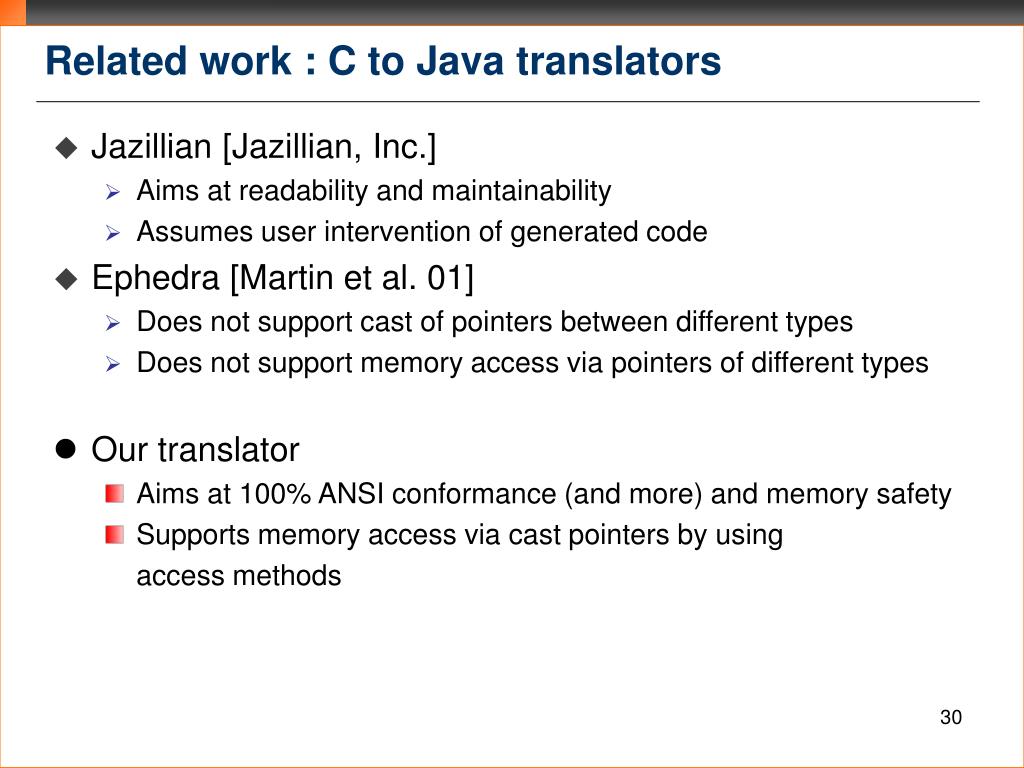

  30. Related work : C to Java translators • Jazillian [Jazillian, Inc.] • Aims at readability and maintainability • Assumes user intervention of generated code • Ephedra [Martin et al. 01] • Does not support cast of pointers between different types • Does not support memory access via pointers of different types • Our translator • Aims at 100% ANSI conformance (and more) and memory safety • Supports memory access via cast pointers by using access methods

  31. Related work : Safe C runtime systems • CCured [Necula et al. 02] • Dynamically checks unsafe operations • Reduces overheads by static analysis (to 3 - 87 %) • Does not aim at 100% ANSI conformance • Fail-Safe C [Oiwa et al. 01] • Based on the same ideas of fat pointers and fat intergers • Both compile C to native code • If these compilers have a bug, unsafe codes are executed • Our translator translates C to Java source code • Provided that Java is safe, unsafe codes are rejected (even if our translator has a bug) • We clarify the essence of Fail-Safe C

  32. Conclusion and future work • We propose translation from C to Java • Simulate pointers, integers and memory blocks with Java objects • Future work • Support all ANSI C and more • Optimizations
