  1. Vortex Pinning and Sliding in Superconductors Charles Simon, laboratoire CRISMAT, CNRS

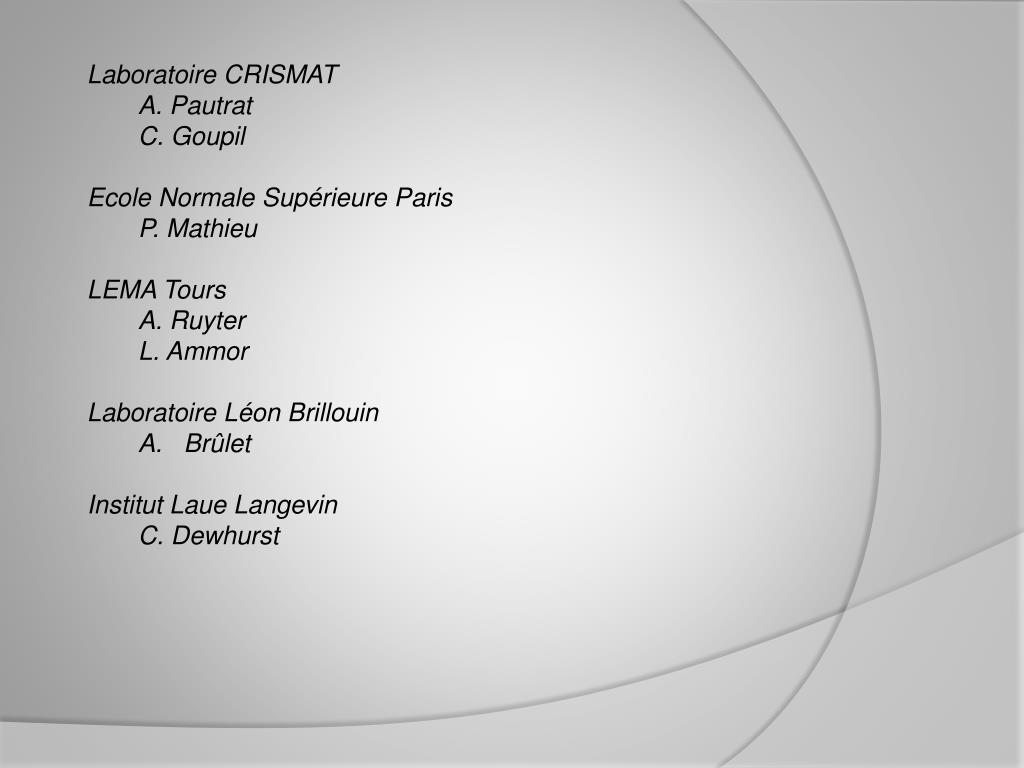

  2. Laboratoire CRISMAT • A. Pautrat • C. Goupil • Ecole Normale Supérieure Paris • P. Mathieu • LEMA Tours • A. Ruyter • L. Ammor • Laboratoire Léon Brillouin • Brûlet • Institut Laue Langevin • C. Dewhurst

  3. IIntroduction to vortex pinning and dynamics II A neutron diffraction study in low Tc materials III The peak effect in NbSe2 IV The surface pinning in Bi-2212 V Conclusions

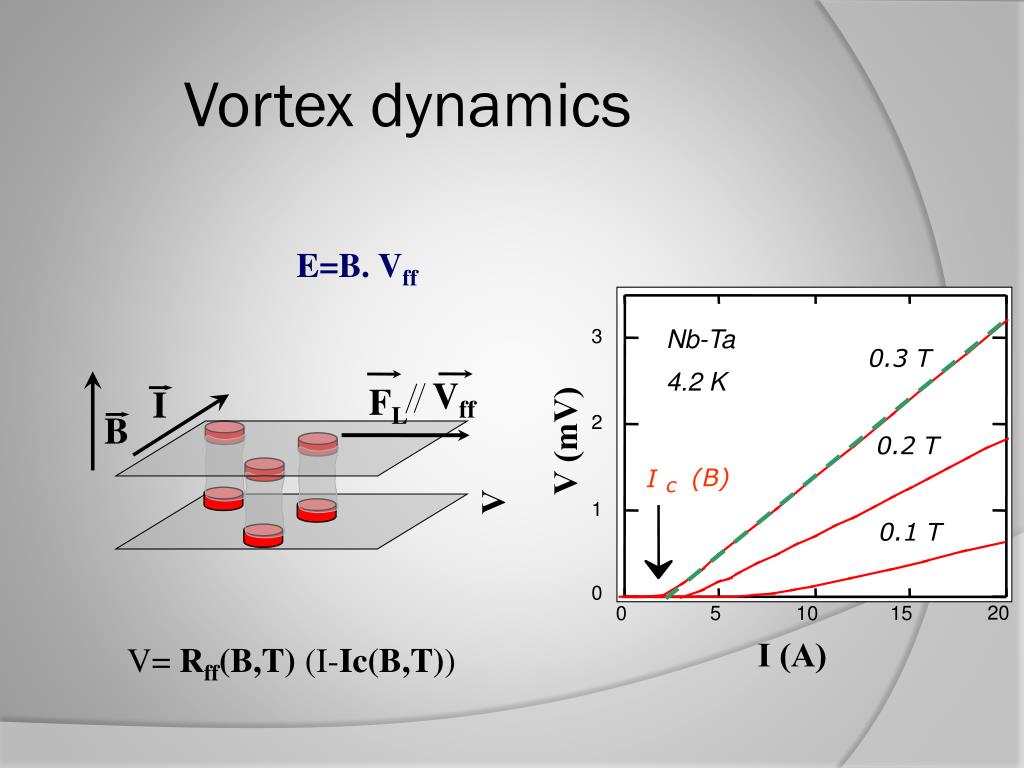

  4. Vortex dynamics FL Vff 3 V 2 (B) I c 1 Nb-Ta 0.3 T 4.2 K 0 20 0 5 10 15 V (mV) 0.2 T 0.1 T B I I (A) E=B. Vff V= Rff(B,T) (I-Ic(B,T))

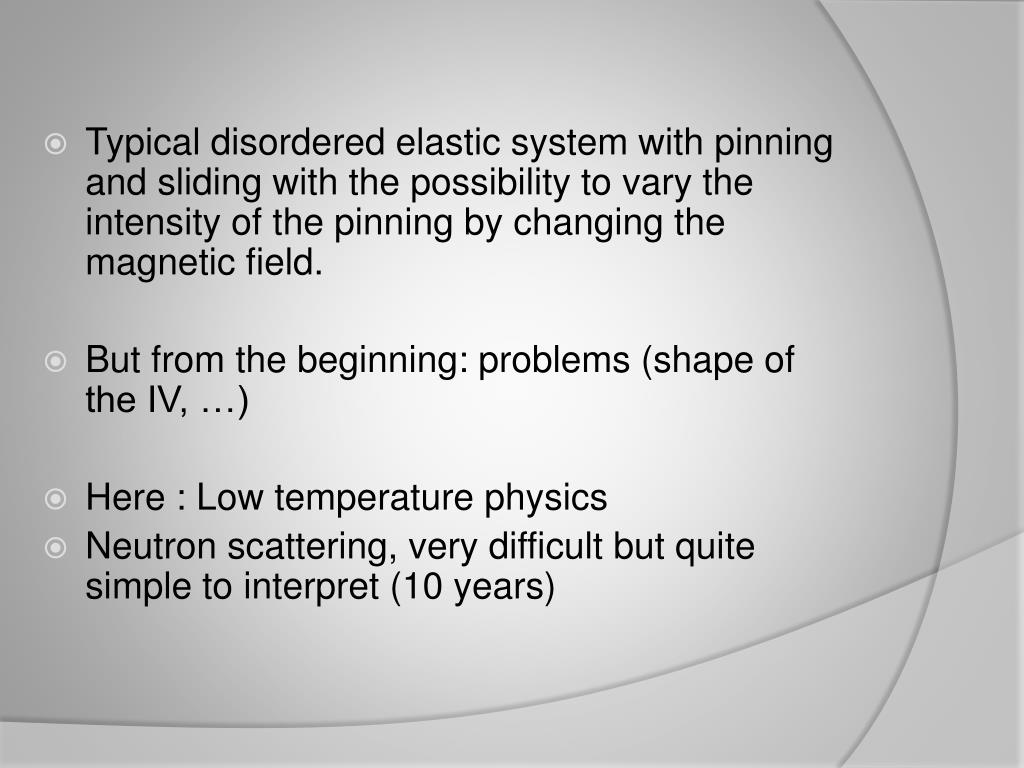

  5. Typical disordered elastic system with pinning and sliding with the possibility to vary the intensity of the pinning by changing the magnetic field. • But from the beginning: problems (shape of the IV, …) • Here : Low temperature physics • Neutron scattering, very difficult but quite simple to interpret (10 years)

  6. B Bc2 Normal phase Bc1 Meissner T Neutron scattering Niobium Nb-Ta Bi-2212

  7. T. Giamarchi and P. Le Doussal, Phys. Rev. Lett. 72, 1530 (1994). and Phys. Rev. B 52, 1242 (1995). Cubitt, R. et al. Nature 365, 407-411 (1993). B(G)

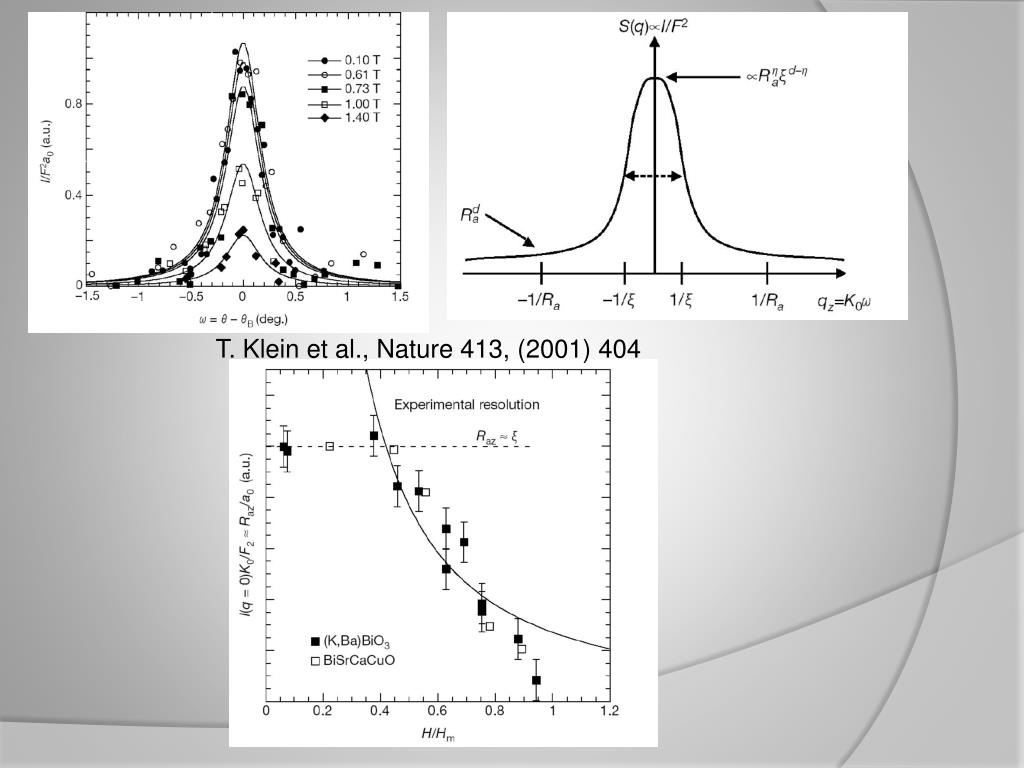

  8. T. Klein et al., Nature 413, (2001) 404

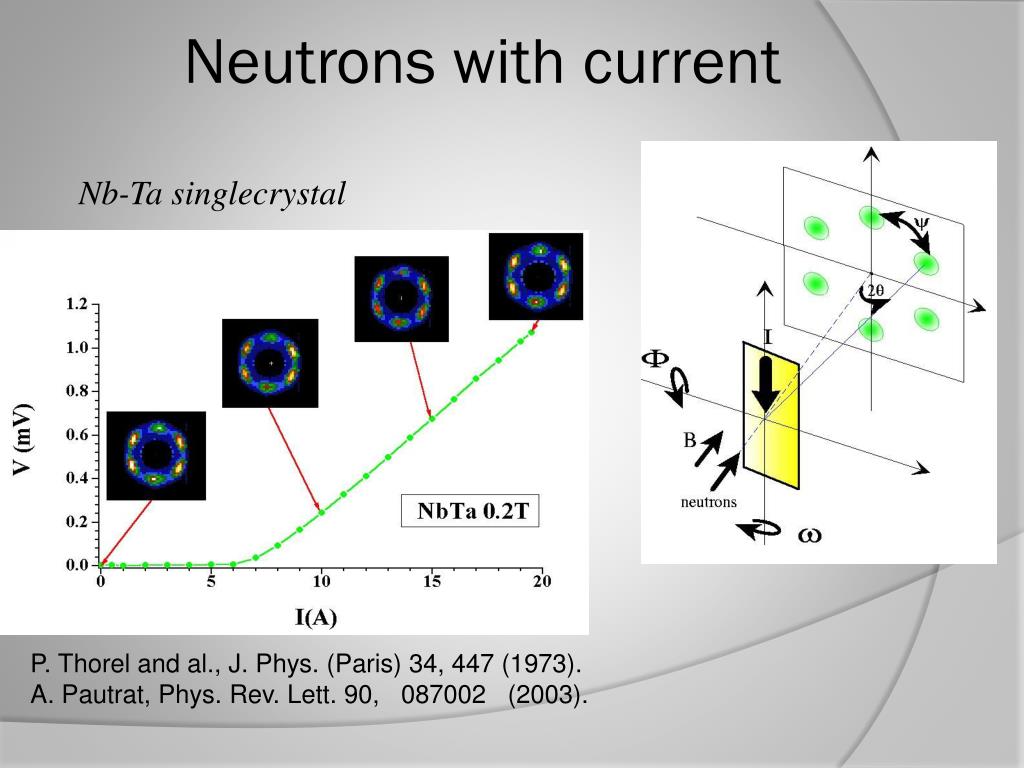

  9. Neutrons with current Nb-Ta singlecrystal P. Thorel and al., J. Phys. (Paris) 34, 447 (1973). A. Pautrat, Phys. Rev. Lett. 90,   087002   (2003).

  10. Neutrons with current Nb-Ta singlecrystal

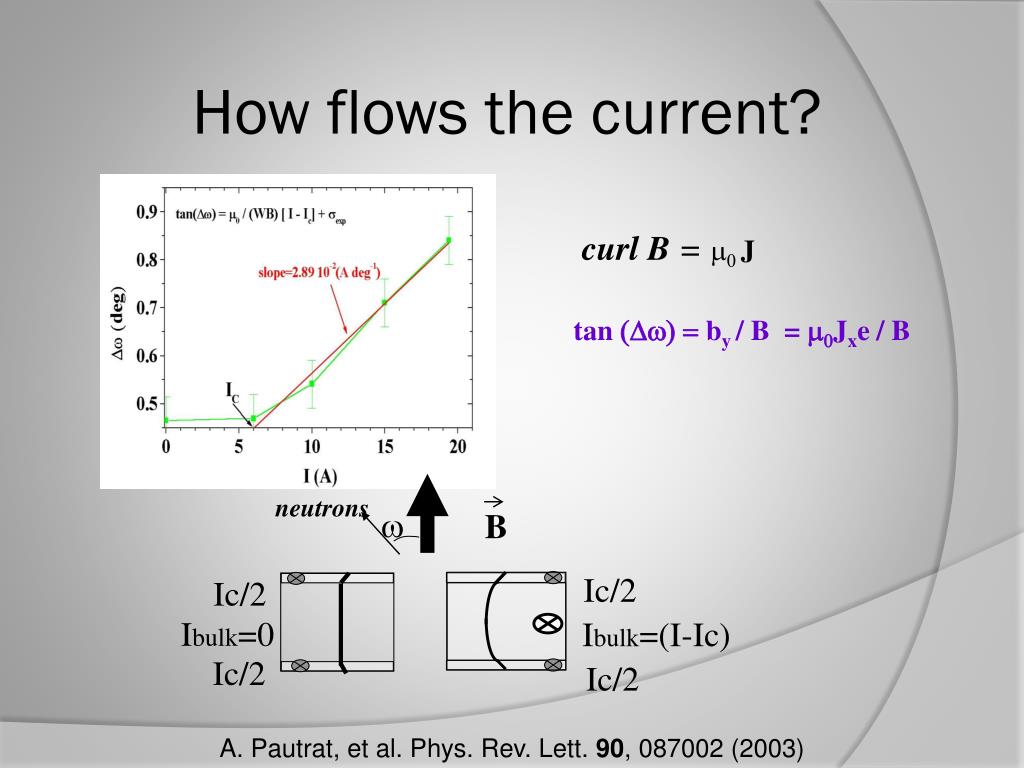

  11. neutrons w B Ic/2 Ic/2 Ibulk=0 Ibulk=(I-Ic) Ic/2 Ic/2 How flows the current? curl B = m0J tan (Dw) = by / B = m0Jxe / B A. Pautrat, et al. Phys. Rev. Lett. 90, 087002 (2003)

  12. V(mV) Ic I (A) surface pinning (Pb-In) Surface treatments Ic (Amp)

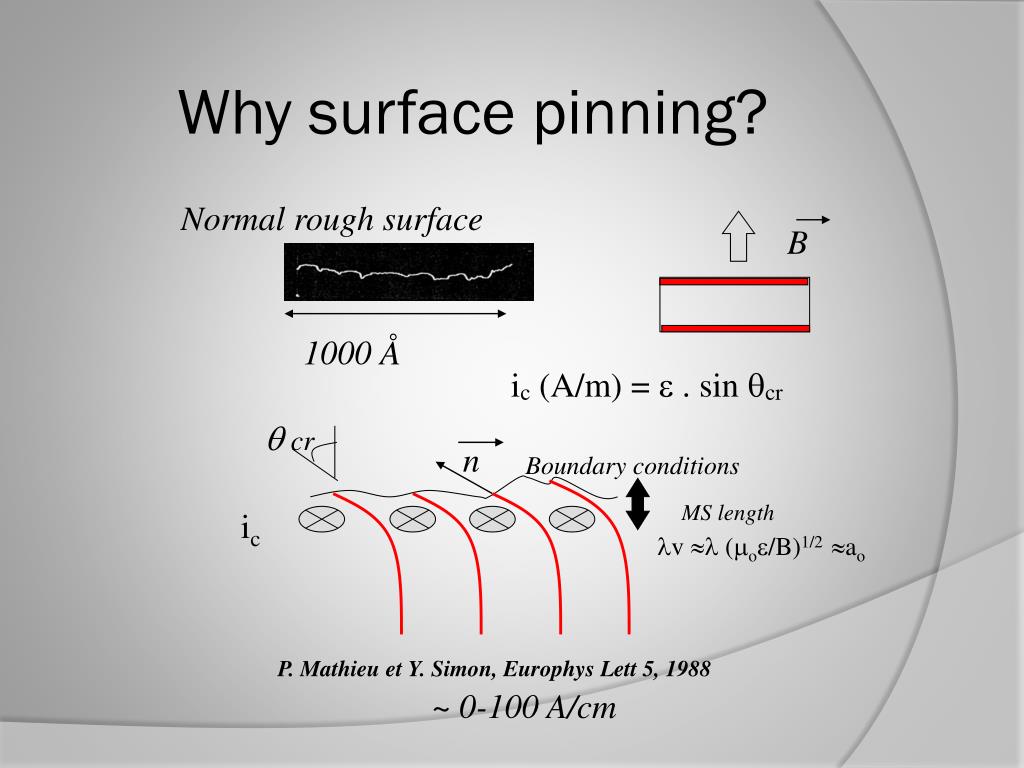

  13. q cr n Boundary conditions ic lvl (moe/B)1/2 ao P. Mathieu et Y. Simon, Europhys Lett 5, 1988 ~ 0-100 A/cm B Why surface pinning? Normal rough surface 1000 Å ic (A/m) = e . sin qcr MS length

  14. k = 1 e / HC2 B / BC2 Quantitative prediction Numerical solution of Ginzburg equations by Guilpin and Simon Nb film • Quantitative analysis of the critical current due to vortex pinning by surface corrugation • Pautrat, J. Scola, C. Goupil, Ch. Simon, C. Villard, B. Domengès, Y. Simon, • Phys. Rev. B 69, 224504 (2004)

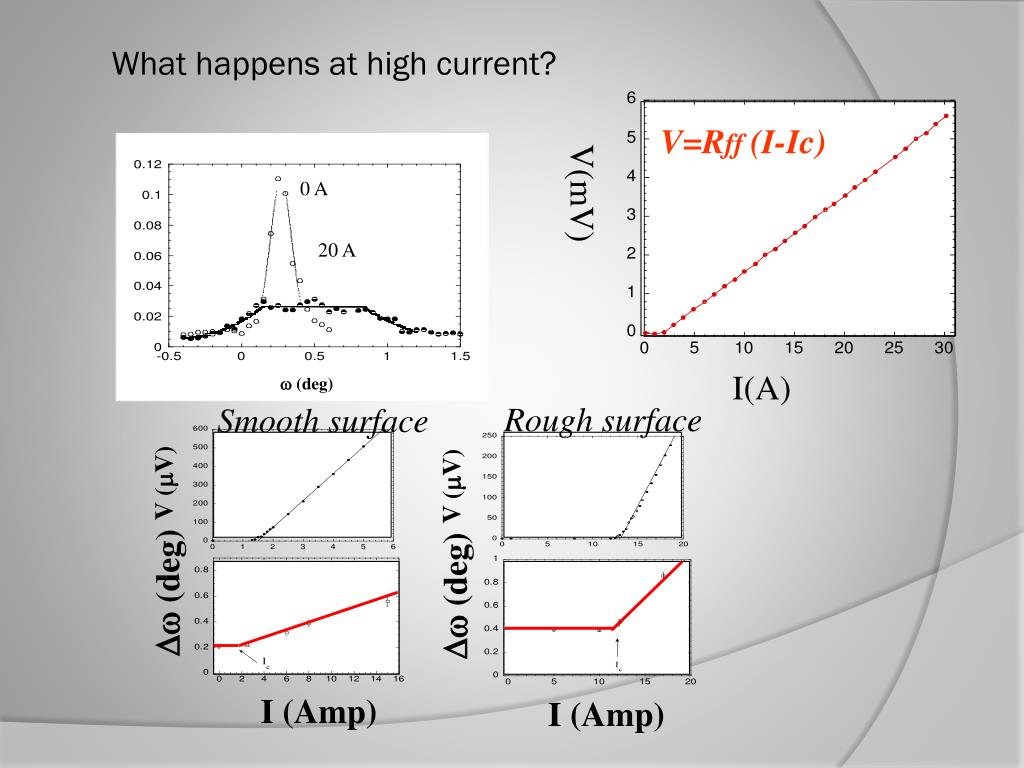

  15. 0 A Rough surface Smooth surface 20 A V=Rff (I-Ic) V (mV) V (mV) V(mV) w (deg) Dw (deg) Dw (deg) I(A) I (Amp) I (Amp) What happens at high current?

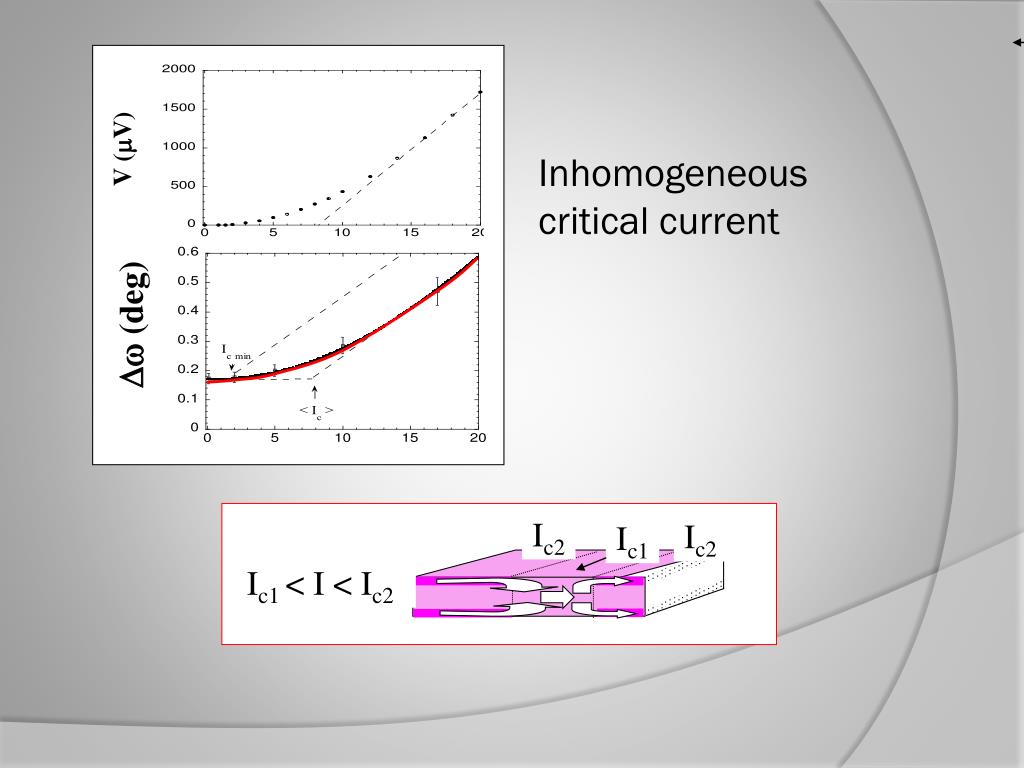

  16. V (mV) Dw (deg) Ic2 Ic2 Ic1 Ic1 < I < Ic2 Inhomogeneous critical current

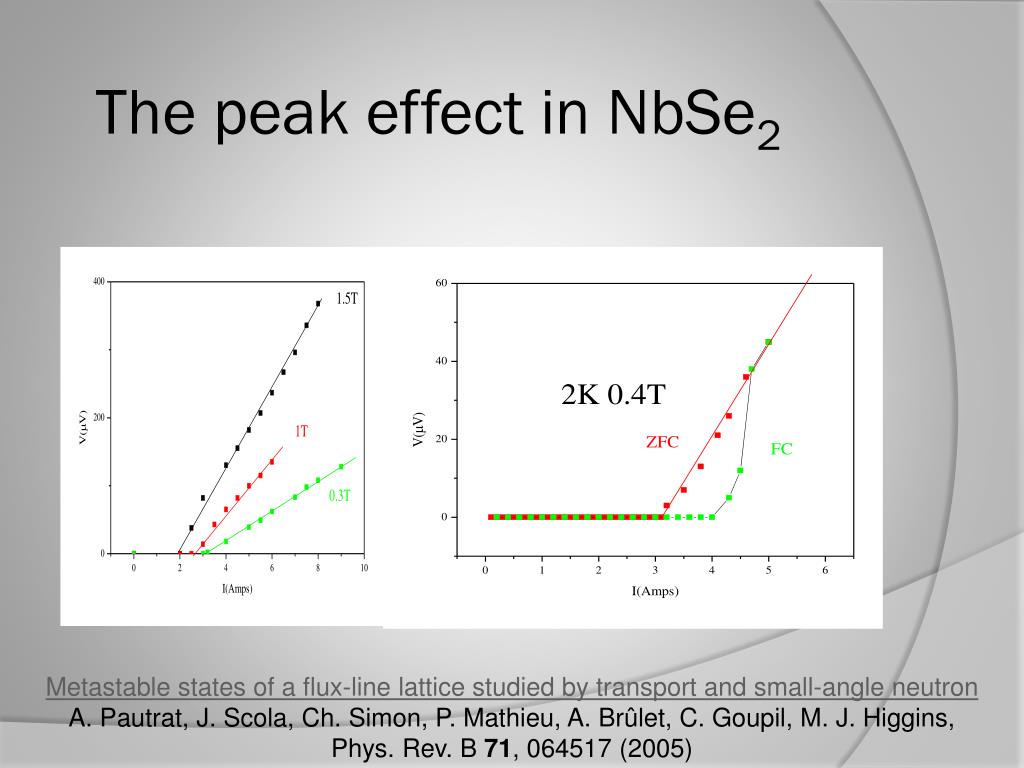

  17. The peak effect in NbSe2 Metastable states of a flux-line lattice studied by transport and small-angle neutron A. Pautrat, J. Scola, Ch. Simon, P. Mathieu, A. Brûlet, C. Goupil, M. J. Higgins, Phys. Rev. B 71, 064517 (2005)

  18. NbSe2

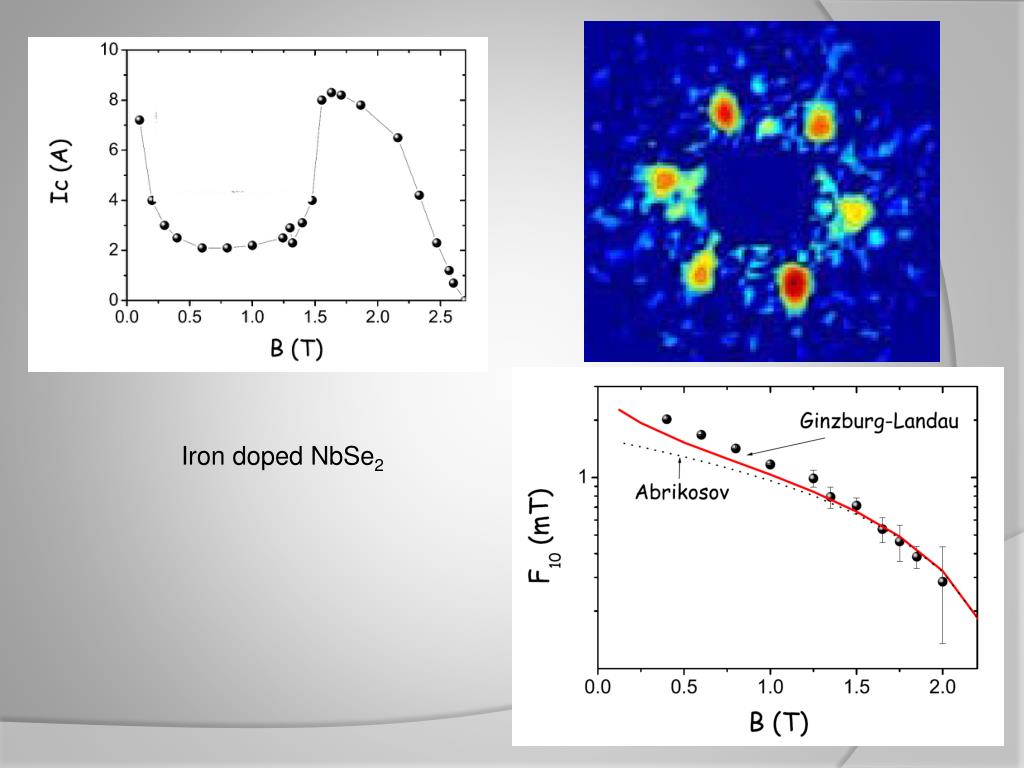

  19. Iron doped NbSe2

  20. T. Klein et al., Nature 413, (2001) 404

  21. Bi-2212 Transport in the peak effect

  22. Bi-2212 Persistence of an ordered flux line lattice above the second peak in Bi2Sr2CaCu2O8+δ A. Pautrat, Ch. Simon, C. Goupil, P. Mathieu, A. Brûlet, C. D. Dewhurst, and A. I. Rykov Phys. Rev. B 75, 224512 (2007)

  23. Bi-2212 with columnar defects Microbridge 50mm 20 mm BF=1T 5K 0.4T Surface vortex depinning in an irradiated single crystal microbridge of Bi2Sr2CaCu2O8+δ : Crossover from individual to collective bulk pinning A. Ruyter, D. Plessis, Ch. Simon, A. Wahl, and L. Ammor Phys. Rev. B 77, 212507 (2008)

  24. Do columnar defects product bulk pinning? No, there is no bulk currents

  25. Reversible magnetization A. Wahl et al., Physica C 250 163(1995) R. J. Drost et al, PRB 58 R615 (1998)

  26. Conclusions • Very powerful technique • Surface currents • Peak effect = metastable states • What is the limit of this stability? • Noise measurements, ac response, Hall effects…
