  1. Design and Fabrication of a Two Axis Benchtop Milling Table Presented By: Corey Hoff, Taylor Groll, Thao Lai, and Rick Lopez EGR 367 – Manufacturing Processes December 10, 2004

  2. Description of Need • Translational motion in x and z axis • Capable of machining plastic • Dovetail type runner assembly • Provide additional support for Engineering 101 students • Provide a wider range of travel than current GVSU benchtop milling machines

  3. Microkinetics Desktop CNC Milling Machine • Hardware • Motor Capacity – 470 oz/in stepper motors • 8.25in x 28.5in Table • 17 in x-axis travel • 7 in y-axis travel • 5 in z-axis travel • Cost • Starts at $7,995.00

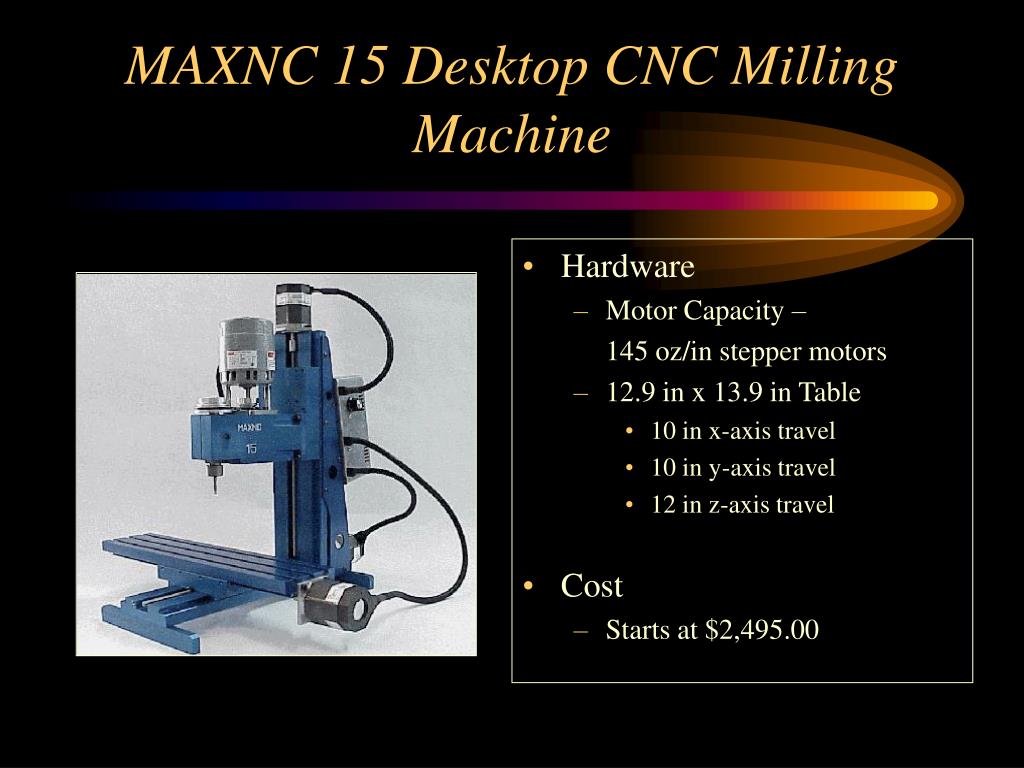

  4. Hardware Motor Capacity – 145 oz/in stepper motors 12.9 in x 13.9 in Table 10 in x-axis travel 10 in y-axis travel 12 in z-axis travel Cost Starts at $2,495.00 MAXNC 15 Desktop CNC Milling Machine

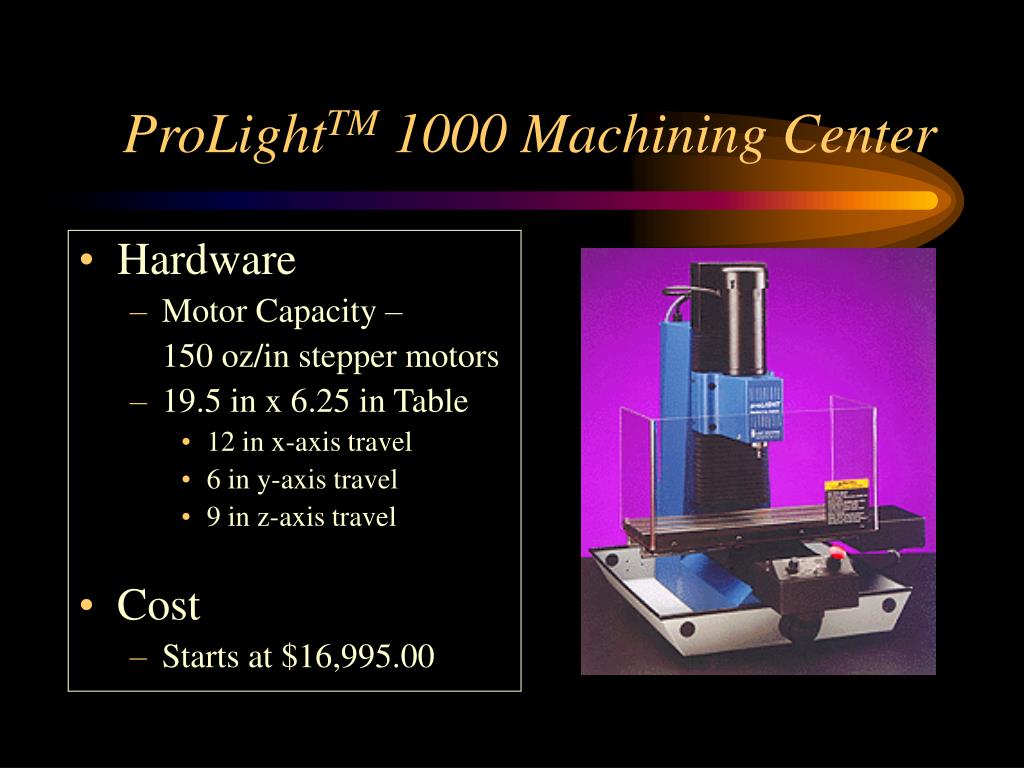

  5. ProLightTM 1000 Machining Center • Hardware • Motor Capacity – 150 oz/in stepper motors • 19.5 in x 6.25 in Table • 12 in x-axis travel • 6 in y-axis travel • 9 in z-axis travel • Cost • Starts at $16,995.00

  6. Proposed 367 Milling Table Design • Hardware • Motor Capacity – TBD • 12.9 in x 13.9 in Table • 16 in x-axis travel • 10 in y-axis travel • 10 in z-axis travel

  7. Existing Products and Design Comparison

  8. Material Selection • Steel vs. Aluminum Considerations • Weight of Milling Table • Corrosion & Wear Resistance • Machinability • Cost of Steel • G.R. Central Iron & Steel – Supplier of Aluminum Alloy 6061-T6

  9. Design Calculations • Machining time total = 43.43 hours

  10. Pairwise Comparison Using Digital Logic Method , n = number of goals

  11. Decision Matrix

  12. Bill of Materials • Aluminum Alloy 6061: Flat Stock

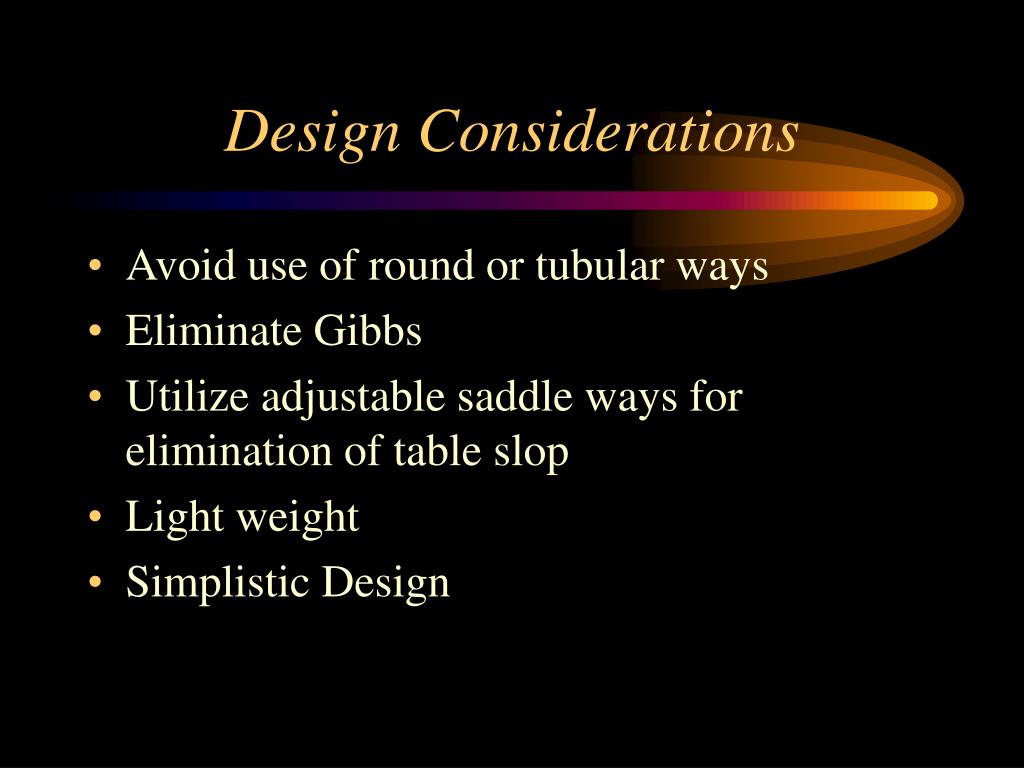

  13. Design Considerations • Avoid use of round or tubular ways • Eliminate Gibbs • Utilize adjustable saddle ways for elimination of table slop • Light weight • Simplistic Design

  14. Previous Design Adjustment Screws Gibbs

  15. Proposed Design – X-Z Milling Table

  16. Proposed Design - Saddle

  17. Proposed Design - Bed

  18. Gantt Chart

  19. Revised Design • Less z-direction travel – 10 inches • Elimination of keyways • Steel inserts • Flat head hex bolts • Lithium grease

  20. Revised Bed

  21. Fabrication Procedure • Cut stock AA6061-T6 • Mill surfaces • Drill holes • Discrete fasteners • Addition of lubrication

  22. Final Milling Table

  23. Final Milling Table

  24. Project Issues Encountered • Tolerance stack-up • Alignment of essential components • Precision & accuracy of milling machines • Machine setup time • Actual machining time ≈ 130 hours • Complexity of design

  25. Test Results • Force • Static friction coefficient, μs = 1.55 • Kinetic friction coefficient, μk = 0.33 • Surface roughness, Ra = 0.517 μm

  26. Future Considerations • Ways & base machined from single pieces of stock material • Reconsideration of material choice • Need a different method for adjusting amount of slop between the saddle and bed • Address issue of single sided wear on x-axis • Aluminum anodizing of wearing surfaces

  27. Questions?
