An Investigation of Statistical Zero-Knowledge Proofs

1. An Investigation ofStatistical Zero-KnowledgeProofs Amit Sahai MIT Laboratory for Computer Science

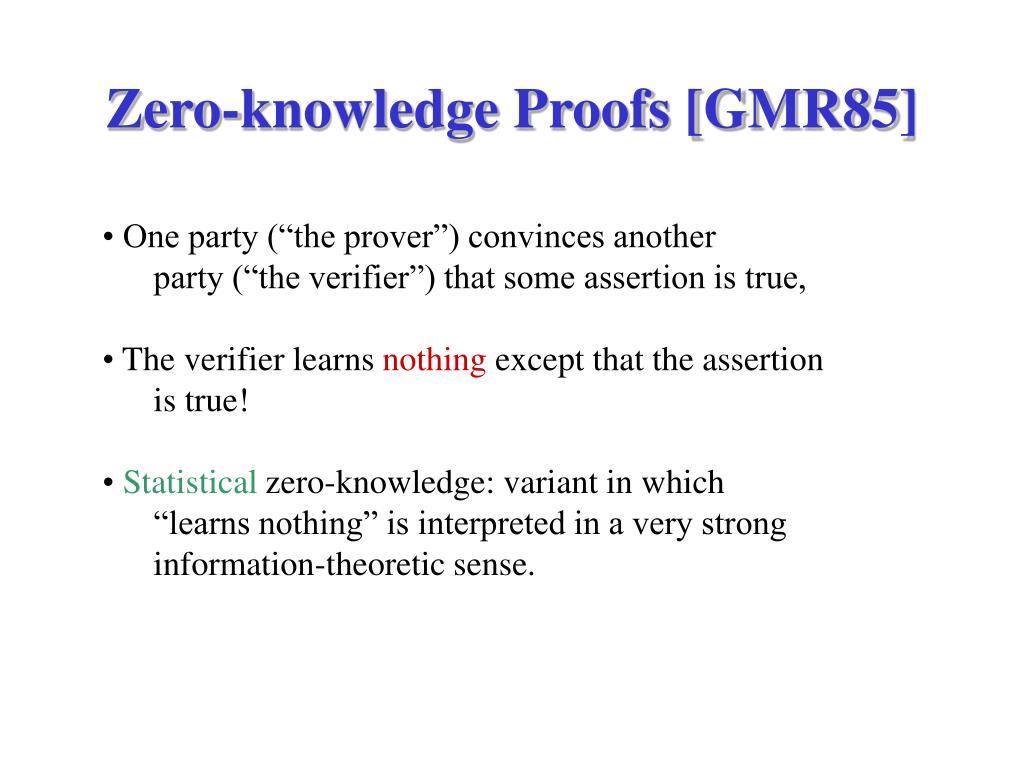

2. Zero-knowledge Proofs [GMR85] • One party (“the prover”) convinces another • party (“the verifier”) that some assertion is true, • The verifier learns nothing except that the assertion • is true! • Statistical zero-knowledge: variant in which • “learns nothing” is interpreted in a very strong information-theoretic sense.

3. Natural Questions • What other assertions? • Characterization? • Efficiency of protocols? • Cheating Verifiers?

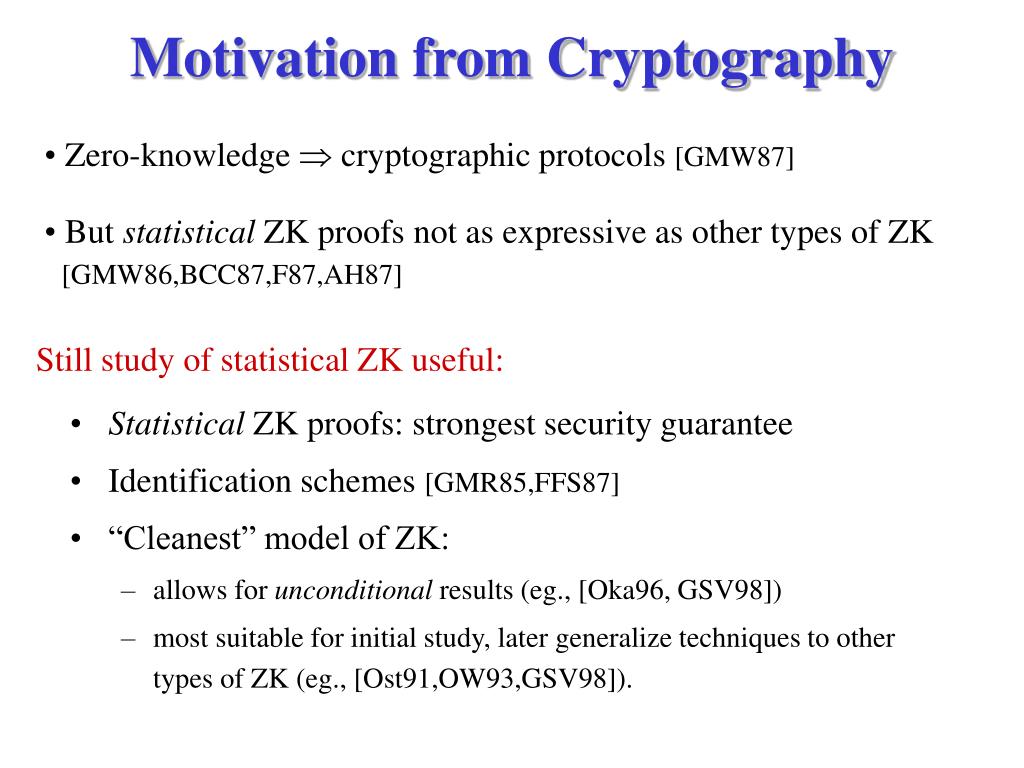

4. Motivation from Cryptography • Zero-knowledge  cryptographic protocols [GMW87] • Butstatistical ZK proofs not as expressive as other types of ZK[GMW86,BCC87,F87,AH87] Still study of statistical ZK useful: • Statistical ZK proofs: strongest security guarantee • Identification schemes [GMR85,FFS87] • “Cleanest” model of ZK: • allows for unconditional results (eg., [Oka96, GSV98]) • most suitable for initial study, later generalize techniques to other types of ZK (eg., [Ost91,OW93,GSV98]).

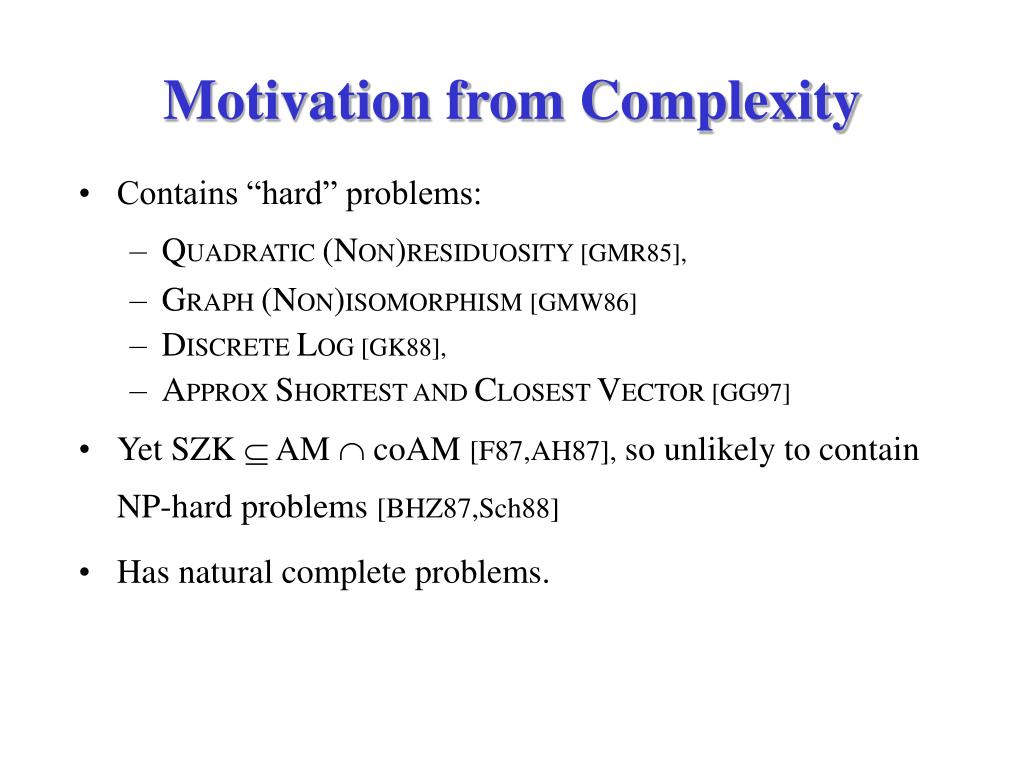

5. Motivation from Complexity • Contains “hard” problems: • QUADRATIC (NON)RESIDUOSITY [GMR85], • GRAPH (NON)ISOMORPHISM [GMW86] • DISCRETE LOG [GK88], • APPROX SHORTEST AND CLOSEST VECTOR [GG97] • Yet SZK  AM  coAM [F87,AH87], so unlikely to contain NP-hard problems [BHZ87,Sch88] • Has natural complete problems.

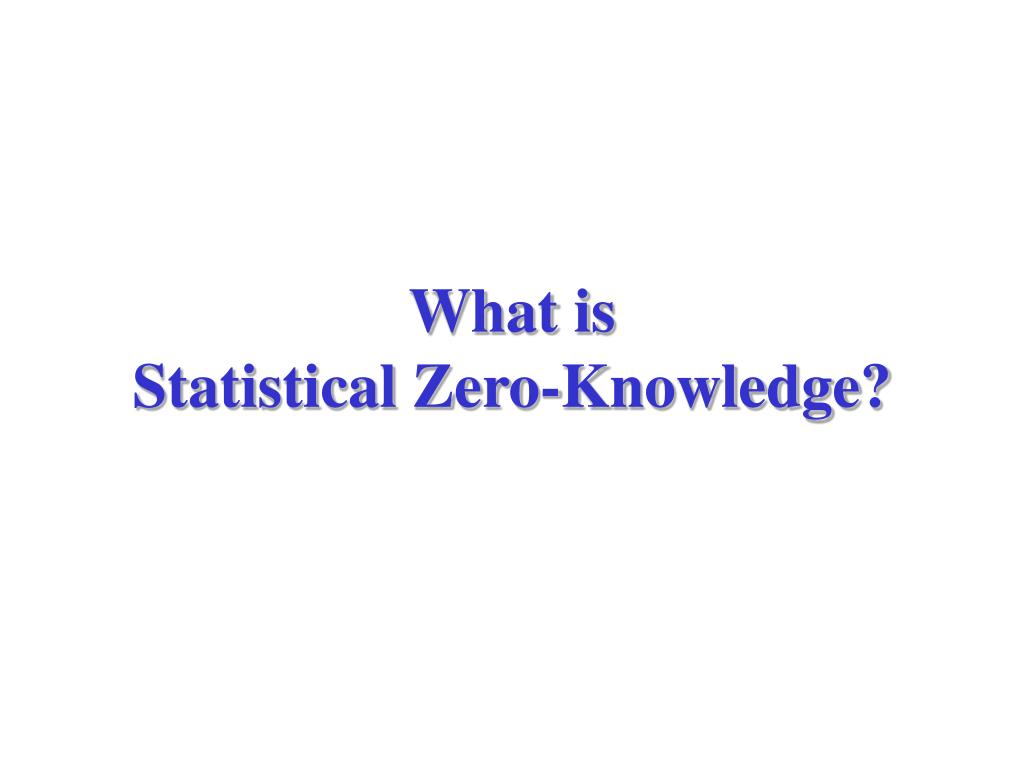

6. What isStatistical Zero-Knowledge?

7. Promise Problems [ESY84] YES NO YES NO Language Promise Problem excluded inputs Example:UNIQUE SAT[VV86]

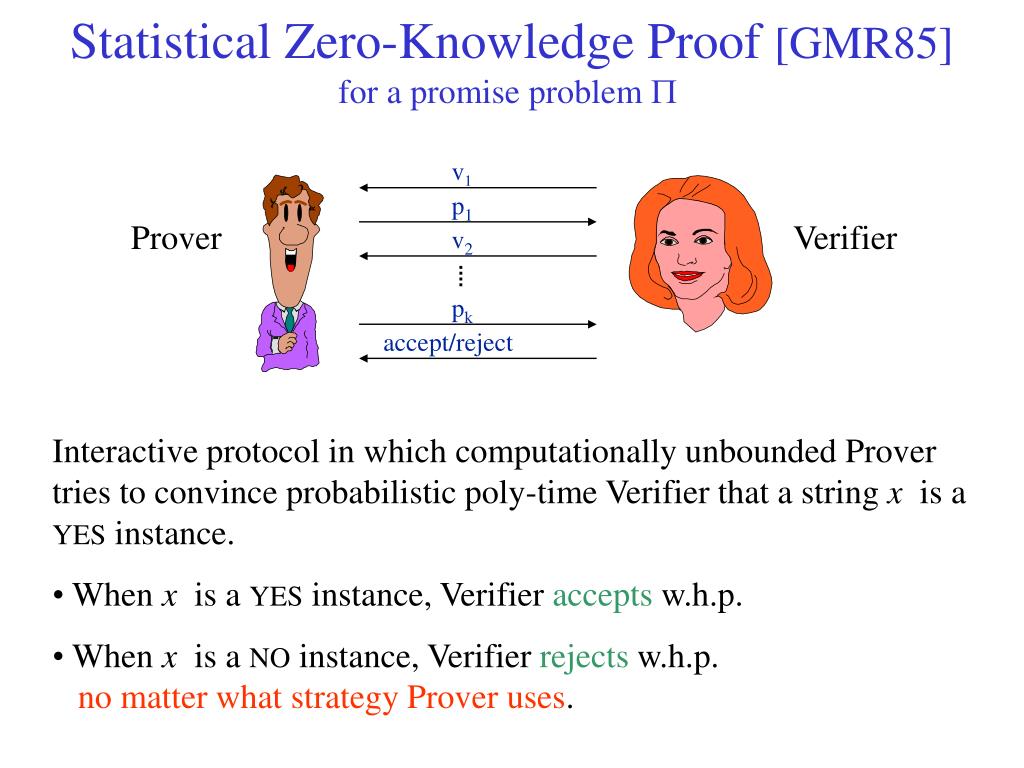

8. v1 p1 v2 pk accept/reject Statistical Zero-Knowledge Proof [GMR85]for a promise problem  Prover Verifier • Interactive protocol in which computationally unbounded Prover tries to convince probabilistic poly-time Verifier that a string x is a YES instance. • When x is a YES instance, Verifier accepts w.h.p. • When x is a NO instance, Verifier rejects w.h.p. no matter what strategy Prover uses.

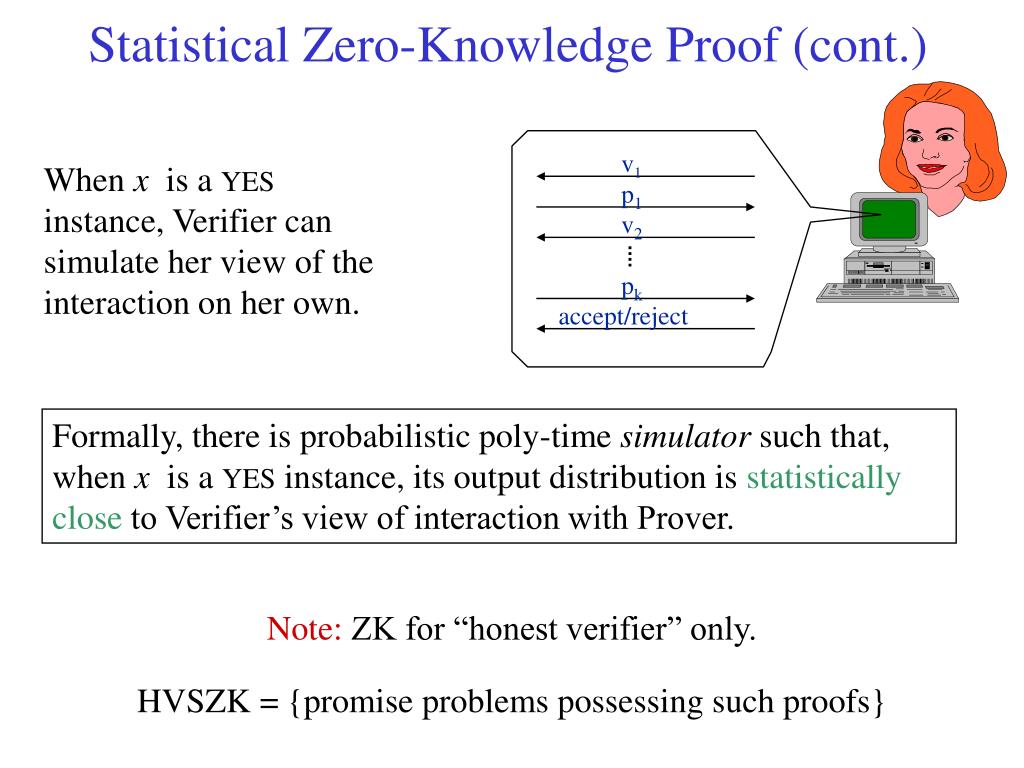

9. v1 p1 v2 pk accept/reject Statistical Zero-Knowledge Proof (cont.) When x is a YES instance, Verifier can simulate her view of the interaction on her own. Formally, there is probabilistic poly-time simulator such that, when x is a YES instance, its output distribution is statistically close to Verifier’s view of interaction with Prover. Note: ZK for “honest verifier” only. HVSZK = {promise problems possessing such proofs}

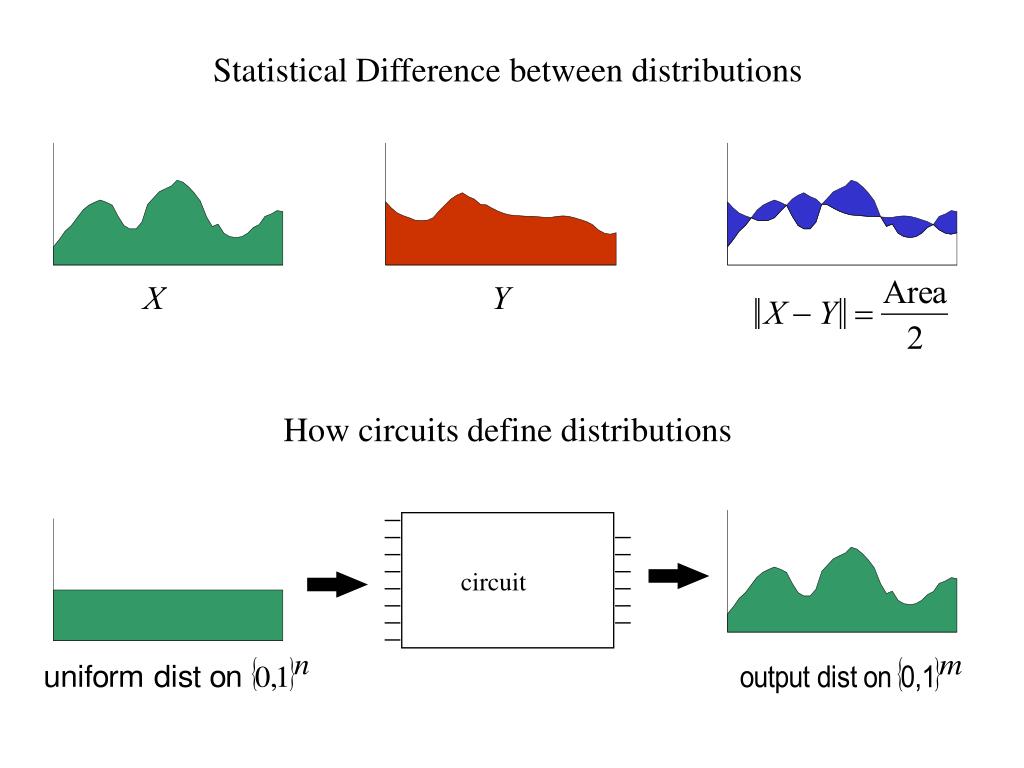

10. circuit Statistical Difference between distributions How circuits define distributions

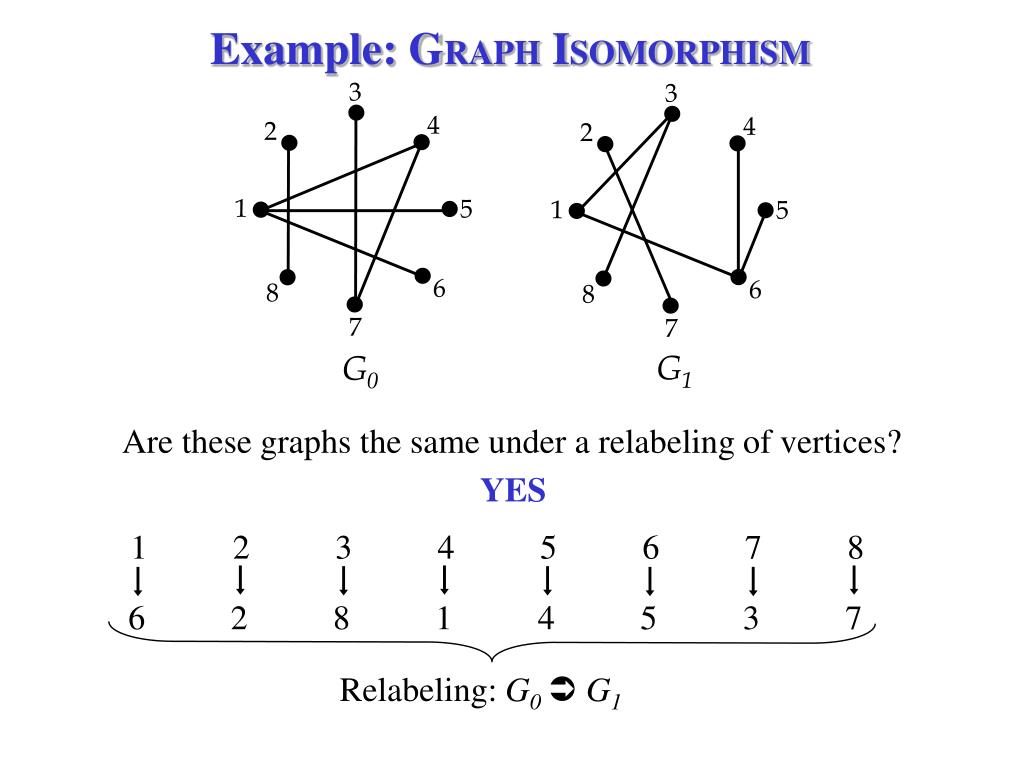

11. 3 3 4 4 2 2 1 5 1 5 6 6 8 8 7 7 G1 G0 Example: GRAPH ISOMORPHISM Are these graphs the same under a relabeling of vertices? YES 1 2 3 4 5 6 7 8 6 2 8 1 4 5 3 7 Relabeling: G0 G1

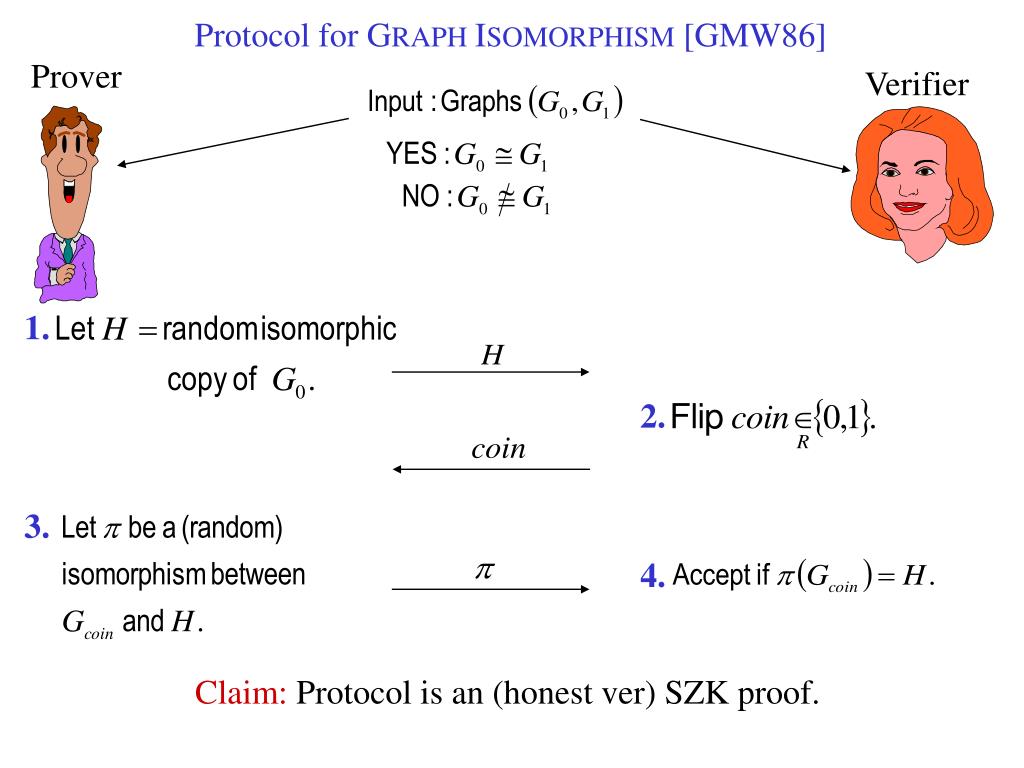

12. Prover Verifier Protocol for GRAPH ISOMORPHISM [GMW86] 1. 2. 3. 4. Claim:Protocol is an (honest ver) SZK proof.

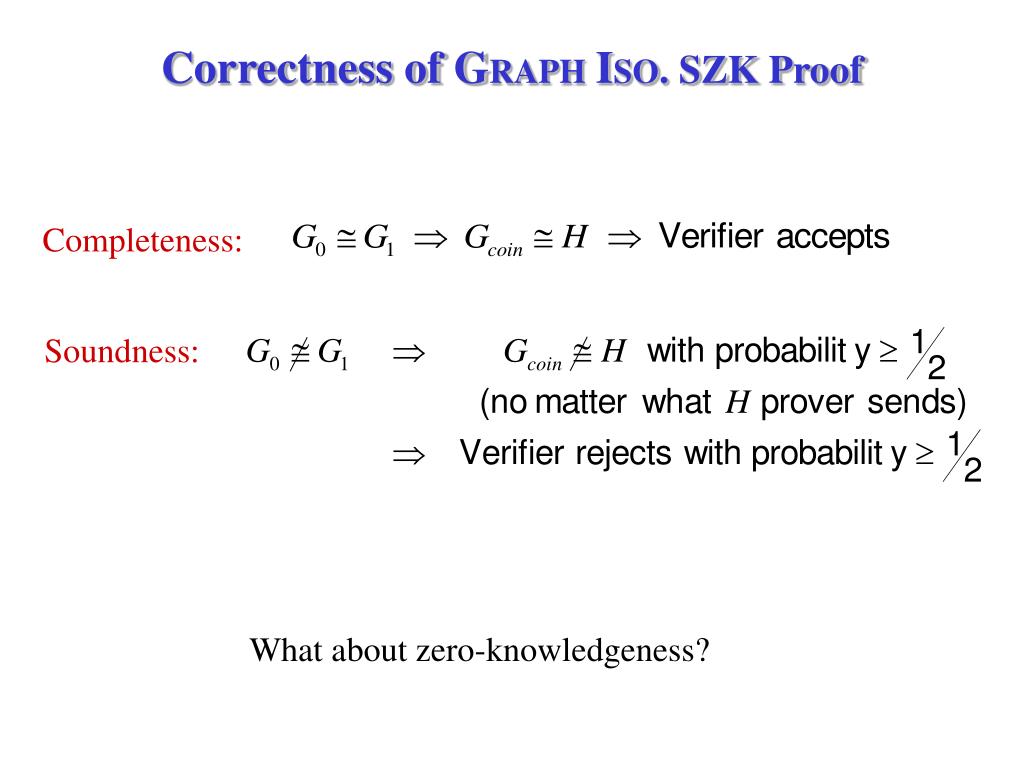

13. Correctness of GRAPHISO. SZK Proof Completeness: Soundness: What about zero-knowledgeness?

14. Simulator : - Pick G0 or G1 at random first:coinÎR {0,1}. - Then let H be random relabeling of Gcoin -- and call the relabeling . Output (H, coin, ). G1 G0 Protocol H: rdm relabeling Of G0 coin: random bit : relabeling H Gb Simulator H: rdm relabeling Of Gb coin: random bit : relabeling H Gb H Zero-knowledgenessof GRAPHISO. Proof

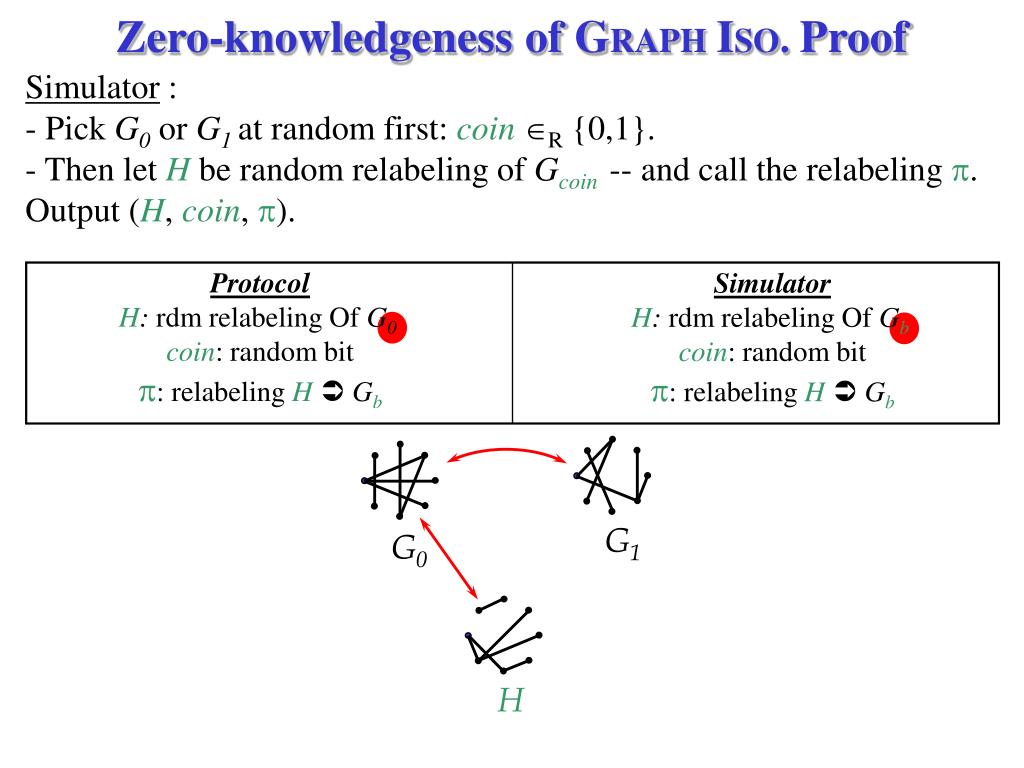

15. Zero-knowledgenessof GRAPHISO. Proof Simulator on input (G0,G1): Analysis: If G0 G1, then, in both simulator & protocol, • H is a random isomorphic copy of G0 (equivalently, G1). • coin is random & independent of H. •  is a random isomorphism between Gcoin and H. •  distributions are identical.

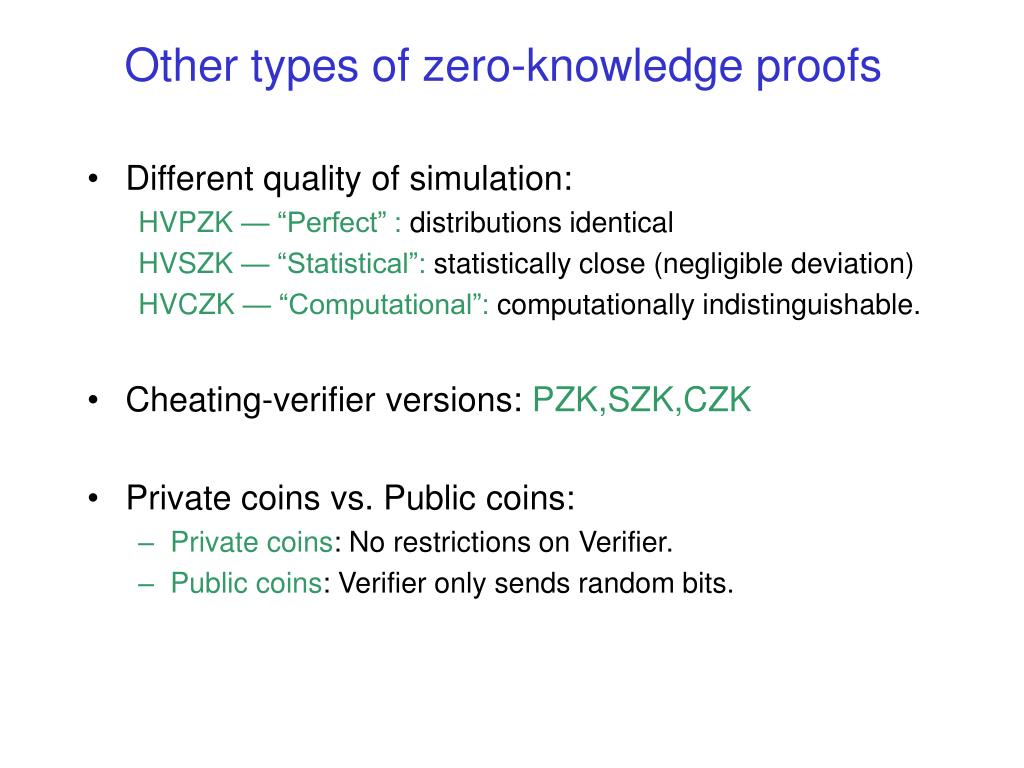

16. Other types of zero-knowledge proofs • Different quality of simulation: HVPZK — “Perfect” : distributions identical HVSZK — “Statistical”: statistically close (negligible deviation) HVCZK — “Computational”: computationally indistinguishable. • Cheating-verifier versions: PZK,SZK,CZK • Complexity: • CZK=IP=PSPACE  NP if one-way functions exist [GMW86,IY87,BGG+88,LFKN90,Sha90] • but SZK unlikely to contain NP-hard problems [F87,AH87,BHZ87,Sch88]

17. Other types of zero-knowledge proofs • Different quality of simulation: HVPZK — “Perfect” : distributions identical HVSZK — “Statistical”: statistically close (negligible deviation) HVCZK — “Computational”: computationally indistinguishable. • Cheating-verifier versions: PZK,SZK,CZK • Private coins vs. Public coins: • Private coins: No restrictions on Verifier. • Public coins: Verifier only sends random bits.

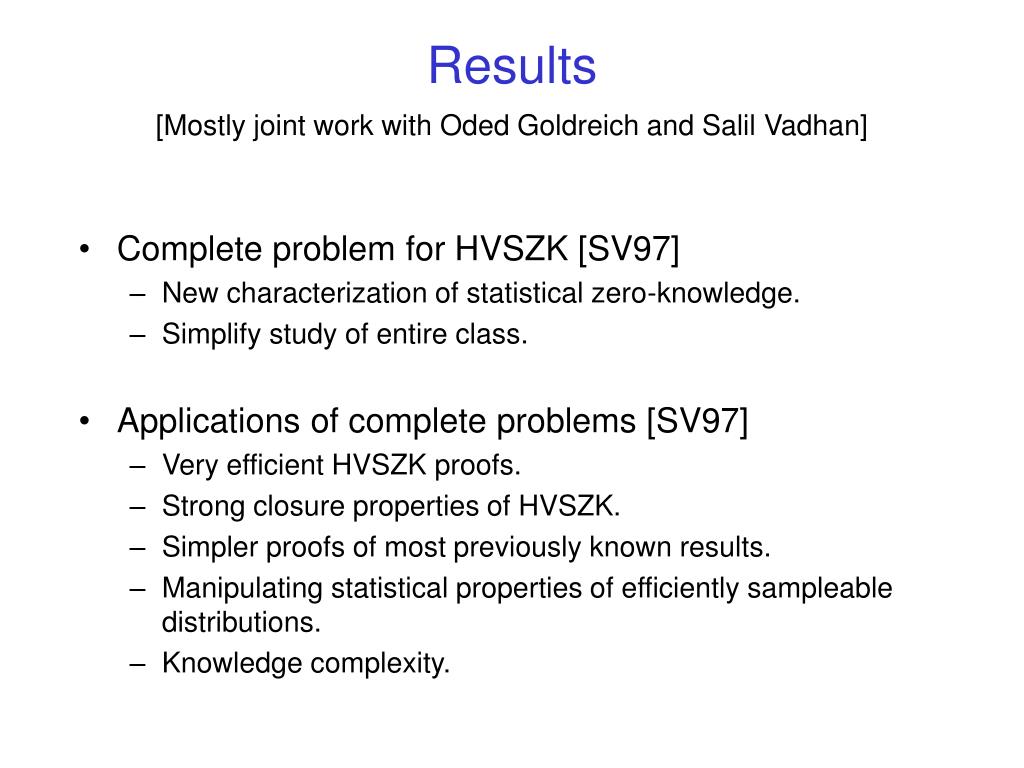

18. Results [Mostly joint work with Oded Goldreich and Salil Vadhan] • Complete problem for HVSZK [SV97] • New characterization of statistical zero-knowledge. • Simplify study of entire class. • Applications of complete problems [SV97] • Very efficient HVSZK proofs. • Strong closure properties of HVSZK. • Simpler proofs of most previously known results. • Manipulating statistical properties of efficiently sampleable distributions. • Knowledge complexity.

19. Results (cont.) • Private coins vs. public coins [GV99] • Transform any HVSZK proof system into a “public coin” one (i.e., verifier’s messages are just random coins flips) • Originally proved by Okamoto [Oka96]; new proof much simpler • Honest verifiers vs. cheating verifiers [GSV98] • Transform public-coin honest-verifier ZK proofs to cheating-verifier ZK proofs. • Combining w/previous result, HVSZK=SZK. • Honest-verifier ZK results translate to cheating-verifier ZK. • “Noninteractive” SZK [GSV99] • Complete problems related to those for SZK • Use these to compare the two classes.

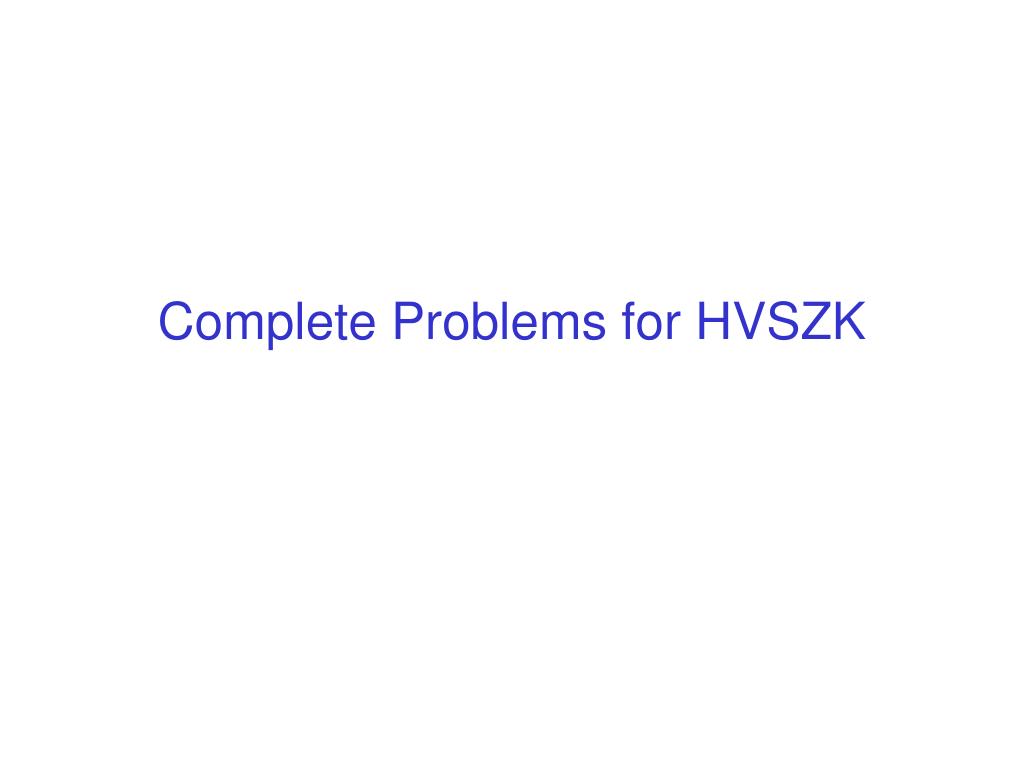

20. Complete Problems for HVSZK

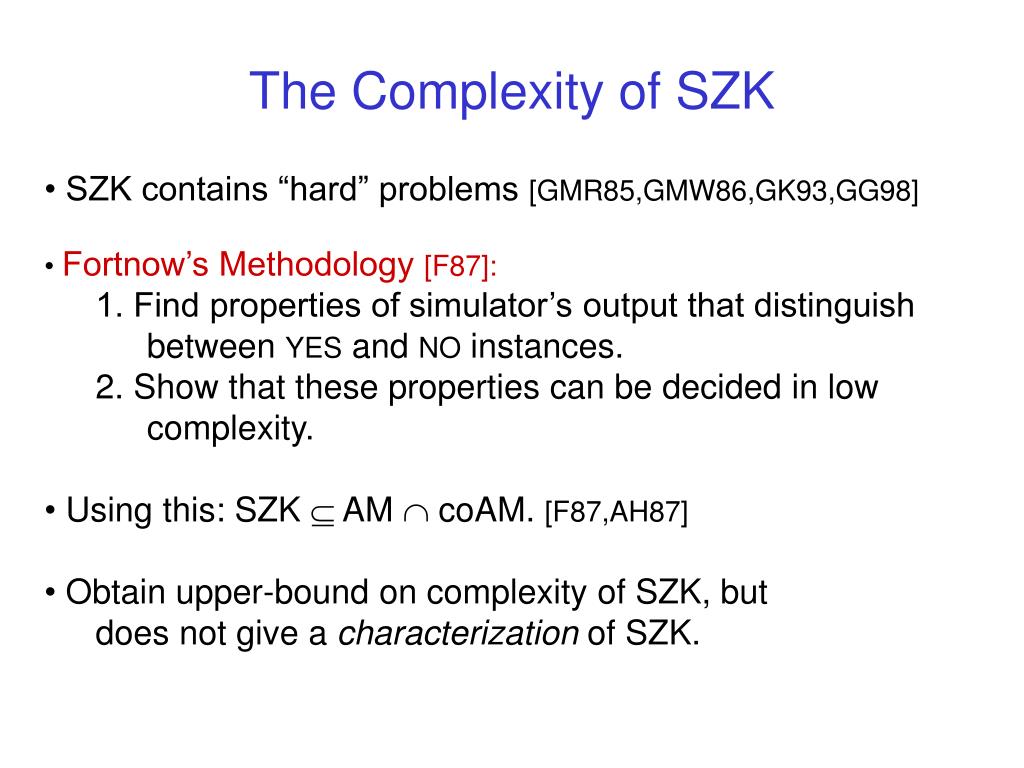

21. The Complexity of SZK • SZK contains “hard” problems [GMR85,GMW86,GK93,GG98] • Fortnow’s Methodology [F87]: • 1. Find properties of simulator’s output that distinguish • between YES and NO instances. • 2. Show that these properties can be decided in low • complexity. • Using this: SZK  AM  coAM. [F87,AH87] • Obtain upper-bound on complexity of SZK, but • does not give a characterization of SZK.

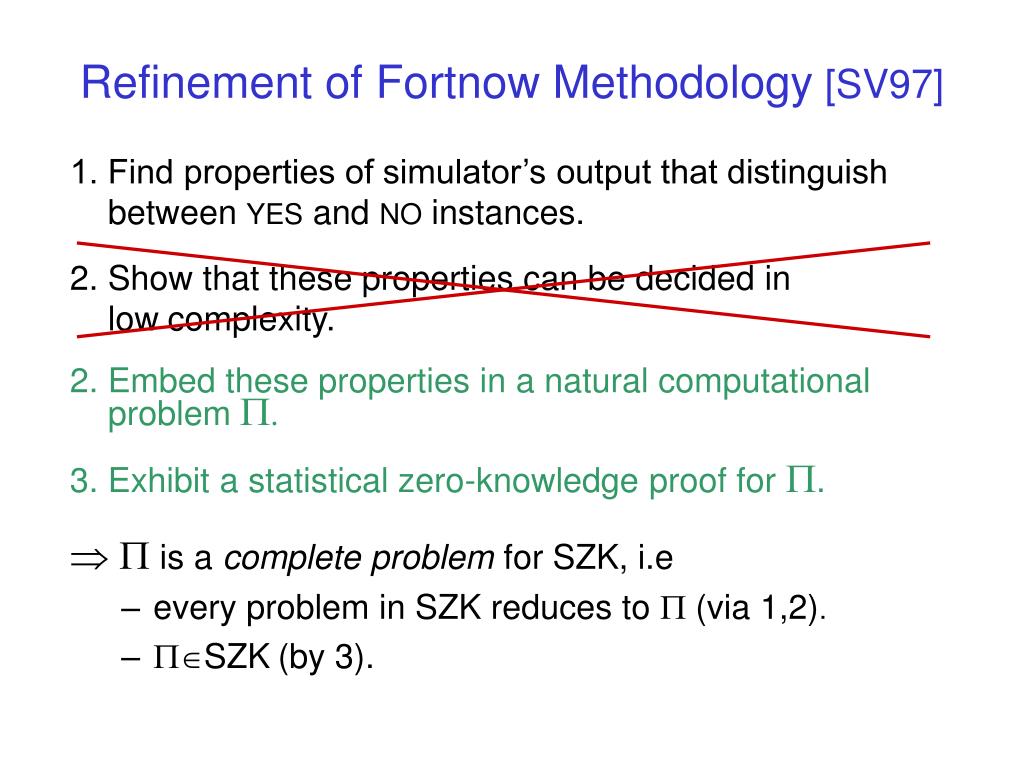

22. Refinement of Fortnow Methodology [SV97] 1. Find properties of simulator’s output that distinguish between YES and NO instances.   is a complete problem for SZK, i.e • every problem in SZK reduces to  (via 1,2). • SZK(by 3). 2. Show that these properties can be decided in lowcomplexity. 2. Embed these properties in a natural computational problemP. 3. Exhibit a statistical zero-knowledge proof for P.

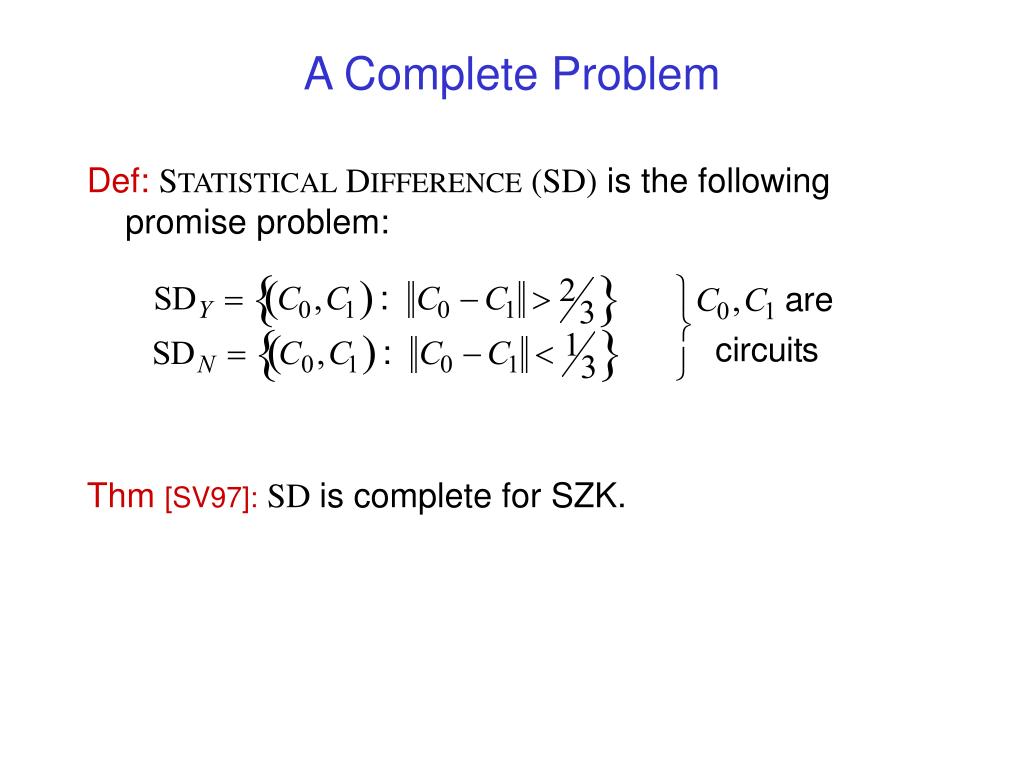

23. A Complete Problem Def:STATISTICAL DIFFERENCE (SD) is the following promise problem: Thm [SV97]:SD is complete for SZK.

24. circuit Statistical Difference between distributions How circuits define distributions

25. Meaning of Completeness Thm • “The assertions that can be proven in statistical zero knowledge are exactly those that can be cast as comparing the statistical difference between two sampleable distributions.” • Characterizes HVSZK with no reference to interaction or zero knowledge. • Tool for proving general theorems about HVSZK. • Results about HVSZK  Techniques for manipulating sampleable distributions

26. Refinement of Fortnow Methodology [SV97] 1. Find properties of simulator’s output that distinguish between YES and NO instances.   is a complete problem for SZK, i.e • every problem in SZK reduces to  (via 1,2). • SZK(by 3). 2. Show that these properties can be decided in lowcomplexity. 2. Embed these properties in a natural computational problemP. 3. Exhibit a statistical zero-knowledge proof for P.

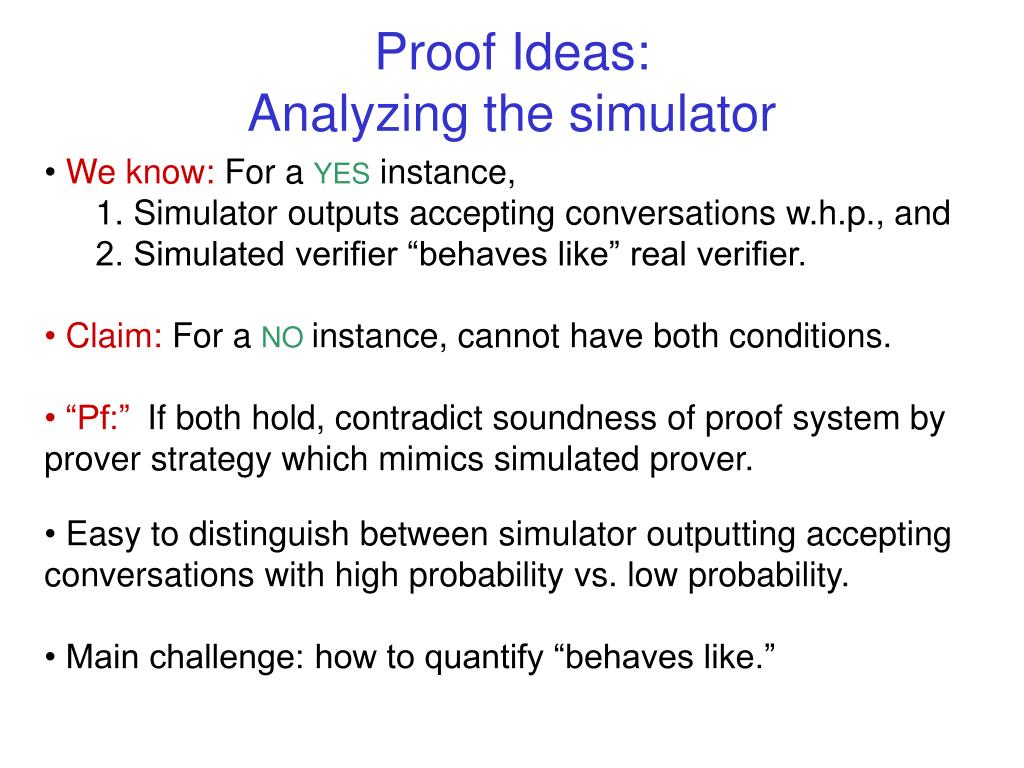

27. Proof Ideas: Analyzing the simulator • We know: For a YESinstance, • 1. Simulator outputs accepting conversations w.h.p., and • 2. Simulated verifier “behaves like” real verifier. • Claim: For a NO instance, cannot have both conditions. • “Pf:” If both hold, contradict soundness of proof system by • prover strategy which mimics simulated prover. • Easy to distinguish between simulator outputting accepting • conversations with high probability vs. low probability. • Main challenge: how to quantify “behaves like.”

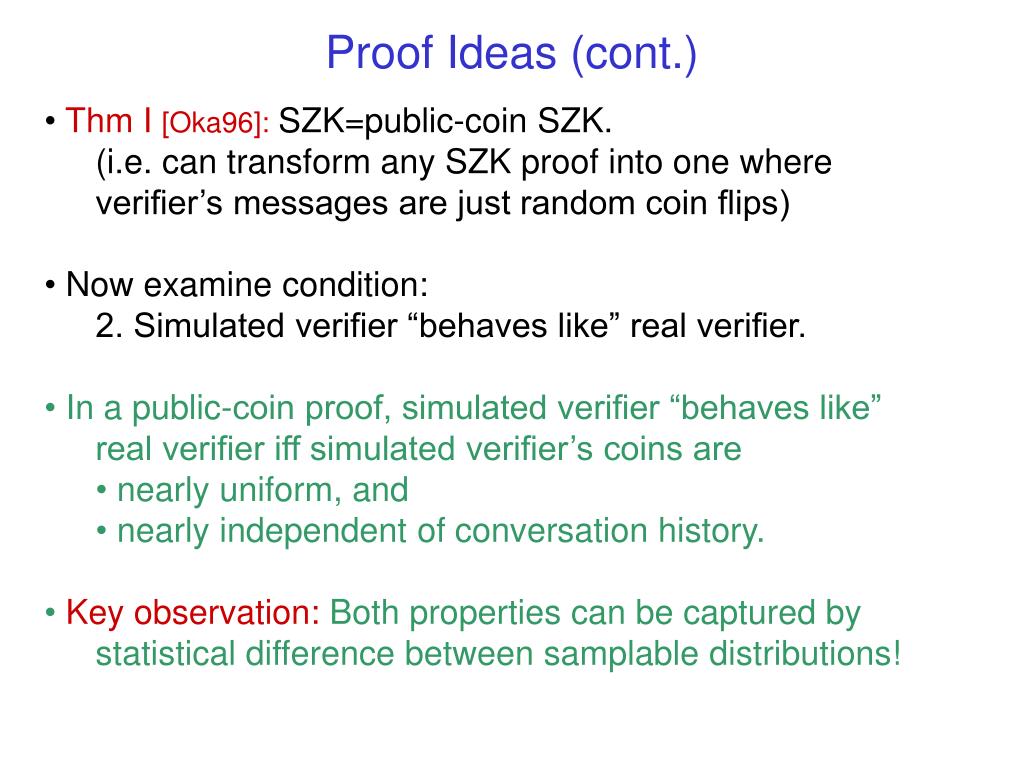

28. Proof Ideas (cont.) • Thm I [Oka96]:SZK=public-coin SZK. • (i.e. can transform any SZK proof into one where • verifier’s messages are just random coin flips) • Now examine condition: • 2. Simulated verifier “behaves like” real verifier. • In a public-coin proof, simulated verifier “behaves like” • real verifier iff simulated verifier’s coins are • nearly uniform, and • nearly independent of conversation history. • Key observation: Both properties can be captured by • statistical difference between samplable distributions!

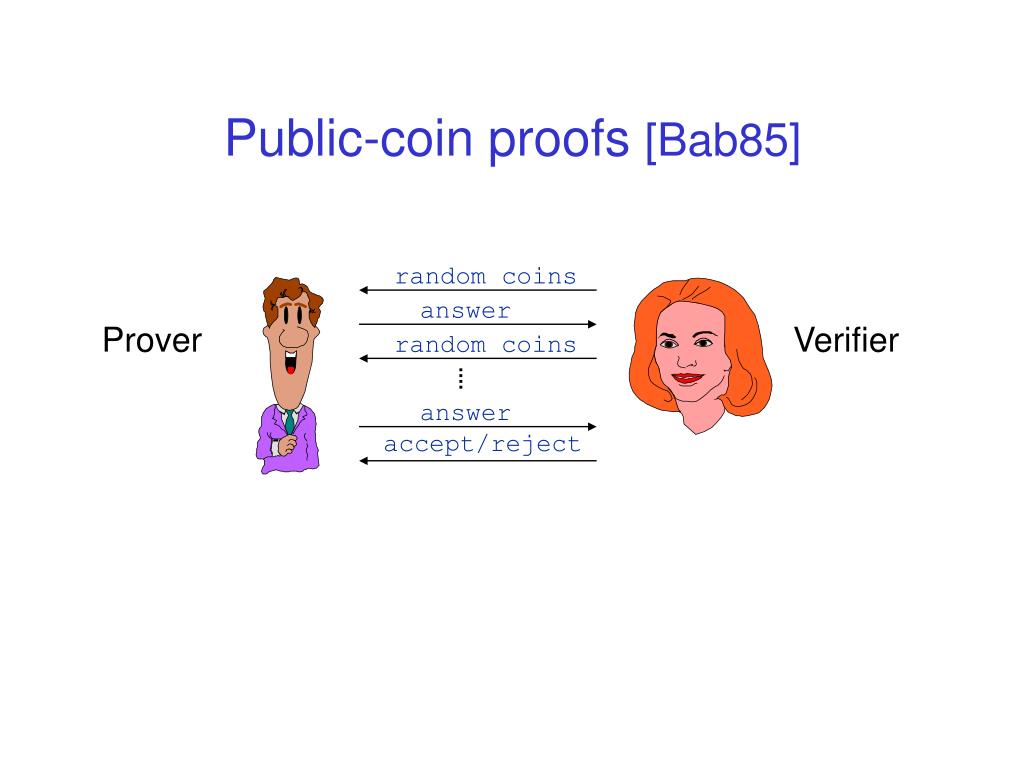

29. Public-coin proofs [Bab85] random coins answer Prover Verifier random coins answer accept/reject

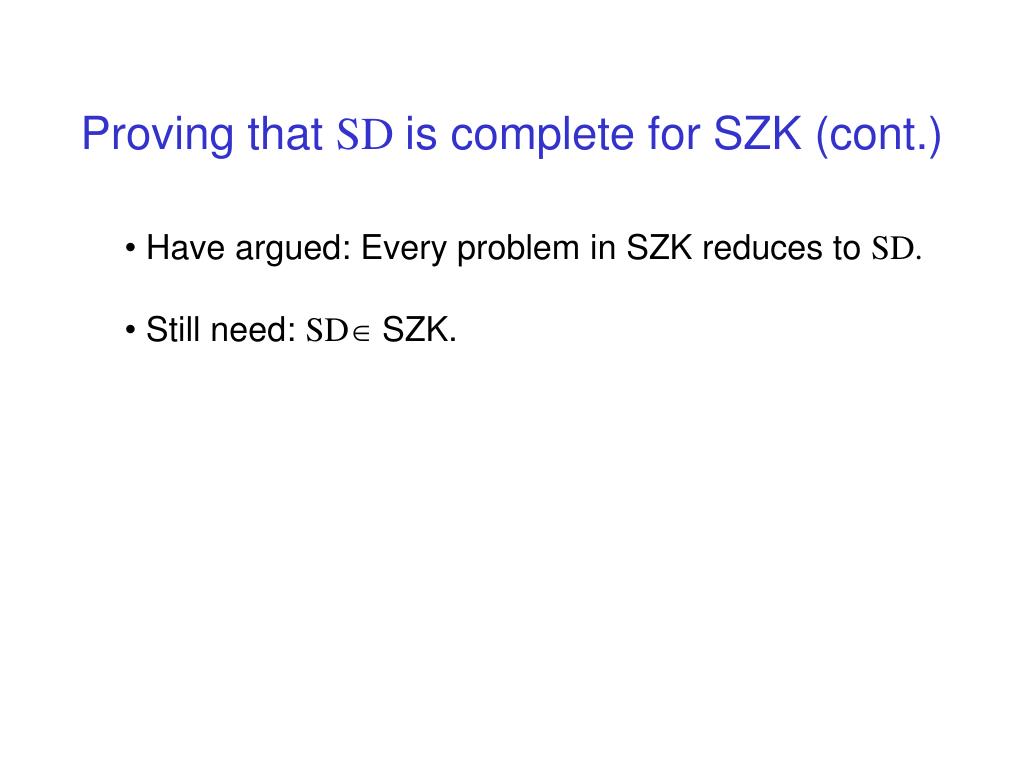

30. Proving that SD is complete for SZK (cont.) • Have argued: Every problem in SZK reduces to SD. • Still need: SD SZK.

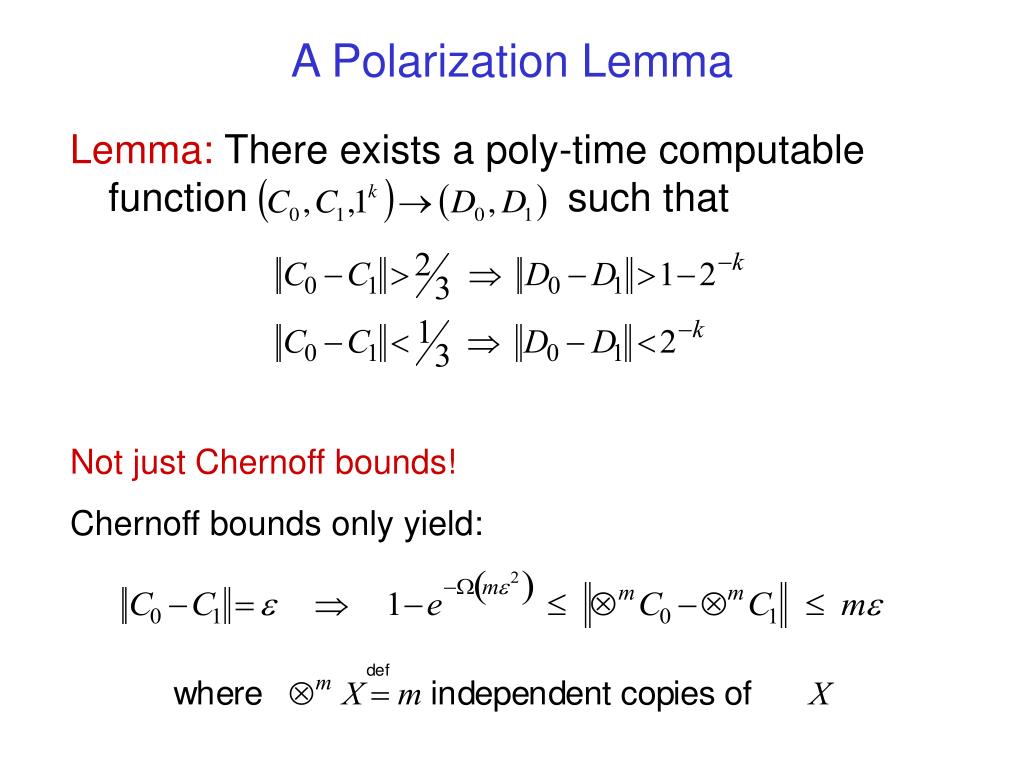

31. A Polarization Lemma Lemma:There exists a poly-time computable function such that Not just Chernoff bounds! Chernoff bounds only yield:

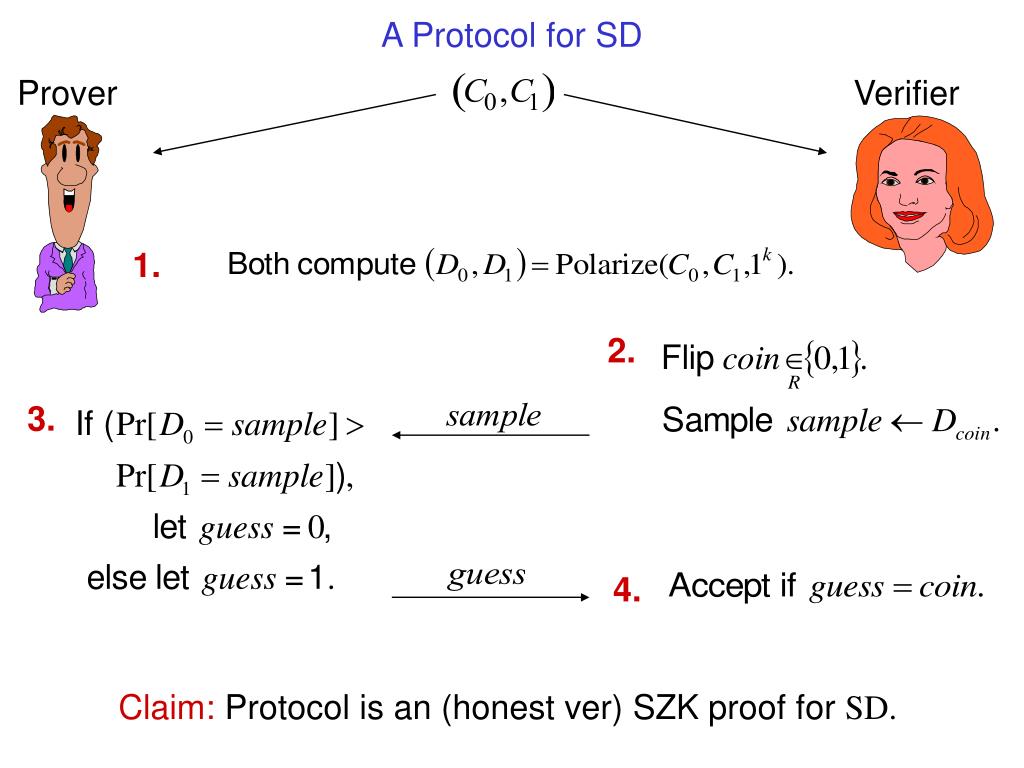

32. Prover Verifier A Protocol for SD 1. 2. 3. 4. Claim:Protocol is an (honest ver) SZK proof for SD.

33. Properties of D0 and D1

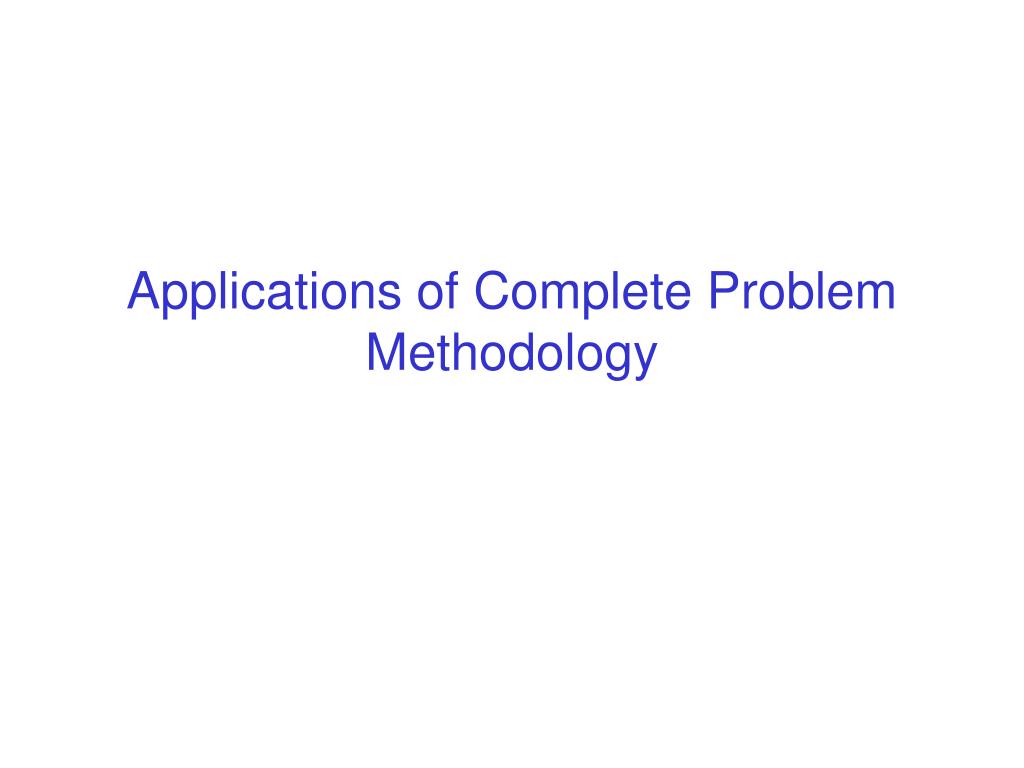

34. Applications of Complete Problem Methodology

35. Efficient HVSZK proof systems • Cor: Every problem in HVSZK has an honest-verifier statistical zero-knowledge proof system with: • 2 messages • 1 bit of prover-to-verifier communication. • soundness error 1/2+2-k • completeness error & simulator deviation 2-k • deterministic prover (where k is a “security parameter” independent of input length)

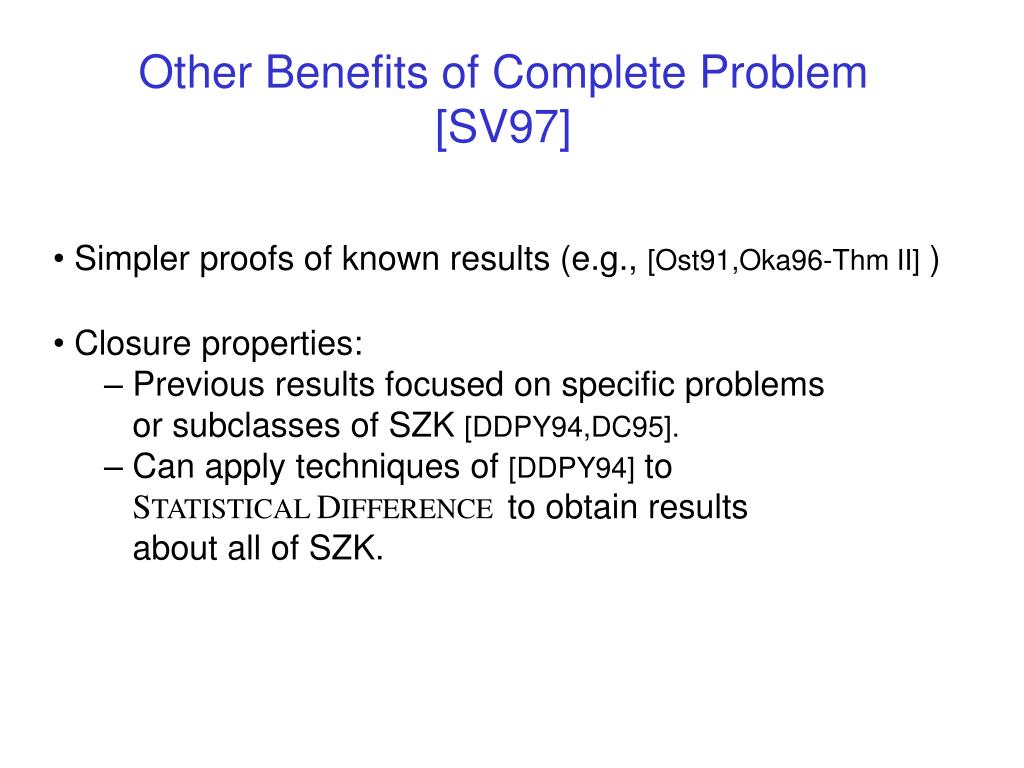

36. Other Benefits of Complete Problem [SV97] • Simpler proofs of known results (e.g., [Ost91,Oka96-Thm II] ) • Closure properties: • Previous results focused on specific problems • or subclasses of SZK [DDPY94,DC95]. • Can apply techniques of [DDPY94] to • STATISTICAL DIFFERENCE to obtain results • about all of SZK.

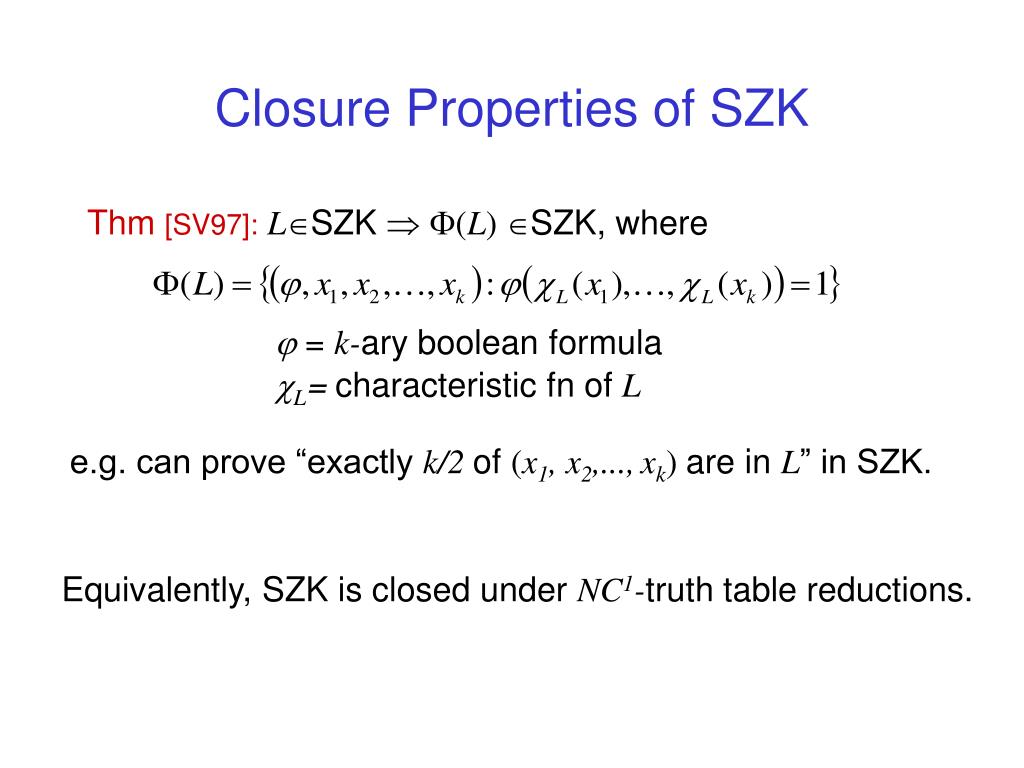

37. Closure Properties of SZK Thm [SV97]:LSZK  (L) SZK, where  = k-ary boolean formula L= characteristic fn of L e.g. can prove “exactly k/2 of (x1, x2,...,xk)are in L” in SZK. Equivalently, SZK is closed under NC1-truth table reductions.

38. Simplifying Okamoto’s Thm I [GV98] Use the “complete problem methodology”: Consider promise problem ENTROPY DIFFERENCE (ED): Main steps in proof: • Reduce every problem in SZK to ED. • (Uses analysis of simulator from [AH87].) • Show that ED has a public-coin SZK proof system. • (Employs two subprotocols of [Oka96].)

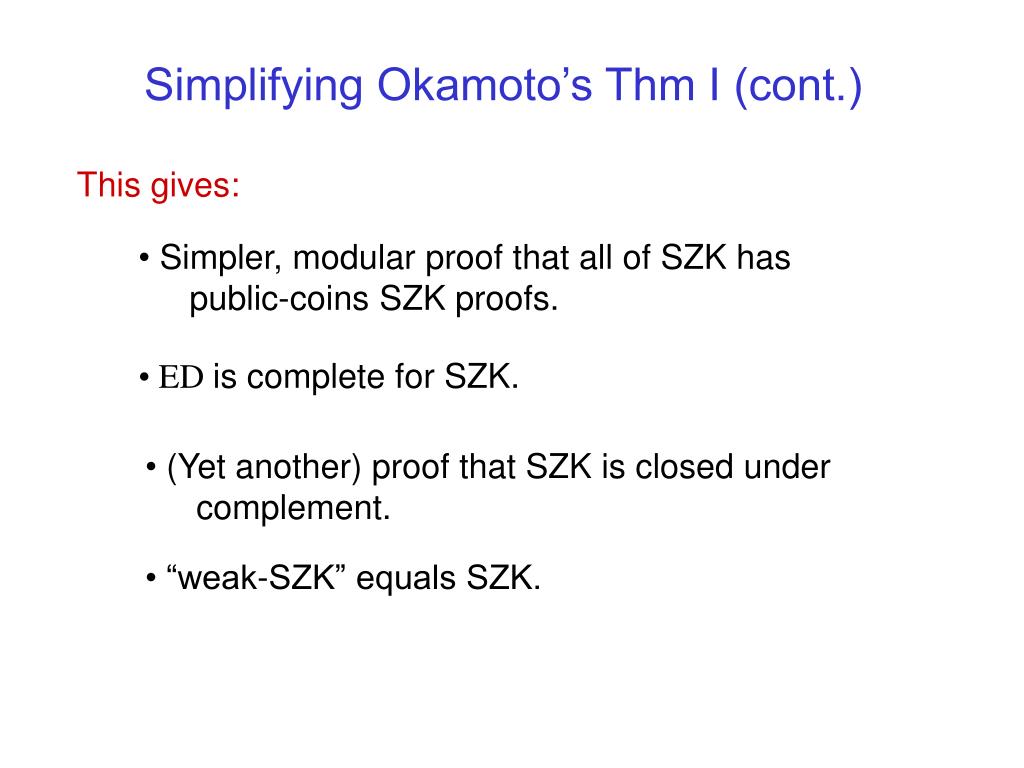

39. Simplifying Okamoto’s Thm I (cont.) This gives: • Simpler, modular proof that all of SZK has • public-coins SZK proofs. • ED is complete for SZK. • (Yet another) proof that SZK is closed under • complement. • “weak-SZK” equals SZK.

40. Honest verifier vs. any verifier

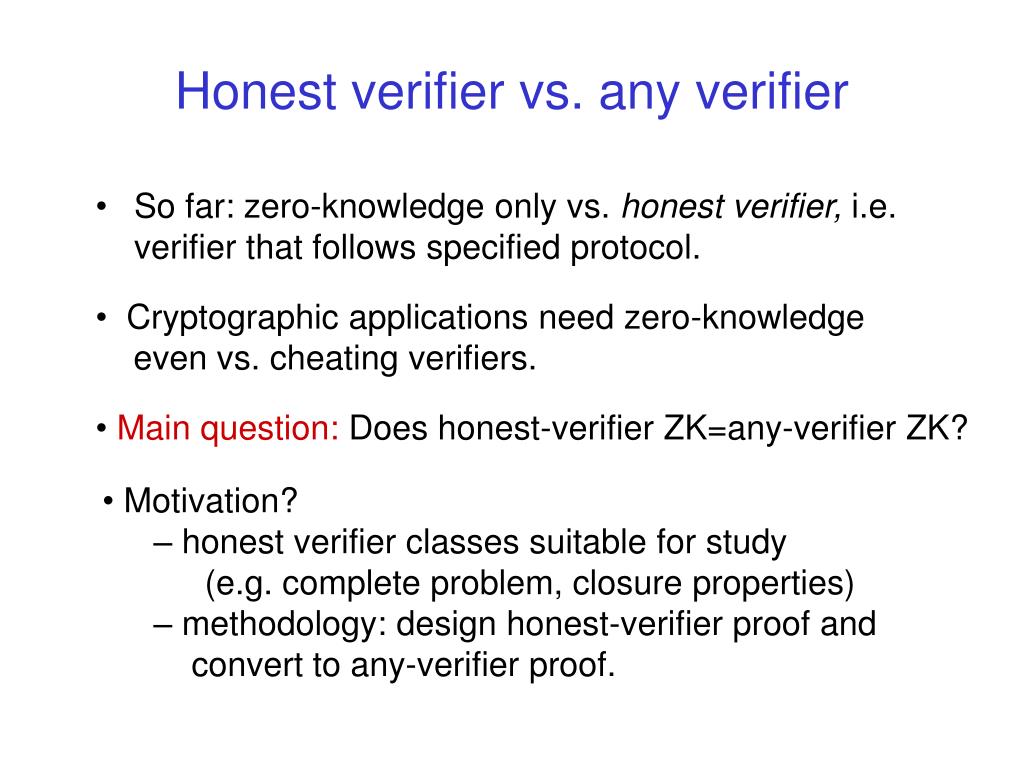

41. Honest verifier vs. any verifier • So far: zero-knowledge only vs. honest verifier, i.e. verifier that follows specified protocol. • Cryptographic applications need zero-knowledge • even vs. cheating verifiers. • Main question: Does honest-verifier ZK=any-verifier ZK? • Motivation? • honest verifier classes suitable for study • (e.g. complete problem, closure properties) • methodology: design honest-verifier proof and • convert to any-verifier proof.

42. Any-verifier Statistical Zero-Knowledge v1 When x is a YES instance, Verifier can simulate her view of the interaction on her own. p1 v2 pk accept/reject Formally, for every poly-time verifier, there is probabilistic poly-time simulator such that, when x is a YES instance, its output distribution is statistically close to Verifier’s view of interaction with Prover. Computational Zero-Knowledge (CZK): require simulator distribution to be computationally indistinguishable rather than statistically close.

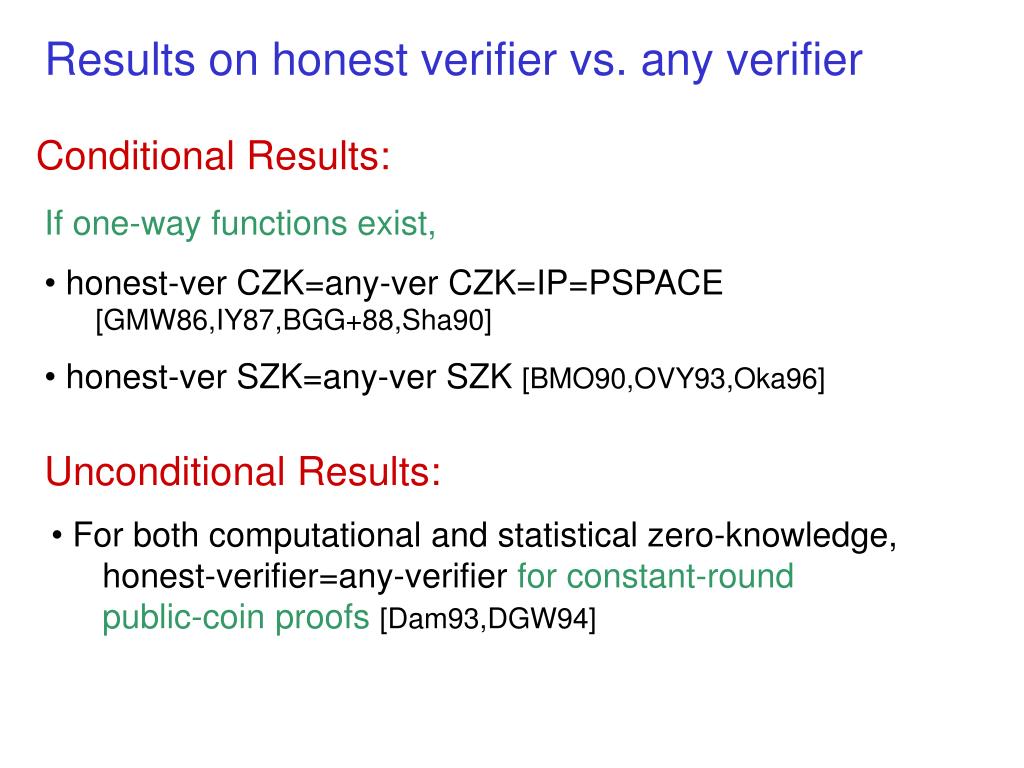

43. Results on honest verifier vs. any verifier Conditional Results: If one-way functions exist, • honest-ver CZK=any-ver CZK=IP=PSPACE • [GMW86,IY87,BGG+88,Sha90] • honest-ver SZK=any-ver SZK [BMO90,OVY93,Oka96] Unconditional Results: • For both computational and statistical zero-knowledge, • honest-verifier=any-verifier for constant-round • public-coin proofs [Dam93,DGW94]

44. For both computational and statistical zero-knowledge, • honest-verifier=any-verifier for constant-round • public-coin proofs [Dam93,DGW94][GSV98] (+ [Oka96])  honest-ver SZK=any-ver SZK

45. Results on honest verifier vs. any verifier Conditional Results: If one-way functions exist, • honest-ver CZK=any-ver CZK=IP=PSPACE • [GMW86,IY87,BGG+88,Sha90] • honest-ver SZK=any-ver SZK [BMO90,OVY93,Oka96] Unconditional Results: • For both computational and statistical zero-knowledge, • honest-verifier=any-verifier for constant-round • public-coin proofs [Dam93,DGW94][GSV98] (+ [Oka96])  honest-ver SZK=any-ver SZK

46. The Transformation Prover random coins 1 Verifier answer 1 random coins 2 Any-verifier Proof System answer k accept/reject Random Selection Protocol Honest-verifier Proof System Verifier Prover 1 answer 1 Random Selection Protocol 2 answer k accept/reject

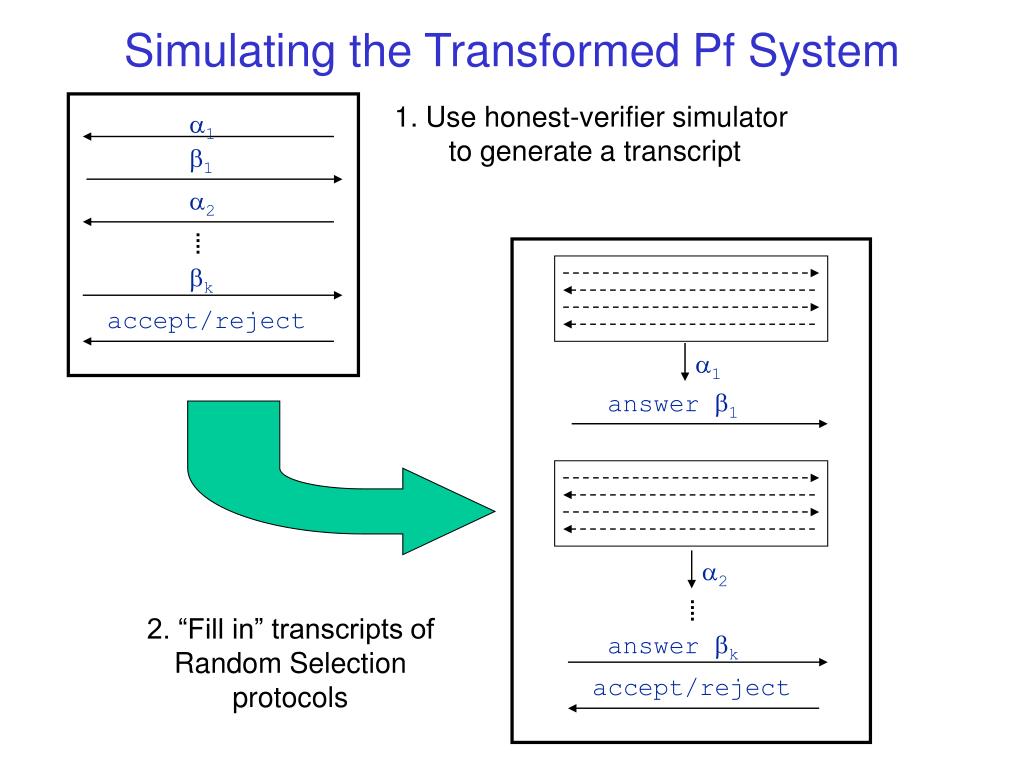

47. Simulating the Transformed Pf System 1. Use honest-verifier simulator to generate a transcript 1 1 2 k accept/reject 1 answer 1 2 2. “Fill in” transcripts of Random Selection protocols answer k accept/reject

48. Desired Properties of Random Selection Protocol • Dishonest verifier: • Outcome  distributed almost uniformly. • Simulability: For (almost) every , can simulate • RS protocol transcripts yielding output . • Dishonest prover: (OK for soundness by parallel repetition of original proof system) • [GSV98] give a public-coin protocol with these properties • (building on [DGW94]).

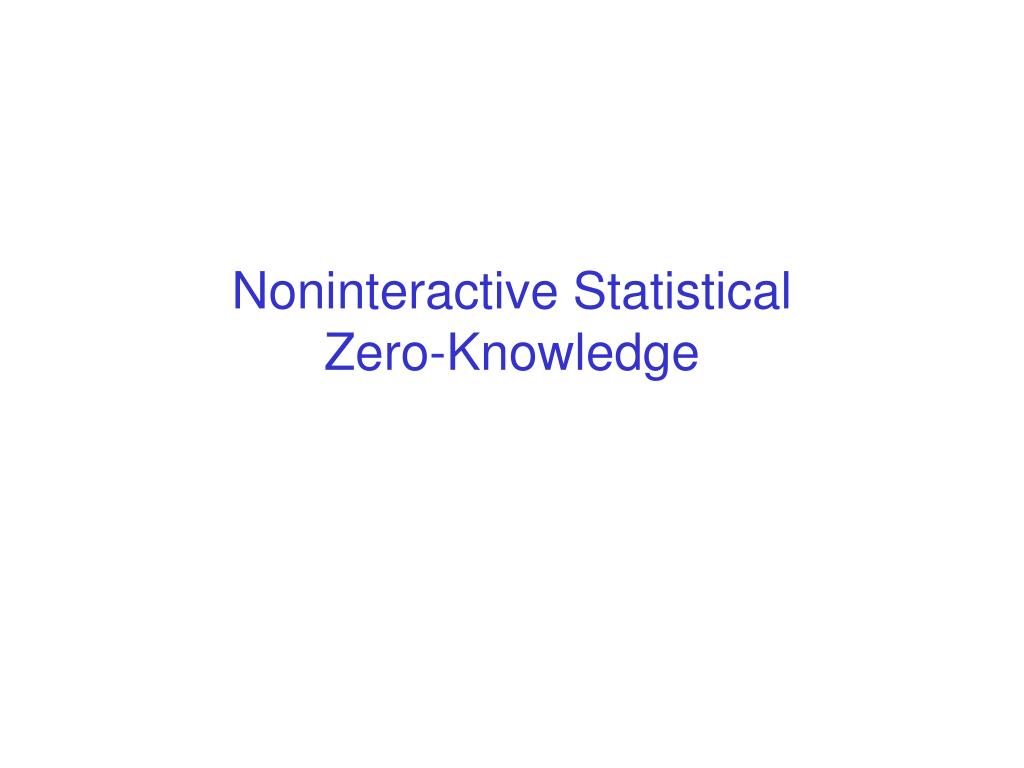

49. Noninteractive Statistical Zero-Knowledge

50. Noninteractive Statistical Zero-Knowledge [BFM88,BDMP91] shared random string Prover (unbounded) Verifier (poly-time) proof accept/reject • On input x (instance of promise problem): • When x is a YES instance, Verifier accepts w.h.p. • When x is a NO instance, Verifier rejects w.h.p. no matter what proof Prover sends.
