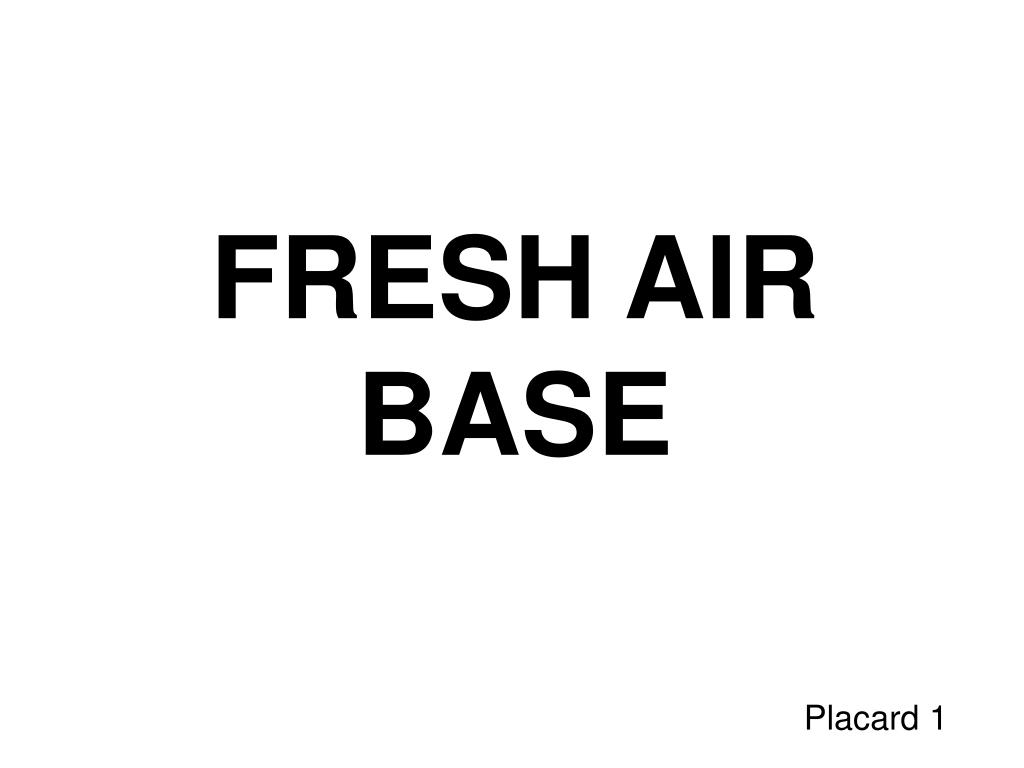

  1. FRESH AIR BASE Placard 1

  2. #1 ENTRY Placard 2

  3. Clear Air Placard 3

  4. LIGHT SMOKE100 ppm – CO20.0 % - O210ppm – NH4 Placard 4

  5. CLEAR AIR Placard 5b

  6. 150 HP FAN Placard 6

  7. OFF Placard 7

  8. ON Placard 8b

  9. VENT BAG Placard 9

  10. LIGHT SMOKE800 ppm – CO19.0 % - O250ppm – NH4 Placard 10

  11. CLEAR AIR Placard 11b

  12. WATER OVER KNEE DEEP Placard 12

  13. 2 SETS BRATTICE MATERIAL Placard 13

  14. HEAVY SMOKE1300 ppm – CO18.0 % - O2100ppm – NH4 Placard 14

  15. CLEAR AIR Placard 15b

  16. DOOR Placard 16

  17. DOOR Placard 17

  18. HEAVY SMOKE1300 ppm – CO15.0 % - O2350ppm – NH4 Placard 18

  19. Clear Air Placard 19b

  20. HEAVY SMOKE1300 ppm – CO15.0 % - O2350ppm – NH4 Placard 20

  21. Clear Air Placard 21b

  22. JOE JONES0222 Placard 22

  23. DEAD Placard 23

  24. CAVED RIB Placard 24

  25. CAVED RIB Placard 25

  26. KUBOTA TRACTOR ON FIRE Placard 26

  27. HEAVY SMOKE1300 ppm – CO15.0 % - O2350ppm – NH4 Placard 27

  28. CLEAR AIR Placard 28b

  29. HEAVY SMOKE1300 ppm – CO15.0 % - O2350ppm – NH4 Placard 29

  30. CLEAR AIR Placard 30b

  31. LIGHT SMOKE100 ppm – CO17.0 % - O2100ppm – NH4 Placard 31

  32. CLEAR AIR Placard 32b

  33. JACK JONES 0223 Placard 33

  34. BURNED RIGHT HAND DIFFICULTY BREATHING Placard 34

  35. CAVED TIGHT Placard 35

  36. CAVED TIGHT Placard 36

  37. HEAVY SMOKE1300 ppm – CO15.0 % - O2350ppm – NH4 Placard 37

  38. CLEAR AIR Placard 38b

  39. DOOR Placard 39

  40. DOOR Placard 40

  41. Mine Phone Placard 41

  42. DOOR Placard 42

  43. DOOR Placard 43

  44. JIM JONES 0221 Placard 44

  45. 2 VENT BAGS Placard 45

  46. DOOR Placard 46

  47. DOOR Placard 47

  48. HEAVY SMOKE1300 ppm – CO15.0 % - O2350ppm – NH4 Placard 48

  49. Clear Air Placard 49b

  50. BRATTICE MATERIAL1 Set Placard 50
