This document details the flight profile of a launch vehicle, analyzing critical events from liftoff through stages of altitude and velocity. Key milestones include drogue chute deployment between T+30 and T+37 seconds at an altitude of 8400 feet AGL, 2nd stage engine burnout at T+16 seconds, and main parachute deployment at T+60 seconds. Additional observations include payload deployment, velocities at various stages, and altitude readings. Comprehensive insights are enriched with images by Ray LaPanse, capturing significant moments in the flight trajectory.
E N D

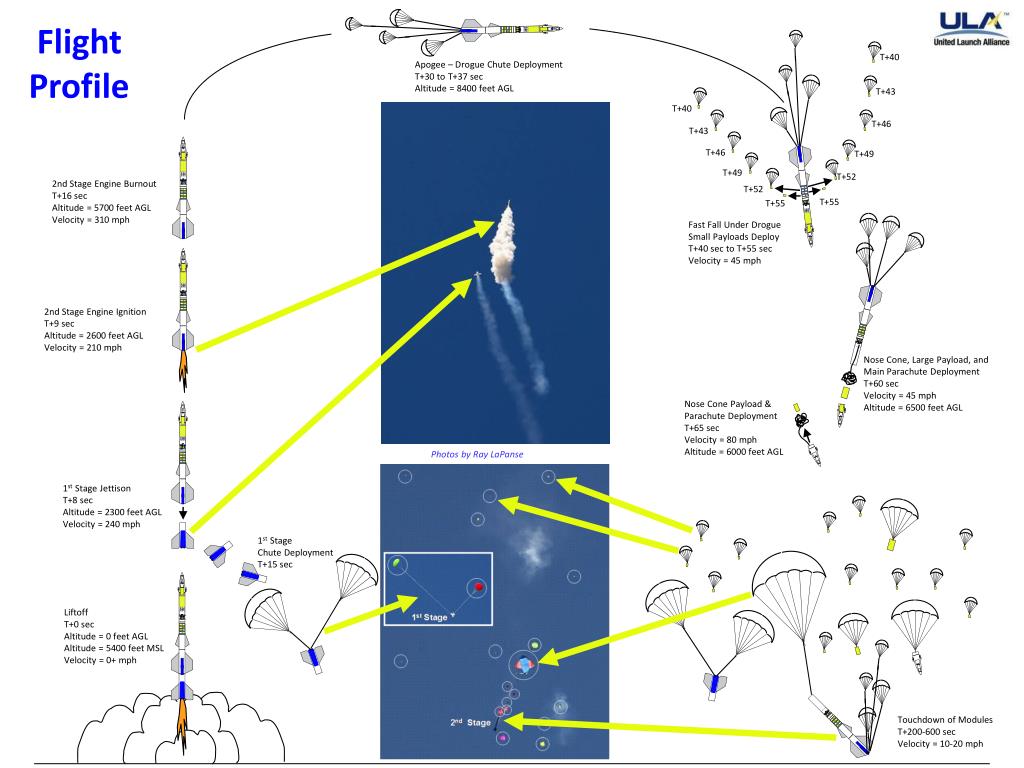

Flight Profile T+40 Apogee – Drogue Chute Deployment T+30 to T+37 sec Altitude = 8400 feet AGL T+43 T+40 T+46 T+43 T+46 T+49 T+49 T+52 2nd Stage Engine Burnout T+16 sec Altitude = 5700 feet AGL Velocity = 310 mph T+52 T+55 T+55 Fast Fall Under Drogue Small Payloads Deploy T+40 sec to T+55 sec Velocity = 45 mph 2nd Stage Engine Ignition T+9 sec Altitude = 2600 feet AGL Velocity = 210 mph Nose Cone, Large Payload, and Main Parachute Deployment T+60 sec Velocity = 45 mph Altitude = 6500 feet AGL Nose Cone Payload & Parachute Deployment T+65 sec Velocity = 80 mph Altitude = 6000 feet AGL Photos by Ray LaPanse 1st Stage Jettison T+8 sec Altitude = 2300 feet AGL Velocity = 240 mph 1st Stage Chute Deployment T+15 sec Liftoff T+0 sec Altitude = 0 feet AGL Altitude = 5400 feet MSL Velocity = 0+ mph Touchdown of Modules T+200-600 sec Velocity = 10-20 mph
