1. TMMAC: An Energy Efficient Multi-Channel MAC Protocol for Ad Hoc Networks Jingbin Zhang†, Gang Zhou†, Chengdu Huang‡, Sang H. Son†, John A. Stankovic† †Department of Computer Science, University of Virginia ‡Department of Computer Science, University of Illinois University of Virginia

2. Motivation • TMMAC: A TDMA based multi-channel MAC protocol using a single half duplex radio transceiver. • Why Multi-channel? • Increase the bandwidth • Most IEEE 802.11 devices can switch channels dynamically. • Why a single radio transceiver? • Using multiple radio transceivers increases both the cost and energy consumption • Most IEEE 802.11 devices use a single half-duplex radio transceiver • Why TDMA? • Increase the life time of the mobile devices • Improve the throughput University of Virginia

3. Contribution • Novel multi-channel MAC • Energy efficient: 74% less per packet energy • High throughput: 113% higher throughput • Supporting broadcast efficiently. • Accurate analytical model. • Dynamic ATIM window adjustment scheme. University of Virginia

4. Outline • State of the Art • TMMAC Design • Analytical Model • Dynamic ATIM Window Adjustment • Performance Evaluation • Conclusion University of Virginia

5. State of the Art (1) • Special hardware support: • Multiple radio transceivers: [Wu et al. 2000] [Raniwala et al. 2005] [Adya et al. 2004] • Busy tone: [Deng et al. 1998] • FHSS: [Tang et al. 1999] [Tyamaloukas et al. 2000] University of Virginia

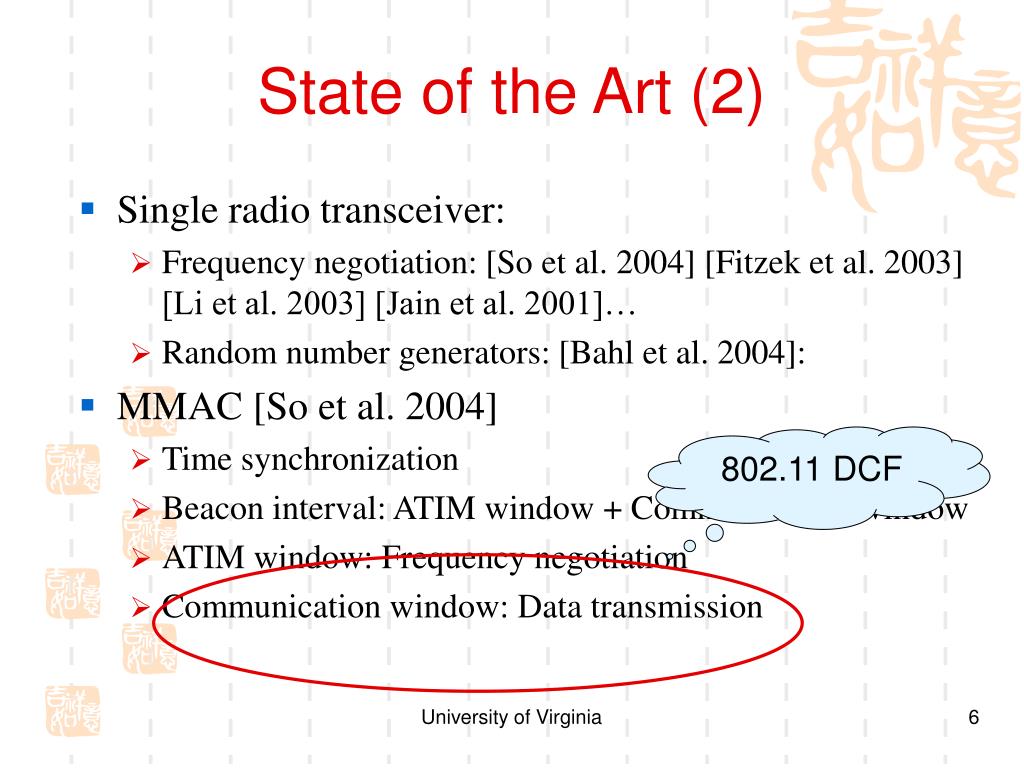

6. State of the Art (2) • Single radio transceiver: • Frequency negotiation: [So et al. 2004] [Fitzek et al. 2003] [Li et al. 2003] [Jain et al. 2001]… • Random number generators: [Bahl et al. 2004]: • MMAC [So et al. 2004] • Time synchronization • Beacon interval: ATIM window + Communication window • ATIM window: Frequency negotiation • Communication window: Data transmission 802.11 DCF University of Virginia

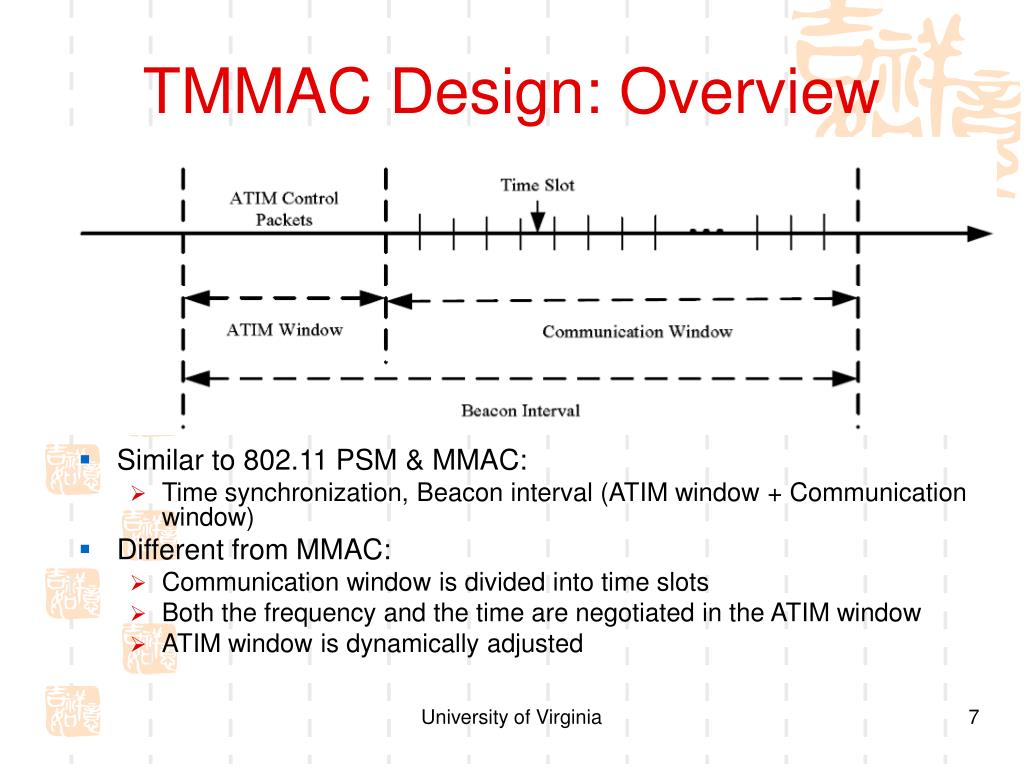

7. TMMAC Design: Overview • Similar to 802.11 PSM & MMAC: • Time synchronization, Beacon interval (ATIM window + Communication window) • Different from MMAC: • Communication window is divided into time slots • Both the frequency and the time are negotiated in the ATIM window • ATIM window is dynamically adjusted University of Virginia

8. TMMAC Design: Example (1) • Assumption: Two channels; The communication window contains 5 time slots At the start of an ATIM window Suppose node B has two packets to be sent to node C in this beacon interval. Channel Usage Bitmaps (CUBs) Combined CUBs Channel Allocation Bitmaps (CABs) OR A B C D E ATIM-RES packet ATIM packet ATIM-ACK packet University of Virginia

9. TMMAC Design: Example (2) Suppose node E has two packets to be sent to node D in this beacon interval. CABs OR A B C D E ATIM-RES packet ATIM packet ATIM-ACK packet University of Virginia

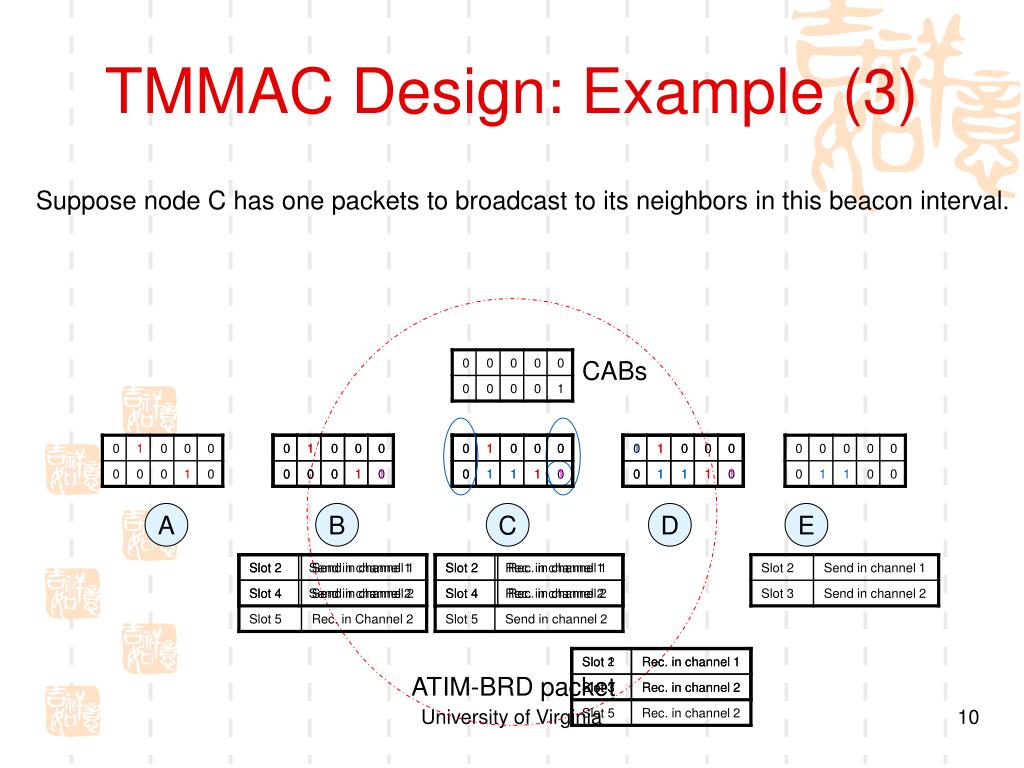

10. TMMAC Design: Example (3) Suppose node C has one packets to broadcast to its neighbors in this beacon interval. CABs A B C D E ATIM-BRD packet University of Virginia

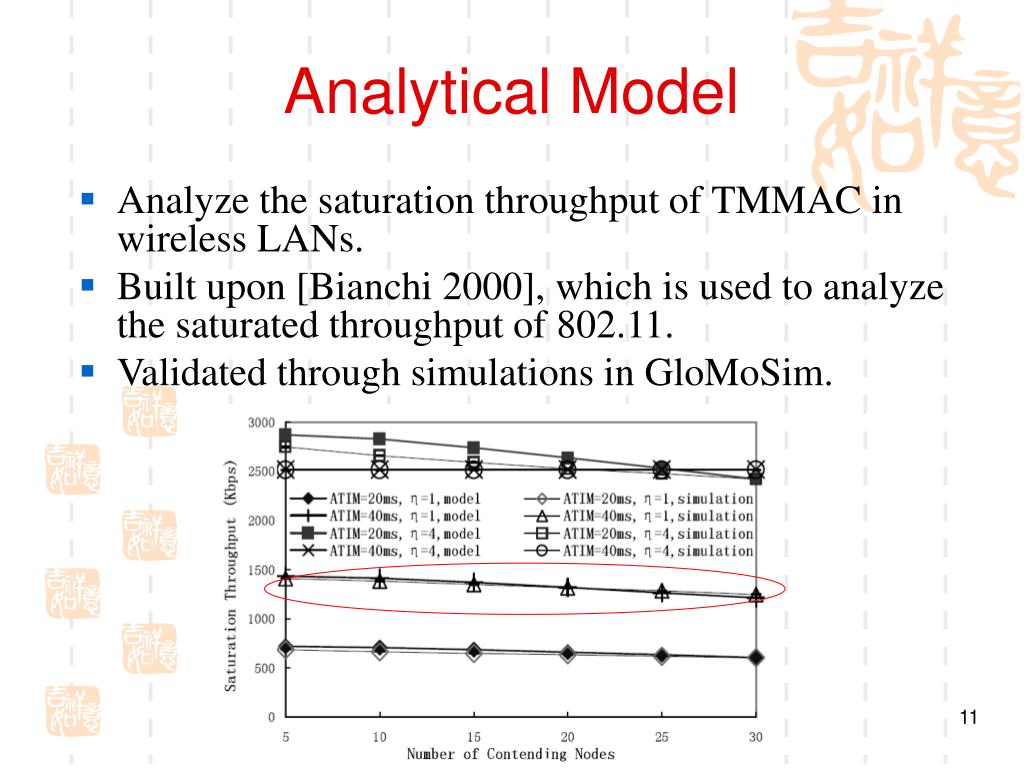

11. Analytical Model • Analyze the saturation throughput of TMMAC in wireless LANs. • Built upon [Bianchi 2000], which is used to analyze the saturated throughput of 802.11. • Validated through simulations in GloMoSim. University of Virginia

12. Impact of Time Synchronization Error 2% at maximum 18% to 31% University of Virginia

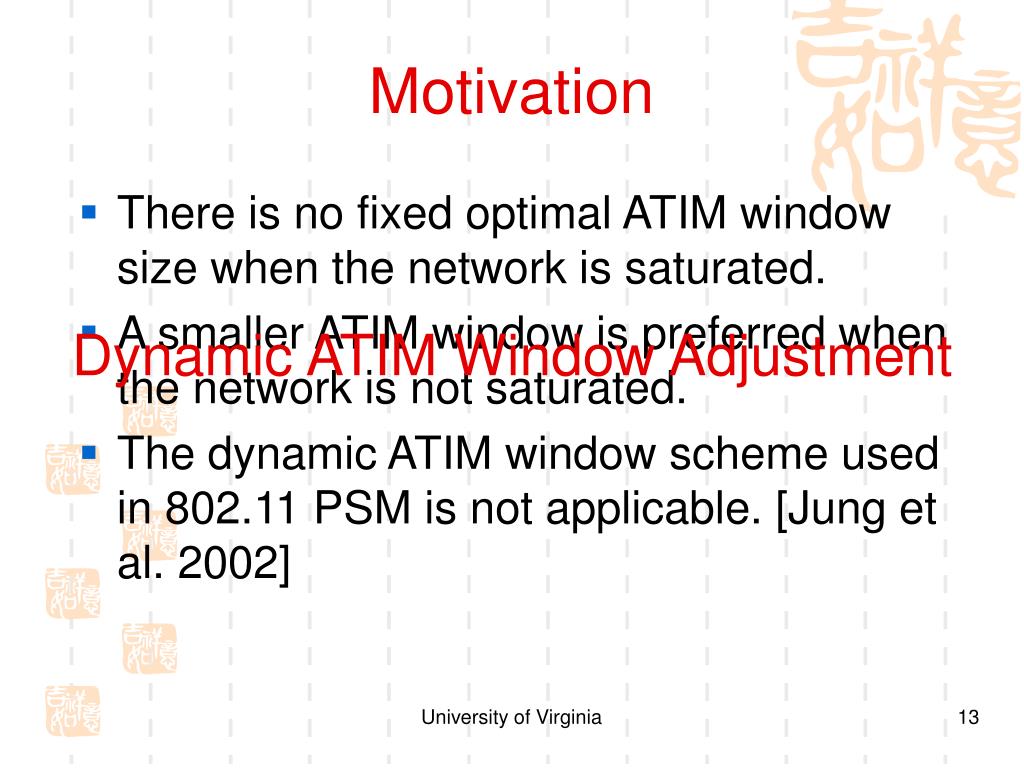

13. Motivation • There is no fixed optimal ATIM window size when the network is saturated. • A smaller ATIM window is preferred when the network is not saturated. • The dynamic ATIM window scheme used in 802.11 PSM is not applicable. [Jung et al. 2002] Dynamic ATIM Window Adjustment University of Virginia

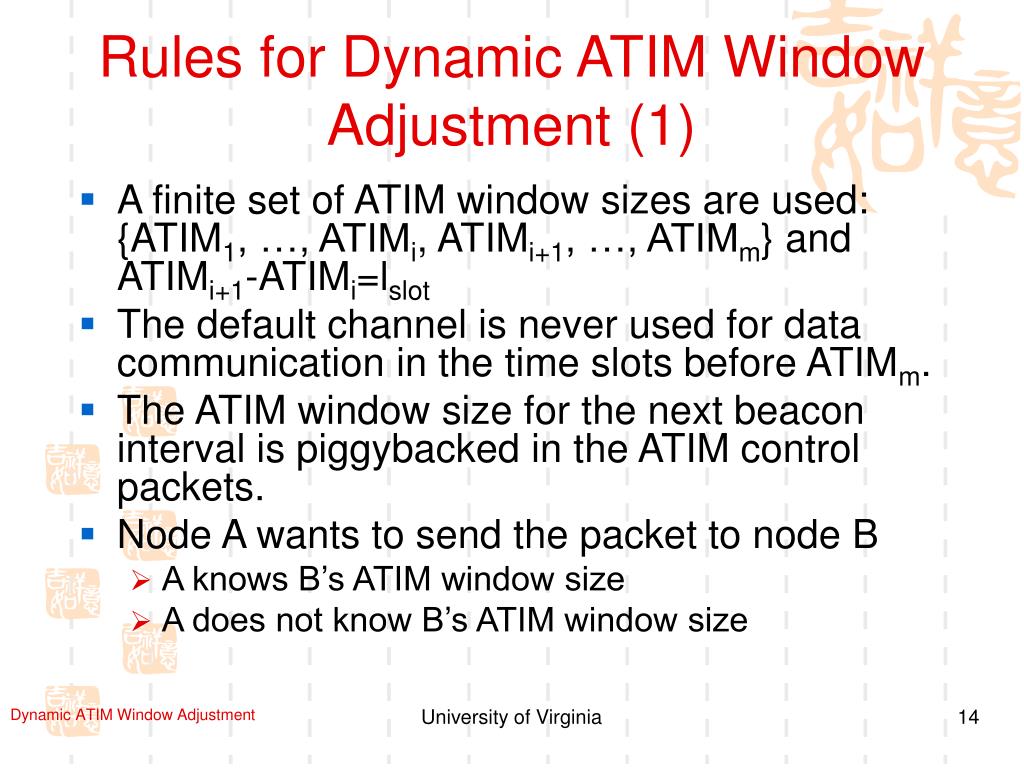

14. Rules for Dynamic ATIM Window Adjustment (1) • A finite set of ATIM window sizes are used: {ATIM1, …, ATIMi, ATIMi+1, …, ATIMm} and ATIMi+1-ATIMi=lslot • The default channel is never used for data communication in the time slots before ATIMm. • The ATIM window size for the next beacon interval is piggybacked in the ATIM control packets. • Node A wants to send the packet to node B • A knows B’s ATIM window size • A does not know B’s ATIM window size University of Virginia Dynamic ATIM Window Adjustment

15. Rules for Dynamic ATIM Window Adjustment (2) • Decide whether the network is saturated. • If the network is saturated • If the communication window is fully used  decrease the ATIM window size by one level • If not  Increase the ATIM window size by one level • If the network is not saturated, decrease the ATIM window size by one level >? Saturation threshold University of Virginia Dynamic ATIM Window Adjustment

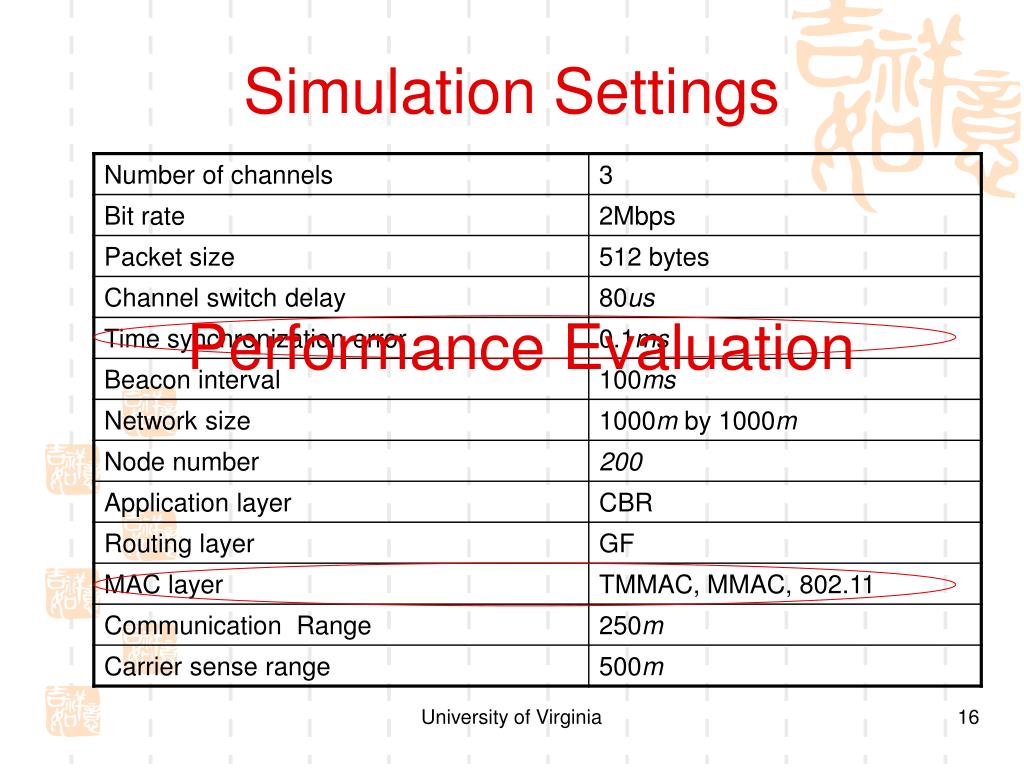

16. Simulation Settings Performance Evaluation University of Virginia

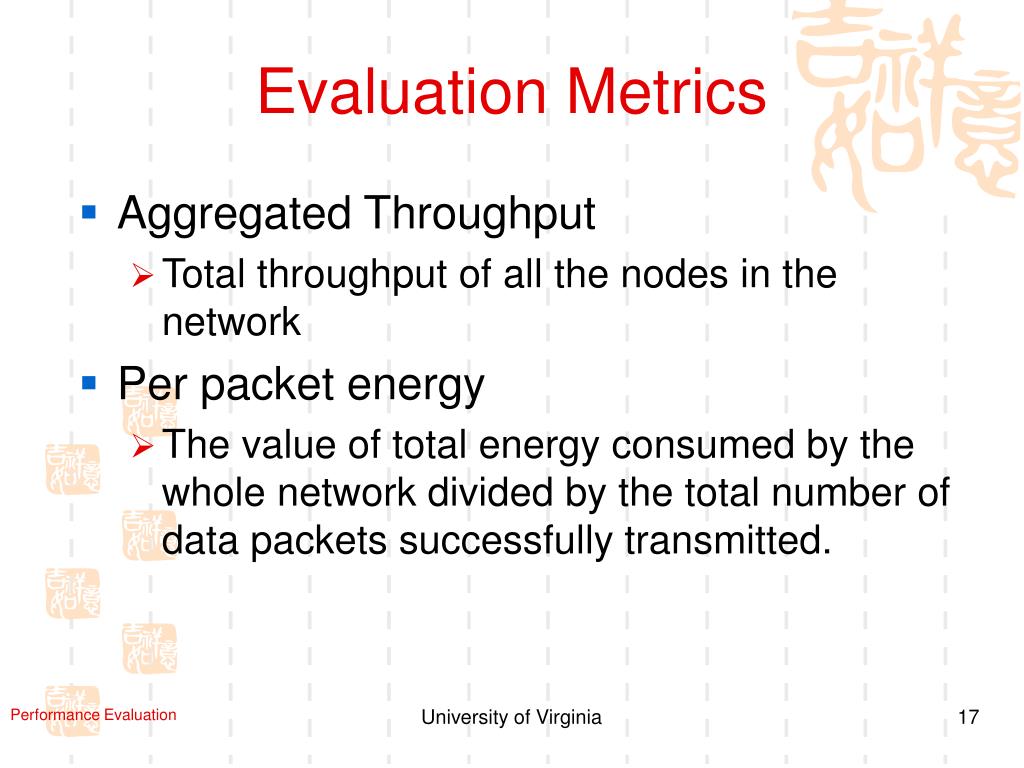

17. Evaluation Metrics • Aggregated Throughput • Total throughput of all the nodes in the network • Per packet energy • The value of total energy consumed by the whole network divided by the total number of data packets successfully transmitted. University of Virginia Performance Evaluation

18. Evaluation of Dynamic ATIM Window Adjustment (1) Traffic pattern University of Virginia Performance Evaluation

19. Evaluation of Dynamic ATIM Window Adjustment (2) Traffic pattern University of Virginia Performance Evaluation

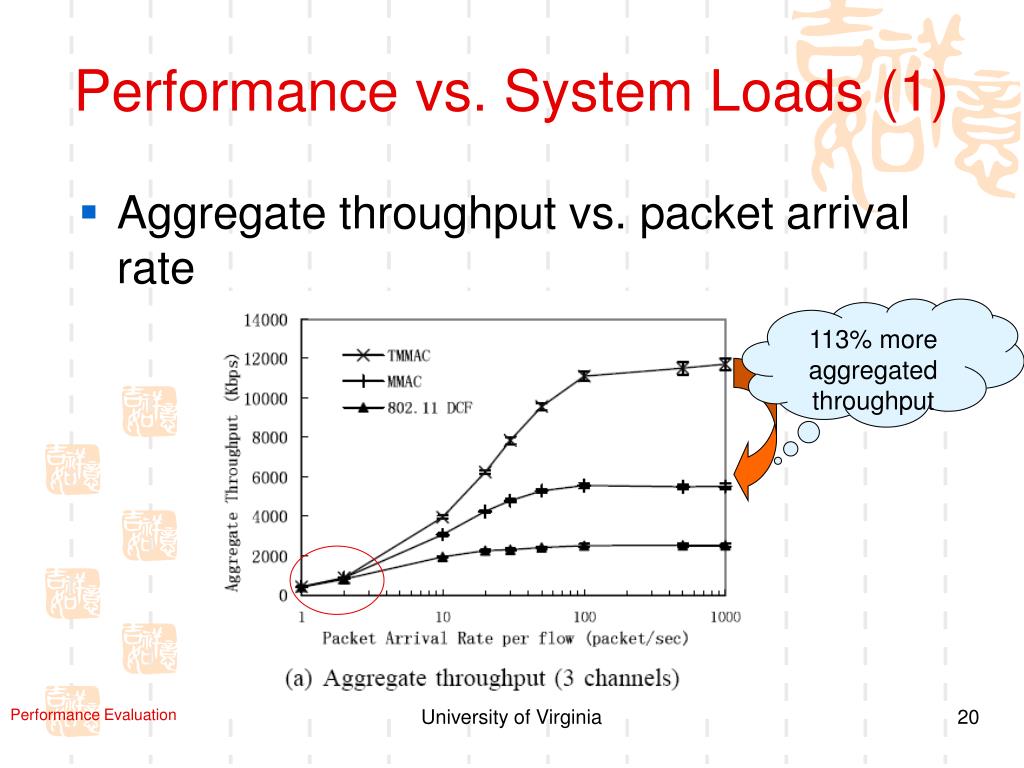

20. Performance vs. System Loads (1) • Aggregate throughput vs. packet arrival rate 113% more aggregated throughput University of Virginia Performance Evaluation

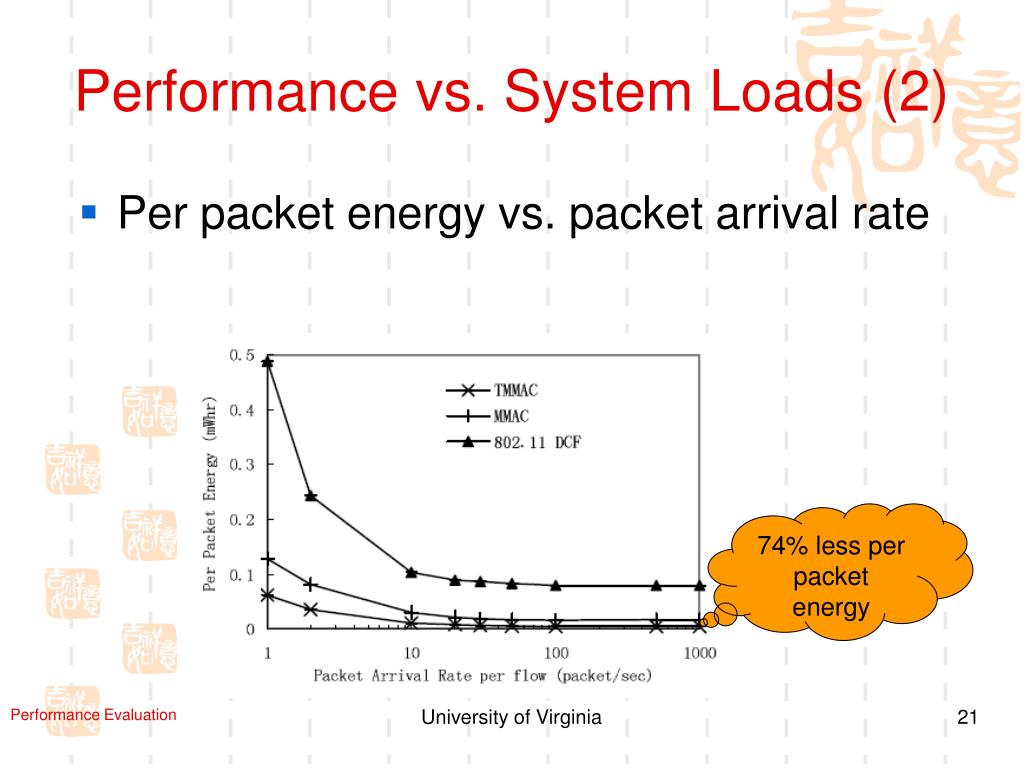

21. Performance vs. System Loads (2) • Per packet energy vs. packet arrival rate 74% less per packet energy University of Virginia Performance Evaluation

22. Performance vs. System Loads (3) • Aggregate throughput vs. packet arrival rate (6 channels) 84% more aggregated throughput University of Virginia Performance Evaluation

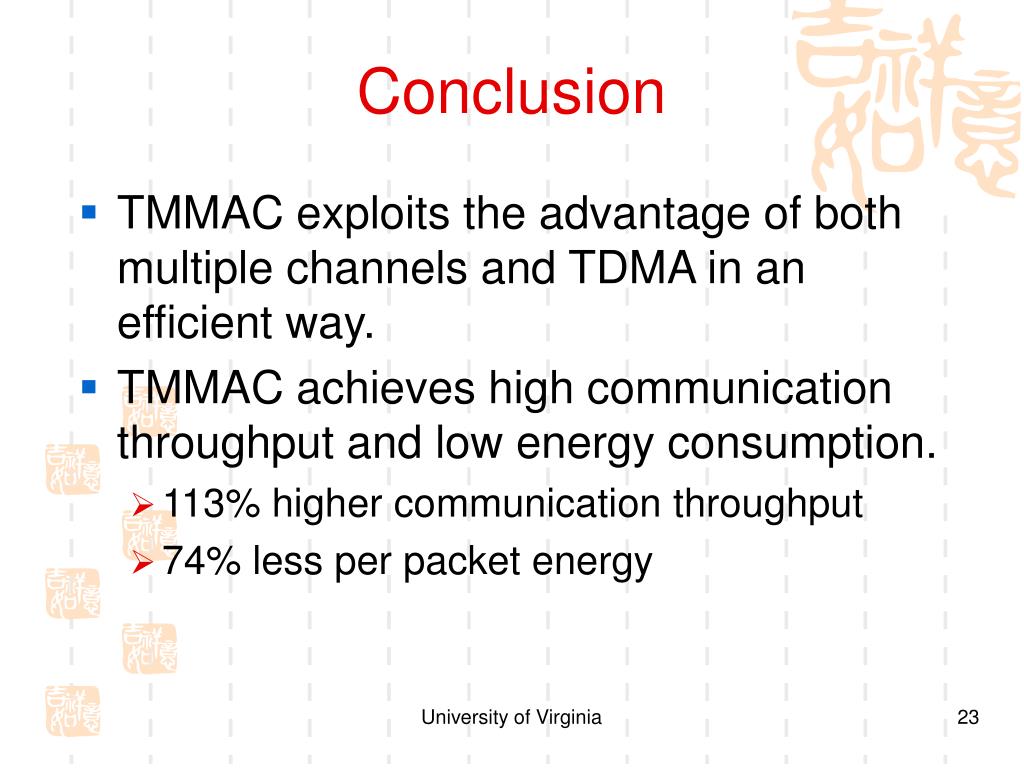

23. Conclusion • TMMAC exploits the advantage of both multiple channels and TDMA in an efficient way. • TMMAC achieves high communication throughput and low energy consumption. • 113% higher communication throughput • 74% less per packet energy University of Virginia

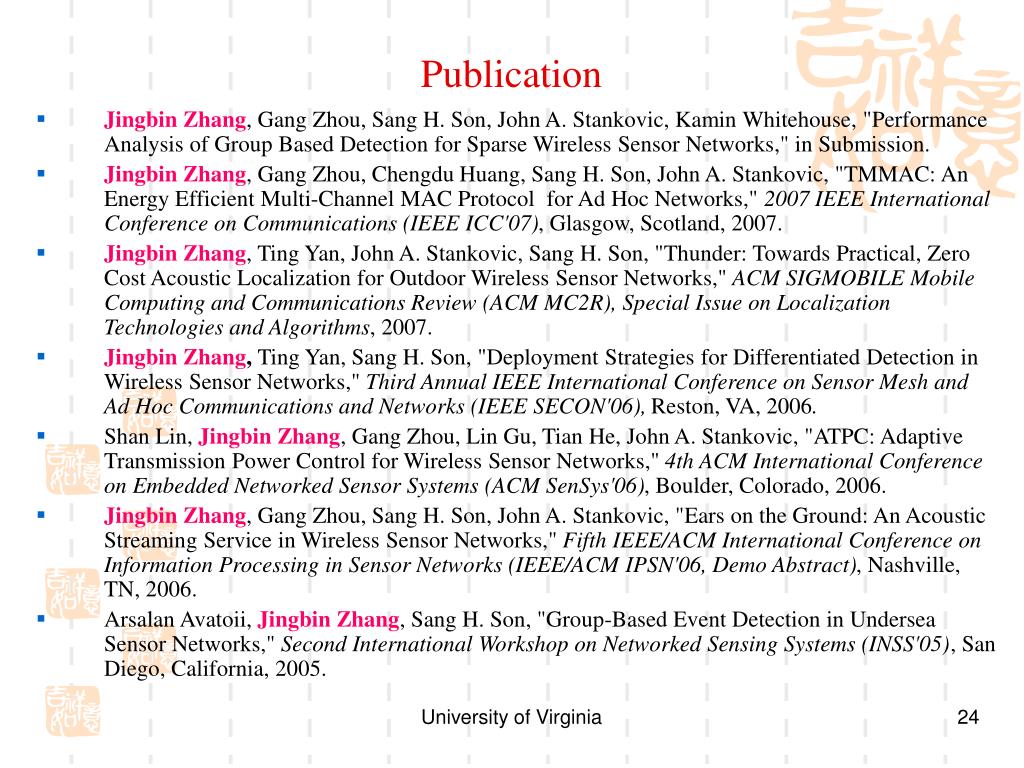

24. Publication • Jingbin Zhang, Gang Zhou, Sang H. Son, John A. Stankovic, Kamin Whitehouse, "Performance Analysis of Group Based Detection for Sparse Wireless Sensor Networks," in Submission. • Jingbin Zhang, Gang Zhou, Chengdu Huang, Sang H. Son, John A. Stankovic, "TMMAC: An Energy Efficient Multi-Channel MAC Protocol  for Ad Hoc Networks," 2007 IEEE International Conference on Communications (IEEE ICC'07), Glasgow, Scotland, 2007. • Jingbin Zhang, Ting Yan, John A. Stankovic, Sang H. Son, "Thunder: Towards Practical, Zero Cost Acoustic Localization for Outdoor Wireless Sensor Networks," ACM SIGMOBILE Mobile Computing and Communications Review (ACM MC2R), Special Issue on Localization Technologies and Algorithms, 2007. • Jingbin Zhang, Ting Yan, Sang H. Son,"Deployment Strategies for Differentiated Detection in Wireless Sensor Networks," Third Annual IEEE International Conference on Sensor Mesh and Ad Hoc Communications and Networks (IEEE SECON'06), Reston, VA, 2006. • Shan Lin, Jingbin Zhang, Gang Zhou, Lin Gu, Tian He, John A. Stankovic, "ATPC: Adaptive Transmission Power Control for Wireless Sensor Networks," 4th ACM International Conference on Embedded Networked Sensor Systems (ACM SenSys'06), Boulder, Colorado, 2006. • Jingbin Zhang, Gang Zhou, Sang H. Son, John A. Stankovic, "Ears on the Ground: An Acoustic Streaming Service in Wireless Sensor Networks," Fifth IEEE/ACM International Conference on Information Processing in Sensor Networks (IEEE/ACM IPSN'06, Demo Abstract), Nashville, TN, 2006. • Arsalan Avatoii, Jingbin Zhang, Sang H. Son, "Group-Based Event Detection in Undersea Sensor Networks," Second International Workshop on Networked Sensing Systems (INSS'05), San Diego, California, 2005. University of Virginia
