  1. Use of daily CALMON data Brian Stewart RAL CALMON data

  2. Topics • Work in progress, based on • Engineering Report data • Scan averages generated by daily routine processing • Raw telemetry data CALMON data

  3. ER data • Integrating Sphere • 25th-27th Dec 2004 • Daily average SW signal over 282 samples – BB • Average over ALL pixels • Averages per pixel • Peak at approx 6pm each day, pattern repeats from day to day CALMON data

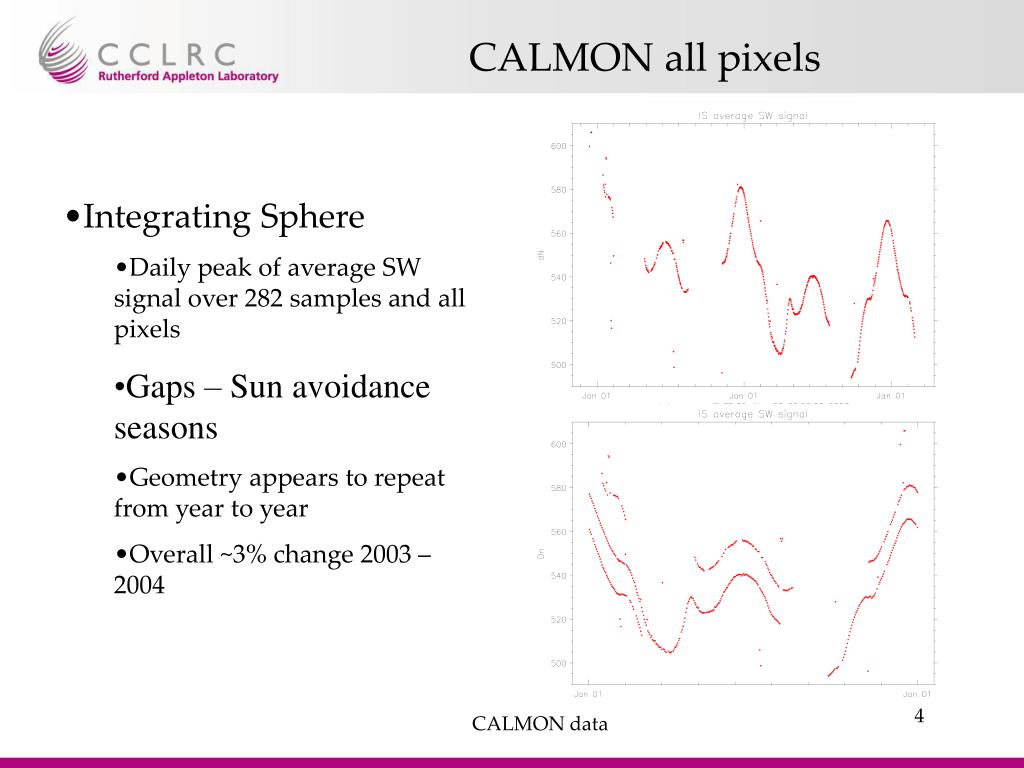

  4. CALMON all pixels • Integrating Sphere • Daily peak of average SW signal over 282 samples and all pixels • Gaps – Sun avoidance seasons • Geometry appears to repeat from year to year • Overall ~3% change 2003 – 2004 CALMON data

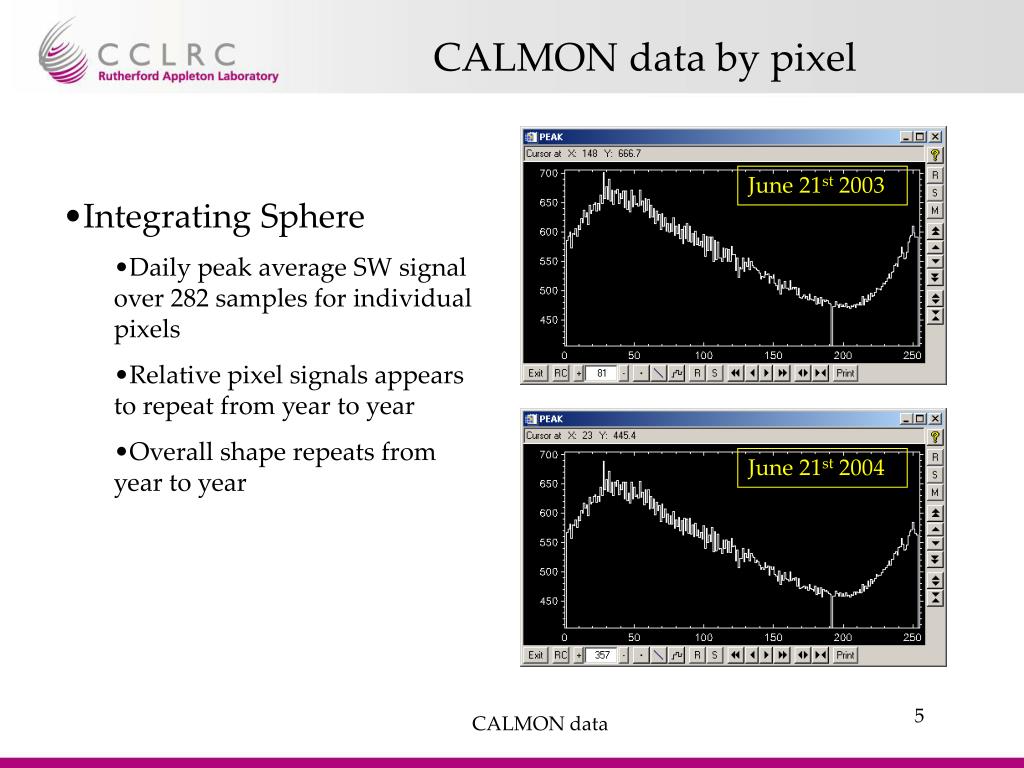

  5. CALMON data by pixel June 21st 2003 • Integrating Sphere • Daily peak average SW signal over 282 samples for individual pixels • Relative pixel signals appears to repeat from year to year • Overall shape repeats from year to year June 21st 2004 CALMON data

  6. CALMON ratio • Integrating Sphere • Ratio of daily peak average SW signal over 282 samples for individual pixels • 2003 peak/2004 peak CALMON data

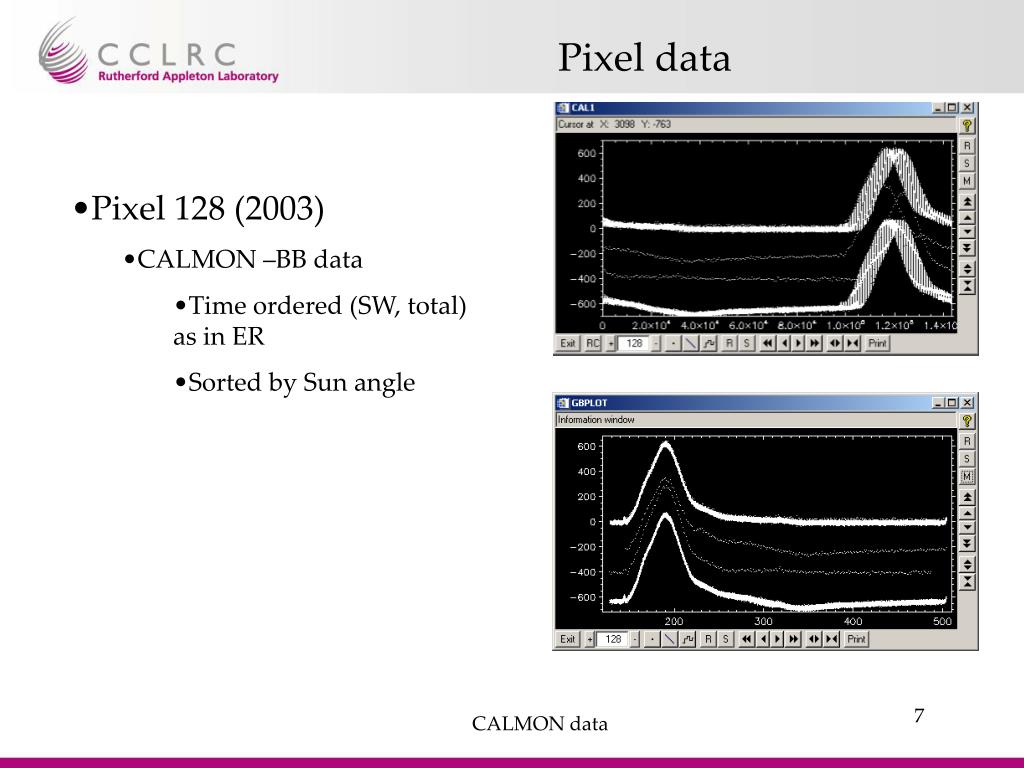

  7. Pixel data • Pixel 128 (2003) • CALMON –BB data • Time ordered (SW, total) as in ER • Sorted by Sun angle CALMON data

  8. Pixel data (2) • Pixel 128 • SW-BB • median in 1° intervals CALMON data

  9. Pixel data(3) • Pixel 128 • peak and baseline well defined CALMON data

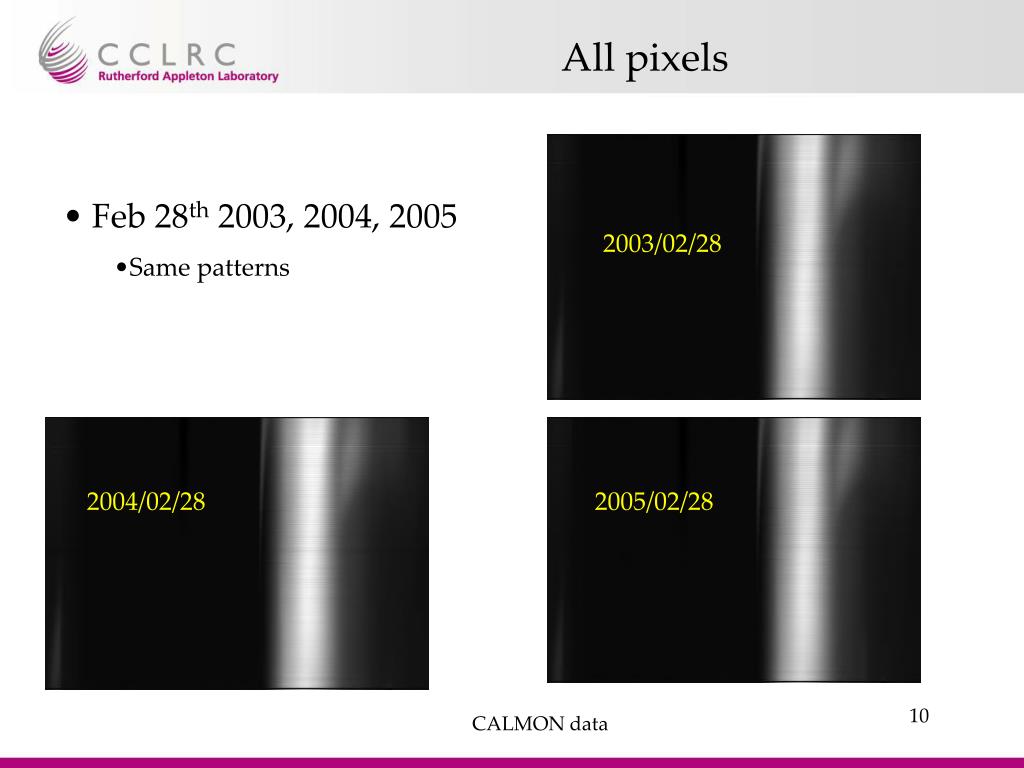

  10. All pixels • Feb 28th 2003, 2004, 2005 • Same patterns 2003/02/28 2004/02/28 2005/02/28 CALMON data

  11. All pixels(2) • Pixel peaks • 28/02/03 • 28/02/04 • 28/02/05 CALMON data

  12. Response ratios • ~5% 2003-2004 • ~1% 2004-2005 • pixel/ pixel ~constant • differences • Pixels 0-128 • Pixel 28 • More work • ER or raw data • Photo-diode CALMON data

  13. Photodiode data CALMON data

  14. Photodiode data(2) • Diodes A,B,C • 1 msec response • CALMON response • Direct solar signal • 24° integration • Problems CALMON data
