  1. Thiol quantification Professor：Chau, Lai-Kwan Student：Liu, Wan-Chun Date：2013/11/08

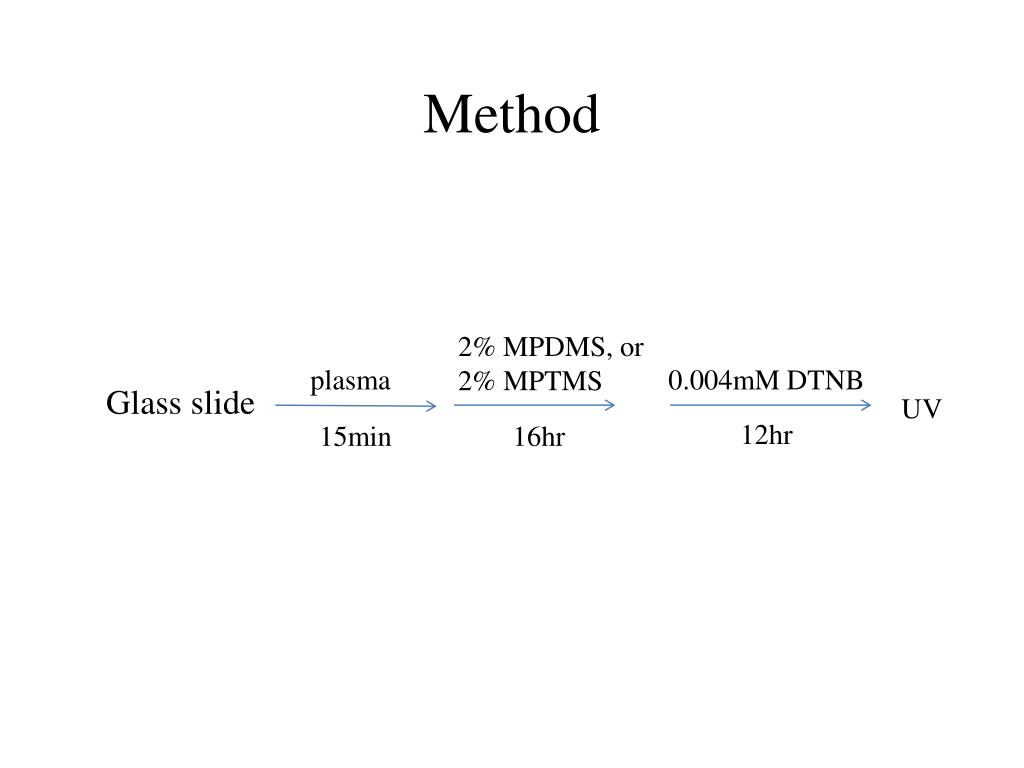

  2. Method 2%MPDMS, or 2% MPTMS plasma 0.004mMDTNB Glassslide UV 12hr 15min 16hr

  3. Optimization - concentration of DTNB

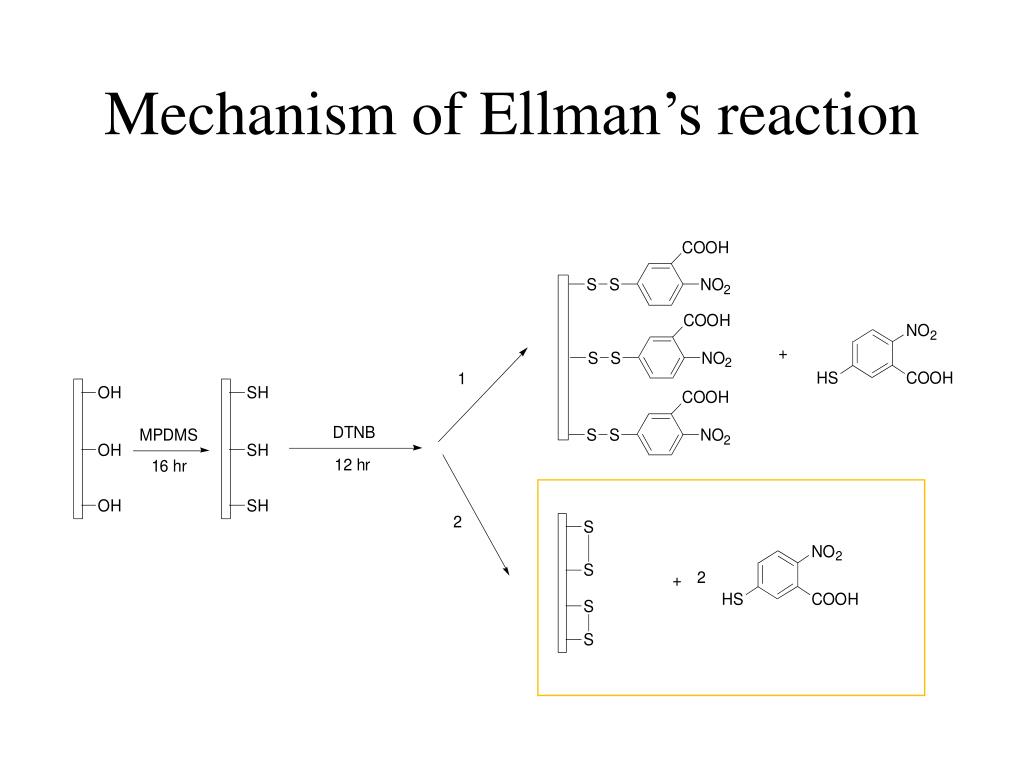

  4. Mechanism of Ellman’s reaction

  5. Verify by strong/weak reducing agents Strong reductant : DTT Weak reductant: 2-mercaptoethanol

  6. DTNB reacts with MPTMS/MPDMS

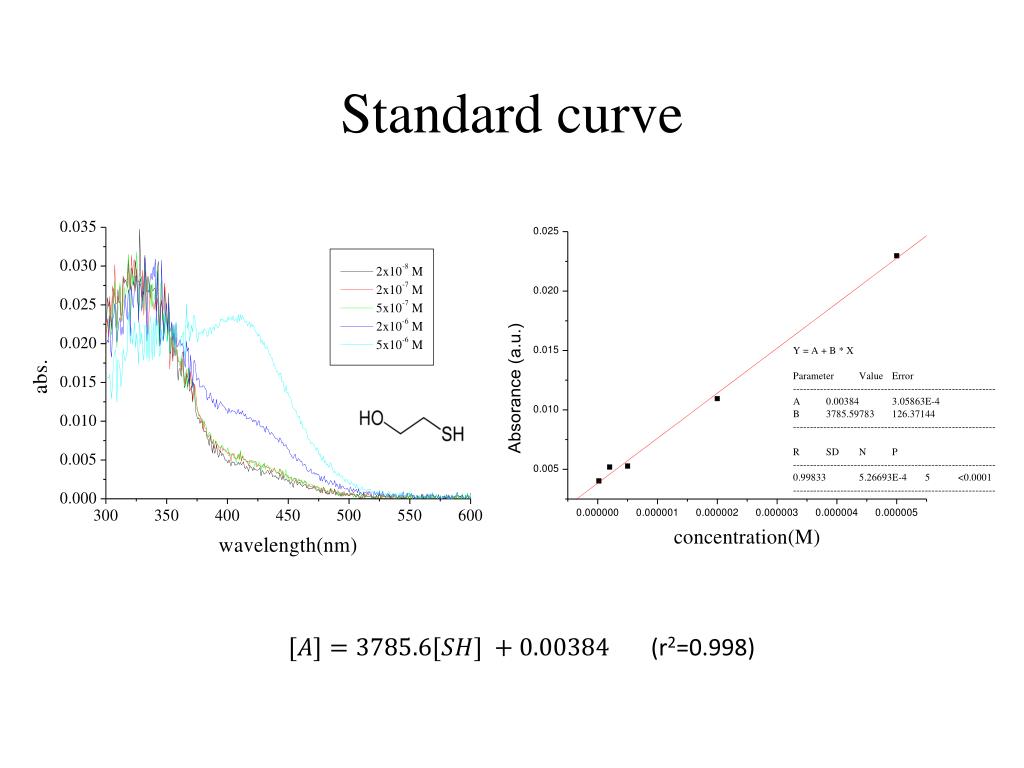

  7. Standard curve (r2=0.998)

  8. Concentration of thiols on glass surface

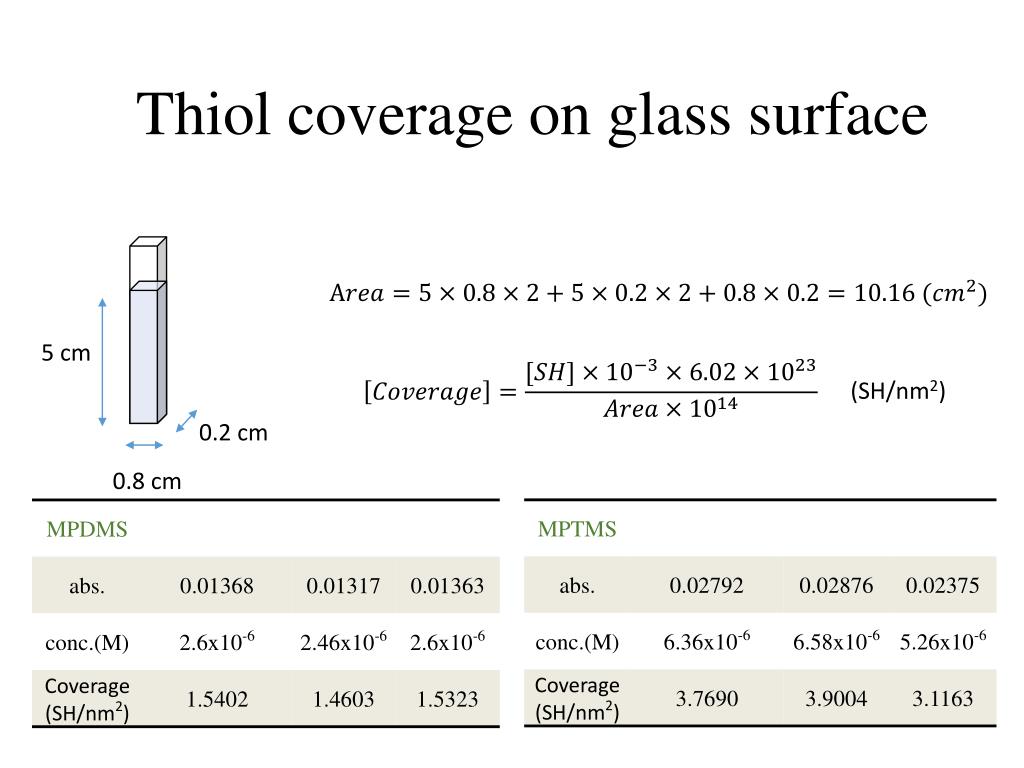

  9. Thiolcoverage on glass surface 5 cm (SH/nm2) 0.2 cm 0.8 cm

  10. Thiol coverage on glass surface 0.7 nm 0.4nm

  11. Future work • Gold coverage on MPDMS/MPTMS modified glass surface.
