  1. Quantification of Integrity Michael Clarkson and Fred B. Schneider Cornell University SnT Seminar University of Luxembourg September 9, 2010

  2. Goal Information-theoretic Quantification of programs’ impact on Integrity of Information [Denning 1982]

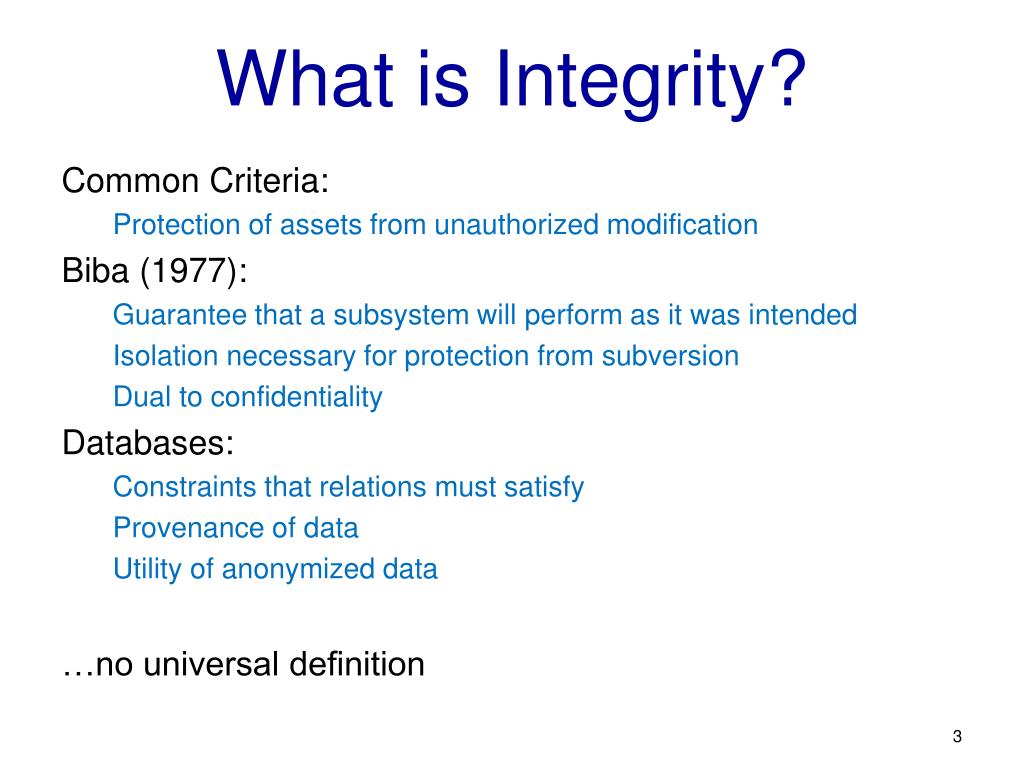

  3. What is Integrity? Common Criteria: Protection of assets from unauthorized modification Biba (1977): Guarantee that a subsystem will perform as it was intended Isolation necessary for protection from subversion Dual to confidentiality Databases: Constraints that relations must satisfy Provenance of data Utility of anonymized data …no universal definition

  4. Our Notions of Integrity Corruption: damage to integrity

  5. Our Notions of Integrity Corruption: damage to integrity Contamination: bad information present in output Suppression: good information lost from output …distinct, but interact

  6. Contamination Goal: model taint analysis Program untrusted Attacker Attacker trusted User User

  7. Contamination Goal: model taint analysis Untrusted input contaminates trusted output Program untrusted Attacker Attacker trusted User User

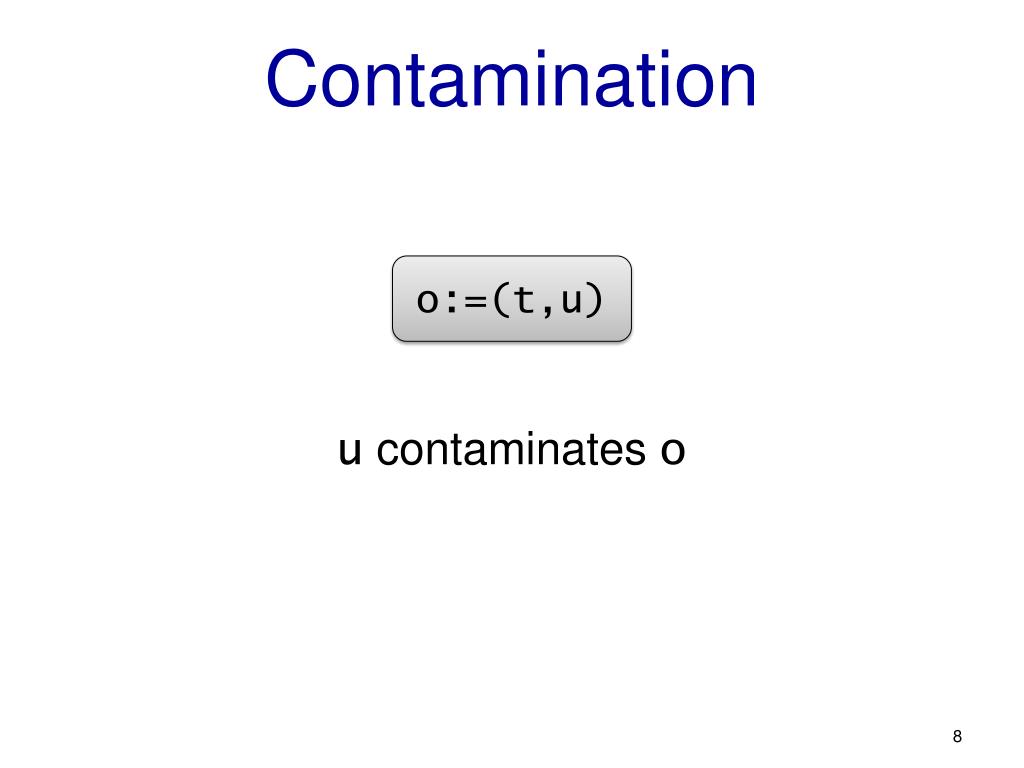

  8. Contamination u contaminates o o:=(t,u)

  9. Contamination u contaminates o (Can’t u be filtered from o?) o:=(t,u)

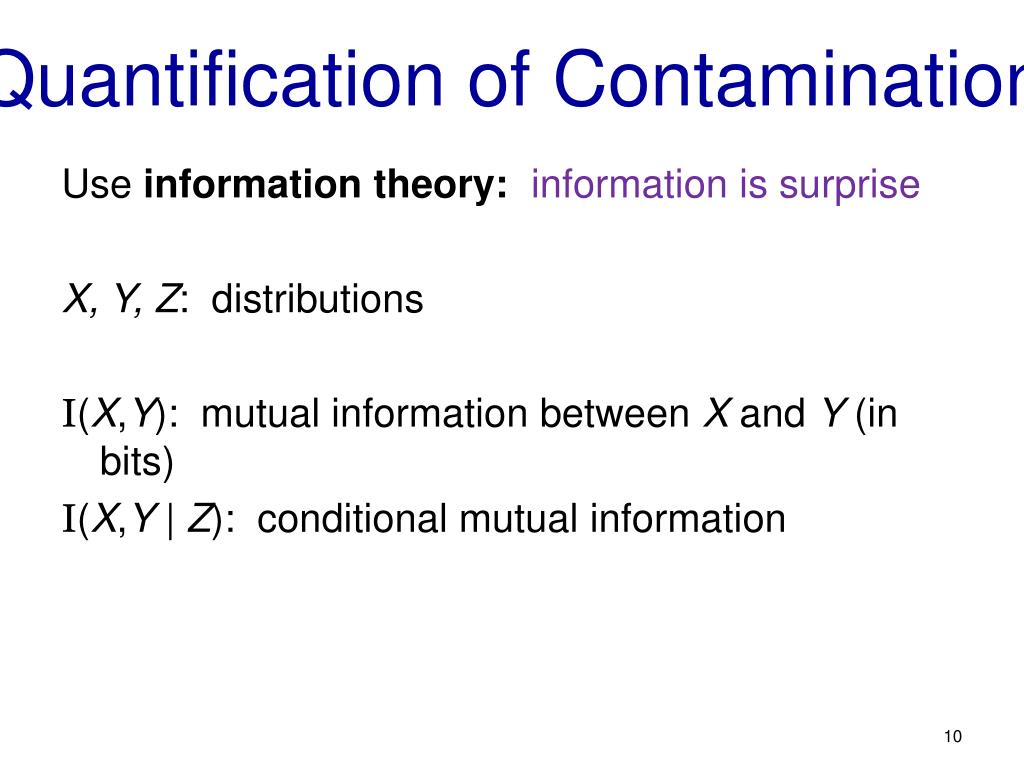

  10. Quantification of Contamination Use information theory: information is surprise X, Y, Z: distributions I(X,Y): mutual information between X and Y (in bits) I(X,Y | Z): conditional mutual information

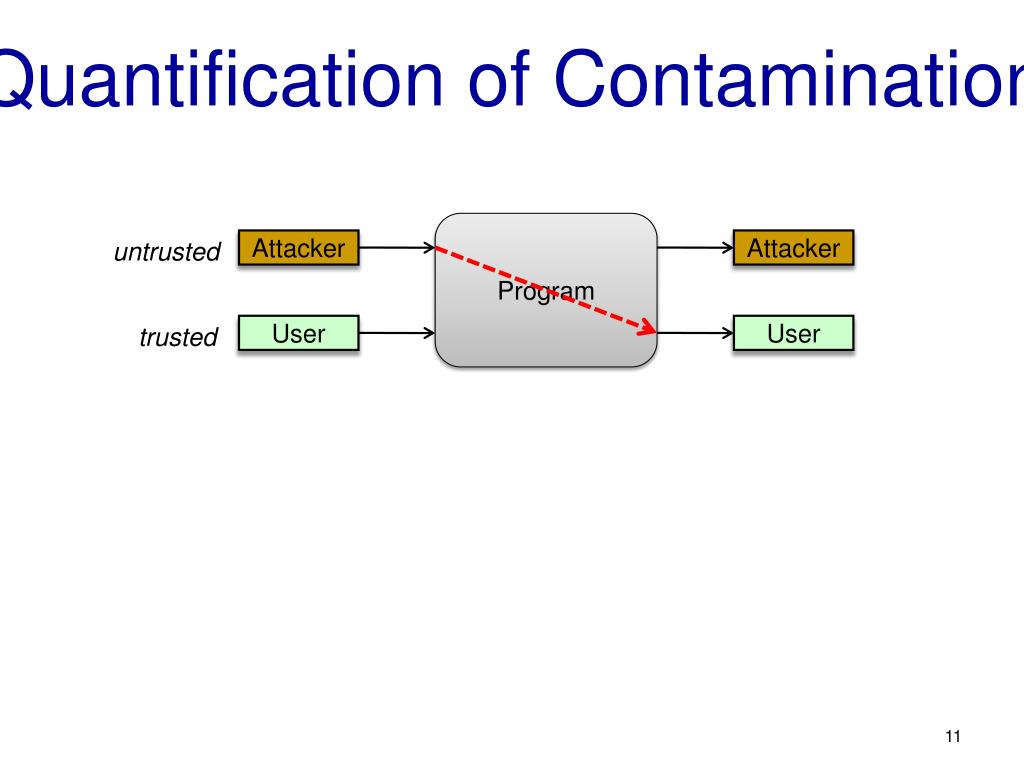

  11. Quantification of Contamination Program untrusted Attacker Attacker trusted User User

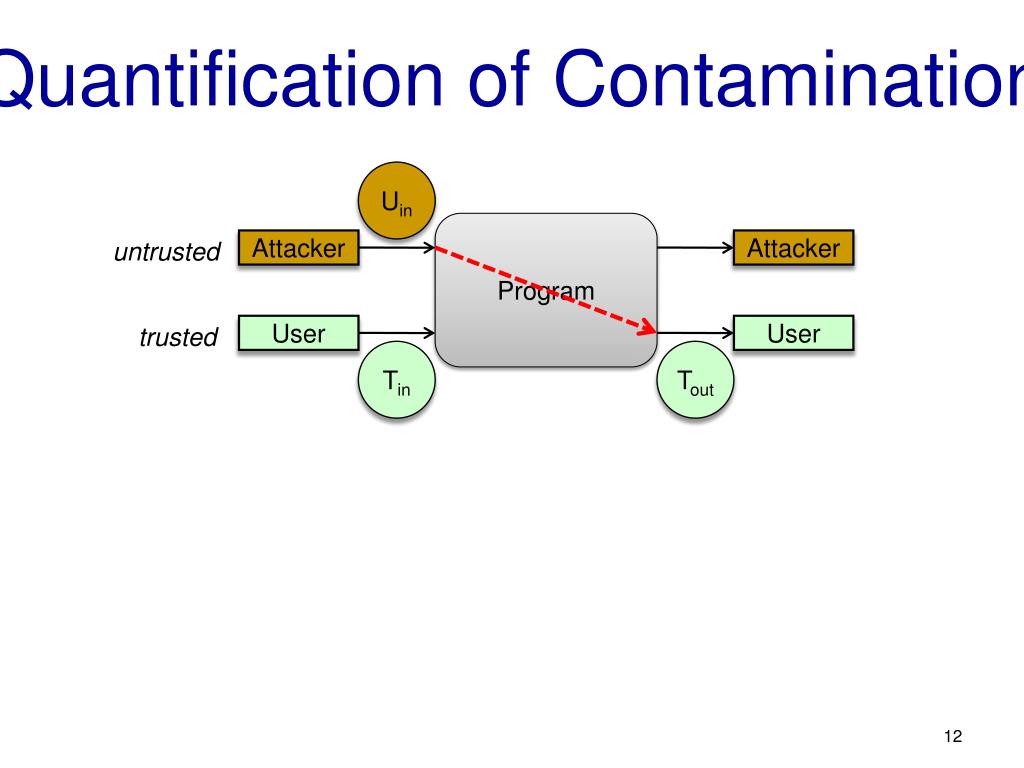

  12. Quantification of Contamination Uin Program untrusted Attacker Attacker trusted User User Tin Tout

  13. Quantification of Contamination Contamination = I(Uin,Tout| Tin) Uin Program untrusted Attacker Attacker trusted User User Tin Tout [Newsome et al. 2009] Dual of [Clark et al. 2005, 2007]

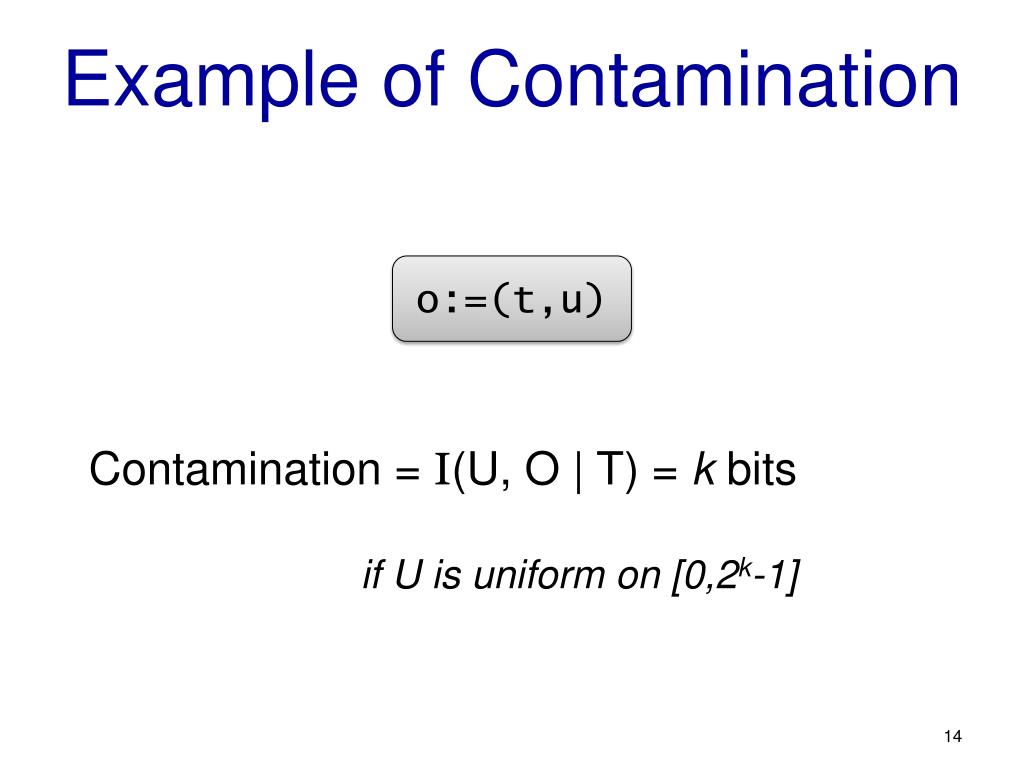

  14. Example of Contamination o:=(t,u) Contamination = I(U, O | T) = k bits if U is uniform on [0,2k-1]

  15. Our Notions of Integrity Corruption: damage to integrity Contamination: bad information present in output Suppression: good information lost from output

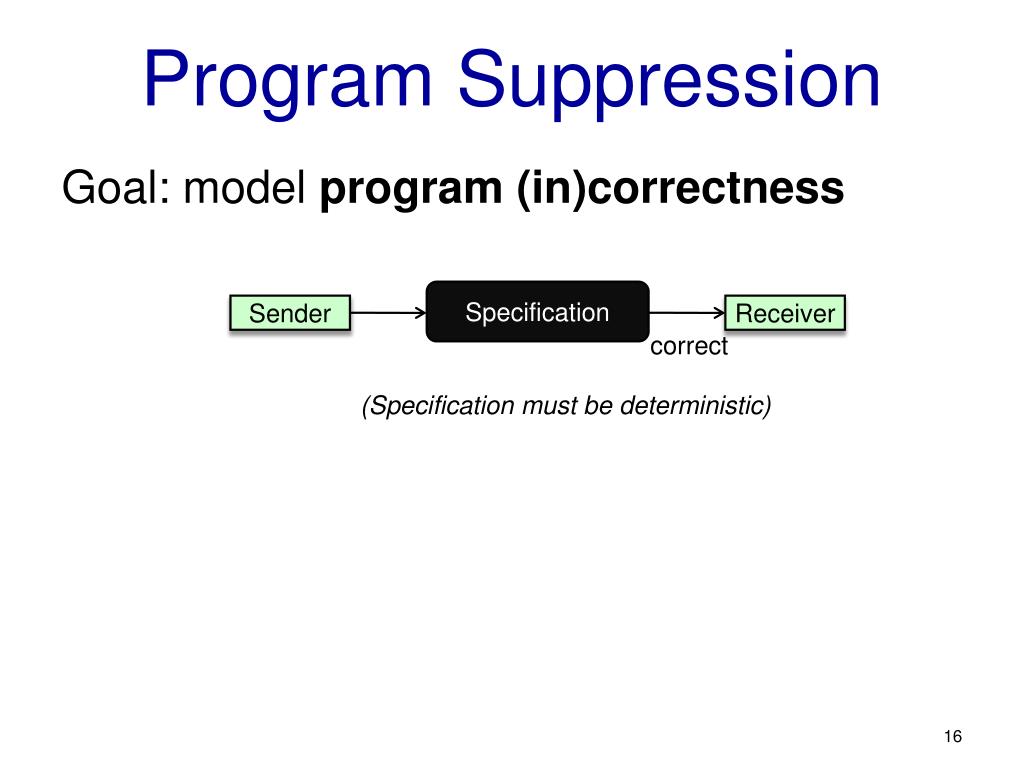

  16. Program Suppression Goal: model program (in)correctness Specification Sender Receiver correct (Specification must be deterministic)

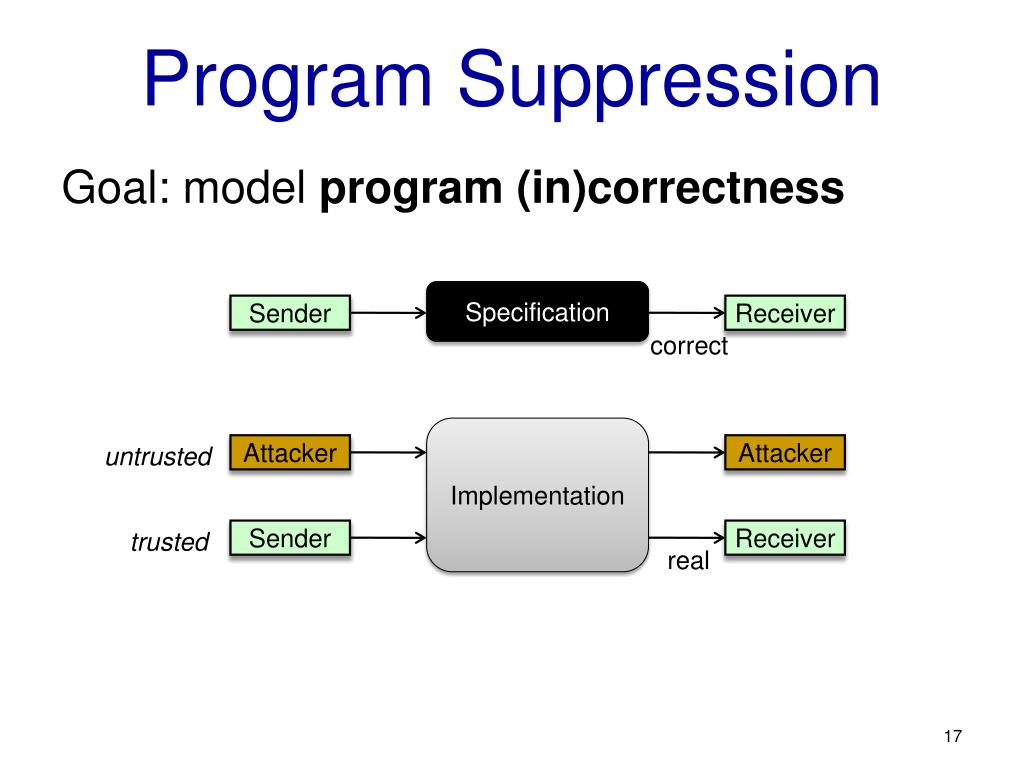

  17. Program Suppression Goal: model program (in)correctness Specification Sender Receiver correct Implementation untrusted Attacker Attacker trusted Sender Receiver real

  18. Program Suppression Goal: model program (in)correctness Specification Sender Receiver correct Implementation untrusted Attacker Attacker trusted Sender Receiver real Implementation might suppress information about correct output from real output

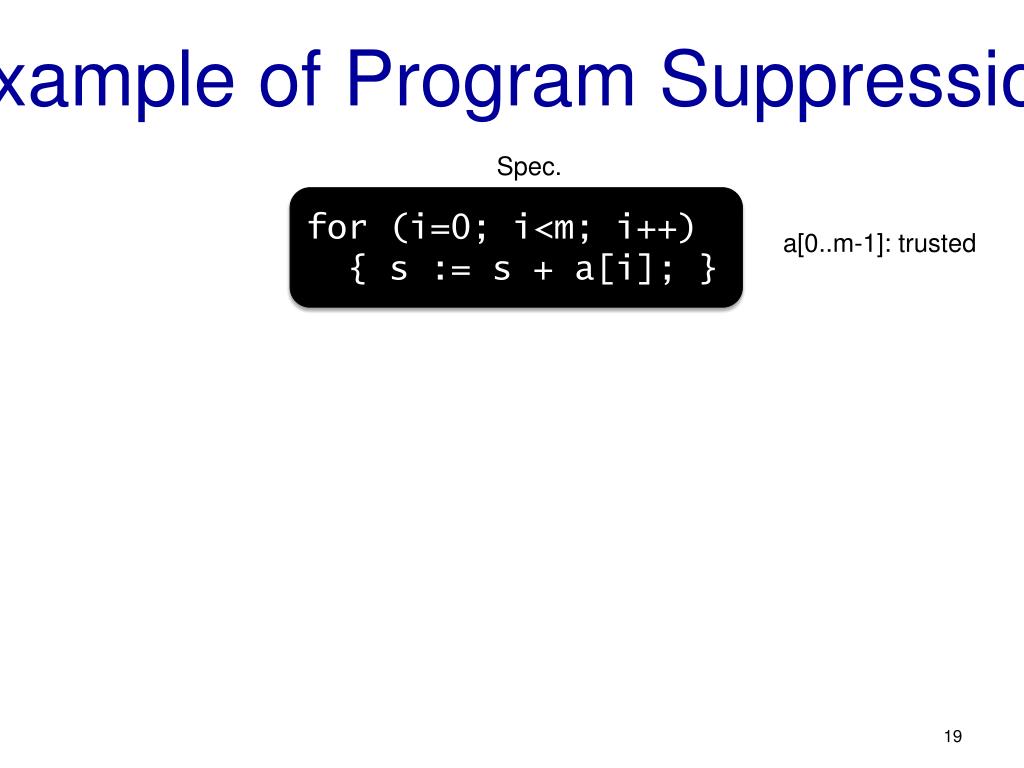

  19. Example of Program Suppression Spec. for (i=0; i<m; i++) { s := s + a[i]; } a[0..m-1]: trusted

  20. Example of Program Suppression Spec. for (i=0; i<m; i++) { s := s + a[i]; } a[0..m-1]: trusted Impl. 1 for (i=1; i<m; i++) { s := s + a[i]; } Suppression—a[0] missing No contamination

  21. Example of Program Suppression Spec. for (i=0; i<m; i++) { s := s + a[i]; } a[0..m-1]: trusted Impl. 1 Impl. 2 for (i=1; i<m; i++) { s := s + a[i]; } for (i=0; i<=m; i++) { s := s + a[i]; } a[m]: untrusted Suppression—a[0] missing No contamination Suppression—a[m] added Contamination

  22. Suppression vs. Contamination output := input Contamination Attacker Attacker * * Suppression

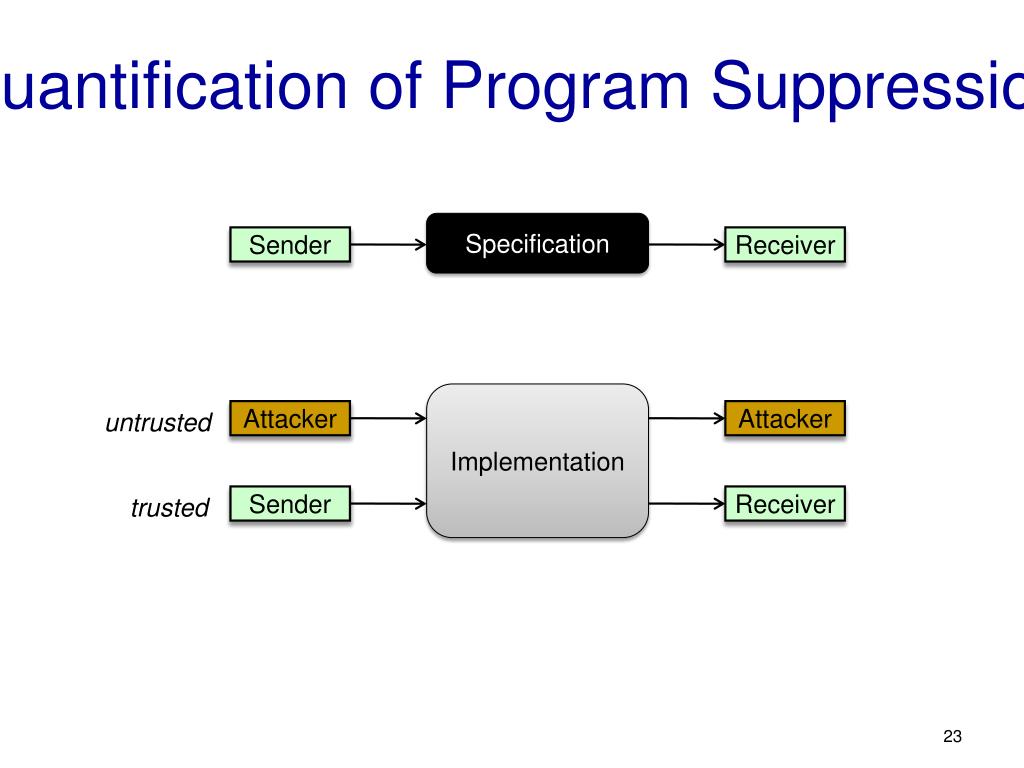

  23. Quantification of Program Suppression Specification Sender Receiver Implementation untrusted Attacker Attacker trusted Sender Receiver

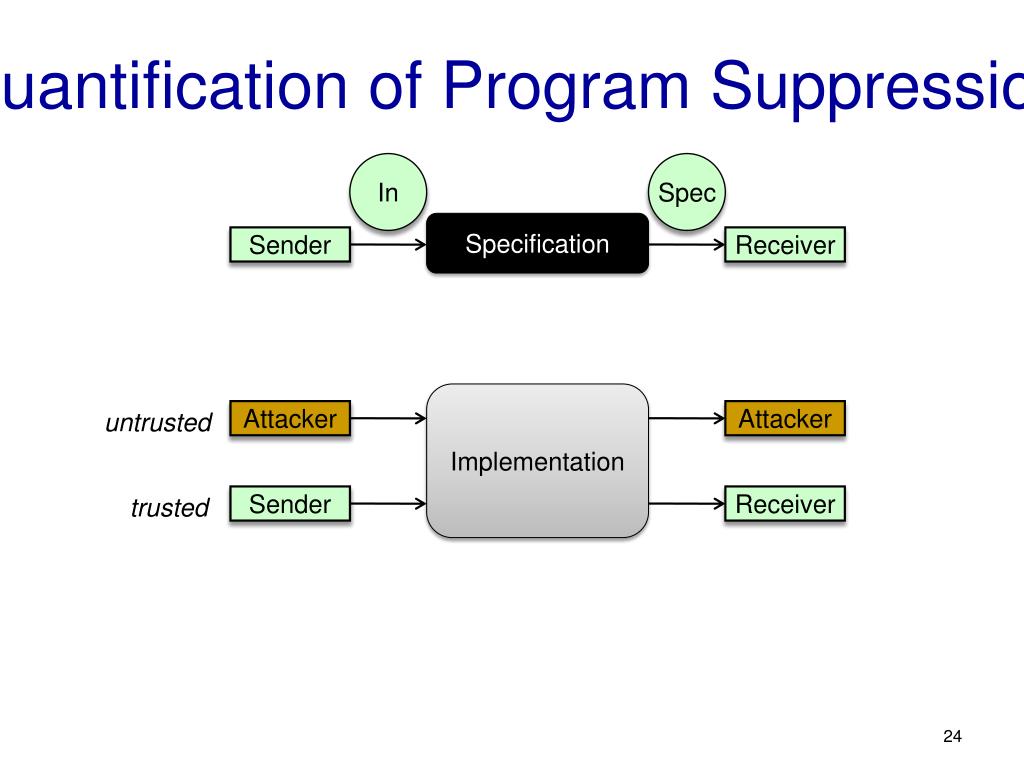

  24. Quantification of Program Suppression In Spec Specification Sender Receiver Implementation untrusted Attacker Attacker trusted Sender Receiver

  25. Quantification of Program Suppression In Spec Specification Sender Receiver Uin Implementation untrusted Attacker Attacker trusted Sender Receiver Tin Impl

  26. Quantification of Program Suppression In Spec Specification Sender Receiver Uin Implementation untrusted Attacker Attacker trusted Sender Receiver Tin Impl Program transmission = I(Spec, Impl)

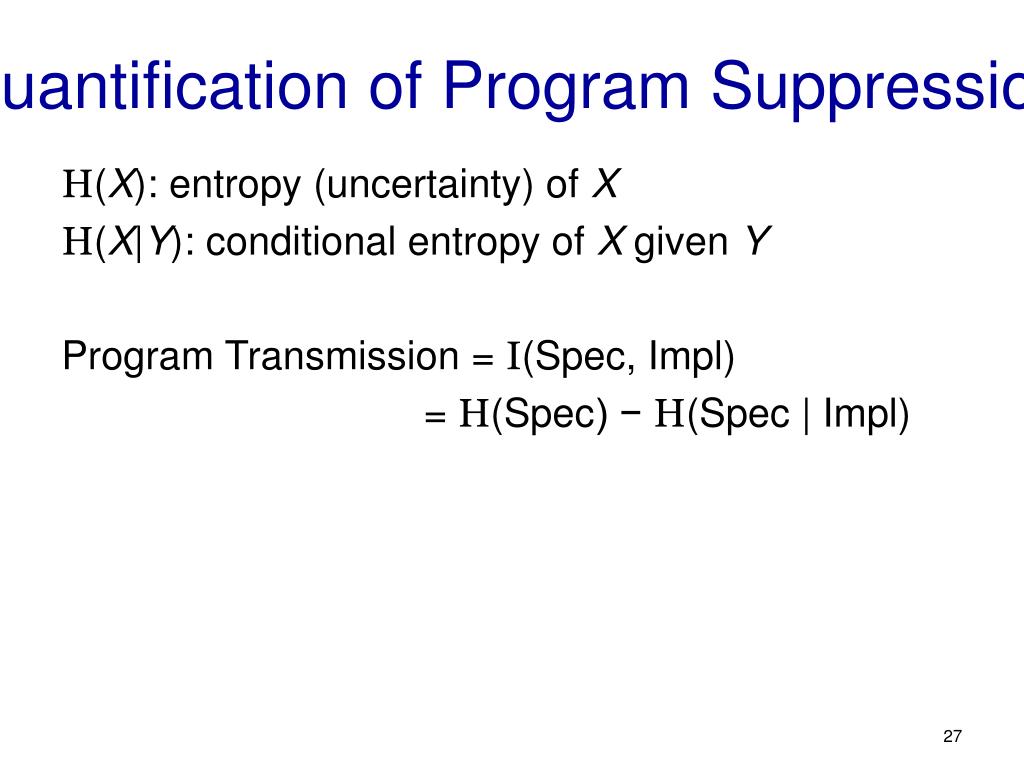

  27. Quantification of Program Suppression H(X): entropy (uncertainty) of X H(X|Y): conditional entropy of X given Y Program Transmission = I(Spec, Impl) = H(Spec) − H(Spec | Impl)

  28. Quantification of Program Suppression H(X): entropy (uncertainty) of X H(X|Y): conditional entropy of X given Y Program Transmission = I(Spec, Impl) = H(Spec) − H(Spec | Impl) Total info to learn about Spec

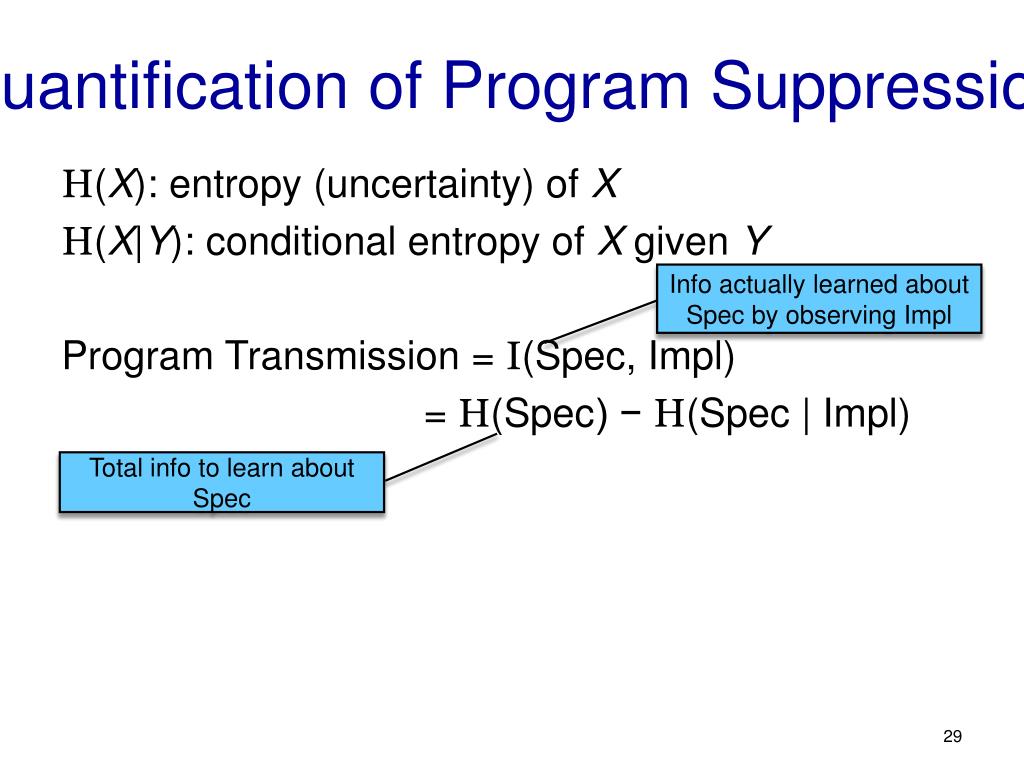

  29. Quantification of Program Suppression H(X): entropy (uncertainty) of X H(X|Y): conditional entropy of X given Y Program Transmission = I(Spec, Impl) = H(Spec) − H(Spec | Impl) Info actually learned about Spec by observing Impl Total info to learn about Spec

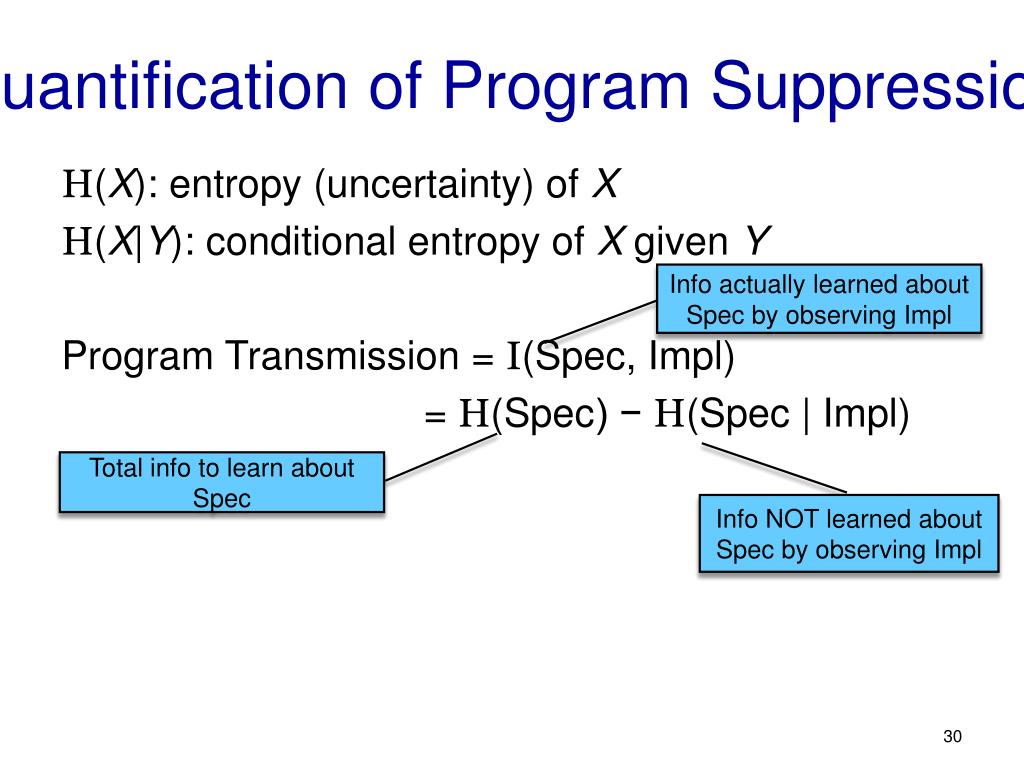

  30. Quantification of Program Suppression H(X): entropy (uncertainty) of X H(X|Y): conditional entropy of X given Y Program Transmission = I(Spec, Impl) = H(Spec) − H(Spec | Impl) Info actually learned about Spec by observing Impl Total info to learn about Spec Info NOT learned about Spec by observing Impl

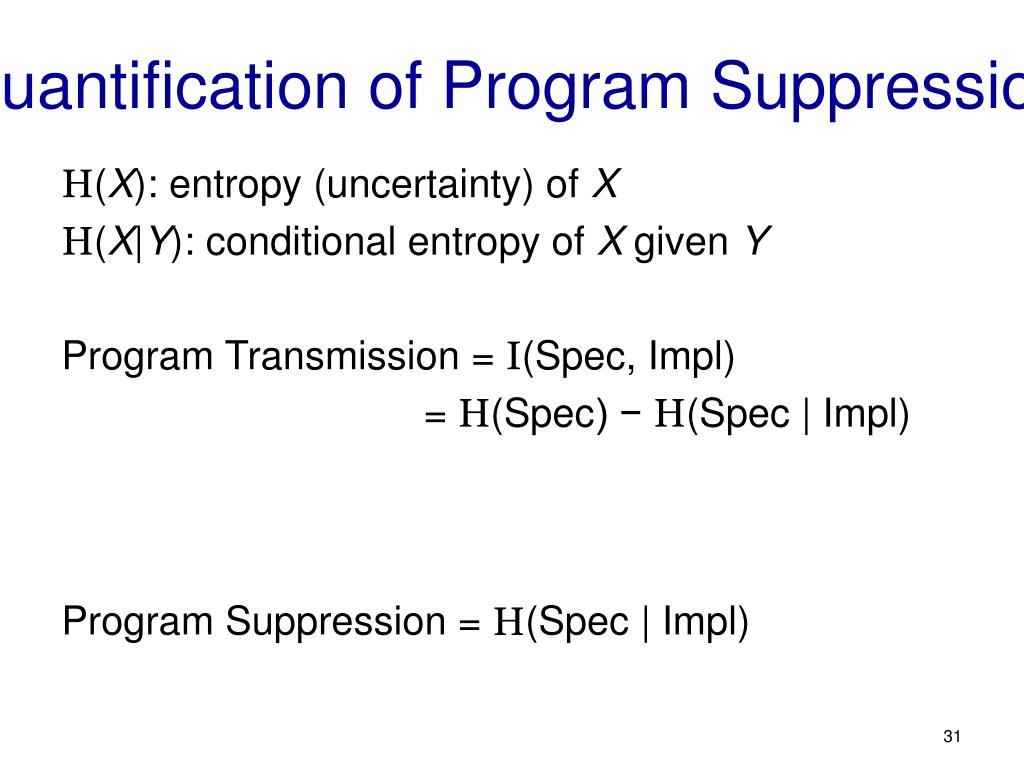

  31. Quantification of Program Suppression H(X): entropy (uncertainty) of X H(X|Y): conditional entropy of X given Y Program Transmission = I(Spec, Impl) = H(Spec) − H(Spec | Impl) Program Suppression = H(Spec | Impl)

  32. Example of Program Suppression Spec. for (i=0; i<m; i++) { s := s + a[i]; } Impl. 1 Impl. 2 for (i=1; i<m; i++) { s := s + a[i]; } for (i=0; i<=m; i++) { s := s + a[i]; } Suppression = H(A) Suppression ≤ H(A) A = distribution of individual array elements

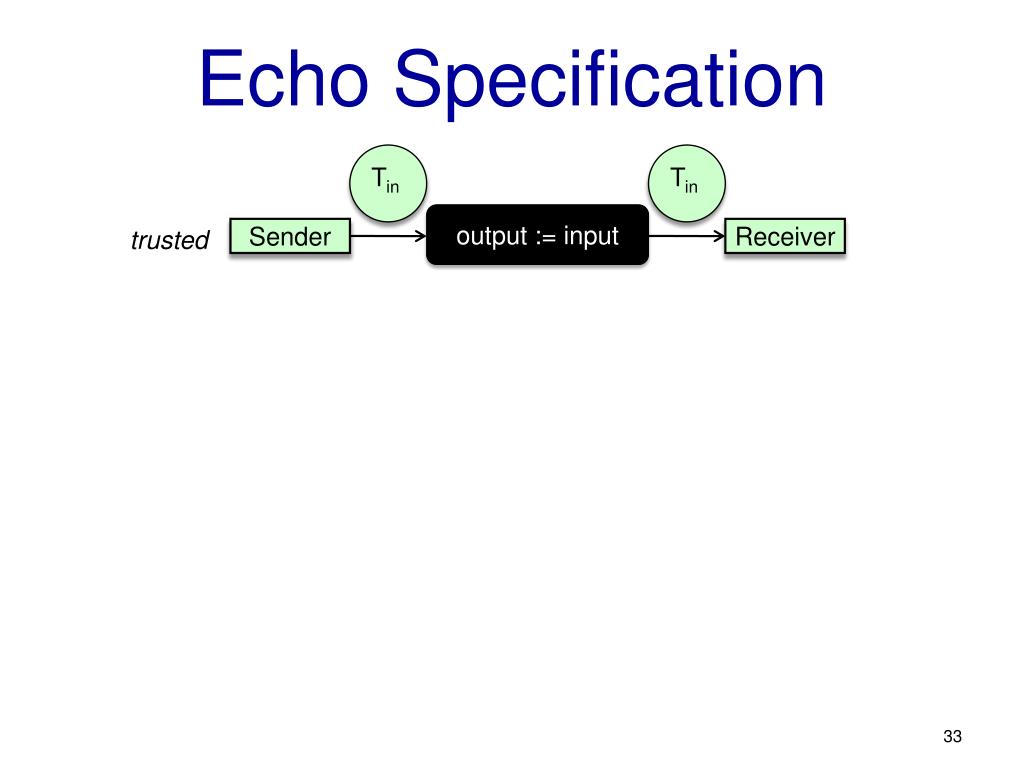

  33. Echo Specification Tin Tin output := input trusted Sender Receiver

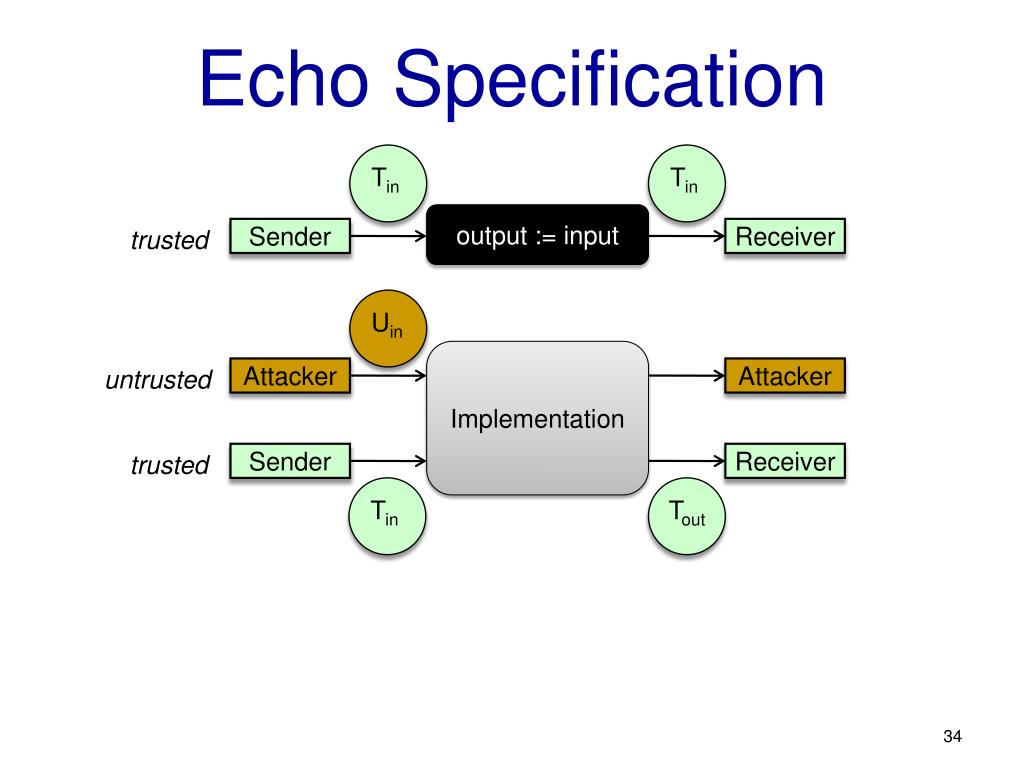

  34. Echo Specification Tin Tin output := input trusted Sender Receiver Uin Implementation untrusted Attacker Attacker trusted Sender Receiver Tin Tout

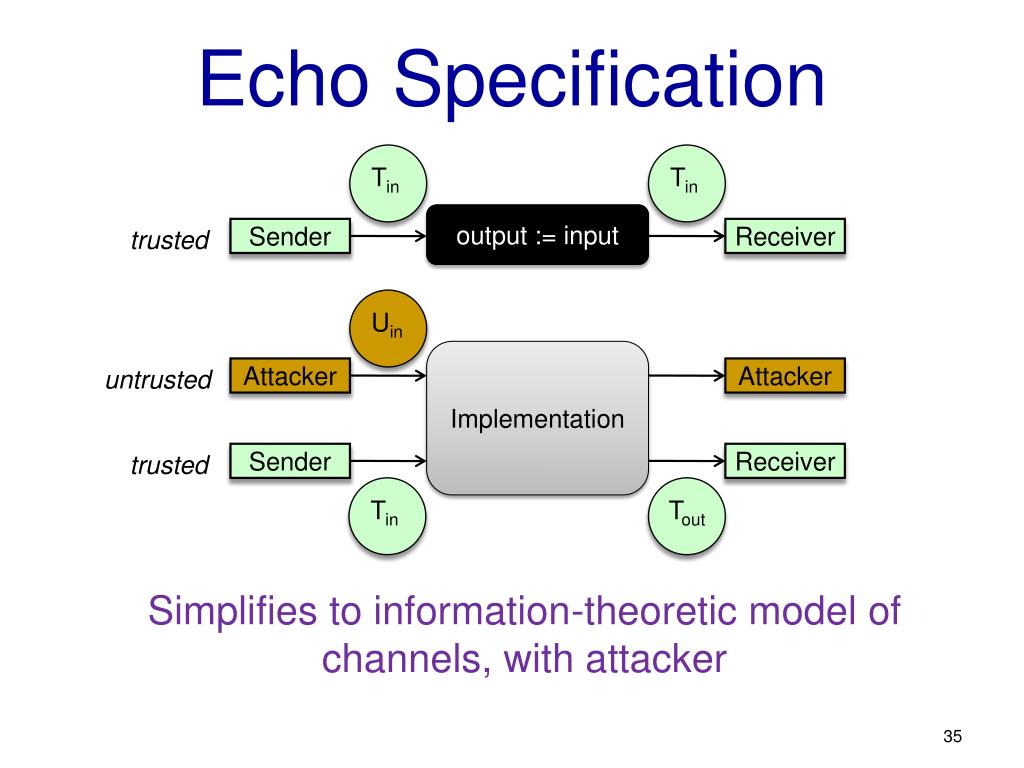

  35. Echo Specification Tin Tin output := input trusted Sender Receiver Uin Implementation untrusted Attacker Attacker trusted Sender Receiver Tin Tout Simplifies to information-theoretic model of channels, with attacker

  36. Channel Suppression Uin Channel untrusted Attacker Attacker trusted Sender Receiver Tin Tout Channel transmission = I(Tin,Tout) Channel suppression = H(Tin | Tout) (Tout depends on Uin)

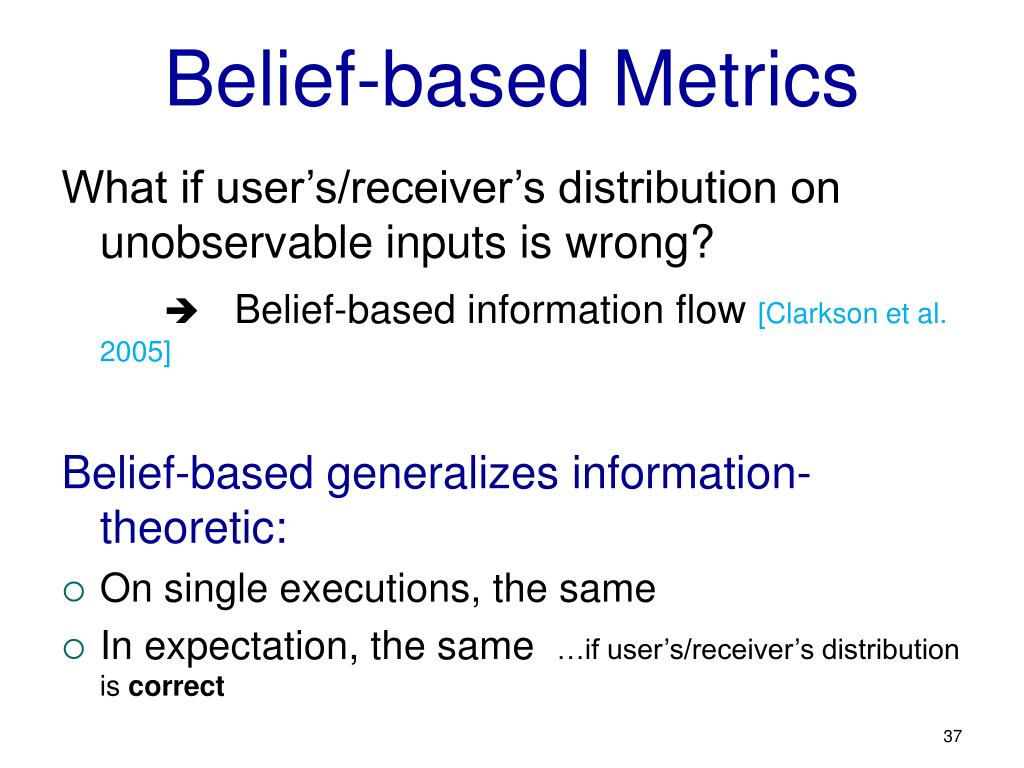

  37. Belief-based Metrics What if user’s/receiver’s distribution on unobservable inputs is wrong? Belief-based information flow [Clarkson et al. 2005] Belief-based generalizes information-theoretic: • On single executions, the same • In expectation, the same …if user’s/receiver’s distribution is correct

  38. Suppression and Confidentiality Declassifier: program that reveals (leaks) some information; suppresses rest Leakage: [Denning 1982, Millen 1987, Gray 1991, Lowe 2002, Clark et al. 2005, 2007, Clarkson et al. 2005, McCamant & Ernst 2008, Backes et al. 2009] Thm. Leakage + Suppression is a constant What isn’t leaked is suppressed

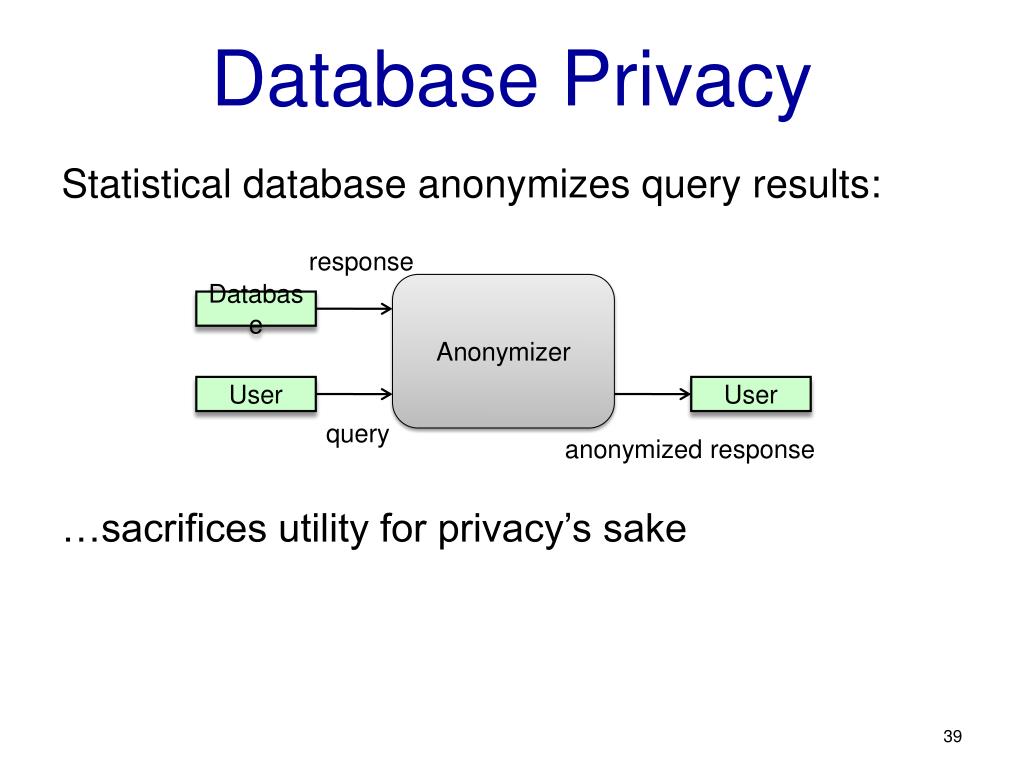

  39. Database Privacy Statistical database anonymizes query results: …sacrifices utility for privacy’s sake response Anonymizer Database User User query anonymized response

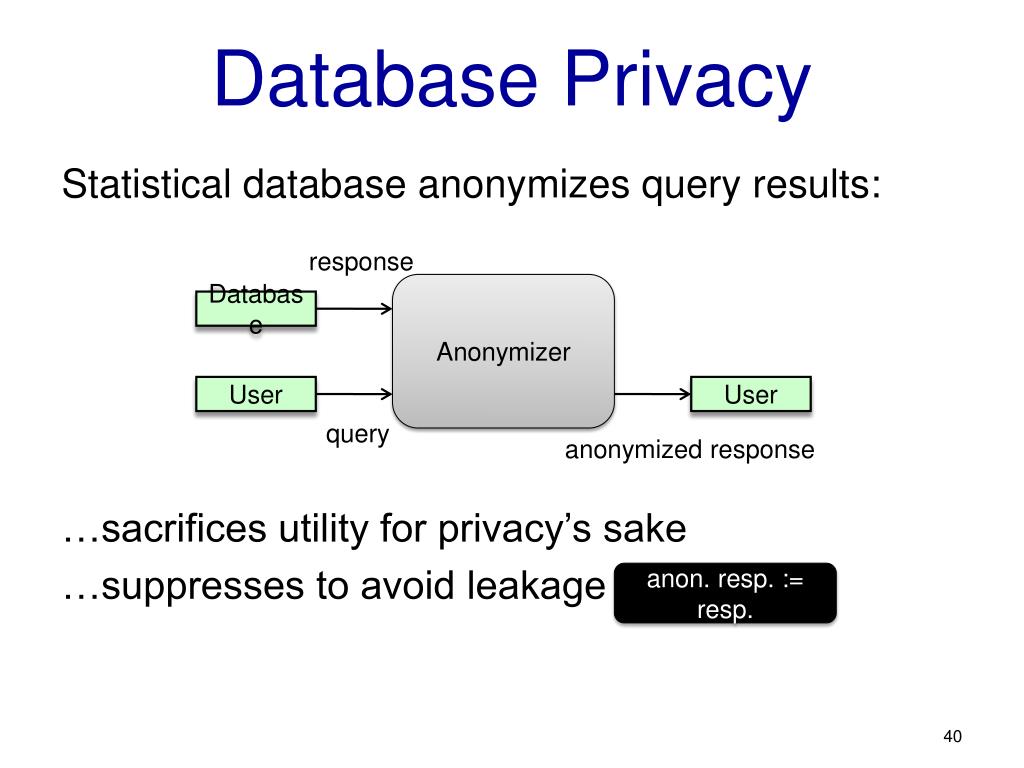

  40. Database Privacy Statistical database anonymizes query results: …sacrifices utility for privacy’s sake …suppresses to avoid leakage response Anonymizer Database User User query anonymized response anon. resp. := resp.

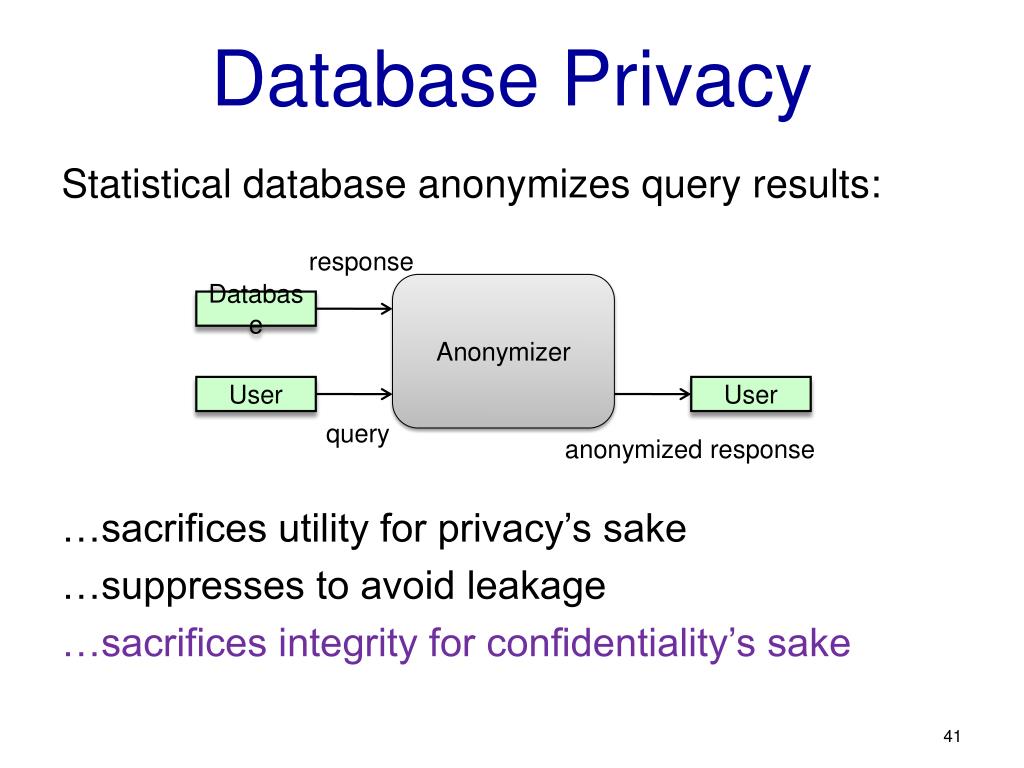

  41. Database Privacy Statistical database anonymizes query results: …sacrifices utility for privacy’s sake …suppresses to avoid leakage …sacrifices integrity for confidentiality’s sake response Anonymizer Database User User query anonymized response

  42. K-anonymity DB. Every individual must be anonymous within set of size k[Sweeney 2002] Iflow. Every output corresponds to k inputs …no bound on leakage or suppression

  43. L-diversity DB. Every individual’s sensitive information should appear to have L (roughly) equally likely values[Machanavajjhala et al. 2007] DB. Entropy L-diversity: H(anon. block) ≥ log L[Øhrn and Ohno-Machado 1999, Machanavajjhala et al. 2007] Iflow. H(Tin | tout) ≥ log L (if Tin uniform) …implies suppression ≥ log L

  44. Differential Privacy DB. [Dwork et al. 2006, Dwork 2006] • No individual loses privacy by including data in database • Anonymized data set reveals no information about an individual beyond what other individuals already reveal Iflow. Output reveals almost no information about individual input beyond what other inputs already reveal …implies almost all information about individual suppressed …quite similar to noninterference

  45. Summary Measures of information corruption: • Contamination (generalizes taint analysis, dual to leakage) • Suppression (generalizes program correctness, no dual) Application: database privacy (model anonymizers; relate utility and privacy; security conditions)

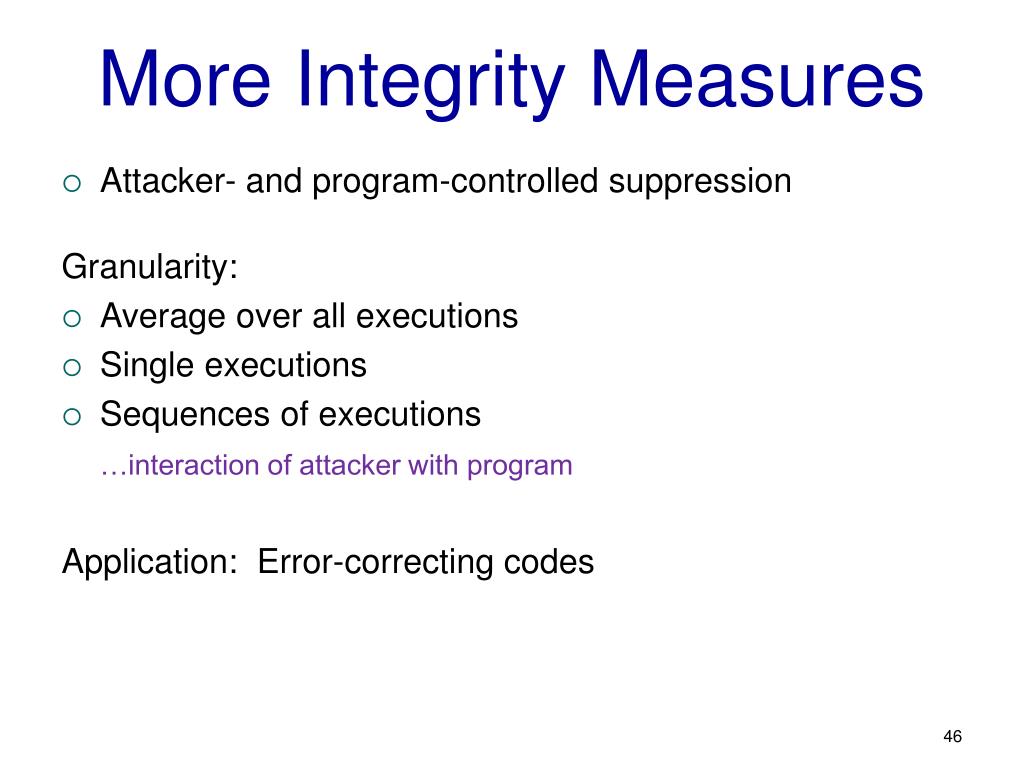

  46. More Integrity Measures • Attacker- and program-controlled suppression Granularity: • Average over all executions • Single executions • Sequences of executions …interaction of attacker with program Application: Error-correcting codes

  47. Quantification of Integrity Michael Clarkson and Fred B. Schneider Cornell University SnT Seminar University of Luxembourg September 9, 2010
