  1. Suman Jana The University of Texas at Austin Donald E. Porter Stony Brook University VitalyShmatikov The University of Texas at Austin IEEE Security & Privacy 2011 TxBox: Building Secure, Efficient Sandboxes with System Transactions

  2. Outline • Introduction • Building a Better Sandbox • Related Work • System Transactions • Design and Implementation • Evaluation • Limitations • Conclusions

  3. Introduction • ACID: atomicity, consistency, isolation, and durability [wiki] • TxBox: • Speculative execution of untrusted application • Uncircumventable enforcement of system-call policies • Automatic recovery from the effects of malicious execution

  4. Introduction • TxBox components: • Grouping • Rollback • Access summary • Access check • Based on TxOS[link] • Linux with support for system transactions • Prevent race conditions

  5. Building a Better Sandbox • TOCTTOU example Public file 1. Link to public file Softlink Private file 2. Change to private file System-call monitor must know all possible system-call sequences that lead to a violation and the monitor must check every call ! Difficult and Slow !

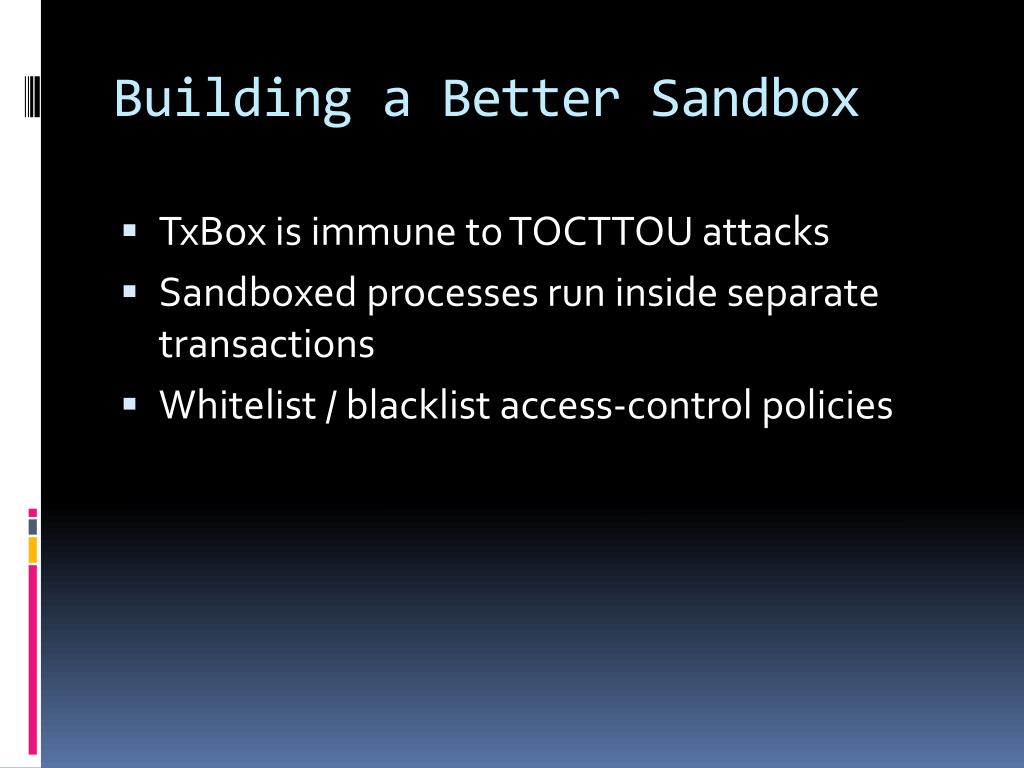

  6. Building a Better Sandbox • TxBox is immune to TOCTTOU attacks • Sandboxed processes run inside separate transactions • Whitelist / blacklist access-control policies

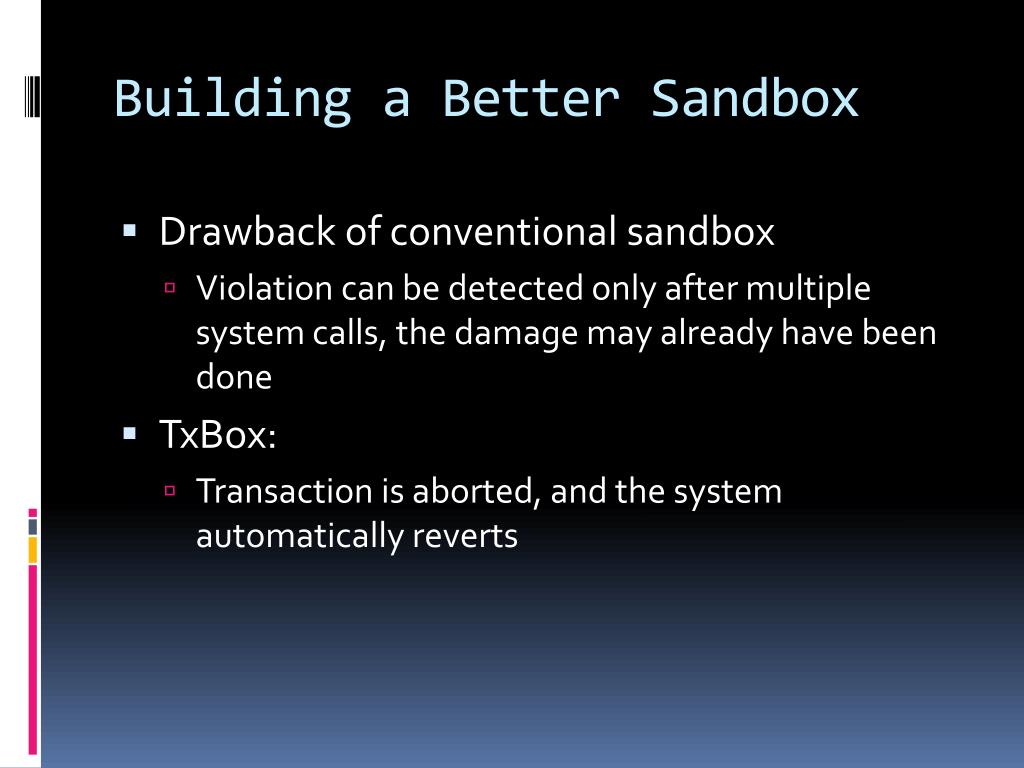

  7. Building a Better Sandbox • Drawback of conventional sandbox • Violation can be detected only after multiple system calls, the damage may already have been done • TxBox: • Transaction is aborted, and the system automatically reverts

  8. Building a Better Sandbox • Parallelism (Multi-core processors) • Conventional sandbox or anti-virus: • Sandboxed program makes a system call, its execution must be paused • Split-personality malware • TxBox: • Sandboxed program run with close-to-native performance while performing checks in parallel • Only a single copy is executed

  9. Related Work • Speck, 2008 • Multi-core processor • Concurrently perform checks on an instrumented copy on another core • Cannot detect “split-personality” malware • Use Pin [link] • Pin can be detected by malicious program • Suffer TOCTTOU attacks

  10. Related Work

  11. Related Work • Software Transactional Memory (STM) [wiki] • Lock-based synchronization • STM-based systems • Enforce application-specific security policies • Cannot span system calls

  12. Related Work • Capsicum, 2010 • Capability-based sandboxing system • Help benign application to increase their trustworthiness • Native Client, 2009 • Require the code to be recompiled to a restricted subset of the x86 ISA and also confines it using segmentation

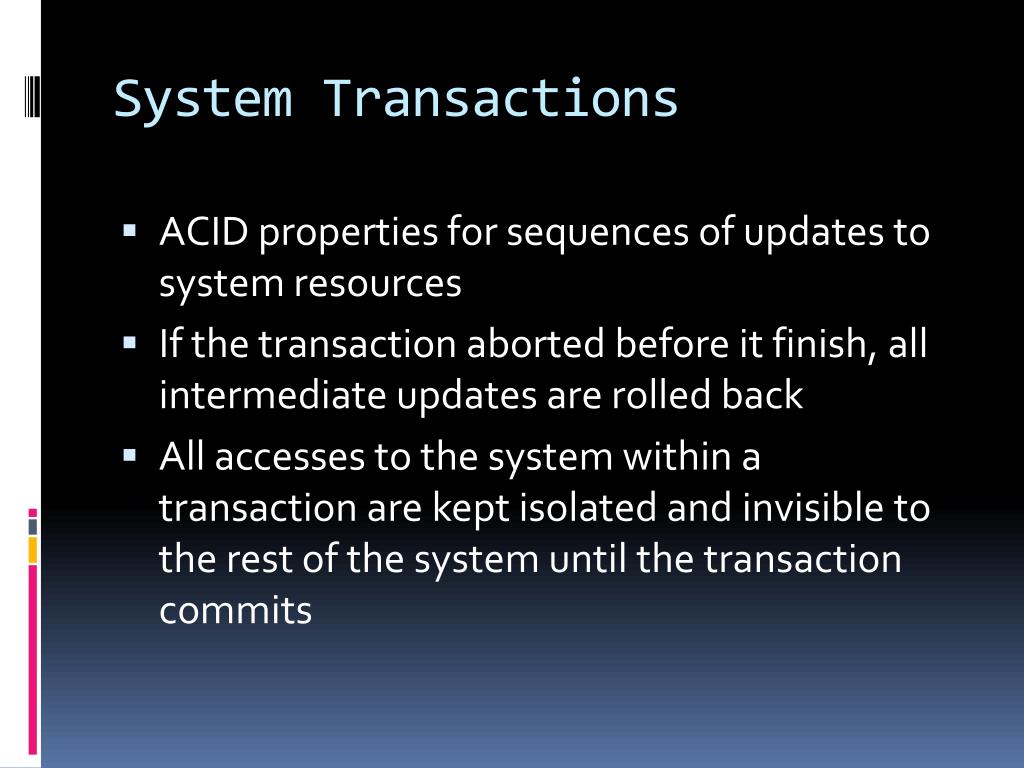

  13. System Transactions • ACID properties for sequences of updates to system resources • If the transaction aborted before it finish, all intermediate updates are rolled back • All accesses to the system within a transaction are kept isolated and invisible to the rest of the system until the transaction commits

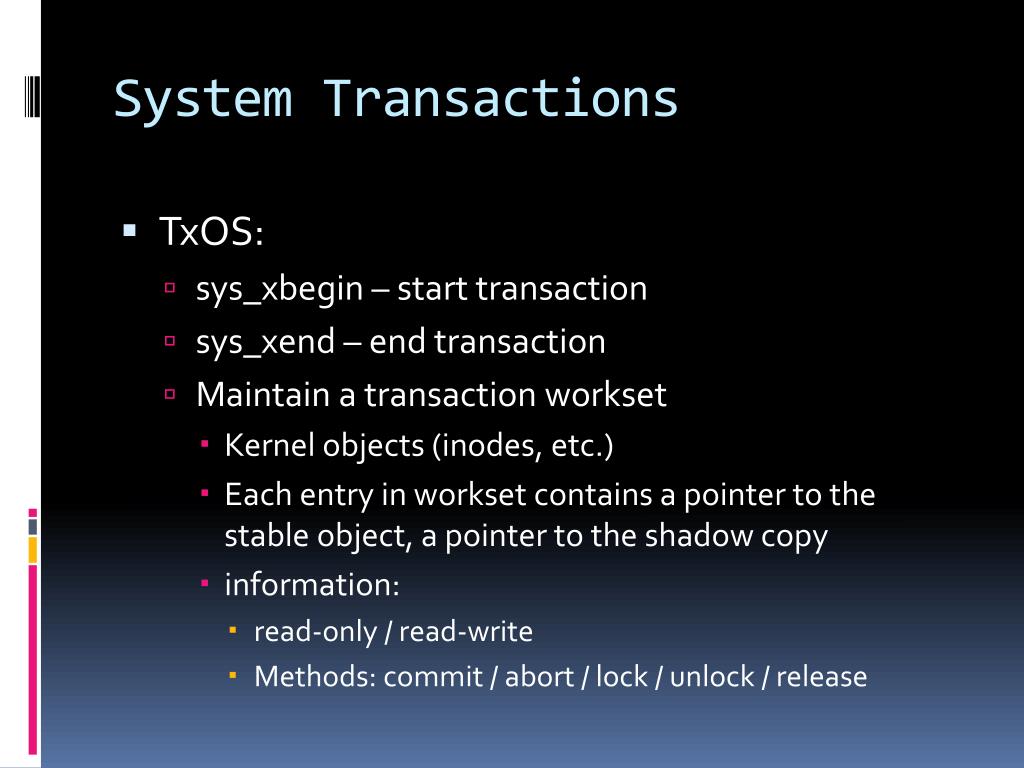

  14. System Transactions • TxOS: • sys_xbegin – start transaction • sys_xend – end transaction • Maintain a transaction workset • Kernel objects (inodes, etc.) • Each entry in workset contains a pointer to the stable object, a pointer to the shadow copy • information: • read-only / read-write • Methods: commit / abort / lock / unlock / release

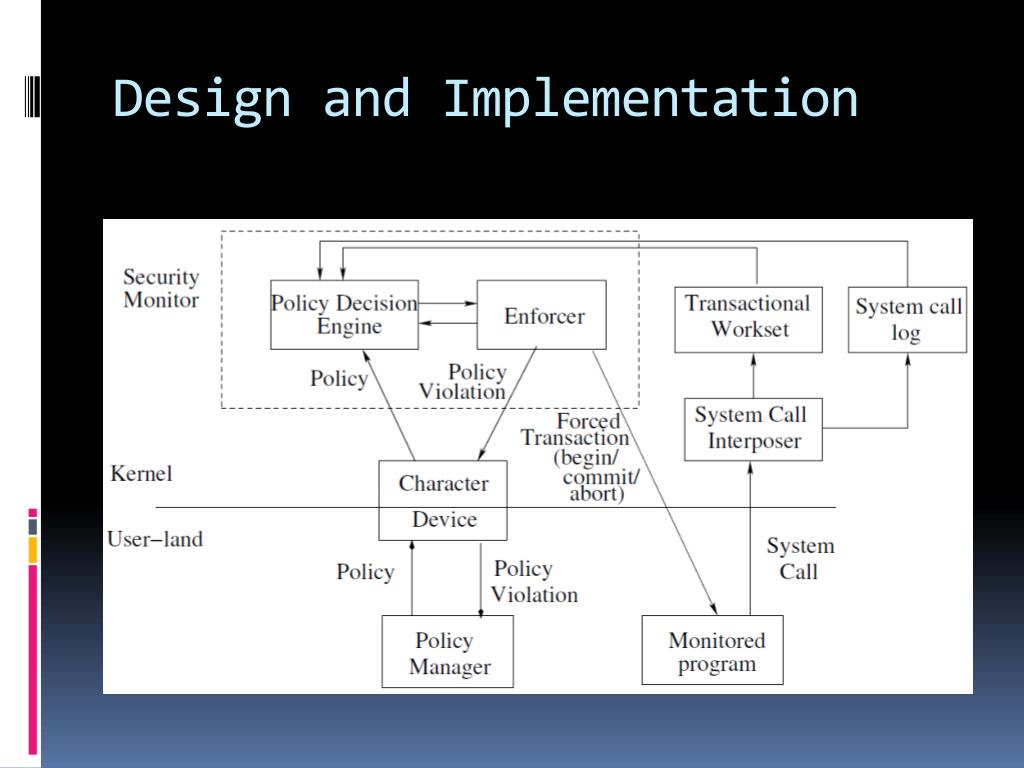

  15. Design and Implementation

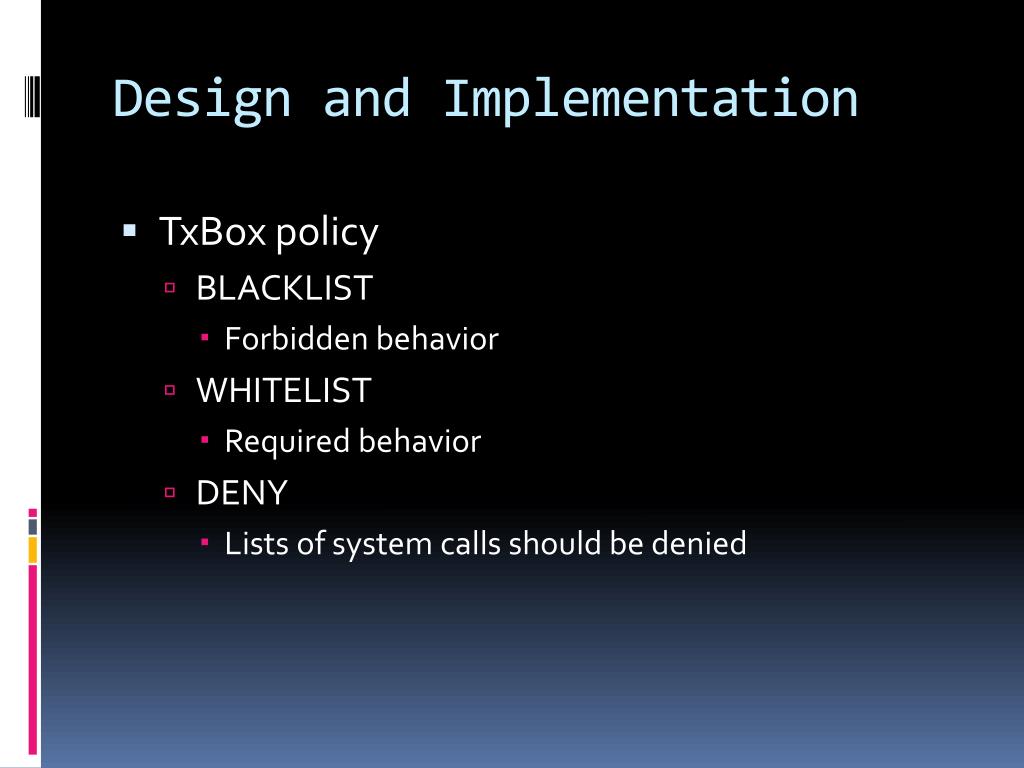

  16. Design and Implementation • TxBox policy • BLACKLIST • Forbidden behavior • WHITELIST • Required behavior • DENY • Lists of system calls should be denied

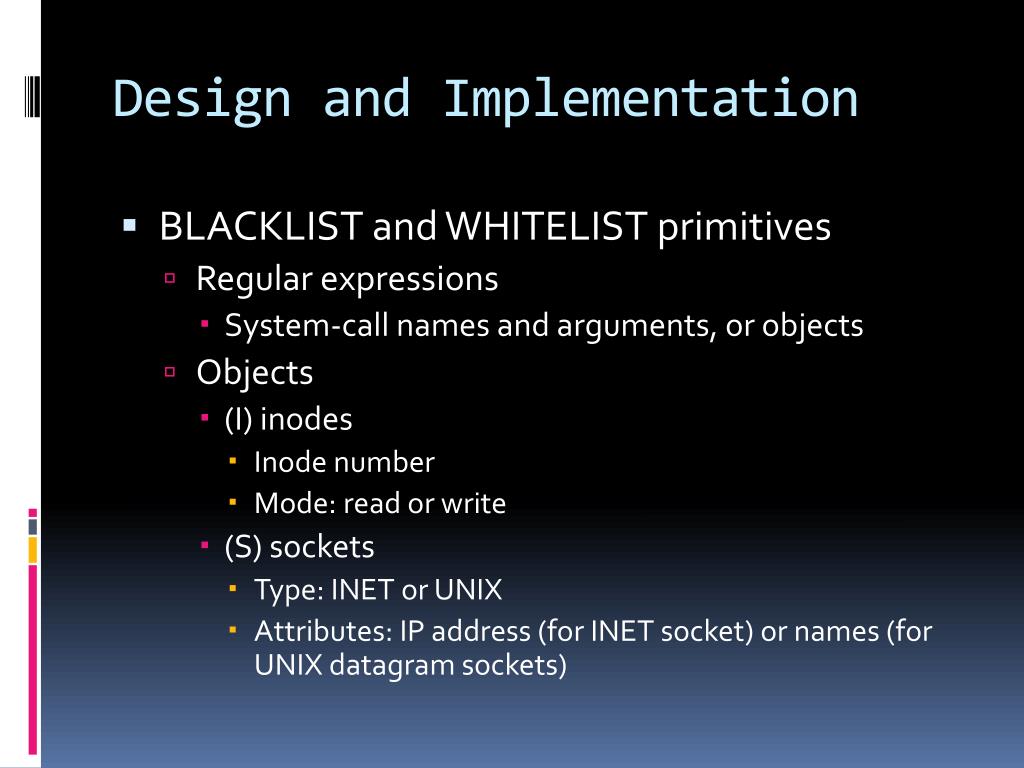

  17. Design and Implementation • BLACKLIST and WHITELIST primitives • Regular expressions • System-call names and arguments, or objects • Objects • (I) inodes • Inode number • Mode: read or write • (S) sockets • Type: INET or UNIX • Attributes: IP address (for INET socket) or names (for UNIX datagram sockets)

  18. Design and Implementation • Example • (e)* means “match expression e any number of times” • Any deviation from a model-based whitelist policy means that the sandboxed program is no longer executing the original code (code injection attacks)

  19. Design and Implementation

  20. Design and Implementation • DENY primitives • DENY primitives is violated • Block calls and continue execution • Run a sandboxed program without letting it perform certain operations

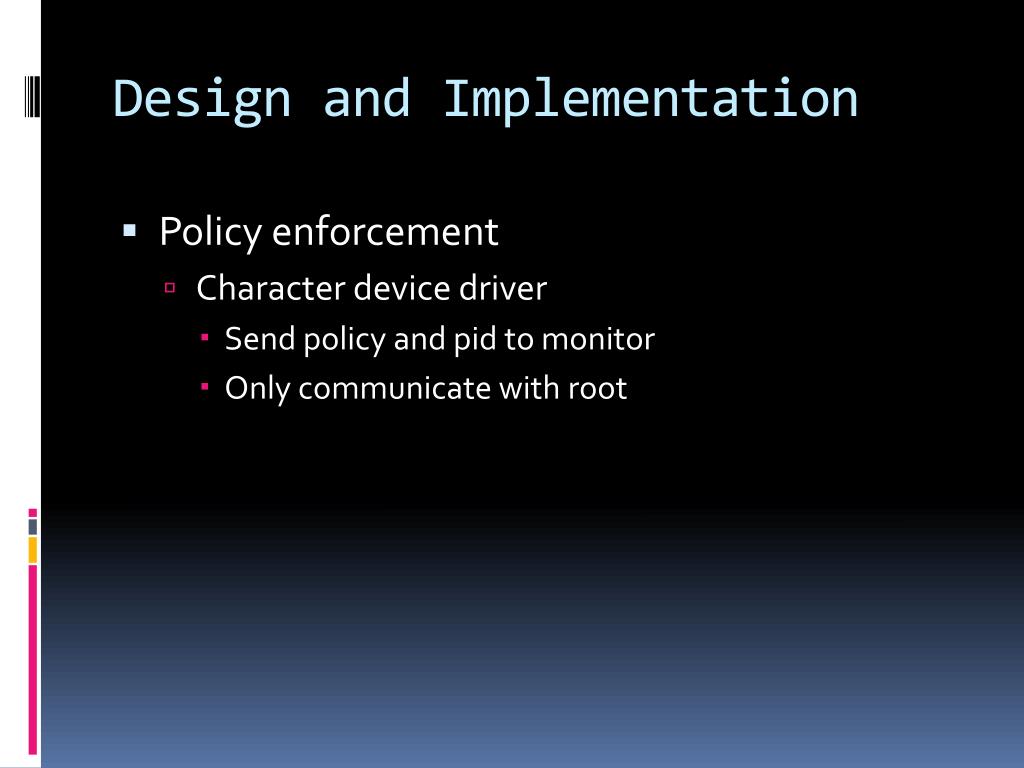

  21. Design and Implementation • Policy enforcement • Character device driver • Send policy and pid to monitor • Only communicate with root

  22. Design and Implementation • System-call interposer • TxBox call wrappers • Symbolic link issue • rename calls • Enforcer • Force sandboxed process to run in transaction mode

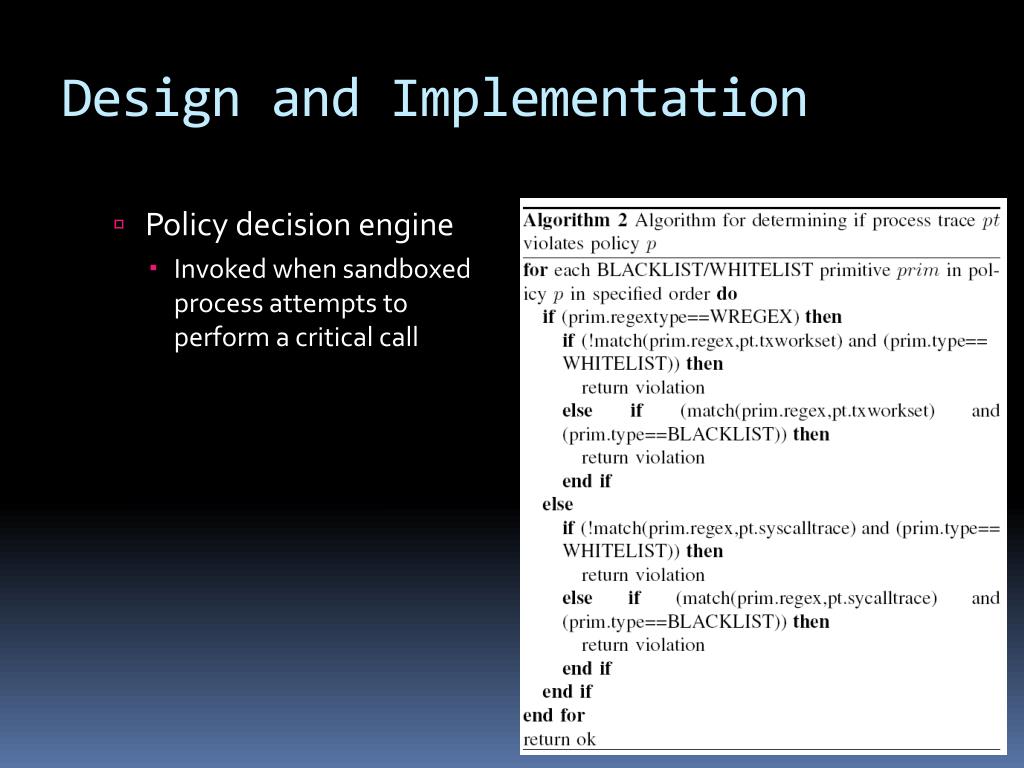

  23. Design and Implementation • Policy decision engine • Invoked when sandboxed process attempts to perform a critical call

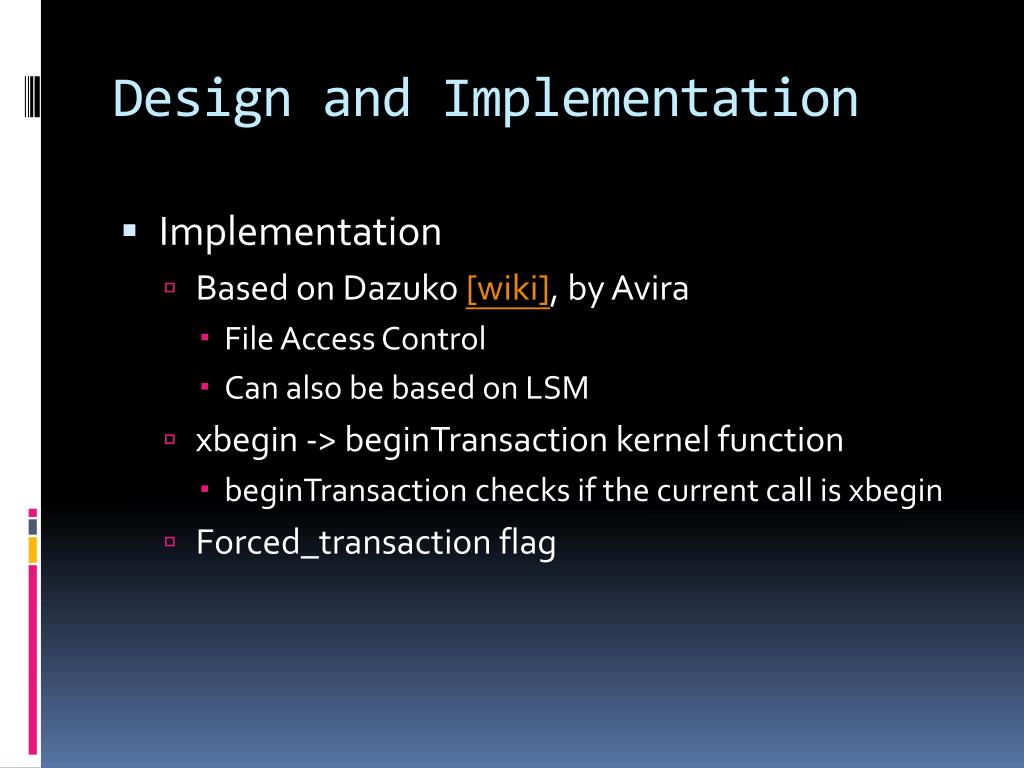

  24. Design and Implementation • Implementation • Based on Dazuko[wiki], by Avira • File Access Control • Can also be based on LSM • xbegin -> beginTransaction kernel function • beginTransaction checks if the current call is xbegin • Forced_transaction flag

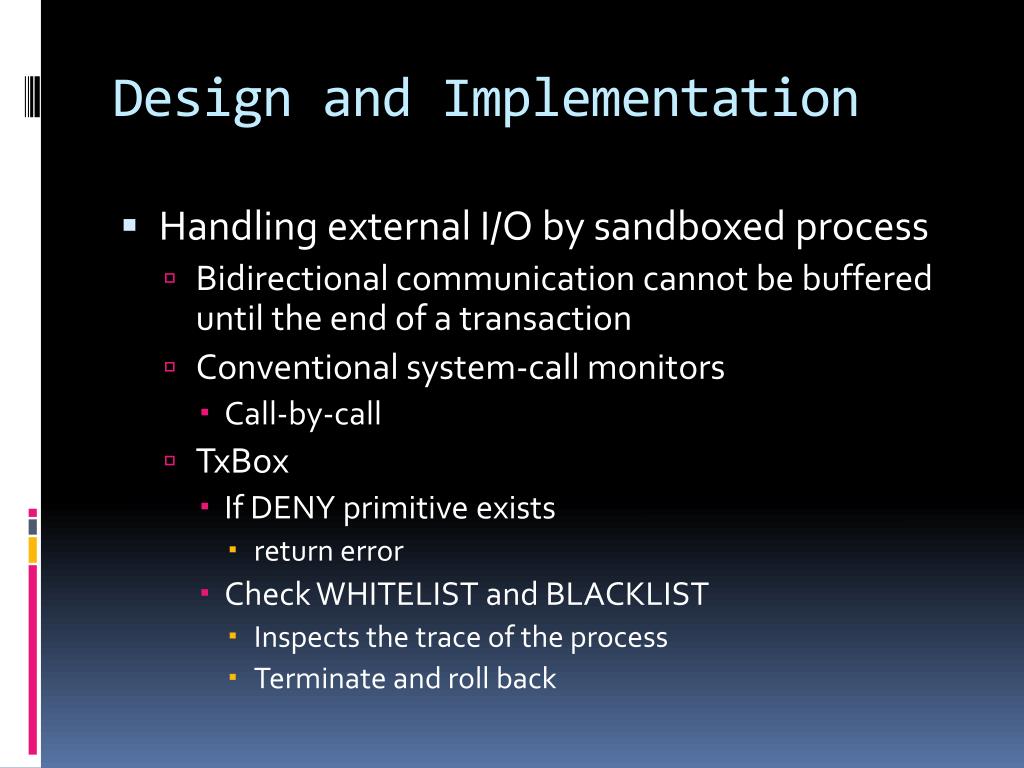

  25. Design and Implementation • Handling external I/O by sandboxed process • Bidirectional communication cannot be buffered until the end of a transaction • Conventional system-call monitors • Call-by-call • TxBox • If DENY primitive exists • return error • Check WHITELIST and BLACKLIST • Inspects the trace of the process • Terminate and roll back

  26. Evaluation • Performance Test • TxBox with Linux 2.6.22.6 • Linux with Dazuko module • Quad-core Intel X5355 2.66GHz • 4GB RAM

  27. Evaluation • Micro-benchmarks • Policy • BLACKLIST WREGEX *I:1234* Worst system call for TxBox

  28. Evaluation • Application benchmarks

  29. Evaluation • Application benchmarks • PostMark: a file system benchmark • Due to the fact that the transaction commit groups all writes and presents them to the I/O scheduler all at once, thus improving disk arm scheduling

  30. Evaluation • Scalability • Opens 100 existing files • Intel Core Due 2.00 GHz with 2GB RAM

  31. Evaluation Original TxBox fd = open(“foo”, ..) read(fd, ..) sockfd = socket( .. ) sendto = (sockfd, .. ) close(sockfd) close(fd) … TX BEGIN fd = open(“foo”, ..) read(fd, ..) sockfd = socket( .. ) CHECK TX POLICY VIOLATION NONTRANSACTIONAL sendto(sockfd, ..) close(sockfd) close(fd) … CHECK TX POLICY VIOLATION TX END

  32. Evaluation • Non-transactional system call • sendto / reccvfrom / connect / send / recv /ioctl / read (from a socket) / write (to a socket) • IO-intensive applications • wget • System time increases by 30%-40%

  33. Evaluation • Overhead for trusted applications • A single non-transactional system call • 44% overhead • Compile a non-transactional Linux kernel • Less than 2% overhead

  34. Evaluation • Creating files in a protected directory • make install for vim • BLACKLIST WREGEX *I:164564* • 164564 -> /usr/local/bin/ • Correctly roll back all effects on the system

  35. Evaluation • Malicious MIME handler in a browser • Tarhandler with lynx browser for MIME type ‘application/x-tar’ • Tarhandler reads file from /home/secret and writes into /tmp/foo • BLACKLIST WREGEX *I:183145* • 183145 -> /home/secret

  36. Evaluation • Multimedia converter • ffmpeg: a popular codec • Create output files in the /home/user1/ • BLACKLIST WREGEX *I:181064* • 181064 -> /home/user1

  37. Evaluation • Javascript engine • Google V8 benchmark • SpiderMonkeyJavascript engine • Less than 5%

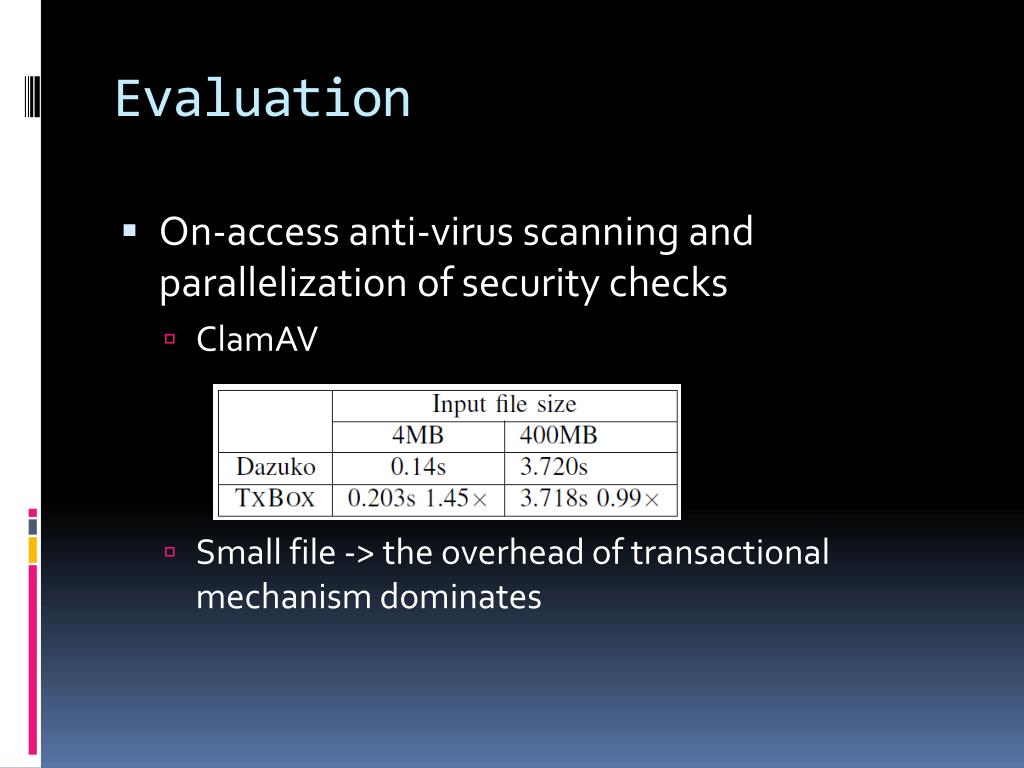

  38. Evaluation • On-access anti-virus scanning and parallelization of security checks • ClamAV • Small file -> the overhead of transactional mechanism dominates

  39. Evaluation • With 4 threads, TxBox is 2.3 times better than Linux+ Dazuko

  40. Limitations • Kernel-based security monitor is vulnerable to kernel atttacks • Transactional semantics may change the behavior of sandboxed processes • Transactional conflict • Auto-retry • Transactional state is not shared • Some anti-virus may need to observe the execution of the program

  41. Limitations • Colluding malware may evade security policies • No sandboxing mechanism can reliably prevent this • Processes tha generate very large worksets are killed • DoS Attack

  42. Conclusions • Use system transactions • Cannot be circumvented by TOCTTOU • Performance improvement (Multi-core)
