AES based secure LEACH for WSN’s

AES based secure LEACH for WSN’s. Obstacles of WSN Security. Limited resources-Limited memory, code space and energy. Unreliable Communication-Densely deployed, so congestion and errors in transmission Unattended operation- Deployed in environment open to adversaries. Security Requirements.

reegan
Télécharger la présentation

AES based secure LEACH for WSN’s

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AES based secure LEACH for WSN’s

  2. Obstacles of WSN Security • Limited resources-Limited memory, code space and energy. • Unreliable Communication-Densely deployed, so congestion and errors in transmission • Unattended operation- Deployed in environment open to adversaries

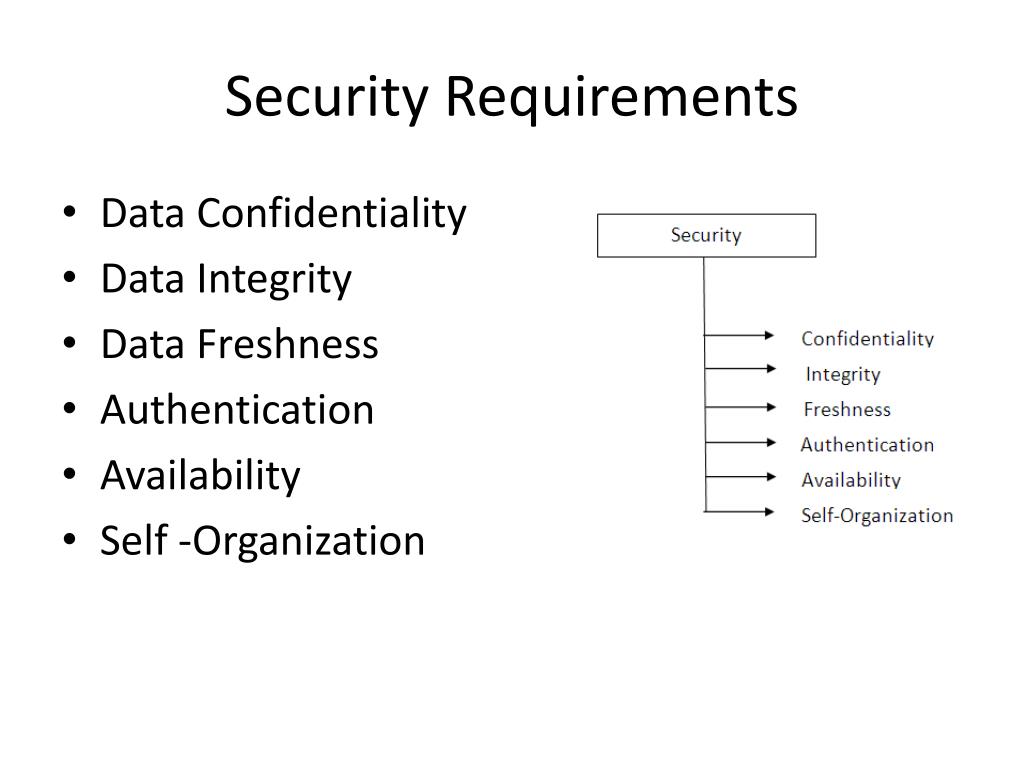

  3. Security Requirements • Data Confidentiality • Data Integrity • Data Freshness • Authentication • Availability • Self -Organization

  4. Security Primitives • Symmetric Key Algorithms • Encryption methods in which both the sender and receiver share the same key. • Block ciphers e.g., DES, AES. • Stream ciphers e.g., RC4.

  5. High Level Description-AES • Key Expansion • Initial Round • AddRoundKey • Rounds • SubBytes • ShiftRows • MixColumns • AddRoundKey • Final Round (no MixColumns) • SubBytes • ShiftRows • AddRoundKey

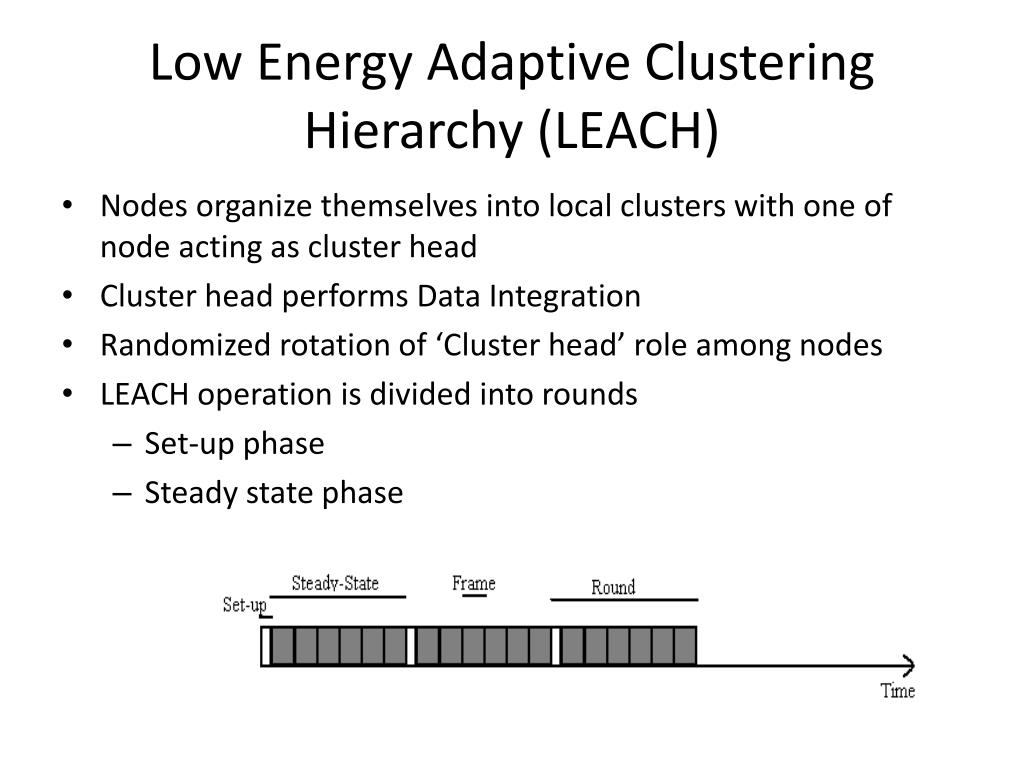

  6. Low Energy Adaptive Clustering Hierarchy (LEACH) • Nodes organize themselves into local clusters with one of node acting as cluster head • Cluster head performs Data Integration • Randomized rotation of ‘Cluster head’ role among nodes • LEACH operation is divided into rounds • Set-up phase • Steady state phase

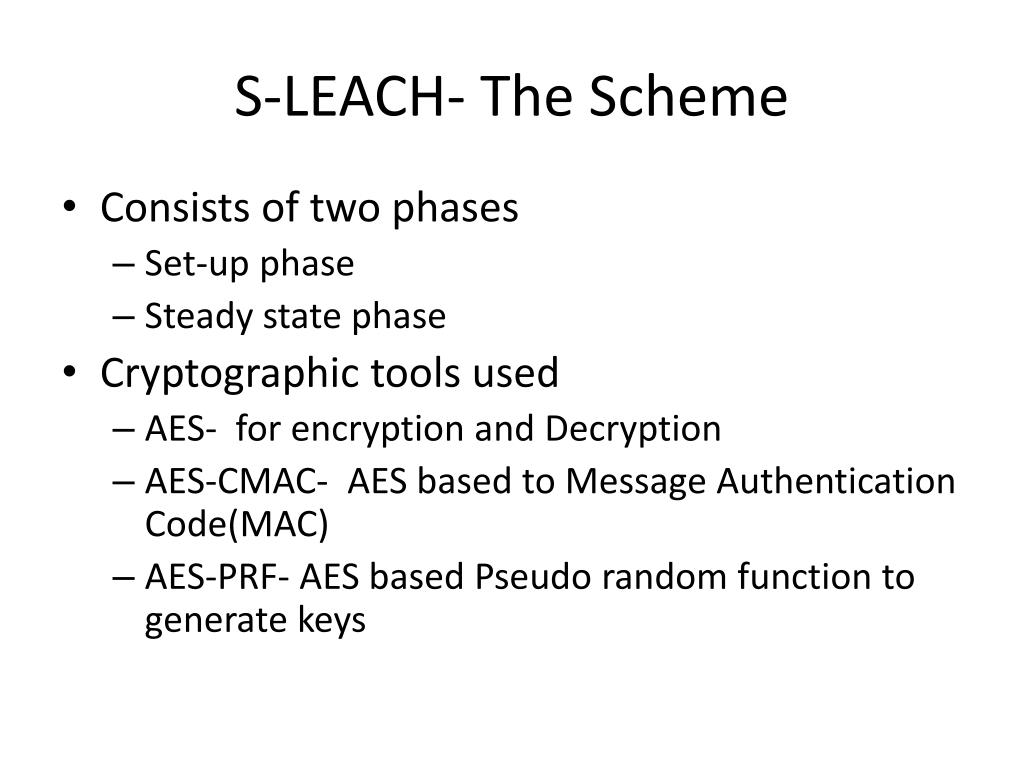

  7. S-LEACH- The Scheme • Consists of two phases • Set-up phase • Steady state phase • Cryptographic tools used • AES- for encryption and Decryption • AES-CMAC- AES based to Message Authentication Code(MAC) • AES-PRF- AES based Pseudo random function to generate keys

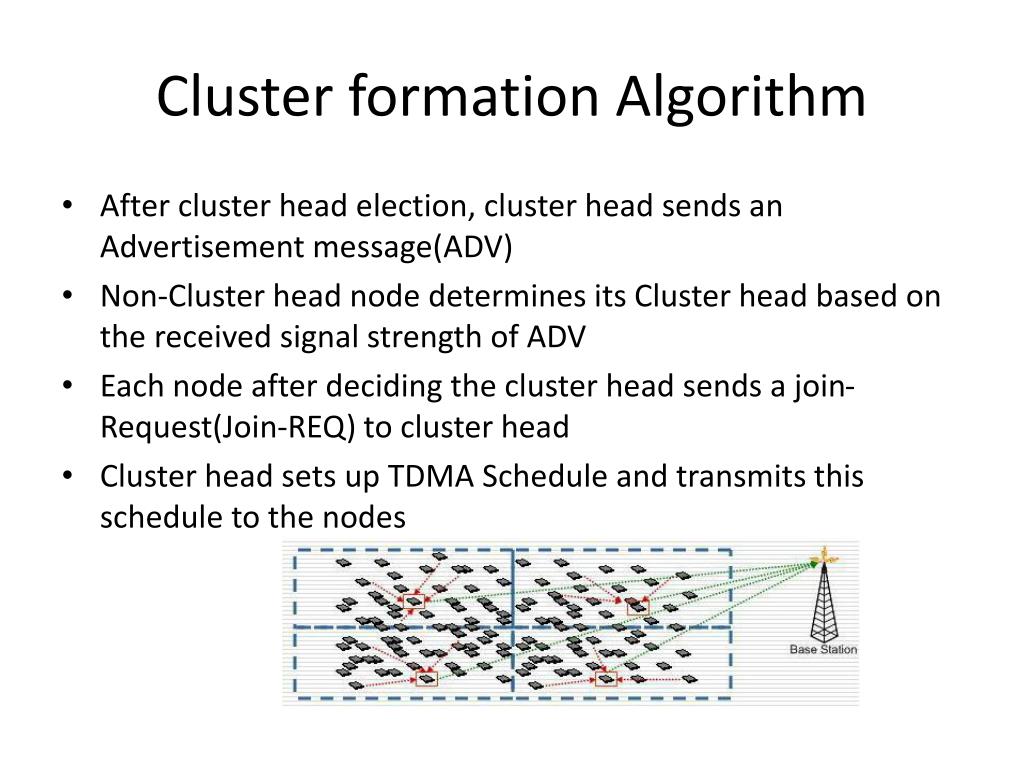

  8. Cluster formation Algorithm • After cluster head election, cluster head sends an Advertisement message(ADV) • Non-Cluster head node determines its Cluster head based on the received signal strength of ADV • Each node after deciding the cluster head sends a join-Request(Join-REQ) to cluster head • Cluster head sets up TDMA Schedule and transmits this schedule to the nodes

  9. Steady-State Phase • Steady State phase broken into frames, nodes send data once per frame • Frame duration depends on number of nodes in the cluster. • Node turns of the radio in the other frames in steady state. • Cluster head awake all the time and performs data aggregation

  10. Secure-LEACH • Four types of keys • Group key • Key shared by all nodes. • Used to distribute session key • Session key • This key operates for only round • Cluster key • Generated by Cluster head • Used for exchange of data between cluster base station • Pair wise key • Derived from Cluster key • For exchange of data between Cluster head and nodes

  11. Set-up Phase • Group key is preloaded • Base station broadcasts the session key encrypted with the group key • BS → * : ({Session key}Kg) • Election Phase • Using cluster head election probability, Cluster head election is done • Cluster head Transmits Secure advertisement • CHDi→ * : (ADVERTISEMENT, IdCHDi , MACKCHDi) • KCHDi=fKs(IdCHDi)

  12. Steady State Phase • Steady state is divided into frames • According to schedule received each node transmits in the allocated frame encrypted with the session • NDi → CHDj : ({Data}Knhij) • After the round time finishes, the base station transmits the session key and the process repeats again

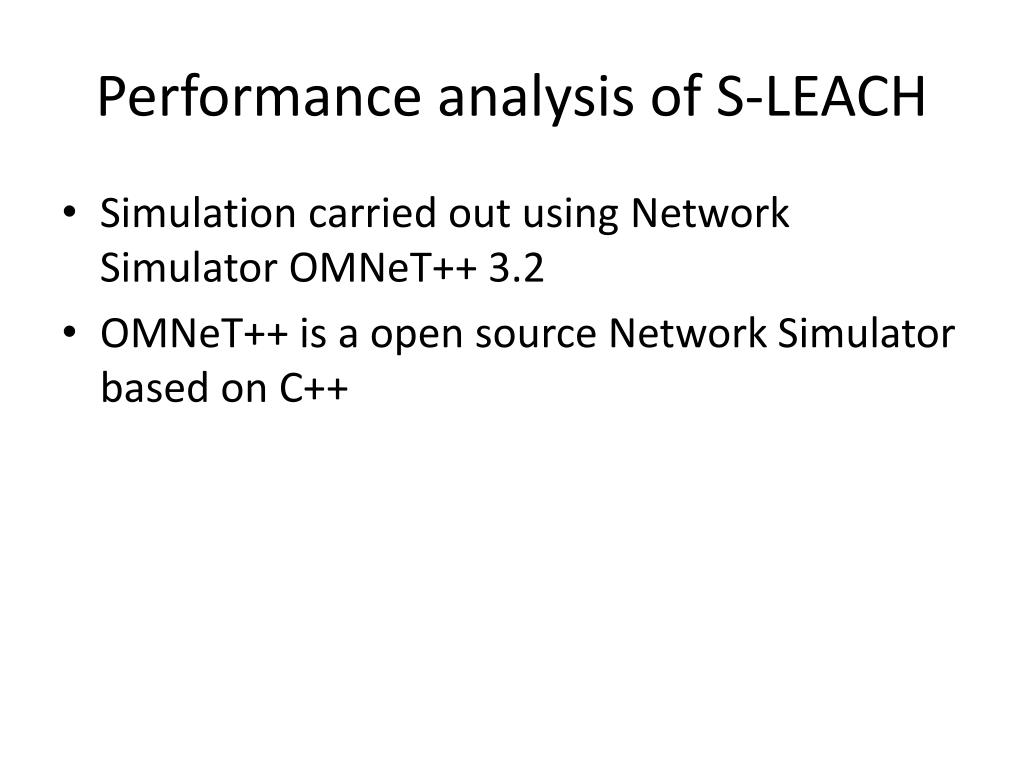

  13. Performance analysis of S-LEACH • Simulation carried out using Network Simulator OMNeT++ 3.2 • OMNeT++ is a open source Network Simulator based on C++

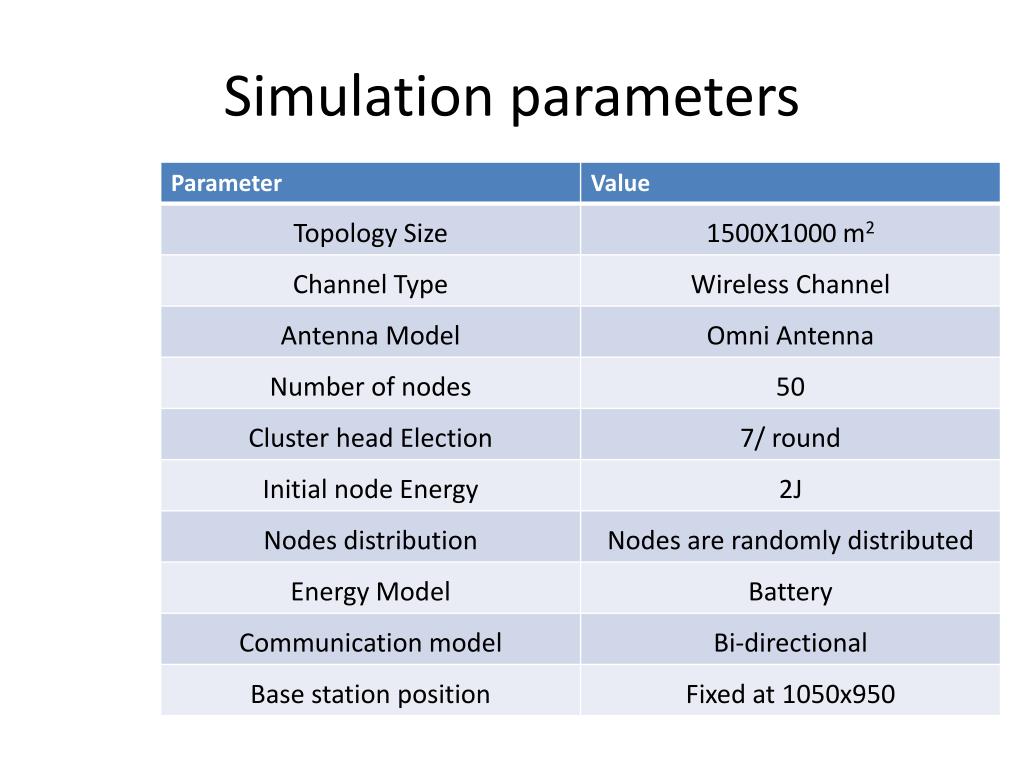

  14. Simulation parameters

  15. Results Energy Vs Time

  16. Results Time Vs Number of Node Alive

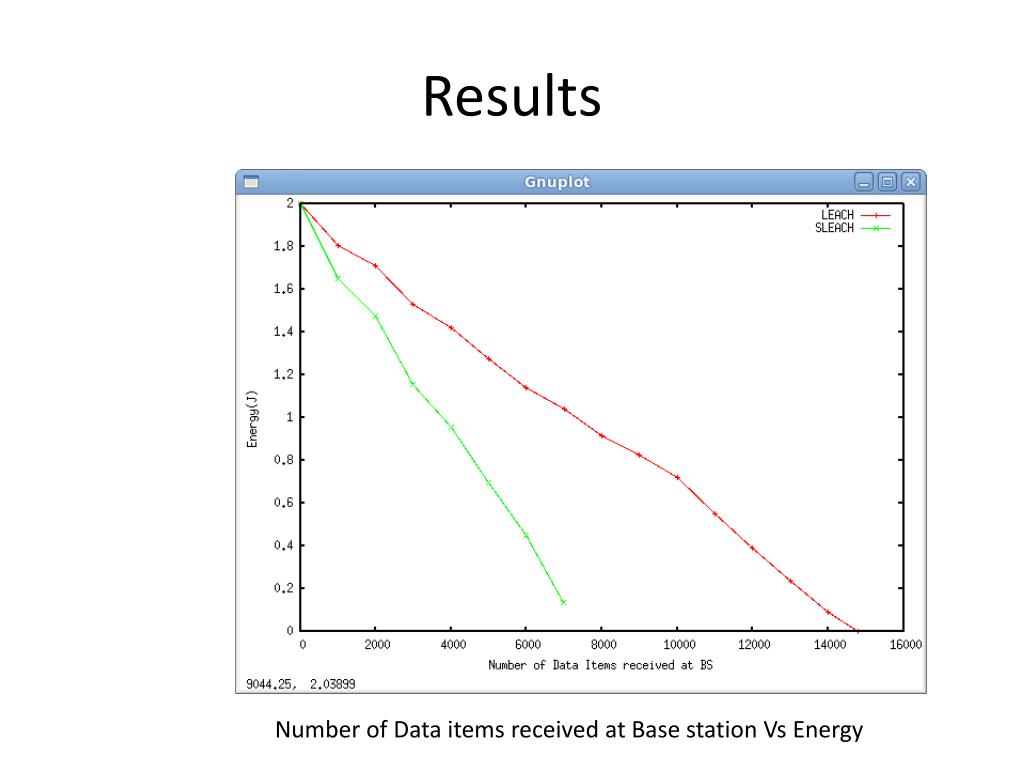

  17. Results Number of Data items received at Base station Vs Energy

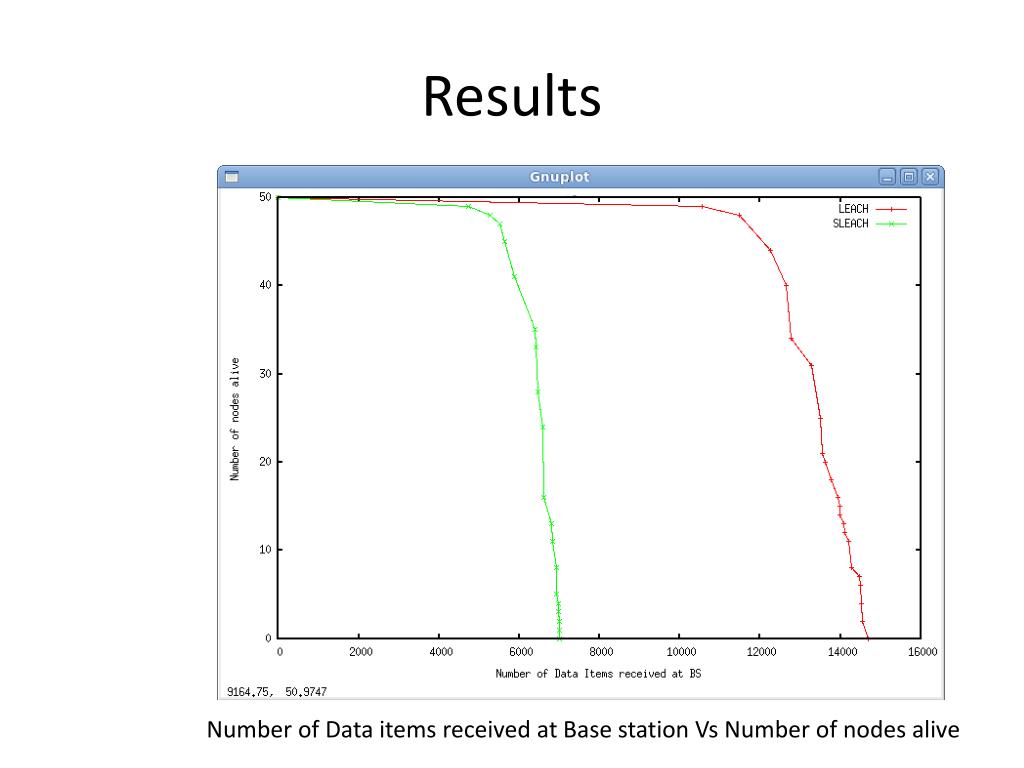

  18. Results Number of Data items received at Base station Vs Number of nodes alive

  19. Conclusion • Both energy efficient and secure • Positive features of symmetric key cryptography and cluster-based methods. • Each packet using session key which changes after each session by the sink node

  20. References [1] C. Chong, S. P. Kumar, “Sensor Networks: Evolution, Opportunities, and Challenges,” Proceedings of the IEEE. 91(8):1247-1256, Aug. 2003 [2] S. Zhu, S. Setia, S. Jajodia, Leap: Efficient security mechanisms for large-scale distributed sensor networks, in: ACM Conf. Computer and Commun. Security, pp. 62–72, 2003 [3] Joan Daemen and Vincent Rijmen, ”The design of Rijndael, AES — the advanced encryption standard,” Springer-Verlag, 2002. [4] W. B. Heinzelman et al., “An Application-Specific Protocol Architecture for Wireless Microsensor Networks,” IEEE Transactions on Wireless Communications Volume 1, No. 4, pp.660 - 670 , Oct 2002. [5] A. Wang, W. Heinzelman, and A. Chandrakasan, “Energy-scalable protocols for battery-operated microsensor networks,” Proc. 1999 IEEE Workshop Signal Processing Systems (SiPS ’99), pp. 483–492, Oct. 1999. [6] “OMNeT++ discrete event simulation environment,” http://www.omnetpp.org/

  21. Thank you
