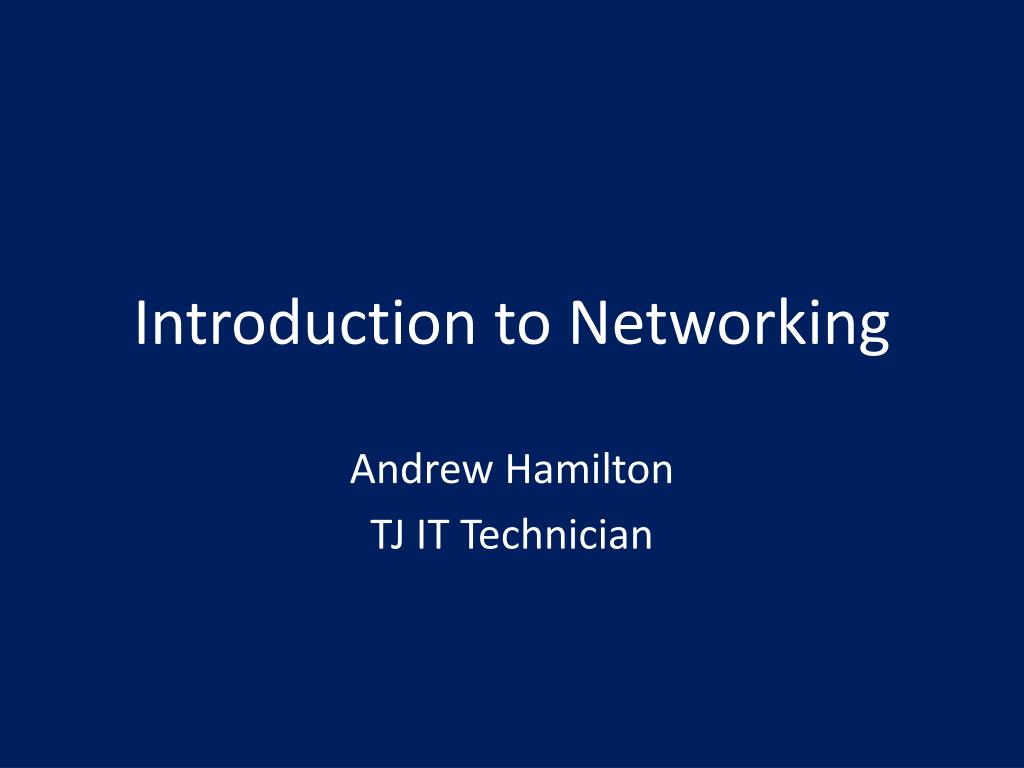

  1. Introduction to Networking Andrew Hamilton TJ IT Technician

  2. Networks • Connect Computers together • Share resources • Printers • Storage • Internet Access • Applications

  3. LANs vs WANs • Local Area Network • Internal to one site • Wide Area Network • Connect multiple sites together • The Internet • A very large WAN

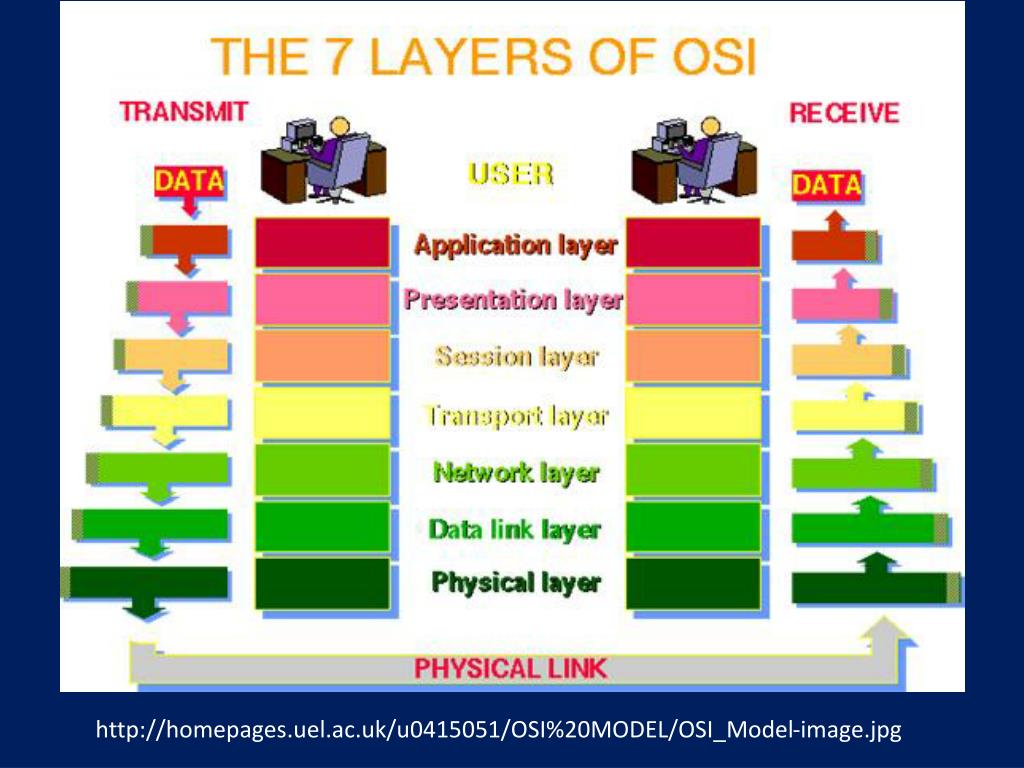

  4. OSI Model http://homepages.uel.ac.uk/u0415051/OSI%20MODEL/OSI_Model-image.jpg

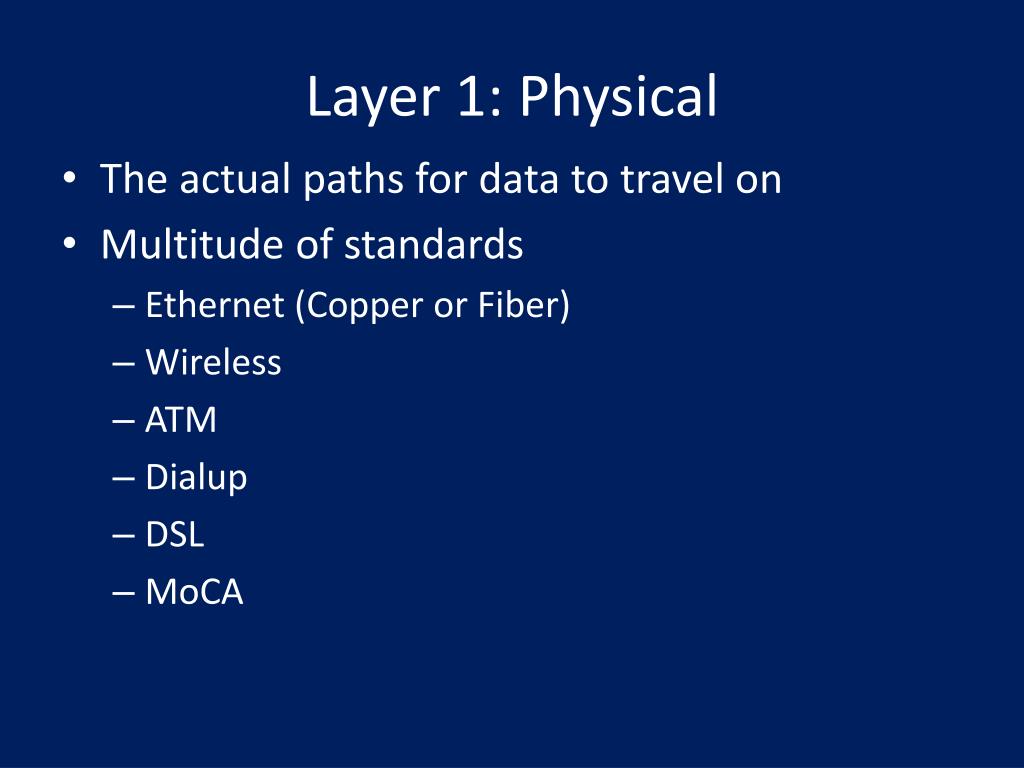

  5. Layer 1: Physical • The actual paths for data to travel on • Multitude of standards • Ethernet (Copper or Fiber) • Wireless • ATM • Dialup • DSL • MoCA

  6. Layer 2: Data Link • Operates based on MAC Address • Wireless Access Points (WAPs) • Switches • Hubs • Bridges

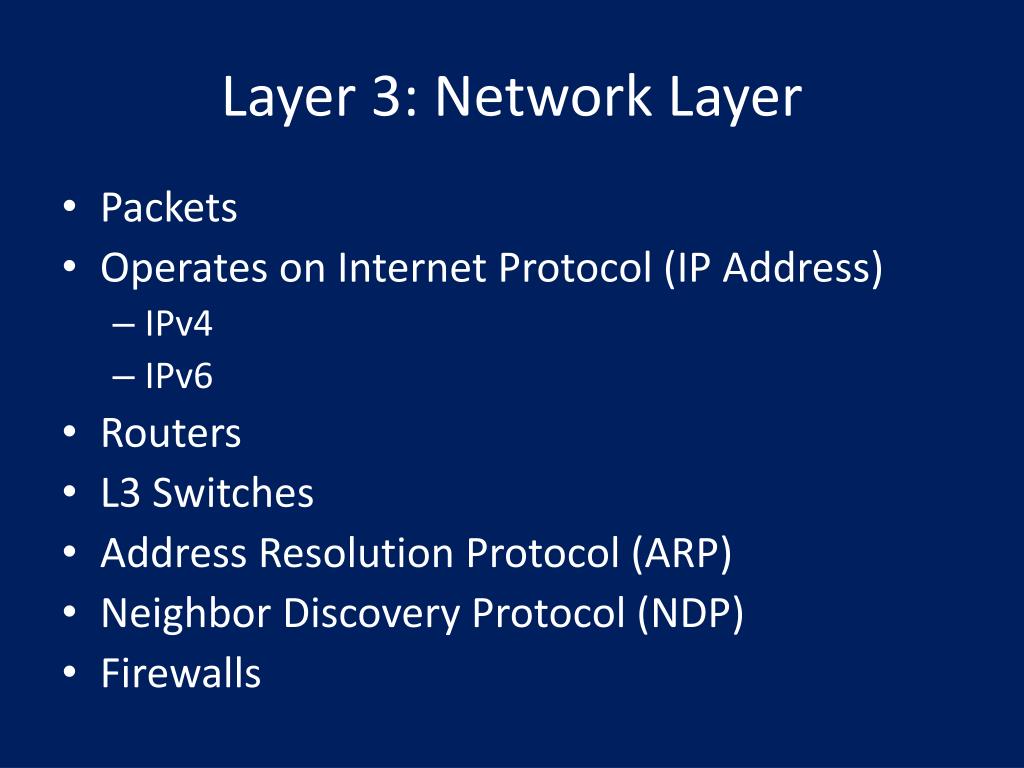

  7. Layer 3: Network Layer • Packets • Operates on Internet Protocol (IP Address) • IPv4 • IPv6 • Routers • L3 Switches • Address Resolution Protocol (ARP) • Neighbor Discovery Protocol (NDP) • Firewalls

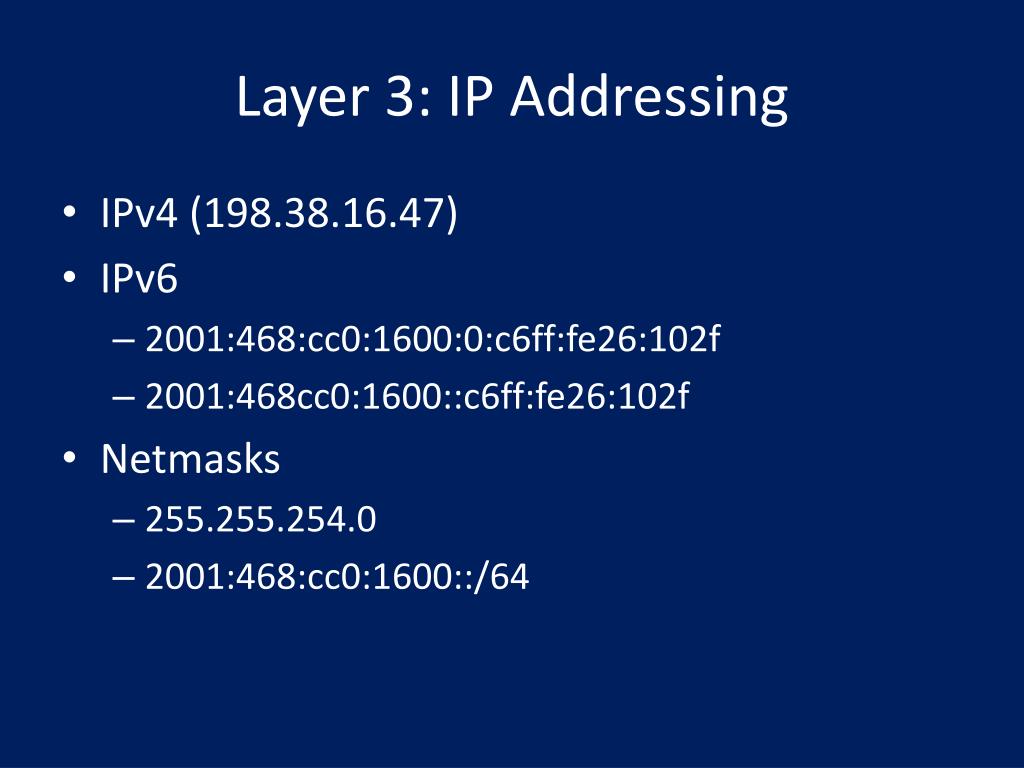

  8. Layer 3: IP Addressing • IPv4 (198.38.16.47) • IPv6 • 2001:468:cc0:1600:0:c6ff:fe26:102f • 2001:468cc0:1600::c6ff:fe26:102f • Netmasks • 255.255.254.0 • 2001:468:cc0:1600::/64

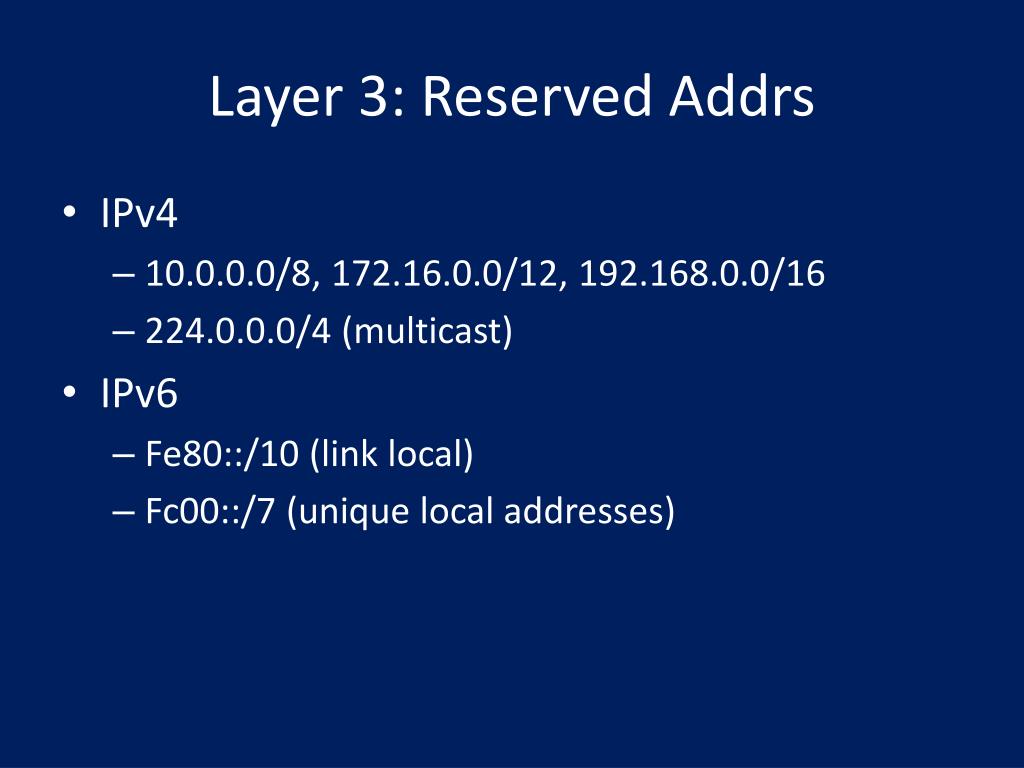

  9. Layer 3: Reserved Addrs • IPv4 • 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16 • 224.0.0.0/4 (multicast) • IPv6 • Fe80::/10 (link local) • Fc00::/7 (unique local addresses)

  10. Layer 4: Transport Layer • Protocols • User Datagram Protocol (UDP) • Transmission Control Protocol (TCP) • Internet Control Message Protocol (ICMP) • Ports • Permanent (0-1023) • Registered (1024-49151) • Dynamic (49152-65535)

  11. Upper Layers • Layer 5: Session Layer • Layer 6: Presentation Layer • Layer 7: Application Layer • “Layer 8”: User Layer • “Layer 9”: Religious/Political Layer

  12. Utilities • ipconfig / ifconfig • ping / ping6 • arp • nslookup • tracert / traceroute(6)

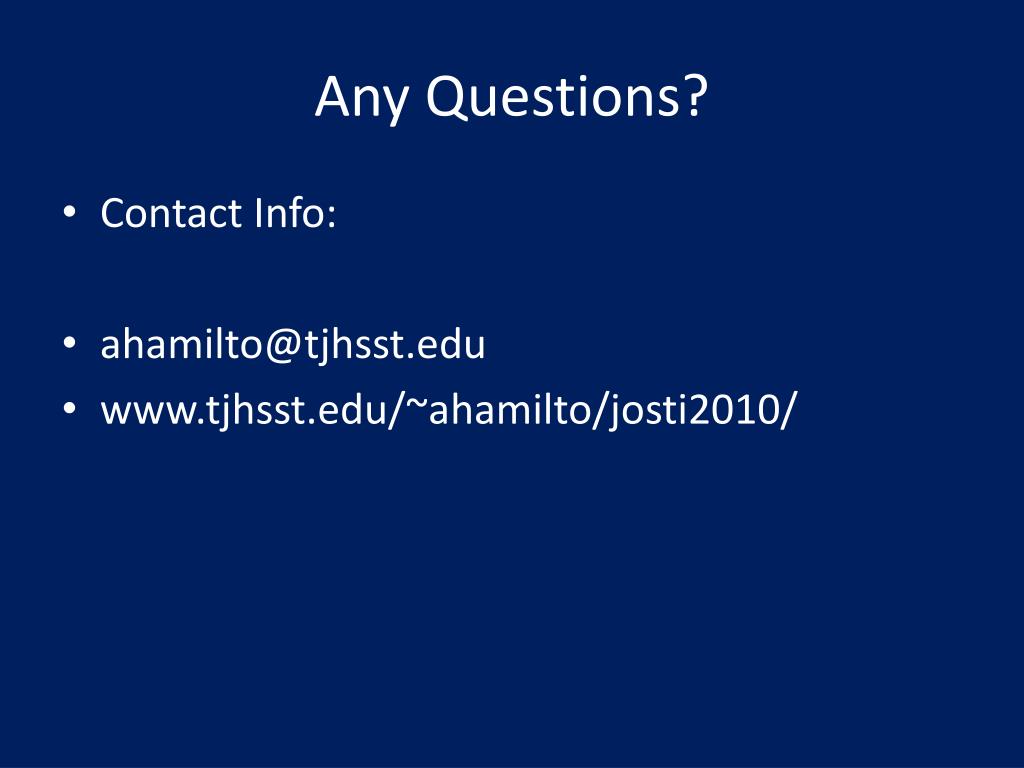

  13. Any Questions? • Contact Info: • ahamilto@tjhsst.edu • www.tjhsst.edu/~ahamilto/josti2010/
