Large Scale Water Conservation System for Multi-Unit Housing

rene avatar
rene
7 diapositives · 214 Views · Jul 16, 2014

H2OptiSns is a cutting-edge water conservation system designed for multi-unit housing. It addresses the challenge of tracing water consumption to individual apartments and identifies leaking fixtures through advanced sensors in toilets and faucets. The system transmits real-time data to an on-site base station, enabling efficient tracking of leaks and timely repairs. With a focus on low-cost components and power conservation, H2OptiSns facilitates proactive maintenance, ultimately reducing water waste and promoting sustainable living in apartment buildings.

Large Scale Water Conservation System for Multi-Unit Housing - slide 1
01 / 7Large Scale Water Conservation System for Multi-Unit Housing
1 / 17

Télécharger la présentation

Large Scale Water Conservation System for Multi-Unit Housing
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

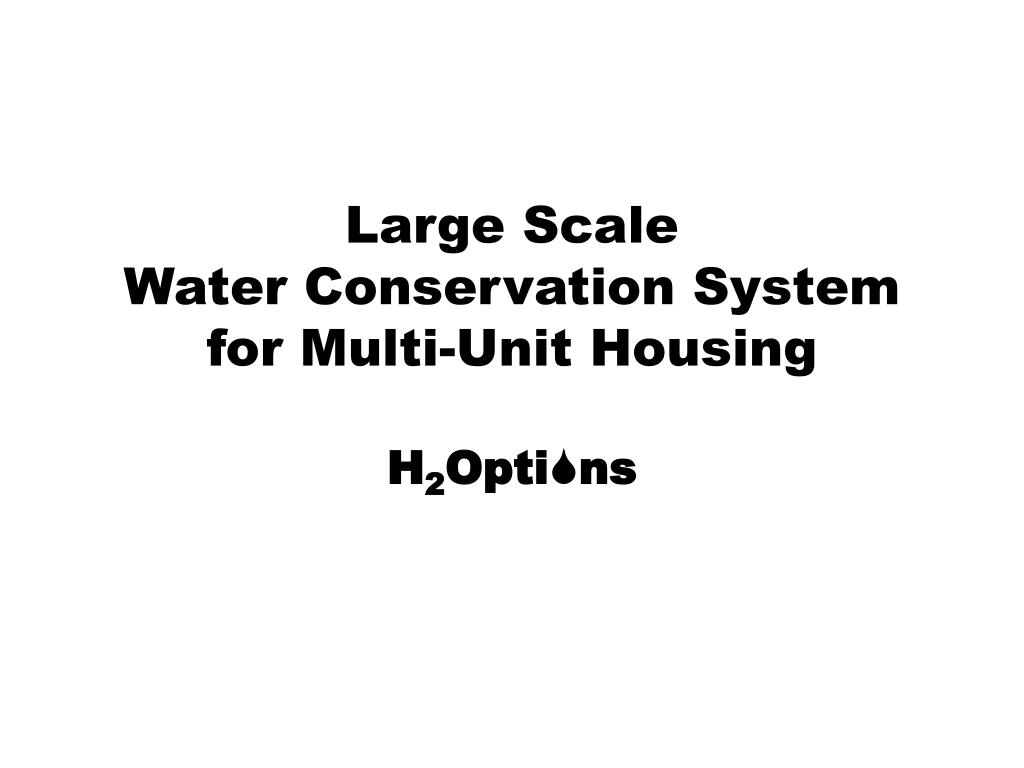

  1. Large Scale Water Conservation System for Multi-Unit Housing H2OptiSns

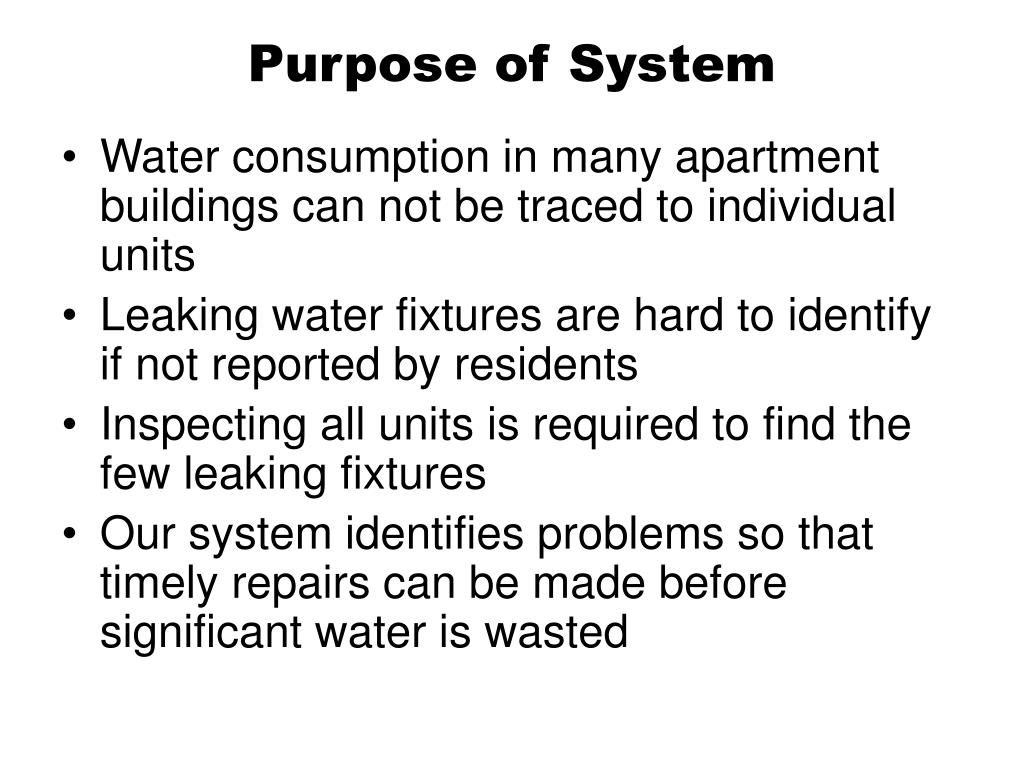

  2. Purpose of System • Water consumption in many apartment buildings can not be traced to individual units • Leaking water fixtures are hard to identify if not reported by residents • Inspecting all units is required to find the few leaking fixtures • Our system identifies problems so that timely repairs can be made before significant water is wasted

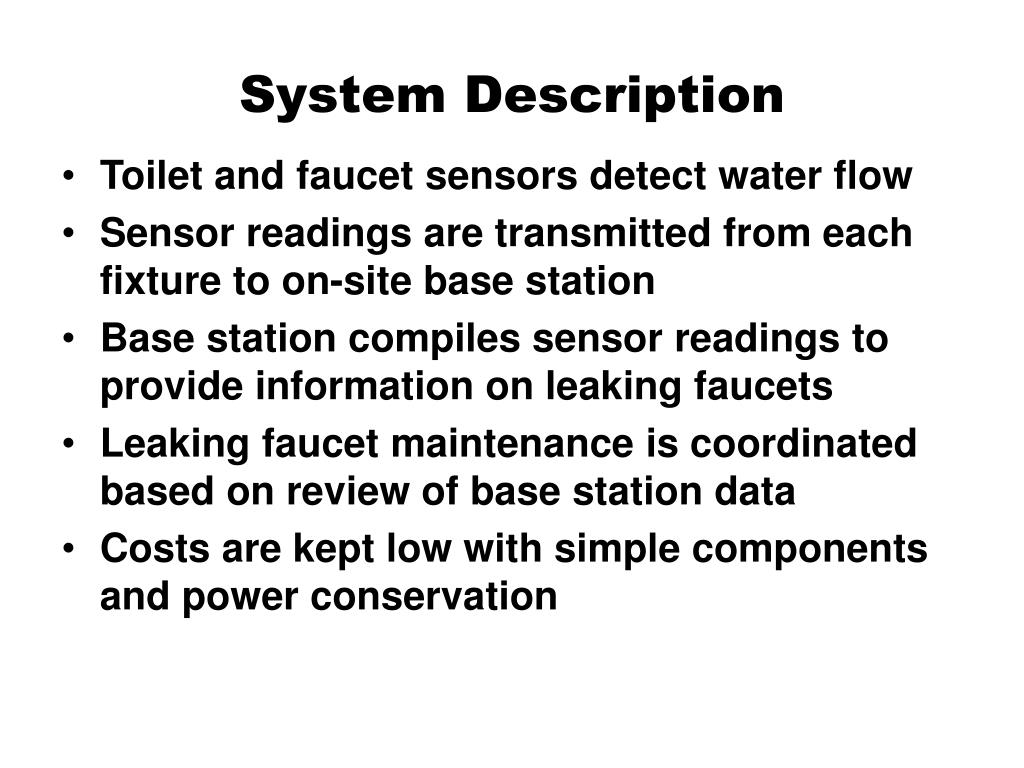

  3. System Description • Toilet and faucet sensors detect water flow • Sensor readings are transmitted from each fixture to on-site base station • Base station compiles sensor readings to provide information on leaking faucets • Leaking faucet maintenance is coordinated based on review of base station data • Costs are kept low with simple components and power conservation

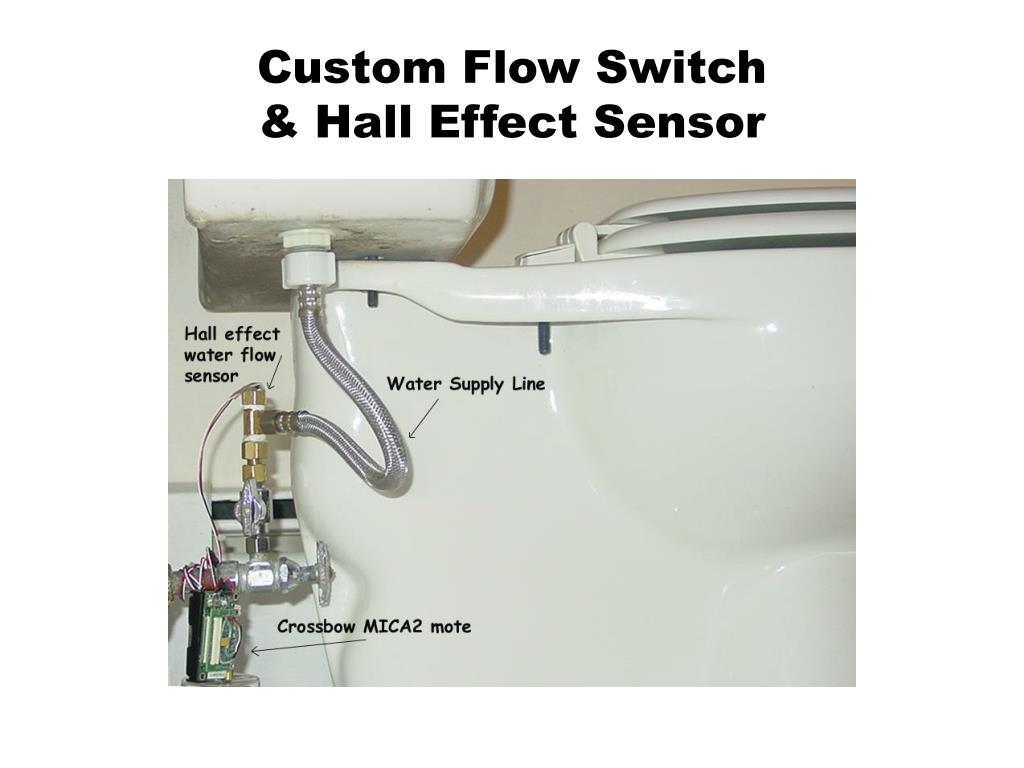

  4. Custom Flow Switch & Hall Effect Sensor

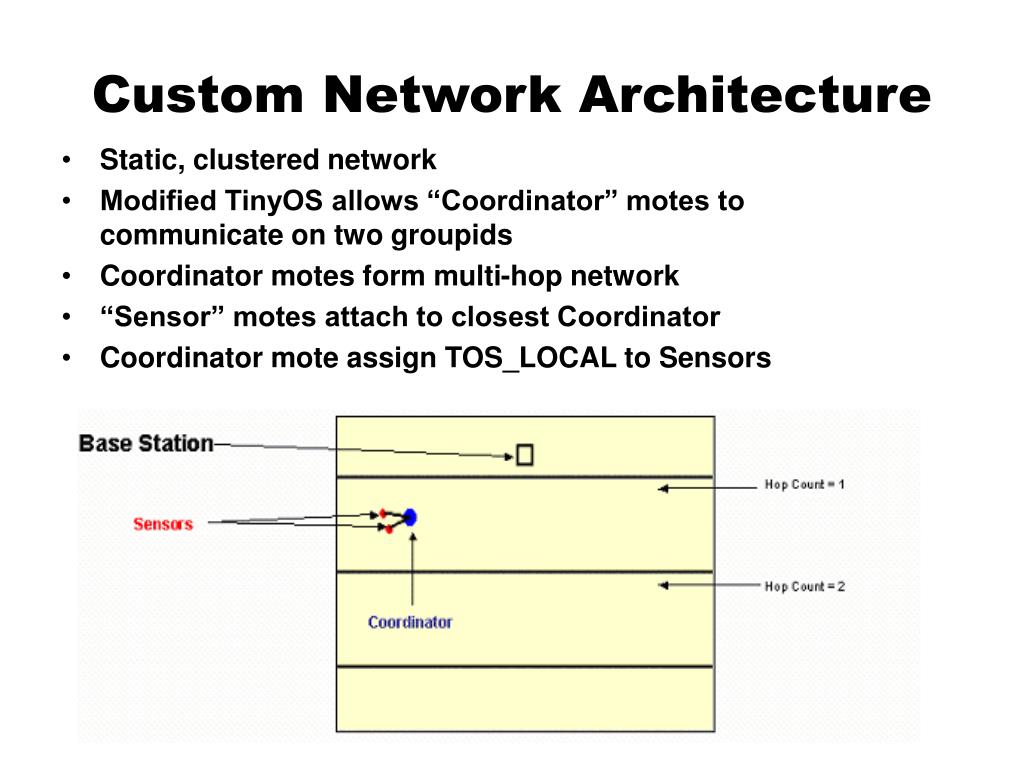

  5. Custom Network Architecture • Static, clustered network • Modified TinyOS allows “Coordinator” motes to communicate on two groupids • Coordinator motes form multi-hop network • “Sensor” motes attach to closest Coordinator • Coordinator mote assign TOS_LOCAL to Sensors

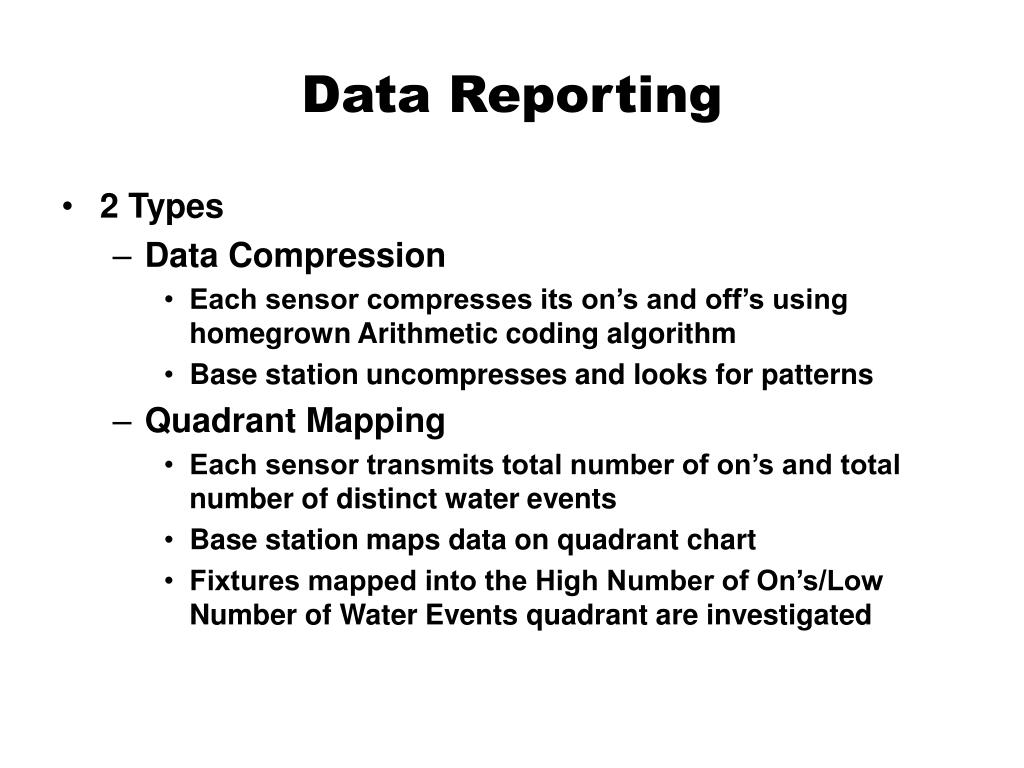

  6. Data Reporting • 2 Types • Data Compression • Each sensor compresses its on’s and off’s using homegrown Arithmetic coding algorithm • Base station uncompresses and looks for patterns • Quadrant Mapping • Each sensor transmits total number of on’s and total number of distinct water events • Base station maps data on quadrant chart • Fixtures mapped into the High Number of On’s/Low Number of Water Events quadrant are investigated

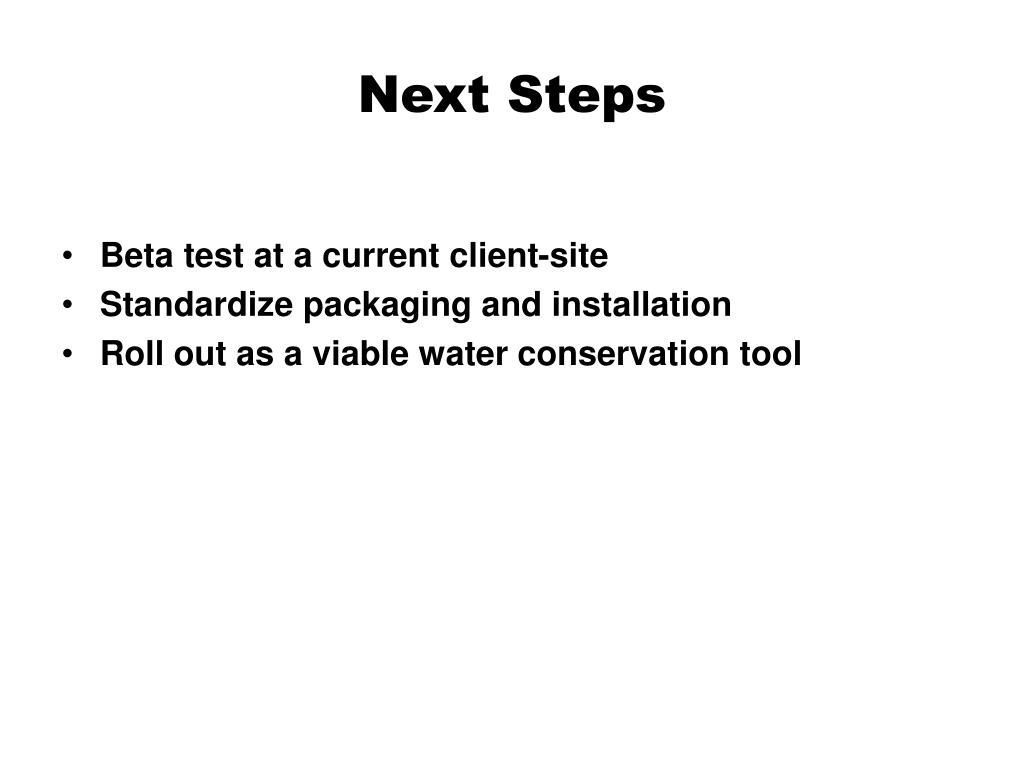

  7. Next Steps • Beta test at a current client-site • Standardize packaging and installation • Roll out as a viable water conservation tool
