Multimodal MRI Analysis of White Matter Degeneration

1. Multimodal MRI Analysis of White Matter Degeneration Wang Zhan, Ph.D. Tel: 415-221-4810x2454, Email: Wang.Zhan@ucsf.edu Center for Imaging of Neurodegenerative Diseases UCSF / Radiology / VA Medical Center 01/08/2007 Medical Imaging Informatics, 2008 --- W. Zhan

2. Technical Issues for Multimodal Analysis • Different image resolutions • Different geometric distortions • Different imaging mechanisms (contrasts) • Different signal variations • Different signal linearity • Different noise levels • Different noise distributions

3. Traditional Imaging: (FLAIR, T2W, T1W, PD) Aging Multiple sclerosis Dementia (AD/MCI/FTD/SIVD) Depression Schizophrenia Bipolar disorder Celiac disease Hypertension Diabetes Stroke AIDS Cancer Brain injury Diffusion Tensor Imaging: (FA, MD,Tractography) Aging Multiple sclerosis Dementia (AD/MCI/FTD/SIVD) Depression Schizophrenia Bipolar disorder Celiac disease Stroke AIDS Cancer Brain injury MRI Modalities on WM Degeneration Medical Imaging Informatics, 2008 --- W. Zhan

4. Fluid Attenuated Inversion Recovery (FLAIR) Parameters at 4T: TR = 6000 (ms) TE = 355 (ms) TI = 2030 (ms) E. Mark Haacke, et al., “Magnetic Resonance Imaging: Physical Principles and Sequence Design”, 1999, Springer Verlag Zhi-Pei Liang, Paul C. Lauterbur, “Principles of Magnetic Resonance Imaging: A Signal Processing Perspective”, 2004, IEEE Ref: http://www.mr-tip.com/serv1.php Medical Imaging Informatics, 2008 --- W. Zhan

5. FLAIR T1W PD T2W CSF Gray Matter White Matter WM Lesion Traditional MRI Contrasts Krishnan et al., 2005, Duke Silvio Conte Center Medical Imaging Informatics, 2008 --- W. Zhan

6. X Z Y Diffusion ‘Sphere’ Diffusion in 3-D: Homogeneous Medium Water in a Homogeneous Medium Water Motion

7. X Z Y Diffusion ‘Ellipse’ Diffusion in 3-D: White Matter Water in an Oriented Tissue Water Motion

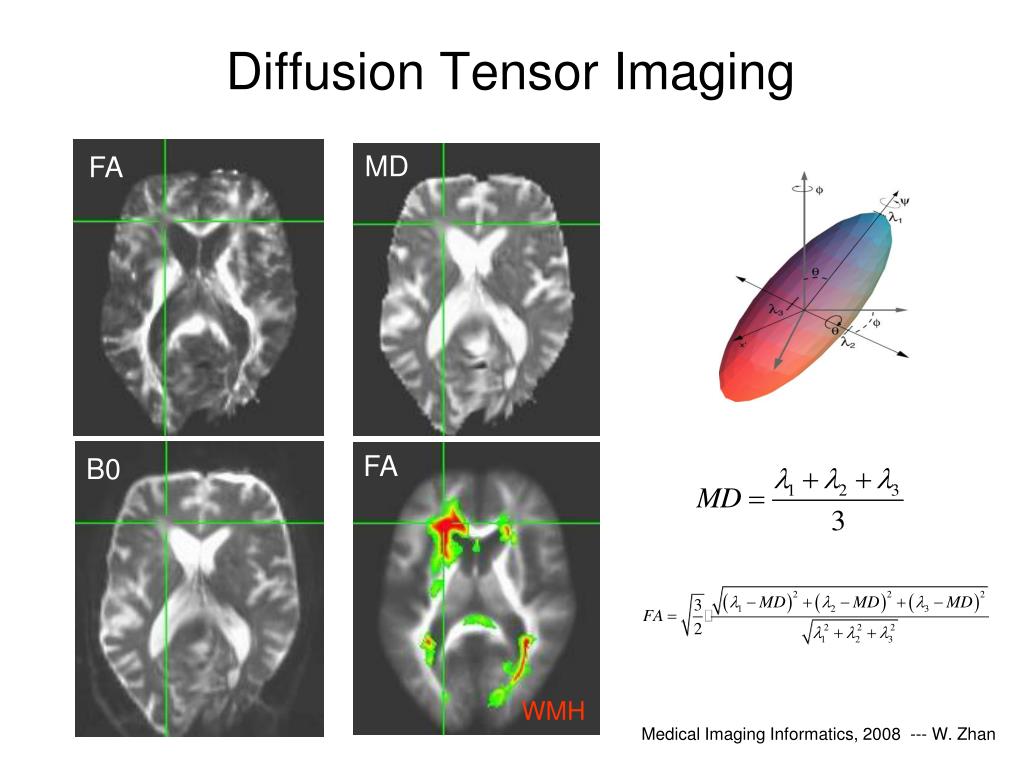

8. MD FA FA B0 Diffusion Tensor Imaging WMH Medical Imaging Informatics, 2008 --- W. Zhan

9. S1 S2 S3 Sn Group Analysis of Correlations (DTI ↔ FLAIR) DTI FLAIR Mean DTI Mean WML Medical Imaging Informatics, 2008 --- W. Zhan

10. FA↔WML MD↔WML MD↔WML a c b WMH Mean FA Mean FA Correlations (DTI ↔WML Volume) Subjects: N=47 (F=26), Age=77±6, MMSE=27.3±3.3, WML=11±16 (ml) Medical Imaging Informatics, 2008 --- W. Zhan

11. EPI Read Out Phase Encoding ? Effects of Image Misregistration? DTI / T1 Template Correlation / WML Medical Imaging Informatics, 2008 --- W. Zhan

12. Pure CSF Normal WM Lesion Progression MPRAGE (T1 Dark) 1H Dens (WMH) T2W (WMH) DTI (FA/MD) FLAIR (WMH) Modeling for WM Degeneration Medical Imaging Informatics, 2008 --- W. Zhan

13. CSF WM Two-Compartment Model of Relaxation (T1/T2) (T1/T2) Lesion Progression: f = 0 ~ 1 Relaxation Times: Medical Imaging Informatics, 2008 --- W. Zhan

14. Fluid Attenuated Inversion Recovery (FLAIR) Parameters at 4T:TR = 6000 (ms) TE = 355 (ms) TI = 2030 (ms) WMH Medical Imaging Informatics, 2008 --- W. Zhan

15. Multimodal Contrasts for WML Progression Noise-Contaminated Noise-Free Medical Imaging Informatics, 2008 --- W. Zhan

16. CSF WM Two-Compartment Model of Diffusion (DCSF) (DWM) Lesion Progression: f = 0 ~ 1 Slow exchange: Fast exchange: Medical Imaging Informatics, 2008 --- W. Zhan

17. Diffusion Tensor Imaging (Slow-Exchange) Noise free SNR = 80 Medical Imaging Informatics, 2008 --- W. Zhan

18. Diffusion Tensor Imaging (Fast-Exchange) Noise free SNR = 80 Medical Imaging Informatics, 2008 --- W. Zhan

19. DTI (FA) ↔ WML (FLAIR) Correlations SNR= 80, b = 1000 s/mm2 Medical Imaging Informatics, 2008 --- W. Zhan

20. DTI (MD) ↔ WML (FLAIR) Correlations SNR= 80, b = 1000 s/mm2 Medical Imaging Informatics, 2008 --- W. Zhan

21. DTI (FA) ↔ T1 Dark (MPARGE) Correlations SNR= 80, b = 1000 s/mm2 Medical Imaging Informatics, 2008 --- W. Zhan

22. FLAIR Phantom Simulations (N=20) Medical Imaging Informatics, 2008 --- W. Zhan

23. FA↔WML MD↔WML MD↔WML a c b WMH Mean FA Mean FA Correlations (DTI ↔WML Volume) Subjects: N=47 (F=26), Age=77±6, MMSE=27.3±3.3, WML=11±16 (ml) Medical Imaging Informatics, 2008 --- W. Zhan

24. Summaries • Multimodal MRI analysis with both FLAIR and DTI may provide extra information for characterizing WM degeneration process, which may not be captured by using either of them of alone. • Special technical issues should addressed properly for multimodal analysis, including image registration, signal nonlinearity, and noise effects, etc. • In traditional modalities, FLAIR shows a significant signal nonlinearity to the WM degeneration. FLAIR signal reaches its maximum around lesion severity of 0.7. • In DTI modalities, signal sensitivity and nonlinearity depend on the b value of diffusion weighting and the water exchange rate of issue compartments. Moreover, image noises may have heterogeneous effects on different DTI indices and lesion severities. • The correlations between FLAIR and DTI may change signs when come across the minimum magnitude of correlation at the maximum WML intensity.

25. Literatures [1] Le Bihan D, Breton E, Lallemand D, et al. MR imaging of intravoxel incoherent motions: application to diffusion and perfusion in neurologic disorders. Radiology 1986; 161:401-407. [2] Pfefferbaum A, Sullivan EV, Hedehus M, et al., Age-related decline in brain white matter nisotropy measured with spatially corrected echo-planar diffusion tensor imaging. agn Reson Med 2000;44(2):259-8. [3] Lansberg MG, Albers GW, Beaulieu C, Marks MP. Comparison of diffusion-weighted MRI and CT in acute stroke. Neurology 2000;54(8):1557-61. [4] Meier-Ruge W, Ulrich J, Bruhlmann M, Meier E. Age-related white matter atrophy in the human brain. Ann N Y Acad Sci 1992;673:260-9. [5] Awad IA, Johnson PC, Spetzler RF, Hodak JA. Incidental subcortical lesions identified on magnetic resonance imaging in the elderly. II. Postmortem pathological correlations. Stroke 1986;17(6):1090-7. [6] Breteler MM, van Swieten JC, Bots ML, et al. Cerebral white matter lesions, vascular risk factors, and cognitive function in a population-based study: the Rotterdam Study. Neurology 1994;44(7):1246-52. [7] Yoshita M, Fletcher E, Harvey D, et al., Extent and distribution of white matter hyperintensities in normal aging, MCI, and AD. Neurology 2006;67(12):2192-8. [8] DeCarli et al, Neurobiology of Aging, 1007 (In Press). [9] Smith SM, Jenkinson M, Woolrich MW, et al., Advances in functional and structural MR image analysis and implementation as FSL. NeuroImage 2004, 23(S1):208-219. [10] Smith SM, Jenkinson M, Johansen-Berg H, et al., Tract-based spatial statistics: Voxelwise analysis multi-subject diffusion data. NeuroImage 2006, 31:1487. [11] Hadjidemetriou S, Studholme C, Mueller S, et al., Restoration of MRI data for field nonuniformities using high order neighborhood statistics. Proc. Of SPIE Medical Image Processing, 6512, 2007. [12] Boykov Y, Veksler O, and Zabih R, Fast approximate energy minimization via graph cuts. IEEE Trans. on AMI, 23(11):1222–1239, 2001. [13] Christensen GE, Rabbitt RD, and Miller MI. Deformable templates using large deformation kinematics. Image Processing, IEEE Transactions on, 5(10):1435-1447, 1996. [14] Joshi S, Lorenzen P, Gerig G, and Bullitt E, Structural and radiometric asymmetry in brain images. Med Image Anal, 7(2):155-170, 2003. [15] Neter, J, Wasserman, W, Kutner, MH. Applied Linear Statistical Models: Regression, Analysis of Variance, and Experimental Designs, 3rd edition. Richard d Irwin Publishing. 1990. [16] Kamman RL, Go KG, Brouwer WH, Berendsen JC. Nuclear magnetic resonance relaxation in experimental brain edema: Effects of water concentration, protein concentration, and temperature. Med. Reson. Med. 6 (3): 265-274, 1988.
