  1. abacus4u & AbacusIEEESample calculation

  2. Select Battery Type(s) SelectElectrode Type,Lifetime,Outlet type, andApplication SelectManufacturer(s)and Batterie Type(s) For NiCd,select special settings,i.e. Charging Efficiencyand Voltage Depression

  3. Select System Voltages (IEEE mode) UseFloatvoltageorBoostvoltage or a combinationofbothforcharging Decidehowtocalculateapplicablenumbersofcellsfromgivenvoltages IEEE modecalculatesmaxnumberofcellsfrommaximumsystemvoltageand final voltage per cellfromminimumsystemvoltage

  4. Insert Load Profile Average voltage and nominal voltage canbesetifknown Five different loadtypesandcalculationmodestochoosefrom Average voltage maybesetindividuallyforeverydutycyclestep Power loadconfigurable via apparentloadinput Fully editable load profile IEEE Random Load selectable

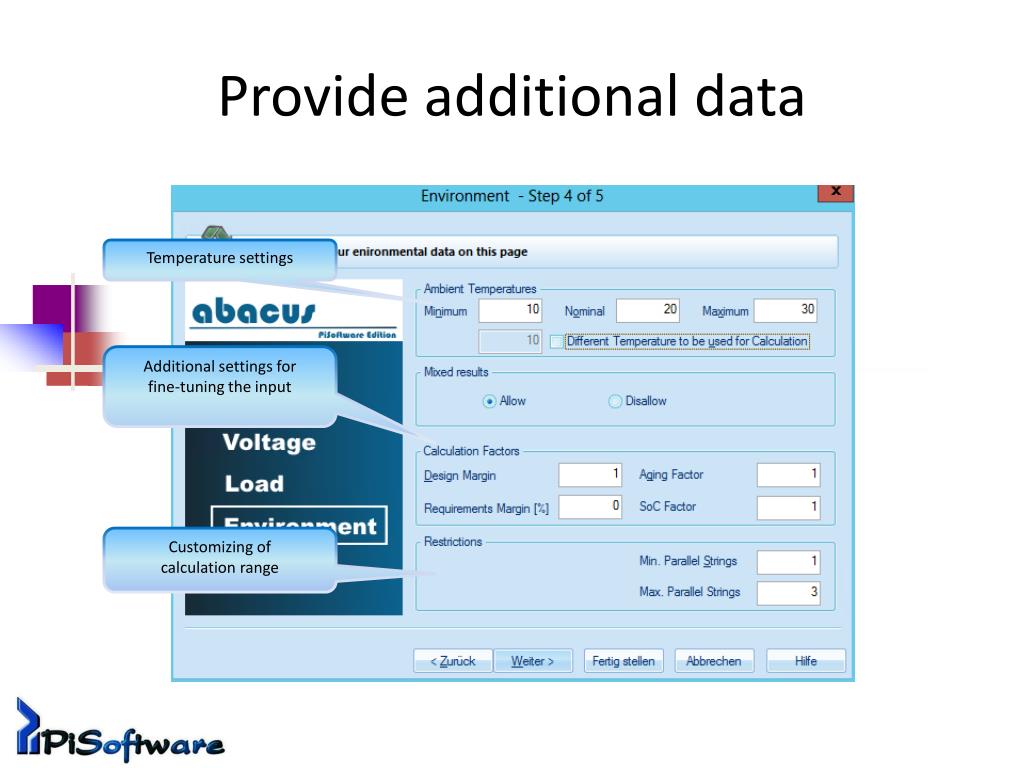

  5. Provide additional data Temperaturesettings Additional settingsforfine-tuning theinput Customizing ofcalculationrange

  6. All matching results in list Normed IEEE Worksheetor special Abacus Report Overviewresultlistfullysortable, groupableandexportable

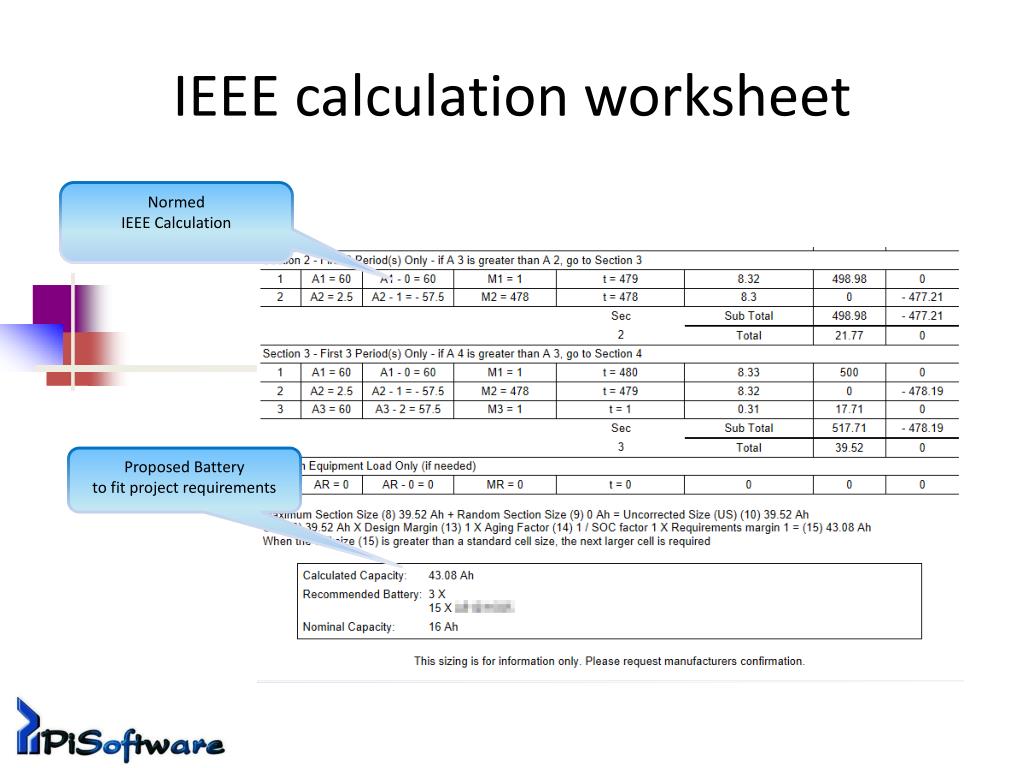

  7. IEEE calculation worksheet NormedIEEE Calculation ProposedBatteryto fit projectrequirements

  8. Detailed additional report Report Header Duty Cycle Battery Data Graphicalloadprofile Battery Picture Recommended Battery Additional Data

  9. Calculate for given Cell Range Preselectnumbersofcellstouse System Voltagesand Final Voltage per Cellcalculatedfromthis

  10. Result for given Cell Range Resulting numbersof cells range ResultingFinal Voltages per Cell

  11. Calculate for given Voltage Range System voltagerangegiven

  12. Result for given Voltage Range Resultusesapplicablevoltages
