Understanding Vector Addition and Friction in Physics

DESCRIPTION

This journal entry covers the fundamentals of vector addition and the concept of friction. It outlines three essential rules for adding vectors based on their directions: same direction, opposite direction, and right angles. Additionally, it delves into the types of friction: kinetic and static, providing real-life examples for each. The relationship between normal force and friction, particularly the coefficient of friction, is discussed with relevant formulas and problems for practical application. This summary serves as a guide to comprehend these crucial physics concepts.

1 / 13

Télécharger la présentation

Understanding Vector Addition and Friction in Physics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Journal #23 (TRY NOT TO USE YOUR NOTES) • What are the 3 rules of adding vectors?

  2. JOURNAL #23 ANSWER • If vectors have the SAME direction, ADD the values and keep that direction. • If vectors have OPPOSITE directions, SUBTRACT the values and keep the direction of the larger value. • If vectors are at RIGHT ANGLES to each other, use the Pythagorean Theorem to solve for the resultant.

  3. 5.2: Friction • P. 126-130 in textbook

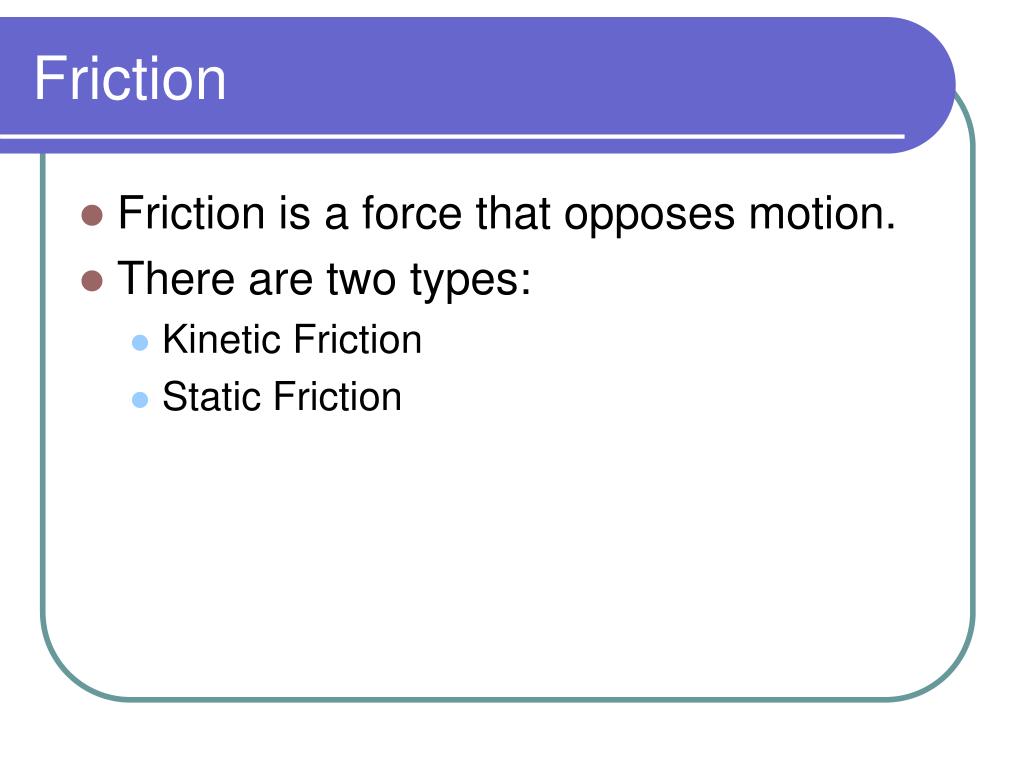

  4. Friction • Friction is a force that opposes motion. • There are two types: • Kinetic Friction • Static Friction

  5. Kinetic Friction • The friction exerted on one surface by another when the two surfaces rub against each other because one or both of them are moving • Examples: • Hands rubbing together • Pushing a box up a ramp • Dragging a crate

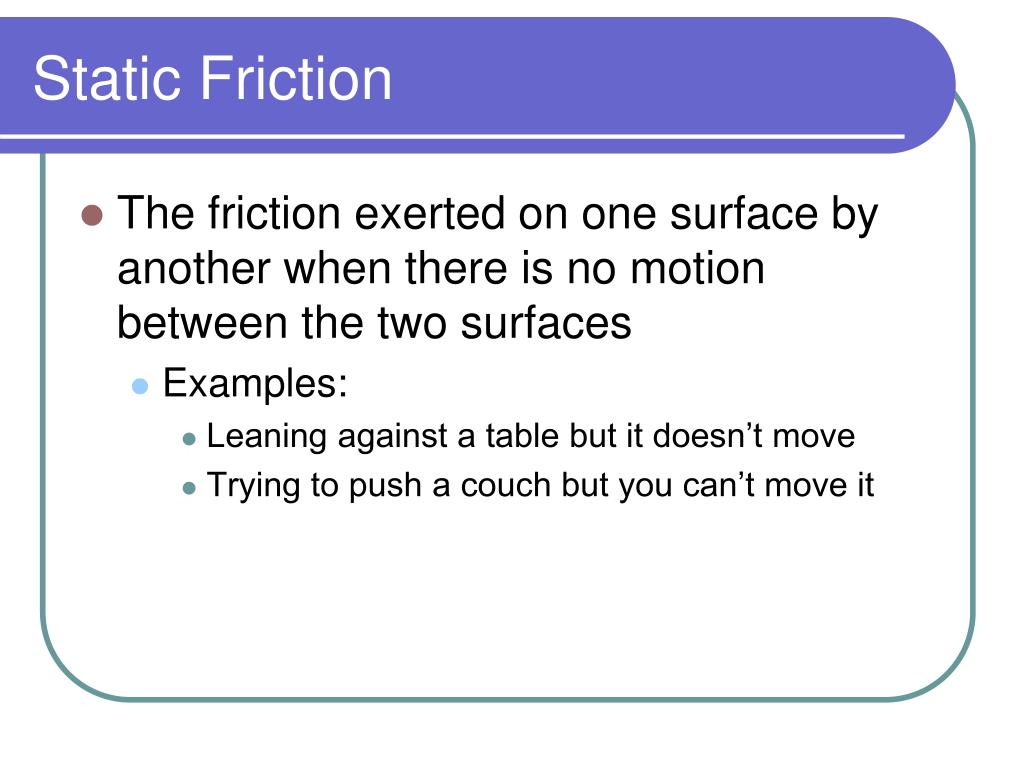

  6. Static Friction • The friction exerted on one surface by another when there is no motion between the two surfaces • Examples: • Leaning against a table but it doesn’t move • Trying to push a couch but you can’t move it

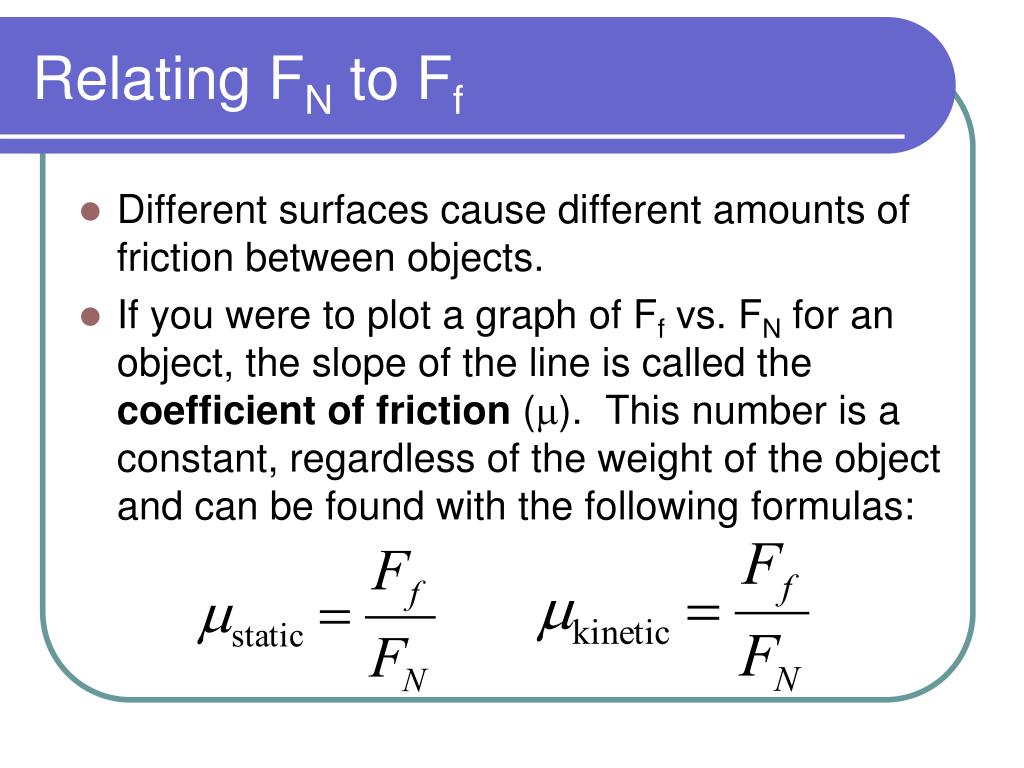

  7. Relating FN to Ff • Different surfaces cause different amounts of friction between objects. • If you were to plot a graph of Ff vs. FN for an object, the slope of the line is called the coefficient of friction (). This number is a constant, regardless of the weight of the object and can be found with the following formulas:

  8. Important notes about friction • When working with Ff, you will always have to consider the rules of calculating Fnet • Usually, you will have to consider that Fnet = F(forward motion) - Ff

  9. Common Coefficients

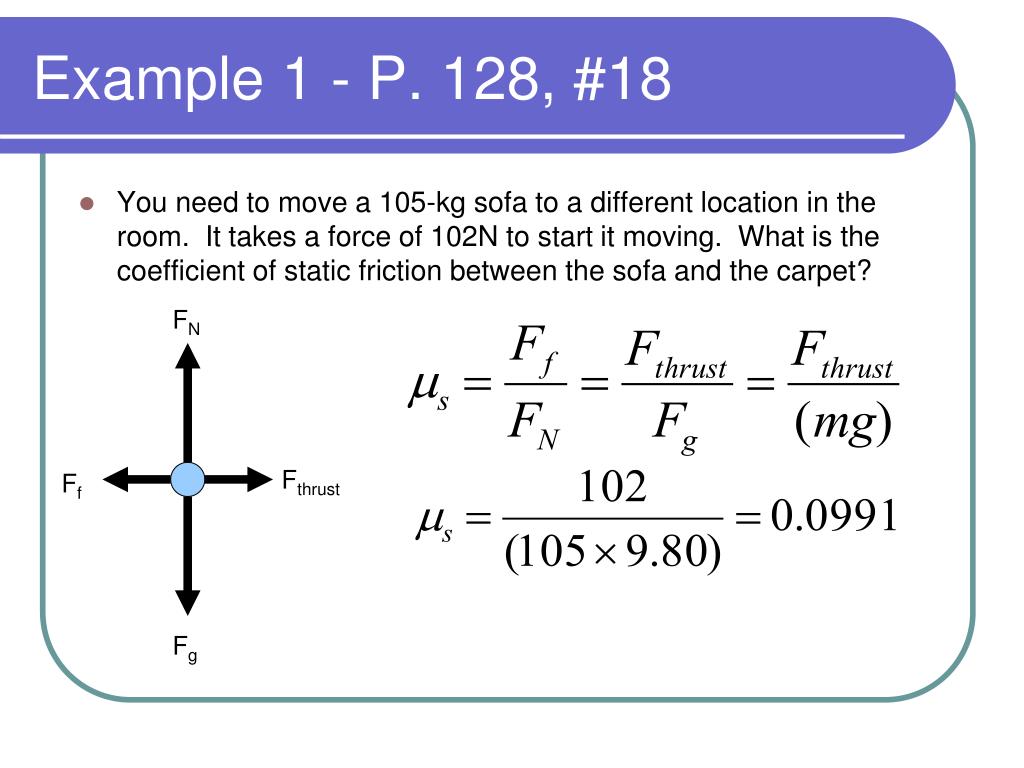

  10. FN Fthrust Ff Fg Example 1 - P. 128, #18 • You need to move a 105-kg sofa to a different location in the room. It takes a force of 102N to start it moving. What is the coefficient of static friction between the sofa and the carpet?

  11. FN FT Ff Fg Example 2 - P. 128, #20 • Suppose that a 52-N sled is resting on packed snow. The coefficient of kinetic friction is only 0.12. If a person weighing 650N sits on the sled, what force is needed to pull the sled across the snow at constant speed?

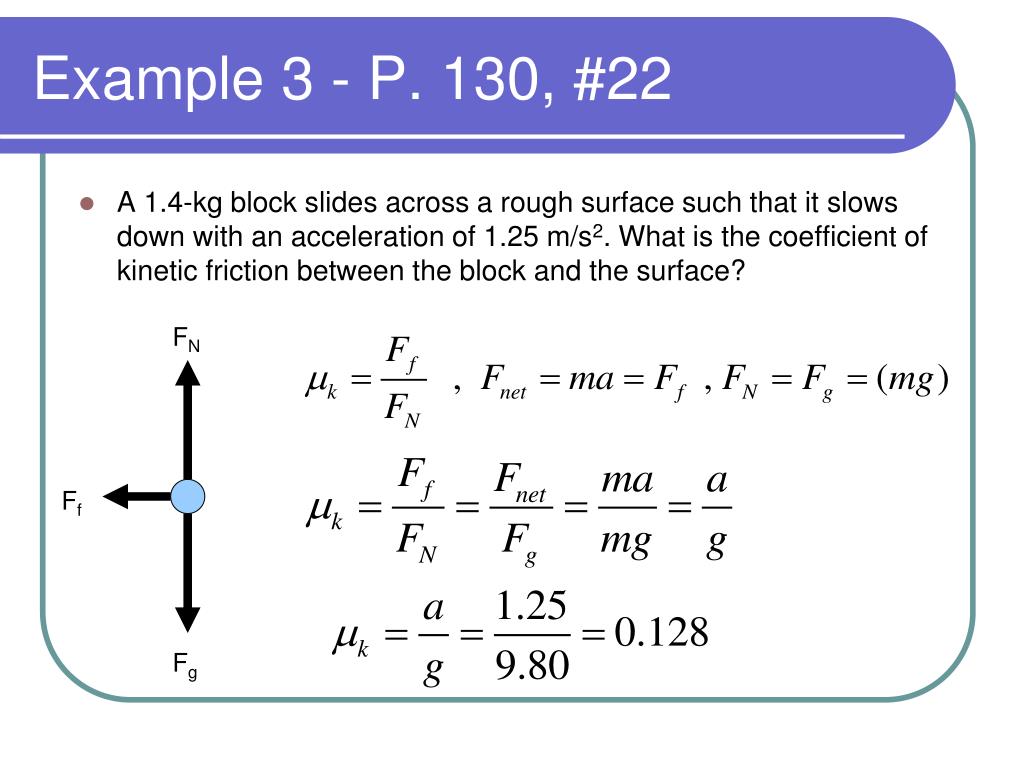

  12. FN Ff Fg Example 3 - P. 130, #22 • A 1.4-kg block slides across a rough surface such that it slows down with an acceleration of 1.25 m/s2. What is the coefficient of kinetic friction between the block and the surface?

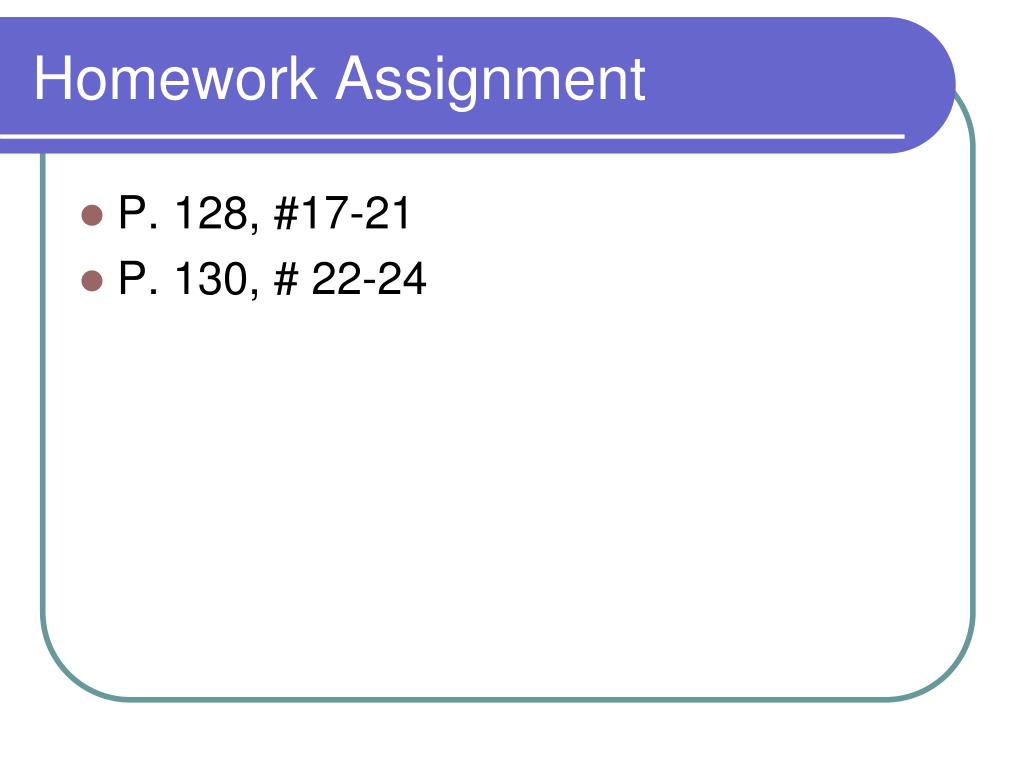

  13. Homework Assignment • P. 128, #17-21 • P. 130, # 22-24
