  1. Building an Unmanned Aerial Vehicle for the Operator Matthew Lyon Embry-Riddle Aeronautical University Prescott, AZ

  2. Purpose • AUVSI’s Small UAV Competition • Mission Requirements • End User

  3. Concept • History • Former Army UAV Operators • Previous RC Experience • Field-Serviceable • Modular • Simple Manufacturing Techniques

  4. Design • Engineers working with Pilots

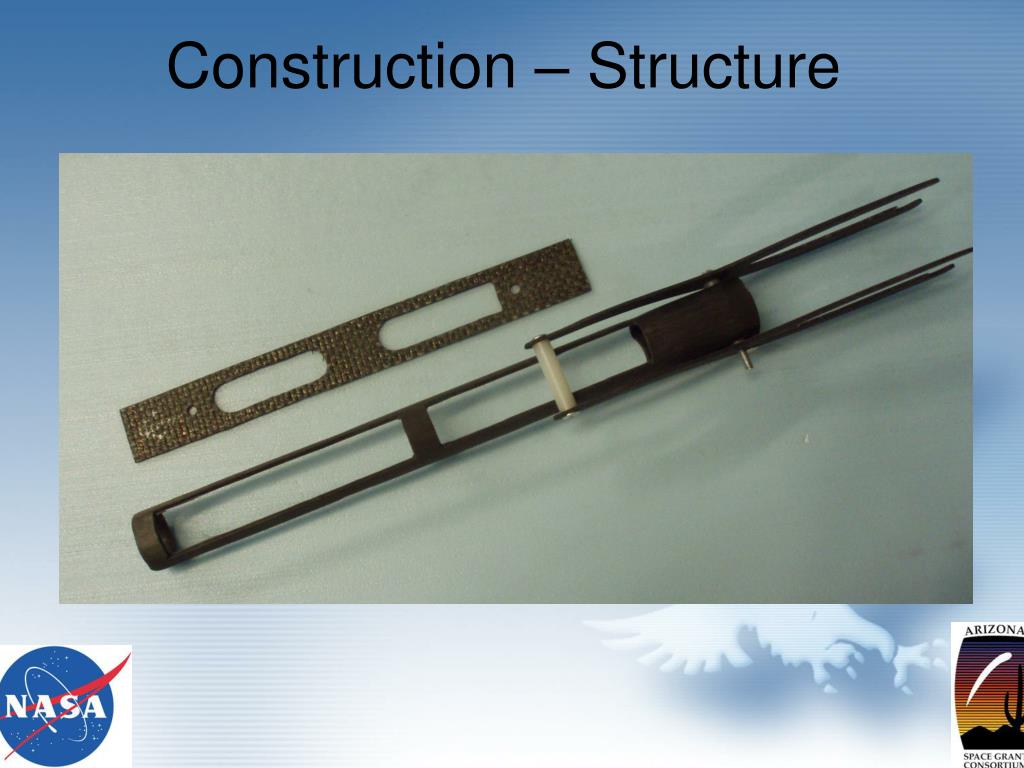

  5. Construction – Structure

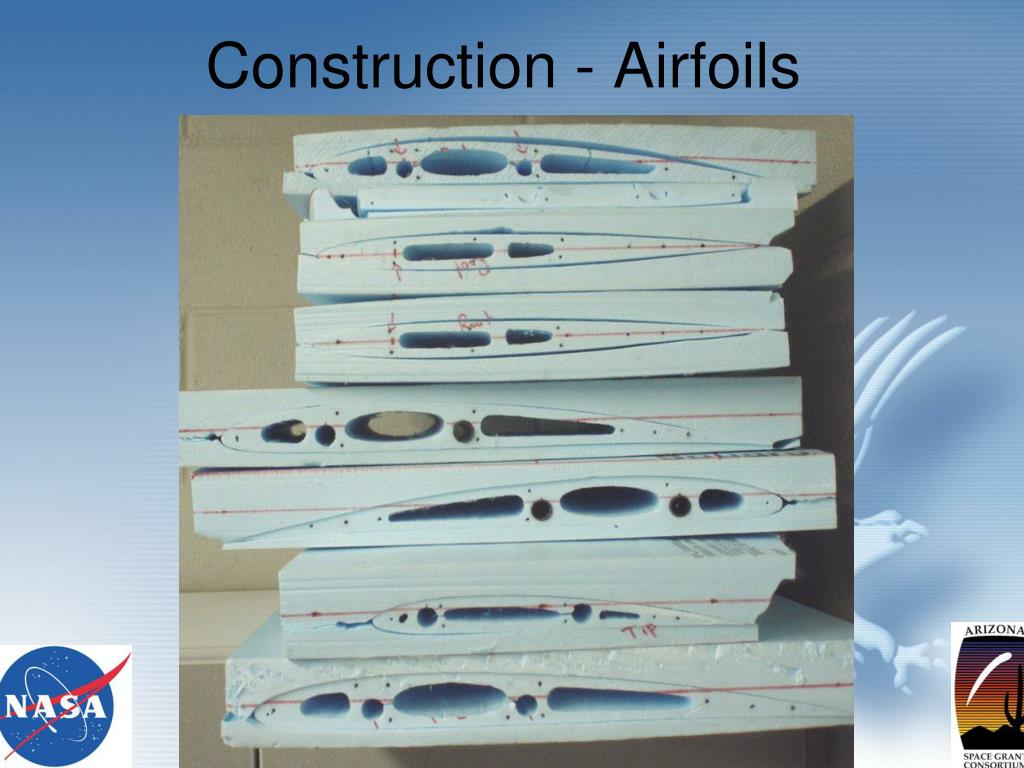

  6. Construction - Airfoils

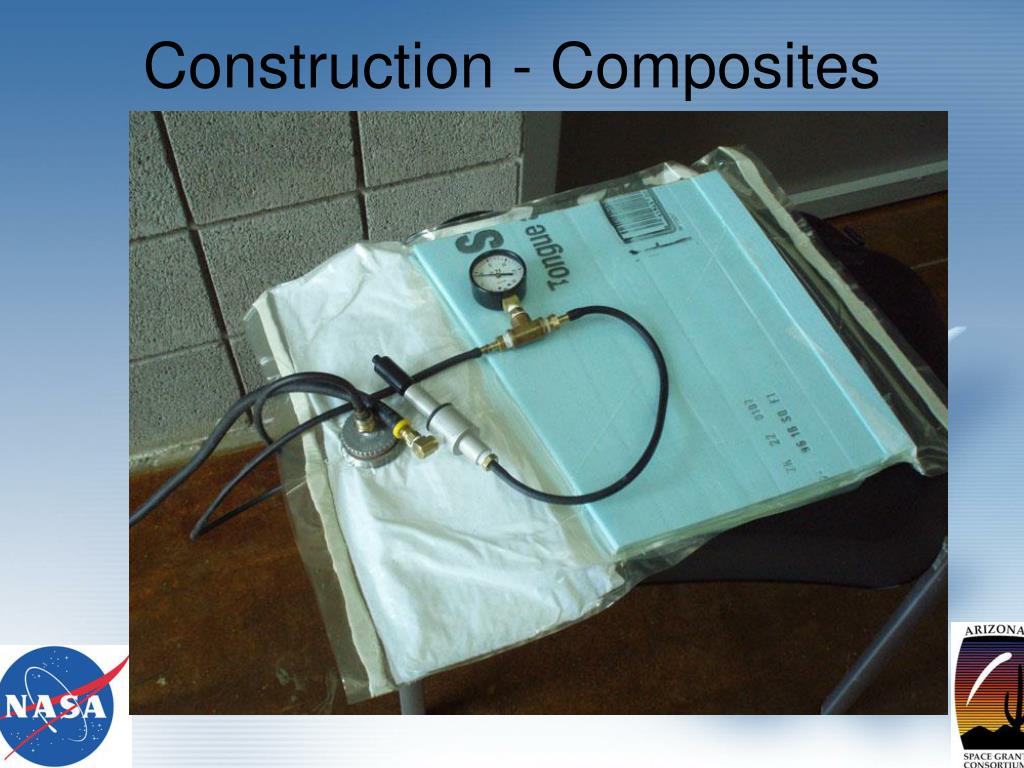

  7. Construction - Composites

  8. Construction - Composites

  9. Construction - Composites • Utilized both Mold and Moldless Techniques • Experimented with Different Surface Finishes

  10. Results • All-Composite Airframe • Meets Competition Requirements • Tool-Less Assembly • Modular • Spare Parts • Portable • Payloads

  11. Maiden Flight: March 20, 2012
