  1. Conditional statements Dept. of Computer Engineering Faculty of Engineering, Kasetsart University Bangkok, Thailand

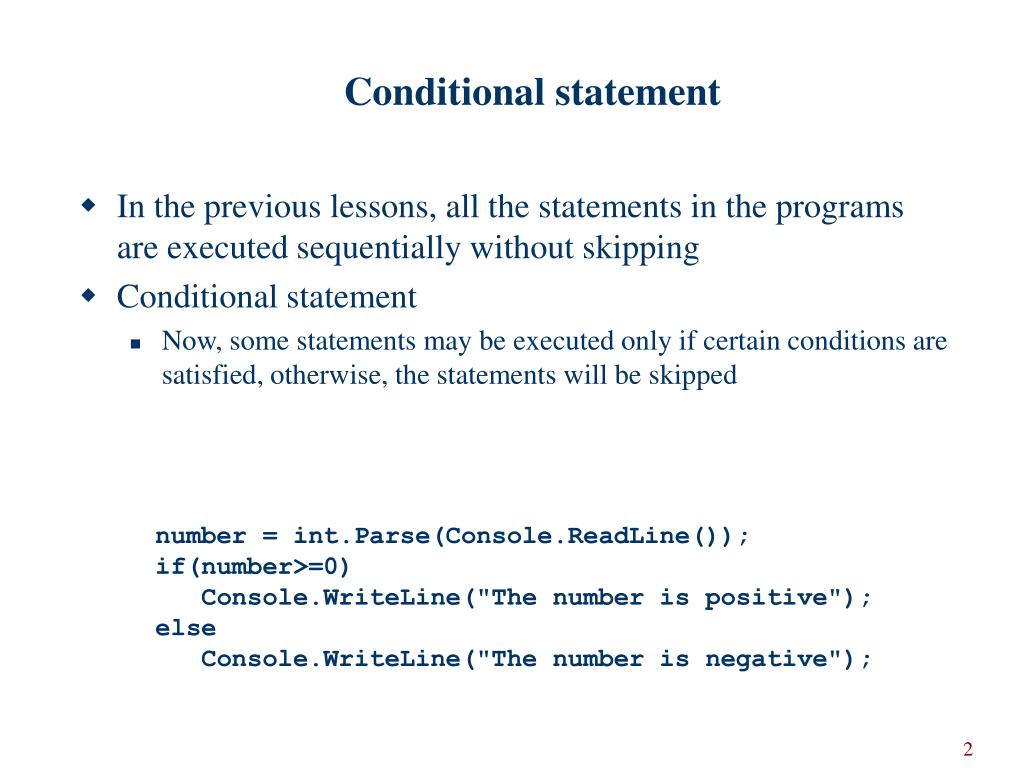

  2. Conditional statement • In the previous lessons, all the statements in the programs are executed sequentially without skipping • Conditional statement • Now, some statements may be executed only if certain conditions are satisfied, otherwise, the statements will be skipped number = int.Parse(Console.ReadLine()); if(number>=0) Console.WriteLine("The number is positive"); else Console.WriteLine("The number is negative");

  3. Data type: bool • Boolean (bool when declared) is a logical data type. A value of a variable whose data type is boolean can be either true or false. Notes : A variable with type bool can not be read by input statement. However it can be displayed by output statement

  4. static void Main(string[] args) { bool found; string fact; int year; Console.Write("Please enter faculty's name : "); fact = Console.ReadLine(); fact = fact.ToLower(); Console.Write("please enter year studying : "); year = int.Parse(Console.ReadLine()); if (((fact == "engineer")&& (year >= 2)) || ((fact == "sciences") && (year >=3))) found = true; else found = false; Console.WriteLine(found); }

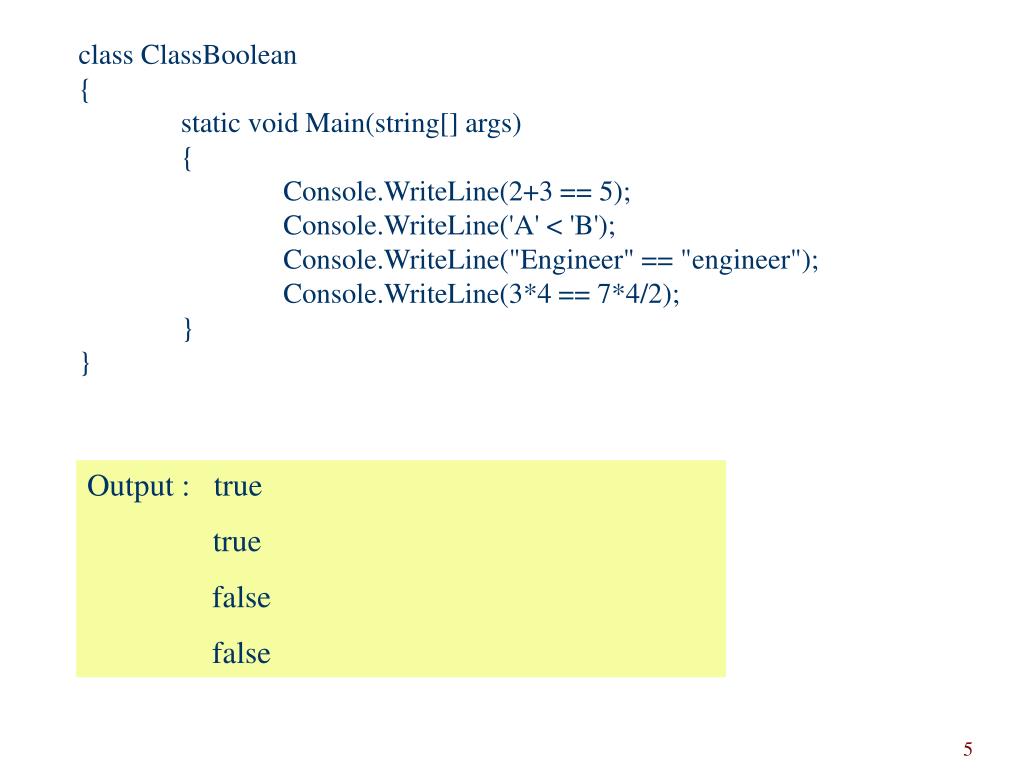

  5. class ClassBoolean { static void Main(string[] args) { Console.WriteLine(2+3 == 5); Console.WriteLine('A' < 'B'); Console.WriteLine("Engineer" == "engineer"); Console.WriteLine(3*4 == 7*4/2); } } Output : true true false false

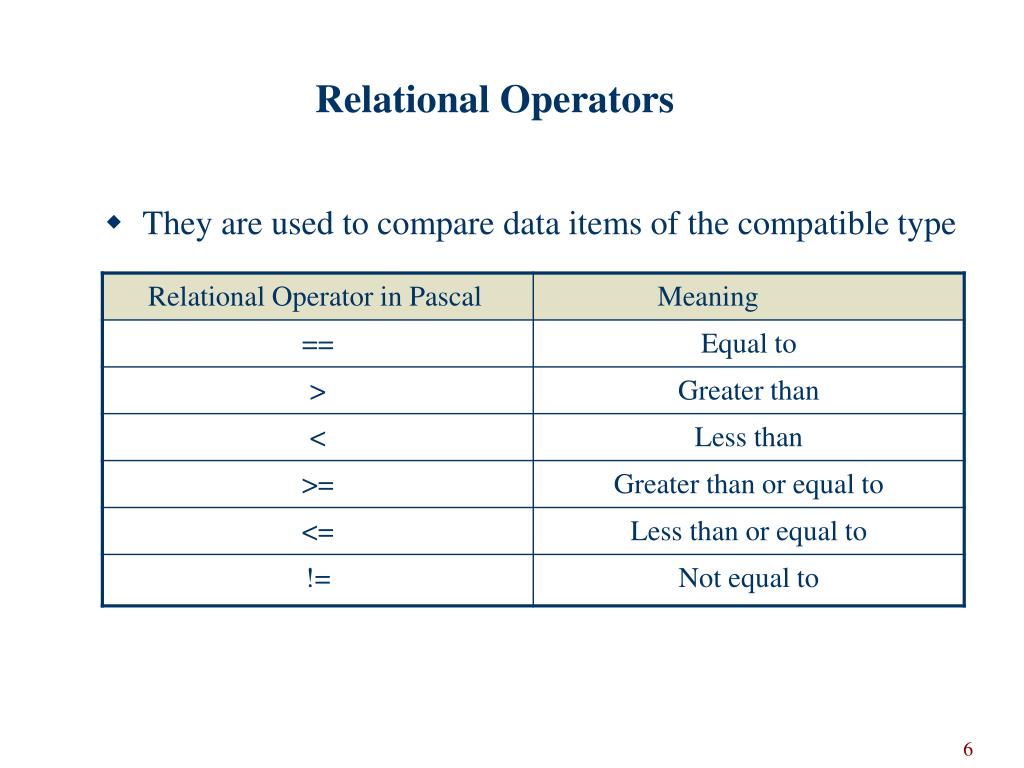

  6. Relational Operators • They are used to compare data items of the compatible type

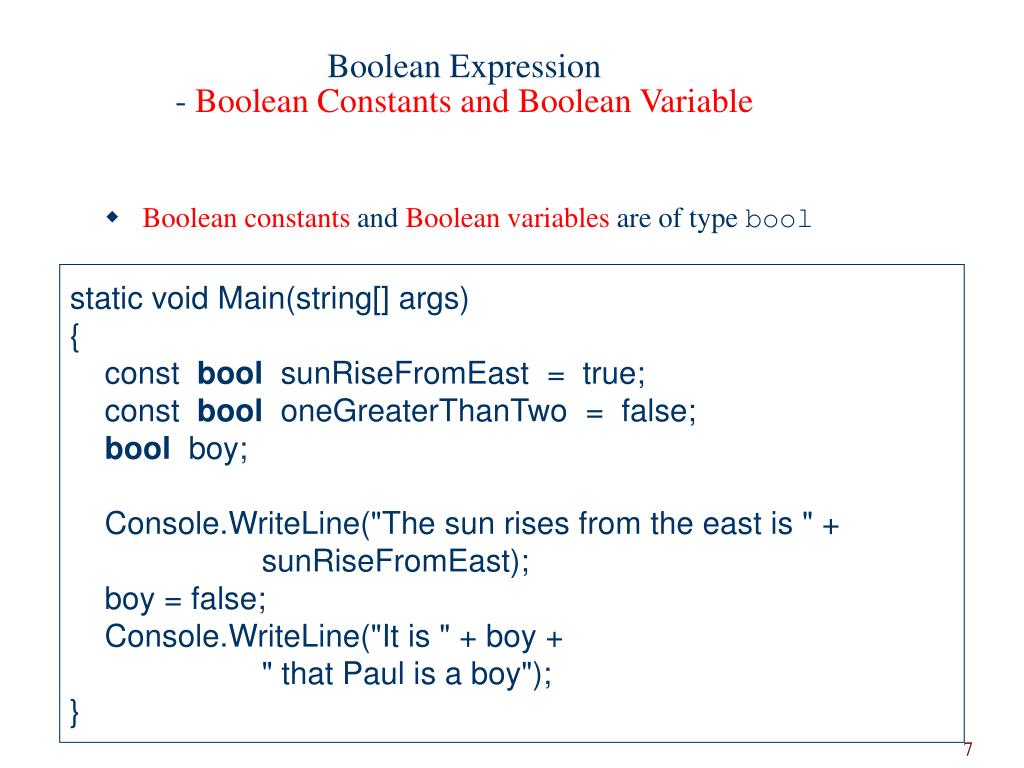

  7. Boolean Expression- Boolean Constants and Boolean Variable • Boolean constants and Boolean variables are of type bool static void Main(string[] args) { const bool sunRiseFromEast = true; const bool oneGreaterThanTwo = false; bool boy; Console.WriteLine("The sun rises from the east is " + sunRiseFromEast); boy = false; Console.WriteLine("It is " + boy + " that Paul is a boy"); }

  8. Boolean Expression- Boolean Expressions with Operands of Arithmetic Expressions

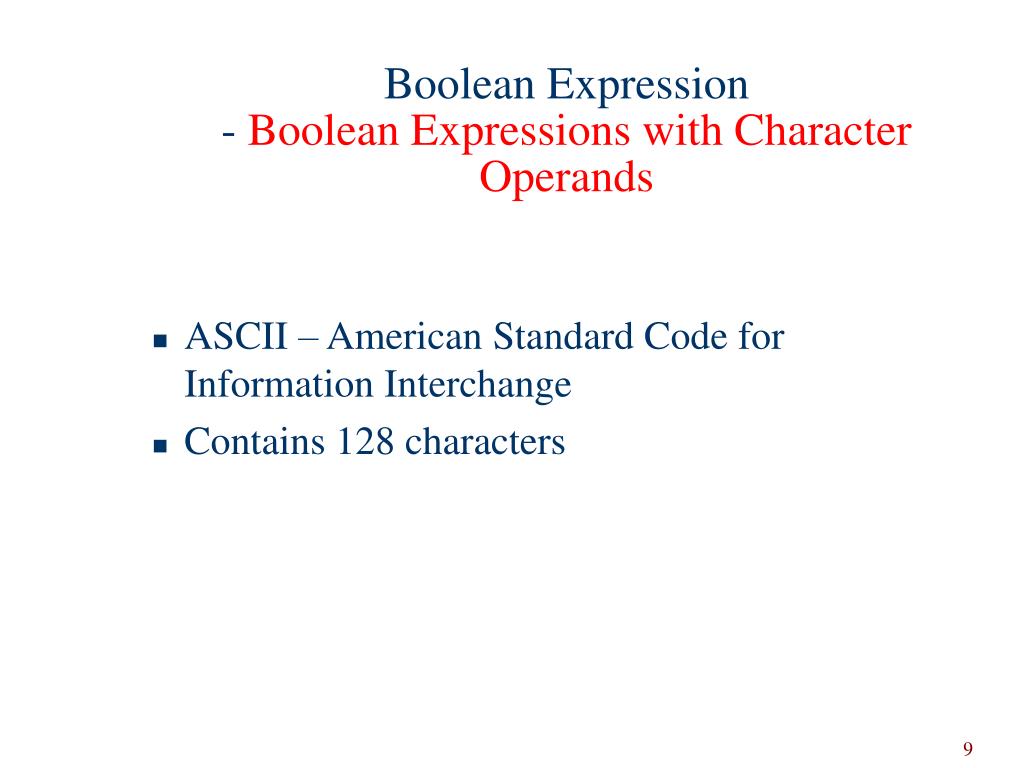

  9. Boolean Expression- Boolean Expressions with Character Operands • ASCII – American Standard Code for Information Interchange • Contains 128 characters

  10. Boolean Expression- Boolean Expressions with Character Operands • Characters are compared using their code values according to certain code system.

  11. Compound Boolean Expressions • Simple Boolean Expressions may be joined by logical operators to form compound Boolean expressions • Logical Operators • && (and) • || (or) • ! (not) • Examples • (age >= 18) && (age <=20) • (grade == 'F') || (grade =='W')

  12. Compound Boolean Expressions- Logical Operators • Truth Table for ‘and’ operator • Truth Table for ‘or’ operator

  13. Compound Boolean Expressions- Logical Operators • Truth table for ‘not’ operator

  14. Precedence • The order of precedence is ‘!’, ‘&&’, ‘||’ • The relational operators have lower precedence than logical operators int x = 3, y = 2, z = 4; Console.WriteLine(++x+3 >= y+6 && z>=4);

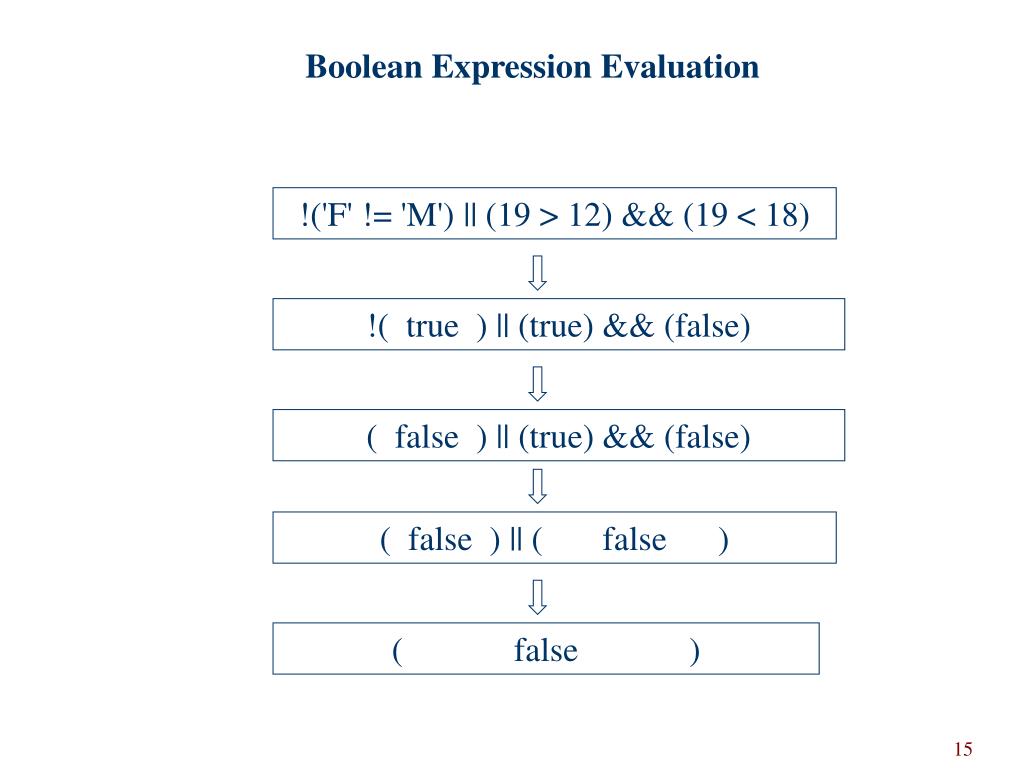

  15. Boolean Expression Evaluation !('F' != 'M') || (19 > 12) && (19 < 18) !( true ) || (true) && (false) ( false ) || (true) && (false) ( false ) || ( false ) ( false )

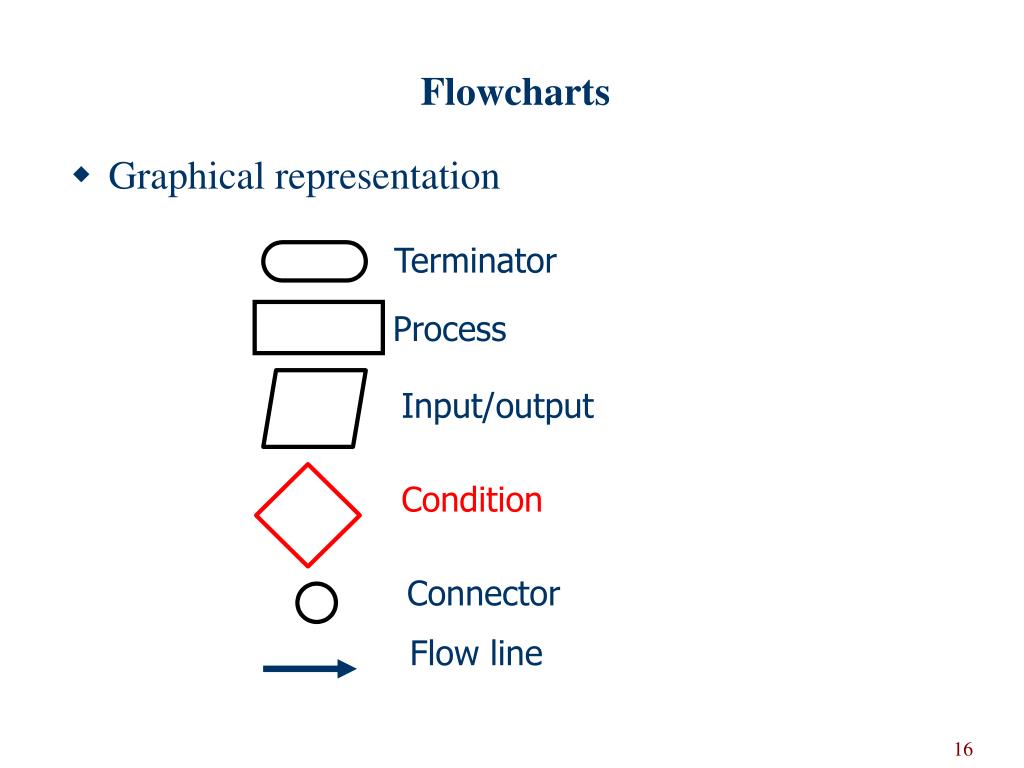

  16. Flowcharts Terminator • Graphical representation Process Input/output Condition Connector Flow line

  17. Conditional Statements • Two kinds of conditional statements in C# are ifstatements and switch statements • If statements • If-else statements • Nested if statements • Switch statements
