RNA and Protein Synthesis

RNA and Protein Synthesis. Unit 4B. Vocabulary Review. Ribosome — makes proteins DNA polymerase – enzyme that puts together DNA Amino acid – building blocks (monomers) of proteins Polypeptide — another name for proteins Genes — sections of DNA that code for something. What is RNA?.

rian
Télécharger la présentation

RNA and Protein Synthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. RNA and Protein Synthesis Unit 4B

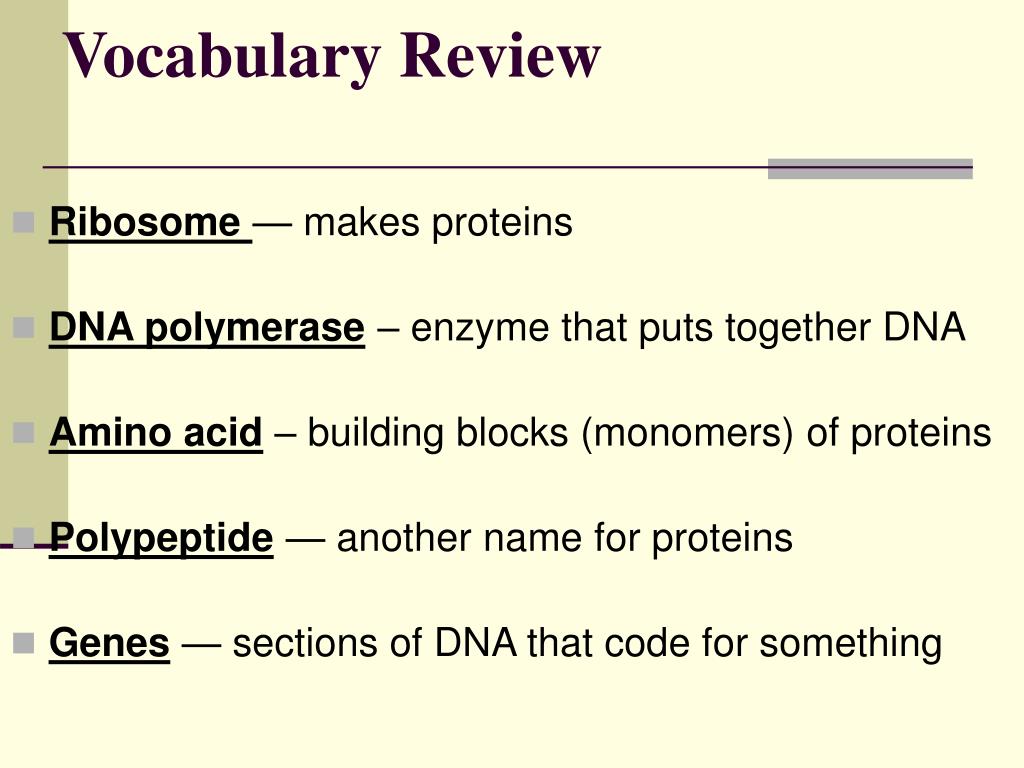

  2. Vocabulary Review Ribosome — makes proteins DNA polymerase – enzyme that puts together DNA Amino acid – building blocks (monomers) of proteins Polypeptide — another name for proteins Genes — sections of DNA that code for something

  3. What is RNA? RNA: Ribonucleic Acid Usually single-stranded Monomers are nucleotides (like DNA) Contains base, ribose (sugar), and one phosphate Bases: A, U, C, G U = Uracil

  4. 3 Types of RNA rRNA: Ribosomal RNA—makes up ribosome mRNA: Messenger RNA—in the nucleus The messenger from DNA to rest of the cell AKA: codon tRNA: Transfer RNA—in the cytoplasm Transfers amino acids to the ribosome to make proteins AKA: anticodon

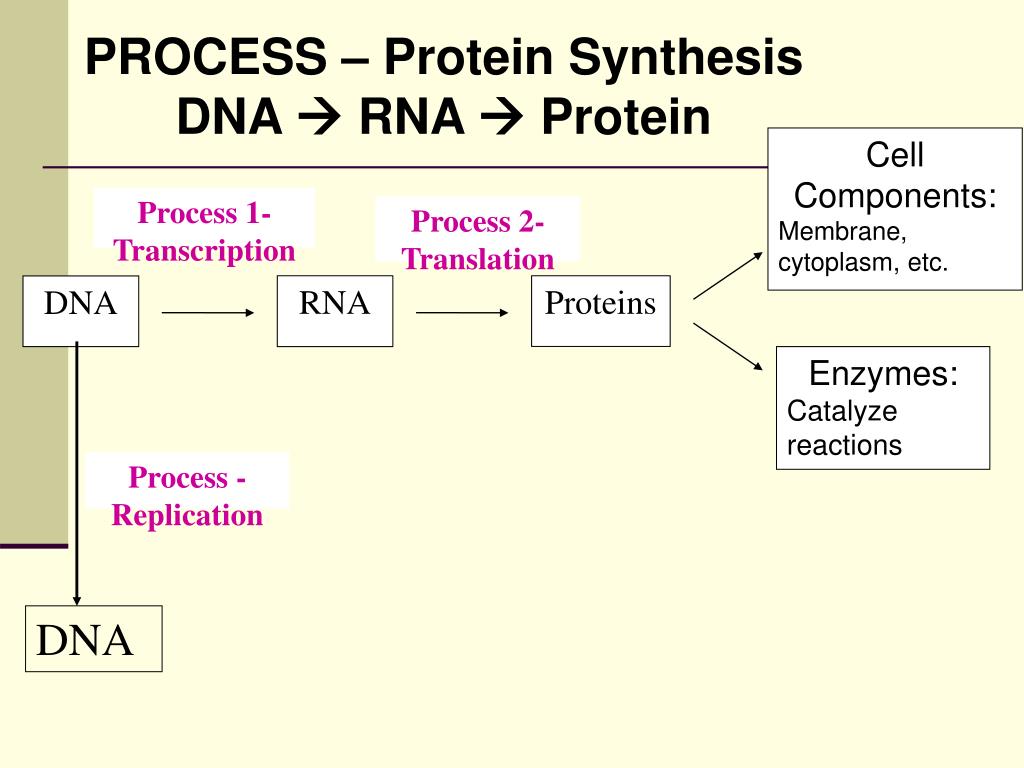

  5. PROCESS – Protein Synthesis DNA  RNA  Protein Cell Components: Membrane, cytoplasm, etc. Process 1- Transcription Process 2- Translation RNA Proteins DNA Enzymes: Catalyze reactions Process - Replication DNA

  6. Protein Synthesis Making proteins 2 main steps: Transcription— DNA gives the instructions on how to make a specific protein to mRNA(messenger) Location: nucleus Translation— Ribosome reads the mRNA and signals tRNA’s to bring the appropriate amino acids to the ribosome in order to produce the protein Location: ribosome

  7. TRANSCRIPTION LOCATION: NUCLEUS (because DNA cannot leave the nucleus!) Purpose: mRNA to copy the instructions for making a specific protein from DNA RNA polymerase—an enzyme that reads one DNA strand to make a mRNA strand Just like DNA polymerase, RNA polymerase bonds new nucleotides to form mRNA. Except A = U, C = G

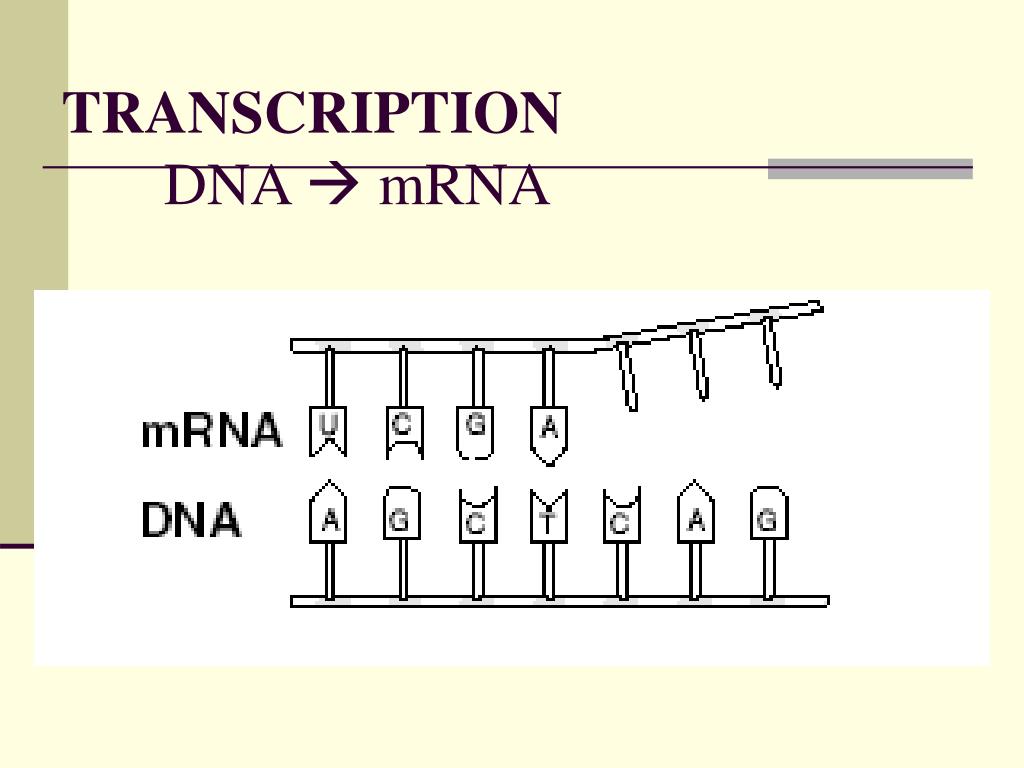

  8. TRANSCRIPTION DNA  mRNA

  9. TRANSCRIPTION Cont’d RNA polymerase binds nucleotides that are complimentary to the DNA’s sequence. There is a gene on DNA that codes for RNA polymerase to stop

  10. TRANSCRIPTION Adenine (DNA and RNA) Cystosine (DNA and RNA) Guanine(DNA and RNA) Thymine (DNA only) Uracil (RNA only) RNApolymerase DNA RNA

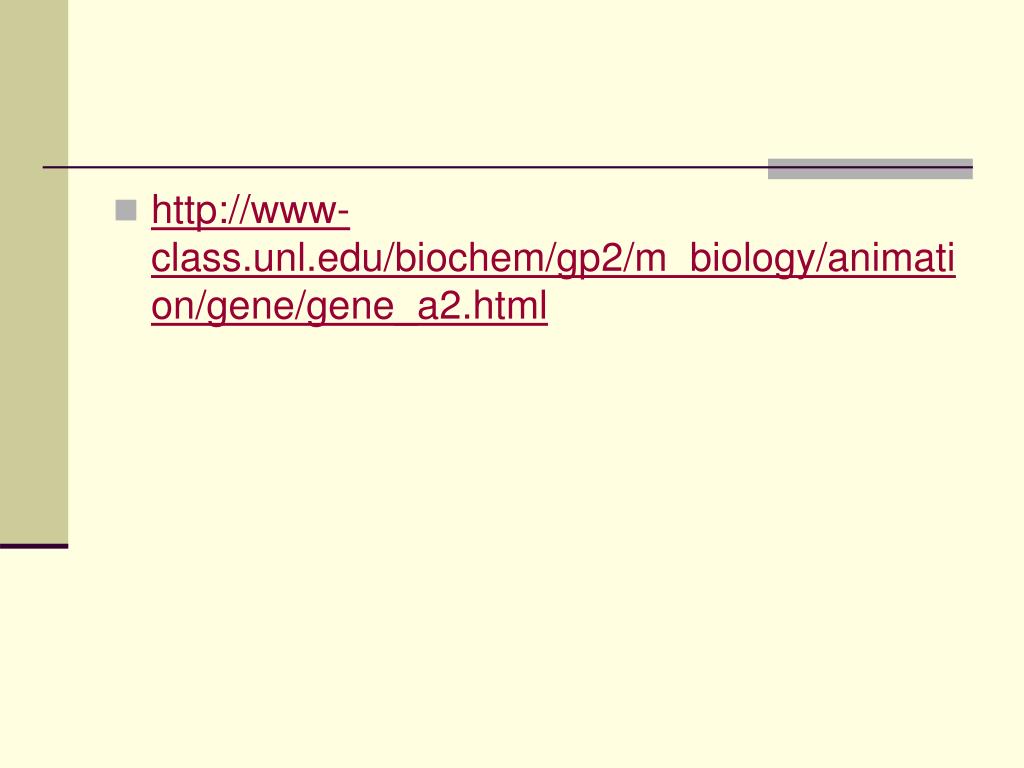

  11. http://www-class.unl.edu/biochem/gp2/m_biology/animation/gene/gene_a2.htmlhttp://www-class.unl.edu/biochem/gp2/m_biology/animation/gene/gene_a2.html

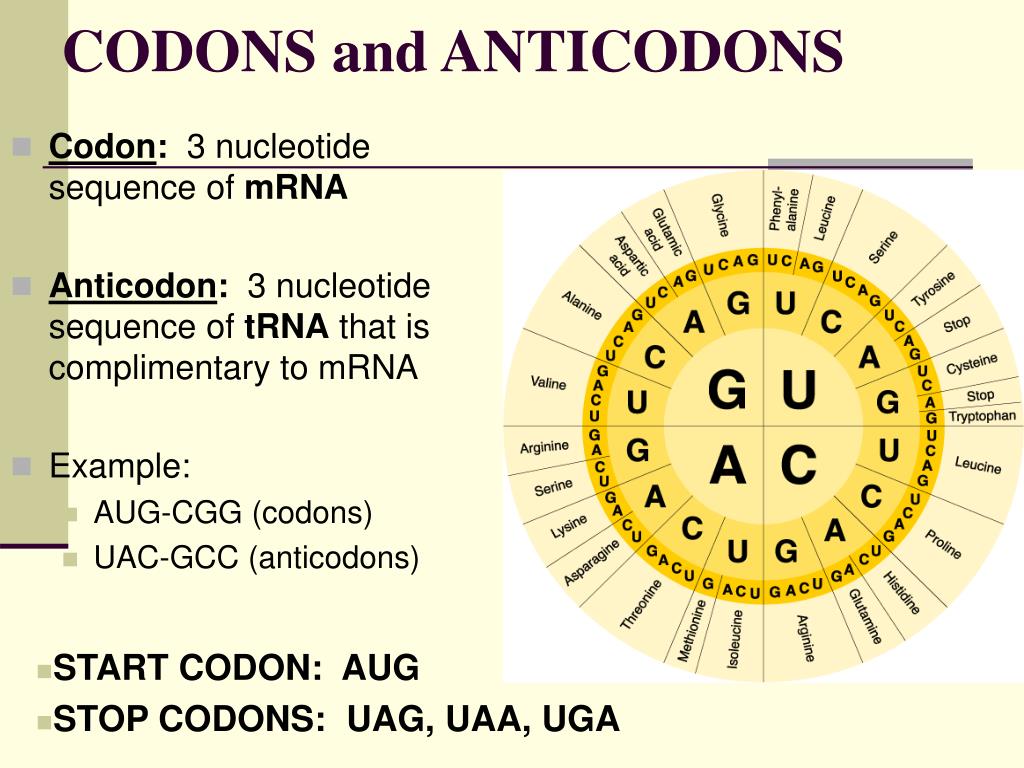

  12. CODONS and ANTICODONS Codon: 3 nucleotide sequence of mRNA Anticodon: 3 nucleotide sequence of tRNA that is complimentary to mRNA Example: AUG-CGG (codons) UAC-GCC (anticodons) • START CODON: AUG • STOP CODONS: UAG, UAA, UGA

  13. TRANSLATION LOCATION: RIBOSOME Purpose: make a protein mRNA is read by ribosome Ribosome “translates” message (mRNA) to protein tRNA brings corresponding amino acid to ribosome Ribosome bonds amino acids together (peptide bonds) tRNA

  14. TRANSLATION (Cont’d) When the amino acid chain lengthens, this is called elongation. Translation stops when the ribosome reads a stop codon (UAG, UAA, UGA)

  15. TRANSLATION

  16. TRANSLATION

  17. http://www-class.unl.edu/biochem/gp2/m_biology/animation/gene/gene_a3.htmlhttp://www-class.unl.edu/biochem/gp2/m_biology/animation/gene/gene_a3.html http://www.youtube.com/watch?v=983lhh20rGY

  18. What is a mutation?? • Change in a sequence of DNA

  19. How are mutations good, bad, or equal? • Good-change in DNA sequence that leads to better protein production, increasing the organisms chance of survival. • Ex: camouflage • Bad- change in DNA sequence that leads to the wrong protein formed, decreasing the organisms survival • Ex: genetic diseases such as sickle anemia • Equal- change in DNA sequence that produces the same correct protein.
