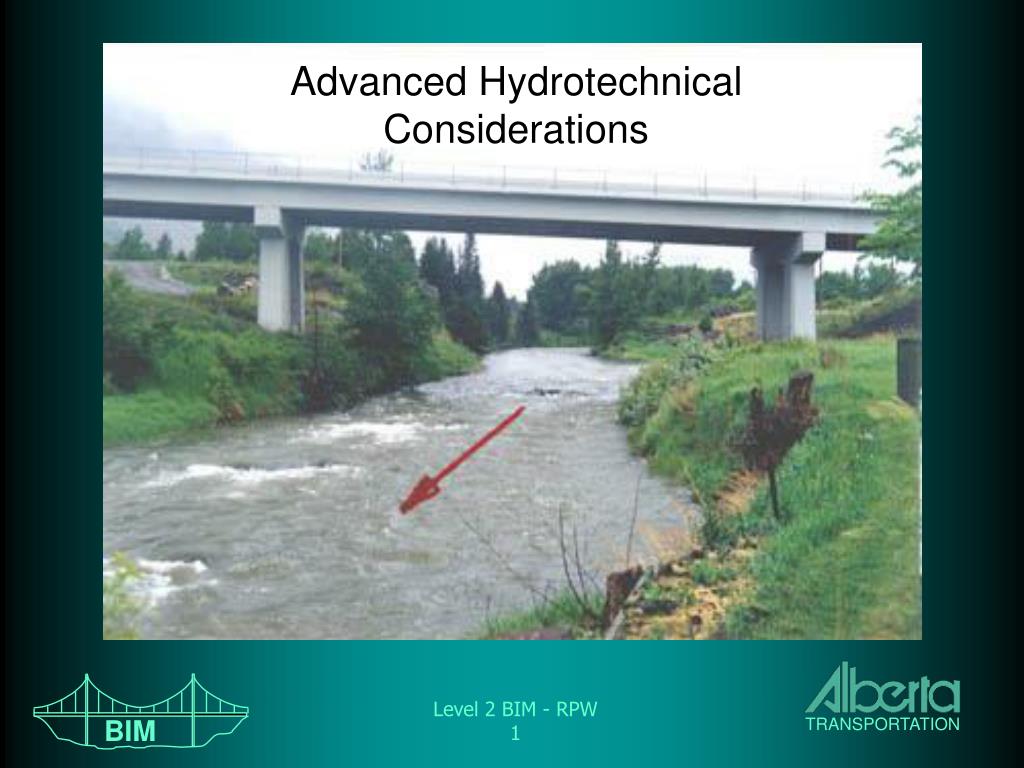

  1. Advanced Hydrotechnical Considerations

  2. Overview • Hydrotechnical Review • Pier Scour Inspection • RPW Inspection • Case Study

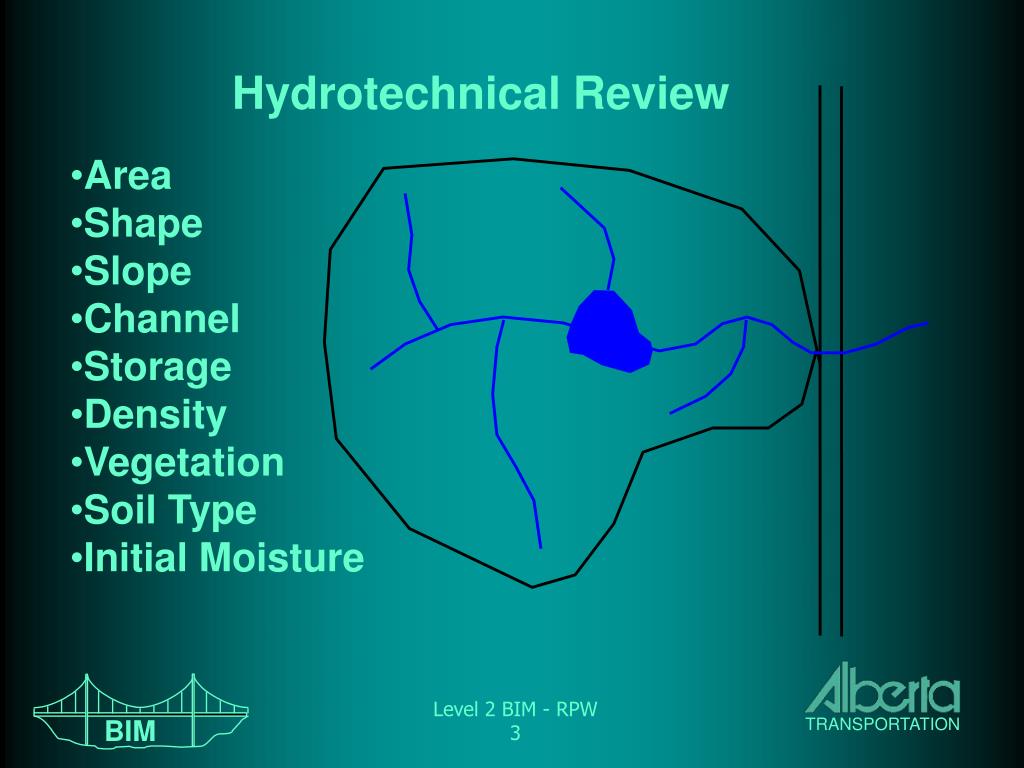

  3. Hydrotechnical Review • Area • Shape • Slope • Channel • Storage • Density • Vegetation • Soil Type • Initial Moisture

  4. Hydrotechnical Design Guidelines : • Channel Capacity • Historic Highwater Data • Drift, debris • Scars, erosion • Locals, photos • Runoff Potential

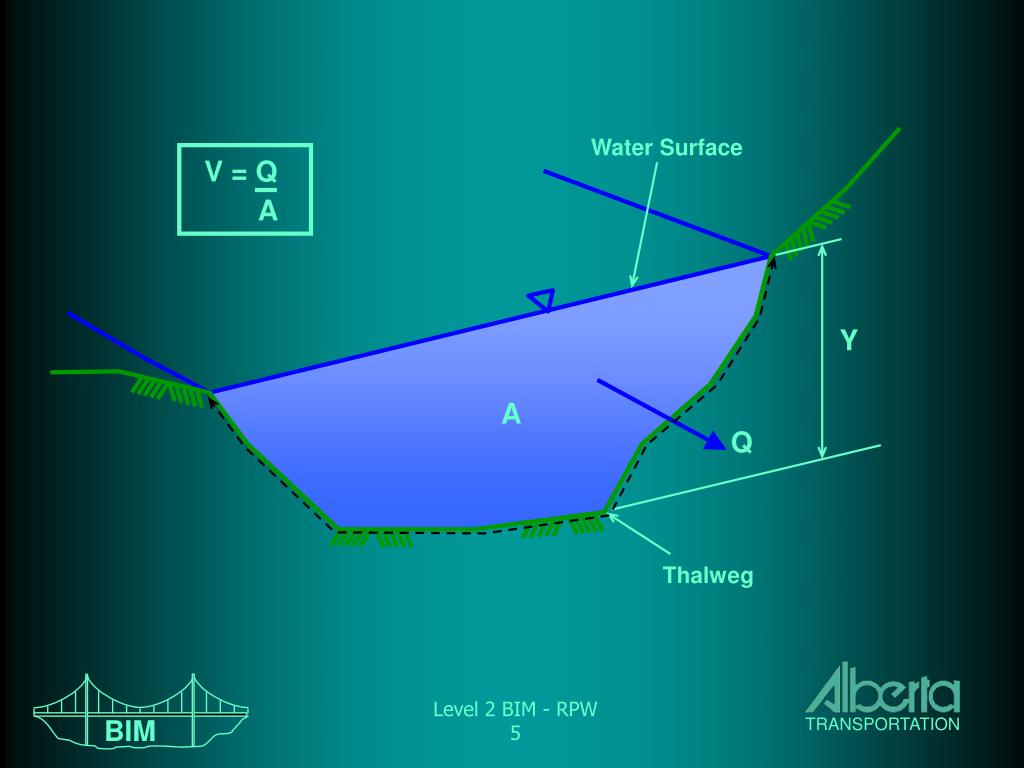

  5. A Q Water Surface V = Q A Y Thalweg

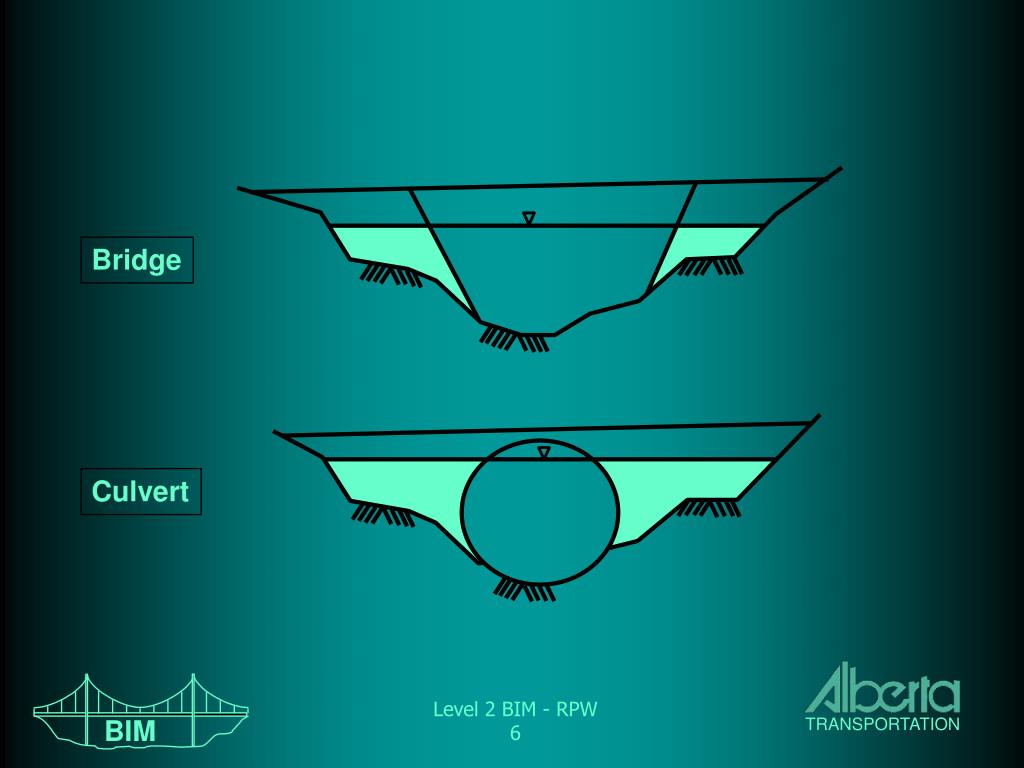

  6. Bridge Culvert

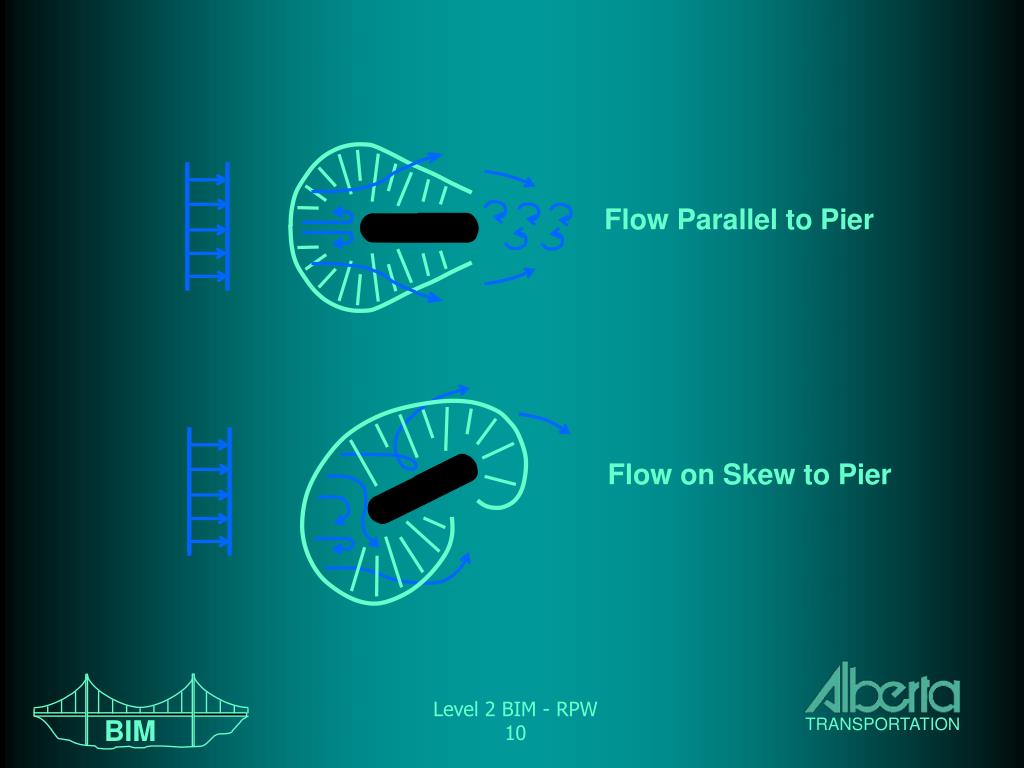

  7. Flow Parallel to Pier Flow on Skew to Pier

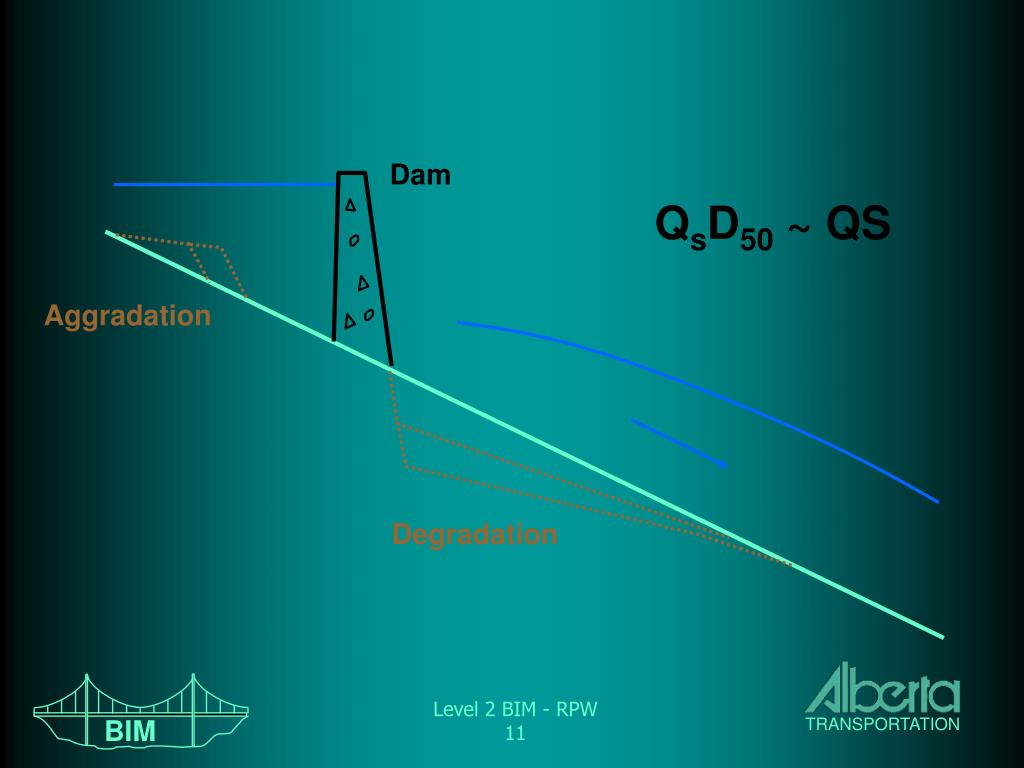

  8. Dam Aggradation Degradation QsD50 ~ QS

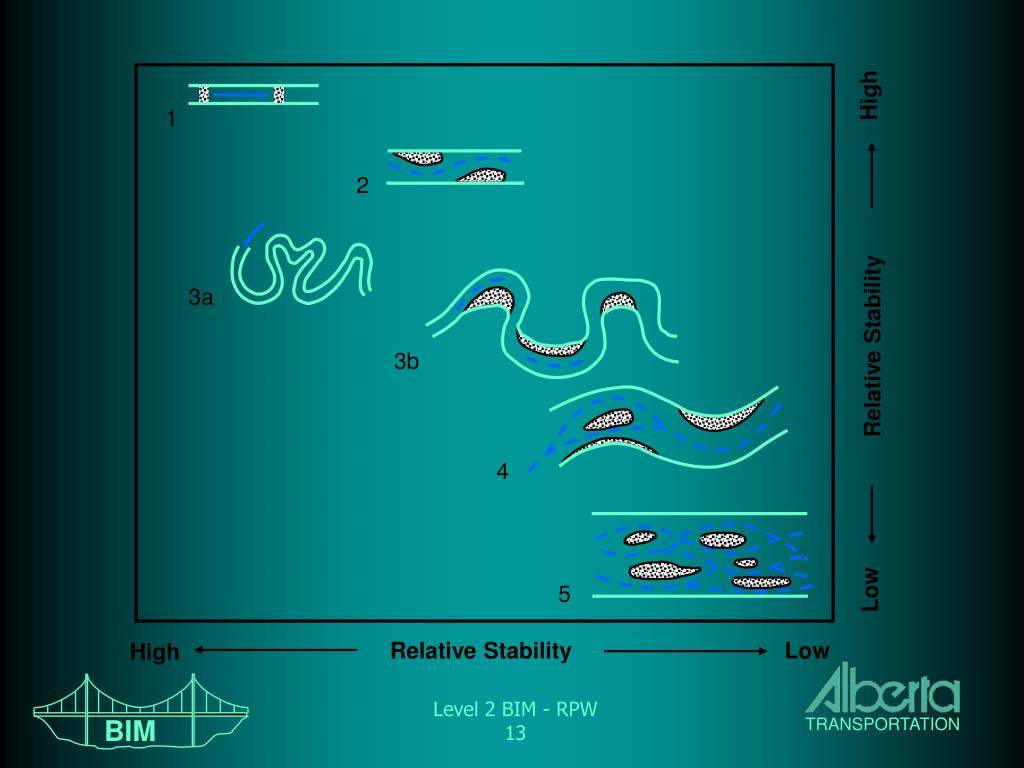

  9. High 1 2 3a Relative Stability 3b 4 Low 5 Relative Stability Low High

  10. Pier Scour Survey

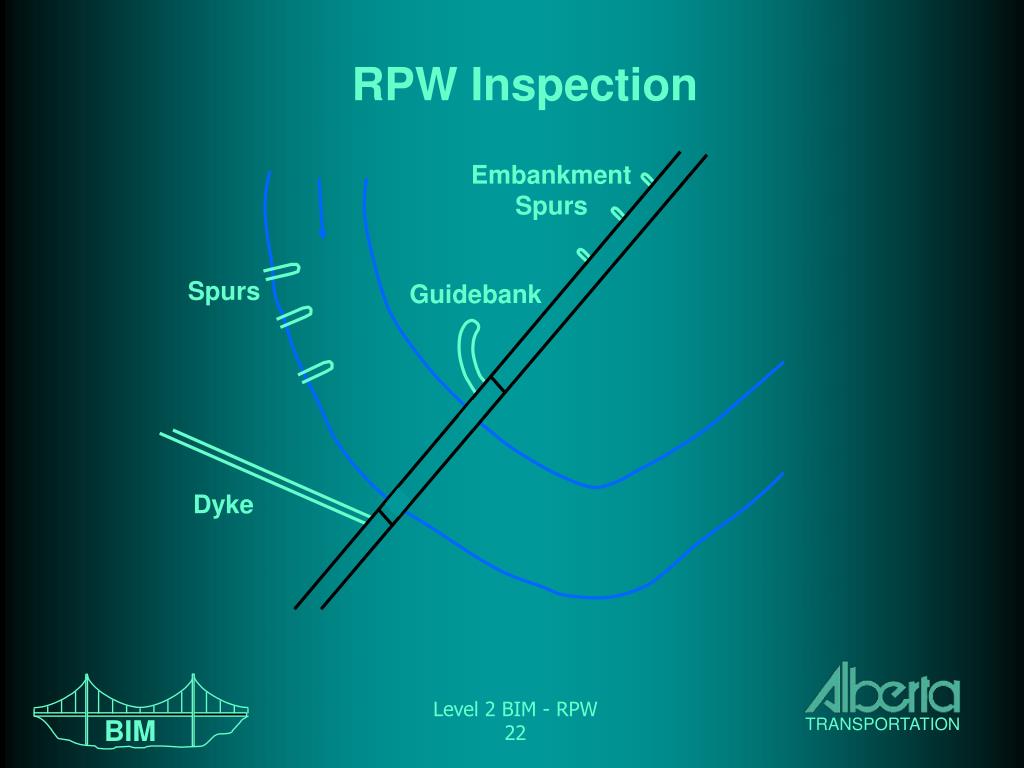

  11. Spurs Guidebank Dyke RPW Inspection Embankment Spurs

  12. 1 2 Typical Rock Riprap Section

  13. 1951 1972 1989 2008

  14. Case Study BF78104 McLeod River near Peers Hwy 32

  15. …Questions?
