  1. Hydrotechnical Design Parameters • Channel Hydraulics • Culvert Hydraulics • Culvert Sizing

  2. Hydrotechnical Design Parameters

  3. Area • Shape • Slope • Storage • Density • Vegetation • Soil Type • Initial Moisture

  4. Gauges >30 Years (212) Options - Statistics

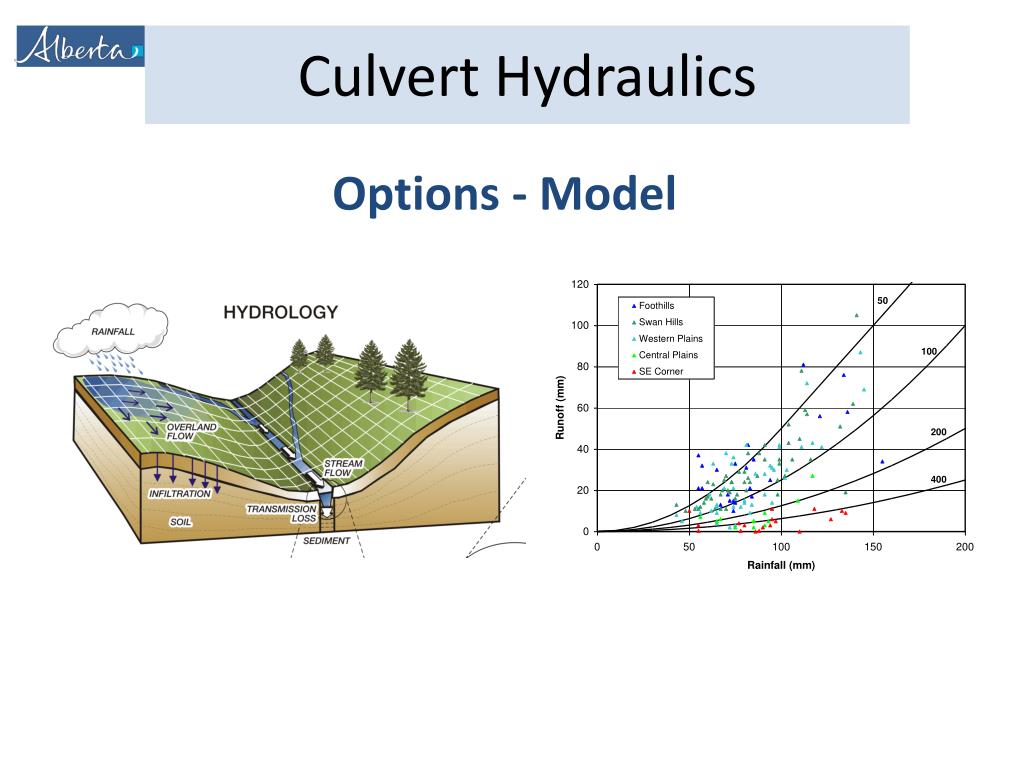

  5. Options - Model

  6. Hydrotechnical Design Guidelines

  7. Channel Capacity

  8. Historic Highwater - AT

  9. Basin Runoff Potential

  10. Channel Hydraulics

  11. Normal Flow V = 14 Y0.67S0.4 Y S 1

  12. T h Q = AV B

  13. Other Flow Profile Cases 3. GVF 2. RVF 1. Normal S 1

  14. E = Y + V2/2g • EGL flows downhill • Head loss at RVF EGL S 1

  15. Culvert Hydraulics

  16. Bridge Culvert

  17. Barrel – GVF + U/S Channel - GVF D/S Channel - Normal Trans - Steep Trans - Adverse RVF - Expansion RVF - Contraction

  18. Culvert Sizing

  19. Sizing: • Complex – need model • Start :– Rise = burial + Y + headloss • Range - sizes, shapes, barrels, profiles • Parameters – V, freeboard/ponding • Practical – drift/ice, future lining

  20. Considerations: • Fish Passage • Blockage - Drift, Icing • End Protection Works (V) • Ponding: • Upstream Flooding • Uplift Failure • Embankment Stability • Road Overtopping
