  1. Techniques for Interacting with Off-Screen Content Pourang Irani Carl Gutwin University of Manitoba University of Saskatchewan Grant Partridge Mahtab Nezhadasl University of Manitoba University of Manitoba

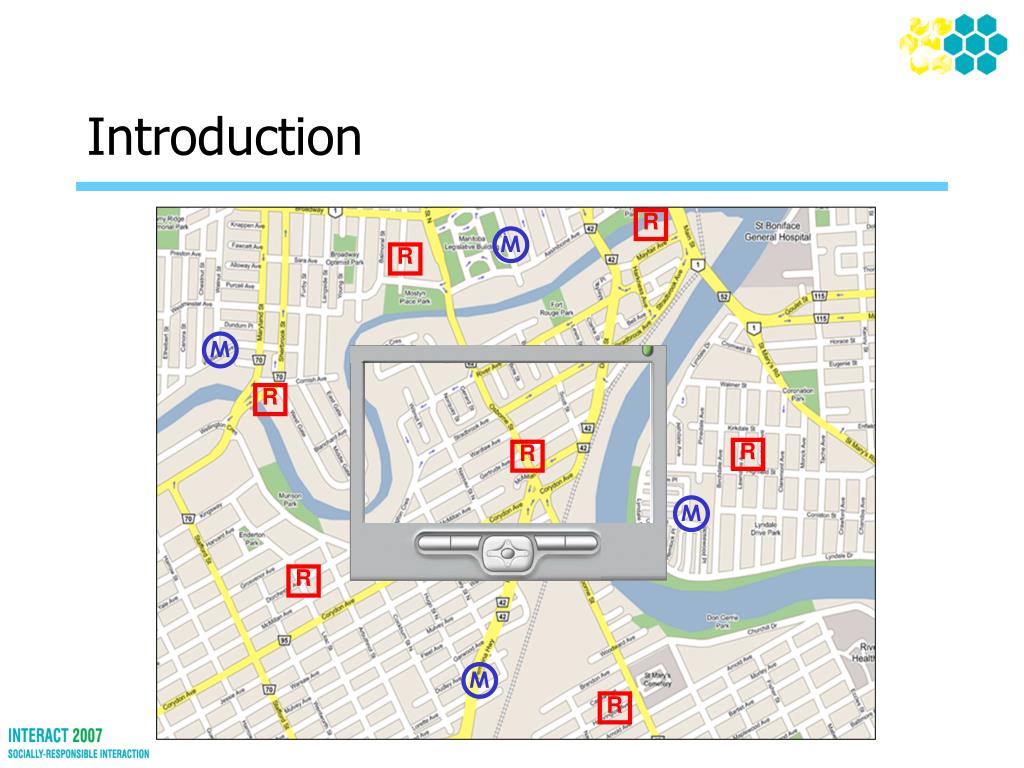

  2. Introduction R M R M R R R M R M R

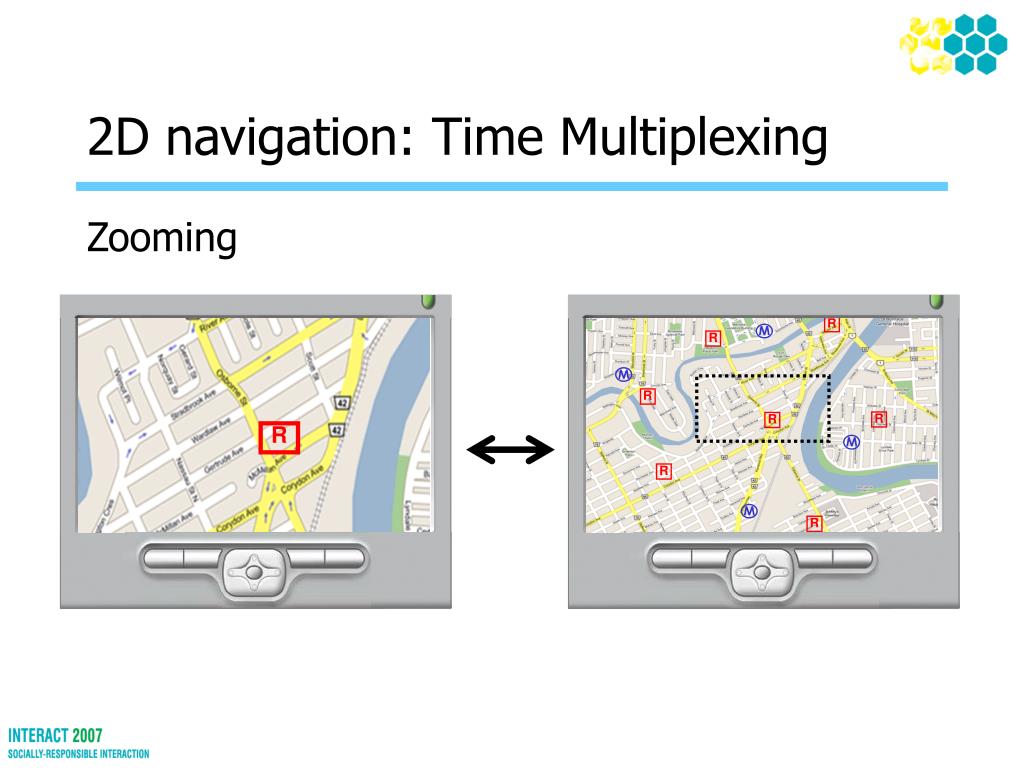

  3. R R M R M R R R M R M R 2D navigation: Time Multiplexing Zooming

  4. R M R M R R R R M R R M M R R R R M R M R M R 2D navigation: Space Multiplexing Overview+Detail DragMag

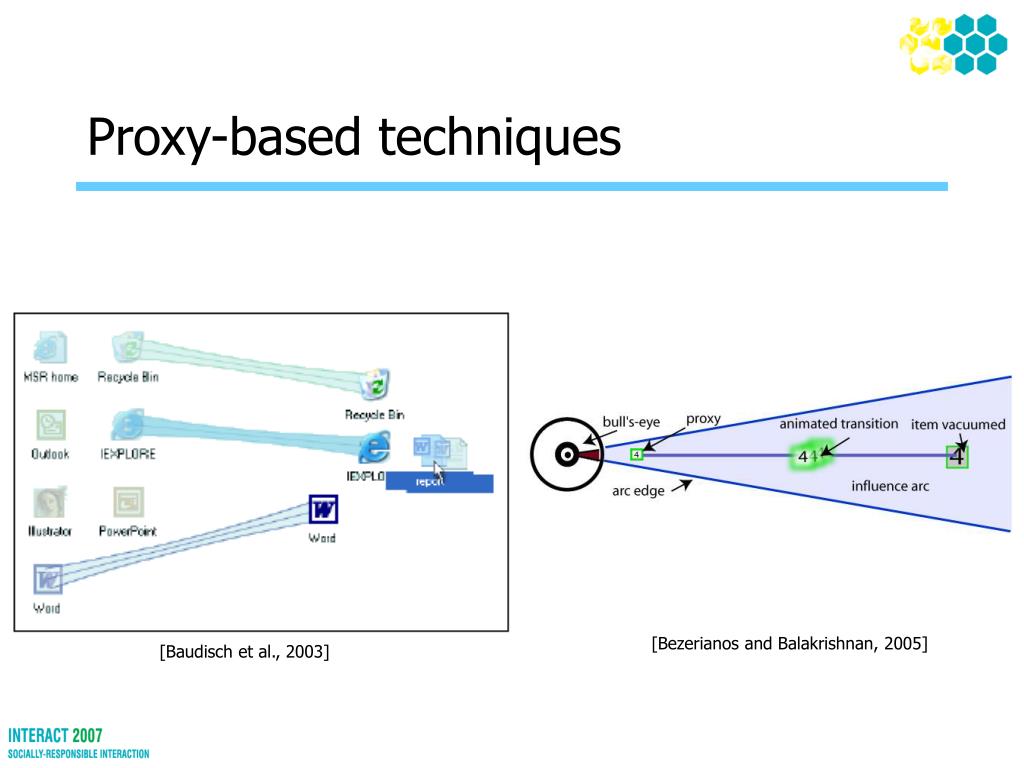

  5. Proxy-based techniques [Bezerianos and Balakrishnan, 2005] [Baudisch et al., 2003]

  6. R R 2D navigation: Proxy Hop (Halo + Proxies) M R

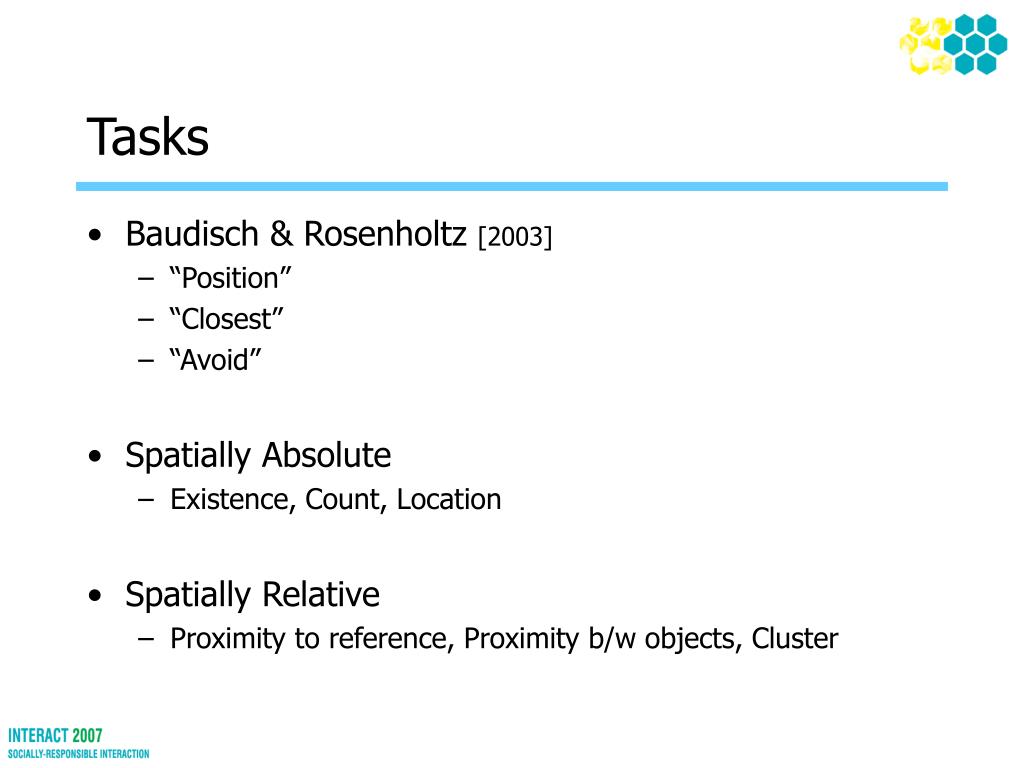

  7. Tasks • Baudisch & Rosenholtz [2003] • “Position” • “Closest” • “Avoid” • Spatially Absolute • Existence, Count, Location • Spatially Relative • Proximity to reference, Proximity b/w objects, Cluster

  8. Evaluation: Conditions • Navigation Techniques • Zoom - two-level zoom • DragMag • Hop • Tasks • Absolute • Relative

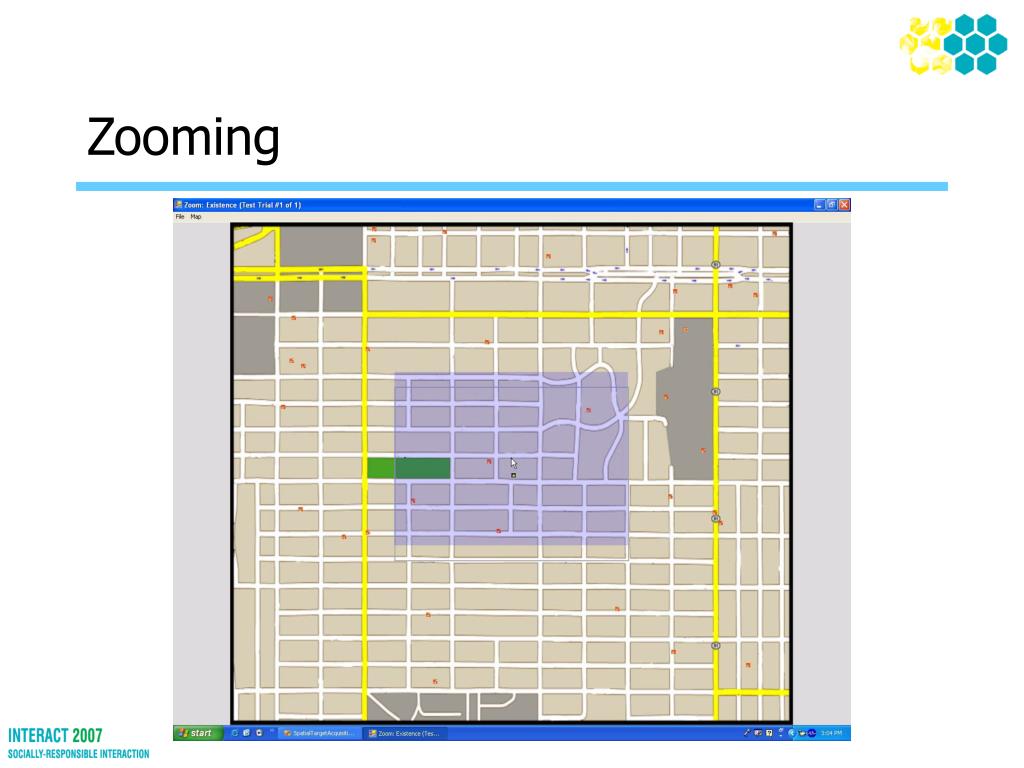

  9. Zooming

  10. DragMag

  11. Hop

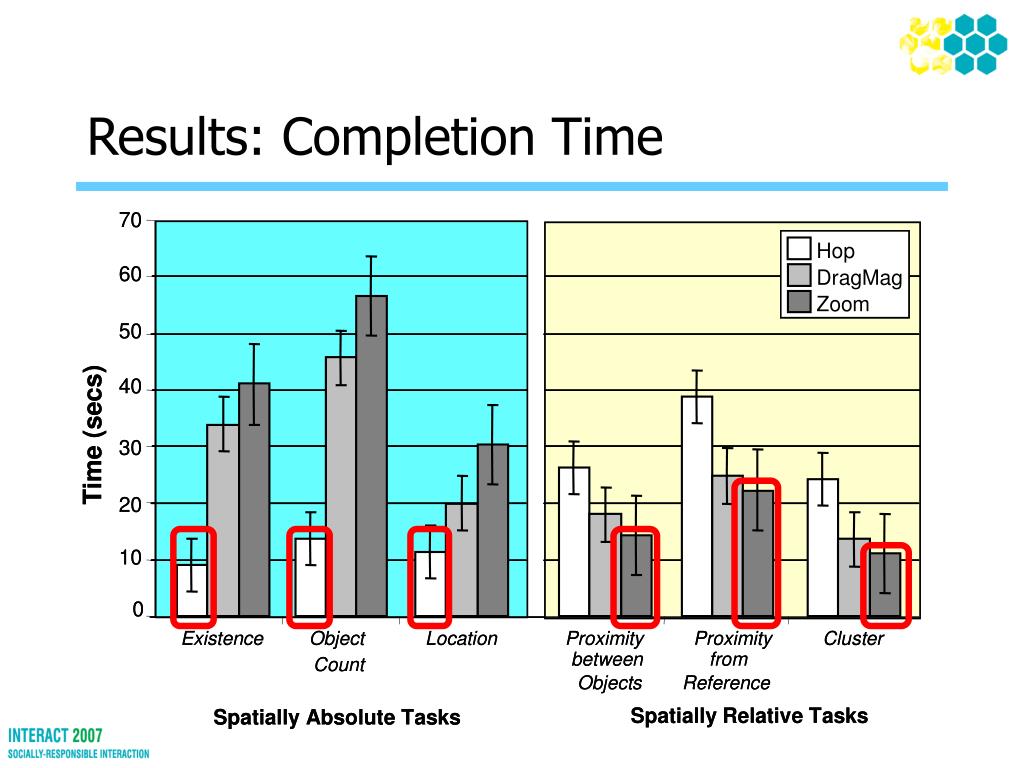

  12. Results: Completion Time

  13. Possible explanations – strategy • Number of operations about 1/5 with hop • Zooming requires more “trips” … • not so good for absolute tasks • … but good for spatial information • useful for relative tasks • DragMag reduced the number of “trips” • allows users to perform relative tasks with ease • but added complexity of managing windows

  14. Possible explanations – task-based • Relative tasks • Need orientation and comparisons b/w views • Rely on VSTM • Absolute tasks • Require information about the objects • Do not require spatial/orientation information

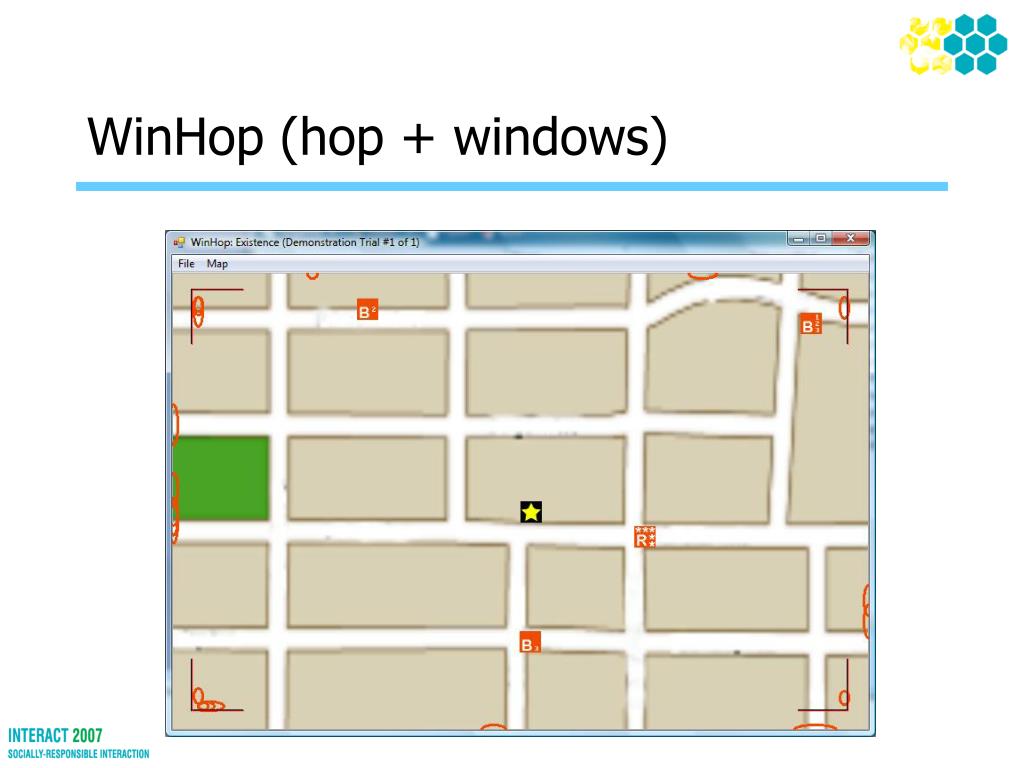

  15. WinHop (hop + windows)

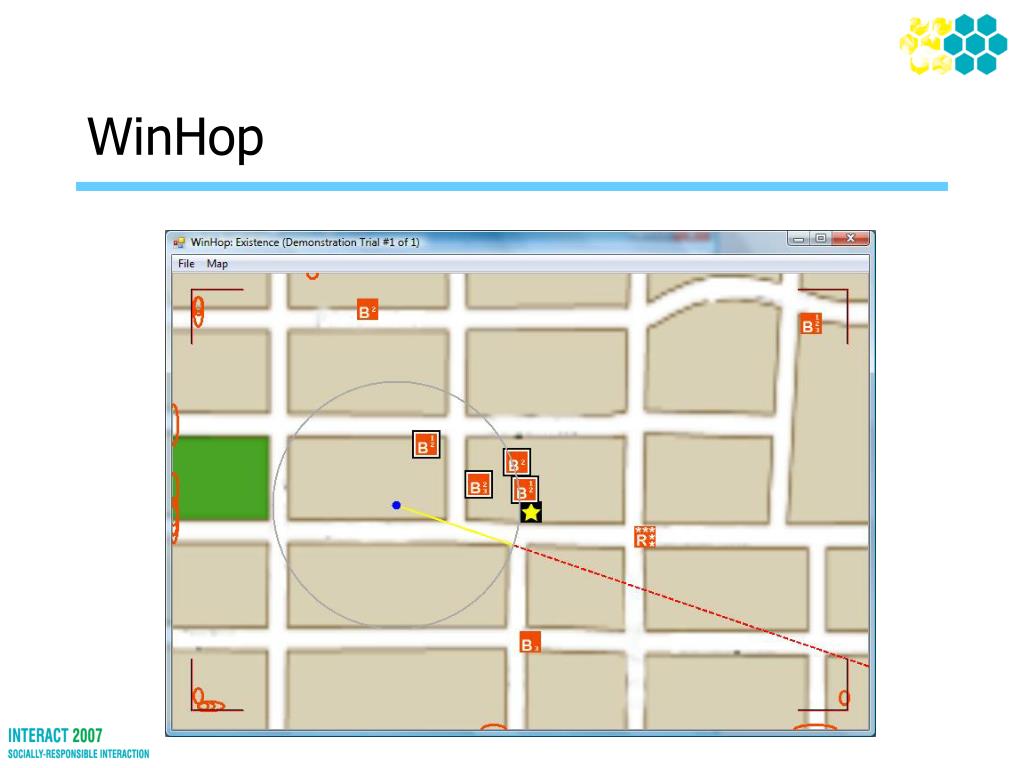

  16. WinHop

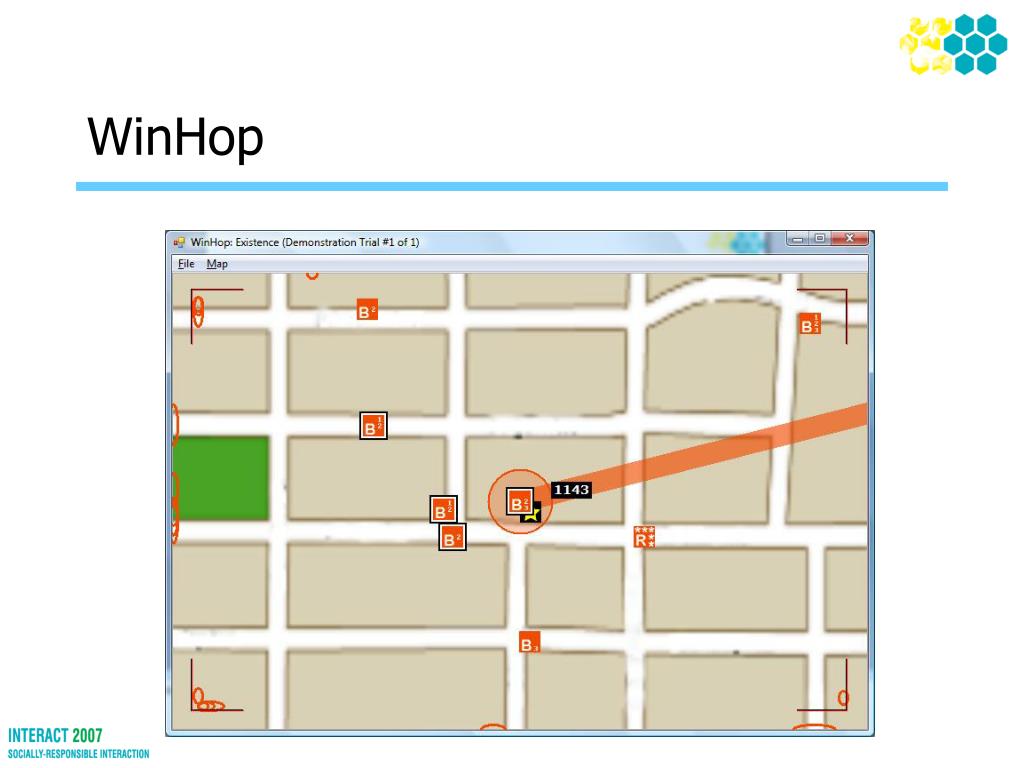

  17. WinHop

  18. WinHop

  19. WinHop

  20. WinHop

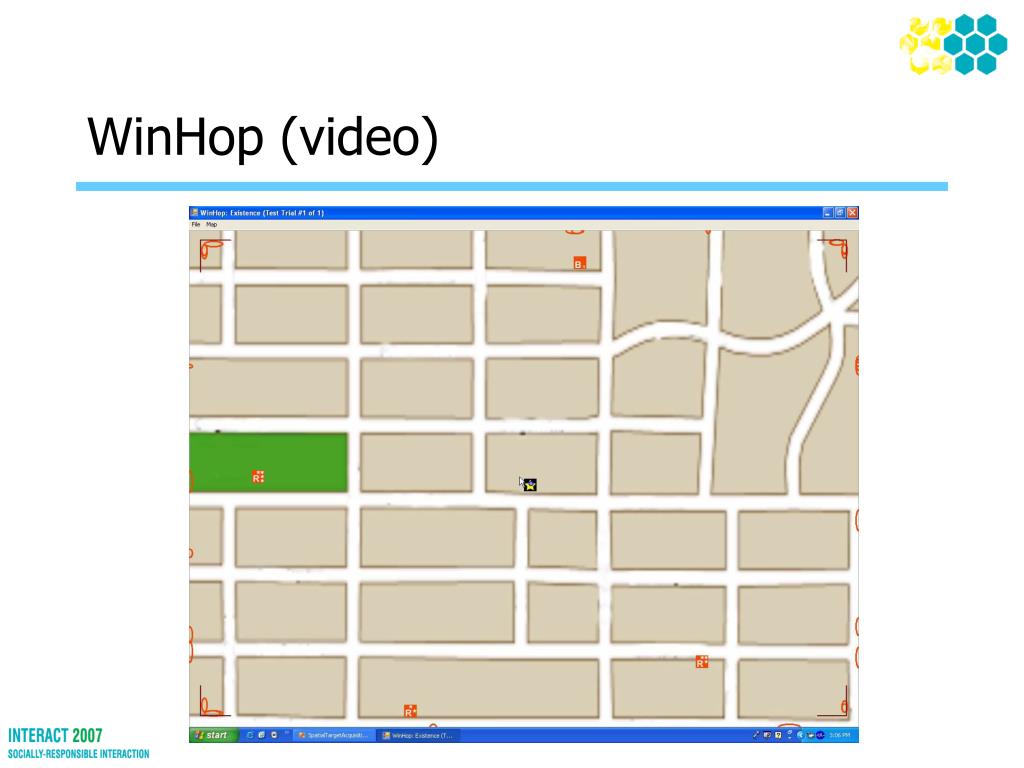

  21. WinHop (video)

  22. MultiscaleZoom

  23. MultiscaleZoom

  24. MultiscaleZoom (video)

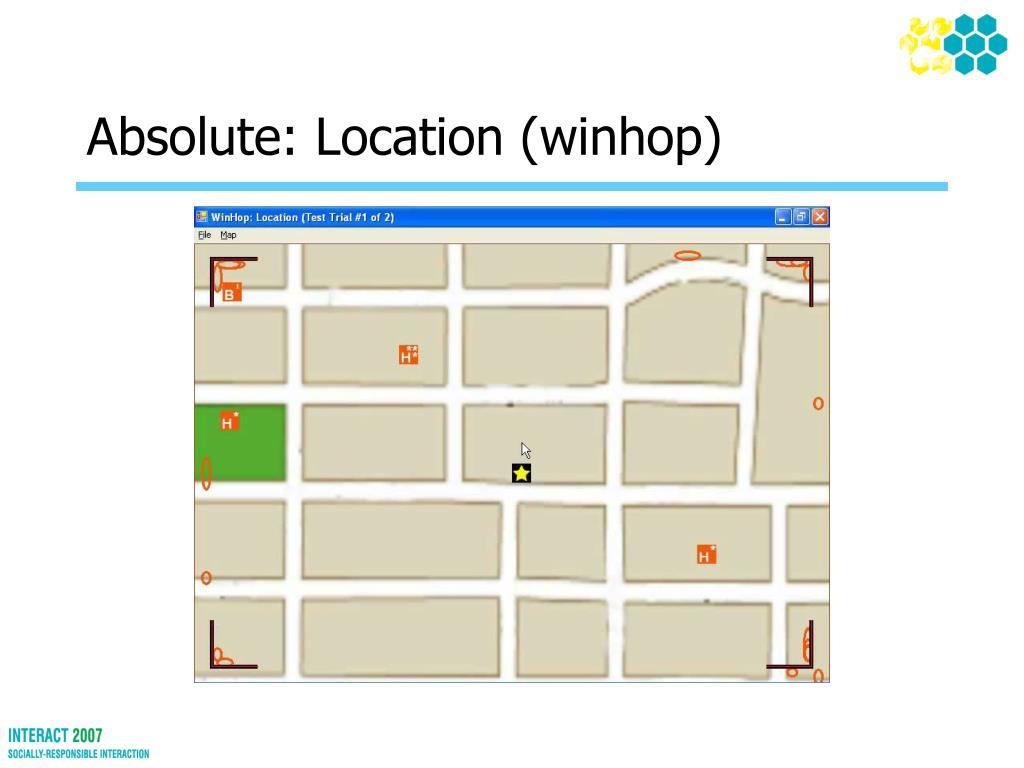

  25. Absolute: Location (winhop)

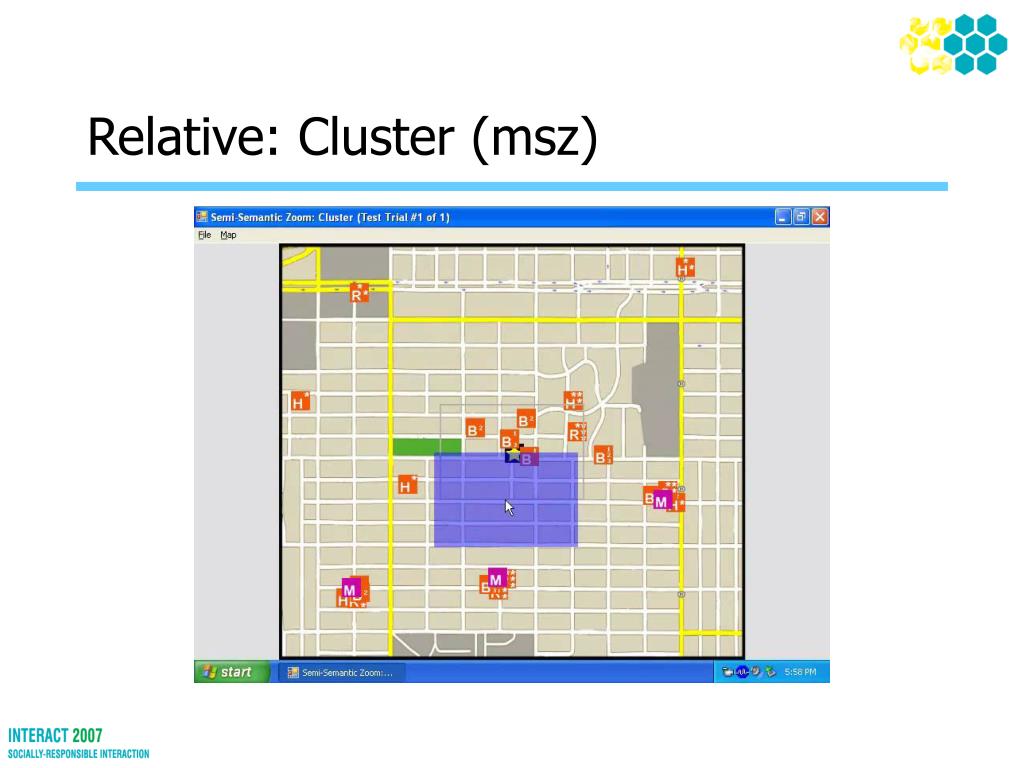

  26. Relative: Cluster (msz)

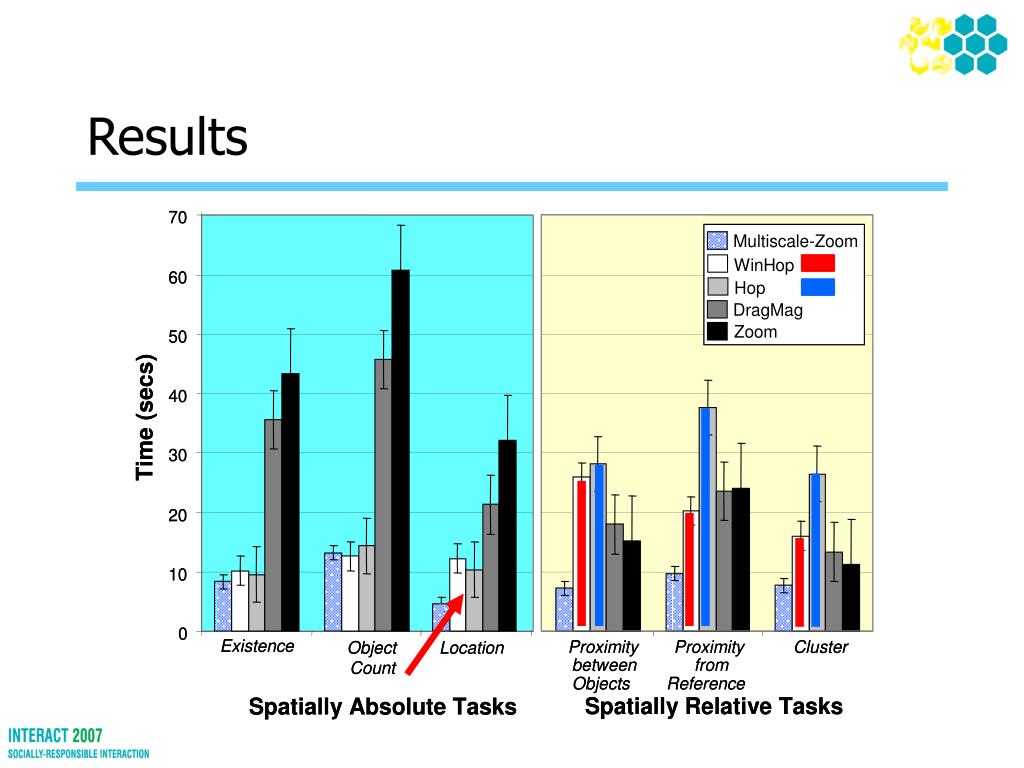

  27. Results

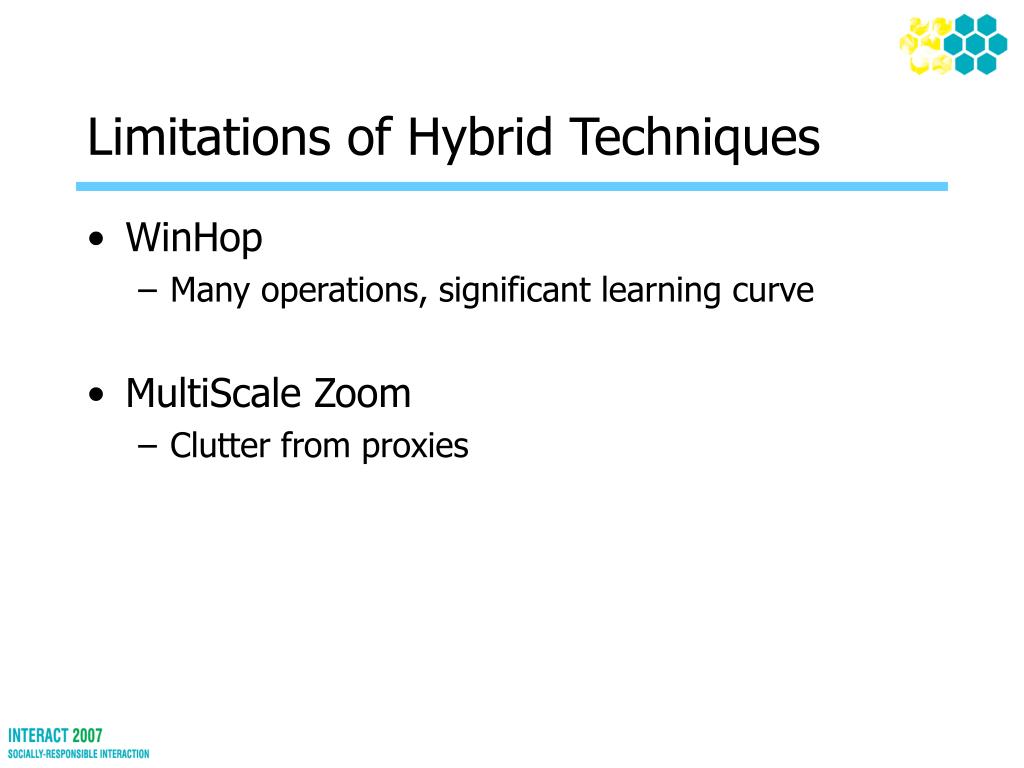

  28. Limitations of Hybrid Techniques • WinHop • Many operations, significant learning curve • MultiScale Zoom • Clutter from proxies

  29. Main Findings • Each task requires a different navigation strategy • Proxy-based ideal for target-only info tasks • Time/Space multiplexing ideal for target-target info • Hybrids improve performance in both types of tasks • Performance with Multiscale Zoom remained constant

  30. Conclusion • Beneficial to investigate techniques on multiple tasks • Ideal technique gives target and context information • Hybrid techniques are reliably good • Consider multiscale zoom for small displays • Hybrids performance on other tasks
