  1. Entry level solutions for field trials Johann Bachmayer IAMFE Denmark, June 30th – July 3rd 2008

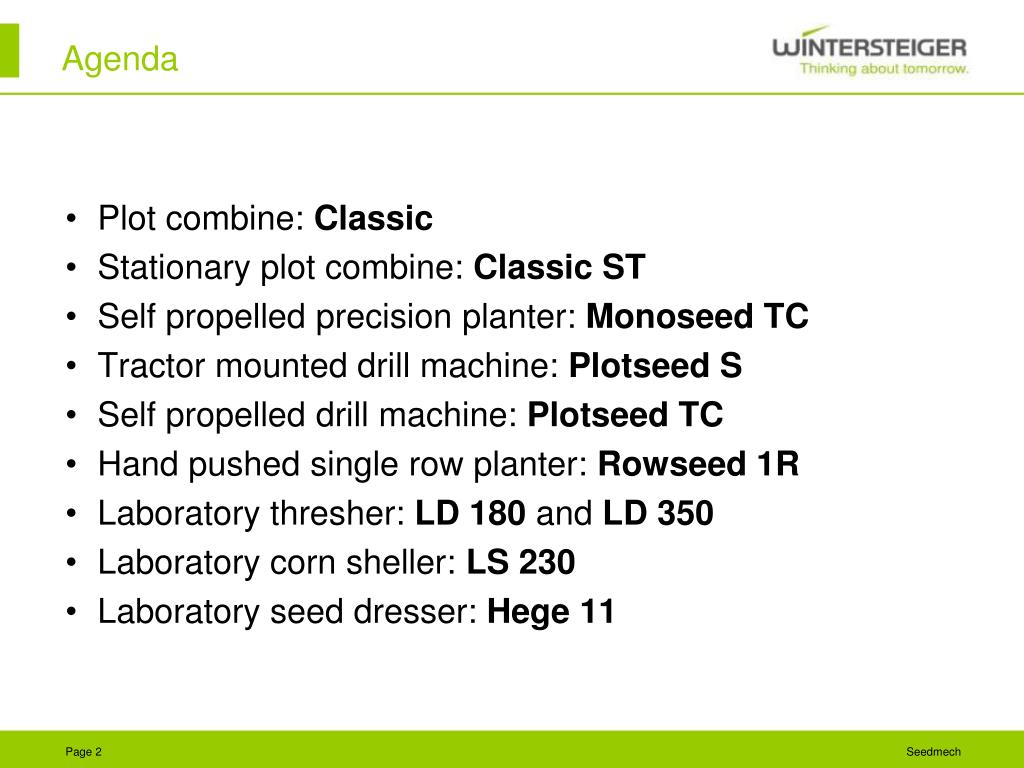

  2. Agenda • Plot combine: Classic • Stationary plot combine: Classic ST • Self propelled precision planter: Monoseed TC • Tractor mounted drill machine: Plotseed S • Self propelled drill machine: Plotseed TC • Hand pushed single row planter: Rowseed 1R • Laboratory thresher: LD 180 and LD 350 • Laboratory corn sheller: LS 230 • Laboratory seed dresser: Hege 11 Seedmech

  3. Classic Seedmech

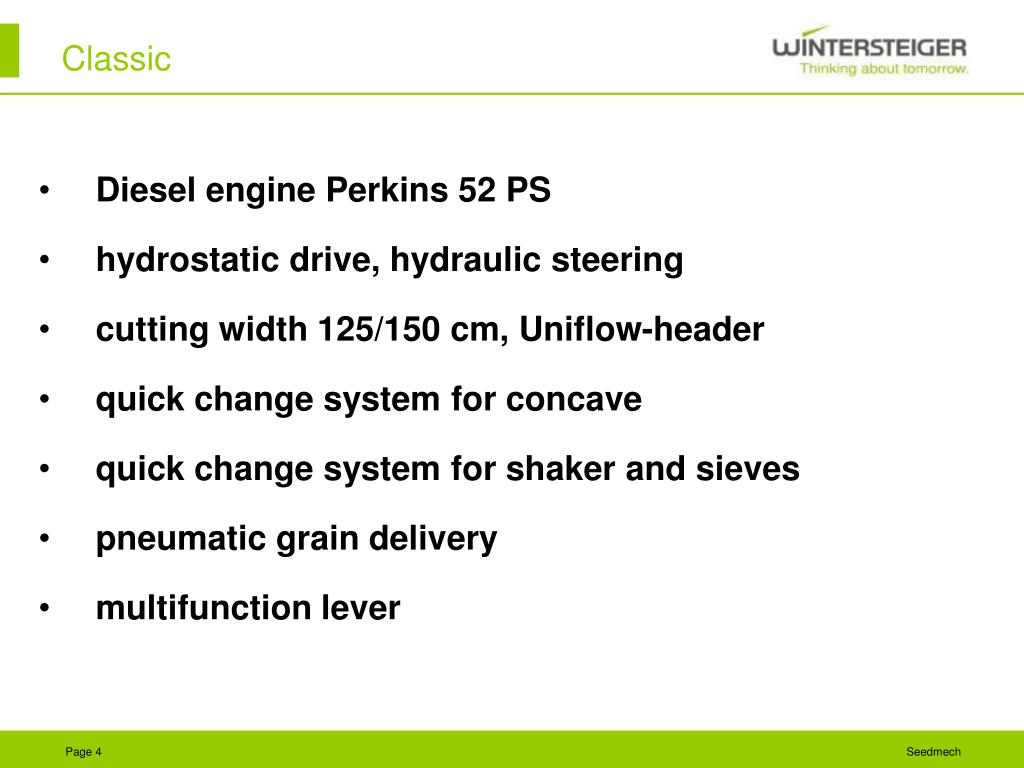

  4. Classic • Diesel engine Perkins 52 PS • hydrostatic drive, hydraulic steering • cutting width 125/150 cm, Uniflow-header • quick change system for concave • quick change system for shaker and sieves • pneumatic grain delivery • multifunction lever Seedmech

  5. Classic • weighing system and grain tank • 2-row corn header • many other options • Gras version for very quick cleaning • transport weight: 2.000 - 2.400 kg Seedmech

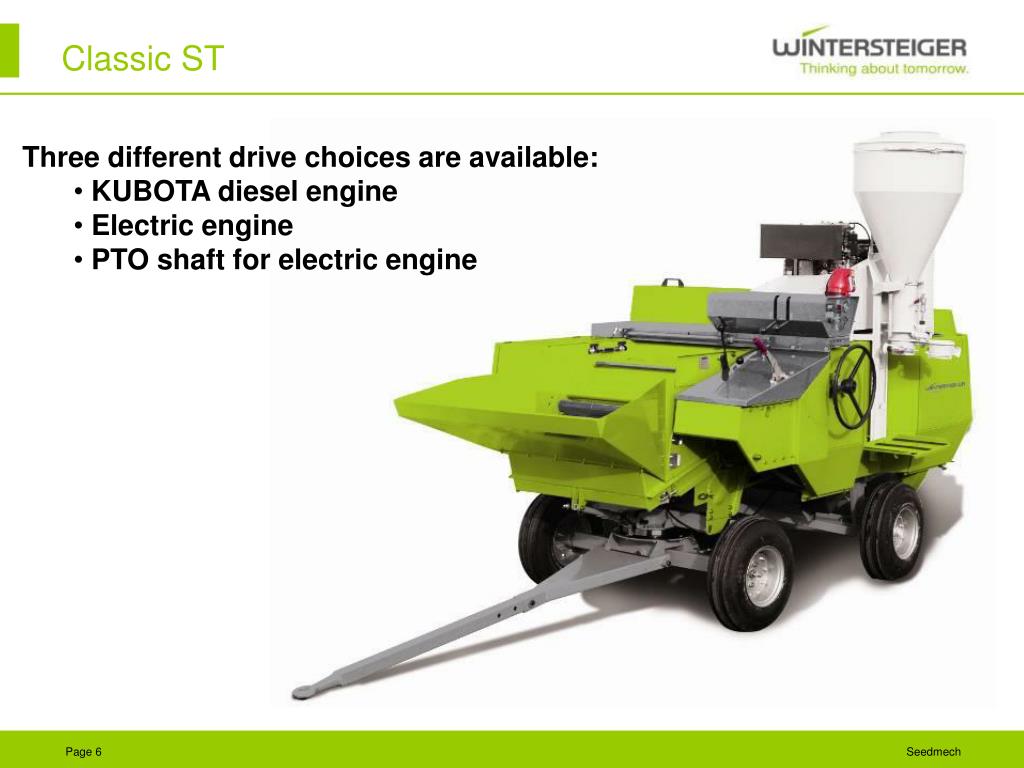

  6. Classic ST • Three different drive choices are available: • KUBOTA diesel engine • Electric engine • PTO shaft for electric engine Seedmech

  7. Precision Planting 1960 Seedmech

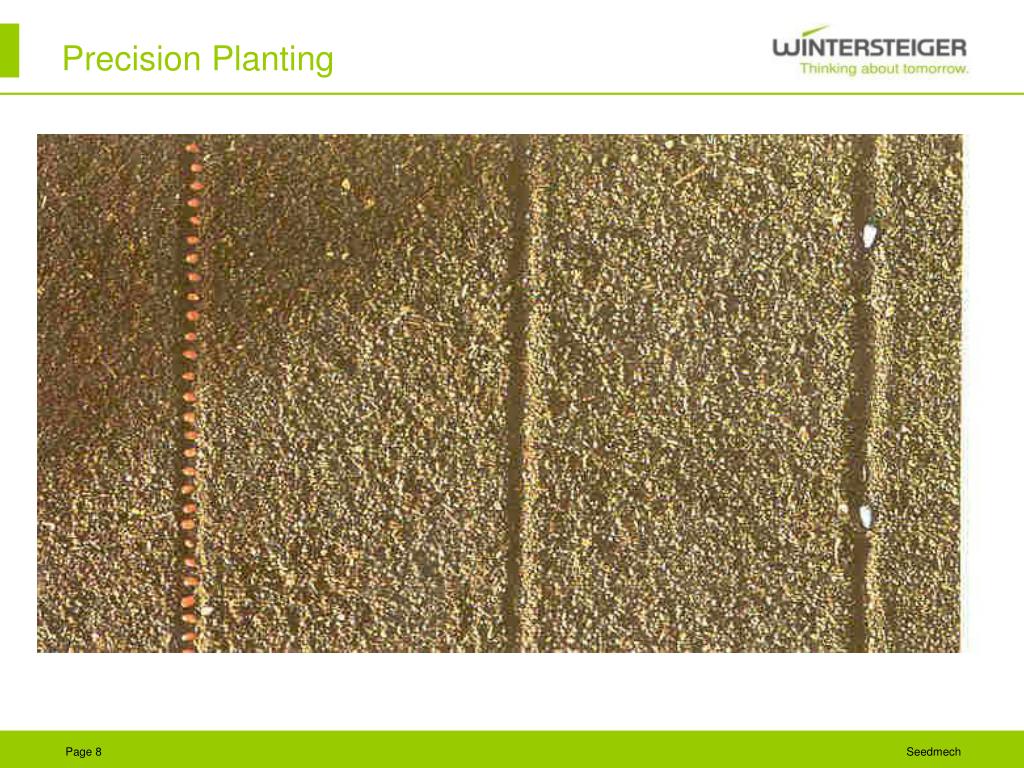

  8. Precision Planting Seedmech

  9. Precision planting Seedmech

  10. Precision Planting 2008 Seedmech

  11. Monoseed TC Area of application: • Self-propelled precision planting Features: • Non-stop or Stop&Go planting system • wide area of application • easy adaption to different applications • easy operation Seedmech

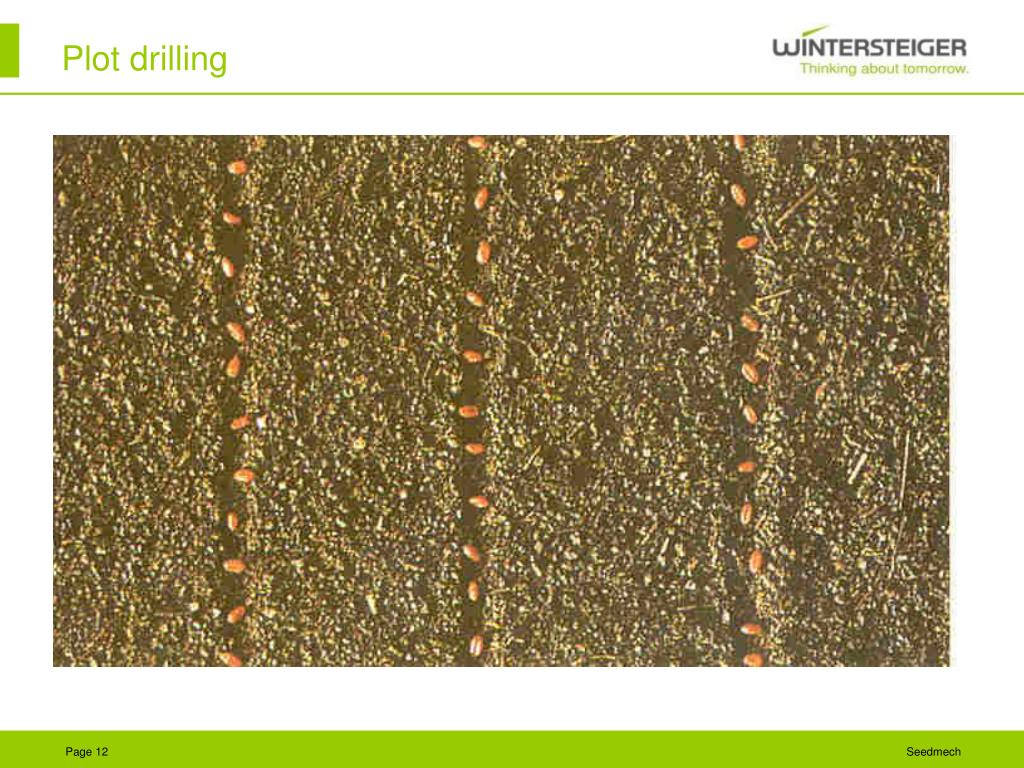

  12. Plot drilling Seedmech

  13. Variety plots Seedmech

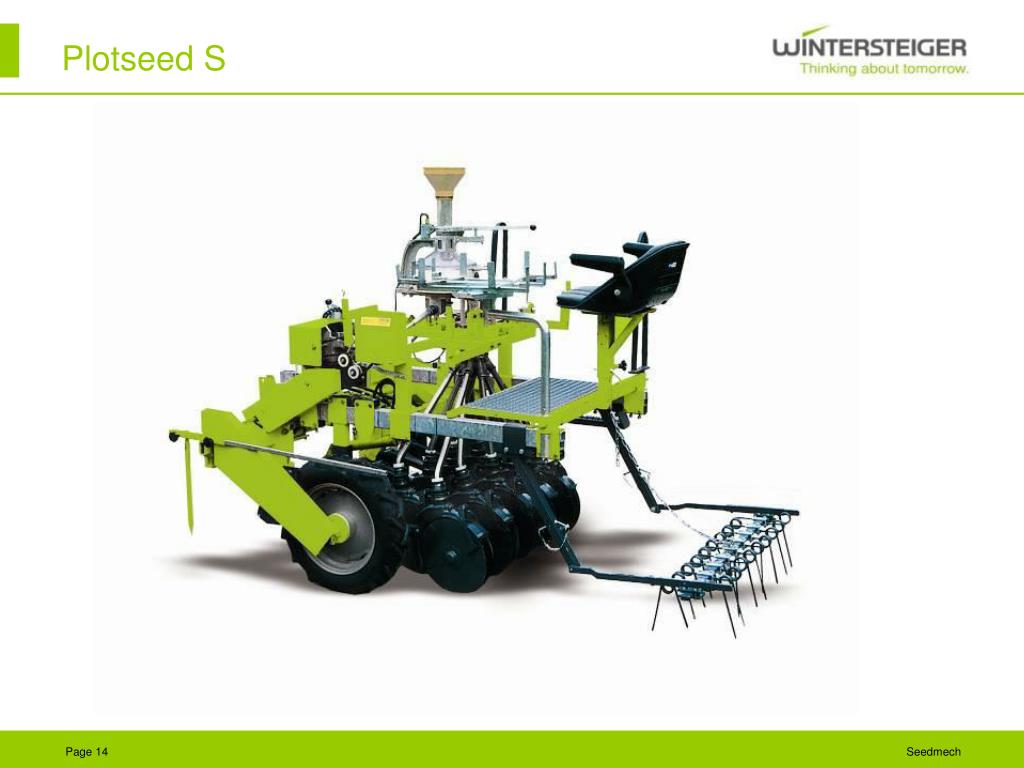

  14. Plotseed S Seedmech

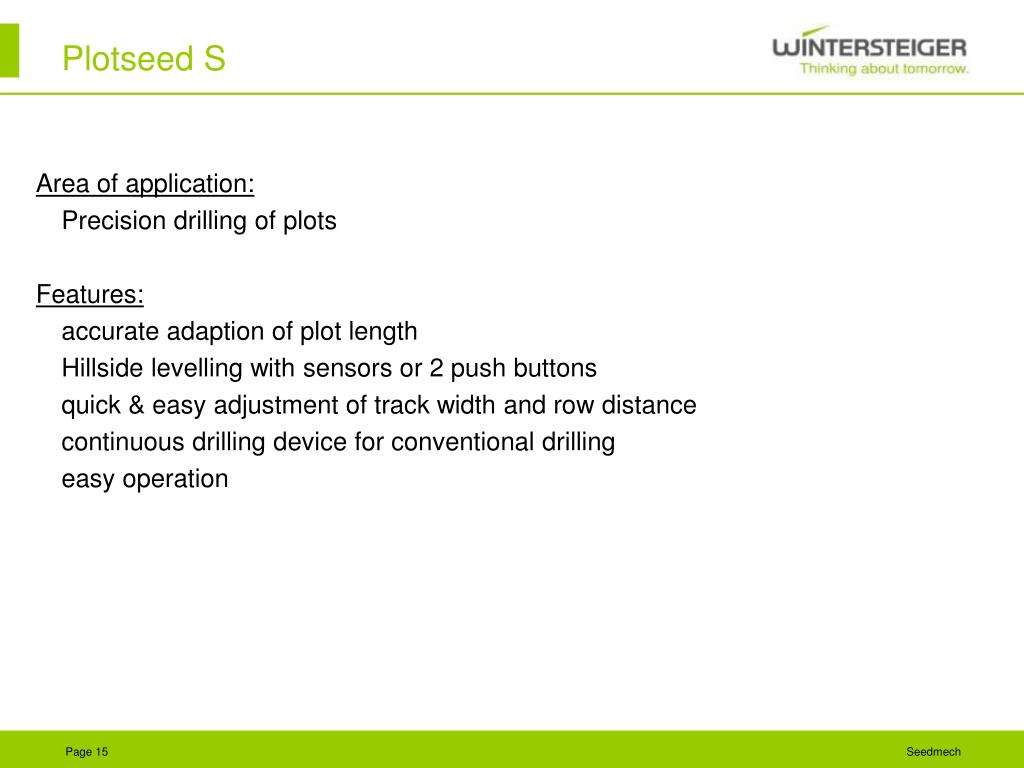

  15. Plotseed S Area of application: • Precision drilling of plots Features: • accurate adaption of plot length • Hillside levelling with sensors or 2 push buttons • quick & easy adjustment of track width and row distance • continuous drilling device for conventional drilling • easy operation Seedmech

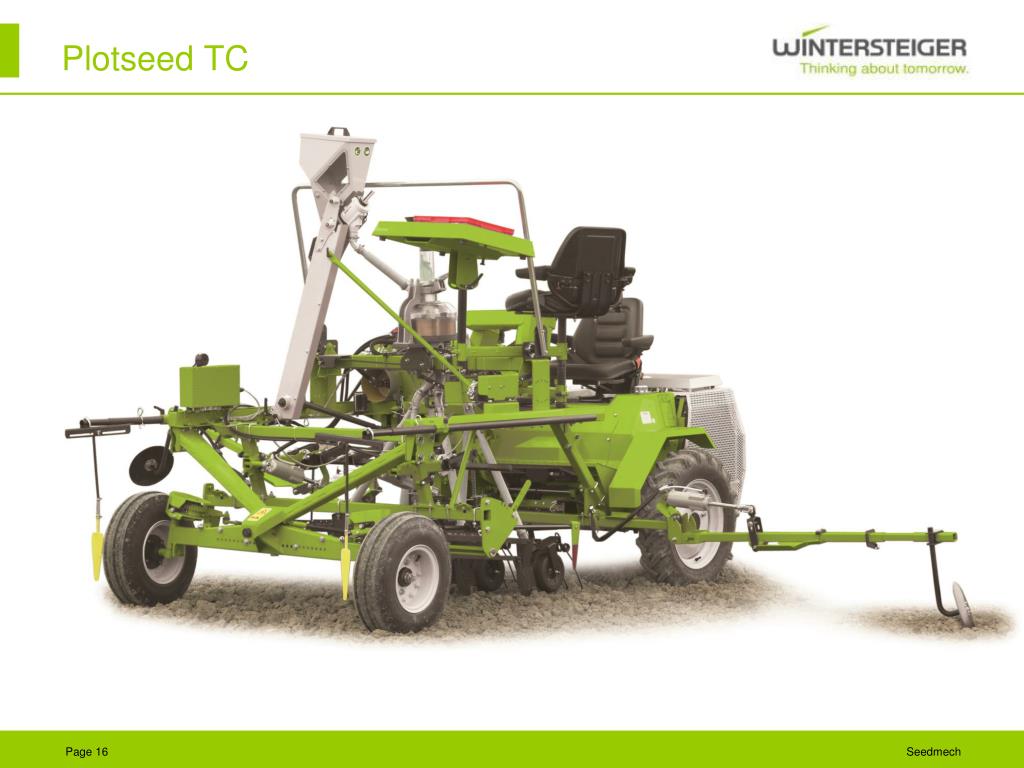

  16. Plotseed TC Seedmech

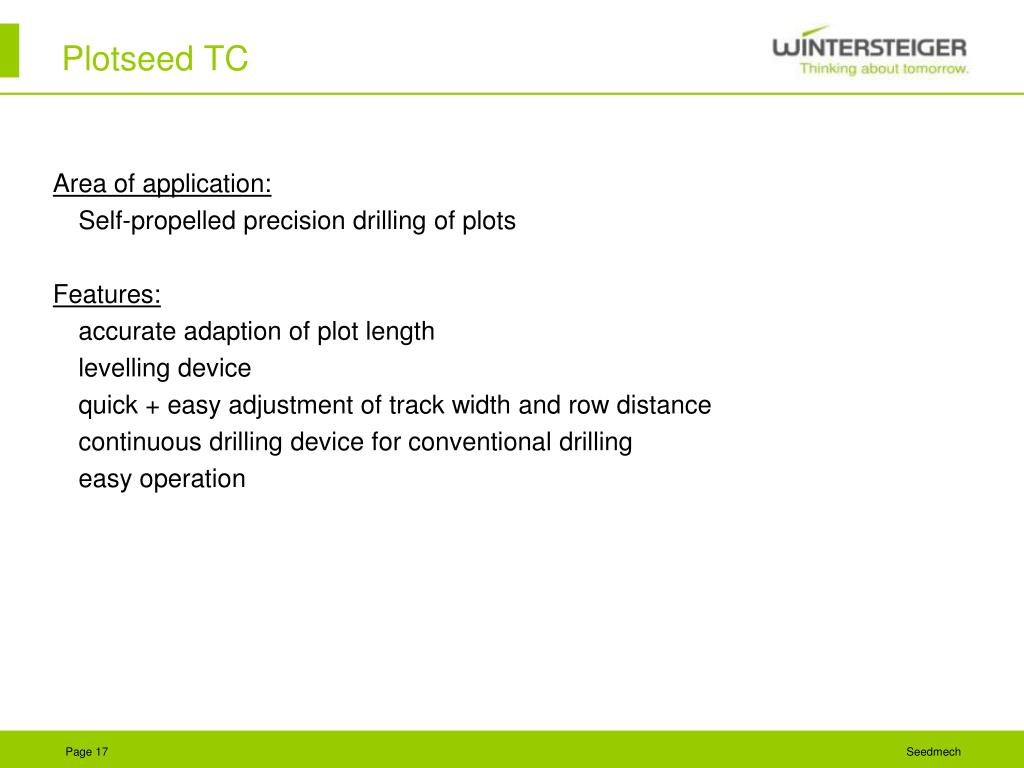

  17. Plotseed TC Area of application: • Self-propelled precision drilling of plots Features: • accurate adaption of plot length • levelling device • quick + easy adjustment of track width and row distance • continuous drilling device for conventional drilling • easy operation Seedmech

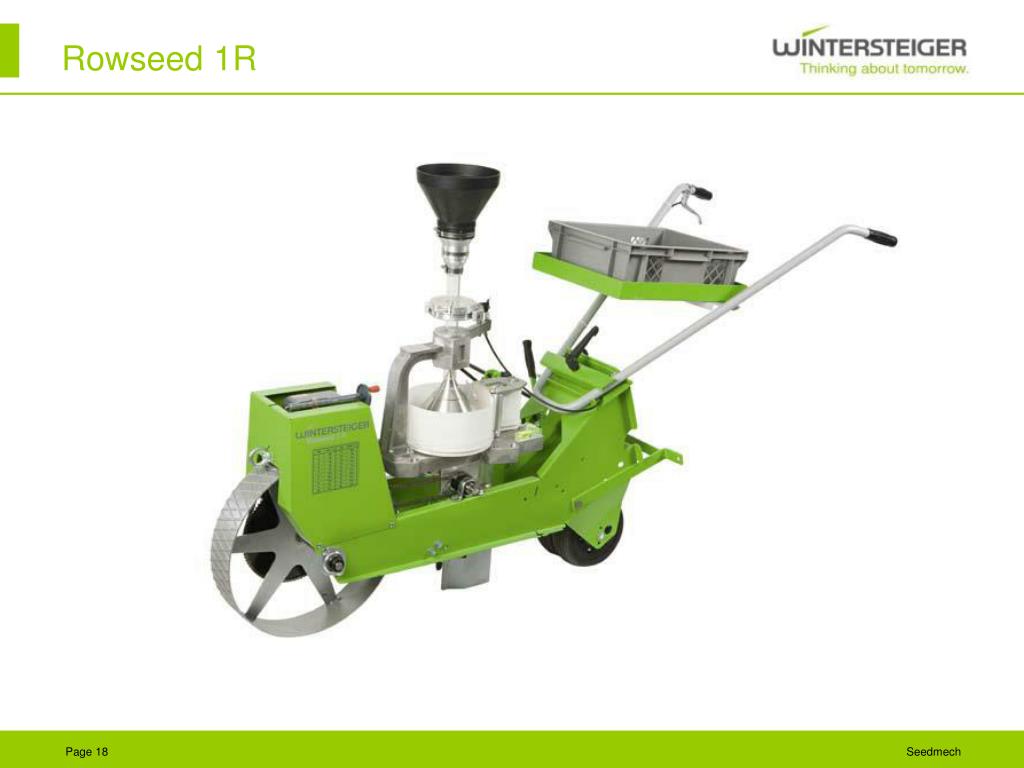

  18. Rowseed 1R Seedmech

  19. Rowseed 1R Area of application: • hand pushed 1-row seeder for all seeds Features: • adjustable plot length • different filling funnels for several quantities • levelling device Seedmech

  20. LD 180 Seedmech

  21. LD 180 Area of application: • laboratory thresher for grains, peas and fine seeds Features: • foot pedal for open the drum and empty the seed drawer • adjustable threshing drum speed and wind • chaff and stem residues are blown into a sack or onto the field Seedmech

  22. LD 350 Seedmech

  23. LD 350 Area of application: • thresher for plants, ear bundles and small plots Features: • threshing, de-awning and cleaning of cereals • no breaks, loss and mix of seeds • 18 different concaves • regulation of wind speed and threshing drum speed • bag holder • seed collecting drawer Seedmech

  24. LS 230 Seedmech

  25. LS 230 Area of application: • gentle and precise threshing of corn kernels by shelling Features: • kernels pass through a sieve into a seed drawer • spindles fall out of the machine • performance: 300 kernels per hour Seedmech

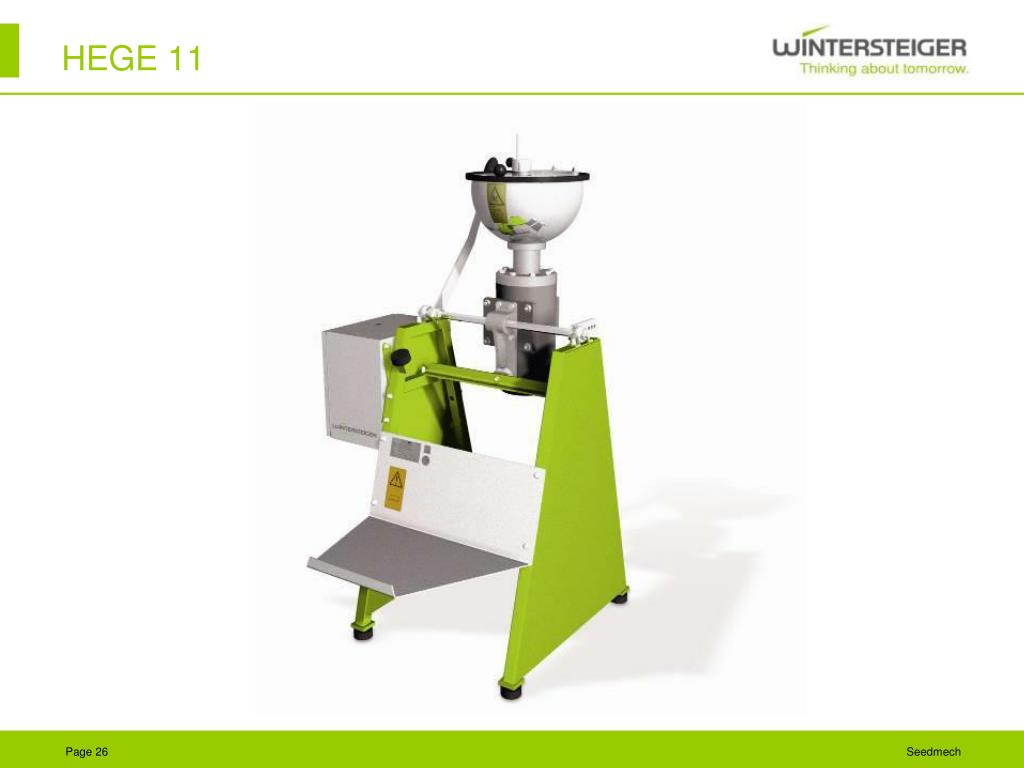

  26. HEGE 11 Seedmech

  27. HEGE 11 Area of application: • dressing of small seed quantities Features: • high dressing quality by exact dosing of dressing • optimal distribution of dressing • careful handling means preservation of germination • 3 different dressing containers - easy to change: • 1 litre volume: 20 - 100 g • 7 litre volume: 80 - 1000 g • 14,5 litre volume: 500 - 3000g Seedmech

  28. Thank you for your attention!
