Coordinate Operations

Coordinate Operations. Reminder: Coordinates start at an arbitrary beginning x B = x A + Dep AB y B = y A + Lat AB If the coordinates of A and B are known: Lat AB = y B – y A Dep AB = x B – x A L AB = (Lat AB 2 + Dep AB 2 ) ½ Az x = tan -1 (Dep AB / Lat AB ).

rio
Télécharger la présentation

Coordinate Operations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

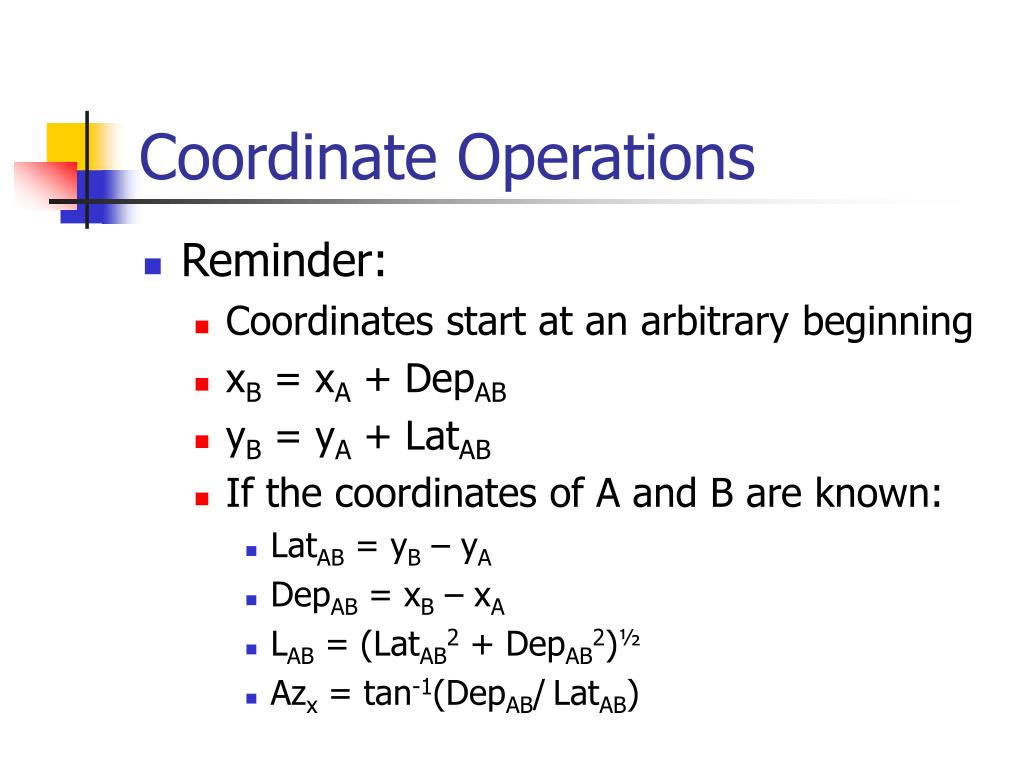

  1. Coordinate Operations • Reminder: • Coordinates start at an arbitrary beginning • xB = xA + DepAB • yB = yA + LatAB • If the coordinates of A and B are known: • LatAB = yB – yA • DepAB = xB – xA • LAB = (LatAB2 + DepAB2)½ • Azx = tan-1(DepAB/LatAB)

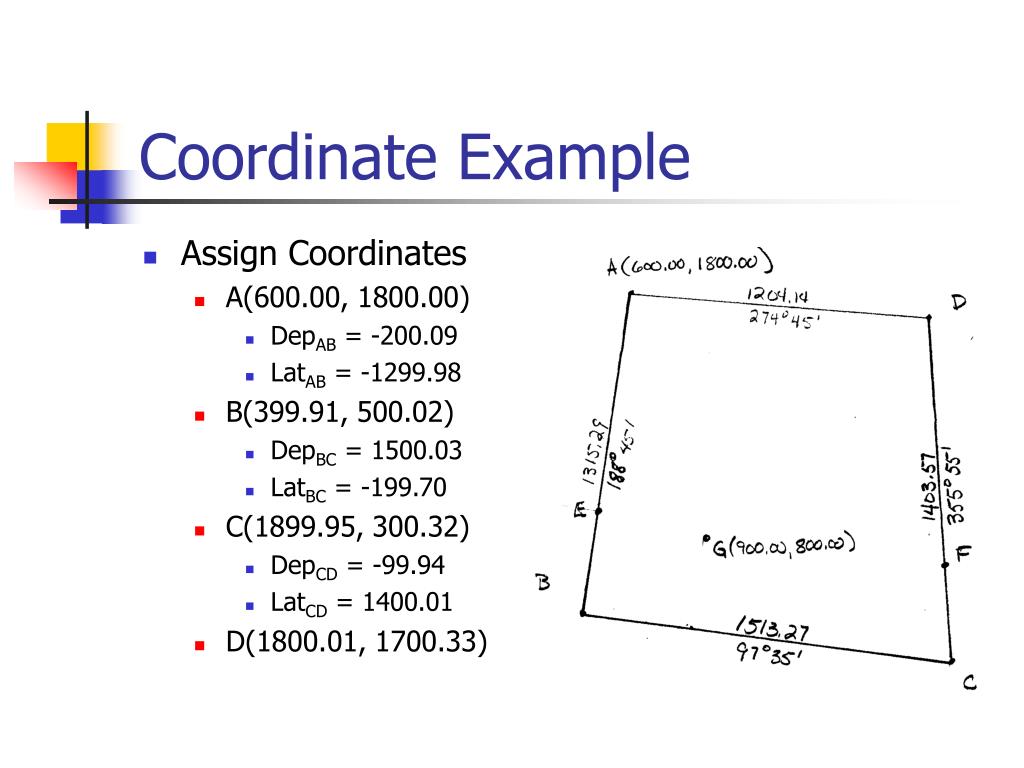

  2. Coordinate Example • Assign Coordinates • A(600.00, 1800.00) • DepAB = -200.09 • LatAB = -1299.98 • B(399.91, 500.02) • DepBC = 1500.03 • LatBC = -199.70 • C(1899.95, 300.32) • DepCD = -99.94 • LatCD = 1400.01 • D(1800.01, 1700.33)
