  1. MASMultipurpose Adapter System

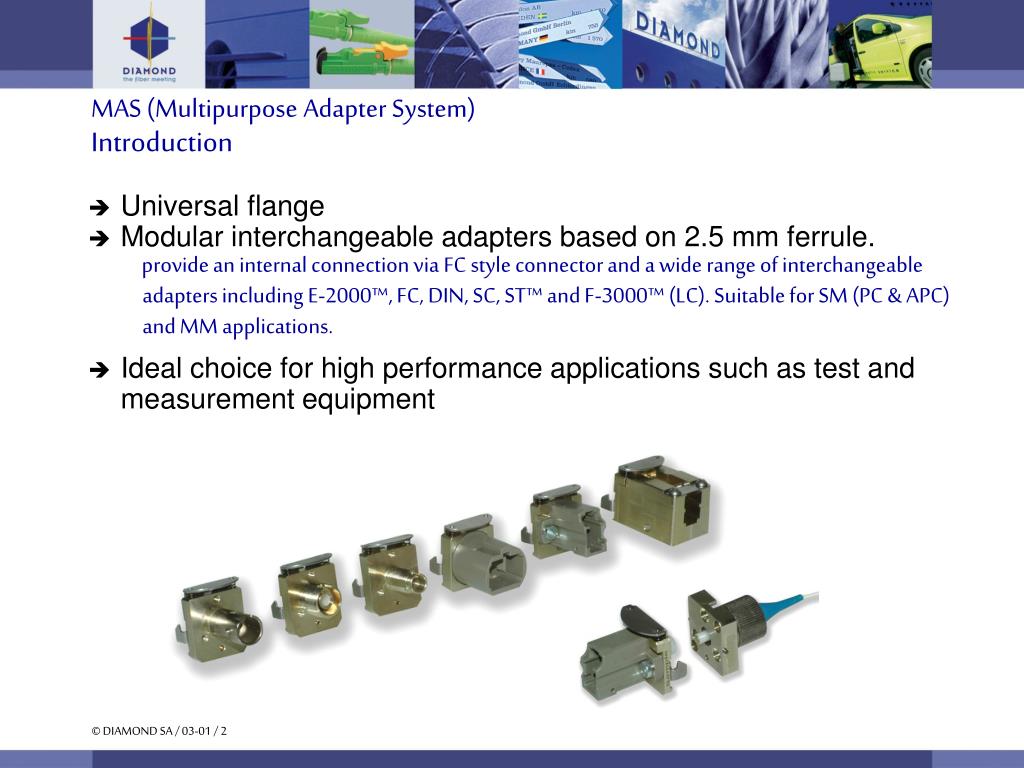

  2. MAS (Multipurpose Adapter System) Introduction • Universal flange • Modular interchangeable adapters based on 2.5 mm ferrule. • provide an internal connection via FC style connector and a wide range of interchangeable adapters including E-2000™, FC, DIN, SC, ST™ and F-3000™ (LC). Suitable for SM (PC & APC) and MM applications. • Ideal choice for high performance applications such as test and measurement equipment

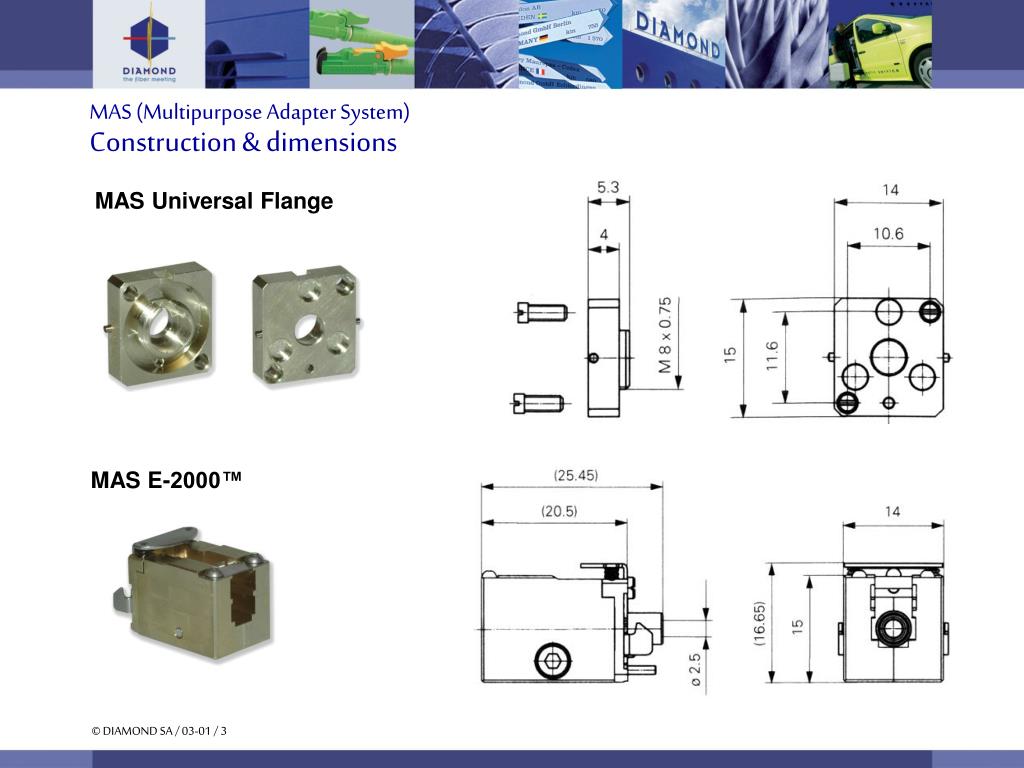

  3. MAS (Multipurpose Adapter System) Construction & dimensions MAS Universal Flange MAS E-2000™

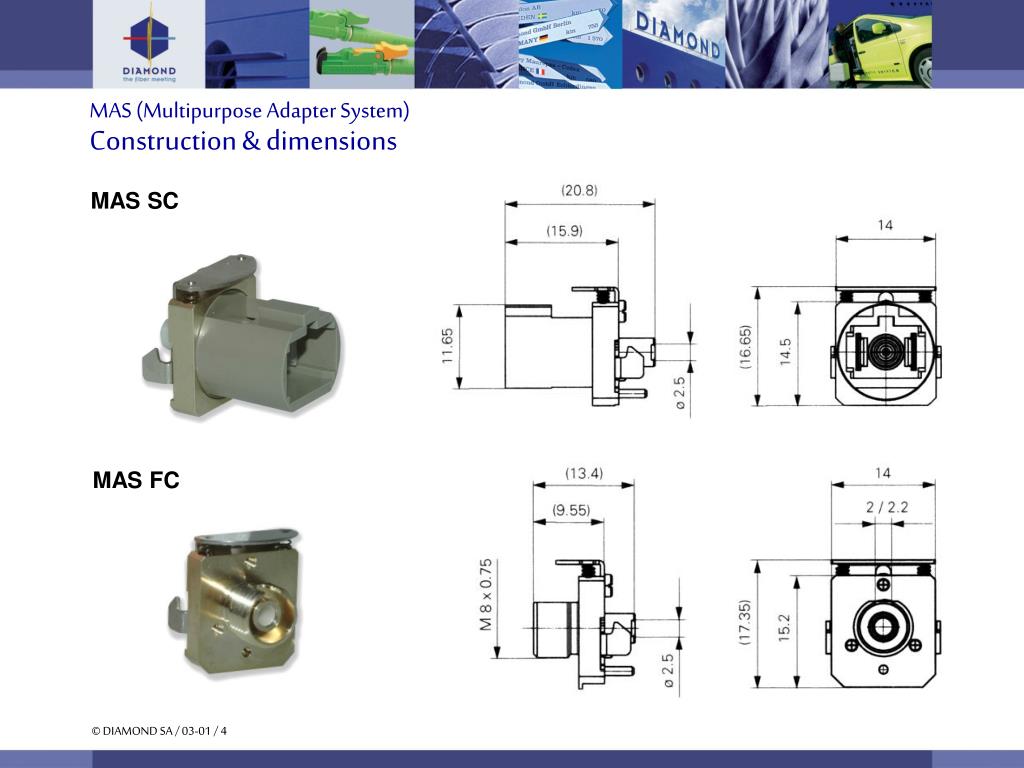

  4. MAS (Multipurpose Adapter System) Construction & dimensions MAS SC MAS FC

  5. MAS (Multipurpose Adapter System) Construction & dimensions MAS DIN MAS ST™

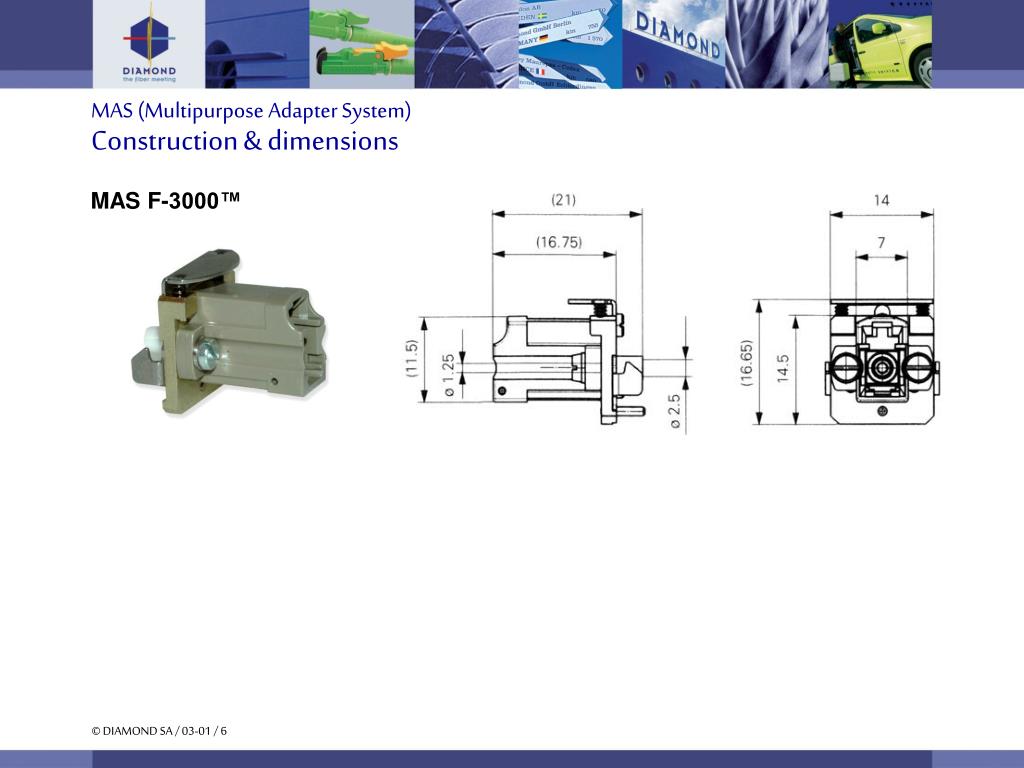

  6. MAS (Multipurpose Adapter System) Construction & dimensions MAS F-3000™

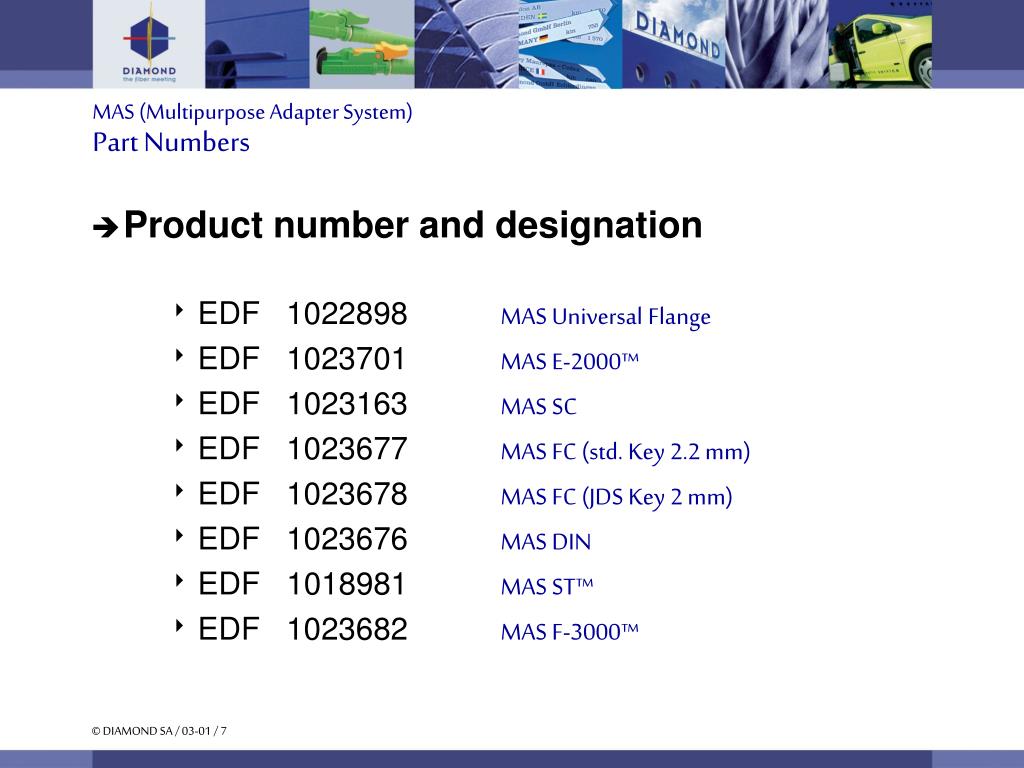

  7. MAS (Multipurpose Adapter System) Part Numbers • Product number and designation • EDF 1022898 MAS Universal Flange • EDF 1023701 MAS E-2000™ • EDF 1023163 MAS SC • EDF 1023677 MAS FC (std. Key 2.2 mm) • EDF 1023678 MAS FC (JDS Key 2 mm) • EDF 1023676 MAS DIN • EDF 1018981 MAS ST™ • EDF 1023682 MAS F-3000™

  8. MAS (Multipurpose Adapter System)Typical value MM SM 0° PC SM 8° APC Units Insertion Loss (IL)* max.0.25 dB Repeatability of (IL)** max +/- 0.15 dB Service life (adapters) 500 mating cycles Service life (connectors) 1000 mating cycles Operating temperature -25 / + 70 °C * Measured using two reference connectors ** Valid for ferrule type 2.5 mm diameter.

  9. MAS (Multipurpose Adapter System) Applications • Test and measurement equipment • Modular high optical power systems • cleanliness is the key word using connector for high power applications. Therefore installing a MAS in a rack system instead of an usual mating adapter, can avoid uncomfortable panel disassembling for access to the internal connector Projected ferrule of internal connector Disassembled panel

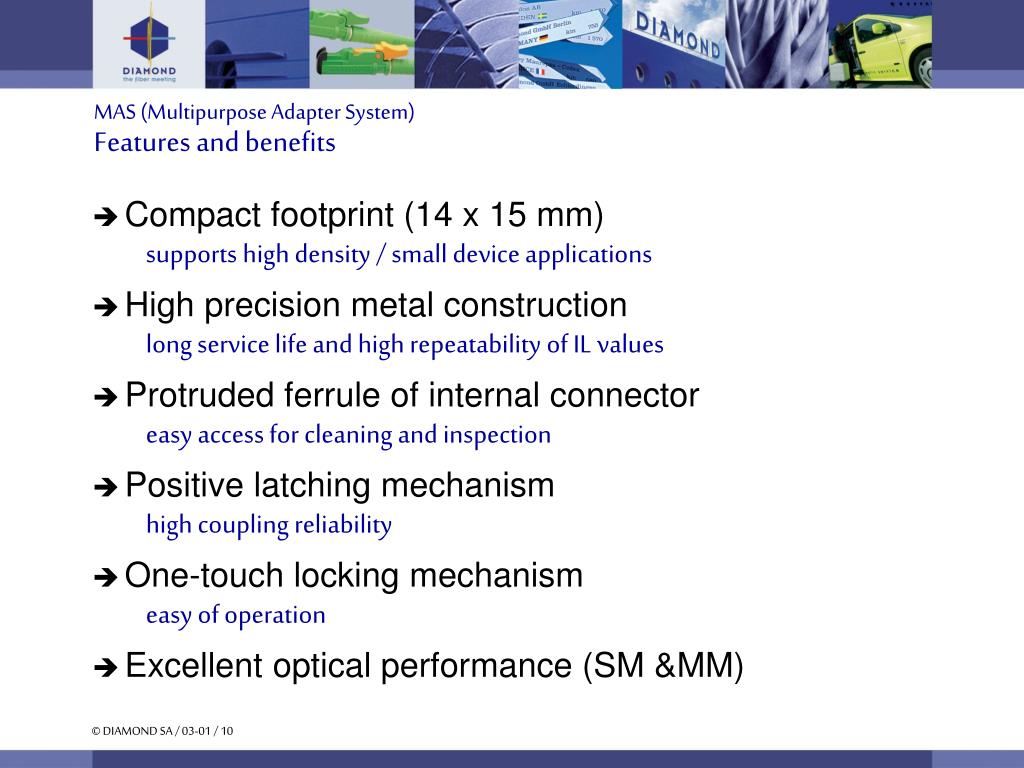

  10. MAS (Multipurpose Adapter System) Features and benefits • Compact footprint (14 x 15 mm) • supports high density / small device applications • High precision metal construction • long service life and high repeatability of IL values • Protruded ferrule of internal connector • easy access for cleaning and inspection • Positive latching mechanism • high coupling reliability • One-touch locking mechanism • easy of operation • Excellent optical performance (SM &MM)
