  1. SRP Kyrene 525/230KV 411MVA Single Phase Auto 50504 Delivery 11/19/2010

  2. Receipt inspection started

  3. The unit has been cut loose from the car and is ready for off loading

  4. Final checks on alignment of the Gantry

  5. 4 Legged Gantry Crane is assembled and we are ready to move the unit under the lifting device

  6. Rail car is moved to the off load position

  7. Final alignment under the Gantry

  8. Connecting the lifting slings

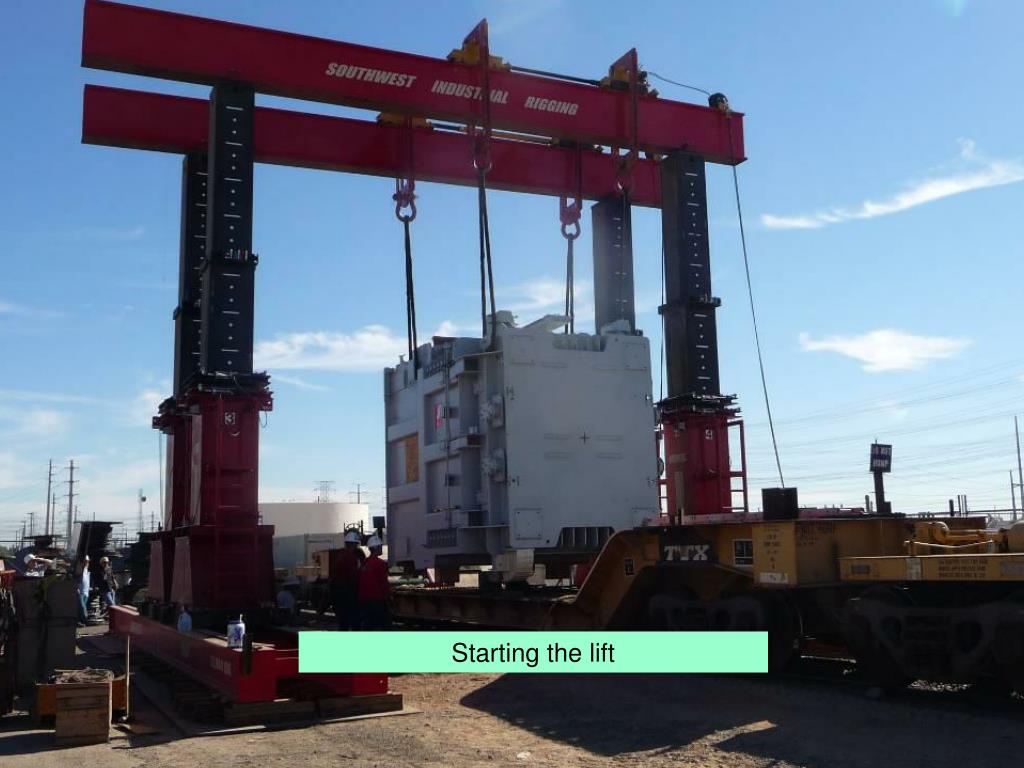

  9. Starting the lift

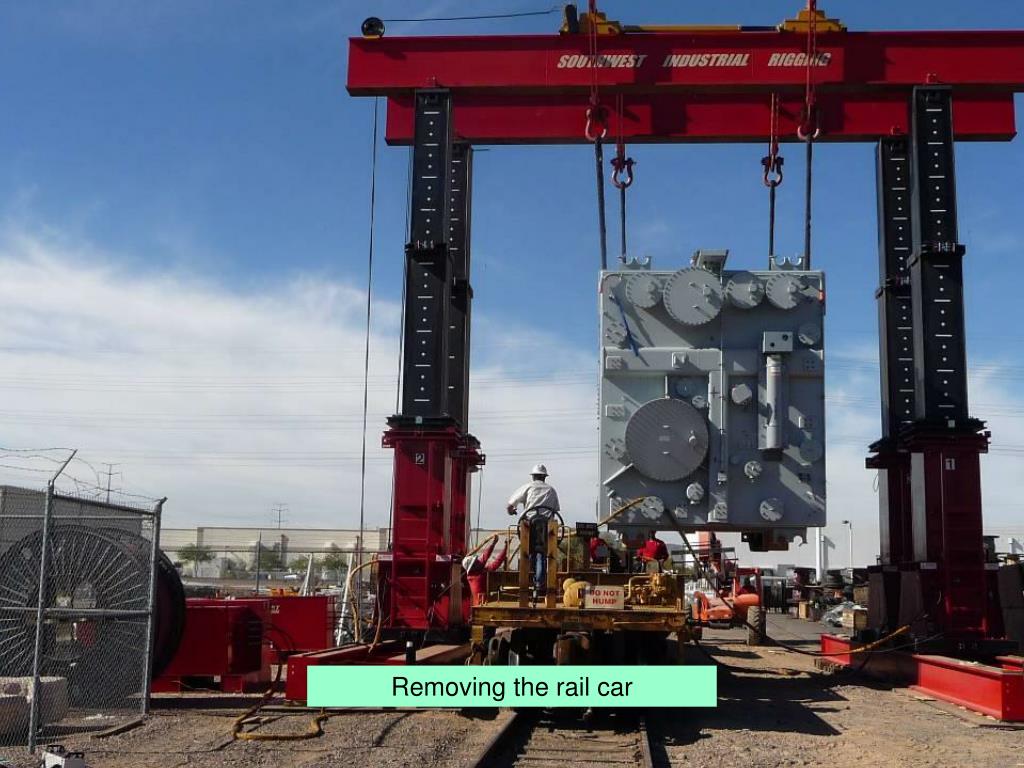

  10. Removing the rail car

  11. Setting the unit down to reposition the slings

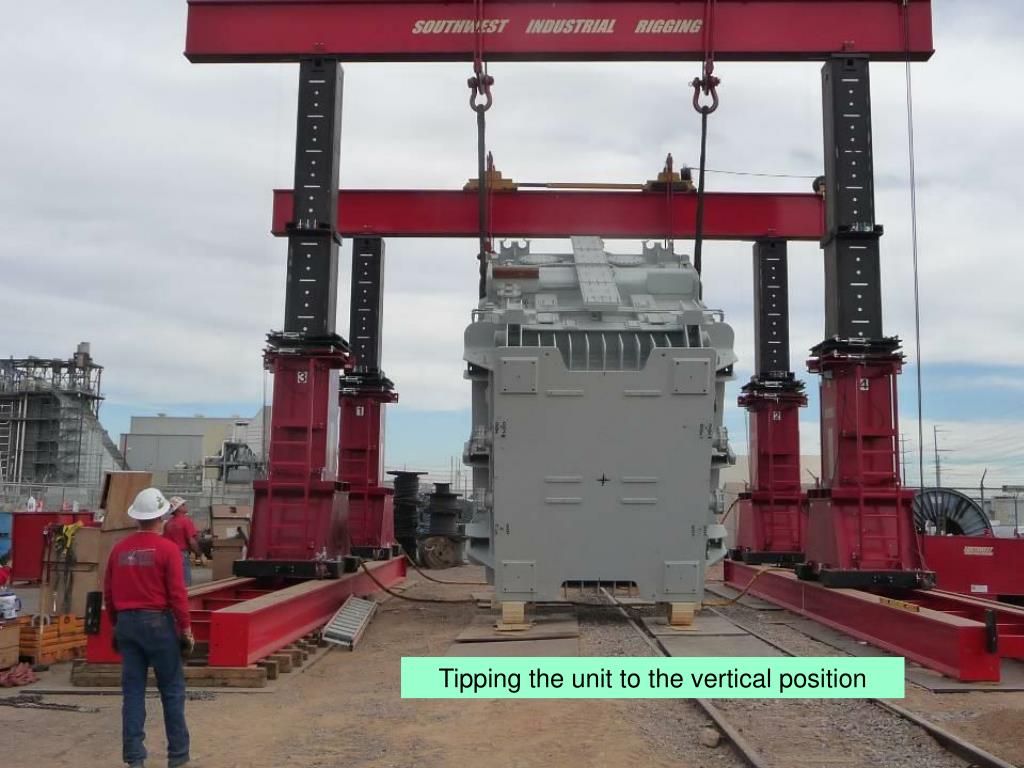

  12. Tipping the unit to the vertical position

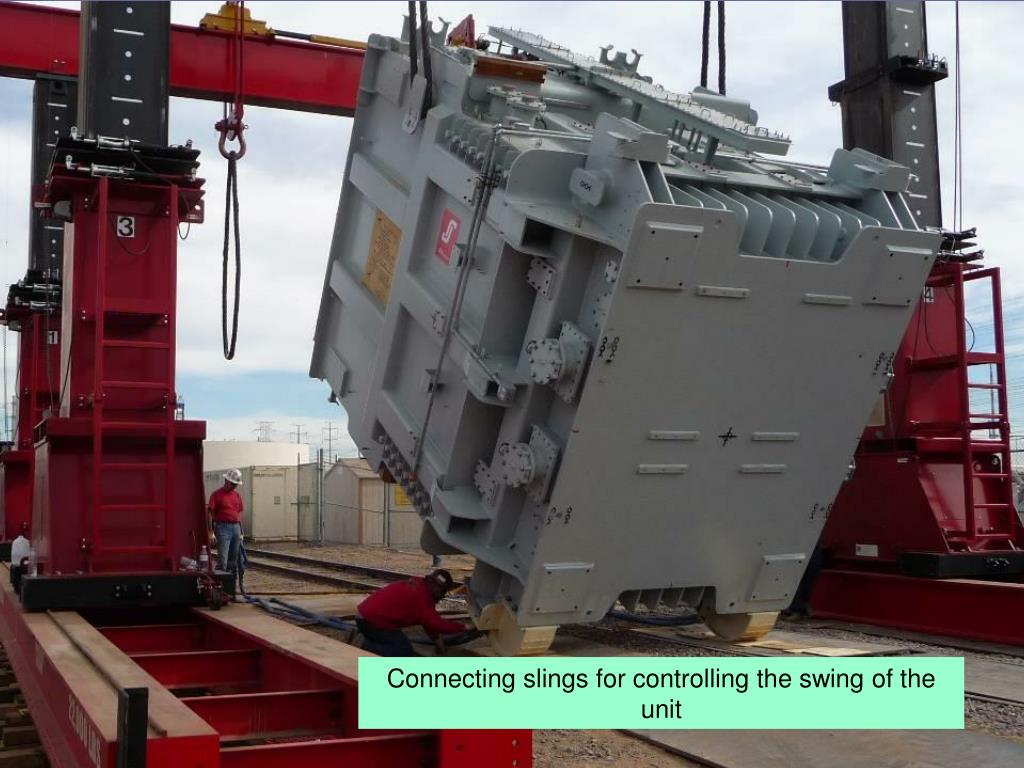

  13. Connecting slings for controlling the swing of the unit

  14. Past center and lowering the unit to the ground

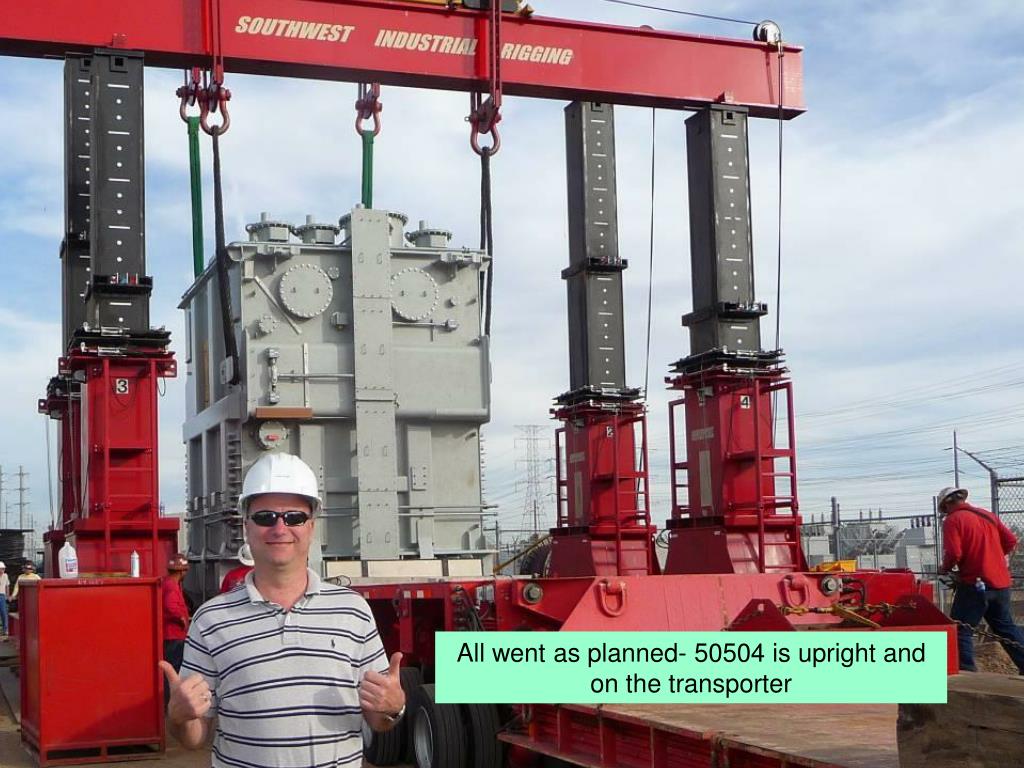

  15. All went as planned- 50504 is upright and on the transporter

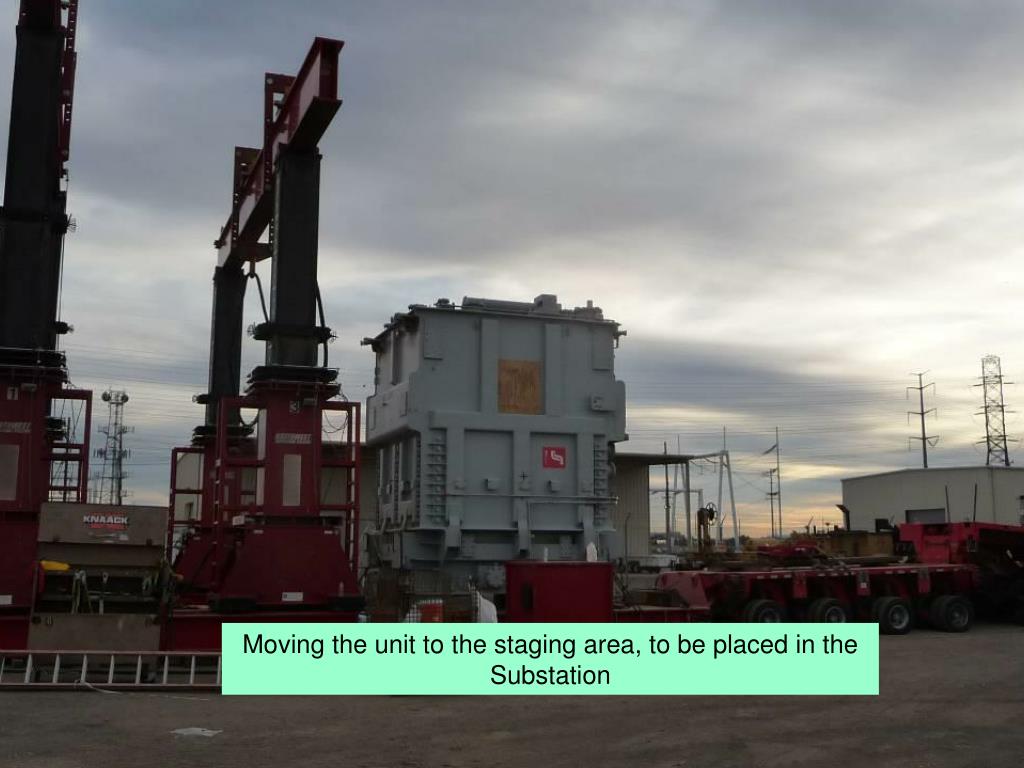

  16. Moving the unit to the staging area, to be placed in the Substation

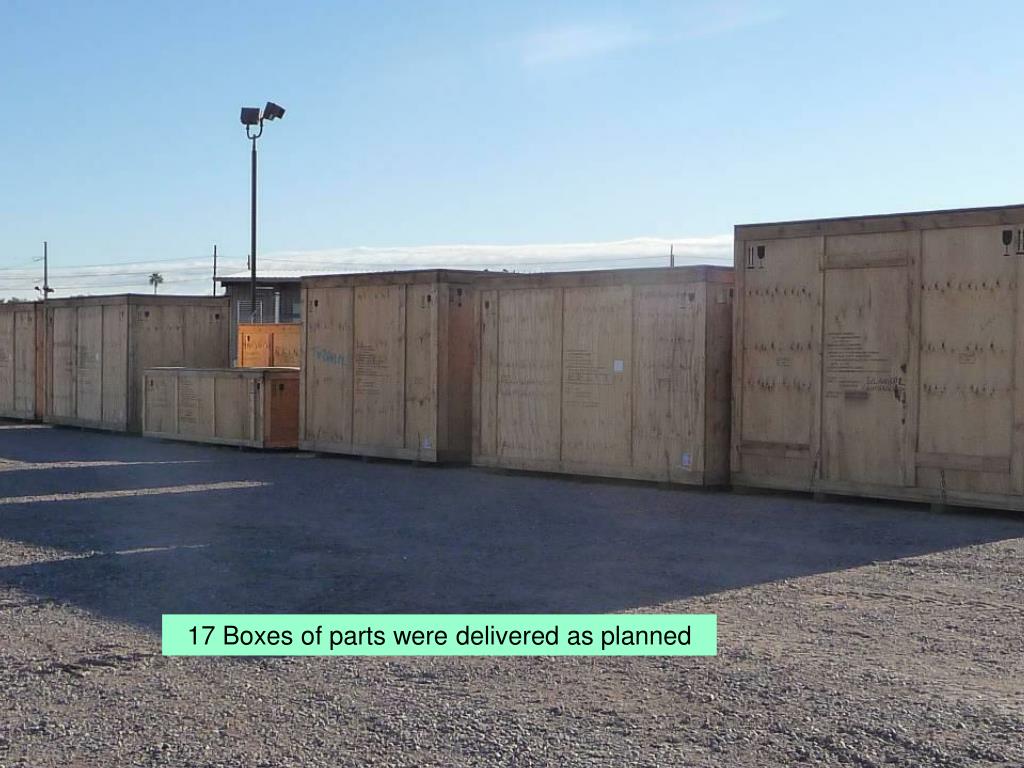

  17. 17 Boxes of parts were delivered as planned

  18. Ready to jack and slide on to the pad

  19. Final steps to lower the unit on to the pad

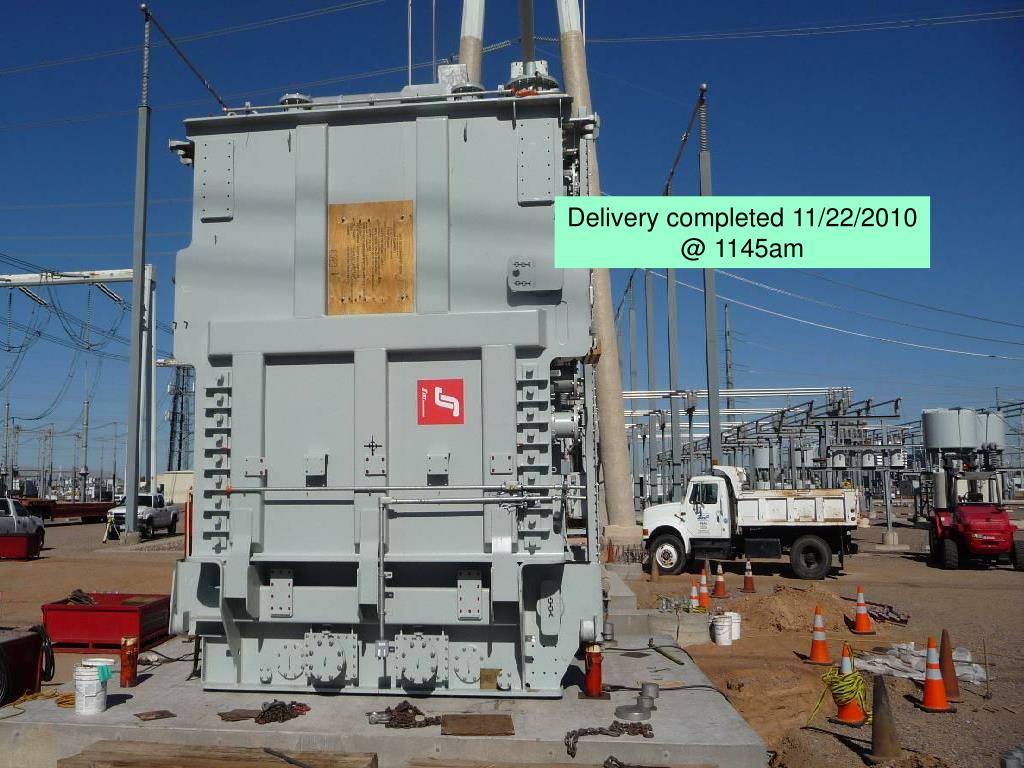

  20. Delivery completed 11/22/2010 @ 1145am
