Estimating Skin Temperature of a Bald Head Under Convective Conditions: A Calculator Tool

This calculator, developed by Jess Rose and Jeff Amelang in Winter 2009, estimates the skin temperature of a bald head under three distinct convective conditions: free convection, forced convection (windy), and forced convection with a beanie. By modeling the head as a sphere with constant temperature and assessing thermal properties through one-dimensional radial conduction, the tool aids in understanding thermal dynamics. Notable findings reveal that under convective heating, a beanie may surprisingly keep skin temperatures lower than expected, emphasizing the importance of thermal conductivity in tissue.

rob
Télécharger la présentation

Estimating Skin Temperature of a Bald Head Under Convective Conditions: A Calculator Tool

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

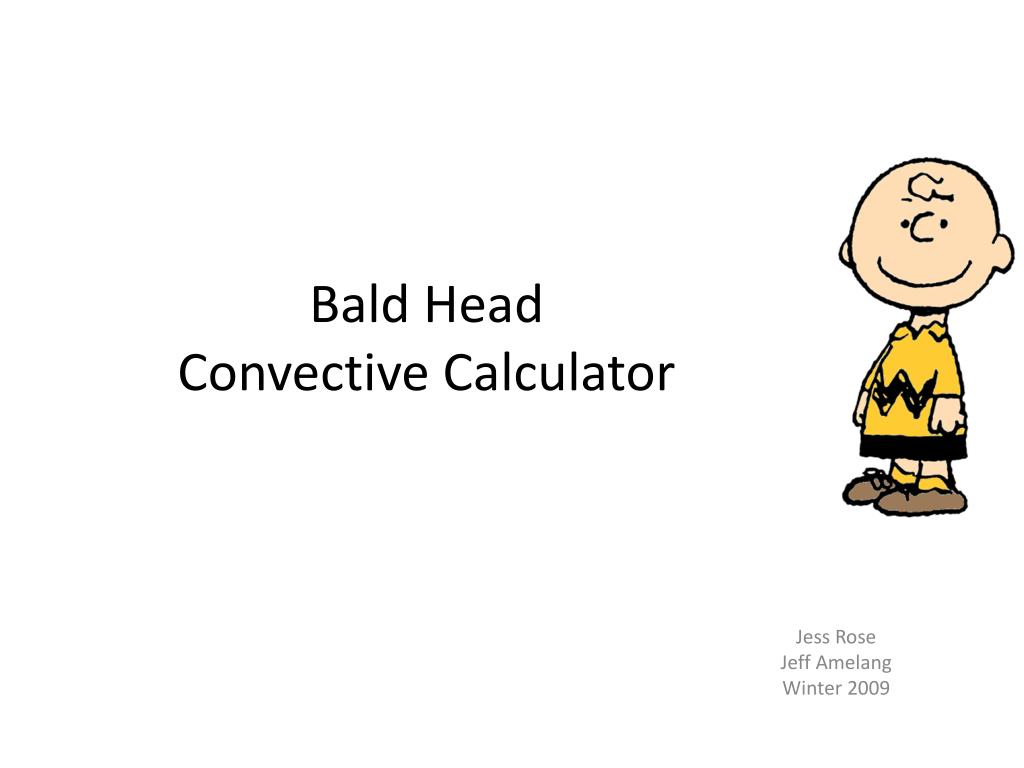

  1. Bald Head Convective Calculator Jess Rose Jeff Amelang Winter 2009

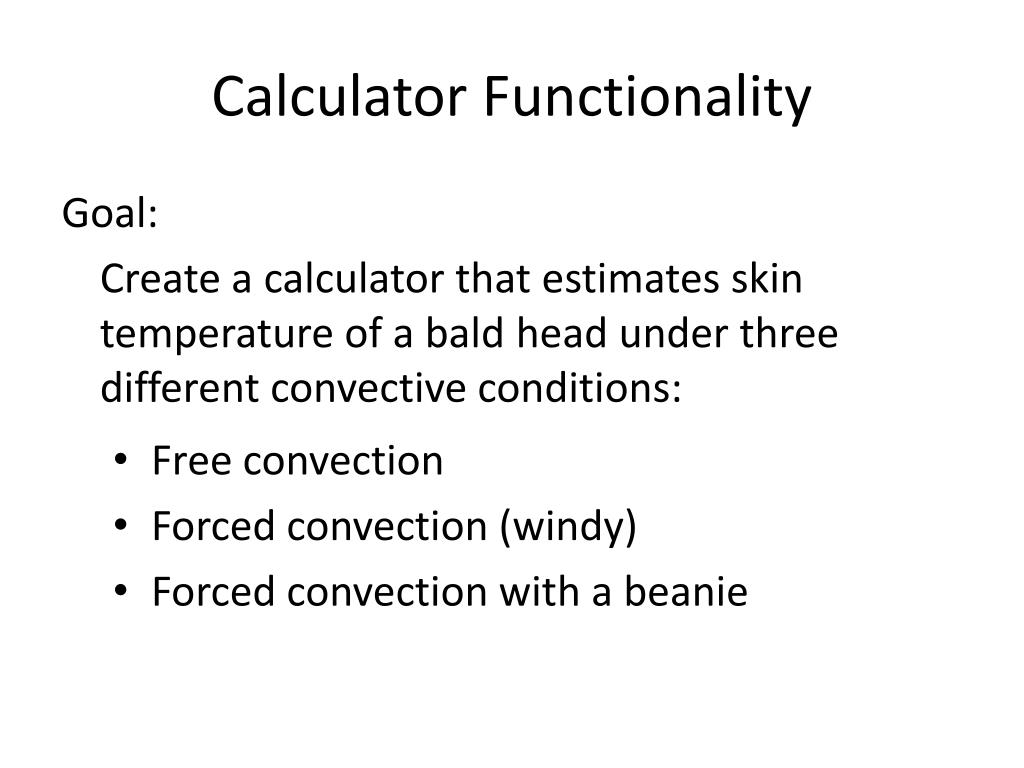

  2. Calculator Functionality Goal: Create a calculator that estimates skin temperature of a bald head under three different convective conditions: • Free convection • Forced convection (windy) • Forced convection with a beanie

  3. Basic Assumptions • Head is modeled as a sphere of constant temperature with a layer of tissue • Steady state • One Dimensional Radial Conduction • Constant Properties • Neglect Radiation • Properties calculated using the source code of the thermal properties calculator tissue T_c = 98°F T = 0.25 in T_inf D = 7 in

  4. Free Convection Convective coefficient is calculated using Free convection on a sphere Total thermal circuit Partial thermal circuit

  5. Forced Convection (windy) Convective coefficient is calculated using Forced convection on a sphere Total thermal circuit Partial thermal circuit Includes Free Convection if .1 < abs(Gr/Re^2 ) < 10

  6. Forced Convection with Beanie Convective coefficient is calculated using Forced convection on a sphere Y Total thermal circuit Partial thermal circuit Assumptions: • Two parallel thermal circuits • Infinite Contact Resistance between hemispheres

  7. The Calculator

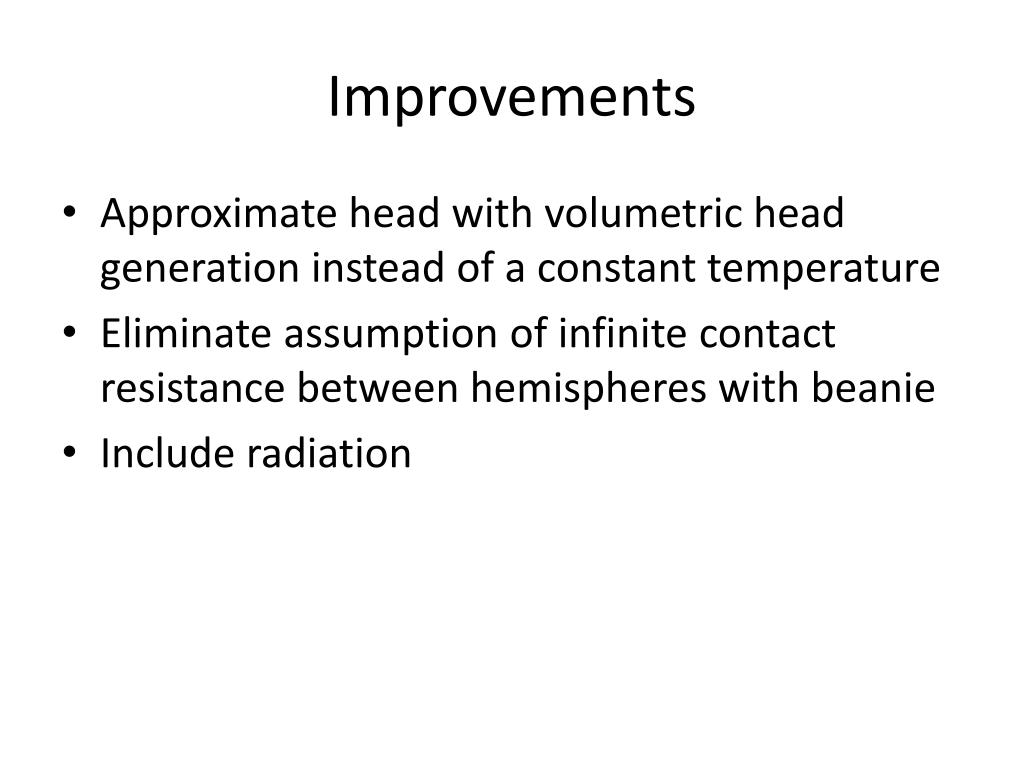

  8. Improvements • Approximate head with volumetric head generation instead of a constant temperature • Eliminate assumption of infinite contact resistance between hemispheres with beanie • Include radiation

  9. Conclusions • When there is convective heating of Charlie Brown’s head, the beanie keeps the skin surface temperature lower, oddly enough. • Changing the conductive coefficient of the tissue has a significant effect on the temperature of the skin.
