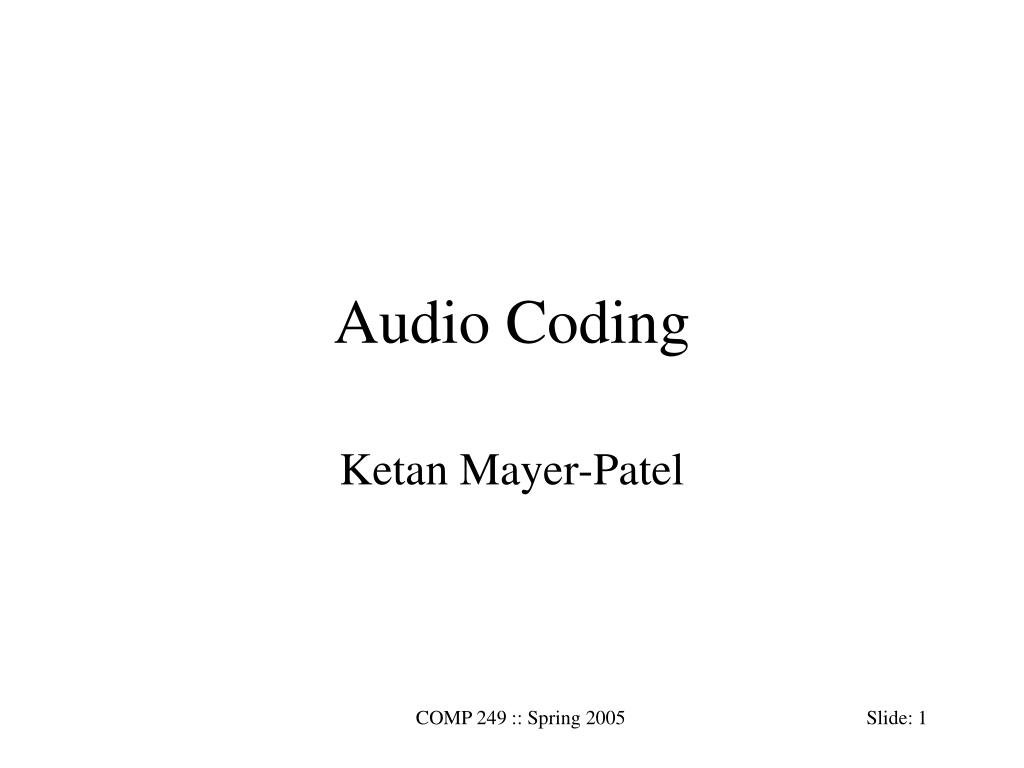

  1. Audio Coding Ketan Mayer-Patel COMP 249 :: Spring 2005 Slide: 1

  2. Overview of Today • PCM • Linear • m-LaW • DPCM • ADPCM • MPEG-1 • Vocoding Sampling Techniques Generic Coding Techniques Psychoacoustic Coding Speech Specific Techniques COMP 249 :: Spring 2005 Slide: 2

  3. Audio Signals • Analog audio is basically voltage as a continuous function of time. • Unlike video which is 3D, audio is a 1D signal. • Can capture without having to discretize the higher dimensions. • Audio sampling basically boils down to quantizing signal level to a set of values. • Digital audio parameters: • bits per sample • sampling rate • number of channels. COMP 249 :: Spring 2005 Slide: 3

  4. Sampling • Pulse Amplitude Modulation (PAM) • Each sample’s amplitude is represented by 1 analog value • Sampling theory (Nyquist) • If input signal has maximum frequency (bandwidth) f, sampling frequency must be at least 2f • With a low-pass filter to interpolate between samples, the input signal can be fully reconstructed COMP 249 :: Spring 2005 Slide: 4

  5. Quantization error (“noise”) 0100 0011 0010 0001 0000 1001 1010 1011 1100 PCM • Pulse Code Modulation (PCM) • Each sample’s amplitude represented by an integer code-word • Each bit of resolution adds 6 dB of dynamic range • Number of bits required depends on the amount of noise that is tolerated SNR – 4.77 n = 6.02 COMP 249 :: Spring 2005 Slide: 5

  6. Linear PCM • Uses evenly spaced quantization levels. • Typically 16-bits per sample. • Provides a large dynamic range. • Difficult for humans to perceive quantization noise. • Compact Disks • 16-bit linear sampling • 44.1 KHz sampling rate • 2 channels COMP 249 :: Spring 2005 Slide: 6

  7. Non-linear Sampling • If we try to use 8 bits per sample, dynamic range is reduced significantly and quantization noise can be heard. • In particular, we end up with not enough levels for the lower amplitudes. • Solution is to sample more densely in the lower amplitudes and less densely for the higher amplitudes. • Sort of like a log scale. COMP 249 :: Spring 2005 Slide: 7

  8. Non-linear Sampling Illustrated Output Input COMP 249 :: Spring 2005 Slide: 8

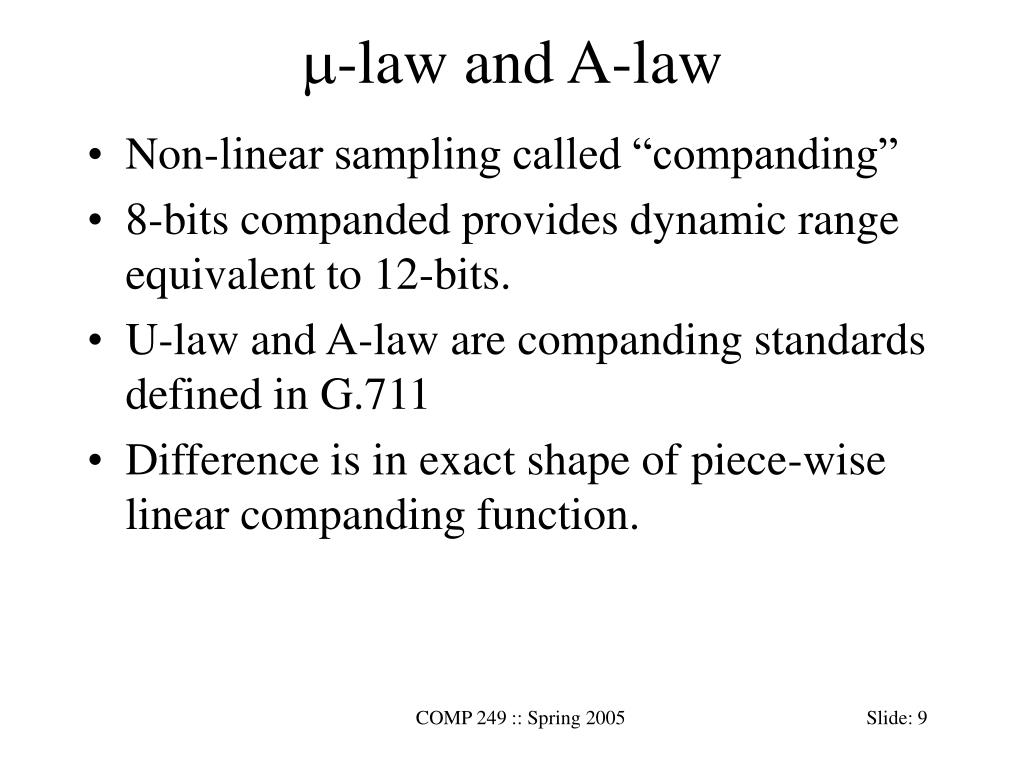

  9. -law and A-law • Non-linear sampling called “companding” • 8-bits companded provides dynamic range equivalent to 12-bits. • U-law and A-law are companding standards defined in G.711 • Difference is in exact shape of piece-wise linear companding function. COMP 249 :: Spring 2005 Slide: 9

  10. -Law companding • Provides 14-bit quality (dynamic range) with an 8-bit encoding • Used in North American & Japanese ISDN voice service • Simple to compute encoding ln(1 + |x|) f(x) = 127 x sign(x) x (x normalized to [-1, 1]) ln(1 + ) COMP 249 :: Spring 2005 Slide: 10

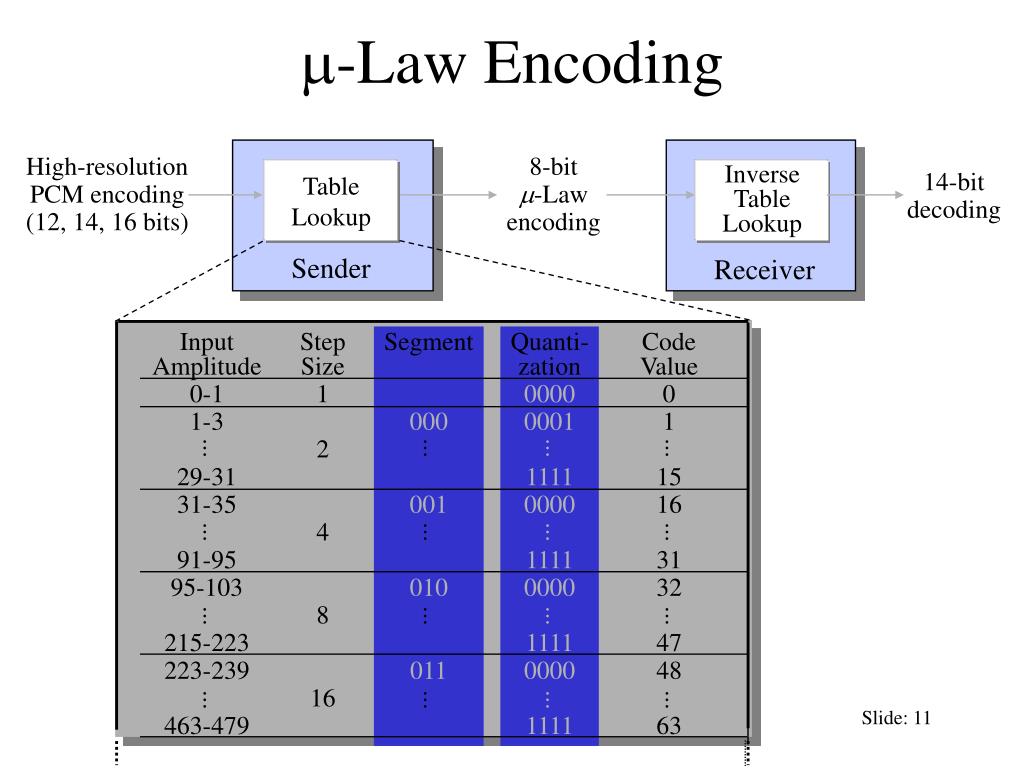

  11. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... -Law Encoding High-resolution PCM encoding (12, 14, 16 bits) 8-bit -Law encoding Table Lookup Inverse Table Lookup 14-bit decoding Sender Receiver Input Amplitude 0-1 1-3 29-31 31-35 91-95 95-103 215-223 223-239 463-479 Step Size 1 2 4 8 16 Segment 000 001 010 011 Quanti- zation 0000 0001 1111 0000 1111 0000 1111 0000 1111 Code Value 0 1 15 16 31 32 47 48 63 COMP 249 :: Spring 2005 Slide: 11

  12. ... ... ... ... ... ... ... ... -Law Decoding High-resolution PCM encoding (12, 14, 16 bits) 8-bit -Law encoding Table Lookup Inverse Table Lookup 14-bit decoding Sender Receiver m-Law Endoding 0000000 0000001 0001111 0010000 0011111 0100000 0101111 0110000 0111111 Multiplier 1 2 4 8 16 Decode Amplitude 0 2 30 33 93 99 219 231 471 COMP 249 :: Spring 2005 Slide: 12

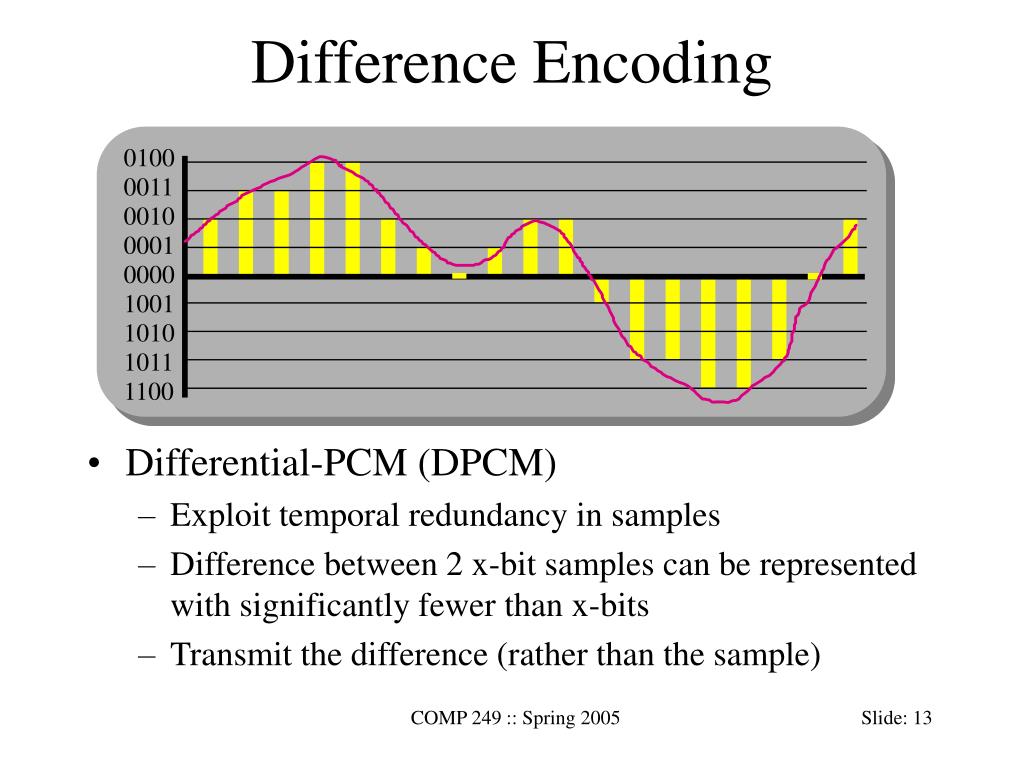

  13. Difference Encoding • Differential-PCM (DPCM) • Exploit temporal redundancy in samples • Difference between 2 x-bit samples can be represented with significantly fewer than x-bits • Transmit the difference (rather than the sample) 0100 0011 0010 0001 0000 1001 1010 1011 1100 COMP 249 :: Spring 2005 Slide: 13

  14. “Slope Overload” Slope Overload Problem • Differences in high frequency signals near the Nyquist frequency cannot be represented with a smaller number of bits! • Error introduced leads to severe distortion in the higher frequencies 0100 0011 0010 0001 0000 1001 1010 1011 1100 COMP 249 :: Spring 2005 Slide: 14

  15. Adaptive DPCM (ADPCM) • Use a larger step-size to encode differences between high-frequency samples & a smaller step-size for differences between low-frequency samples • Use previous sample values to estimate changes in the signal in the near future COMP 249 :: Spring 2005 Slide: 15

  16. ADPCM • To ensure differences are always small... • Adaptively change the step-size (quanta) • (Adaptively) attempt to predict next sample value y-bit PCM sample x-bit ADPCM “difference” + Difference Quantizer + – Step-Size Adjuster Predicted PCM Sample n+1 + Predictor Dequantizer + + COMP 249 :: Spring 2005 Slide: 16

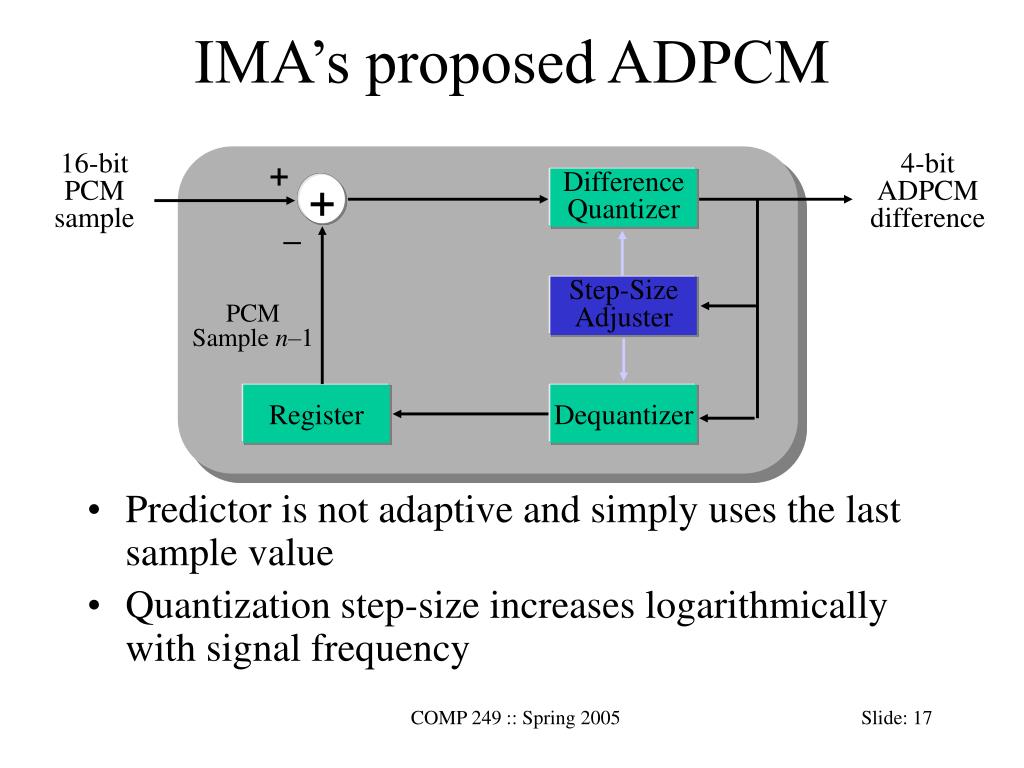

  17. IMA’s proposed ADPCM • Predictor is not adaptive and simply uses the last sample value • Quantization step-size increases logarithmically with signal frequency 16-bit PCM sample 4-bit ADPCM difference + Difference Quantizer + – Step-Size Adjuster PCM Sample n–1 Register Dequantizer COMP 249 :: Spring 2005 Slide: 17

  18. IMA Difference Quantization + 16-bit PCM sample 4-bit ADPCM difference (in step-size units) Difference Quantizer + – PCM sample n–1 Step-Size Adjuster + Register Dequantizer + + Quantizer Output Step-Size Multiples Quantization difference < step_size 000 0.0 step_size < difference < step_size 001 0.25 step_size < difference < step_size 010 0.50 step_size < difference < step_size 011 0.75 step_size < difference < step_size 100 1.0 step_size < difference < step_size 101 1.25 step_size < difference < step_size 110 1.5 step_size < difference 111 1.75 1 4 1 4 1 2 1 2 3 4 3 4 5 4 5 4 3 2 3 2 7 4 COMP 249 :: Spring 2005 Slide: 18 7 4

  19. IMA Step-size Table Step Size Step Size Step Size Step Size Step Size Index Index Index Index Index 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 7 8 9 10 11 12 13 14 16 17 19 21 23 25 28 31 34 37 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 41 45 50 55 60 66 73 80 88 97 107 118 130 143 157 173 190 209 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 230 253 279 307 337 371 408 449 494 544 598 658 724 796 876 963 1060 1166 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 1282 1411 1552 1707 1878 2066 2272 2499 2749 3024 3327 3660 4026 4428 4871 5358 5894 6484 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 7132 7845 8630 9493 10442 11487 12635 13899 15289 16818 18500 20350 22358 24623 27086 29794 32767 COMP 249 :: Spring 2005 Slide: 19

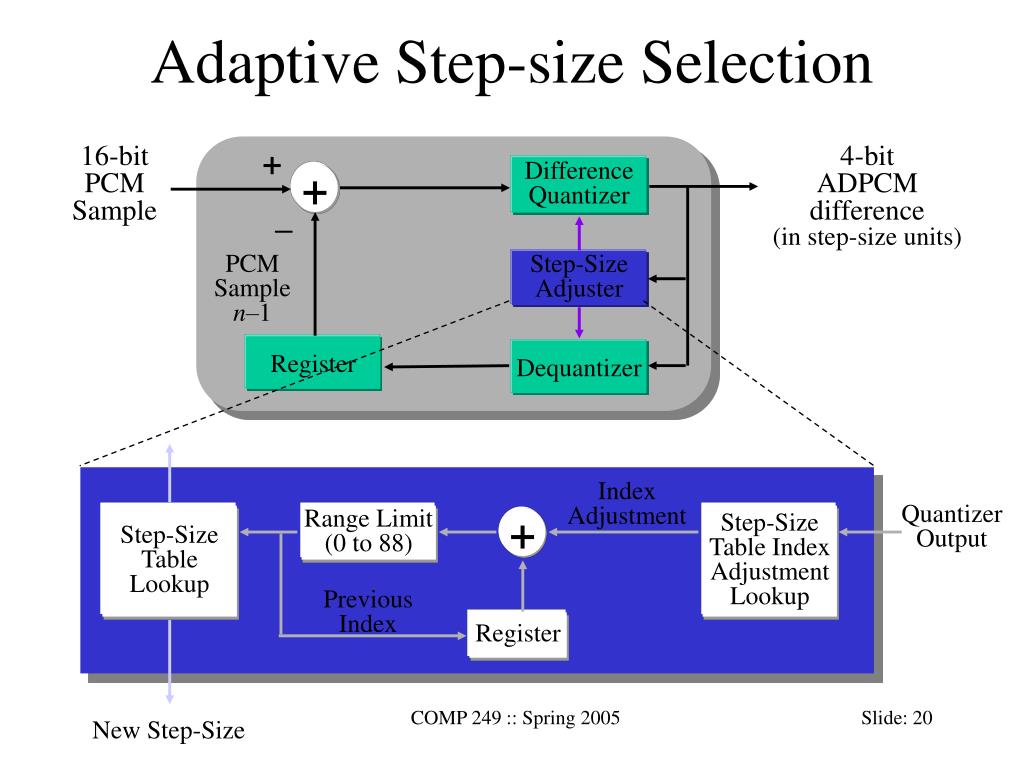

  20. Adaptive Step-size Selection + 16-bit PCM Sample 4-bit ADPCM difference (in step-size units) Difference Quantizer + – PCM Sample n–1 Step-Size Adjuster Register Dequantizer Index Adjustment Quantizer Output Step-Size Table Lookup Range Limit (0 to 88) Step-Size Table Index Adjustment Lookup + Previous Index Register COMP 249 :: Spring 2005 Slide: 20 New Step-Size

  21. Quantizer Output Step-Size Table Index Adjustment Step-Size Adjustment 000 001 010 011 100 101 110 111 X 0.91 X 0.91 X 0.91 X 0.91 X 1.21 X 1.46 X 1.77 X 2.14 Adaptive Step-size Selection Step-Size Table Lookup Range Limit (0 to 88) Step-Size Table Index Adjustment Lookup Difference Quantizer + Index Adjustment Previous Index Register New Step-Size Quantization difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference -1 -1 -1 -1 1 4 1 4 1 2 1 2 3 4 3 4 2 4 6 8 5 4 5 4 3 2 3 2 7 4 COMP 249 :: Spring 2005 Slide: 21 7 4

  22. IMA ADPCM Example Reconstituted difference Step-Size table index Step-size multiplier Index Adjustment Quantizer output Predicted value Difference Step Size Input X Step Q Adj I M  Decode 150 7 0 150 155 5 7 010 -1 0 0.5 3.5 154 167 13 7 111 8 8 1.75 12 166 170 4 16 001 -1 7 0.25 4 170 250 80 14 111 8 15 1.75 24.5 195 250 55 31 111 8 23 1.75 54 249 250 1 66 000 -1 22 0.0 0 249 250 1 60 000 -1 21 0.0 0 249 200 -49 55 011 -1 20 0.75 -41 208 200 200 200 200 200 200 + Difference Quantizer + Xn – Step-Size Adjuster Xn–1 + Register Dequantizer + + COMP 249 :: Spring 2005 Slide: 22

  23. 1 4 1 2 1 4 1 2 3 4 3 4 5 4 5 4 3 2 3 2 7 4 7 4 Networking Considerations The IMA codec is reasonably robust to errors An interval with a low-level signal will correct any step-size error + Dequantizer + PCM sample n–1 + Step-Size Adjuster Register Quantizer Output Step-Size Table Index Adjustment Quantization difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference < step_size step_size < difference 000 -1 001 -1 010 -1 011 -1 100 2 101 4 110 6 111 8 COMP 249 :: Spring 2005 Slide: 23

  24. Psychoacoustic Properties • Human perception of sound is a function of frequency and signal strength • (MPEG exploits this relationship.) 100 80 60 40 20 0 Audible Sound Level (dB) Inaudible Frequency (kHz) 0.02 0.05 0.1 0.2 0.5 1 2 5 10 20 COMP 249 :: Spring 2005 Slide: 24

  25. Auditory Masking • The presence of tones at certain frequencies makes us unable to perceive tones at other “nearby” frequencies • Humans cannot distinguish between tones within 100 Hz at low frequencies and 4 kHz at high frequencies 100 80 60 40 20 0 Audible Sound Level (dB) Masking tone Masked tone Inaudible Frequency (kHz) 0.02 0.05 0.1 0.2 0.5 1 2 5 10 20 COMP 249 :: Spring 2005 Slide: 25

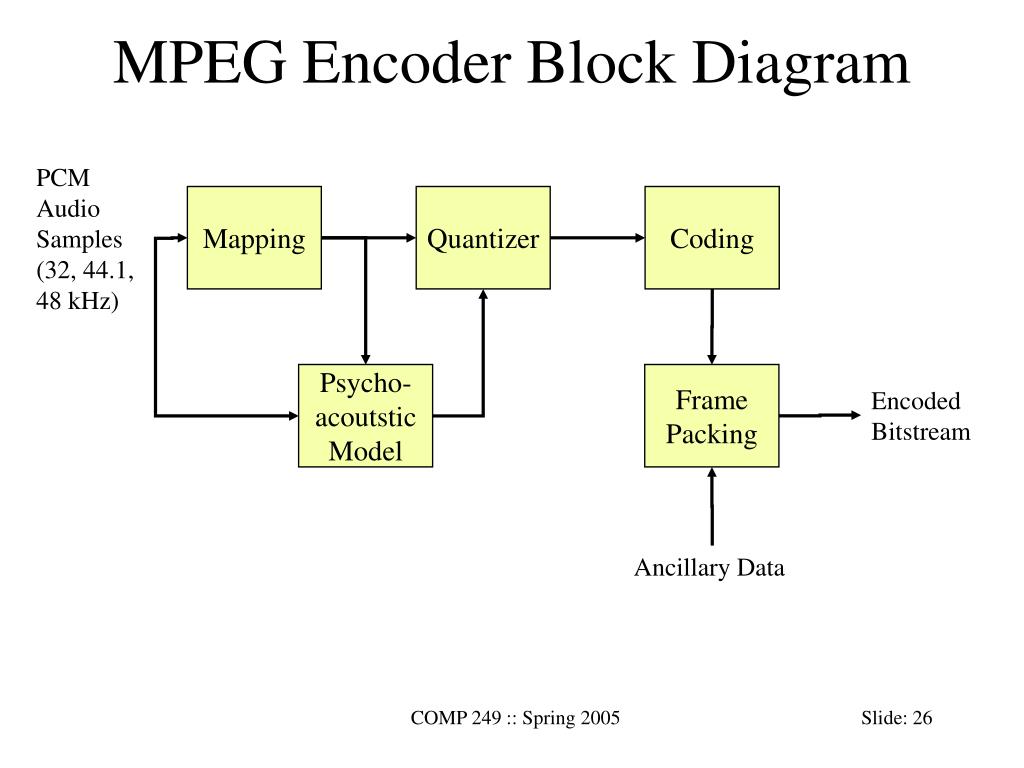

  26. MPEG Encoder Block Diagram PCM Audio Samples (32, 44.1, 48 kHz) Mapping Quantizer Coding Psycho- acoutstic Model Frame Packing Encoded Bitstream Ancillary Data COMP 249 :: Spring 2005 Slide: 26

  27. Subband Filter • Transforms signal from time domain to frequency domain. • 32 PCM samples yields 32 subband samples. • Each subband corresponds to a freq. band evenly spaced from 0 to Nyquist freq. • Filter actually works on a window of 512 samples that is shifted over 32 samples at a time. • Subband coefficients are analyzed with psychoacoustic model, quantized, and coded. COMP 249 :: Spring 2005 Slide: 27

  28. Layer 1 • 384 samples per frame. • Iterative bit allocation process: • For each subband, determine SMR. • Increase number of quantization bits for subband with largest SMR. • Iterate until all bits used. • Up to 448 kb/s • 19ms theoretical minimum delay COMP 249 :: Spring 2005 Slide: 28

  29. Layer 2 • 1152 samples per frame. • Iterative bit allocation. • Analysis/synthesis a bit more complicated. • More efficient • Up to 384 kb/s • 34ms theoretical minimum delay COMP 249 :: Spring 2005 Slide: 29

  30. Layer 3 • 1152 samples • Up to 320 kb/s • Each subband further analyzed using MDCT to create 576 frequency lines. • Lots of bit allocation options for quantizing frequency coefficients. • Quantized coefficients Huffman coded. • Encoded frame sizes are variable. • 59 ms theoretical minimum delay. COMP 249 :: Spring 2005 Slide: 30

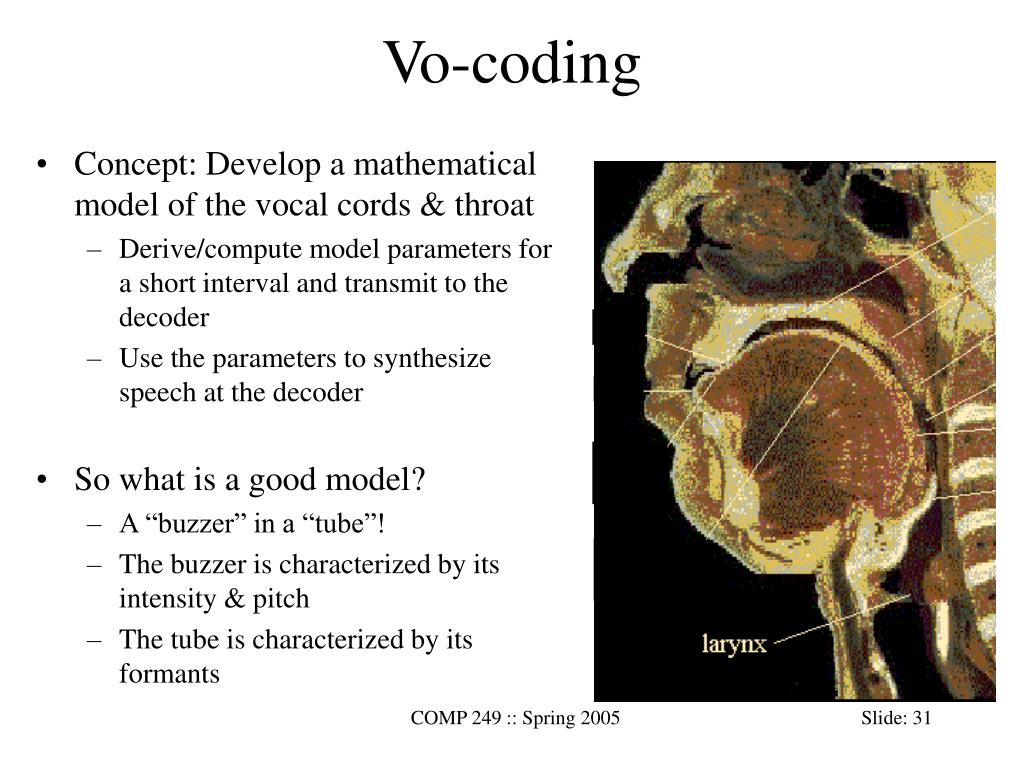

  31. Vo-coding • Concept: Develop a mathematical model of the vocal cords & throat • Derive/compute model parameters for a short interval and transmit to the decoder • Use the parameters to synthesize speech at the decoder • So what is a good model? • A “buzzer” in a “tube”! • The buzzer is characterized by its intensity & pitch • The tube is characterized by its formants COMP 249 :: Spring 2005 Slide: 31

  32. Vocoding - Basic Concepts • Formant • Resonance frequencies of the vocal tract. • Shapes and filters the sound of vocal cords. 75 60 45 30 15 0 Amplitude Frequency (kHz) COMP 249 :: Spring 2005 Slide: 32

  33. p  k=1 “Buzzer” and “Tube” Model • Vocoding principles: • voice = formants + buzz pitch & intensity • voice – estimated formants = “residue” “yadda yadda yadda” • Linear Predictive Coding (LPC) • A sample is represented as a linear combination of p previous samples y(n) =aky(n – k) +Gxx(n) COMP 249 :: Spring 2005 Slide: 33

  34. LPC • Decoder artificially generates speech via formant synthesis • A mathematical simulation of the vocal tract as a series of bandpass filters • Encoder codes & transmit filter coefficients, pitch period, gain factor, & nature of excitation • Standards: • Regular Pulse Excited Linear Predictive Coder (RPE-LPC) • Digital cellular standard GSM 6.1 (13 kbps) • Code Excited Linear Predictive Coder (CELP) • US Federal Standard 1016 (4.8 kbps) • Linear Predictive Coder (LPC) • US Federal Standard 1015 (2.4 kbps) COMP 249 :: Spring 2005 Slide: 34

  35. Networking Concerns • Audio bandwidth is actually quite small. • But human sensitivity to loss and noise is quite high. • Netwoking concerns: • Loss concealment • Jitter control • Especially for telephony applications. COMP 249 :: Spring 2005 Slide: 35
