Testing/Selection of Materials for Manned Payloads

Testing/Selection of Materials for Manned Payloads. M.v. Eesbeek 1 , C. Semprimoschnig 1 , J. Meehan 2 1 Materials Physics and Chemistry Section 2 ISS Payloads Product Assurance and Safety Office

Télécharger la présentation

Testing/Selection of Materials for Manned Payloads

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Testing/Selection of Materials for Manned Payloads M.v. Eesbeek 1, C. Semprimoschnig 1, J. Meehan 2 1 Materials Physics and Chemistry Section 2 ISS Payloads Product Assurance and Safety Office ESTEC, PO BOX 299, Keplerlaan 1, NL - 2200 AG Noordwijk, The Netherlands

  2. THE REQUIREMENTS • 1. Flammability Materials and hardware to be launched by the STS and other manned spacecraft shall be evaluated for flammability in the worst case oxygen concentration. This includes the s/c and all the payload. Flammability testing is described in ECSS-Q-70-21A. • 2. Off-gassing All products considered for use in the crew compartment of manned spacecraft shall be evaluated for off-gassing. Samples of materials and assembled hardware shall be tested according to ECSS-Q-70-29A.

  3. Flammability configuration assessment (1) • Identify potentially flammable materials, their quantities, thickness, exposed surface, exposure environment (% O2 ). • Identify propagation paths for exposed materials (including housing). • If flammable materials are housed (container, rack etc.) evaluate the capability to contain an internal fire • If unacceptable through the configuration assessment, then • Consider use of fire barrier to reduce flammability hazard • Conduct a test to evaluate the configuration

  4. Flammability configuration assessment (2) NSTS 22648

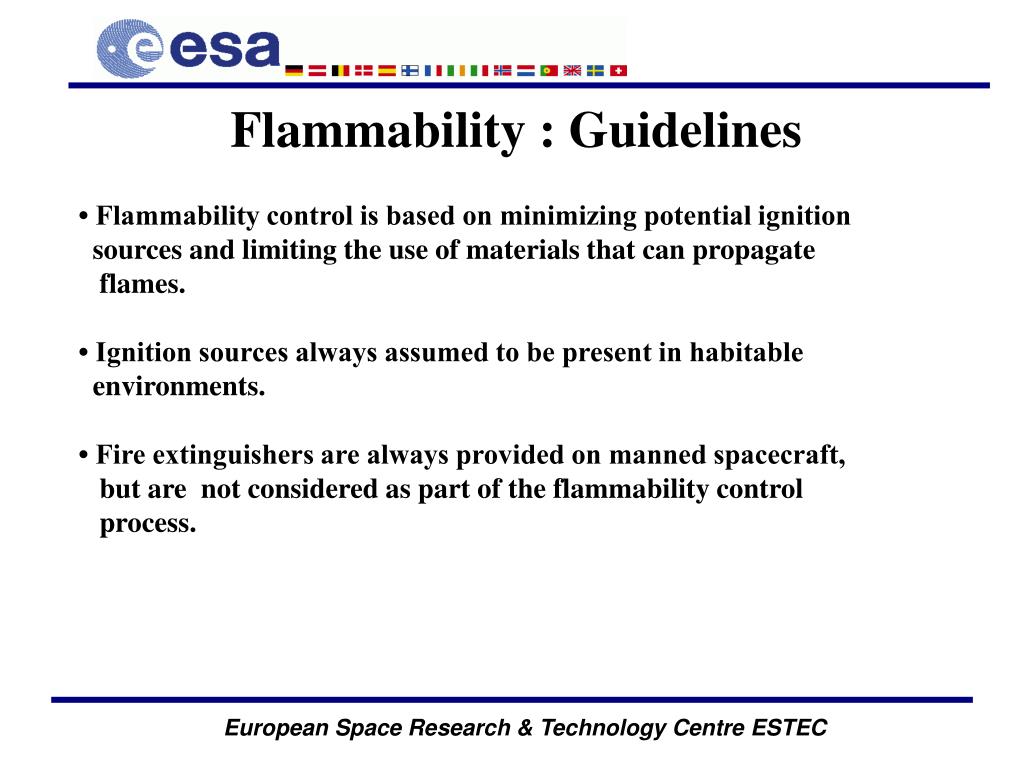

  5. Flammability : Guidelines • Flammability control is based on minimizing potential ignition sources and limiting the use of materials that can propagate flames. • Ignition sources always assumed to be present in habitable environments. • Fire extinguishers are always provided on manned spacecraft, but are not considered as part of the flammability control process.

  6. How to reduce flammability hazards • Replace flammable materials by non-flammable wherever possible. • Covering of flammable materials with an approved non-flammable barrier • e.g. 1 Betacloth or Nomex for foams • 2 An approved conformal coating over commercial PCB’s • 3 Aluminium tape over flammable polymers

  7. Upwards Propagation Test (1) ECSS-Q-70-21 (Former ESA PSS-01-721) : Flammability testing for the screening of space materials Purpose : Determine if a material, when exposed to a standard ignition source, will self-extinguish and not transfer burning debris, which can ignite adjacent materials Test criteria : Self extinguishing within 15 cm No transfer of burning debris (no dripping) Burn Propagation time (less than 10 minutes) Sample dimensions : 300 x 64 mm, worst case thickness Test atmosphere : depends on application (21% O2 or more…)

  8. Upwards Propagation Test (2)

  9. Upwards Propagation Test (3)

  10. Wire Flammability test (1) • ECSS-Q-70-21 (Former ESA PSS-01-721) : Flammability testing for the screening of space materials Purpose: Determine if a wire insulation system, when exposed to an external ignition source, will self-extinguish and not transfer burning debris, which can ignite adjacent materials Acceptance criteria: Prior to flame application, while heating wire to maximal operation T, no spontaneous combustion, splitting insulation or exposure of the conductor. During ignition and combustion no burning droplets/particles After burner is extinguished, cease burning within 10 s and within a total burn length of 150 mm. Test atmosphere : depend on application (21% O2 or more…)

  11. Wire Flammability test (2)

  12. Wire Flammability test (3)

  13. Off-gassing test (1) • ECSS-Q-70-29 (former ESA PSS-01-729) : The determination of • off-gassing products from materials and assembled articles to be used • in a manned space environment. • Purpose: • Determine the identity and quantity of volatile off-gassed products • from materials and assembled articles. • Material screening test: • Quantity of Carbon Monoxide [mg/g] • Quantity of total organics (pentane equivalent) [mg/g] • General test for materials/assembled articles: • Identifies and quantifies all contaminants present • Use of T-value for acceptance

  14. Off-gassing Test (2) • Test normally conducted for 72 hours at ambient pressure and temperature of 50oC with hardware un-powered (h/w exposed to vacuum for 30-40 seconds during preparation for test) – Provides an adequate margin above maximum cabin temperatures for thermal effects of powering the hardware – Non-electrical hardware may be tested at lower temperatures if damaged by exposure to 50oC • Testing should be conducted at nominal operating temperature if expected to significantly exceed 50oC (by more than 25oC )

  15. Off-gassing test (3) • Acceptance Limits • Screening test • Carbon Monoxide : <25 µg/g material • Total Organics : <100 µg/g material (Pentane equivalent) • General test • No definitive acceptability defined by this test. Data are evaluated by the Safety Office of the relevant project • for assessment of toxic hazard due to volatile contamination off-gassed from the item under test • for assessment of the impacts on the potential toxicity of the total quantity of off-gassed products from all contaminant-generating items for a given mission

  16. Off-gassing test (4) • Following primary acceptance criteria are relevant: • The quantity of each individual off-gassed product shall result in a predicted Spacecraft concentration below the SMAC value • Toxic Hazard Index (T) shall not exceed 0.5. T is determined by calculating the ratio of the projected concentration of each off-gassed product to its SMAC value and summing up these ratios for all off-gassed products • T = C1/SMAC1 + C2/SMAC2 ..... + Cn/SMACn • C1…n is the concentration in μg/m3 i.e Projected Spacecraft Concentration (PSC) of each trace contaminant off-gassed during the test. • SMAC1…n is the Spacecraft Maximum Allowable Concentration for the individual trace contaminant.

  17. Off-gassing test Procedure (1) • General test conditions • Temperature 50 ºC • Atmosphere : synthetic air or clean/dry air • Pressure : 1 Atmosphere at 50 ºC • Duration : 72 hrs • Mass (material) 5g/liter test volume • Sampling : +/- 250 ml gas on trap after cooling to RT; flow rate sampling is +/- 25 ml/min.

  18. Off-gassing test procedure (2) Test chambers Different sizes are available : Heraeus ovens 128 and 718 l. Vacucell oven 111 l. Glass bottles 1, 2.5 and 5 l. Analyses: Screening: TO/CO (total organic/carbon monoxide) GC with Methaniser and Flame Ionisation Detector General test Pre-concentrated sampling Desorption system : Model MW-1A from Rektorik (CH) GC with DB5MS from JW column (60m, diam 0.25mm, film (0.25mm) Mass spectrometer model Profile from Kratos (UK)

  19. Off-gassing test procedure (3)

  20. Off-gassing – Testing Sites • Test capability at ESA Materials and Processes Division and Naval Institute in Toulon – European facilities are certified by ESA. • Data from assembled article level testing much easier to evaluate than data from materials-level testing – Materials-level testing can be used to assess minor late changes • Testing of flight unit(s) not required – a materially-representative unit is acceptable.

  21. Off-gassing – Lessons Learned • Test failures at assembled article level unusual if the materials have been adequately screened – Most failures caused by inadequately cured paints, conformal coatings, adhesives and cleaning of the hardware with alcohol in preparation for the test. – Hardware that fails can usually be brought into compliance by baking (e.g. 48 hours at 50oC at ambient pressure is usually adequate; however vacuum and/or higher temperatures better if acceptable for hardware). • Although materials-level test data is available in ESA and NASA databases, using such data instead of testing at assembled article level is not recommended unless hardware is very simple.

  22. ESA - NASA Interagency Agreement • For organizations with reciprocal agreements, the applicable payload safety hazard reports must reference the materials certification* provided by the responsible materials and processes organization * Terminology may vary -- JSC uses a “Materials and Fracture Control Certification”, MSFC uses a “Certification Materials Usage Agreement”, ESA uses “ESA Materials and Fracture Control Certification”. • No additional documentation/hazard report content is required • Greater than 90% Shuttle payloads are covered by M&P reciprocal agreements (new International Partners in ISS may lower number). • Reciprocal agreement between NASA and ESA for NASA and ESA-certified payloads Acrobat Document

  23. Interagency Agreement/Example

  24. Example of “Packaging Procedure”
