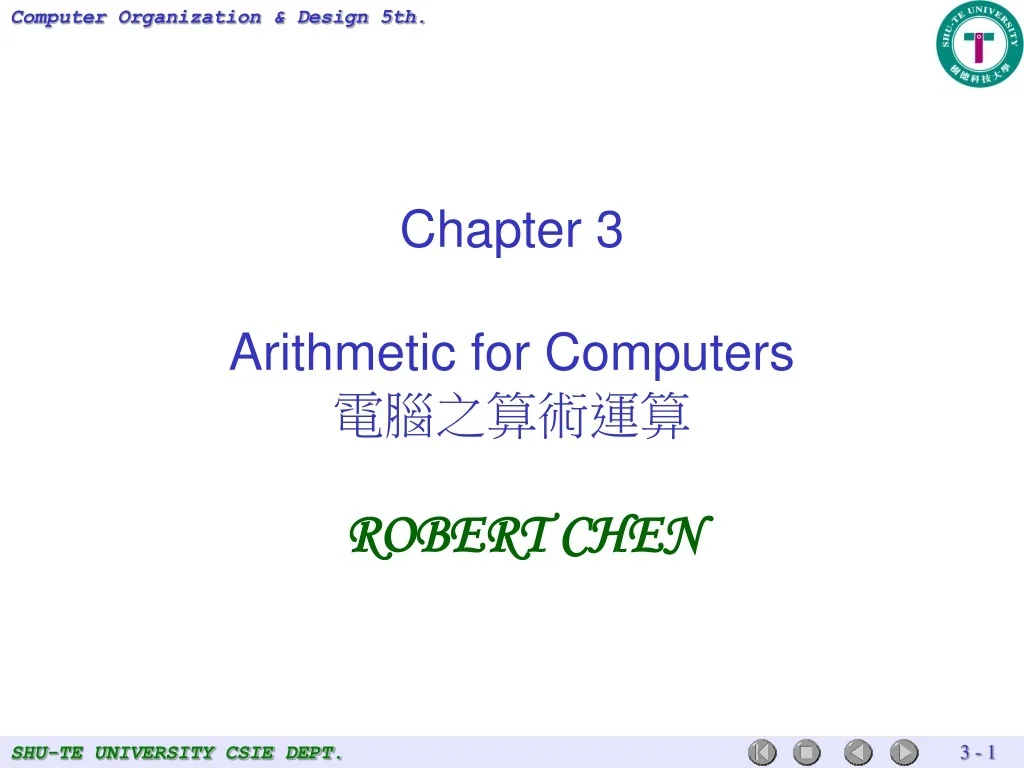

Chapter 3 Arithmetic for Computers 電腦之算術運算 ROBERT CHEN
Outlines • Signed and Unsigned Numbers(有號數與無號數) • Addition and Subtraction(加法與減法)) • Multiplication(乘法) • Division(除法) • Floating Point(浮點數)
Signed and Unsigned Numbers • Numbers can be presented in any base(基底) • A n-bit number: an-1an-2…a1a0, base is d, then its decimal value is: an-1× d n-1+ an-2 × d n-2+… + a1 × d n-1 +a0 × d 0 (10) Where a0 called the Least Significant Bit (LSB最低有效位元), an-1 called the Most Significant Bit (LSB最高有效位元) [Ex] 1011two = ten ? [Ans] (1 × 23) + (0 × 22) + (1 × 21) + (1 × 20) = (1 × 8) + (0 × 4) + (1 × 2) + (1 × 1) = 8 + 0 + 2 + 1 = 11ten
Signed and Unsigned Numbers • Negative Number Representation (負數表示法) • Sign-magnitude • 1’s complement • 2’s complement (adopted by all now-a-day computers) • For a n-bit binary number • The Most Significant Bit (MSB) represents the sign : 0 : positive, 1:negative • The rest (n-1) bits represents the magnitude 快速求法：欲求某負數之2’s complement表示法，可先求其正數，再取補數後加1，注意位元數目！
Signed and Unsigned Numbers • 2’s complement binary number to decimal conversion an-1× (-d n-1)+ an-2 × d n-2+… + a1 × d n-1 +a0 × d 0 (10) [Ex] what is the decimal number of the 32-bit binary pattern? 1111 1111 1111 1111 1111 1111 1111 11002 [Ans] (1×-231) + (1×230) + (1×229) + … + (1×22) + (0×21) + (0×20) = - 231+ 230 + 229 + … + 22 + 0 + 0 = - 214748364810 + 214748364410 = - 410 [Ex] Find -210 2’s complement representation • Find 210 = 0000 0000 0000 0000 0000 0000 0000 00102 • Complement : 1111 1111 1111 1111 1111 1111 1111 11012 • Add 1 : 12 1111 1111 1111 1111 1111 1111 1111 11102 ＋
[Ex] Show that a 2’s-complement number can be converted to a representation with more bits by sign extension. That is, given an n-bit 2’s-complement number X, show that the m-bit 2’s-complement representation of X, where m > n, can be obtained by appending m-n copies of X’s sign bit to the left of thze n-bit representation of X. [84清大電機] [Ans] 若假設X為n-bit正數，欲做sign extension成A (m-bit)，則將bit n~(m-1)補0，則 若假設X為n-bit負數，欲做sign extension成A (m-bit)， 因為轉換後的A=原來的X值，所以 m-1 n-1 0 n bits m-n bits Signed and Unsigned Numbers 明顯地，ai(n-1 i m-2)必須全為1，亦即將an-1=1做sign extension （因為am-1 ~ an-1皆為0）
Signed and Unsigned Numbers [Ex] Let A=an-1an-2…a1a0 be a two’scomplement integer. Show that [Ans] (1)若A為正數，則an-1=0，A=an-1an-2…a1a0(2)=0an-2…a1a0(2)= (2)若A為負數，則an-1=1，A=an-1an-2…a1a0(2)=1an-2…a1a0(2) 由(1),(2)得證
Signed and Unsigned Numbers • Sign extension (符號擴展) • Converting n-bit numbers into numbers with more than n bits • copy the most significant bit (the sign bit) into the other bits0010 -> 000000101010 -> 11111010 • MIPS “data transfer” instruction (load/store)
Signed and Unsigned Numbers • Signed vs. unsigned number $s0 = 1111 1111 1111 1111 1111 1111 1111 11112 $s1 = 0000 0000 0000 0000 0000 0000 0000 00012 slt $t0, $s0, $s1 # signed number comparison sltu $t1, $s0, $s1 # unsigned number comparison After executing the above instructions, $t0 = 1, $t1 = 0. Why? • Range detection [Ex] If ($a1>$a2) or ($a1< 0) then jump to IndexOutOfBounds sltu $t0, $a1, $t2 # temp reg $t0=0, if k>=length or k<0 beq $t0, zero, IndexOutOfBounds # if exceed, then jump
Signed and Unsigned Numbers [Ex1] Write all 4-bit numbers using the above representations. (1) according the decimal number (2) according the 0000 ~ 1111 (3) compare their range and zero representation, max/min number [Ex2] Show -18 using the above representations with (1) 8 bits (2) 16 bits. [Ans] sign-magnitude: 10010010 1000 0000 0001 0010 1’s complement: 11101101 1111 1111 1110 1101 2’s complement: 11101110 1111 1111 1110 1110 [Ex3] Why 2’s complement representation is better than the others in computer architecture? [Ans] 1. One representation of zero 2. Arithmetic works easily 3. Negating is fairly easy [Ex4] What is overflow ? How to judge whether an overflow happens or not? Cin Cout =1 [Ex5] Express +69 and -69 with 8 bits using signed-magnitude, 1’s complement, 2’s complement and excess code representations. [Ans] sign-magnitude 0100010111000101 1’s complement 0100010110111010 2’s complement 0100010110111011 excess-128 code 1100010100111011
Effects of Overflow • An exception (interrupt) occurs • Control jumps to predefined address for exception • Interrupted address is saved for possible resumption • Don't always want to detect overflow • addu, addiu, subu do NOT cause exceptions on overflownote: addiu still sign-extends! note: sltu, sltiu for unsigned comparisons • add, addi, sub cause exceptions on overflow • MIPS C compiler 總是產生無號數之算術指令所以會忽略溢位，但MIPS FORTRAN compiler則會依據運算元型態產生適當的算術指令 • 自行研究課本p.173,174之程式
Review: ALU Design • 支援條件分支指令 • 假使兩個暫存器相等或假使不相等時作分支 • 觀察 • if a=b then a-b = 0 • if a-b = 0 then • Result = 0…00 • Zero = 0 不等時 • Zero = 1 相等時
ALU控制線的值 及相對應的功能 常用來直接代表 ALU的符號 Bnegate 0 0 0 1 1 Operation 00 01 10 10 11 and or add subtract set on less than 功能 Review: ALU Design
Review: ALU Design • We can build an ALU to support the MIPS instruction set • key idea: use multiplexer (MUX) to select the output we want • efficiently perform subtraction using two’s complement • replicate a 1-bit ALU to produce a 32-bit ALU • Important points about hardware • all of the gates are always working • the speed of a gate is affected by the number of inputs to the gate • the speed of a circuit is affected by the number of gates in series (on the “critical path” or the “deepest level of logic”)
y0 x0 y1 x1 yn-2 xn-2 yn-1 xn-1 c1 FA0 cn cn-1 c0 cn-2 FA1 FAn-1 FAn-2 s0 s1 sn-2 sn-1 Parallel Adder vs. Carry Look Ahead Adder • Half adder (HA) • 2 bits adder, say x and y • Sum = x y • Carry = xy • Full adder (FA) • 3 bits adder, say x, y and c • Sum = x y c • Carry = (x y) c + xy • Propagation delay time tp(net) = tXOR+max(tXOR, 2tNAND) • N-bit parallel adder can be implemented by n FAs Propagation delay time: tp(net) = (n-1) tc+max(ts, tc) tp ,ts ,tc : propagation delat time of the total path, the sum and the carry, respectively. • Each FA is a two-level logic circuit, if the propagation delay time of one two-level logic circuit is d, then that of a n-bit parallel adder is nd.
Parallel Adder vs. Carry Look Ahead Adder • Ripple Carry Adder (Parallel adder) • 8 bits binary adder-subtractor • Each full adder has a small propagation delay; these delays add up as the carry bits are propagated.
Parallel Adder vs. Carry Look Ahead Adder • Carry Lookahead Adder (4 bits) • One solution to the delay problem • The generate part ,g, g = X Y(carry generator) • The second part is the propagate, p, p = X Y(carry propagation) • In general, this can be expressed by the equation Si = Pi Ci Ci+1= gi+ piCi • For the 4-bit adder, these values are
y0 x0 y1 x1 yn-2 xn-2 yn-1 xn-1 c1 FA0 cn cn-1 c0 cn-2 FA1 FAn-1 FAn-2 s0 s1 sn-2 sn-1 Parallel Adder vs. Carry Look Ahead Adder [Ex1] If the propagation delay time of S is 30ns and that of C is 20ns in an FA. What is the total propagation delay of a 4-bit ripple carry adder (7483)? KEY: Calculate the longest path 30 +20 x (4-1) = 90 ns [Ex2] Repeat [Ex1] for a 32-bit ripple adder, the propagation delay time is ________. 30+ 20(32-1) =650ns [Ex3] If the propagation delay time of a lookahead carry generator is 20ns, that of pi and gi is 20ns. What is the total propagation delay of a carry lookahead adder ? 40ns (see Fig. on page 4-7) [Ex4] Repeat [Ex1] for a 32-bit carry lookahead adder , the propagation delay time is ________. 40ns The propagation delay time of look-ahead adder is independent of .
Multiplication • Unsigned Integer multiplication(無號整數相乘) • 範例 ． (1000)10 x (1011)10: 1000 x 1011 1000 1000_ 0000__ 1000___ 1011000 • Example. (0010)2 x (0011)2: 0010 x 0011 0010 0010_ 0000__ 0000___ 0000110 multiplicand被乘數 multiplier乘數
First version Product register is initialized to 0 It takes almost 100 clock cycles, if each step took a clock cycle S t a r t M u l t i p l i e r 0 = 1 M u l t i p l i e r 0 = 0 1 . T e s t M u l t i p l i e r 0 1 a . A d d m u l t i p l i c a n d t o p r o d u c t a n d p l a c e t h e r e s u l t i n P r o d u c t r e g i s t e r 2 . S h i f t t h e M u l t i p l i c a n d r e g i s t e r l e f t 1 b i t 3 . S h i f t t h e M u l t i p l i e r r e g i s t e r r i g h t 1 b i t N o : < 3 2 r e p e t i t i o n s 3 2 n d r e p e t i t i o n ? Y e s : 3 2 r e p e t i t i o n s D o n e Multiplication
Multiplication • Example for first-version multiplier f • Using 4-bit number, multiply 210 × 310 = 00102 × 00112
Sequential (second) version multiplier Product register is initialized to 0 32-bit ALU S t a r t M u l t i p l i e r 0 = 1 M u l t i p l i e r 0 = 0 1 . T e s t M u l t i p l i e r 0 1 a . A d d m u l t i p l i c a n d t o t h e l e f t h a l f o f t h e p r o d u c t a n d p l a c e t h e r e s u l t i n t h e l e f t h a l f o f t h e P r o d u c t r e g i s t e r 2 . S h i f t t h e P r o d u c t r e g i s t e r r i g h t 1 b i t 3 . S h i f t t h e M u l t i p l i e r r e g i s t e r r i g h t 1 b i t N o : < 3 2 r e p e t i t i o n s 3 2 n d r e p e t i t i o n ? Y e s : 3 2 r e p e t i t i o n s D o n e Multiplication
Multiplication • Example for sequential-version multiplier f • Using 4-bit number, multiply 210 × 310 = 00102 × 00112
Final (third) version multiplier 32-bit ALU Product register right half is initialized to the value of multiplier 60 clock cycles Multiplication
Multiplication • Signed Multiplication(有號數乘法) • Convert the multiplier and multiplicand to positive numbers and remember the original signs. • Shifting steps need to extend the sign of the product • Negate the product if the original signs disagree. [NOTE] 有號數乘法：利用第三版乘法器先做前面31位元的運算，再比較乘數及被乘數的符號(第32位元)是否相同 • A more elegant method: Booth’s algorithm • 對有連續1的乘數可加速處理 • 碰到第一個1加法變減法
Middle of Run 0 1 1 1 0 End of Run Beginning of Run Booth’s Algorithm • Classifying groups of bits into the beginning, the middle or the end of a run of 1s • Take a look at 2-bit groups
Booth’s Algorithm • Depending on the current and previous bits, do one of the following: • 00: no arithmetic operation • 01: End of a string of 1s, so add multiplicand to the left half of the product • 10: Beginning of a strings of 1s, so subtract the multiplicand from the left half of the product • 11: no arithmetic operation • Shift the Product register right 1 bit.
Booth’s Algorithm • Example • 2 x (-3) = 6 or 0010 x 1101 = 1111 1010 Previous bit Current bit
Booth’s Algorithm • Multiply by 2i via shift • Shift left by one bit --> multiply by 2 • Shift left by n bit --> multiply by 2 n • Proof of Booth’s Algorithm • Why does it work for 2’s complement signed number? • In other words, if (ai-1 - ai) • = 0 do nothing • = 1 add b • = -1 subtract b • Booth’s algorithm can be written as: (a-1 - a0) x b x 2 0+ (a0- a1) x b x 2 1+ …+(a30-a31)x b x 2 31 = … = b x a
S t a r t D i v i s o r 1 . S u b t r a c t t h e D i v i s o r r e g i s t e r f r o m t h e S h i f t r i g h t R e m a i n d e r r e g i s t e r a n d p l a c e t h e r e s u l t i n t h e R e m a i n d e r r e g i s t e r 6 4 b i t s Q u o t i e n t 6 4 - b i t A L U S h i f t l e f t > R e m a i n d e r 0 R e m a i n d e r < 0 T e s t R e m a i n d e r 3 2 b i t s C o n t r o l R e m a i n d e r t e s t W r i t e 2 a . S h i f t t h e Q u o t i e n t r e g i s t e r t o t h e l e f t , 2 b . R e s t o r e t h e o r i g i n a l v a l u e b y a d d i n g 6 4 b i t s s e t t i n g t h e n e w r i g h t m o s t b i t t o 1 t h e D i v i s o r r e g i s t e r t o t h e R e m a i n d e r r e g i s t e r a n d p l a c e t h e s u m i n t h e R e m a i n d e r r e g i s t e r . A l s o s h i f t t h e Q u o t i e n t r e g i s t e r t o t h e l e f t , s e t t i n g t h e n e w l e a s t s i g n i f i c a n t b i t t o 0 3 . S h i f t t h e D i v i s o r r e g i s t e r r i g h t 1 b i t N o : < 3 3 r e p e t i t i o n s 3 3 r d r e p e t i t i o n ? Y e s : 3 3 r e p e t i t i o n s D o n e Division • First version Divisor
Example • Using a 4-bit version to perform 72 = 3…1
Division • Observations on the first version of the division hardware • 1/2 bits in divisor always 0 • 1/2 of 64-bit adder is wasted • 1/2 of divisor is wasted • Instead of shifting divisor to right, shift remainder to left? • 1st step cannot produce a 1 in quotient bit (otherwise too big) • switch order to shift first and then subtract, can save 1 iteration
D i v i s o r 3 2 b i t s Q u o t i e n t 3 2 - b i t A L U S h i f t l e f t 3 2 b i t s C o n t r o l S h i f t l e f t R e m a i n d e r t e s t W r i t e 6 4 b i t s Division • Second Version of the division hardware
Final Version of the division hardware Execute 7 2 = 3…1 using the algorithm (DIY) S t a r t 1 . S h i f t t h e R e m a i n d e r r e g i s t e r l e f t 1 b i t 2 . S u b t r a c t t h e D i v i s o r r e g i s t e r f r o m t h e l e f t h a l f o f t h e R e m a i n d e r r e g i s t e r a n d p l a c e t h e r e s u l t i n t h e l e f t h a l f o f t h e D i v i s o r R e m a i n d e r r e g i s t e r 3 2 b i t s > R e m a i n d e r 0 R e m a i n d e r < 0 T e s t R e m a i n d e r 3 2 - b i t A L U 3 a . S h i f t t h e R e m a i n d e r r e g i s t e r t o t h e 3 b . R e s t o r e t h e o r i g i n a l v a l u e b y a d d i n g l e f t , s e t t i n g t h e n e w r i g h t m o s t b i t t o 1 t h e D i v i s o r r e g i s t e r t o t h e l e f t h a l f o f t h e R e m a i n d e r r e g i s t e r a n d p l a c e t h e s u m i n t h e l e f t h a l f o f t h e R e m a i n d e r r e g i s t e r . S h i f t r i g h t A l s o s h i f t t h e R e m a i n d e r r e g i s t e r t o t h e C o n t r o l l e f t , s e t t i n g t h e n e w r i g h t m o s t b i t t o 0 R e m a i n d e r S h i f t l e f t t e s t W r i t e 6 4 b i t s N o : < 3 2 r e p e t i t i o n s 3 2 n d r e p e t i t i o n ? e s : 3 2 r e p e t i t i o n s Y D o n e . S h i f t l e f t h a l f o f R e m a i n d e r r i g h t 1 b i t Division
Division • Signed Division(有號數除法) • Dividend = Quotient * Divisor + Remainder • Consider the signs of dividend and divisor : 7 2 • +7 +2 = +3 … +1 7 = (+3) × 2 + 1 • -7 +2 = (-3) … (-1) - 7 = (-3) × 2 + (-1) • +7 -2 = (-3) … +1 7 = (-3) × (-2) + 1 • -7 -2 = +3 … (-1) - 7 = (+3) × (-2) + (-1) • Correctly signed division algorithm • If the signs of the operands are opposite • negative the Quotient • make the sign of the nonzero Remainder match the Dividend • 除法運算元異號時，商數取負號，非零餘數與除數同號
