Engaging Cell Biology Challenge: Test Your Knowledge on Organelles and Transport Mechanisms

DESCRIPTION

Gather your group and dive into this enlightening cell biology challenge! Discuss and agree on answers for each question, aiming to secure the most correct responses for victory. Topics include the types of transport mechanisms, the fluid mosaic model of cell membranes, functions of lysosomes, and the identification of various organelles. Collaborate to label the plasma membrane components and understand the process of protein synthesis. This exercise serves as a stimulating way to enhance your understanding of cellular structures and functions.

1 / 42

Télécharger la présentation

Engaging Cell Biology Challenge: Test Your Knowledge on Organelles and Transport Mechanisms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Cell Challenge As a group, quietly discuss each question and agree upon one correct answer. The group with the most correct answers will win.

  2. 1) What type of transport is this? Be more specific than just writing active or passive transport.

  3. 2)What model have scientists developed to describe the arrangement of molecules that make up a cell membrane?

  4. 3) Name 2 functions of the lysosome.

  5. 4) Identify this organelle.

  6. 5) What usually determines the shape of a cell?

  7. 6) Which organelle transports proteins towards the Golgi body?

  8. 7) Label the type of solution each red blood cell is in. Draw arrows on the cell to show the direction of osmosis.

  9. 8) Identify this organelle.

  10. 9) Identify this organelle.

  11. 10) Using the following choices, properly label the plasma membrane. • Embedded ProteinCytoskeleton Protein Channel Phospholipids • LigandsReceptor Cholesterol Carbohydrate Chain B F D A C E

  12. 11) What type of transport is this? Be more specific than just writing active or passive transport.

  13. 12) Which type of receptor is shown in figure 3.2

  14. 13) Identify this organelle and its function.

  15. 14) Identify this organelle.

  16. 15) Name the sac, proteins are placed within by the Golgi Body before being shipped away.

  17. 16) Draw and label the 3 parts of a phospholipid.

  18. 17) Which organelle stores water and waste within cells?

  19. 18) Name the organelle (tiny dots) and their function in this picture.

  20. 19) Which organelle produces the molecule ATP that is required by all cells?

  21. 20) Place the steps of protein creation in the order from start to finish. Step A Ribosomes attach and travel along the rough ER Step B Nucleolus creates the ribosome Step C Protein created by the ribosome is passed to the Golgi body Step D Vesicle protects the protein and releases it from the cell Step E Ribosomes exit the nucleus

  22. Exchange your Answers

  23. 1) What type of transport is this? Be more specific than just writing active or passive transport. Active Transport Phagocytosis

  24. 2)What model have scientists developed to describe the arrangement of molecules that make up a cell membrane? Fluid Mosaic Model

  25. 3) Name 2 functions of the lysosome. 1) Destroy bacteria 2) Break down food 3) Destroy old cells

  26. 4) Identify this organelle. Cilia

  27. 5) What usually determines the shape of a cell? Its Function!

  28. 6) Which organelle transports proteins towards the Golgi body? Rough ER

  29. 7) Label the type of solution each red blood cell is in. Draw arrows on the cell to show the direction of osmosis.

  30. 8) Identify this organelle. Golgi Body (Apparatus)

  31. 9) Identify this organelle. Rough ER

  32. 10) Using the following choices, properly label the plasma membrane. • Embedded ProteinCytoskeleton Protein Channel Phospholipid • LigandsReceptor Cholesterol Carbohydrate Chain Carbohydrate Chain Phospholipid B F D A Cholesterol Embedded Protein C Protein Channel E Cytoskeleton

  33. 11) What type of transport is this? Be more specific than just writing active or passive transport. Passive Transport Facilitated Diffusion

  34. 12) Which type of receptor is shown in the diagram in figure 3.2 Intracellular Receptor

  35. 13) Identify this organelle and its function. Nucleolus Makes Ribosomes

  36. 14) Identify this organelle. Flagella

  37. 15) Name the sac, proteins are placed within by the Golgi Body before being shipped away. Vesicle

  38. 16) Draw and label the 3 parts of a phospholipid.

  39. 17) Which organelle stores water and waste within cells? Vacuole

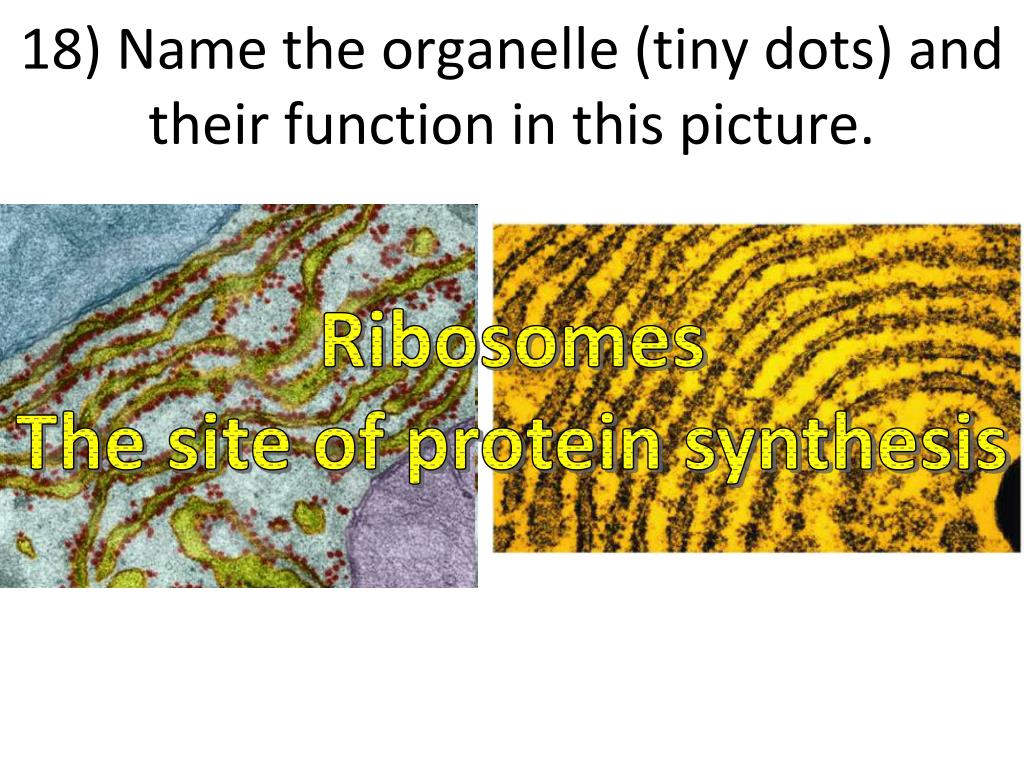

  40. 18) Name the organelle (tiny dots) and their function in this picture. Ribosomes The site of protein synthesis

  41. 19) Which organelle produces the molecule ATP that is required by all cells? Mitochondria

  42. 20) Place the steps of protein creation in the order from start to finish. Step B Nucleolus creates the ribosome Step E Ribosomes exit the nucleus Step A Ribosomes attach and travel along the rough ER Step C Protein created by the ribosome is passed to the Golgi body Step D Vesicle protects the protein and releases it from the cell
