Calculation of Aircraft, Road, and Rail Traffic Noise Levels by Birmingham City Council

Birmingham City Council commissioned National Air Traffic Services (NATS) to model and calculate aircraft noise levels, generating nearly 5.5 million lines of data from calculations on a 100x100 metre grid. Using interpolation techniques, results were refined to a 10x10 metre grid and shared in January 2006. Additionally, road and rail traffic noise levels were calculated using the UK Calculation of Road Traffic Noise (CRTN) and Calculation of Rail Noise (CRN), respectively. These studies utilized Lima noise mapping software for precise mapping and facade evaluations.

rory
Télécharger la présentation

Calculation of Aircraft, Road, and Rail Traffic Noise Levels by Birmingham City Council

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. First Calculation Runs Andrew Jellyman – Birmingham City Council

  2. Calculation of aircraft noise levels National Air Traffic Services (NATS) were engaged to create the aircraft noise model and carry out the noise calculations on behalf of BUMP These calculations were carried out using a 100 x 100 metre grid Interpolation was used to provide BUMP with the required 10 x 10 metre grid results Finance was provided by the UK Government Final results were provided in January 2006 with a short report on the process undertaken

  3. Calculated aircraft noise levels This is a small sample of the aircraft noise data provided by NATS. The total runs to nearly 5.5 million lines of data!

  4. Calculation of road traffic noise levels BUMP used the UK Calculation of Road Traffic Noise (CRTN) as implemented in Lima noise mapping software A ‘Back End’ correction was used to derive Lden Noise calculations were made on a 10 x 10 metre grid and also at building facades (3 metre spacing) All calculations were carried out at a height of 4 metres above ground

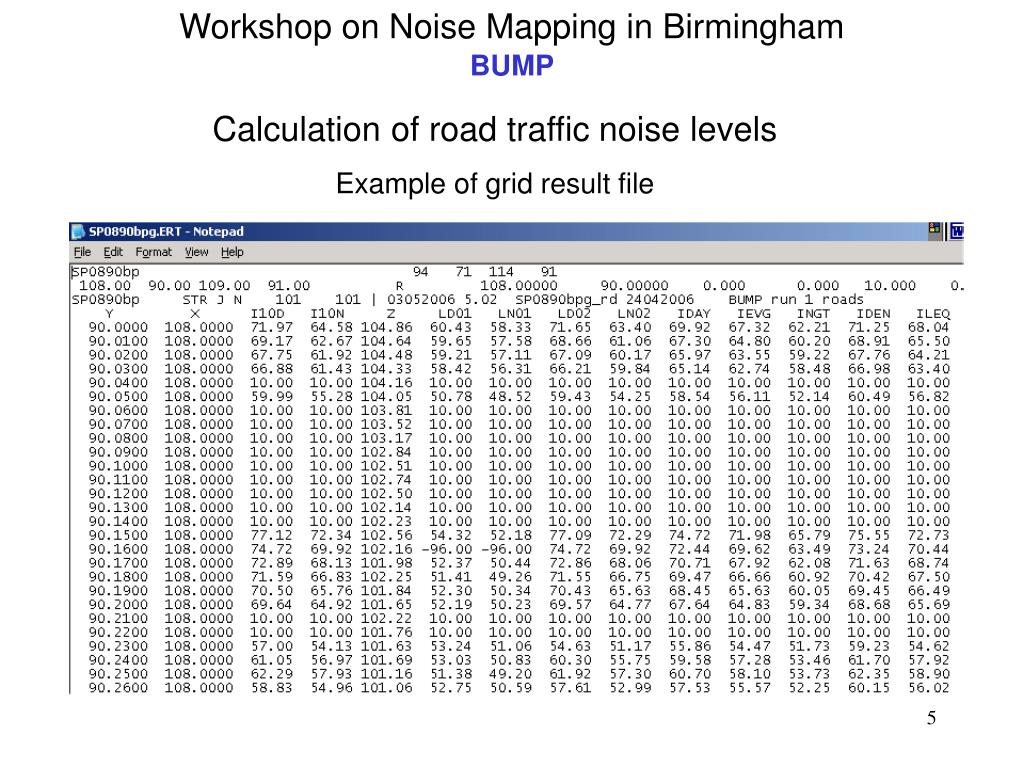

  5. Calculation of road traffic noise levels Example of grid result file

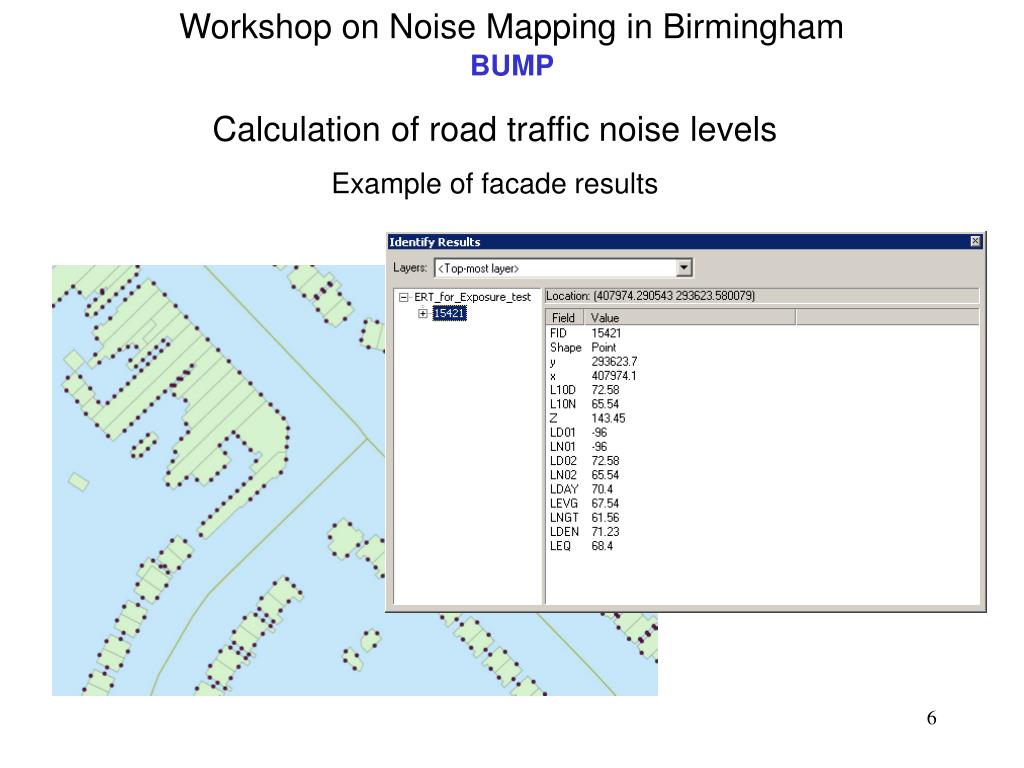

  6. Calculation of road traffic noise levels Example of facade results

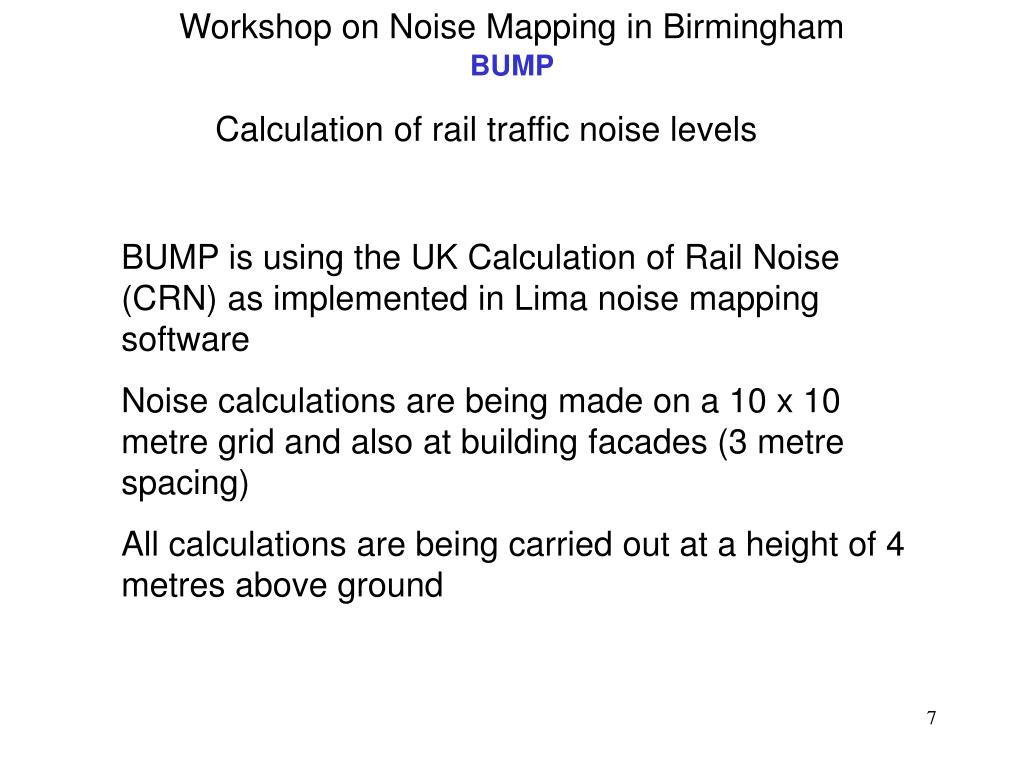

  7. Calculation of rail traffic noise levels BUMP is using the UK Calculation of Rail Noise (CRN) as implemented in Lima noise mapping software Noise calculations are being made on a 10 x 10 metre grid and also at building facades (3 metre spacing) All calculations are being carried out at a height of 4 metres above ground

  8. Calculation of rail traffic noise levels Example of grid result file Graphic to be inserted

  9. Calculation of rail traffic noise levels Example of facade results Graphic to be inserted
