  1. Angel Peña 78 computing

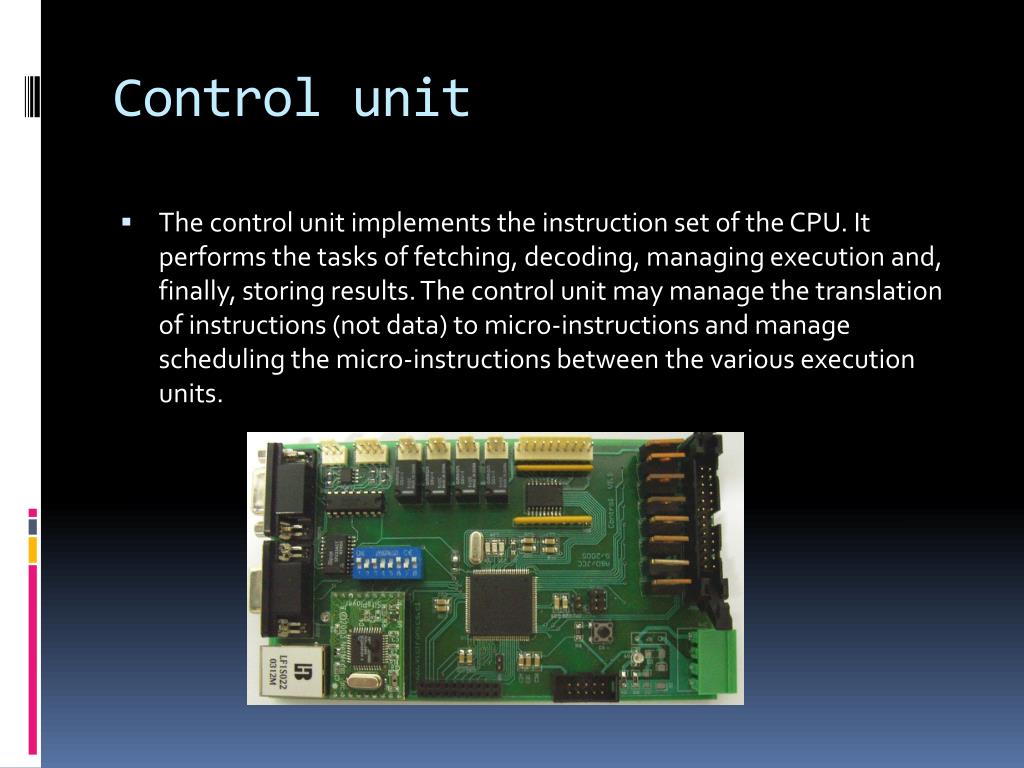

  2. Control unit • The control unit implements the instruction set of the CPU. It performs the tasks of fetching, decoding, managing execution and, finally, storing results. The control unit may manage the translation of instructions (not data) to micro-instructions and manage scheduling the micro-instructions between the various execution units.

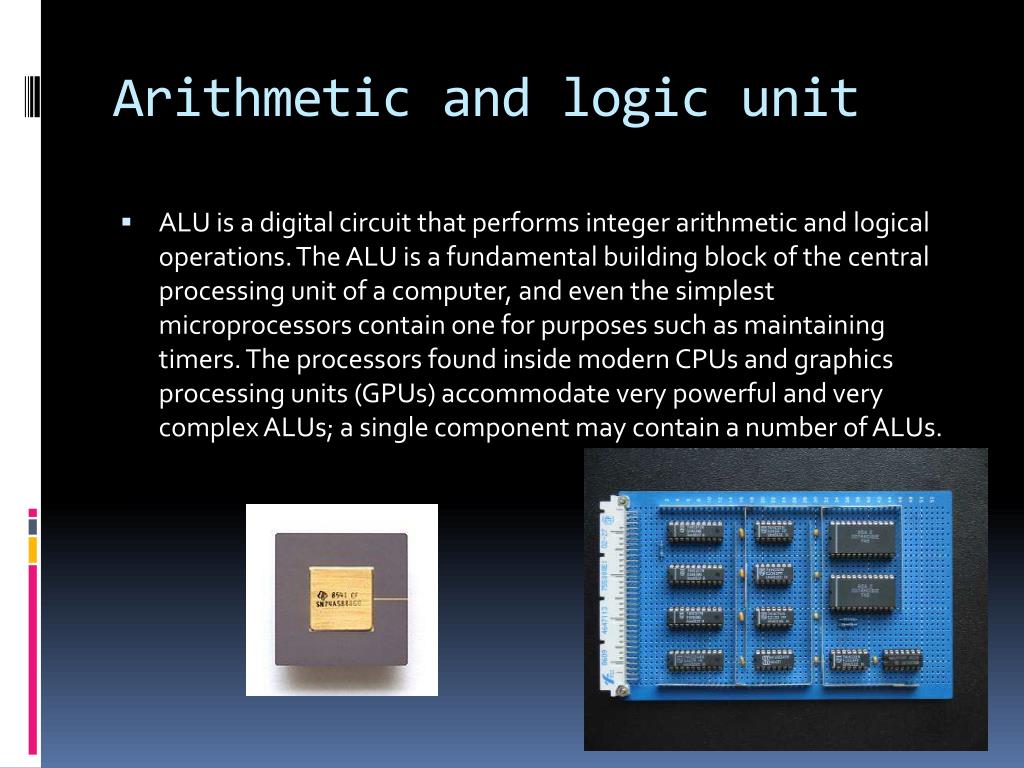

  3. Arithmetic and logicunit • ALU is a digital circuit that performs integer arithmetic and logical operations. The ALU is a fundamental building block of the central processing unit of a computer, and even the simplest microprocessors contain one for purposes such as maintaining timers. The processors found inside modern CPUs and graphics processing units (GPUs) accommodate very powerful and very complex ALUs; a single component may contain a number of ALUs.

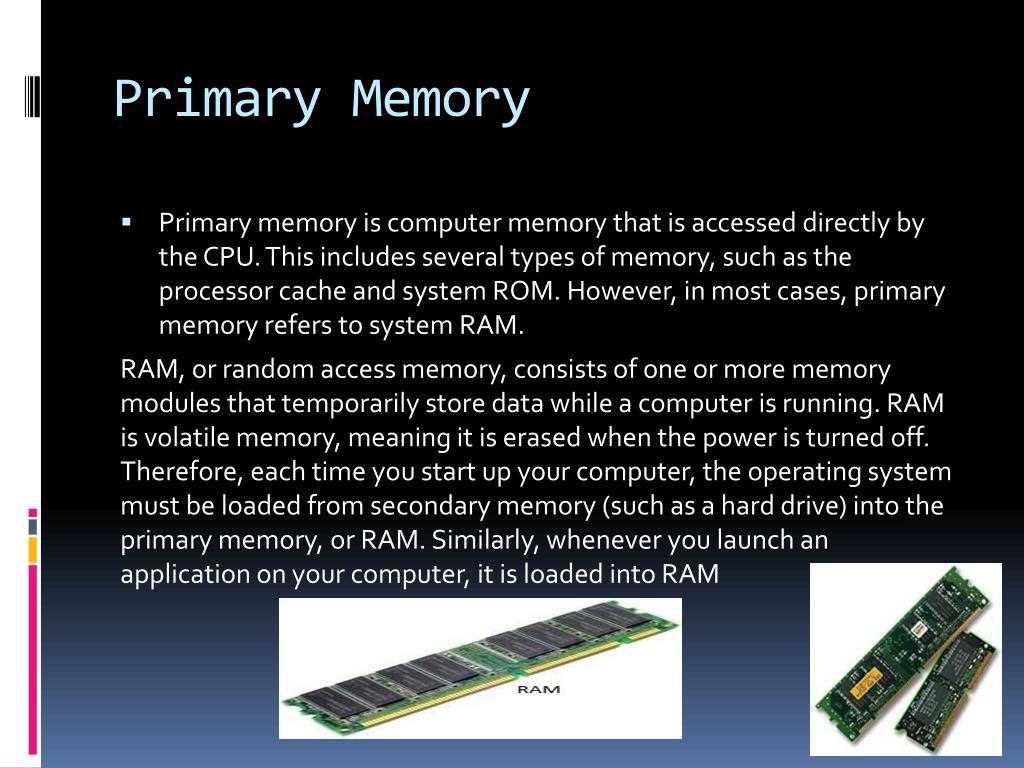

  4. PrimaryMemory • Primary memory is computer memory that is accessed directly by the CPU. This includes several types of memory, such as the processor cache and system ROM. However, in most cases, primary memory refers to system RAM. RAM, or random access memory, consists of one or more memory modules that temporarily store data while a computer is running. RAM is volatile memory, meaning it is erased when the power is turned off. Therefore, each time you start up your computer, the operating system must be loaded from secondary memory (such as a hard drive) into the primary memory, or RAM. Similarly, whenever you launch an application on your computer, it is loaded into RAM

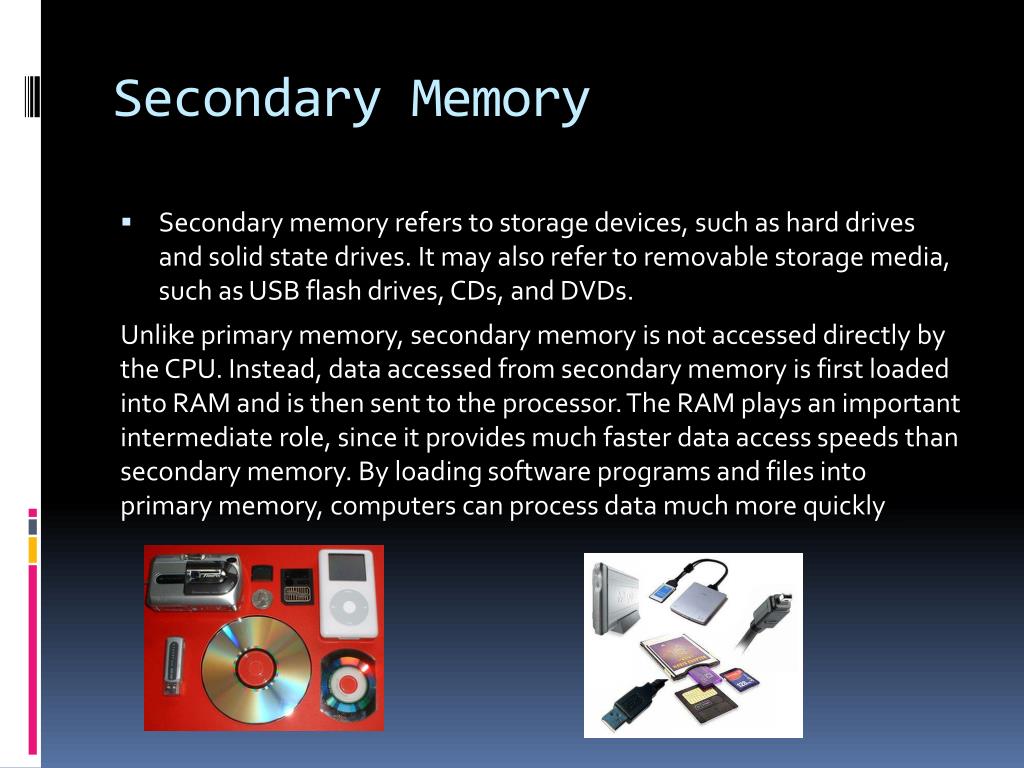

  5. SecondaryMemory • Secondary memory refers to storage devices, such as hard drives and solid state drives. It may also refer to removable storage media, such as USB flash drives, CDs, and DVDs. Unlike primary memory, secondary memory is not accessed directly by the CPU. Instead, data accessed from secondary memory is first loaded into RAM and is then sent to the processor. The RAM plays an important intermediate role, since it provides much faster data access speeds than secondary memory. By loading software programs and files into primary memory, computers can process data much more quickly
