  1. AOS Release 6.3.1.R01 OmniSwitch 9000, 6850, 6800 Minka Nikolova November, 2007

  2. AOS 6.3.1.R01 Overview • Products covered • OmniSwitch 9000 , OmniSwitch 6850, OmniSwitch 6800 • Release focus • Enhanced security features • Improved manageability • Network configuration installation, diagnostics • Customer driven enhancements and commitments • L2 and L3 enhancements • Program Status • Currently involved in beta/field trials • DR4 date- planned for mid December, 2007 • Corporate network in Calabasas running this build for the last 3 weeks

  3. AOS 6.3.1 - Hardware

  4. 6.3.1.R01 - SFP support • Bi-directional Gig SFP • SFP-DUAL-MM and SFP-DUAL-SM15 – to be supported on combo ports of OS6850 copper models

  5. AOS 6.3.1 - Software

  6. Software Porting of 6.2.1 features for support on OS9000 • GVRP – Scalable VLAN management for extra-large networks • Ethernet OAM (802.1ag)- for connectivity monitoring • Ring Rapid STP - for optimized re-convergence in ring topology • IP Multicast TV Vlan - for optimized use of bandwidth resources • IS-IS for IPv4 Features from 6.1.5 • DHCP enhancement - redesigning the L2 DHCP for Option 82 / Snooping (w/o IP interface nor relay) • LPS enhancement - redesigning the LPS feature to sustain new attack scenario (MAC Flood) • 128 Link Aggregates • ECMP on RIP

  7. AOS 6.3.1 – New Features

  8. Account and password policy • Password policy settings • Complexity - Require min. number of upper-case letter, lower case letters, numbers, non-alphanumeric characters, not to contain user name, etc. • History - Retain 0 to 24 passwords • Min Password Length – 0 to 14 char • Min and Max password age – 0 to 999 days • Account Lockout settings – global to all accounts • Failed attempts count - configurable • Observation Window – period of time after which failed attempt counts is reset • Lockout • Threshold – number of attempts before the account is locked out • Duration – minutes to elapse before the user is allowed to try again

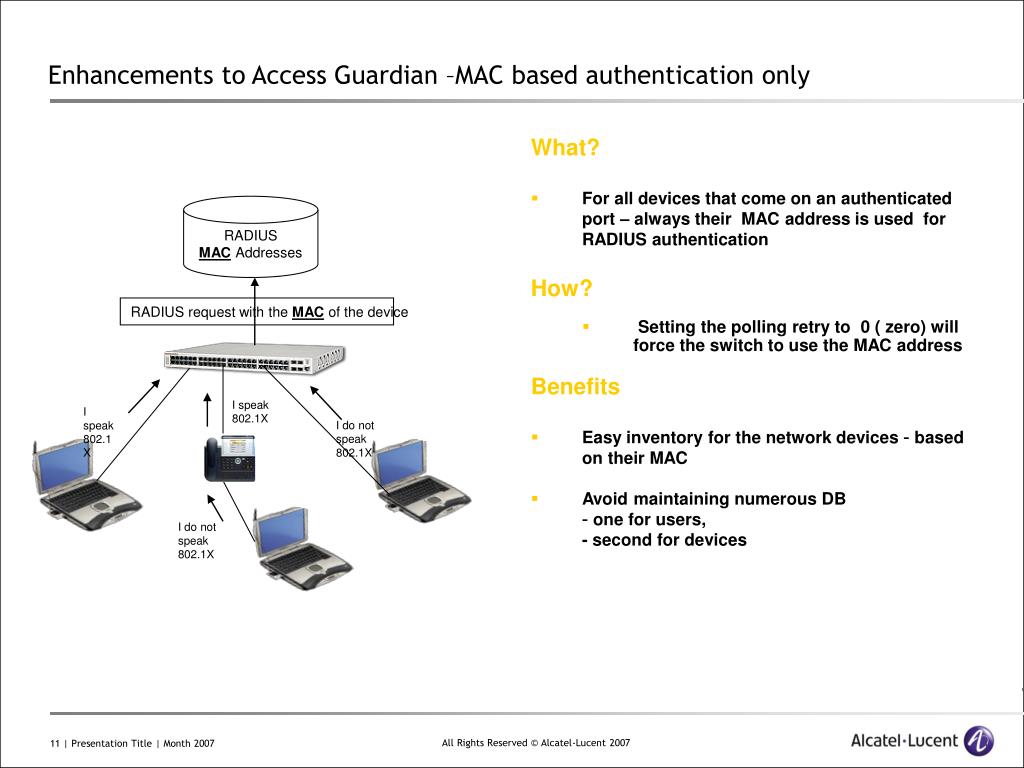

  9. RADIUS MAC Addresses RADIUS request with the MAC of the device I speak 802.1X I speak 802.1X I do not speak 802.1X I do not speak 802.1X Enhancements to Access Guardian –MAC based authentication only What? • For all devices that come on an authenticated port – always their MAC address is used for RADIUS authentication How? • Setting the polling retry to 0 ( zero) will force the switch to use the MAC address Benefits • Easy inventory for the network devices – based on their MAC • Avoid maintaining numerous DB – one for users, - second for devices

  10. Traffic Anomaly Detection • What is it? • Network Security component which is part of the AOS that detects network traffic anomalies and distinguishes malware traffic by • Real time network traffic monitoring • Dynamic anomaly detection and reporting • Dynamic anomalies port quarantining at • Low computational and deployment cost • Reduce the impact of new worms and other malicious code by implementing • Traffic Anomaly Detection and Prevention as near as possible to the end-systems

  11. Traffic Anomaly detection – cont. How? • Not based on worm signatures, no need for “updates” • Behavioral based • Simple counting of packets to detect traffic anomalies • No tracking of connections states • No deep packet inspection • Clever analysis of counters to detect worms • Minimal code space needed – not a CPU intensive task • Based on HW counters • Can also use configurable polling intervals to minimize processing power • This feature is configured per port • When anomaly is detected the following actions can take place: • send a SNMP trap to NMS station, • log, or • shut down the offending port

  12. Traffic Anomaly detection – cont. Examples • Anomalies • ARP based Address Scan , ARP Flood, ARP Poisoning, ARP Failure • TCP Port Scan, TCP based Address Scan • SYN Flood, SYN Failure, SYN-ACK Scan, Fin Scan, Fin-Ack, Rst count, etc. • ICMP based Address Scan, ICMP Flood, ICMP unreachable • Detectable Worms - examples

  13. Traffic Anomaly detection – cont. Benefits • Prevents network melt-down • When worms get in, the network stays up • Side benefit – slows down infection rate • Really easy to deploy • No need to visit each machine/server • No re-configuration of anything (DHCP, VLAN, firewalls, …) • No changes to any hardware (desktop, server, router, switch, …) or wiring • Can be deployed in existing 6850/9000 switches – only 6.3.1 sw upgrade is needed • For organizations without full-time security groups • Small to Medium Business • Residential type of services

  14. Detecting ARP poisoning • What? • This feature detects the presence of a ARP-Poisoning host on the network by identifying unsolicited ARP Replies from an attacker, false ARP requests and unsolicited ARP replies • How? • Using configured restricted IP addresses, for which the Switch, on sending an ARP Request should not get back an ARP Response. • By keeping track of the ARP requests that were sent, the switch only learns on receiving ARP reply if it had sent an ARP request – avoiding unsolicited ARP replies from an attacker Benefits • Stops an attacker of poisoning the ARP information of the switch

  15. ARP Defense mechanism • What? • This feature protects the CPU during the time of unresolved next-hop, when the traffic is sent to CPU for ARP resolution • How? • It accomplishes this by configuring a drop-entry in the hardware as soon as it attempts to resolve an ARP for the purpose of forwarding traffic. • This entry is removed either when the ARP is resolved or after 12 attempts have been made, once every 5 secs, whichever happens first. • Any subsequent traffic to using this next-hop will come to CPU, starting this cycle all over again. Benefits • Avoids CPU utilization climb and destabilizing the switch while next-hop is being resolved.

  16. Auto QoS on Alcatel-Lucent voice applications What? • Trust and prioritize the traffic from Alcatel-Lucent phones based on the priority in the packet How? • When enabled – the switch detect that the traffic comes from ALU phones ( based on the MAC) • Additional MAC group can be configured that will be treated the same • The administrator has the option to prioritize the phone traffic instead of merely trusting it • When enabled, qos policies specifying priority will not take effect on the phone traffic. The user can still apply other policies such as ACLs and Rate limiting policies Benefits • Allows for easy configuration and management in a converged environment. If you see Alcatel-Lucent phone place it in priority queue –7 Treat the rest as needed

  17. Auto QoS on NMS applications What? • Prioritize NMS traffic to the switch that aims to alleviate access problems to the switch that is under attack How? • Enable the feature on the switch • It is only supported on the first 8 interfaces in order of creation • MNS traffic is identified by the port number: • SSH ( TCP port 22) • telnet ( TCP port 23) • WebView ( HTTP port 80) • SNMP (TPC port 161) Benefits • Allows management access to the switch even under heavy load conditions • Avoids the possibility of the switch being DOS condition by rate limiting the high priority NMS traffic to 512 pps.

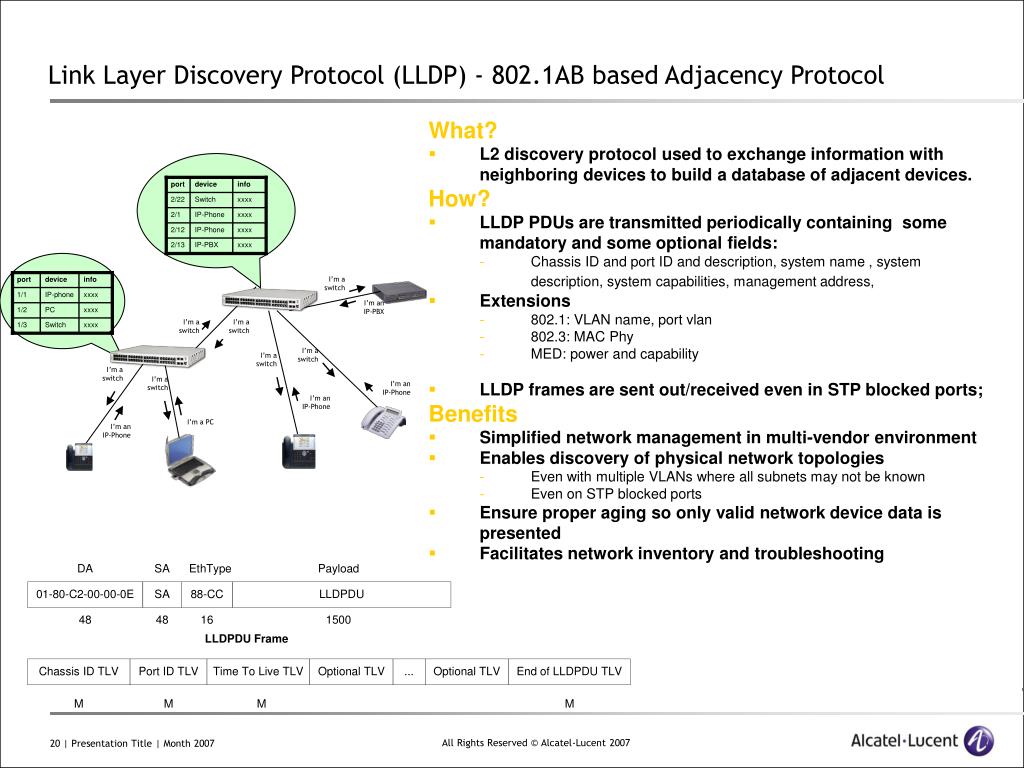

  18. port device info 2/22 Switch xxxx 2/1 IP-Phone xxxx 2/12 IP-Phone xxxx 2/13 IP-PBX xxxx port device info I’m a switch 1/1 IP-phone xxxx I’m an IP-PBX 1/2 PC xxxx I’m a switch I’m a switch 1/3 Switch xxxx I’m a switch I’m a switch I’m a switch I’m a switch I’m an IP-Phone I’m an IP-Phone I’m a PC I’m an IP-Phone Link Layer Discovery Protocol (LLDP) - 802.1AB based Adjacency Protocol What? • L2 discovery protocol used to exchange information with neighboring devices to build a database of adjacent devices. How? • LLDP PDUs are transmitted periodically containing some mandatory and some optional fields: - Chassis ID and port ID and description, system name , system description, system capabilities, management address, • Extensions • 802.1: VLAN name, port vlan • 802.3: MAC Phy • MED: power and capability • LLDP frames are sent out/received even in STP blocked ports; Benefits • Simplified network management in multi-vendor environment • Enables discovery of physical network topologies • Even with multiple VLANs where all subnets may not be known • Even on STP blocked ports • Ensure proper aging so only valid network device data is presented • Facilitates network inventory and troubleshooting LLDPDU Frame

  19. UDLD ( Unidirectional Link Discovery) Protocol What? • UDLD is a protocol that can be used to detect and disable unidirectional Ethernet fiber or copper links caused by: Mis-wiring of fiber strands, Interface misfunctions, media converter’s faults etc. How? • UDLD can be enabled on per port bases and it advertises a port’s identity to its neighbors. • UDLD maintains the identities of neighbors in a session in a cash table and makes sure that bi-directional traffic flows between correct neighbors • It can be enabled on per port bases • There are 2 modes of operation: agressive and normal • Based on message exchange b/n neighbors: probe, echo and fush • The implementation is based on the IETF UDLD draft Limitations • UDLD is not supported on aggregates , only on physical ports • Not interoperable with other vendor’s implementation Benefits • Detects and disables one-way connections before they create dangerous situations such as Spanning Tree loops or other protocol malfunctions

  20. Policy Based Mirroring ( PBM) What? • Allows to select the type of traffic to mirror by using QoS policies How? • While configuring QoS policies the mirroring attribute is specified as part of the action. • Mirroring can be done on ingress and egress packet or both • Mirroring policies supported • Traffic between 2 ports • Traffic from a source address • Traffic to a destination address • Traffic to/from an address • Traffic between 2 addresses • Traffic with a classification criterion based on packet contents other than addresses (for example , based on protocol, priority). • VLAN-based mirroring - mirroring of packets entering a VLAN Benefits • Selectively pick the traffic of interest and only monitor it

  21. Remote Port Mirroring (RPM) What? • Allows traffic to be carried over the network to a remote switch How? • This is achieved by using a dedicated remote port mirroring VLAN • The RPM VLAN has to be configured on the source, destination and intermediate switches • No other traffic is allowed on that VLAN dedicated VLAN has to be created While configuring QoS Limitations/Restrictions • Spanning Tree must be disabled for the Remote Port Mirroring VLAN on all switches • There must not be any physical loop present in the Remote Port Mirroring VLAN • Source learning must be disabled or overridden on the ports belonging to the Remote Port Mirroring VLAN • The QoS redirect feature can be used to override source learning on an OmniSwitch • The following types of traffic will not be mirrored: Link Aggregation Control Packets (LACP) , 802.1AB (LLDP), 802.1x port authentication, 802.3ag (OAM), Layer 3 control packets , Generic Attribute Registration Protocol (GARP), BPDUs

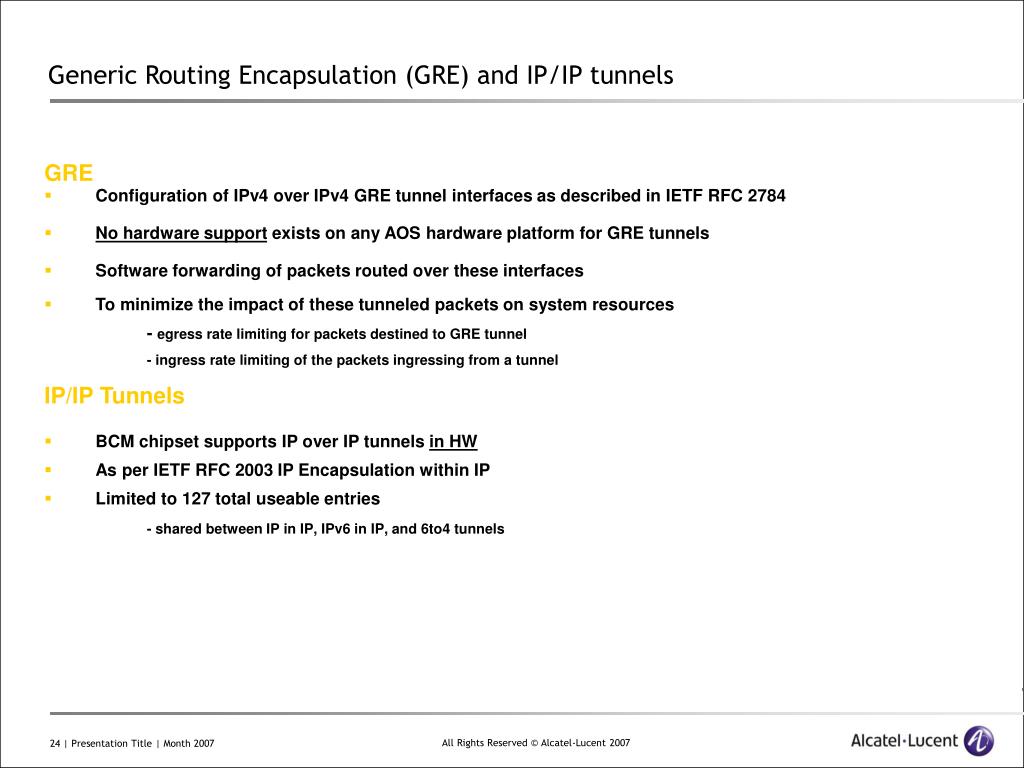

  22. Generic Routing Encapsulation (GRE) and IP/IP tunnels GRE • Configuration of IPv4 over IPv4 GRE tunnel interfaces as described in IETF RFC 2784 • No hardware support exists on any AOS hardware platform for GRE tunnels • Software forwarding of packets routed over these interfaces • To minimize the impact of these tunneled packets on system resources - egress rate limiting for packets destined to GRE tunnel - ingress rate limiting of the packets ingressing from a tunnel IP/IP Tunnels • BCM chipset supports IP over IP tunnels in HW • As per IETF RFC 2003 IP Encapsulation within IP • Limited to 127 total useable entries - shared between IP in IP, IPv6 in IP, and 6to4 tunnels

  23. DHCP Option 82 enhancements What? Based on the customer request we have • The capability to configure the Agent ID information format to a: string , the system name or the base mac-address (globally, no per port support). • Changed the slot/port format to a 2 bytes value for slot and port instead of IfIndex How? • New CLI is introduced that allows the administrator to pick what goes in the Agent ID field Agent ID

  24. Ethernet OAM enhancements What changed? • First release of ETH OAM was with 6.2.1.R01 was limited for OS6850– version 5.2 draft standard • Drafts supported in 6.3.1.R01 • IEEE 802.1ag Draft 7.0 • IEEE8021-CFM-MIB ( entirely different in terms of MIB and CLI) • Multi – NI support added for OS6850 and OS9000 • Enabled by default – as soon as management domain is created • Support added for MIP CCM database • MA ( Management association) creation: end point list for this MA is created and distributed across the network • Support of displaying all stored linktrace transactions IDs and linktrace reply records Limitations • 6.3.1 implementation is not compatible with 6.2.1 • Default CC Interval is 10s (educed to 1 s we would have to scale down the number of MEPs as well to 64)

  25. 6.3.1.R01 Software – Overview -1 • Layer 2 • VLAN Stacking enhancements – service oriented architecture, inner tag QoS, bandwidth management on a per port, port + CVLAN bases, control protocol BPDU handling on UNI ports etc. • DHCP Snooping over Vlan stacking • IP Mcast VLAN enhancements – multiple sender ports • VLAN stacking interoperability with RRSTP • PVST+ support – interop with Cisco, extension of our 1x1 STP Layer 3 • 128 OSPF Neighbors - scale to 128 neighbors per area • Support for 31 bit network mask – for point-to-point connection b/n routers

  26. 6.3.1.R01 Software – Overview -2 • IPv6 suite enhancements • IPv6 Multicast Routing protocol (PIM-SM/DM) • IPV6 management: ftp, telnet/ssh client, http/https , SNMP • L4 ACL over IPv6 Miscellaneous • User profiles • IE7 support for AVLAN • Windows Vista Support for AVLAN • AOS Alcatel-Lucent re-branding • Global commands to admin up/down all VRRP instances and set up default values • DSCP condition enhancements –adding range

  27. OmniSwitch 6850 – activities on the roadmap • Adding native support of 6850 within 5620 SAM from IPD • Development underway • Release 6 of SAM scheduled for Q2, 2008 • Metro Ethernet Forum Certifications • MEF 9 and MEF 14 • Tests performed with a third party certification company • Expecting the certificates to be received in the coming week

  28. 6.3.1 Additional resources • Draft version of user guide, network config. guide and CLI guide are available on Intranet • http://uscals-sp1.ind.alcatel.com/sites/TechPub/visitor_homepage/631%20CLI%20Draft%20Documents/Forms/AllItems.aspx • 6.3.1 Release notes • Under review • Performance guideline document • Under development • A complete list of PER will be posted on the Intranet • http://aww.ind.alcatel.com/pre_dr4.cfm?view=631

  29. Thank you!
