ELEN 468 Advanced Logic Design

1. ELEN 468Advanced Logic Design Lecture 15 Synthesis of Language Construct I ELEN 468 Lecture 15

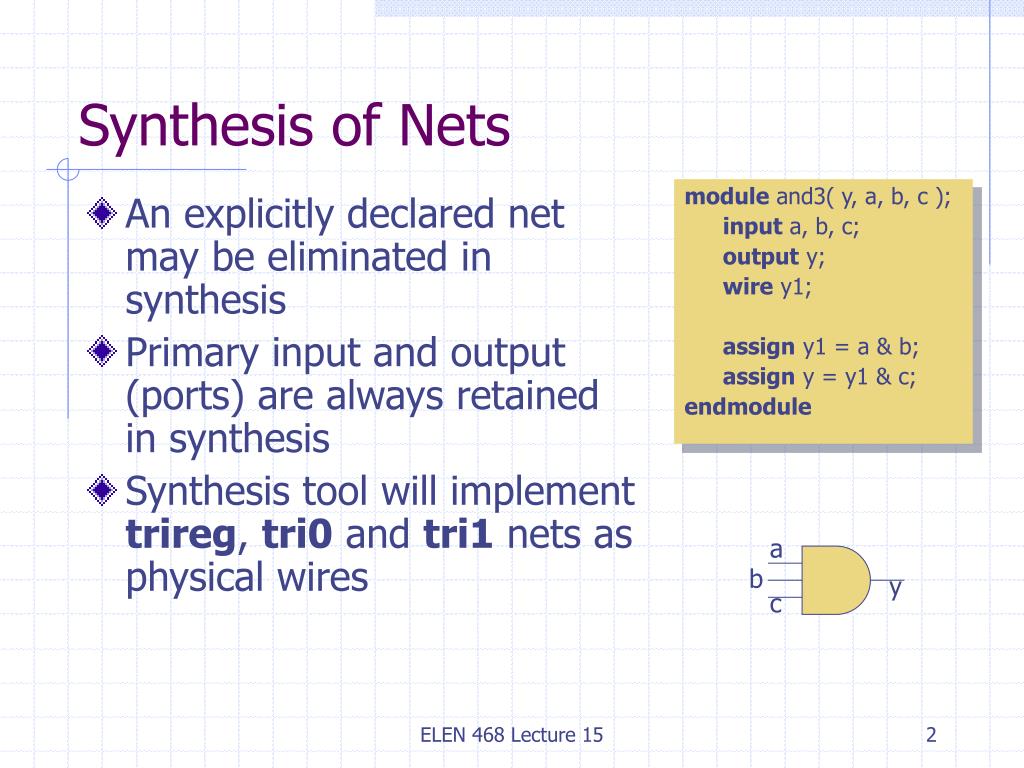

2. module and3( y, a, b, c ); input a, b, c; output y; wire y1; assign y1 = a & b; assign y = y1 & c; endmodule An explicitly declared net may be eliminated in synthesis Primary input and output (ports) are always retained in synthesis Synthesis tool will implement trireg, tri0 and tri1 nets as physical wires Synthesis of Nets a b y c ELEN 468 Lecture 15

3. Synthesis of Register Variables • A hardware register will be generated for a register variable when • It is referenced before value is assigned in a behavior • Assigned value in an edge-sensitive behavior and is referenced by an assignment outside the behavior • Assigned value in one clock cycle and referenced in another clock cycle • Multi-phased latches may not be supported in synthesis ELEN 468 Lecture 15

4. Synthesis of Integers • Initially implemented as a 32-bit register • Always specify size when declare a constant • For example, parameter a = 3’b7 will consume 3 bits while default is 32 bits ELEN 468 Lecture 15

5. Unsupported Data Types • real • time • realtime • string ELEN 468 Lecture 15

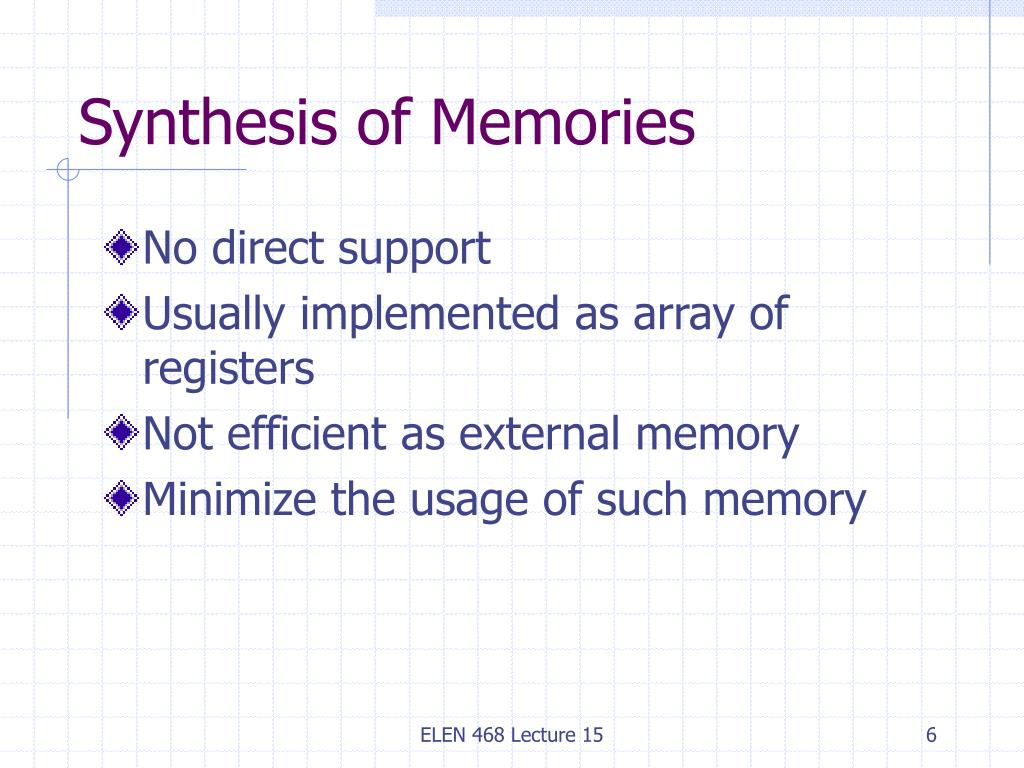

6. Synthesis of Memories • No direct support • Usually implemented as array of registers • Not efficient as external memory • Minimize the usage of such memory ELEN 468 Lecture 15

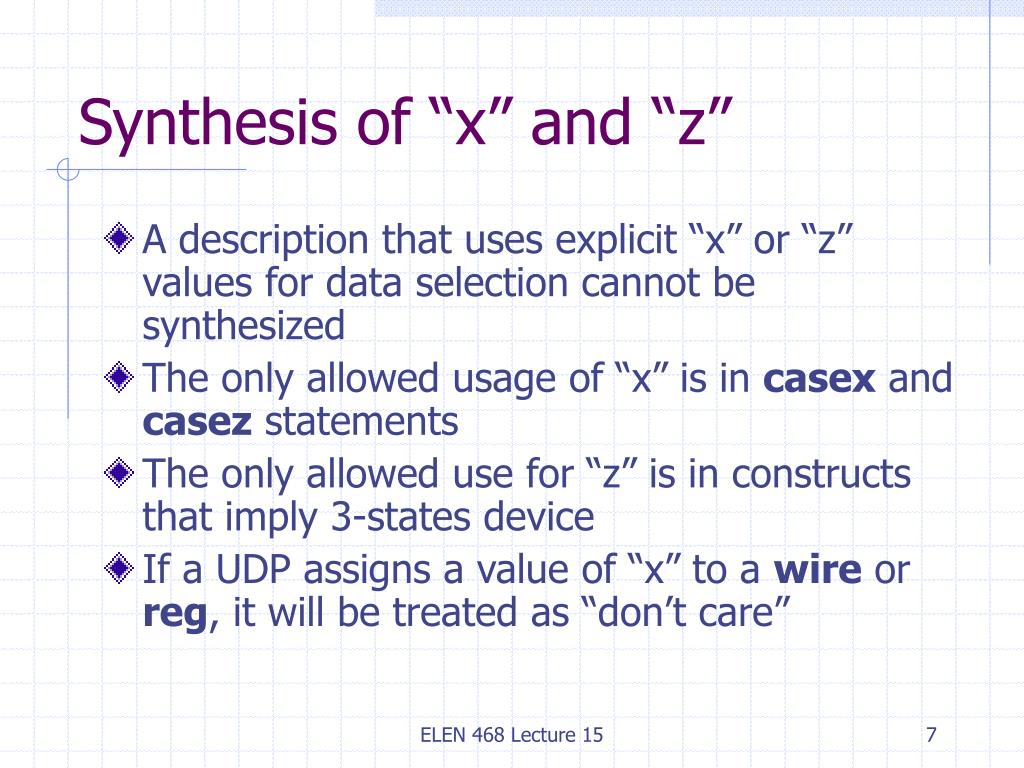

7. Synthesis of “x” and “z” • A description that uses explicit “x” or “z” values for data selection cannot be synthesized • The only allowed usage of “x” is in casex and casez statements • The only allowed use for “z” is in constructs that imply 3-states device • If a UDP assigns a value of “x” to a wire or reg, it will be treated as “don’t care” ELEN 468 Lecture 15

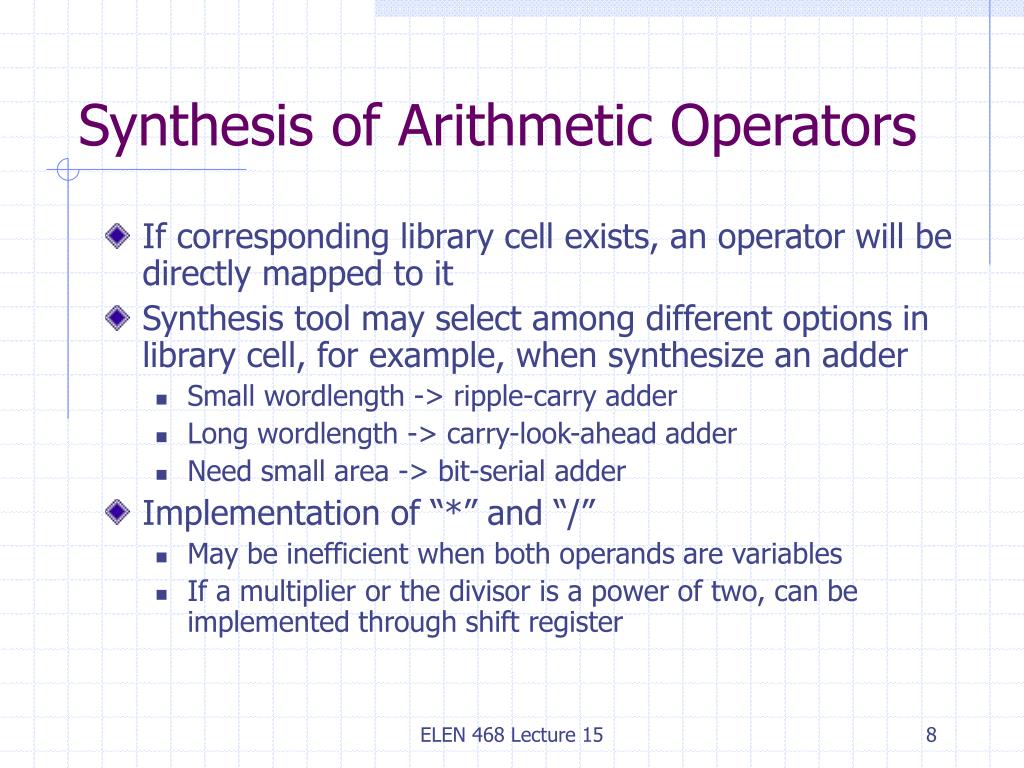

8. Synthesis of Arithmetic Operators • If corresponding library cell exists, an operator will be directly mapped to it • Synthesis tool may select among different options in library cell, for example, when synthesize an adder • Small wordlength -> ripple-carry adder • Long wordlength -> carry-look-ahead adder • Need small area -> bit-serial adder • Implementation of “*” and “/” • May be inefficient when both operands are variables • If a multiplier or the divisor is a power of two, can be implemented through shift register ELEN 468 Lecture 15

9. Synthesis of Shift Operators • Synthesis tools normally support shifting by a constant number of bits • Cannot support a variable shift ELEN 468 Lecture 15

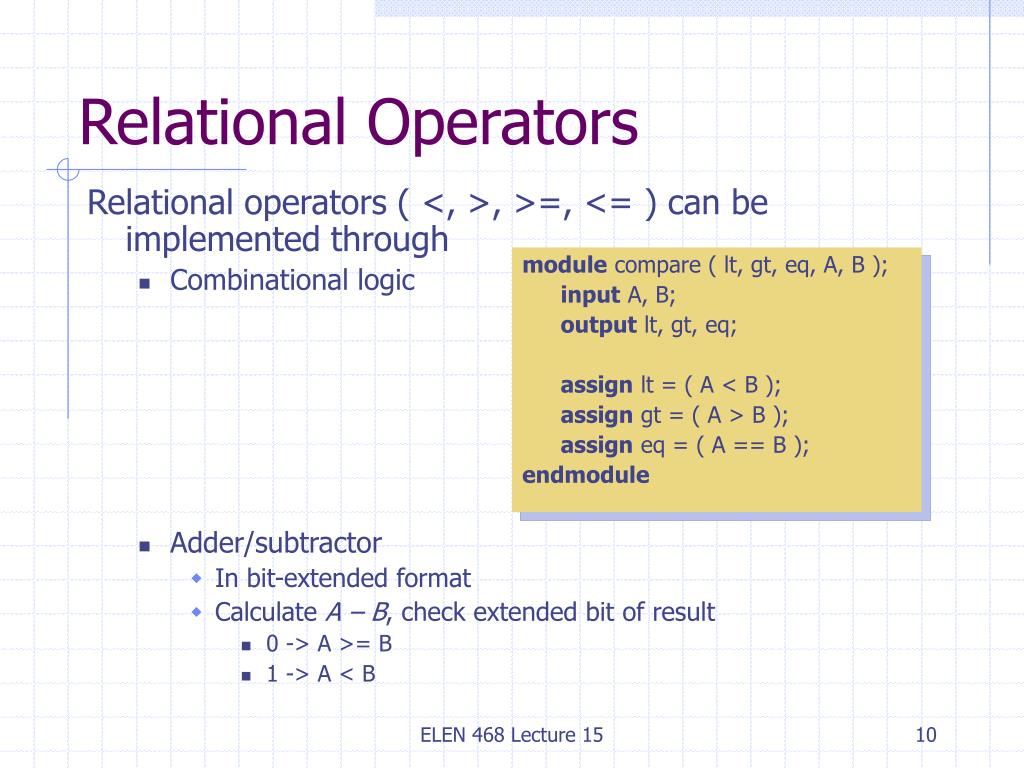

10. Relational operators ( <, >, >=, <= ) can be implemented through Combinational logic Adder/subtractor In bit-extended format Calculate A – B, check extended bit of result 0 -> A >= B 1 -> A < B module compare ( lt, gt, eq, A, B ); input A, B; output lt, gt, eq; assign lt = ( A < B ); assign gt = ( A > B ); assign eq = ( A == B ); endmodule Relational Operators ELEN 468 Lecture 15

11. Synthesis of Identity Operators • The logical identity operators ( ==, != ) and the case identity operators ( ===, !== ) are normally synthesized to combinational logic ELEN 468 Lecture 15

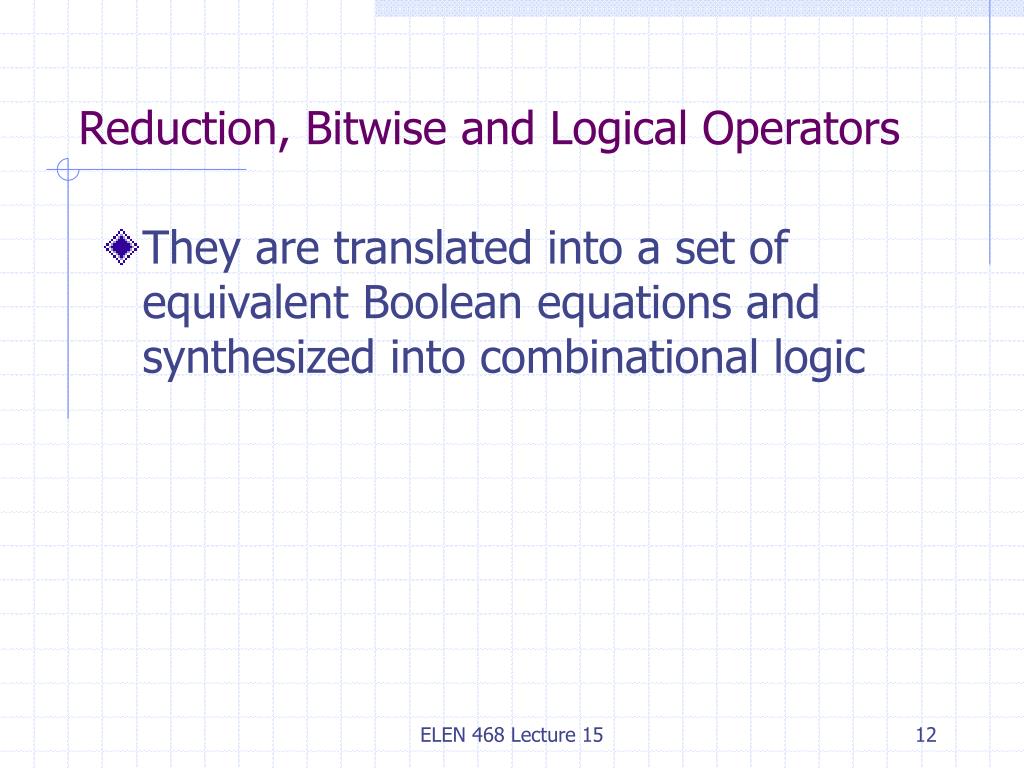

12. Reduction, Bitwise and Logical Operators • They are translated into a set of equivalent Boolean equations and synthesized into combinational logic ELEN 468 Lecture 15

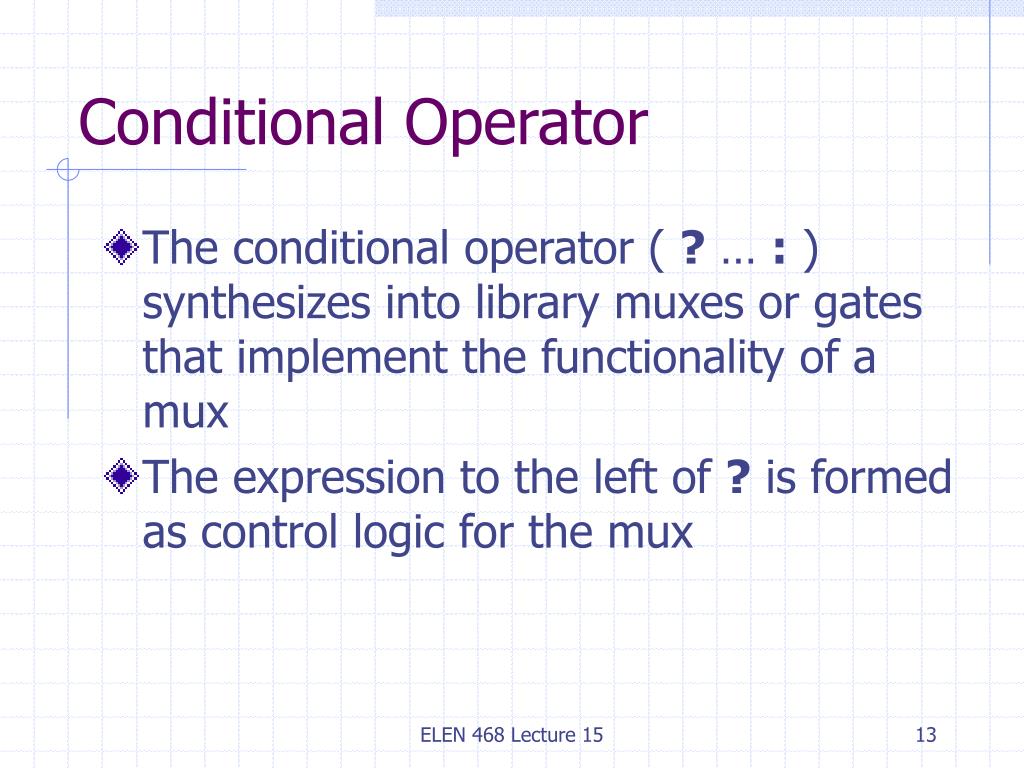

13. Conditional Operator • The conditional operator ( ? … : ) synthesizes into library muxes or gates that implement the functionality of a mux • The expression to the left of ? is formed as control logic for the mux ELEN 468 Lecture 15

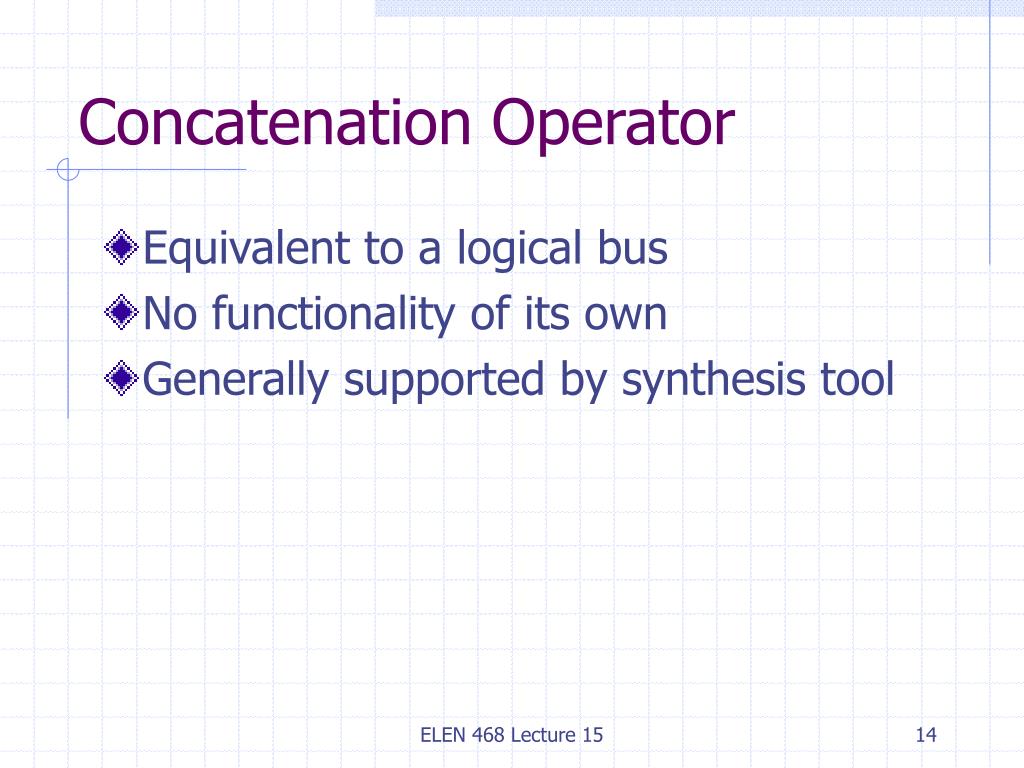

14. Concatenation Operator • Equivalent to a logical bus • No functionality of its own • Generally supported by synthesis tool ELEN 468 Lecture 15

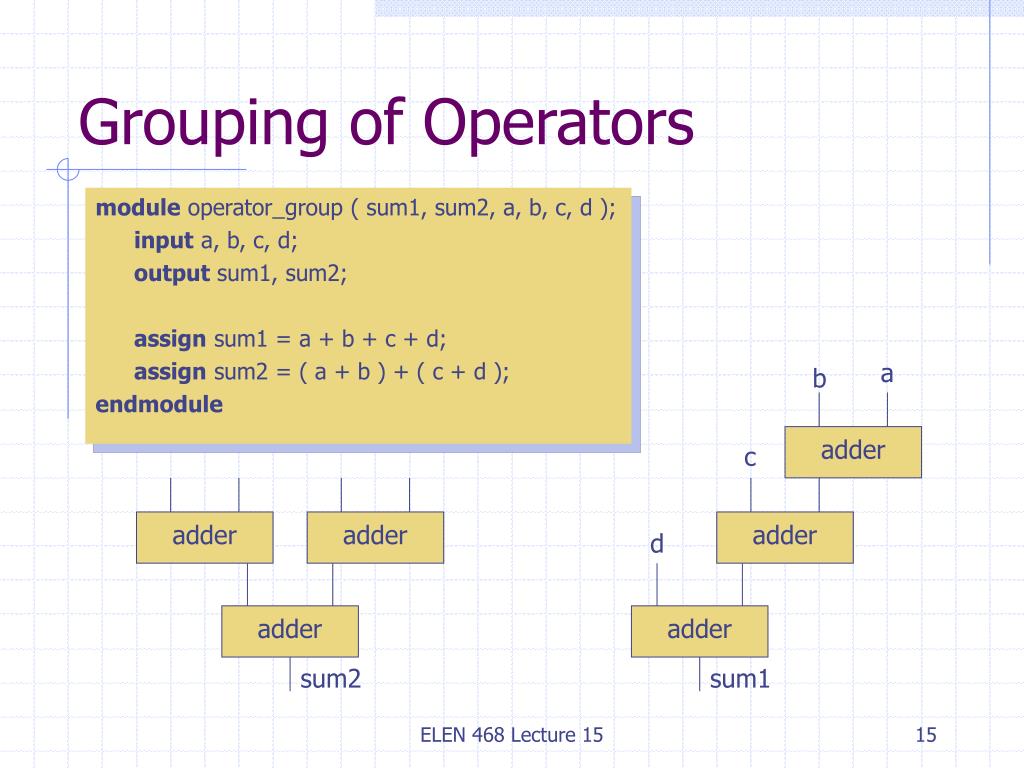

15. adder adder adder adder adder adder Grouping of Operators module operator_group ( sum1, sum2, a, b, c, d ); input a, b, c, d; output sum1, sum2; assign sum1 = a + b + c + d; assign sum2 = ( a + b ) + ( c + d ); endmodule a b c d sum2 sum1 ELEN 468 Lecture 15

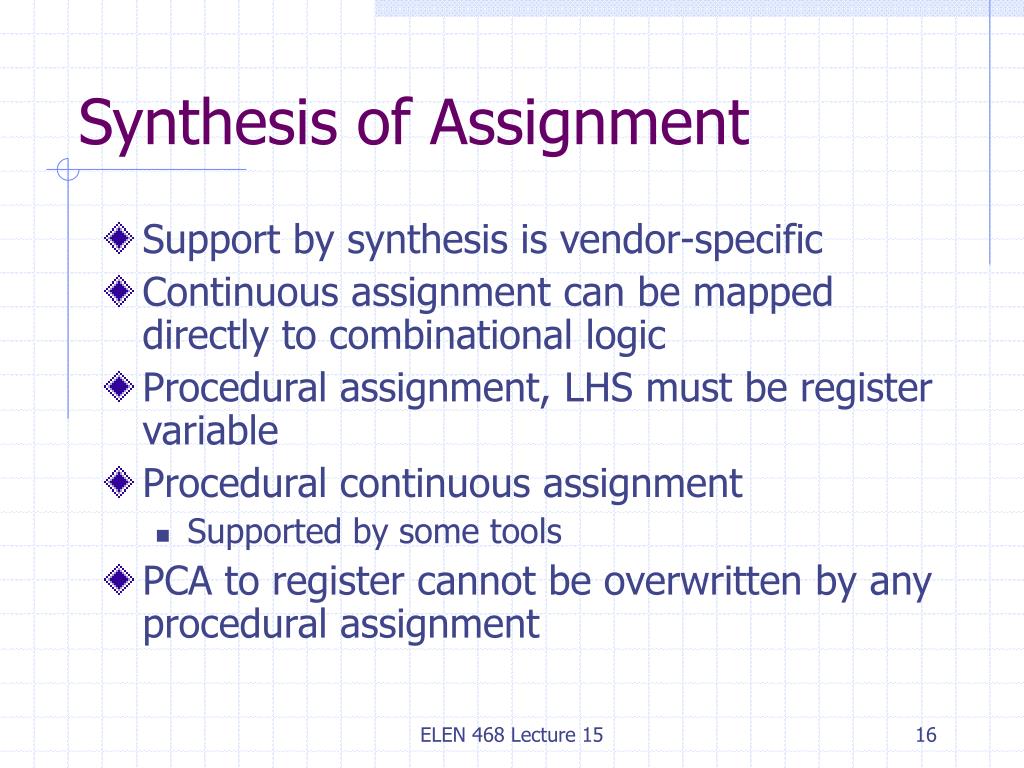

16. Synthesis of Assignment • Support by synthesis is vendor-specific • Continuous assignment can be mapped directly to combinational logic • Procedural assignment, LHS must be register variable • Procedural continuous assignment • Supported by some tools • PCA to register cannot be overwritten by any procedural assignment ELEN 468 Lecture 15

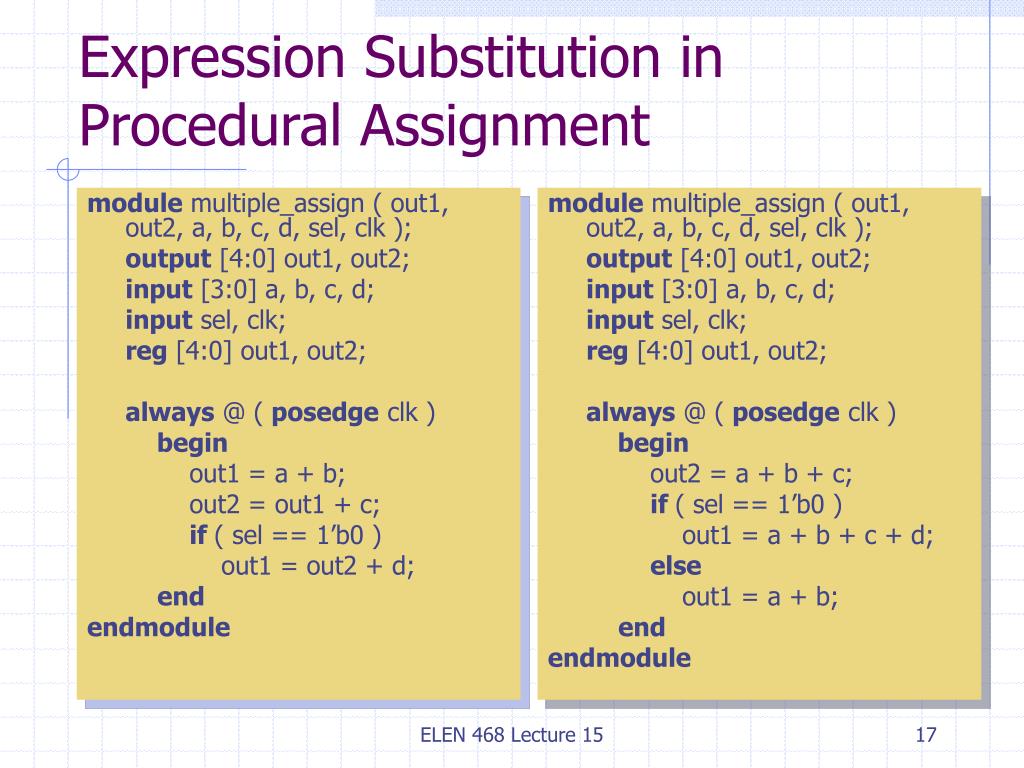

17. module multiple_assign ( out1, out2, a, b, c, d, sel, clk ); output [4:0] out1, out2; input [3:0] a, b, c, d; input sel, clk; reg [4:0] out1, out2; always @ ( posedge clk ) begin out1 = a + b; out2 = out1 + c; if ( sel == 1’b0 ) out1 = out2 + d; end endmodule module multiple_assign ( out1, out2, a, b, c, d, sel, clk ); output [4:0] out1, out2; input [3:0] a, b, c, d; input sel, clk; reg [4:0] out1, out2; always @ ( posedge clk ) begin out2 = a + b + c; if ( sel == 1’b0 ) out1 = a + b + c + d; else out1 = a + b; end endmodule Expression Substitution in Procedural Assignment ELEN 468 Lecture 15

18. Exercise 5 ELEN 468 Lecture 15

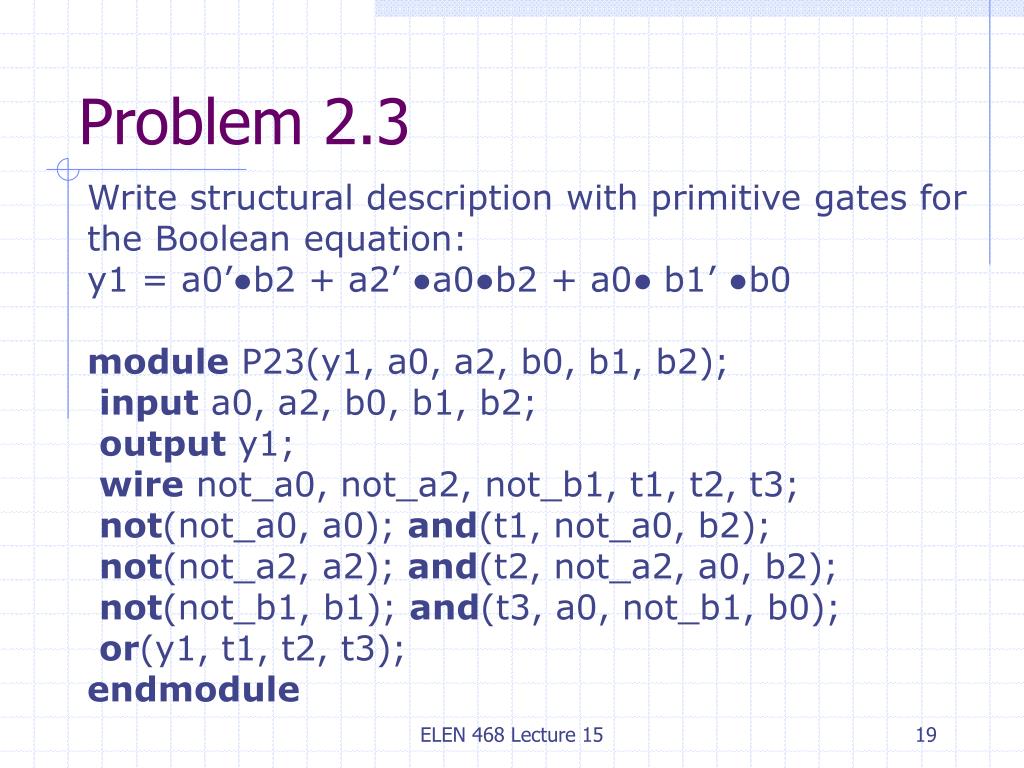

19. Problem 2.3 Write structural description with primitive gates for the Boolean equation: y1 = a0’●b2 + a2’ ●a0●b2 + a0● b1’ ●b0 module P23(y1, a0, a2, b0, b1, b2); input a0, a2, b0, b1, b2; output y1; wire not_a0, not_a2, not_b1, t1, t2, t3; not(not_a0, a0); and(t1, not_a0, b2); not(not_a2, a2); and(t2, not_a2, a0, b2); not(not_b1, b1); and(t3, a0, not_b1, b0); or(y1, t1, t2, t3); endmodule ELEN 468 Lecture 15

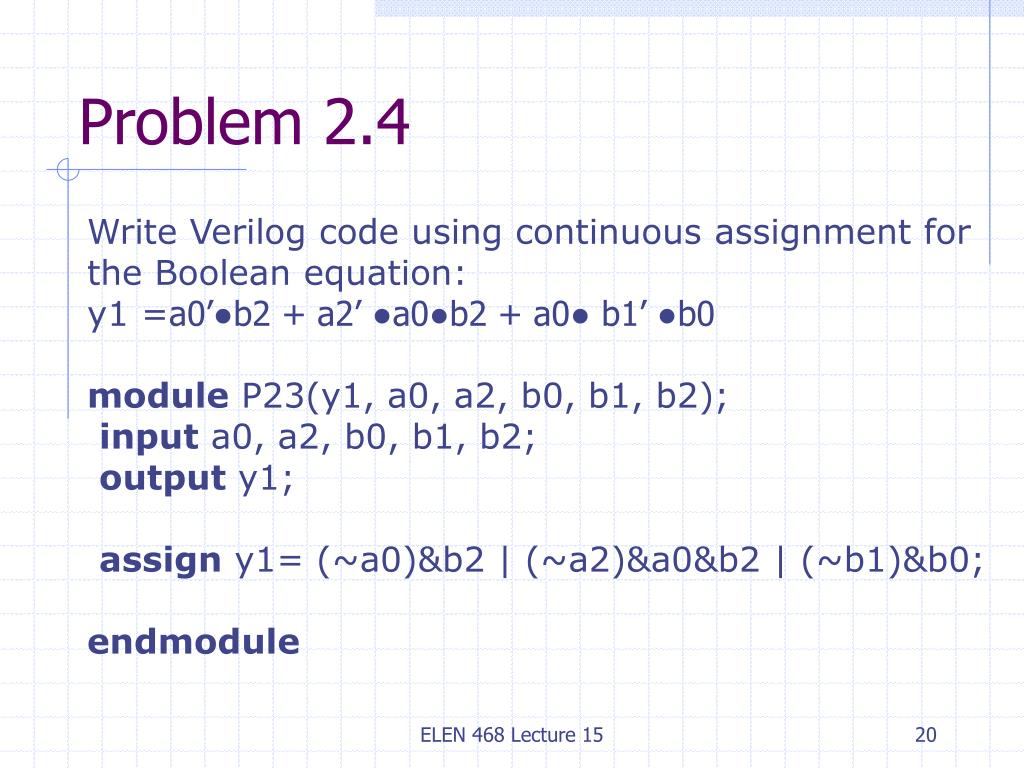

20. Problem 2.4 Write Verilog code using continuous assignment for the Boolean equation: y1 =a0’●b2 + a2’ ●a0●b2 + a0● b1’ ●b0 module P23(y1, a0, a2, b0, b1, b2); input a0, a2, b0, b1, b2; output y1; assign y1= (~a0)&b2 | (~a2)&a0&b2 | (~b1)&b0; endmodule ELEN 468 Lecture 15

21. Problem 2.11 Using Verilog predefined primitive, write a description of the circuit below: module p211(q, qb, set, rst); input [7:0] set, rst; output [7:0] q, qb; nor [7:0] (q, rst, qb); nor [7:0] (qb, set, q); endmodule ELEN 468 Lecture 15

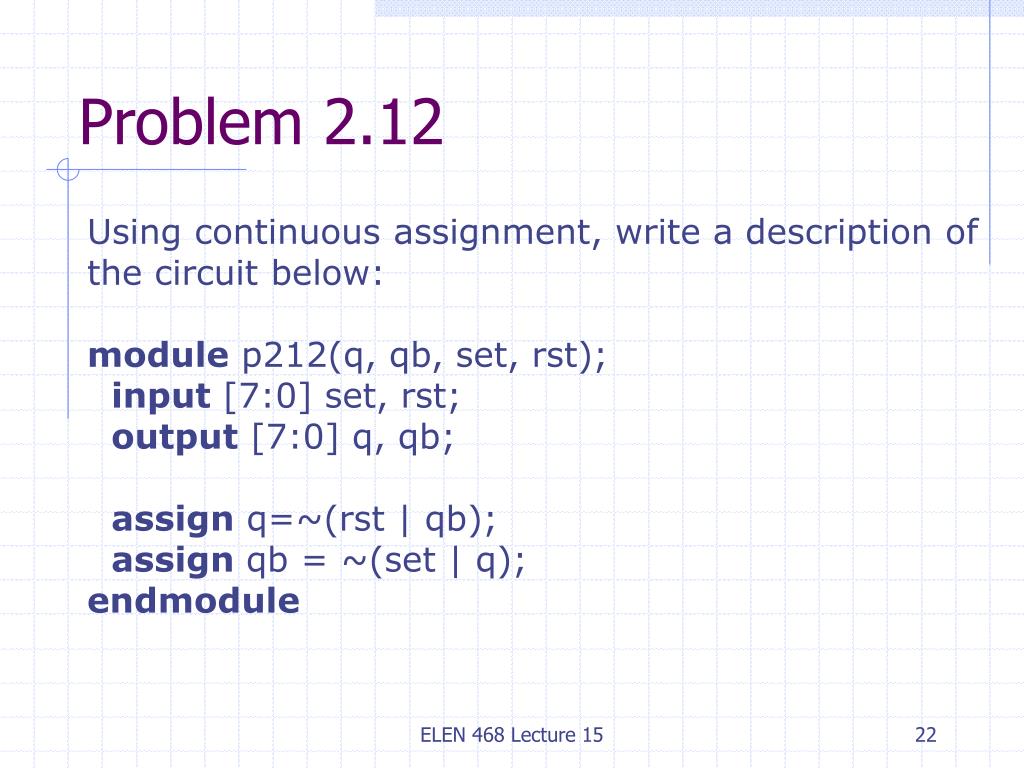

22. Problem 2.12 Using continuous assignment, write a description of the circuit below: module p212(q, qb, set, rst); input [7:0] set, rst; output [7:0] q, qb; assign q=~(rst | qb); assign qb = ~(set | q); endmodule ELEN 468 Lecture 15

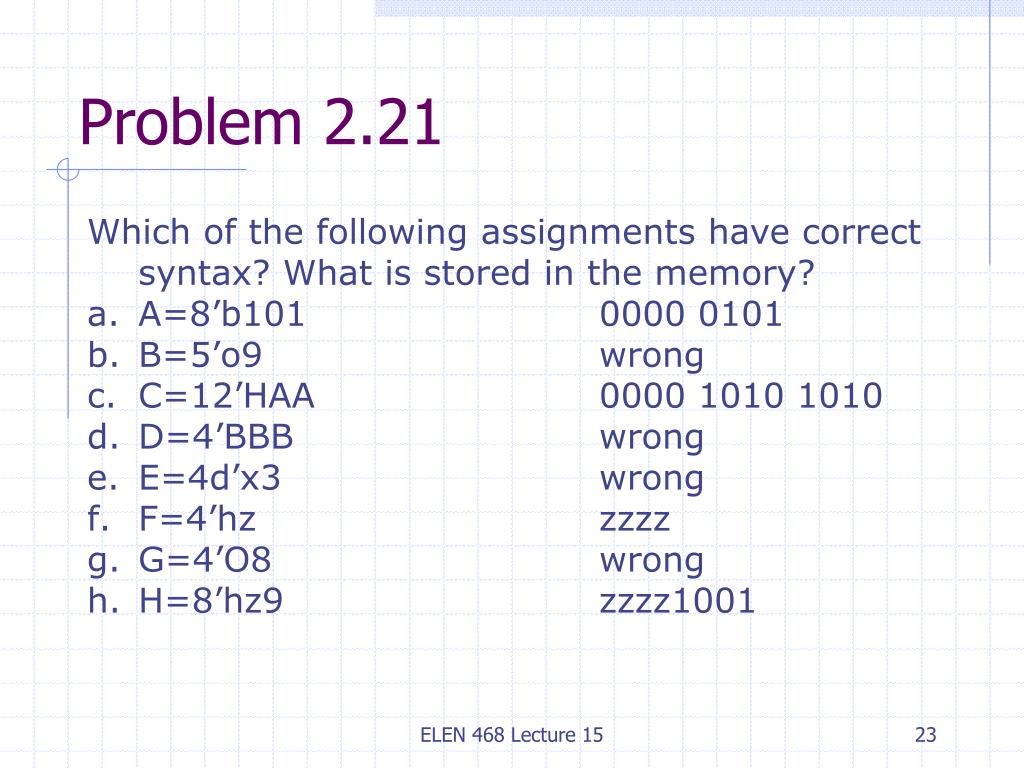

23. Problem 2.21 • Which of the following assignments have correct syntax? What is stored in the memory? • A=8’b101 0000 0101 • B=5’o9 wrong • C=12’HAA 0000 1010 1010 • D=4’BBB wrong • E=4d’x3 wrong • F=4’hz zzzz • G=4’O8 wrong • H=8’hz9 zzzz1001 ELEN 468 Lecture 15
