  1. Agenda 09:30 – 09:45 Welcome and introductions 09:45 – 10:15 The Ventura Platform 10:15 – 11:00 Chassis Management - AEMS 11:00 – 11:15 Break 11:15 – 12:30 VS902 Video Contribution Codec 12:30 – 13:15 Lunch 13:15 – 14:00 X-net application overview 14:00 – 15:00 VS902 Practical Hardware and configuration 15:00 – 15:15 Break 15:15 – 16:30 VS902 Practical status and alarms 16:30 – 17:00 X-net application 17:00 Wrap-up

  2. Agenda 09:30 – 09:45 Welcome and introductions 09:45 – 10:15 The Ventura Platform 10:15 – 11:15 Chassis Management - AEMS 11:15 – 11:30 Break 11:15 – 12:30 VS902 Video Contribution Codec • Overview • Configuration and status • Upgrade

  3. Video Over IP Products VS902 Multi Format Video Codec

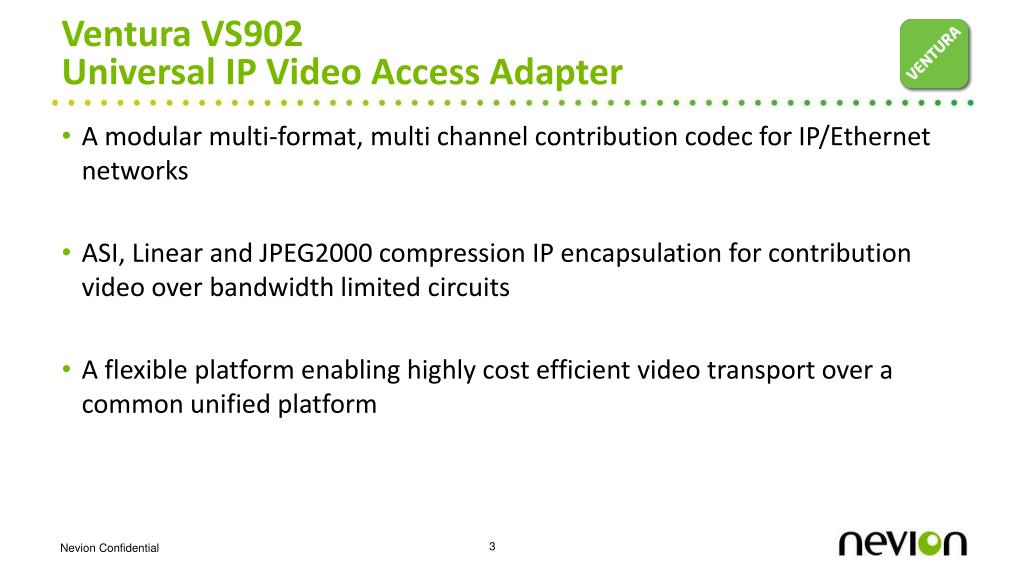

  4. Ventura VS902 Universal IP Video Access Adapter • A modular multi-format, multi channel contribution codec for IP/Ethernet networks • ASI, Linear and JPEG2000 compression IP encapsulation for contribution video over bandwidth limited circuits • A flexible platform enabling highly cost efficient video transport over a common unified platform

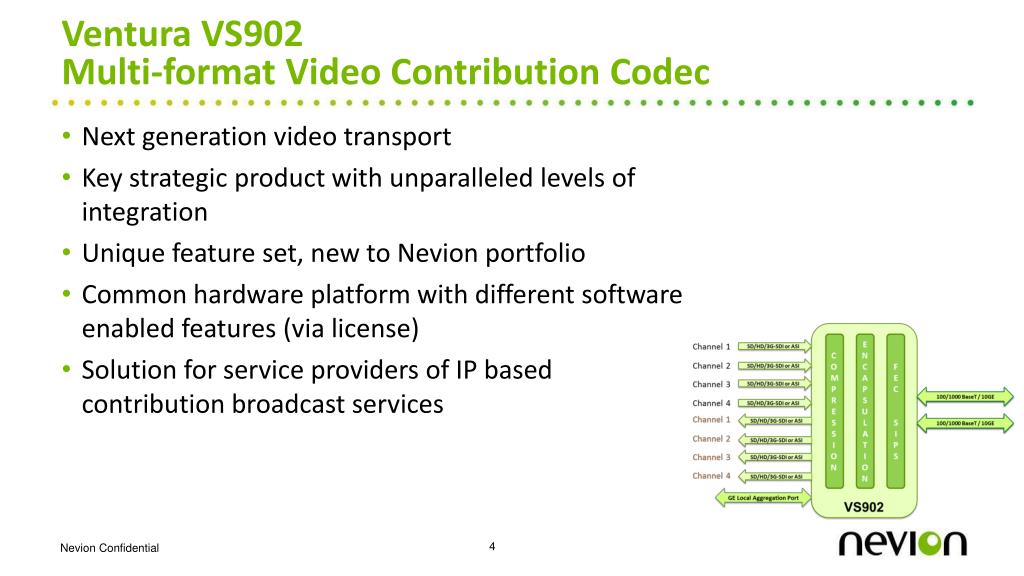

  5. Ventura VS902 Multi-format Video Contribution Codec • Next generation video transport • Key strategic product with unparalleled levels of integration • Unique feature set, new to Nevion portfolio • Common hardware platform with different software enabled features (via license) • Solution for service providers of IP based contribution broadcast services

  6. VS902 v IVNP-HD • Replacement for IVNP-HD • Modular design – not an enclosed chassis • Easier replacement of parts • Different processor/management system • Visually consistency for ease of use • Functional differences (switching IP based on VS902) • Adds option for Linear uncompressed transport (in addition to ASI and J2K) • It is not an IVNP-HD! • Third party product – IVNP-HD designed by and made for BT

  7. Ventura VS902Multi-format Video Contribution Codec • Single slot Ventura module – VS103 or VS101 • Very high channel density • Low cost per channel • Dual 1/10Gbps network interfaces using SFP and SFP+ technology • Supporting Electrical/Optical • Intra-facility and long range capability • 100Mbps FE operation

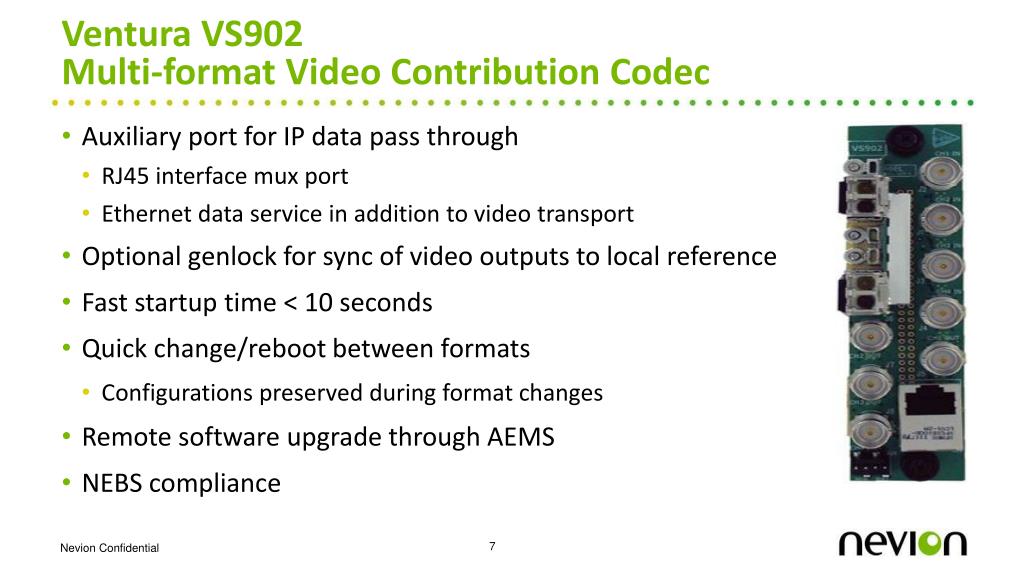

  8. Ventura VS902Multi-format Video Contribution Codec • Auxiliary port for IP data pass through • RJ45 interface mux port • Ethernet data service in addition to video transport • Optional genlock for sync of video outputs to local reference • Fast startup time < 10 seconds • Quick change/reboot between formats • Configurations preserved during format changes • Remote software upgrade through AEMS • NEBS compliance

  9. VS902 – Universal Video Transport • Uncompressed (Linear) transport • SD-SDI, HD-SDI, 3G-SDI • 4K transport • JPEG 2000 compression and transport • SD-SDI, HD-SDI, 3G-SDI* and 3D • Up to 500Mbps for mathematically lossless compression • Latency of 60msec (Low Latency, 8msec, option in Q3/2014) • DVB-ASI transport • 1 - 213Mbps, SPTS or MPTS * Roadmap feature

  10. Ventura VS902 Multi-format Video Contribution Codec COMPRESSION ENCAPSULATION FEC SIPS Channel 1 SD/HD/3G-SDI or ASI Video Input channels Channel 2 SD/HD/3G-SDI or ASI Channel 3 SD/HD/3G-SDI or ASI 100/1000 BaseT/ 10GE Channel 4 SD/HD/3G-SDI or ASI SD/HD/3G-SDI or ASI Channel 1 100/1000 BaseT / 10GE Channel 2 Output video SD/HD/3G-SDI or ASI Channel 3 SD/HD/3G-SDI or ASI Channel 4 GE Local Aggregation Port SD/HD/3G-SDI or ASI VS902

  11. VS902 Linear Transport • 4 channel bidirectional transport • Dual 10 Gbps optical network interface using SFP+

  12. VS902 JPEG2000 Compression • 2 channel unidirectional transport • Dual 1 Gbps network interface, optical or copper

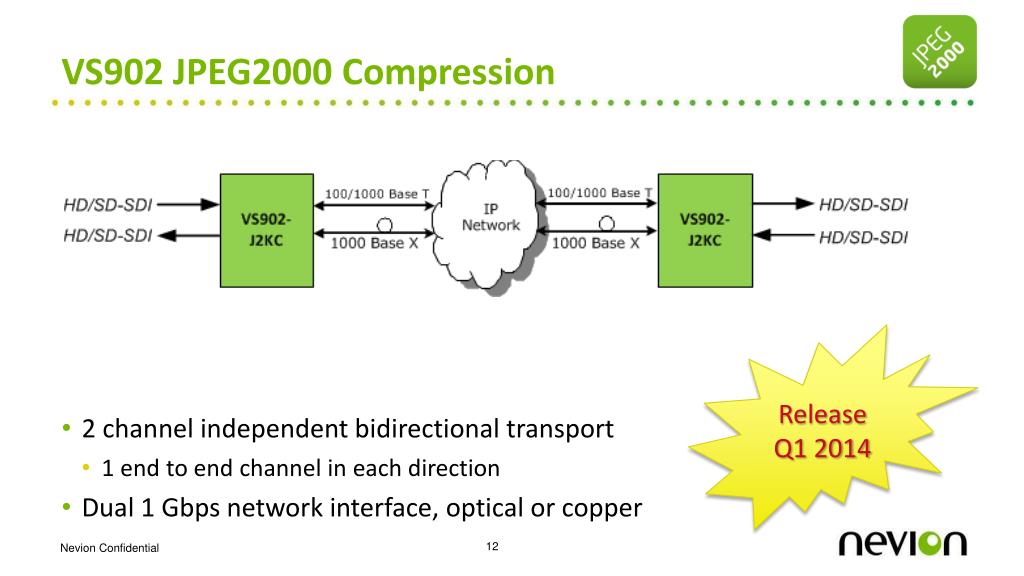

  13. VS902 JPEG2000 Compression • 2 channel independent bidirectional transport • 1 end to end channel in each direction • Dual 1 Gbps network interface, optical or copper Release Q1 2014

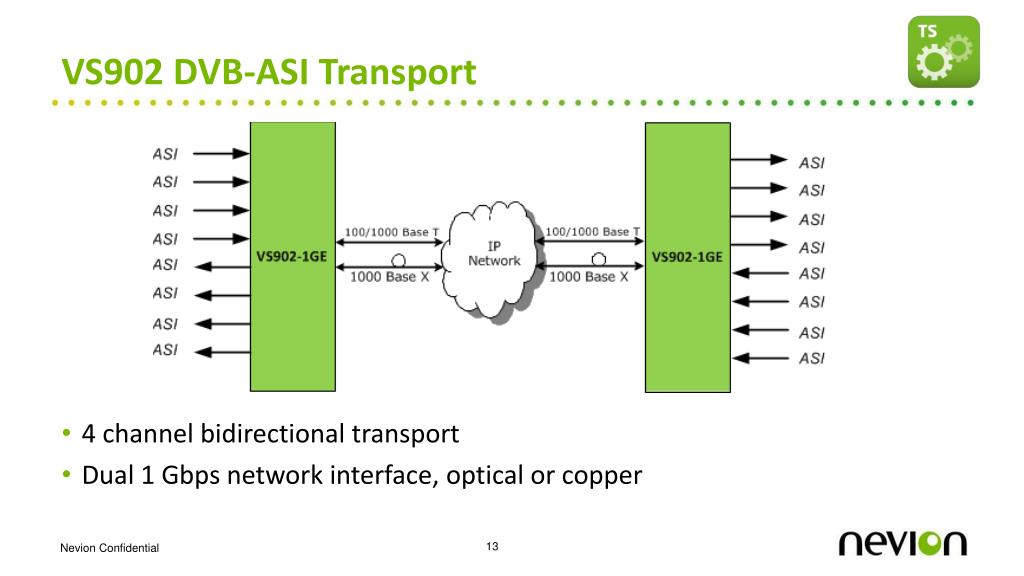

  14. VS902 DVB-ASI Transport • 4 channel bidirectional transport • Dual 1 Gbps network interface, optical or copper

  15. Ventura VS902– Standards based transport • Linear encapsulation and de-encapsulation using SMPTE2022-6 • 4 x SD-SDI / HD-SDI* • or 3 x 3G-SDI* signals • DVB-ASI mode simultaneous encapsulation using SMPTE2022-2 • 4 x DVB-ASI encapsulation • and 4 x DVB-ASI de-encapsulation • J2K compression/decompression and encapsulation using SMPTE2022-2 • SD-SDI / HD-SDI at user defined rates up to 500Mbps • 2 x unidirectional channels * With 10GigE bandwidth available

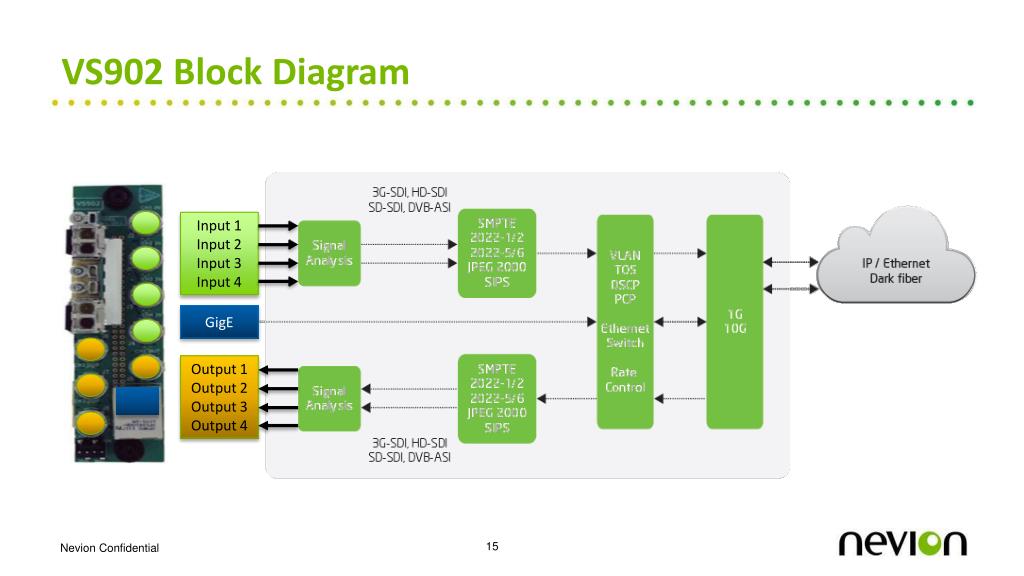

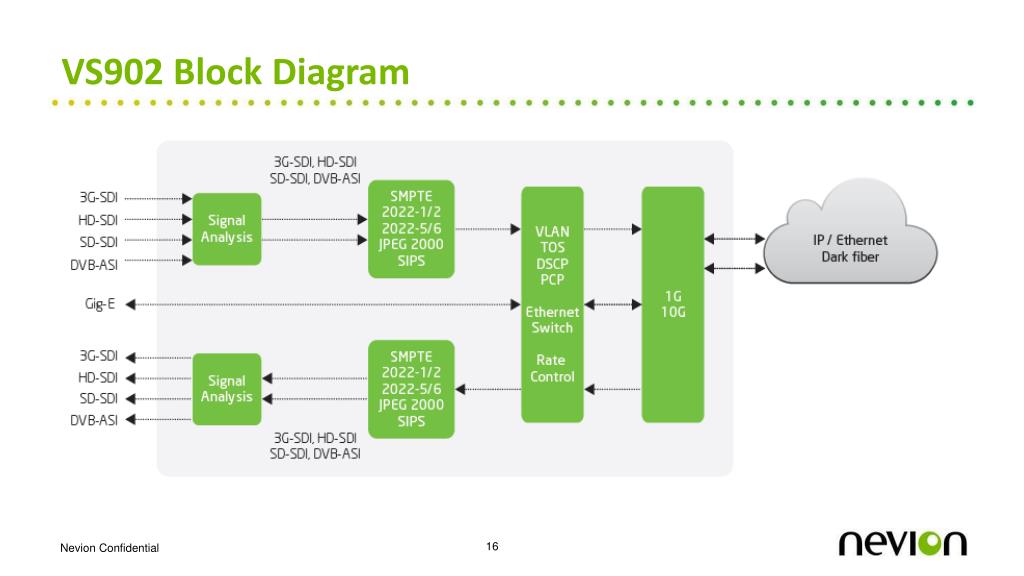

  16. VS902 Block Diagram Input 1 Input 2 Input 3 Input 4 GigE Output 1 Output 2 Output 3 Output 4

  17. VS902 Block Diagram

  18. VS902 Block Diagram Multiple input/output formats* auto sensing *depending on boot mode

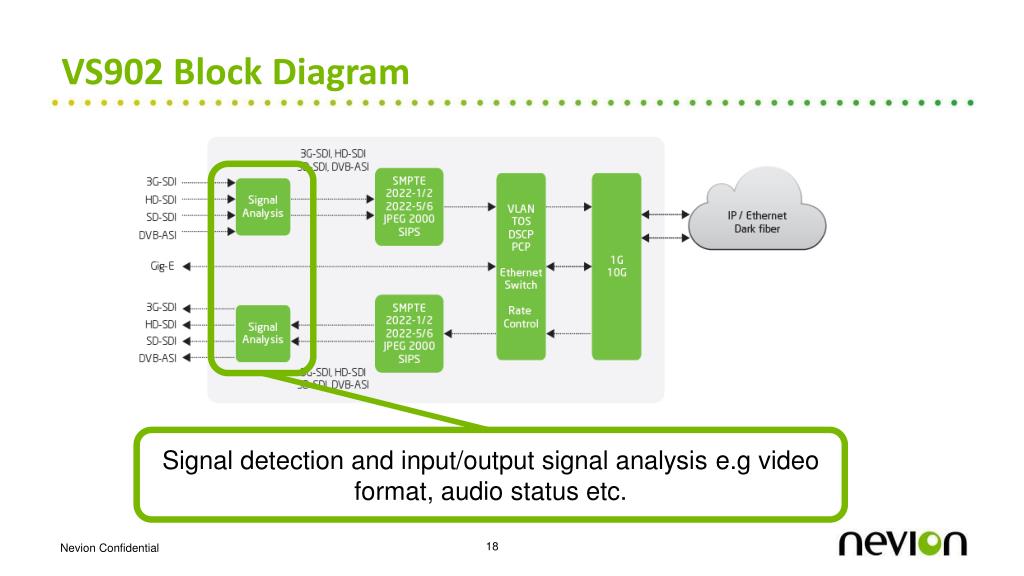

  19. VS902 Block Diagram Signal detection and input/output signal analysis e.g video format, audio status etc.

  20. VS902 Block Diagram Video compression and encapsulation into MPEG-2 Transport Stream. SMPTE standard wrapping of TS with FEC.

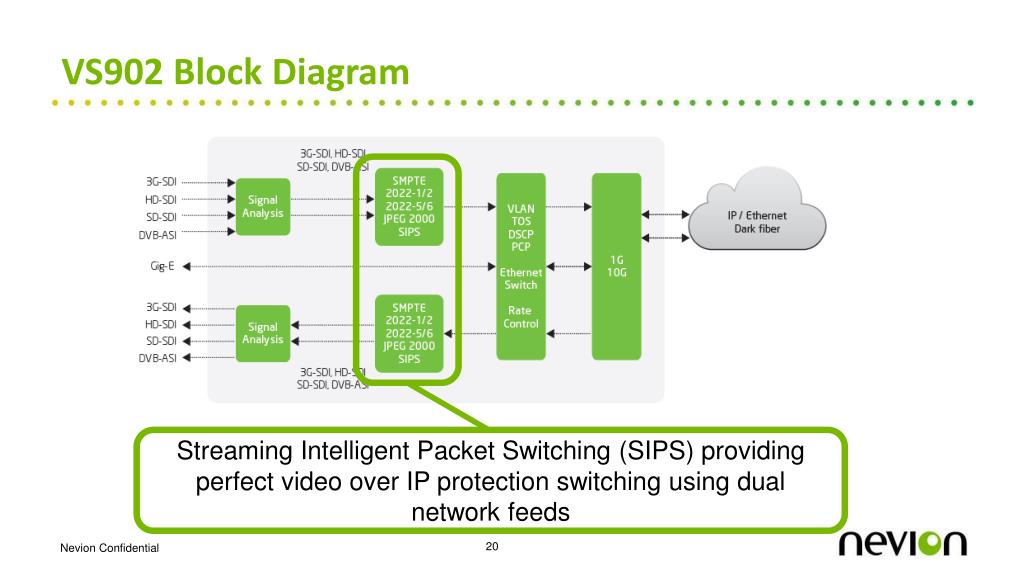

  21. VS902 Block Diagram Streaming Intelligent Packet Switching (SIPS) providing perfect video over IP protection switching using dual network feeds

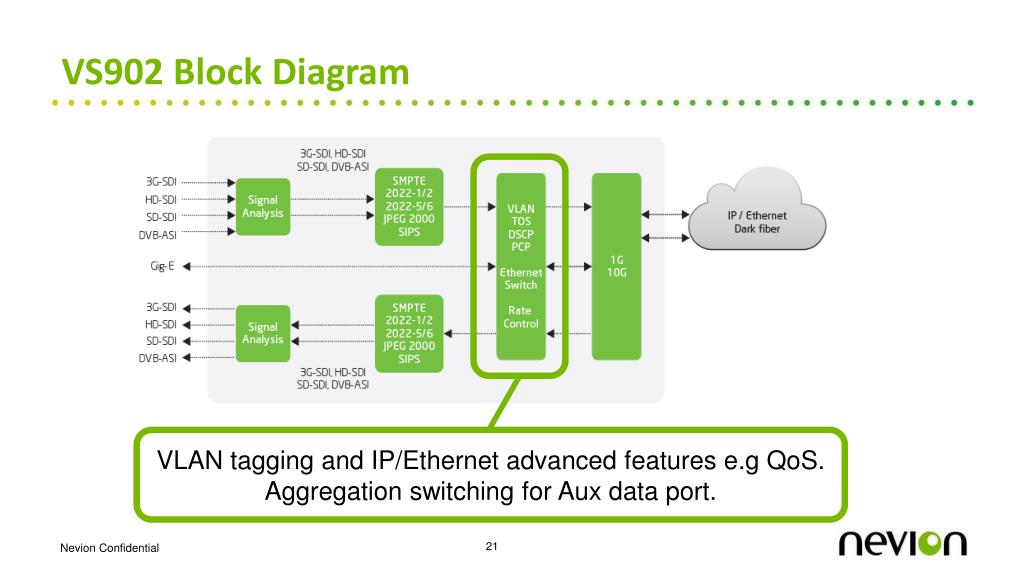

  22. VS902 Block Diagram VLAN tagging and IP/Ethernet advanced features e.gQoS. Aggregation switching for Aux data port.

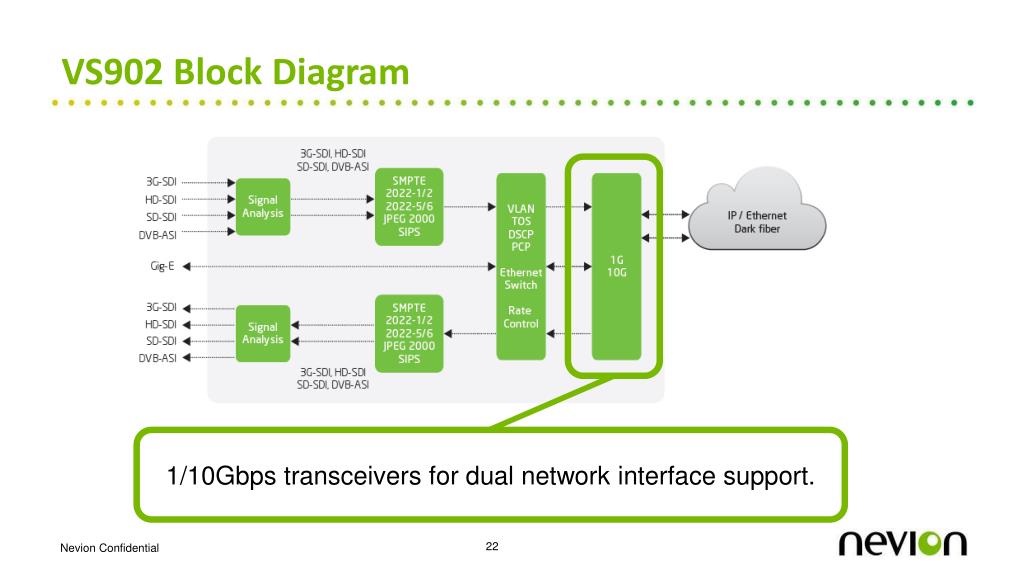

  23. VS902 Block Diagram 1/10Gbps transceivers for dual network interface support.

  24. VS902 Physical Connectivity SFP/SFP+ Optical or Cu interface LED for status and alarms 4 x HD/SD-SDI or ASI Video inputs 4 x HD/SD-SDI or ASI outputs Video Monitor Port Aux data port Alarm Relay for external Indication

  25. VS902 Connections – ASI Mode 1Gbps SFP Network Port 1 4 x ASI inputs 1Gbps SFP Network Port 2 4 x ASI outputs Aux data port

  26. VS902 Connections – Linear Mode 10Gbps SFP+ Network Port 1 4 x 3G/HD/SD-SDI Inputs 10Gbps SFP+ Network Port 2 4 x 3G/HD/SD-SDI Outputs Aux data port

  27. VS902 Connections – J2K Encoder Mode Channel 1 HD/SD-SDI Input 1Gbps SFP Network Port 1 1Gbps SFP Network Port 2 Channel 3 HD/SD-SDI Input Aux data port

  28. VS902 Connections – J2K Decoder Mode 1Gbps SFP Network Port 1 1Gbps SFP Network Port 2 Ch 1 HD/SD-SDIreplicatedoutput Ch 1 HD/SD-SDI Output Ch 3 HD/SD-SDI Output Ch 3 HD/SD-SDIreplicated output Aux data port

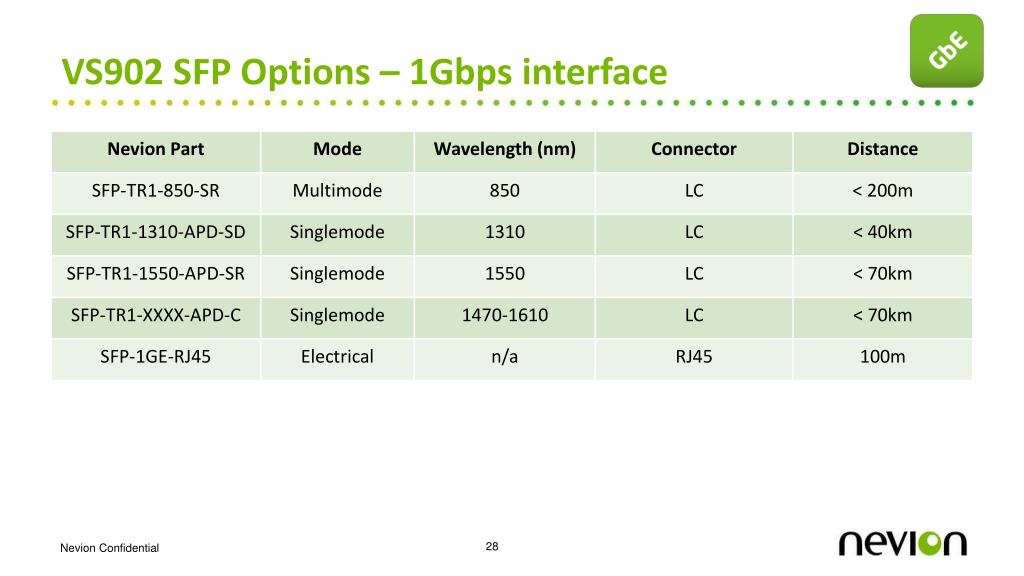

  29. VS902 SFP Options – 1Gbps interface

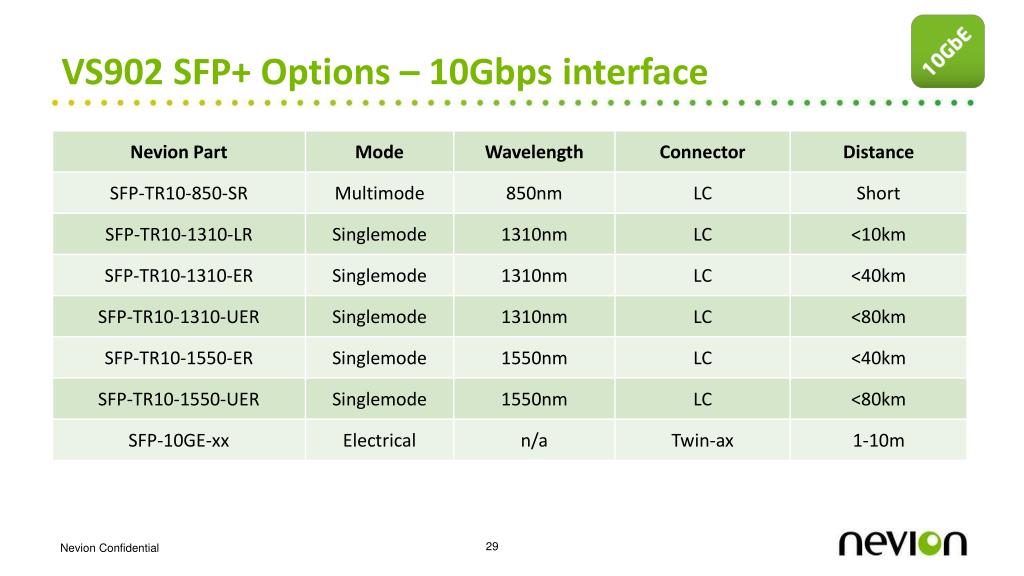

  30. VS902 SFP+ Options – 10Gbps interface

  31. Protection techniques • Standards compliant FEC (Forward Error Correction) • SMPTE2022-1 for JPEG2000 and ASI transport • SMPTE2022-5 for linear high rate transport • Integrated SIPS (Streaming Intelligent Packet Switching) - network protection via diverse routing • RTP layer, packet based ‘healing’ • EPP (Encoder Partner Protection) - hardware protection • Protection for hardware failures in 1+1 configuration • LDO (Launch Delay Offset) – SIPS enhancement • Protection for simultaneous loss on both Network streams

  32. Forward Error Correction (FEC) • Video transmission via RTP/UDP/IP is best effort • Packets can get lost • One solution is to sent additional packets to aid in recovery • The problem becomes one of • Video input rate • Network Performance • Available Bandwidth • Desired packet recovery performance

  33. Forward Error Correction • FEC recovers lost packet in real-time on the RX side • Data packets are arranged in two-dimensional matrix • XOR checksum is used to generate redundancy FEC packets • XOR is like addition without using carry digits • The cost is higher overhead and latency • FEC for Transport Stream on IP: SMPTE 2022-1

  34. 1 packet is ~10.000 bits 01100101001 1 2 3 4 5 .. L ----1----- L+1 2L ----1----- ----0----- ----0----- ----1----- ----0----- L*D XOR XOR F F F F F F F ----1----- SMPTE 2022-1 FEC • 1D column only FEC • May correct one (1) lost packet in each row • It is possible to correct a complete row (L packets) L Columns Media datagram Column FEC datagram # F D Rows

  35. L Columns 1 2 3 4 5 .. L R L+1 2L R XOR R C D Rows R R R R L*D R XOR C C C C C C C FEC for each Row improves Protection • 2D column and row FEC increases performance • General FEC constraints • Increased burst protection result in added delay • Reduced overhead require added delay Media Datagram Column FEC Datagram Row FEC Datagram

  36. Transport - IP • FEC for IPLR attenuation generates significant overhead anywhere up to 50% • Question to ask is: “Is FEC a requirement in contribution networks?” • IP networks are usually carefully managed • If packets are being lost, then corrective action is required • FEC then is an insurance against the unknown

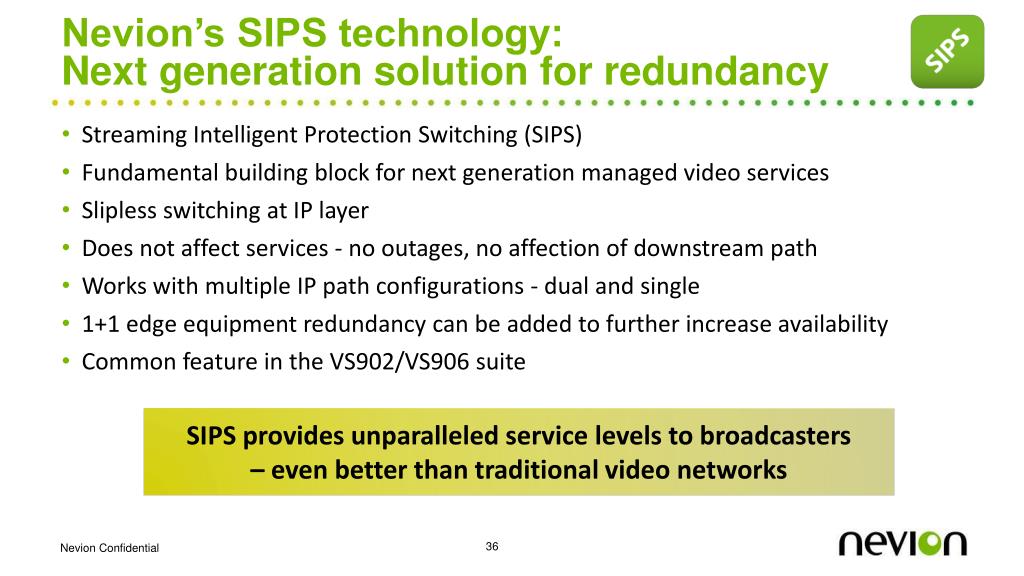

  37. Nevion’s SIPS technology:Next generation solution for redundancy • Streaming Intelligent Protection Switching (SIPS) • Fundamental building block for next generation managed video services • Slipless switching at IP layer • Does not affect services - no outages, no affection of downstream path • Works with multiple IP path configurations - dual and single • 1+1 edge equipment redundancy can be added to further increase availability • Common feature in the VS902/VS906 suite SIPS provides unparalleled service levels to broadcasters – even better than traditional video networks

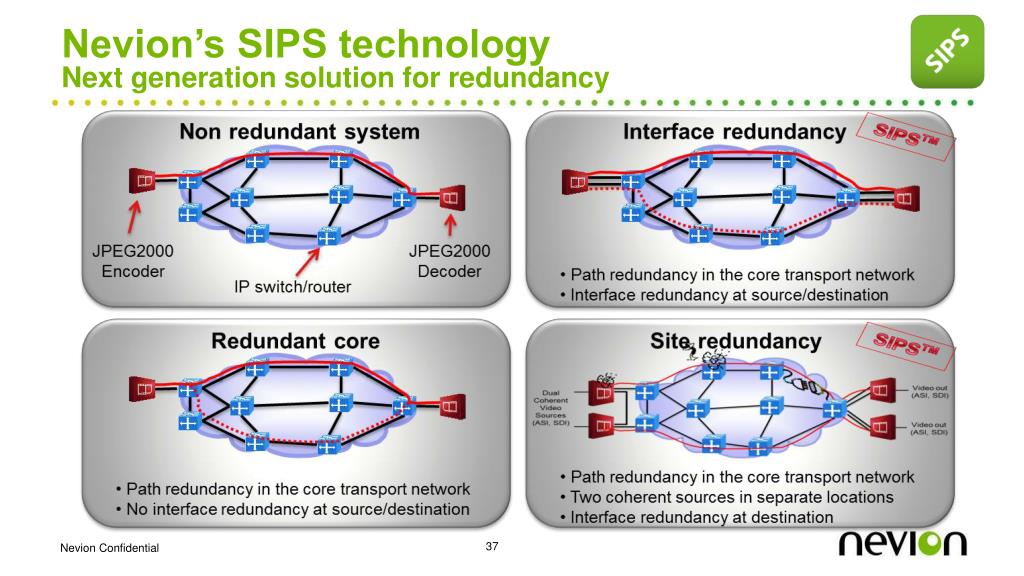

  38. Nevion’s SIPS technologyNext generation solution for redundancy

  39. Video-layer service protection- Dual network interfaces SIPSTM Video in(ASI, SDI) Video out(ASI, SDI) • Protectionswitching done by Decoder • Sliplessswitching is provided by NevionsStreaming Intelligent ProtectionSwitching (SIPSTM) • Reduncancyprovided in case of: • Link failure in the core • Equipmentfailure in the core • Redundancyprovided by corerouters and switches • Link failurebetweenEncoder/Decoder and IP edgerouter • Noredundancyprovided in case of: • Encoder/Decoderequipmentfailure • Video source missing • Errors in video source signal

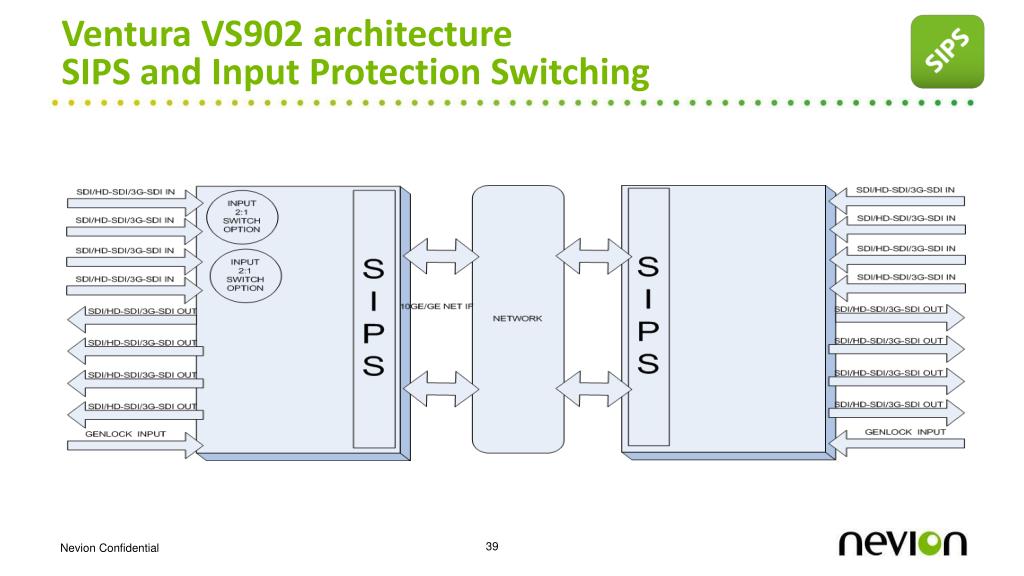

  40. Ventura VS902 architectureSIPS and Input Protection Switching

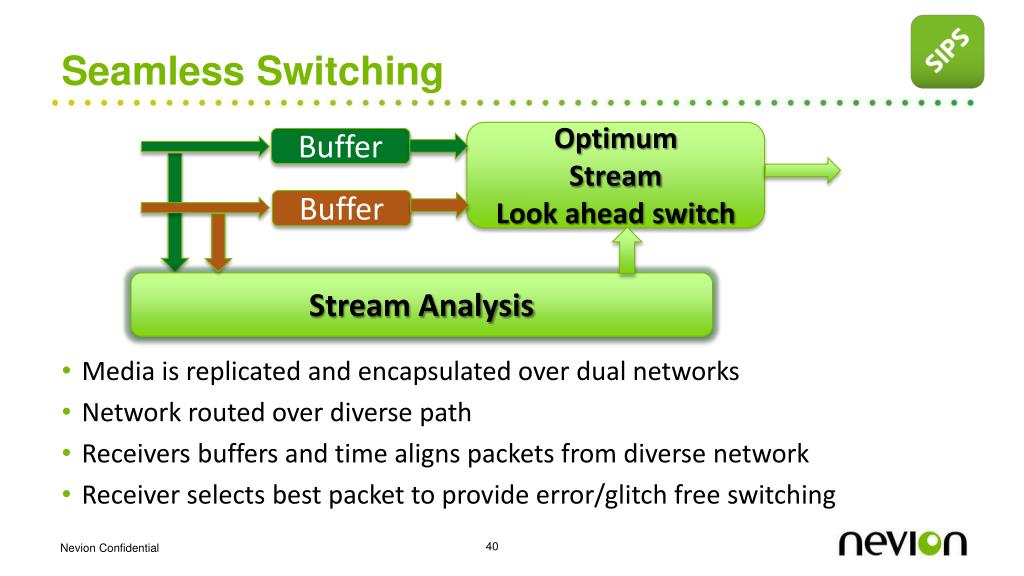

  41. Seamless Switching • Media is replicated and encapsulated over dual networks • Network routed over diverse path • Receivers buffers and time aligns packets from diverse network • Receiver selects best packet to provide error/glitch free switching Optimum Stream Look ahead switch Buffer Buffer Stream Analysis

  42. SIPS - Pros • Can be used for any media • Protects for the most common Link failures • Switch event is seamless (not detectable or measurable) • Protection capability is up and running with <1 second of link restoration and in the millisecond range on restoration of packet flows.

  43. SIPS - Cons • If diverse path is not guaranteed, Simultaneous loss of both feeds results in unrecoverable event. • Double bandwidth utilization • No protection for hardware failures

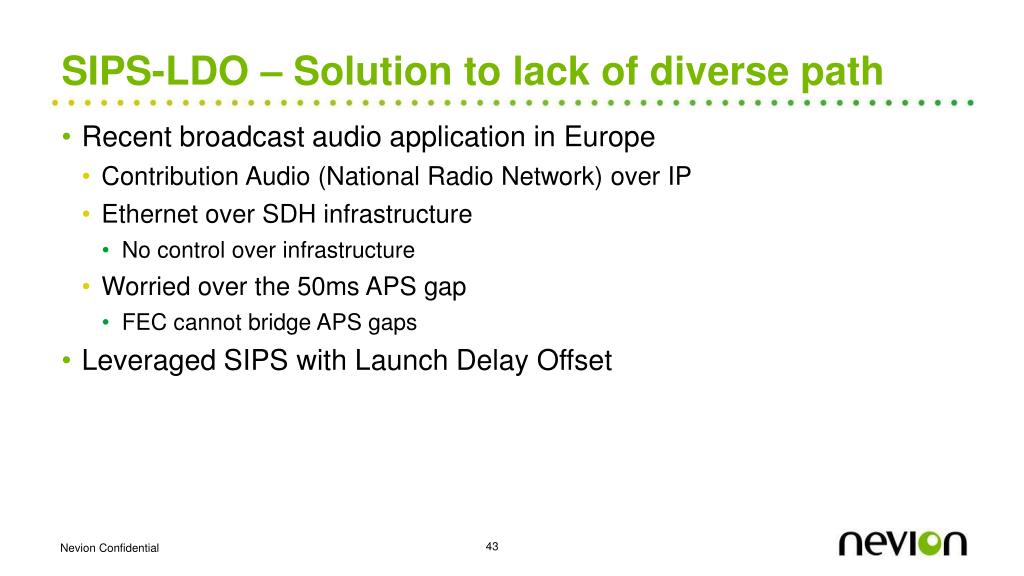

  44. SIPS-LDO – Solution to lack of diverse path • Recent broadcast audio application in Europe • Contribution Audio (National Radio Network) over IP • Ethernet over SDH infrastructure • No control over infrastructure • Worried over the 50ms APS gap • FEC cannot bridge APS gaps • Leveraged SIPS with Launch Delay Offset

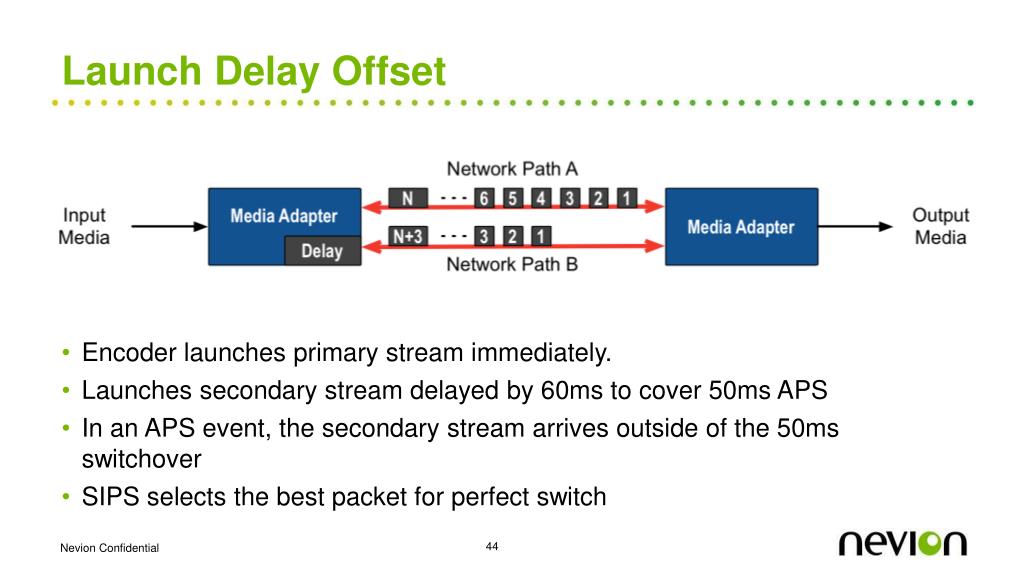

  45. Launch Delay Offset • Encoder launches primary stream immediately. • Launches secondary stream delayed by 60ms to cover 50ms APS • In an APS event, the secondary stream arrives outside of the 50ms switchover • SIPS selects the best packet for perfect switch

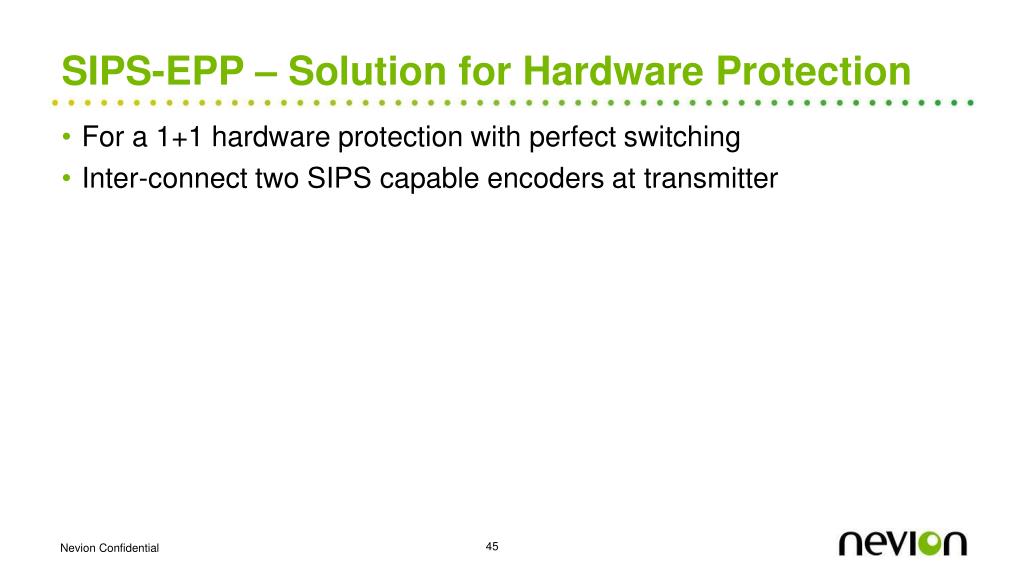

  46. SIPS-EPP – Solution for Hardware Protection • For a 1+1 hardware protection with perfect switching • Inter-connect two SIPS capable encoders at transmitter

  47. Encoder Partner Protection • For a 1+1 hardware protection with perfect switching • Inter-connect two SIPS capable encoders at transmitter • Video transmitted on Master-Primary and Slave-Secondary • Receivers are independent and operate on SIPS from Master/Slave flows

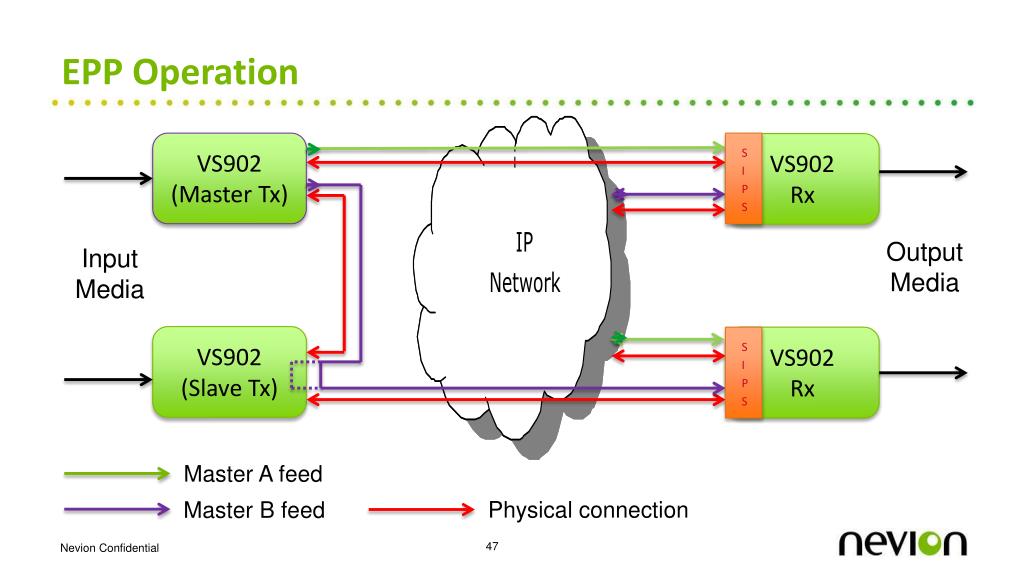

  48. EPP Operation VS902 (Master Tx) SIPS VS902 Rx Output Media Input Media VS902 (Slave Tx) VS902 Rx SIPS Master A feed Physical connection Master B feed

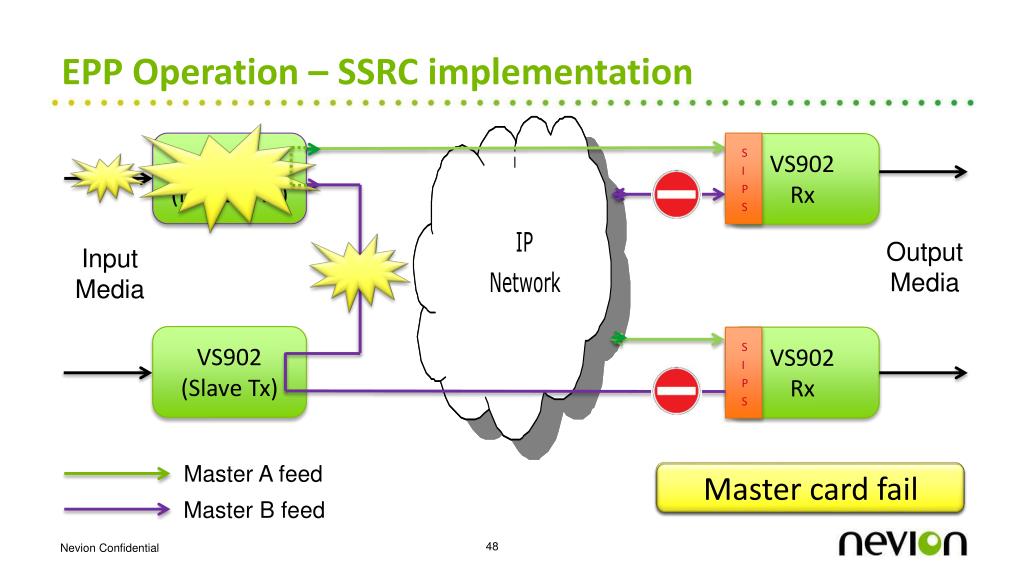

  49. EPP Operation – SSRC implementation VS902 (Master Tx) SIPS VS902 Rx Output Media Input Media VS902 (Slave Tx) VS902 Rx SIPS Master A feed Cross link failure Master input loss Master card fail Master B feed

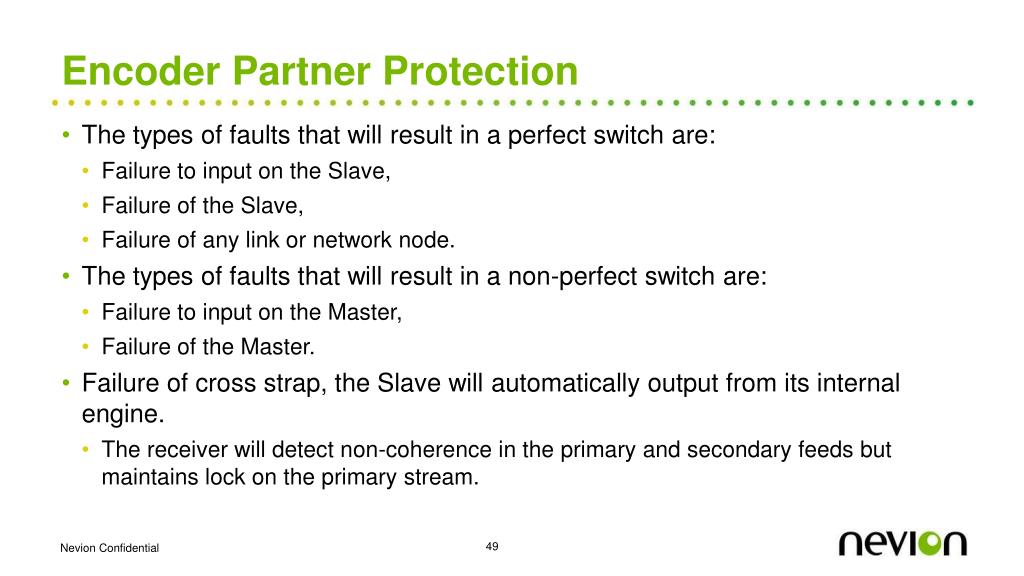

  50. Encoder Partner Protection • The types of faults that will result in a perfect switch are: • Failure to input on the Slave, • Failure of the Slave, • Failure of any link or network node. • The types of faults that will result in a non-perfect switch are: • Failure to input on the Master, • Failure of the Master. • Failure of cross strap, the Slave will automatically output from its internal engine. • The receiver will detect non-coherence in the primary and secondary feeds but maintains lock on the primary stream.
