  1. Capturing Network Traffic into Database Key Words: Sniffer, Network Analyzer, Wireshark, MySQL, Database, PCAP to MySQL

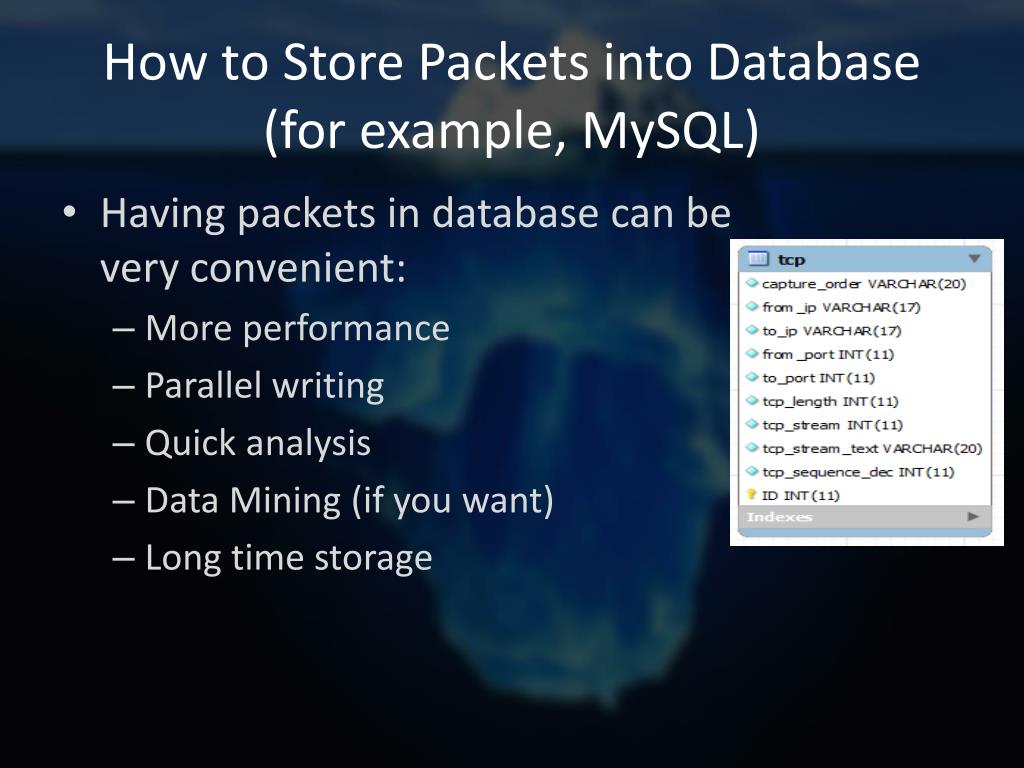

  2. How to Store Packets into Database (for example, MySQL) • Having packets in database can be very convenient: • More performance • Parallel writing • Quick analysis • Data Mining (if you want) • Long time storage

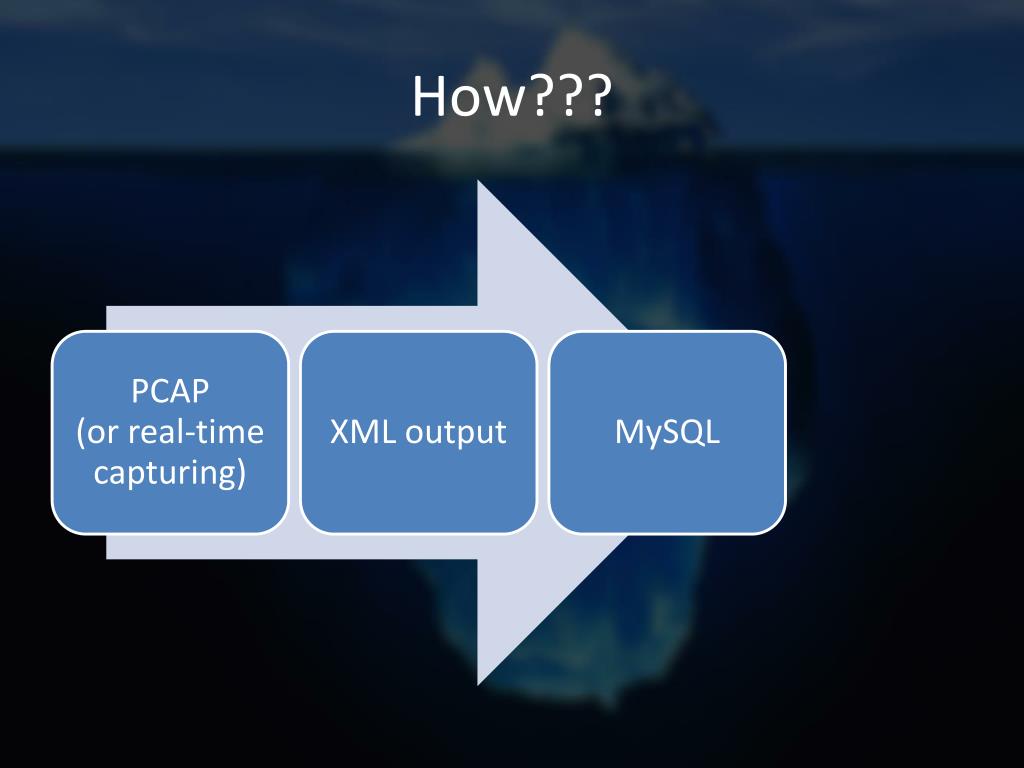

  3. How???

  4. What do we need? • tshark (supplied with WireShark) • PHP with XML, Xpath support • MySQL database

  5. My workstation • All examples here are done in Windows 7, but if you want, you will not need a lot of time to make them for Linux • Our task: capture TCP packets (IP from, IP to, port from, port to, length, sequence) into database. Example can be any, for instance, checking for network scanning.

  6. Distributed • This can be distributed, no problem, but you need to use extra network or filters (otherwise, you will hang your system: 1 sniffed packet sent make 1 more, and so on).

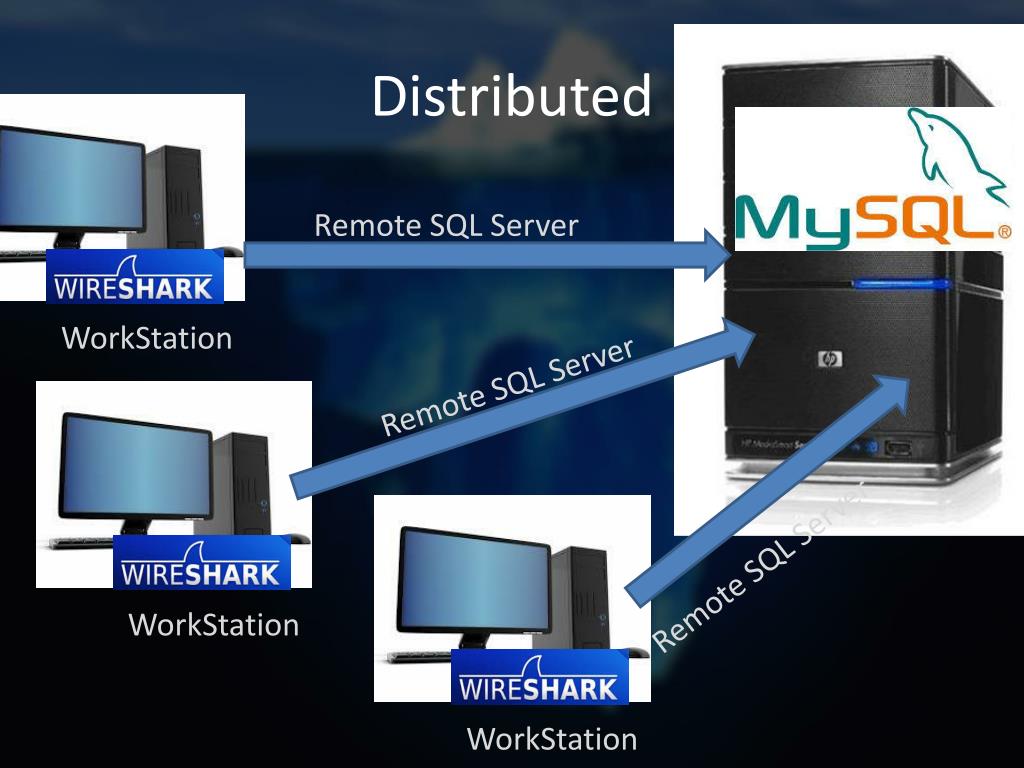

  7. Distributed Remote SQL Server WorkStation Remote SQL Server Remote SQL Server WorkStation WorkStation

  8. Getting traffic XML format • tshark -r "D:\test.pcap" -T pdml > D:\test_T.xml • Converting pcap into XML Or • tshark-T pdml | you_application.exe • Real-Time

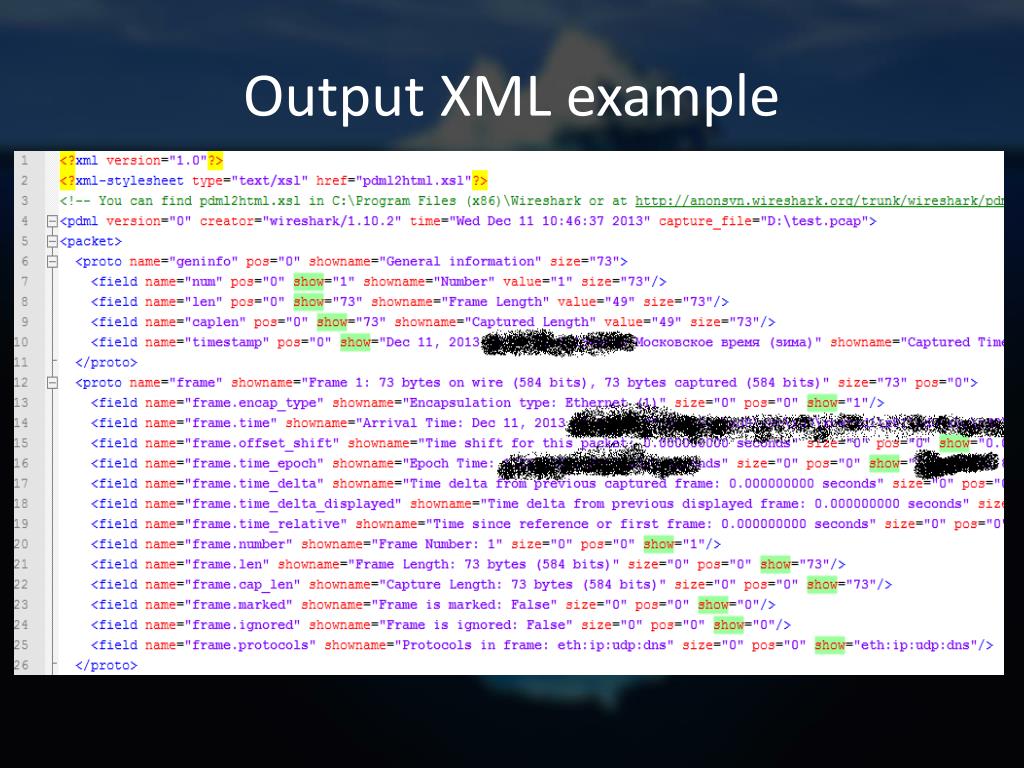

  9. Output XML example

  10. Warning • Such converting to XML consume a lot of space (50x)! PCAP file from 200 Kb grew into 10 Mb XML!!! • In this case you might find useful to divide one big pcap file into several of smaller size • Also filtering is good idea, so you can throw out fields useless for you.

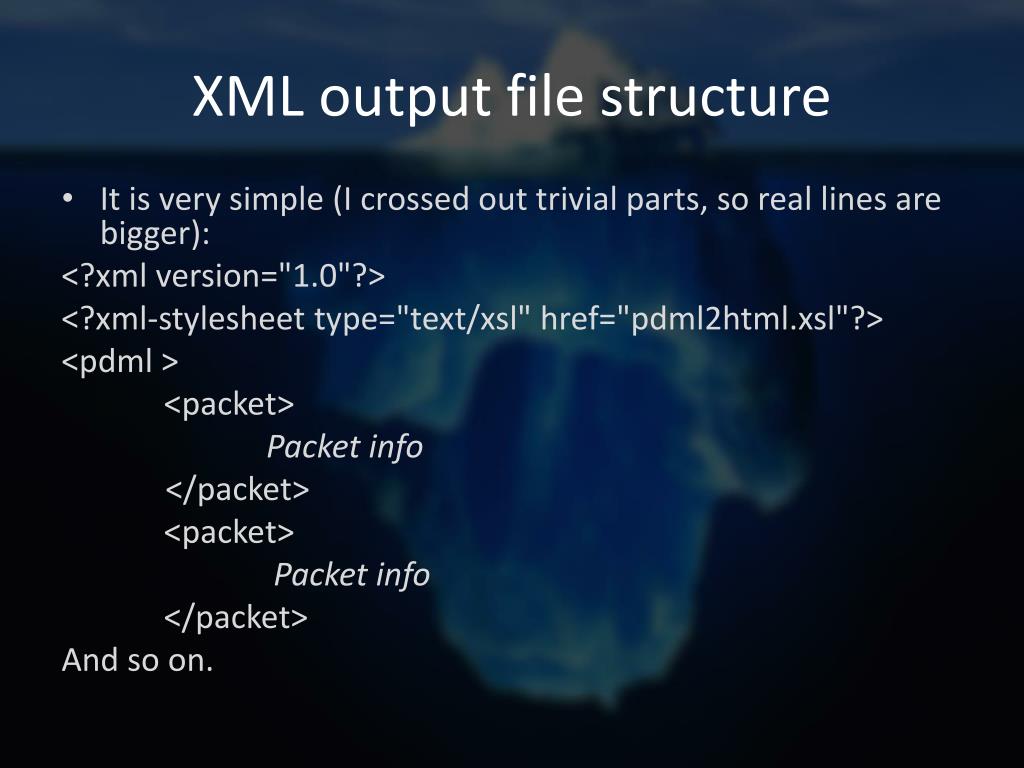

  11. XML output file structure • It is very simple (I crossed out trivial parts, so real lines are bigger): <?xml version="1.0"?> <?xml-stylesheet type="text/xsl" href="pdml2html.xsl"?> <pdml > <packet> Packet info </packet> <packet> Packet info </packet> And so on.

  12. XML structure – packets (Example, DNS query) <packet> <proto name="geninfo" pos="0" showname="General information" size="73"> </proto> <proto name="frame" showname="Frame 1: 73 bytes on wire (584 bits), 73 bytes captured (584 bits)" size="73" pos="0"> </proto> <proto name="eth"> </proto> <proto name="ip" > </proto> <proto name="udp" showname="User Datagram Protocol, Src Port: 58150 (58150), Dst Port: domain (53)" size="8" pos="34"> </proto> <proto name="dns" showname="Domain Name System (query)" size="31" pos="42"> </proto> </packet> (Child elements and attributes of proto are not shown here)

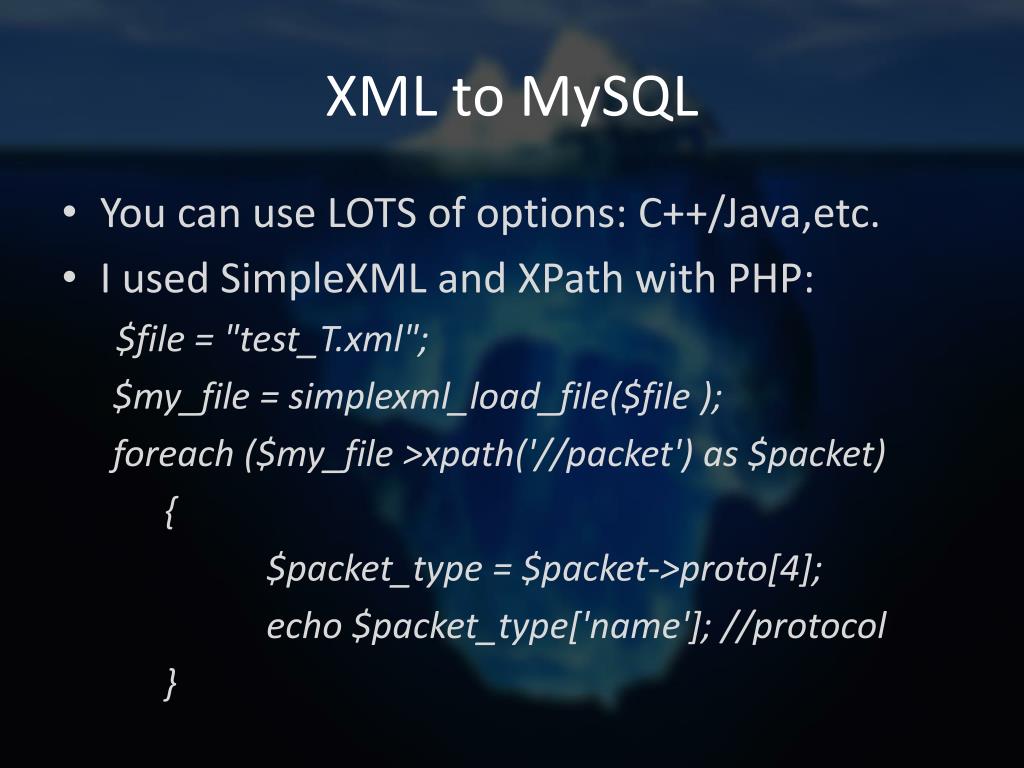

  13. XML to MySQL • You can use LOTS of options: C++/Java,etc. • I used SimpleXML and XPath with PHP: $file = "test_T.xml"; $my_file = simplexml_load_file($file ); foreach ($my_file >xpath('//packet') as $packet) { $packet_type = $packet->proto[4]; echo $packet_type['name']; //protocol }

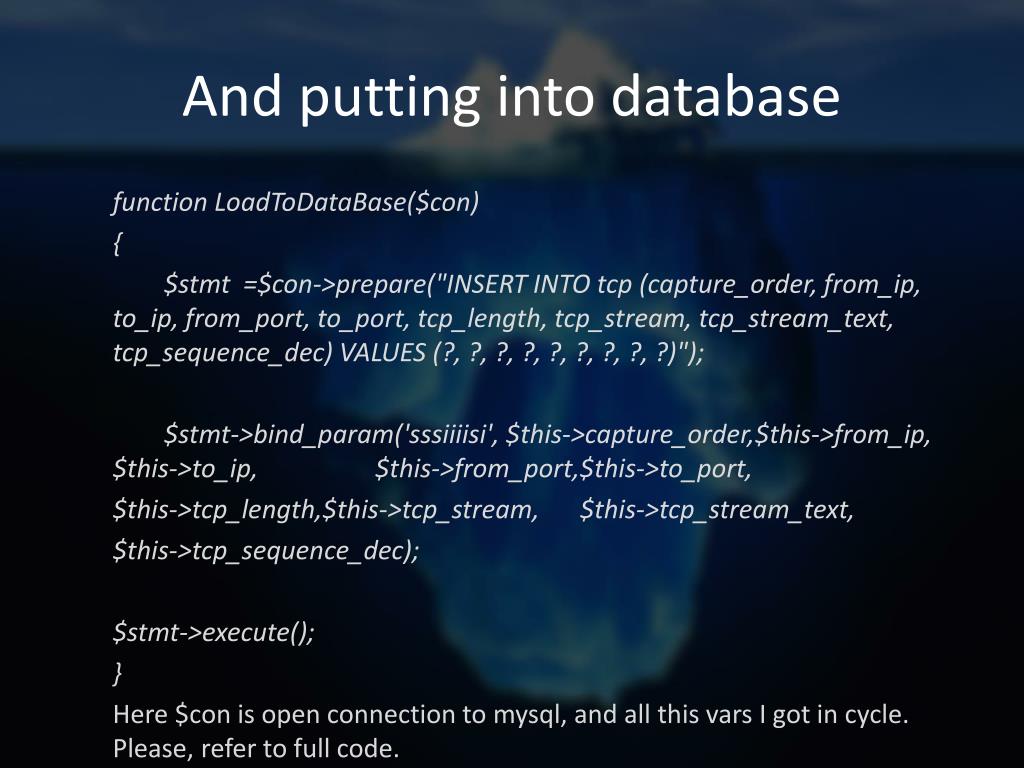

  14. And putting into database function LoadToDataBase($con) { $stmt =$con->prepare("INSERT INTO tcp (capture_order, from_ip, to_ip, from_port, to_port, tcp_length, tcp_stream, tcp_stream_text, tcp_sequence_dec) VALUES (?, ?, ?, ?, ?, ?, ?, ?, ?)"); $stmt->bind_param('sssiiiisi', $this->capture_order,$this->from_ip, $this->to_ip, $this->from_port,$this->to_port, $this->tcp_length,$this->tcp_stream, $this->tcp_stream_text, $this->tcp_sequence_dec); $stmt->execute(); } Here $con is open connection to mysql, and all this vars I got in cycle. Please, refer to full code.

  15. Thank you • I hope you find this useful. • Full code is available at http://tigrantsat.me/randd/pcaptomysql/
