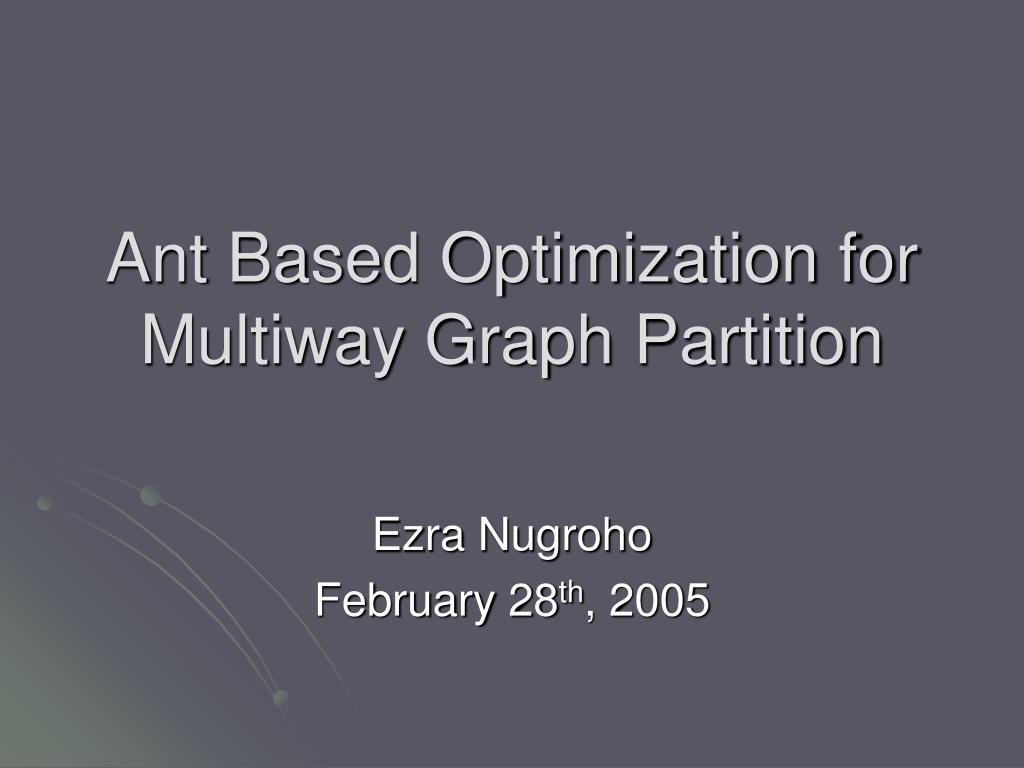

  1. Ant Based Optimization for Multiway Graph Partition Ezra Nugroho February 28th, 2005

  2. Outline • Problem Definition • Ant Based Optimization (ABO) and Ant Colony Optimization (ACO) • ABO for Multiway Graph Partitioning (ABMGP) • Conclusion Ezra Nugroho

  3. Outline • Problem Definition • Ant Based Optimization (ABO) and Ant Colony Optimization (ACO) • ABO for Multiway Graph Partitioning (ABMGP) • Conclusion Ezra Nugroho

  4. Problem: Multiway Graph Partition • Input: • G = (V, E): an undirected graph • k: an integer from 2 to |V | • Output: • S1, …, Sk:k disjointed subsets of V such that: • Si∩ Sj = ø for i ≠ j • USi = V • Si≠ø for i = 1, …, k • |Sl| - |Ss| ≤ 1, Sl the largest subset, Ss the smallest one • Goal: • The crossing edges between subsets are minimized Ezra Nugroho

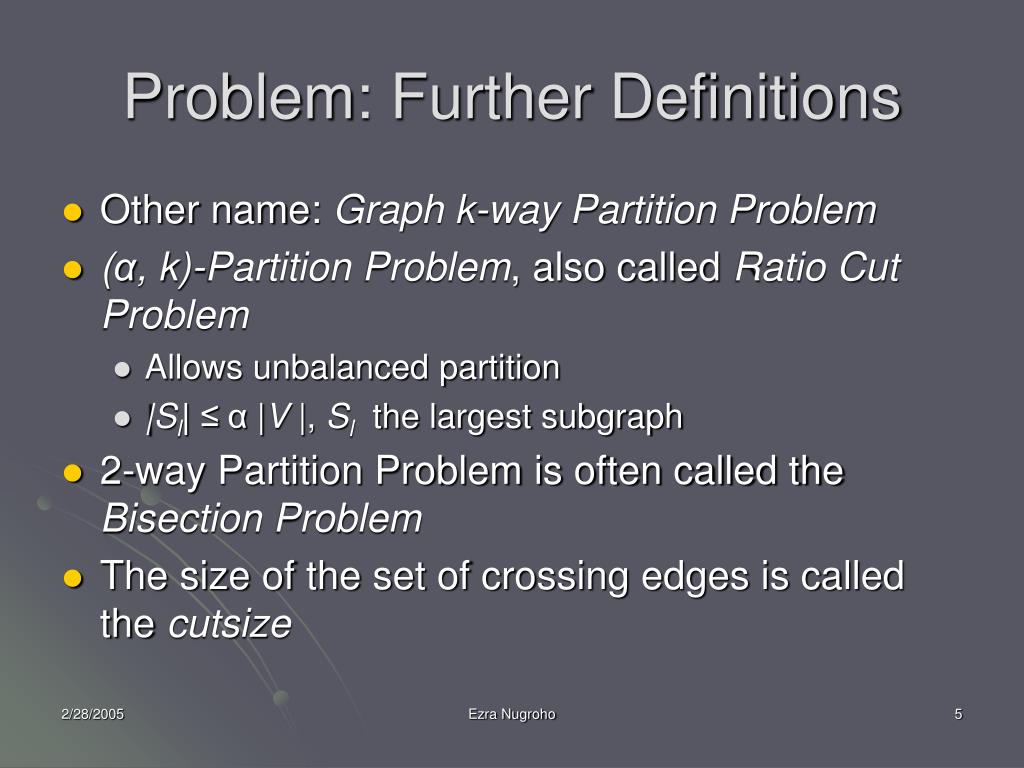

  5. Problem: Further Definitions • Other name: Graph k-way Partition Problem • (α, k)-Partition Problem, also called Ratio Cut Problem • Allows unbalanced partition • |Sl| ≤ α |V |, Sl the largest subgraph • 2-way Partition Problem is often called the Bisection Problem • The size of the set of crossing edges is called the cutsize Ezra Nugroho

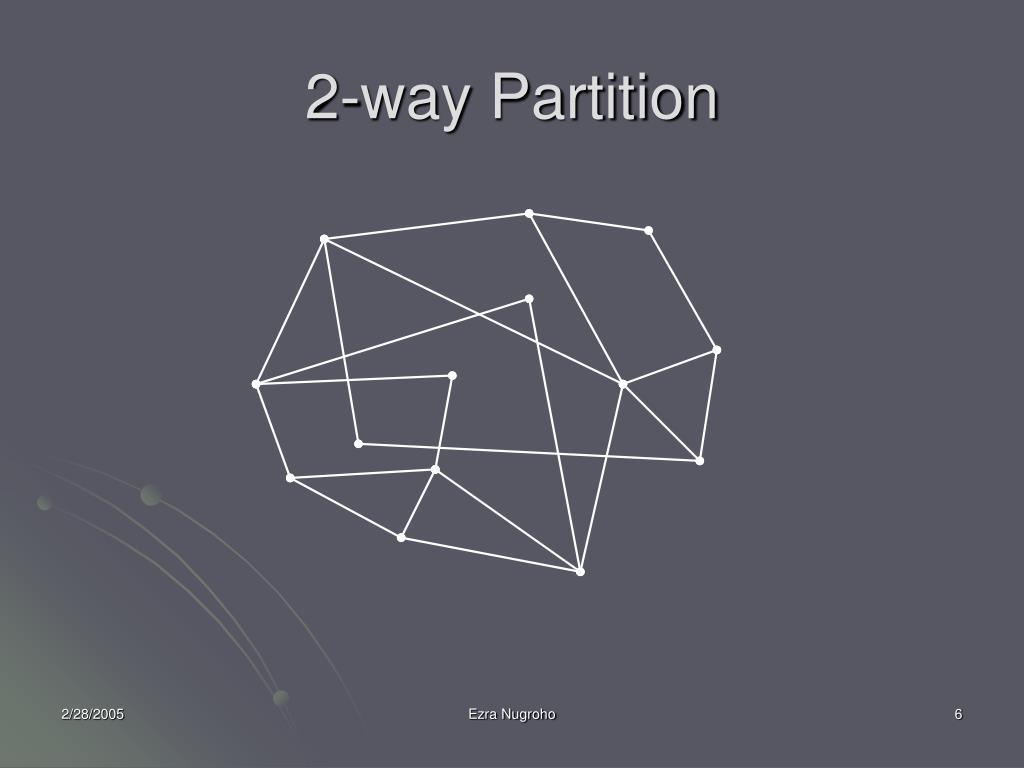

  6. 2-way Partition Ezra Nugroho

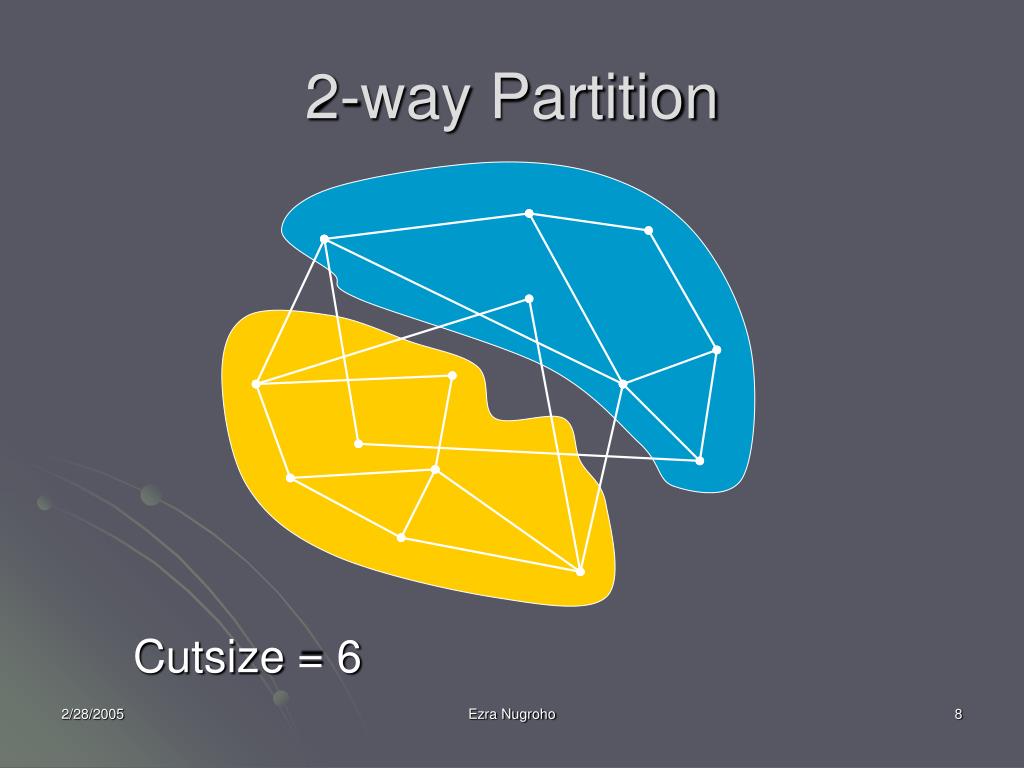

  7. 2-way Partition Cutsize = 6 Ezra Nugroho

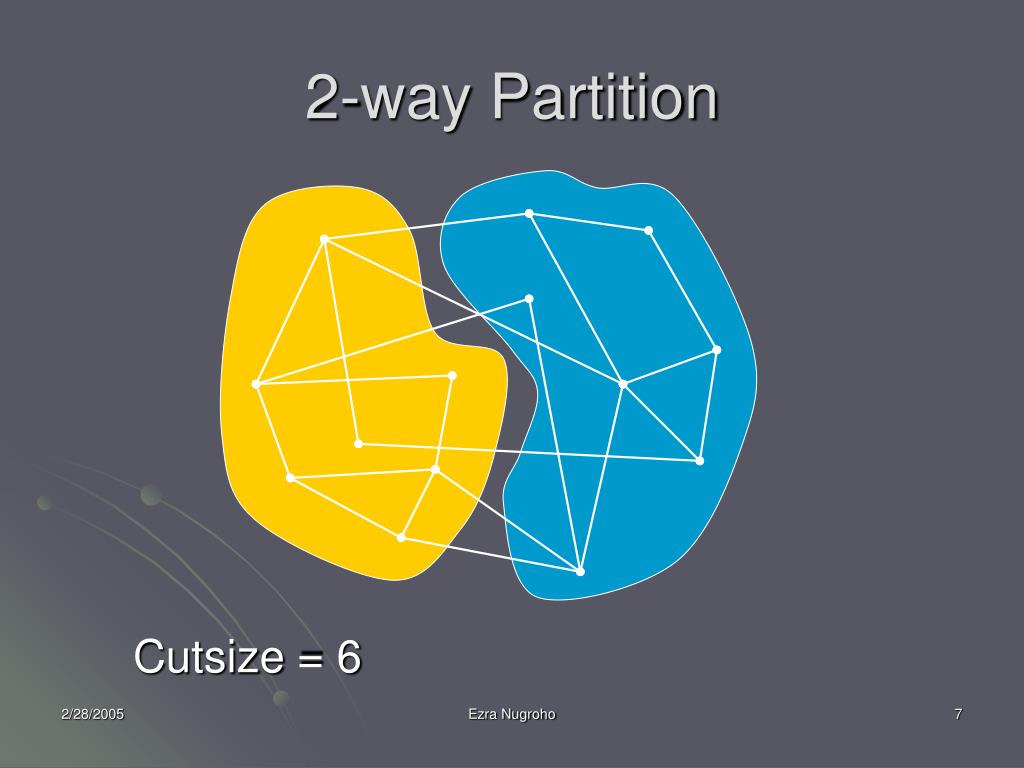

  8. 2-way Partition Cutsize = 6 Ezra Nugroho

  9. 2-way Partition Ezra Nugroho

  10. 2-way Partition Cutsize = 2 Ezra Nugroho

  11. Problem: Complexity • Multiway Graph Partition Problem is NP-hard • Approximating good cut size for general graph is NP-hard • The bisection problem is NP-hard, even for bipartite graphs • Exact polynomial algorithm exists for trees and planar graphs with O(log n) optimal cutsize Ezra Nugroho

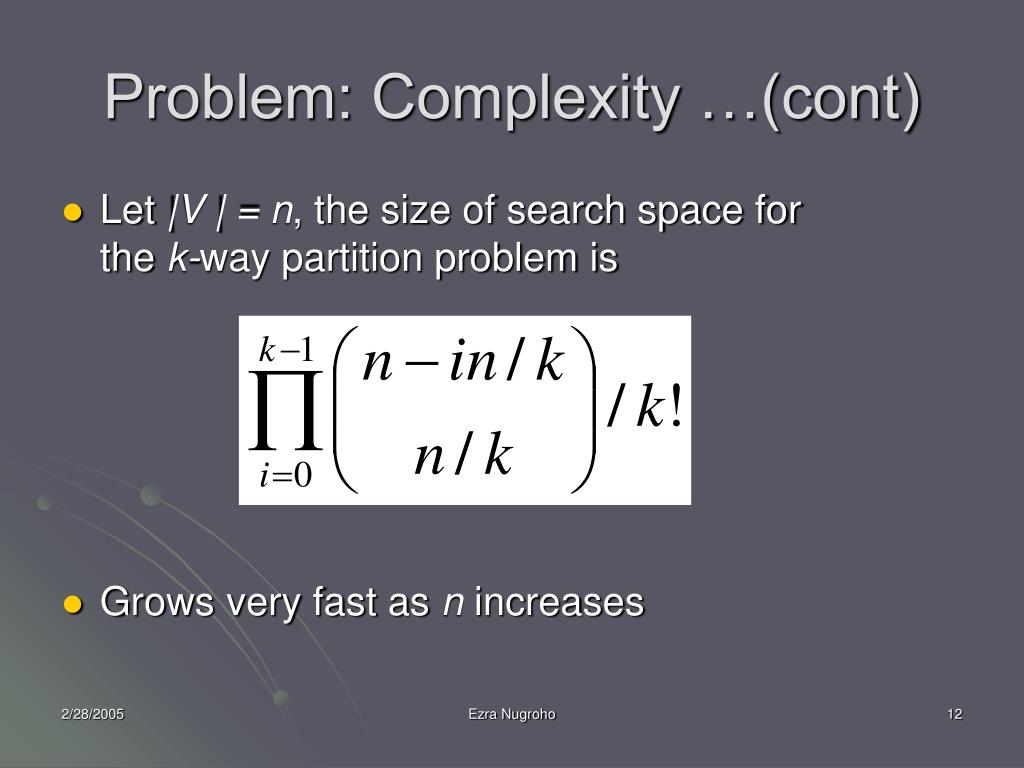

  12. Problem: Complexity …(cont) • Let |V | = n, the size of search space for the k-way partition problem is • Grows very fast as n increases Ezra Nugroho

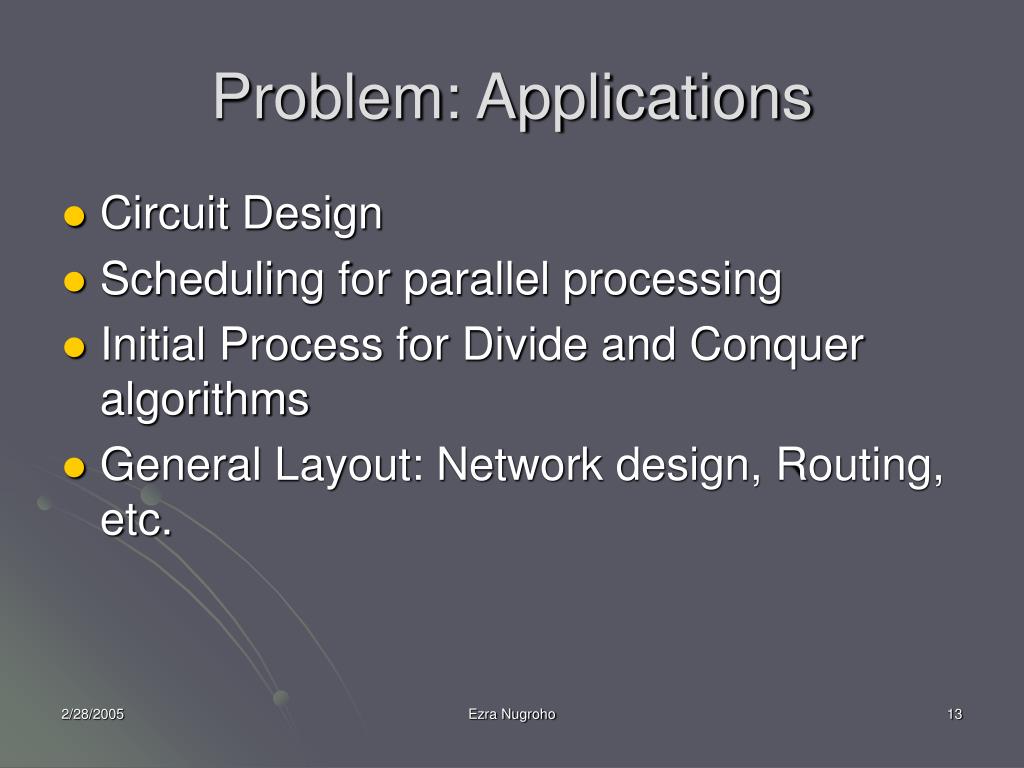

  13. Problem: Applications • Circuit Design • Scheduling for parallel processing • Initial Process for Divide and Conquer algorithms • General Layout: Network design, Routing, etc. Ezra Nugroho

  14. Problem: Existing Algorithms • Kernighan–Lin algorithm for bisection • Recursive Kernighan–Lin • Pairwise Kernighan–Lin • Cyclic k-way Partitioning Algorithm • Other Heuristics and Hybrid Algorithms • Genetic Algorithms • Simulated Annealing • Tabu Search • Hybrid Ant Based Algorithm Ezra Nugroho

  15. Outline • Problem Definition • Ant Based Optimization (ABO) and Ant Colony Optimization (ACO) • ABO for Multiway Graph Partitioning (ABMGP) • Conclusion Ezra Nugroho

  16. ABO/ACO: Similarities • Agent-based Optimization • Inspired by ant colonies • Inspired by other animals → ‘animats’ • Animats use pheromones to send signals to others • Good in identifying possible good solution • Cannot fine-tune solutions Ezra Nugroho

  17. Ant Based Optimization (ABO) • Multi Agents, one solution • Animats move in parallel • Problem domain: clustering, landscape identification Ezra Nugroho

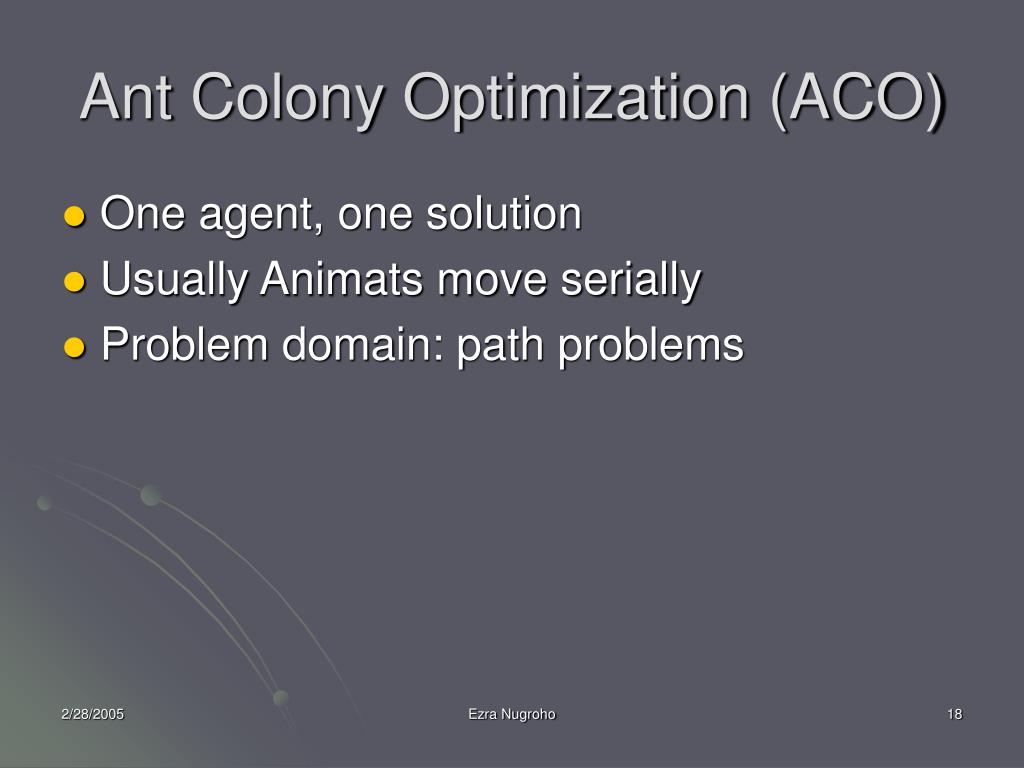

  18. Ant Colony Optimization (ACO) • One agent, one solution • Usually Animats move serially • Problem domain: path problems Ezra Nugroho

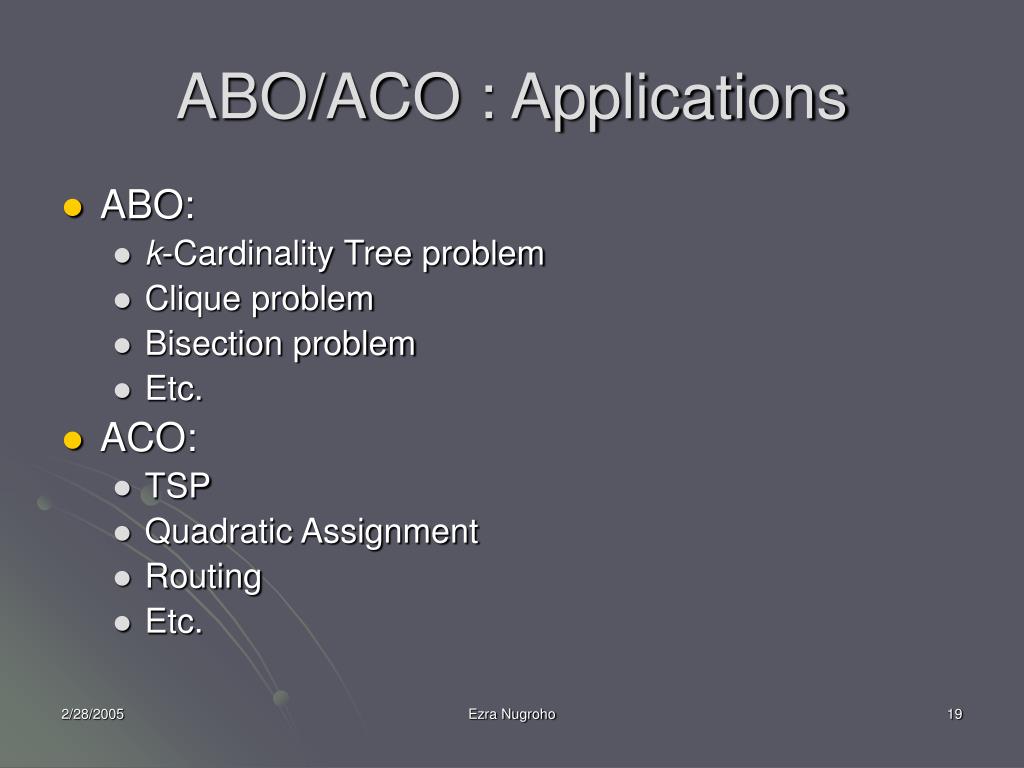

  19. ABO/ACO : Applications • ABO: • k-Cardinality Tree problem • Clique problem • Bisection problem • Etc. • ACO: • TSP • Quadratic Assignment • Routing • Etc. Ezra Nugroho

  20. Outline • Problem Definition • Ant Based Optimization (ABO) and Ant Colony Optimization (ACO) • ABO for Multiway Graph Partitioning (ABMGP) • Conclusion Ezra Nugroho

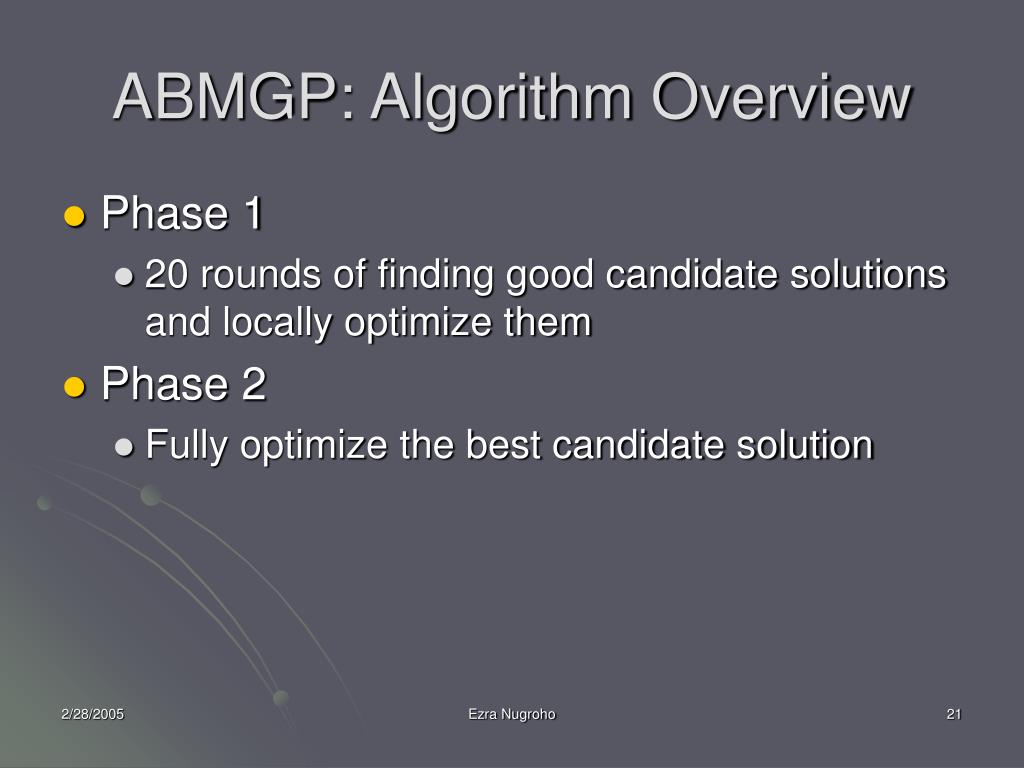

  21. ABMGP: Algorithm Overview • Phase 1 • 20 rounds of finding good candidate solutions and locally optimize them • Phase 2 • Fully optimize the best candidate solution Ezra Nugroho

  22. ABMGP: Algorithm Detail • Phase 1 • 20 rounds of finding good candidate solutions and locally optimize them • Phase 2 • Fully optimize the best candidate solution Ezra Nugroho

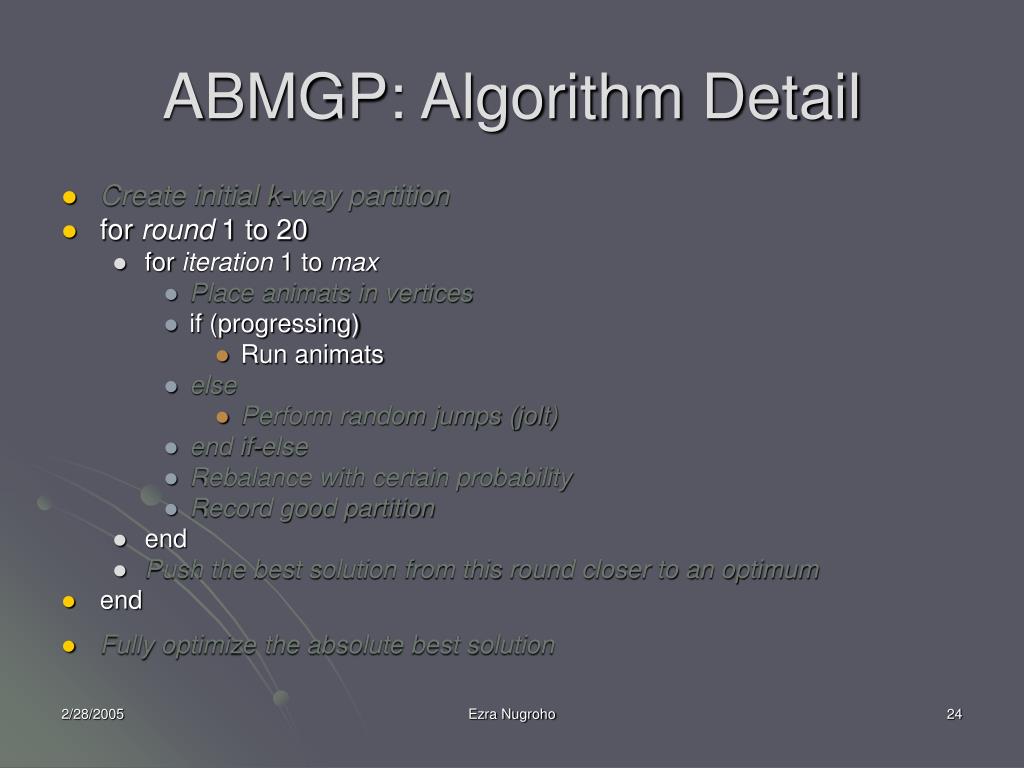

  23. ABMGP: Algorithm Detail • Phase 1: • Create initial k-way partition • for round 1 to 20 • for iteration 1 to max • Place animats in vertices • if (progressing) • Run animats • else • Perform random jumps (jolt) • end if-else • Rebalance with certain probability • Record good partition • end • Push the best solution from this round closer to an optimum • end • Phase 2: • Fully optimize the absolute best solution Ezra Nugroho

  24. ABMGP: Algorithm Detail • Create initial k-way partition • for round 1 to 20 • for iteration 1 to max • Place animats in vertices • if (progressing) • Run animats • else • Perform random jumps (jolt) • end if-else • Rebalance with certain probability • Record good partition • end • Push the best solution from this round closer to an optimum • end • Fully optimize the absolute best solution Ezra Nugroho

  25. ABMGP: Animat Activation • Ideas: • We use k colonies of territorial animats, each territory is a subgraph • Animats try to enlarge their territory by attacking other animats in different vertices • Animats use pheromones to communicate with each other to encourage collaborative decisions: defending vertices, attacking vertices • An Animat captures a vertex v if it defeats the last animat in v Ezra Nugroho

  26. ABMGP: Animat Activation No Way! We want that vertex! Ezra Nugroho

  27. ABMGP: Animat Activation Ezra Nugroho

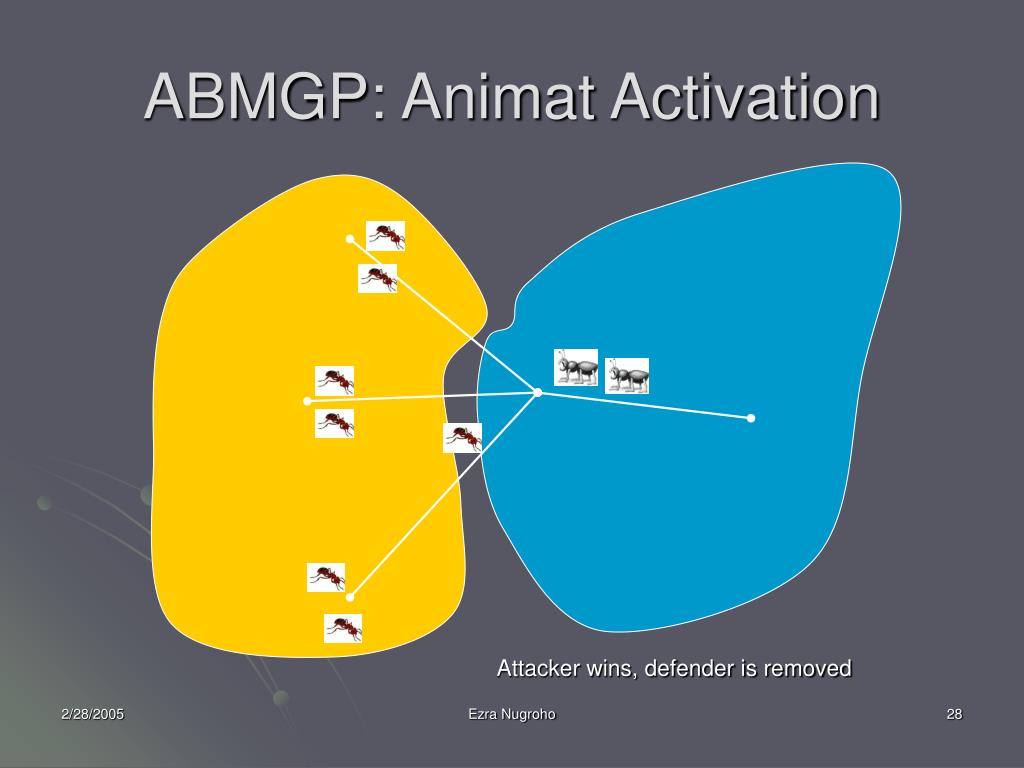

  28. ABMGP: Animat Activation Attacker wins, defender is removed Ezra Nugroho

  29. ABMGP: Animat Activation Ezra Nugroho

  30. ABMGP: Animat Activation Attacker looses, it waits for next iteration Ezra Nugroho

  31. ABMGP: Animat Activation Ezra Nugroho

  32. ABMGP: Animat Activation Attacker wins, defender is removed Ezra Nugroho

  33. ABMGP: Animat Activation Attacker wins, defender is removed Ezra Nugroho

  34. ABMGP: Animat Activation vertex is captured Ezra Nugroho

  35. ABMGP: Animat Activation The colonies are updated Ezra Nugroho

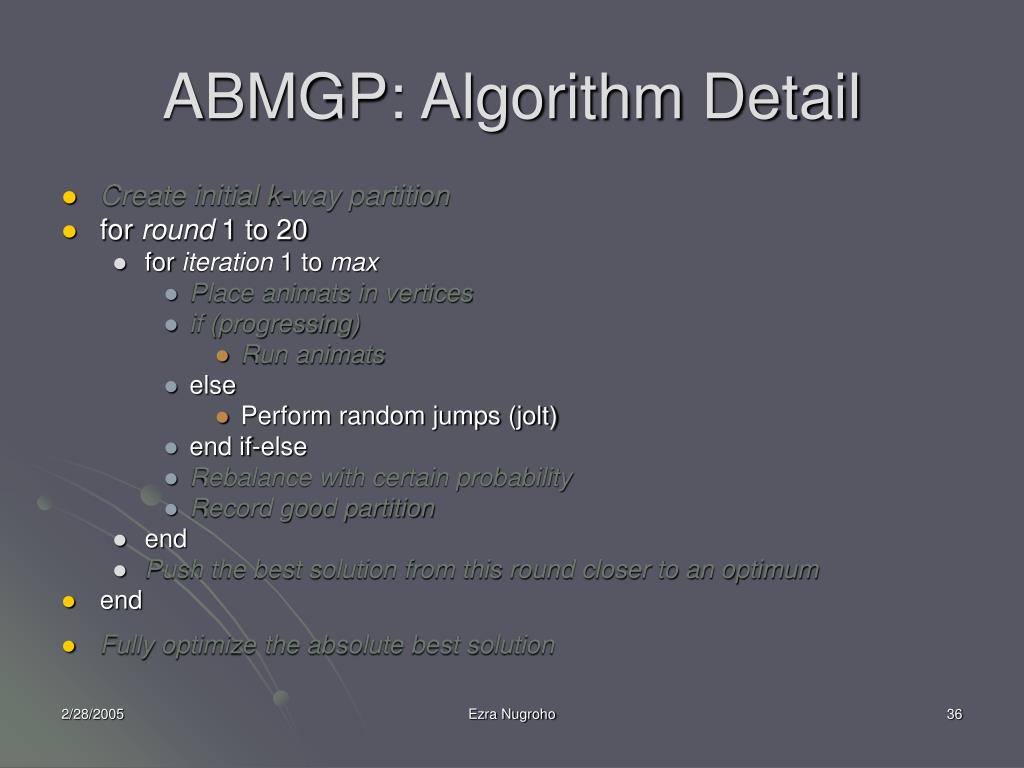

  36. ABMGP: Algorithm Detail • Create initial k-way partition • for round 1 to 20 • for iteration 1 to max • Place animats in vertices • if (progressing) • Run animats • else • Perform random jumps (jolt) • end if-else • Rebalance with certain probability • Record good partition • end • Push the best solution from this round closer to an optimum • end • Fully optimize the absolute best solution Ezra Nugroho

  37. ABMGP: Jolts • Pairs of vertices from different colonies are randomly chosen • Swap the owner • Adjusts the pheromone levels Ezra Nugroho

  38. ABMGP: Algorithm Detail • Create initial k-way partition • for round 1 to 20 • for iteration 1 to max • Place animats in vertices • if (progressing) • Run animats • else • Perform random jumps (jolt) • end if-else • Rebalance with certain probability • Record good partition • end • Push the best solution from this round closer to an optimum • end • Fully optimize the absolute best solution Ezra Nugroho

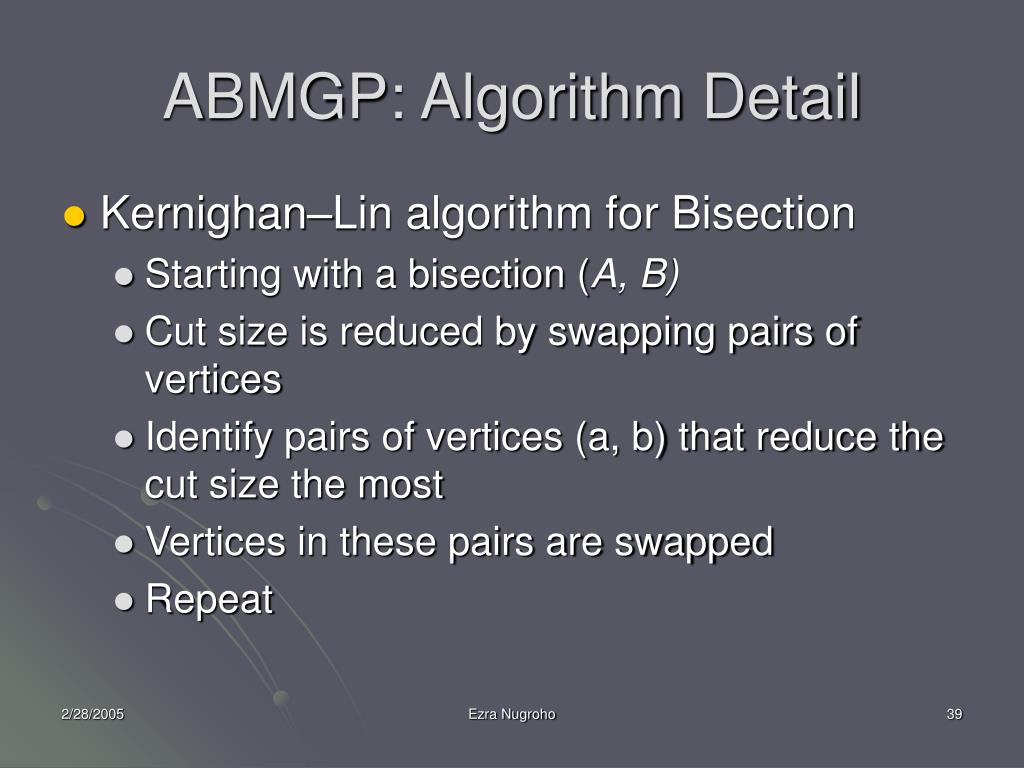

  39. ABMGP: Algorithm Detail • Kernighan–Lin algorithm for Bisection • Starting with a bisection (A, B) • Cut size is reduced by swapping pairs of vertices • Identify pairs of vertices (a, b) that reduce the cut size the most • Vertices in these pairs are swapped • Repeat Ezra Nugroho

  40. 2-way Partition Cutsize = 6 Ezra Nugroho

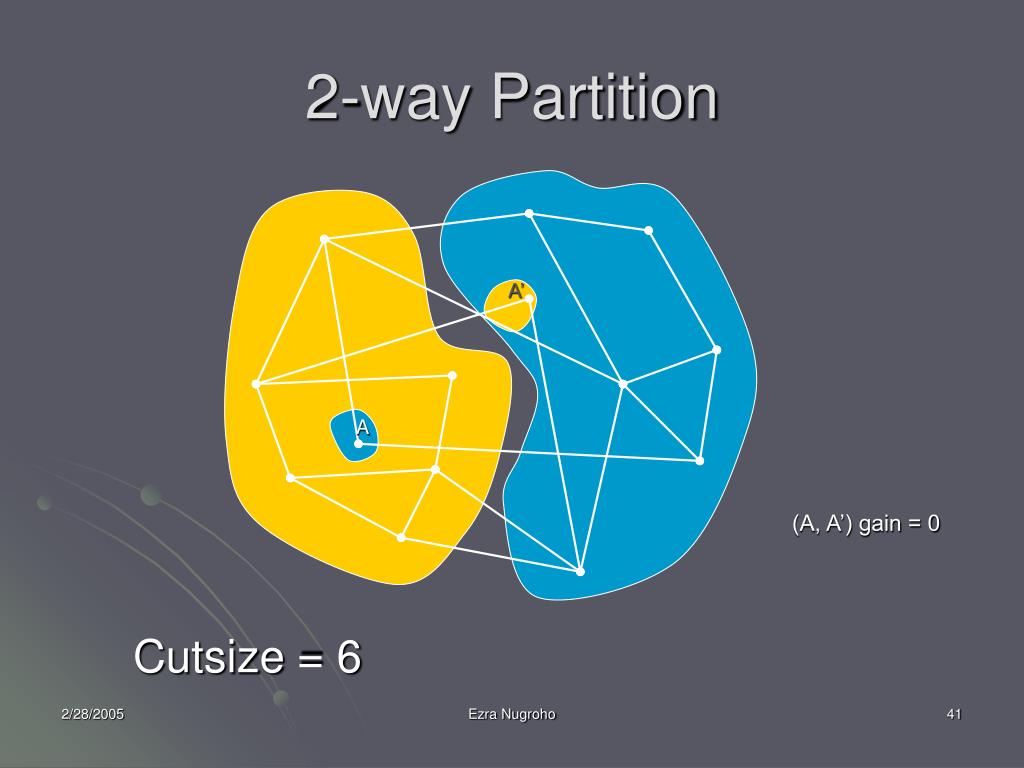

  41. 2-way Partition A’ A (A, A’) gain = 0 Cutsize = 6 Ezra Nugroho

  42. 2-way Partition B A’ A (A, A’) gain = 0 (B, B’) gain = 4 B’ Cutsize = 6 Ezra Nugroho

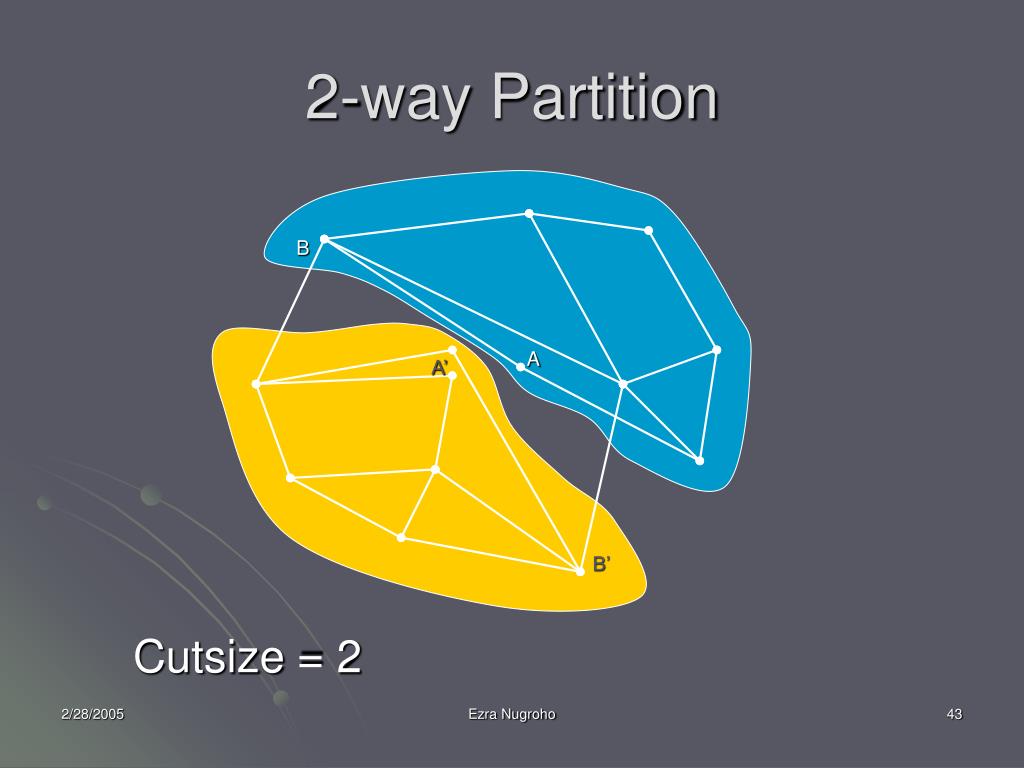

  43. 2-way Partition B A A’ B’ Cutsize = 2 Ezra Nugroho

  44. ABMG: Algorithm Detail • Weaker derivation of Pairwise Kernighan–Lin Algorithm • Cut size between subgraph pairs are computed • Pairs are sorted according to their cut sizes • Run KL for bisection algorithm for each pair • Some vertex-swaps are considered Ezra Nugroho

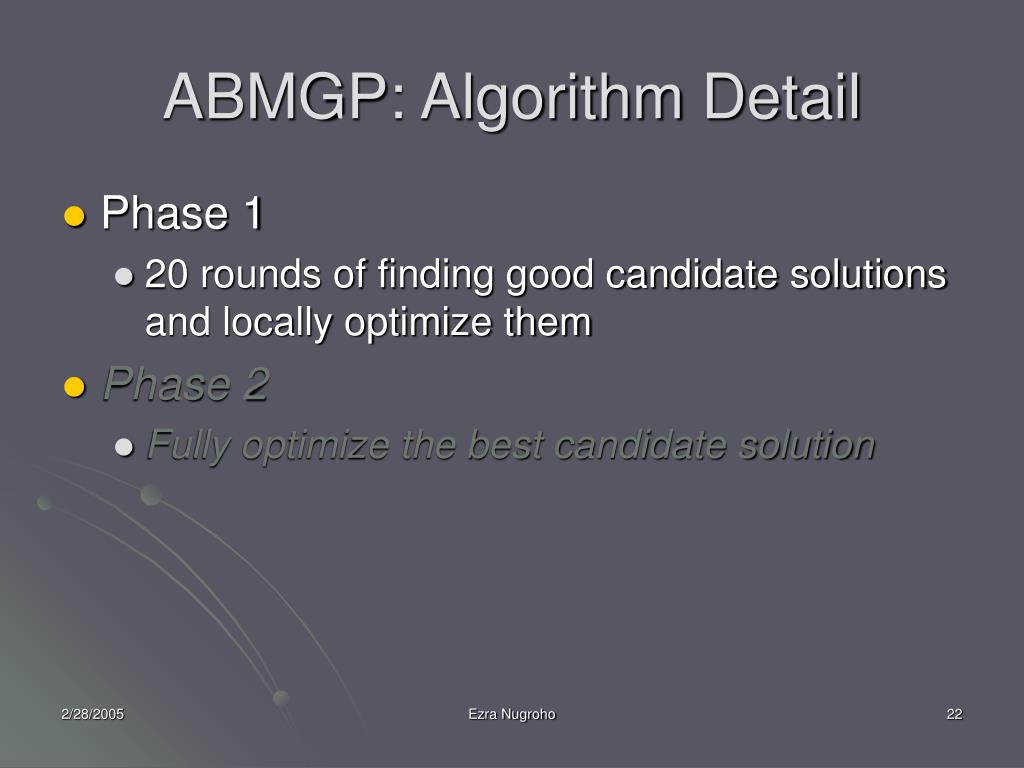

  45. ABMGP: Algorithm Detail • Phase 1 • 20 rounds of finding good candidate solutions and locally optimize them • Phase 2 • Fully optimize the best candidate solution Ezra Nugroho

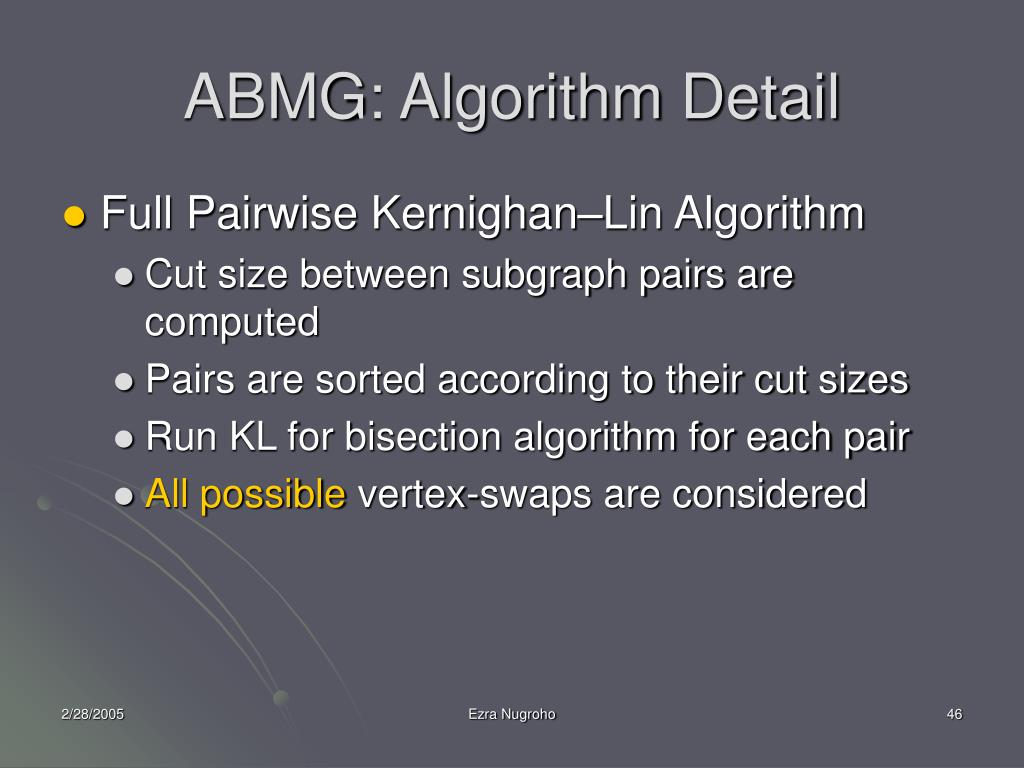

  46. ABMG: Algorithm Detail • Full Pairwise Kernighan–Lin Algorithm • Cut size between subgraph pairs are computed • Pairs are sorted according to their cut sizes • Run KL for bisection algorithm for each pair • All possible vertex-swaps are considered Ezra Nugroho

  47. ABMGP: Test Bed • 40 Graphs from 8 different classes • Size from 100 – 5252 • Average degree from 2 to 36 • Random and geometric Ezra Nugroho

  48. ABMGP: Implementation • ABMGP is implemented in C++ • 3.06 Ghz Xeon Processor • 2 G of RAM • Linux • 100 runs for each graph Ezra Nugroho

  49. ABMGP: Result for bisection Ezra Nugroho

  50. ABMGP: Result 4-way Partition Ezra Nugroho
