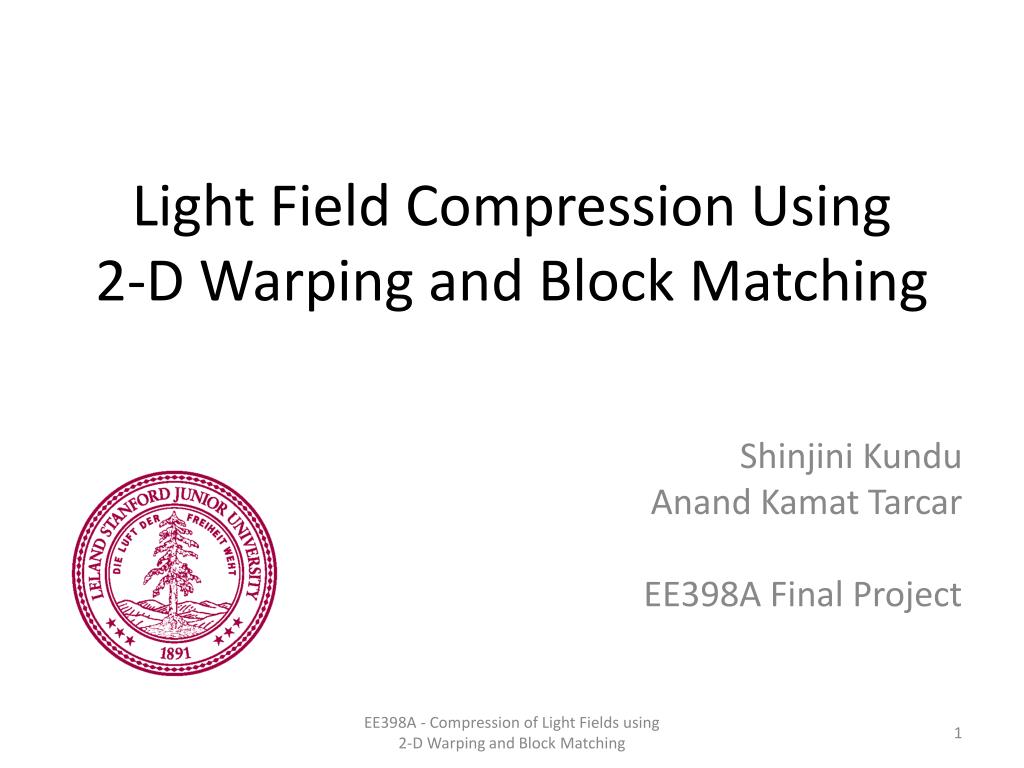

  1. Light Field Compression Using 2-D Warping and Block Matching ShinjiniKundu AnandKamatTarcar EE398A Final Project EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  2. Outline • Motivation and Goals • Overview of Our Method • Results and Analysis • Summary • Future Work • References EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  3. Motivation • Light field images are used in computer graphics to compute new views of a scene without need for scene geometry model1. • Need to compress large set of images • Exploit inter-view coherence to achieve compression. 1. M. Levoy and P. Hanrahan, “Light field rendering,” in Computer Graphics (Proceedings SIGGRAPH 96), August 1996, pp. 31-42. EE398A - Compression of Light Fields using 2-D Warping and Block Matching

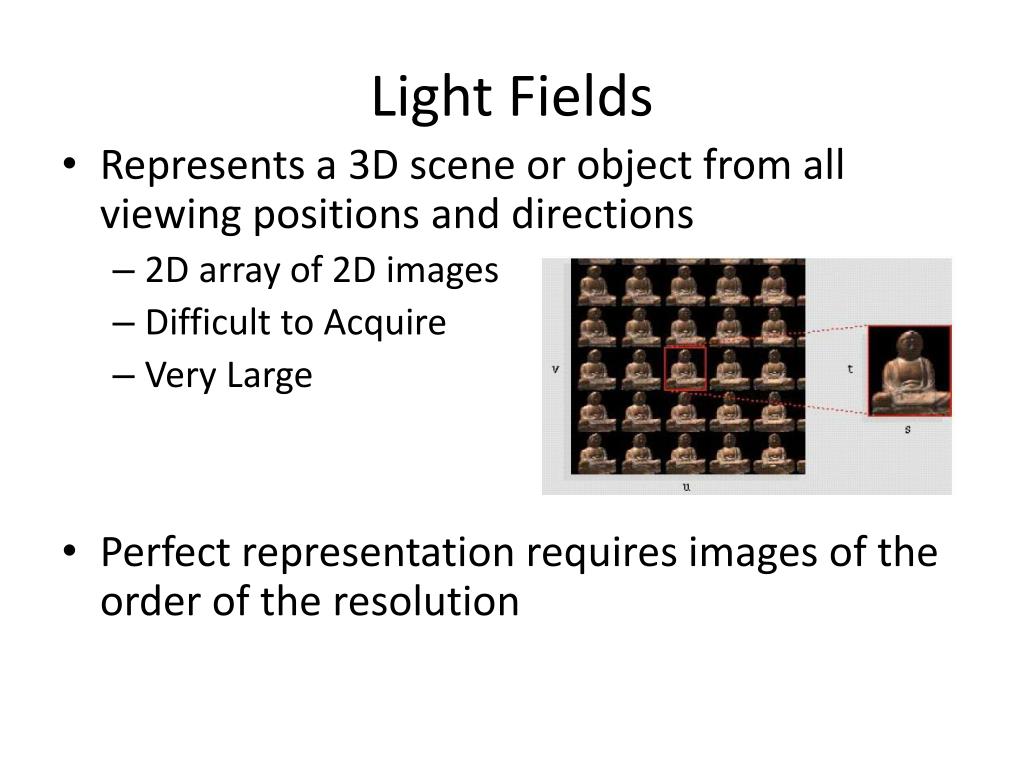

  4. Light Fields • Represents a 3D scene or object from all viewing positions and directions • 2D array of 2D images • Difficult to Acquire • Very Large • Perfect representation requires images of the order of the resolution

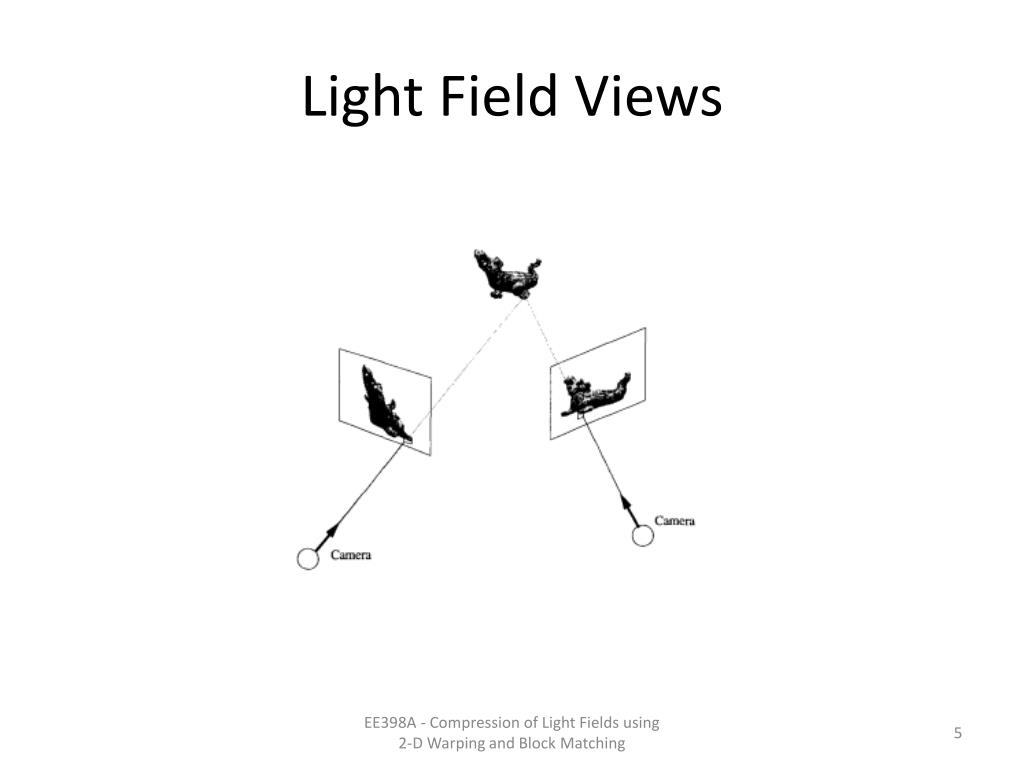

  5. Light Field Views EE398A - Compression of Light Fields using 2-D Warping and Block Matching

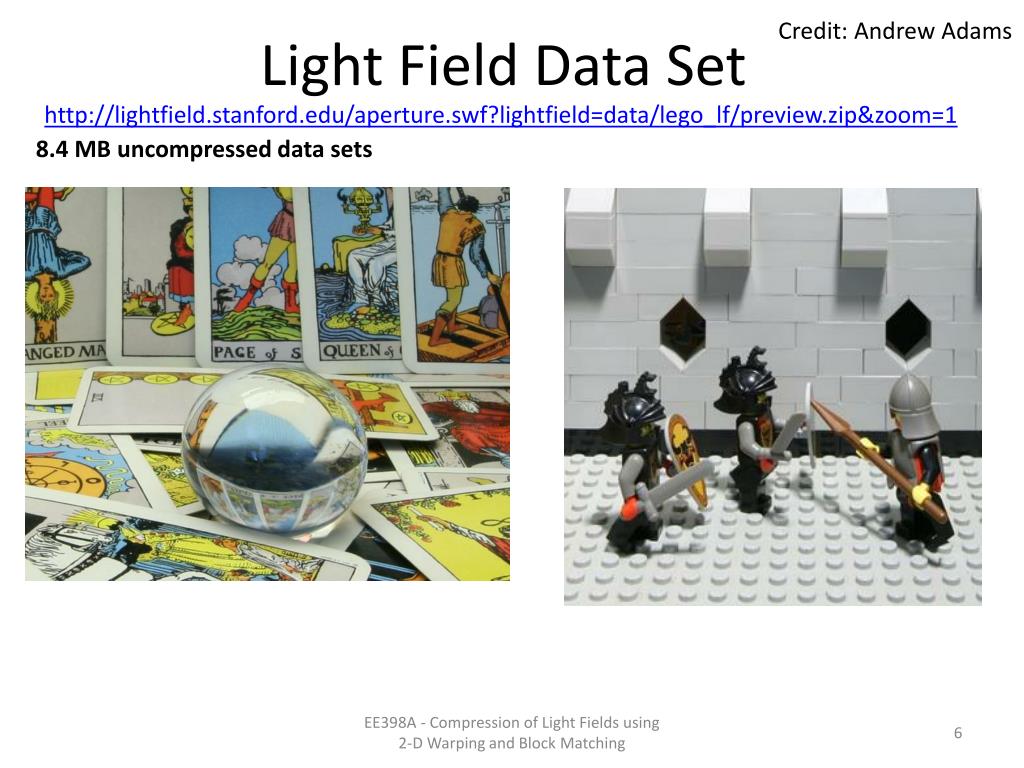

  6. Credit: Andrew Adams Light Field Data Set http://lightfield.stanford.edu/aperture.swf?lightfield=data/lego_lf/preview.zip&zoom=1 8.4 MB uncompressed data sets EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  7. Related Work • Intra-frame coding • Vector quantization, DCT coding, transform coding yield compression ratios of less than 30:1 • Inter-frame coding (compression in the hundreds, thousands) • Disparity compensation • 3D geometry models • Blockwise Compression ideal: maximally use coherence between two images EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  8. Our Method: 2-D Warping • Each consecutive view is a projection of the previous view due to constant predictable movement of camera • Find this relation between the views by obtaining projection matrix for each pair of views • Predict the view and encode the residual EE398A - Compression of Light Fields using 2-D Warping and Block Matching

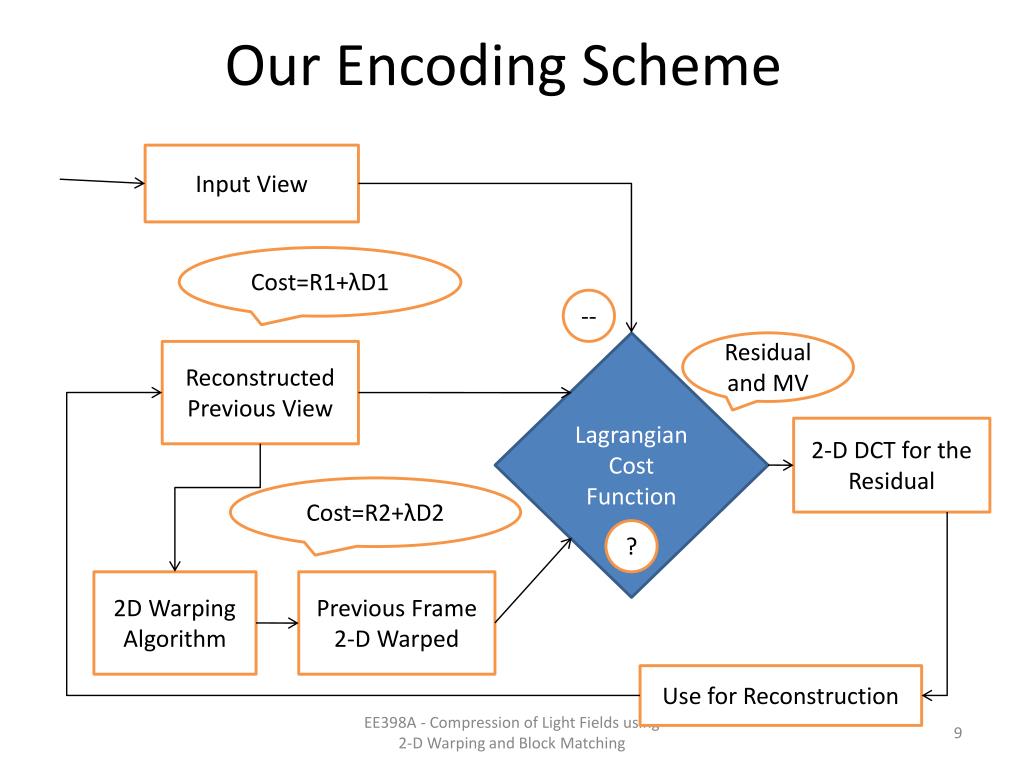

  9. Our Encoding Scheme Input View Cost=R1+λD1 -- Lagrangian Cost Function Residual and MV Reconstructed Previous View 2-D DCT for the Residual Cost=R2+λD2 ? 2D Warping Algorithm Previous Frame 2-D Warped Use for Reconstruction EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  10. Notes • DCT used on 8x8 blocks to encode residual • Laplacian distribution assumed for motion vectors • Projection matrix was encoded by normalizing values with respect to 10, and assuming Laplacian distribution of bitrate. The min and max values are encoded separately using binary encoding. • H =   -0.5780.005   -0.720   -0.003   -0.5720.0070.0000.000   -0.582 EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  11. 1. Feature match by correlation 2. Projective matrix computed Lagrangian Mode Decision using two references 3. Clipped edges are interpolated using motion compensation EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  12. Getting a predicted projection:Step 1: Feature matching by Correlation Features detected by Harris corner detection algorithm, and matching points identified by maximum correlation EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  13. Computing the Homography Matrix • A homography is an invertible transformation from the real projective plane to the projective plane that maps straight lines to straight lines EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  14. Results for 2-D Projection Warping EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  15. Results for 2-D Projective Warping EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  16. Results for 2D Projective Warping EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  17. Compression Ratios EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  18. Conclusion • Advantages: decreased coding complexity, and increased rate/PSNR as well as compression • Experimental results demonstrate improved coding efficiency with our 2D warp method when compared with MVC. EE398A - Compression of Light Fields using 2-D Warping and Block Matching

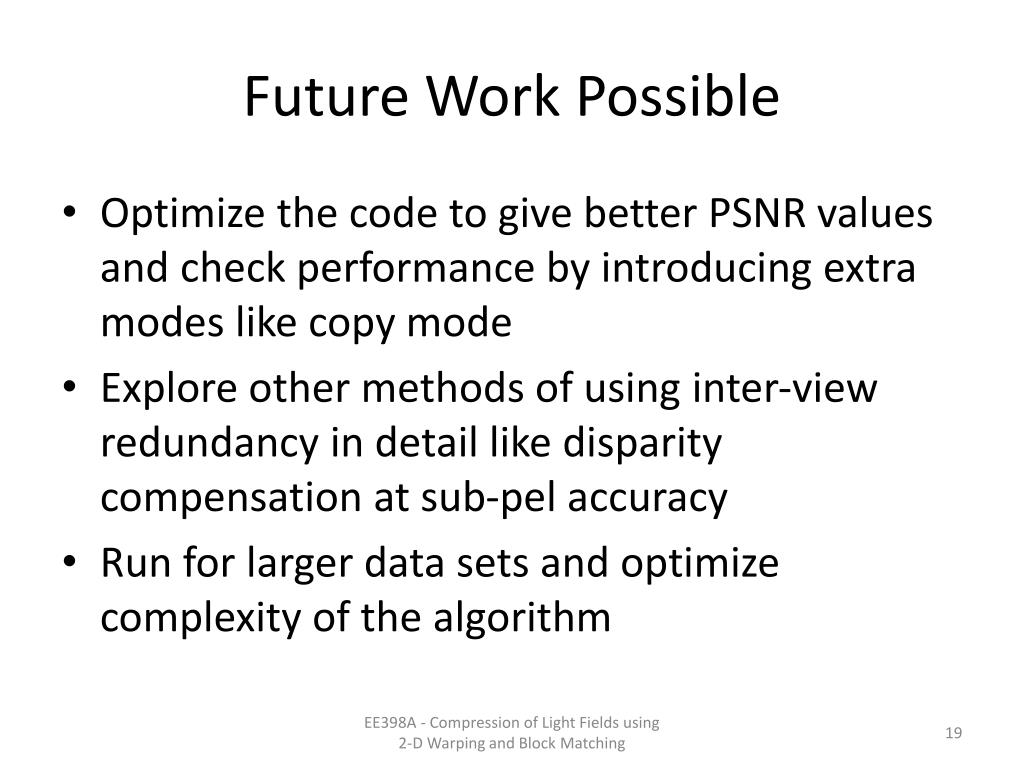

  19. Future Work Possible • Optimize the code to give better PSNR values and check performance by introducing extra modes like copy mode • Explore other methods of using inter-view redundancy in detail like disparity compensation at sub-pel accuracy • Run for larger data sets and optimize complexity of the algorithm EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  20. Summary • Light fields represent a 3D scene using sequence of 2-D images • Large amounts of data • Can use redundancy between images using 2-D warping with motion compensated block matching • Results in a sleek method for compression • Performance wise.. EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  21. Acknowledgement • Prof. Girod for pointing us in the right direction • Mina Makar for his help • Chuo-Ling Chang for DAPBT code • Huizhong Chen and Derek Pang for their help • Prof. Peter Kovesi for open source matlab function library • Prof. Levoy’s group and Andrew Adams for access to light field images EE398A - Compression of Light Fields using 2-D Warping and Block Matching

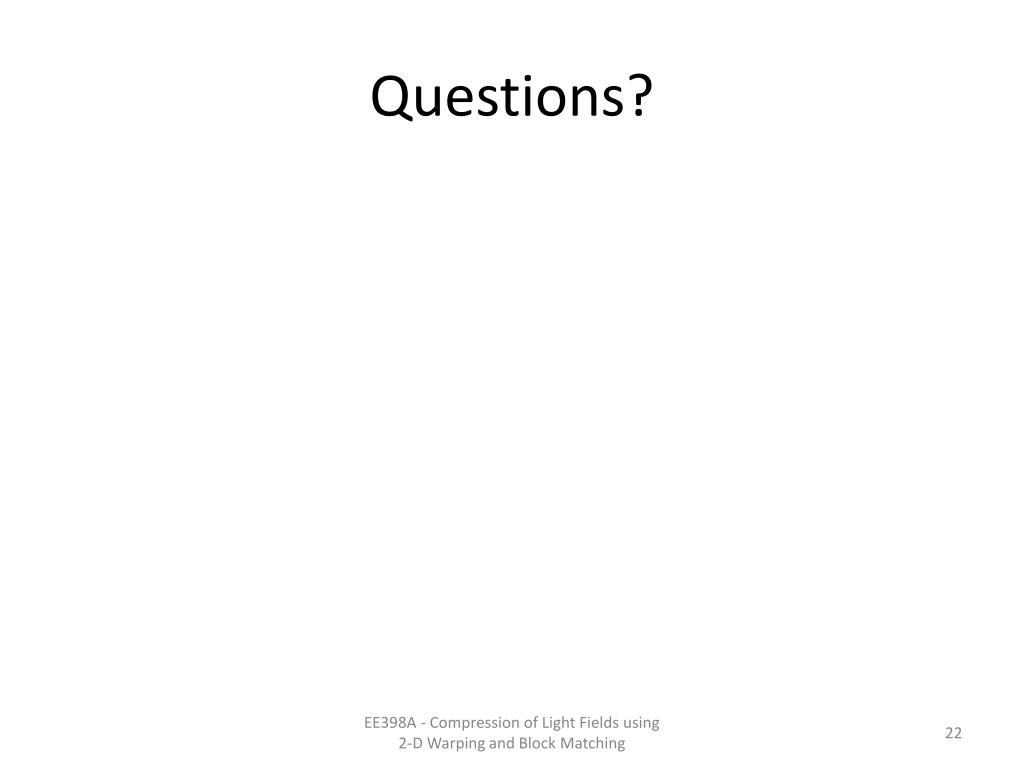

  22. Questions? EE398A - Compression of Light Fields using 2-D Warping and Block Matching

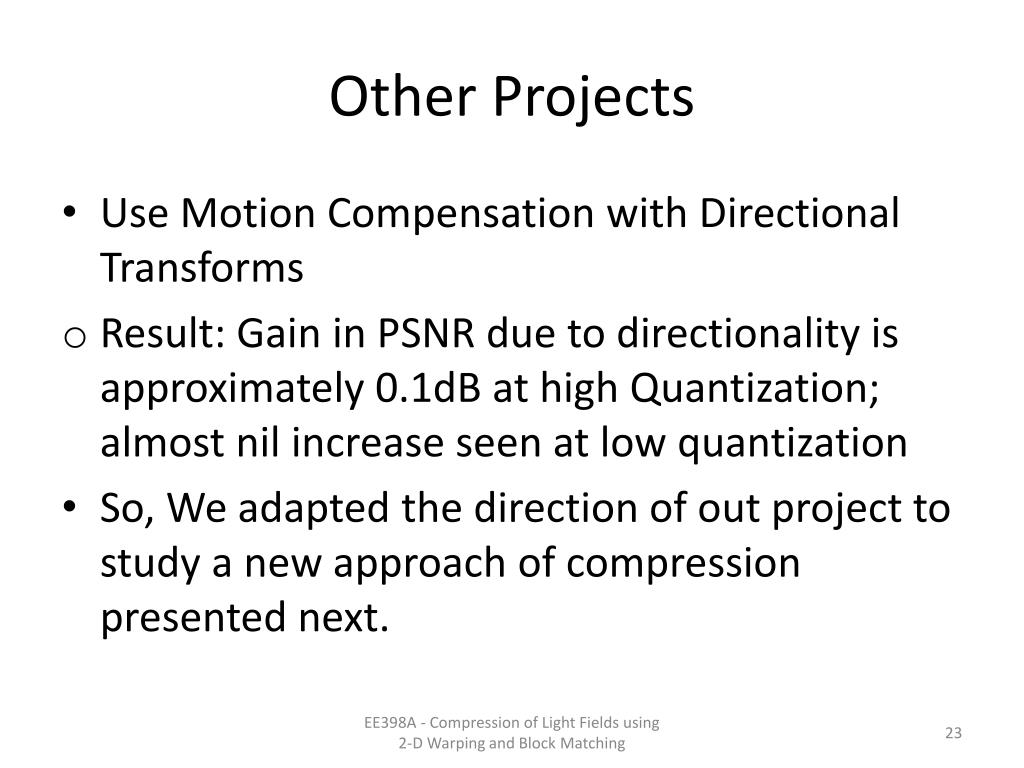

  23. Other Projects • Use Motion Compensation with Directional Transforms • Result: Gain in PSNR due to directionality is approximately 0.1dB at high Quantization; almost nil increase seen at low quantization • So, We adapted the direction of out project to study a new approach of compression presented next. EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  24. Results with Motion Compensation and DAPBT for Crystal light field EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  25. Results with Motion Compensation and DAPBT for Lego light field EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  26. This is how blocking is done and direction selection happens!IAP(DAT)+IRP(DCT) for QP=44, Crystal Light Field EE398A - Compression of Light Fields using 2-D Warping and Block Matching

  27. For Lego light field IAP(DAT)+IRP(DCT) for QP=44, Crystal Light Field EE398A - Compression of Light Fields using 2-D Warping and Block Matching
