Loop variant & invariant

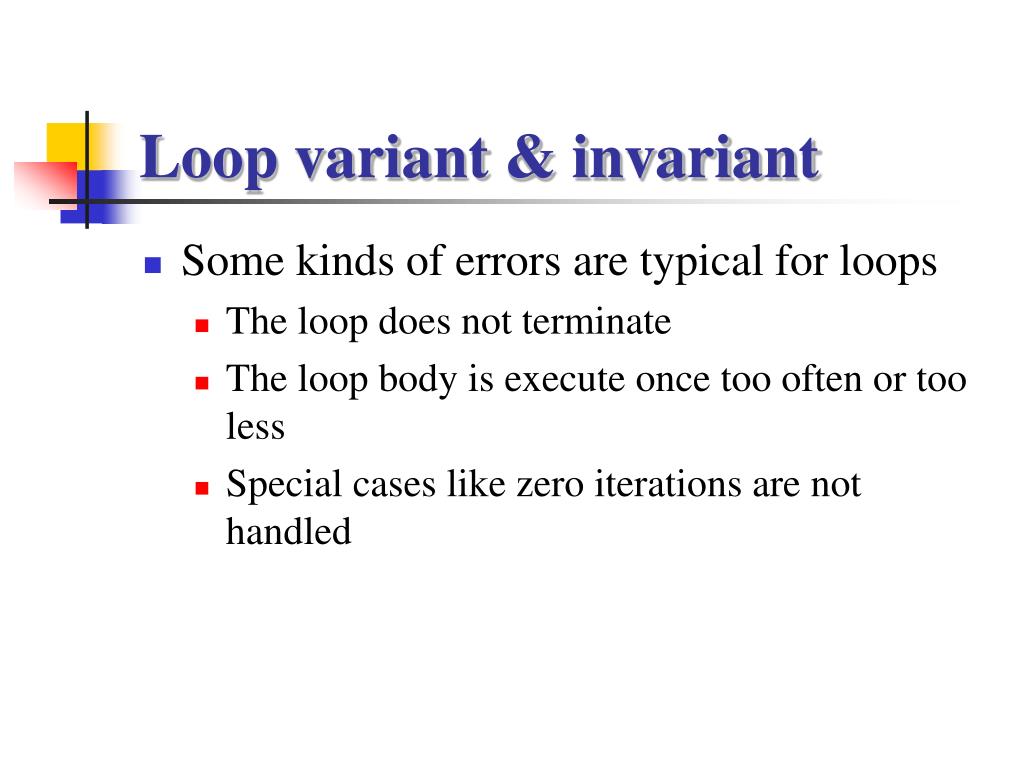

Loop variant & invariant • Some kinds of errors are typical for loops • The loop does not terminate • The loop body is execute once too often or too less • Special cases like zero iterations are not handled

Loop invariant • The loop invariant specifies a condition that must be satisfied at • the begin of the loop, • after every iteration and • when the loop has terminated. • This is used to express global properties of the loop like the range of the loop variable.

Loop variant • The loop variant declares an integer expression that is decreased with every loop iteration but never below zero. • Thus the loop variant guaranties the termination of the loop.

What should we ask ? • Loop invaiant • Begin with: What has happened so far? • What is supposed to be true as a result of the completion of the loop? (I.e. what is the intermediate result so far) • Loop variant • What is the termination condition? • If the termination condition is not met the loop is entered. Will the loop body insure progress toward termination? (I.e. how far are we from termination)

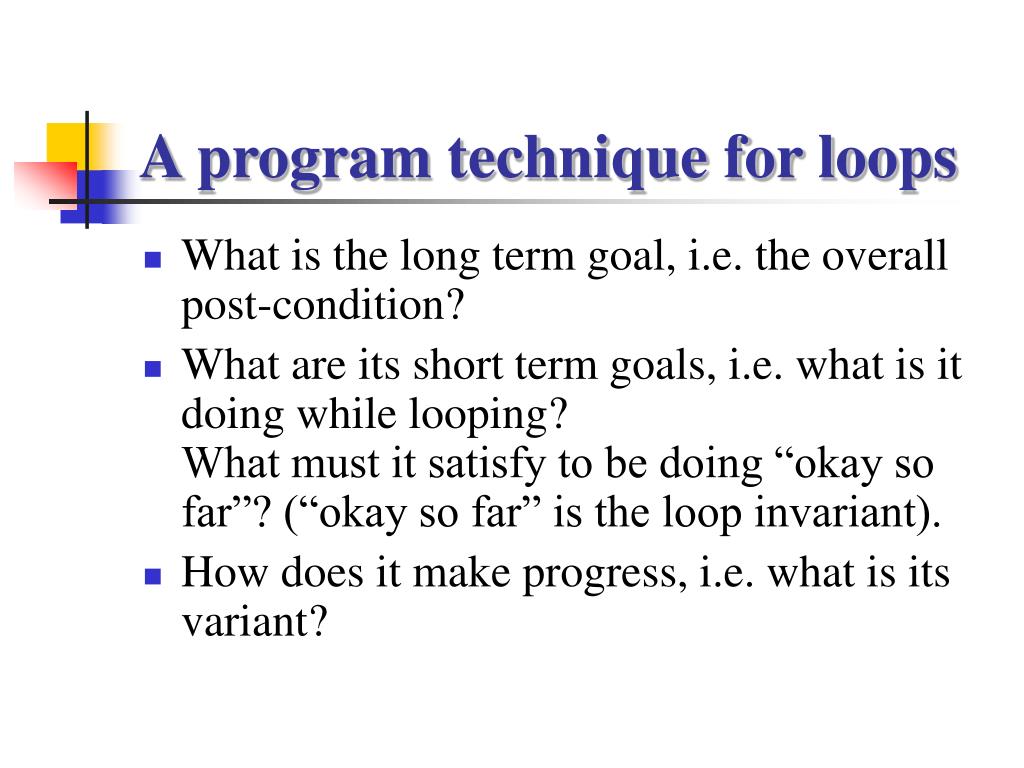

A program technique for loops • What is the long term goal, i.e. the overall post-condition? • What are its short term goals, i.e. what is it doing while looping?What must it satisfy to be doing “okay so far”? (“okay so far” is the loop invariant). • How does it make progress, i.e. what is its variant?

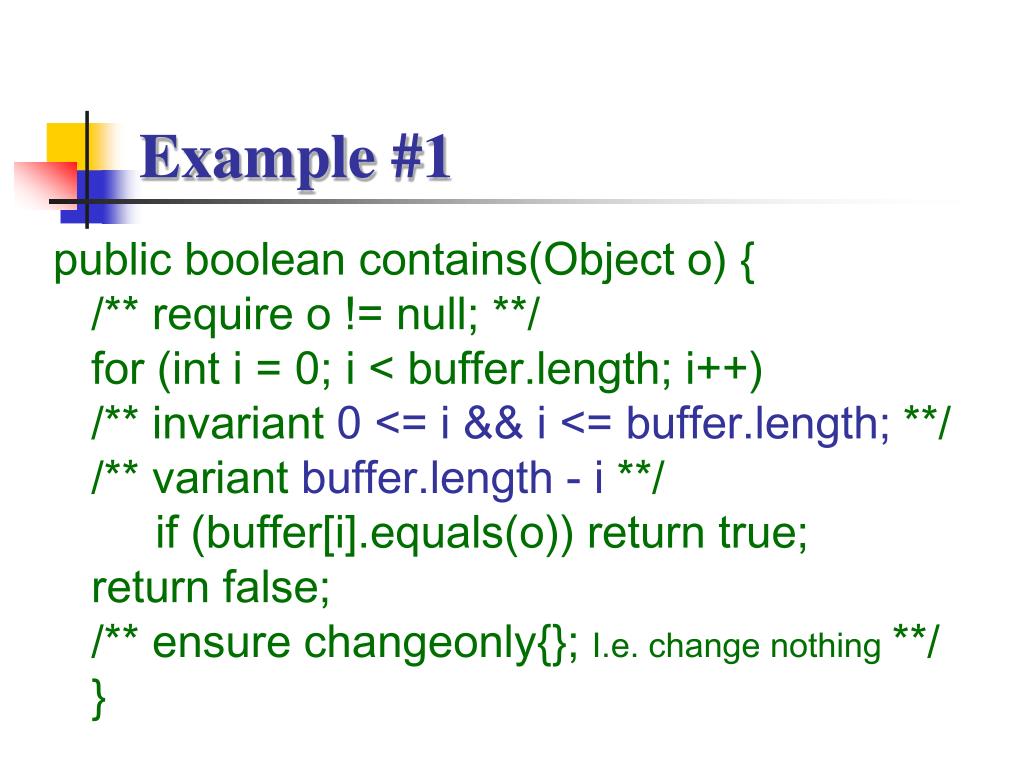

Example #1 public boolean contains(Object o) { /** require o != null; **/for (int i = 0; i < buffer.length; i++) /** invariant 0 <= i && i <= buffer.length; **/ /** variant buffer.length - i **/ if (buffer[i].equals(o)) return true; return false; /** ensure changeonly{}; I.e. change nothing **/ }

Example #2 int Negs (int [] A) { //pre: none init: i=0; result=0; //invariant: -- ? -- //variant: -- ? -- while (i<=A.length-1) { if (A[i]<0) result = result + 1; i++; } return result; //post: result = sum(i=0 to i=(A.length)-1) (if A[i] < 0 then 1 else 0) }

Example #3 Precondition: a is nonempty Postcondition: s is the smallest element in a from i := a.lower s := a.item (i) invariant -- ? -- variant -- ? -- until i = a.upper loop i := i + 1 s := s.min (a.item (i)) end

Example #3 Precondition: a is nonempty Postcondition: s is the smallest element in a from i := a.lower s := a.item (i) invariant -- ? -- variant a.upper - i until i = a.upper loop i := i + 1 s := s.min (a.item (i)) end

Example #3 Precondition: a is nonempty Postcondition: s is the smallest element in a from i := a.lower s := a.item (i) invariant -- s is the smallest element in the set {a.item (a.lower), ..., a.item (i)} variant a.upper - i until i = a.upper loop i := i + 1 s := s.min (a.item (i)) end

Mystery Program input(x,y) z := 1;while y != 0 doif odd(y)then y := y -1; z := x*z;else x := x * x; y := y / 2; output(z);

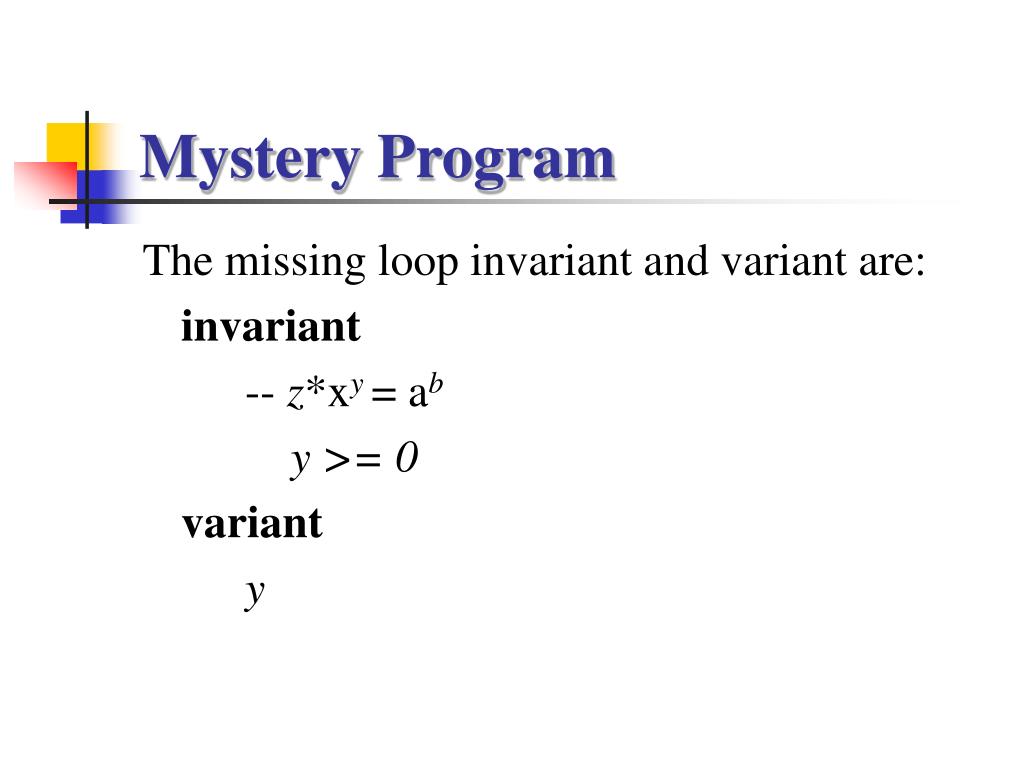

Mystery Program The missing loop invariant and variant are: invariant -- z*xy= ab y >= 0 variant y

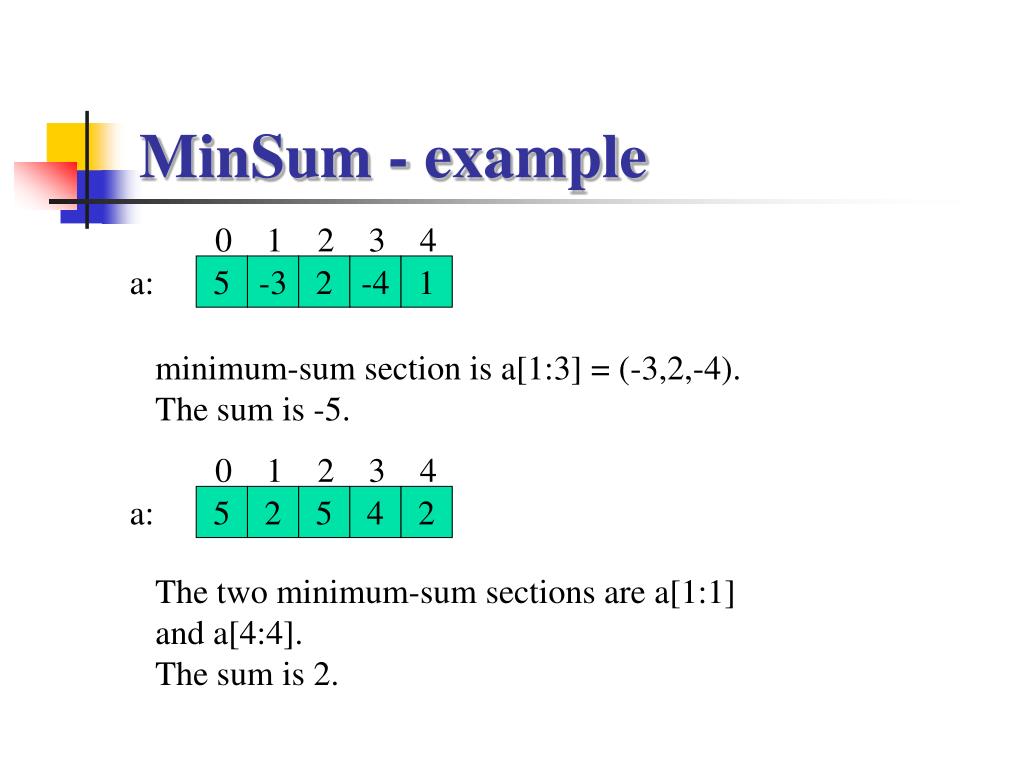

MinSum - example 0 1 2 3 4 a: 5 -3 2 -4 1 minimum-sum section is a[1:3] = (-3,2,-4). The sum is -5. 0 1 2 3 4 a: 5 2 5 4 2 The two minimum-sum sections are a[1:1] and a[4:4]. The sum is 2.

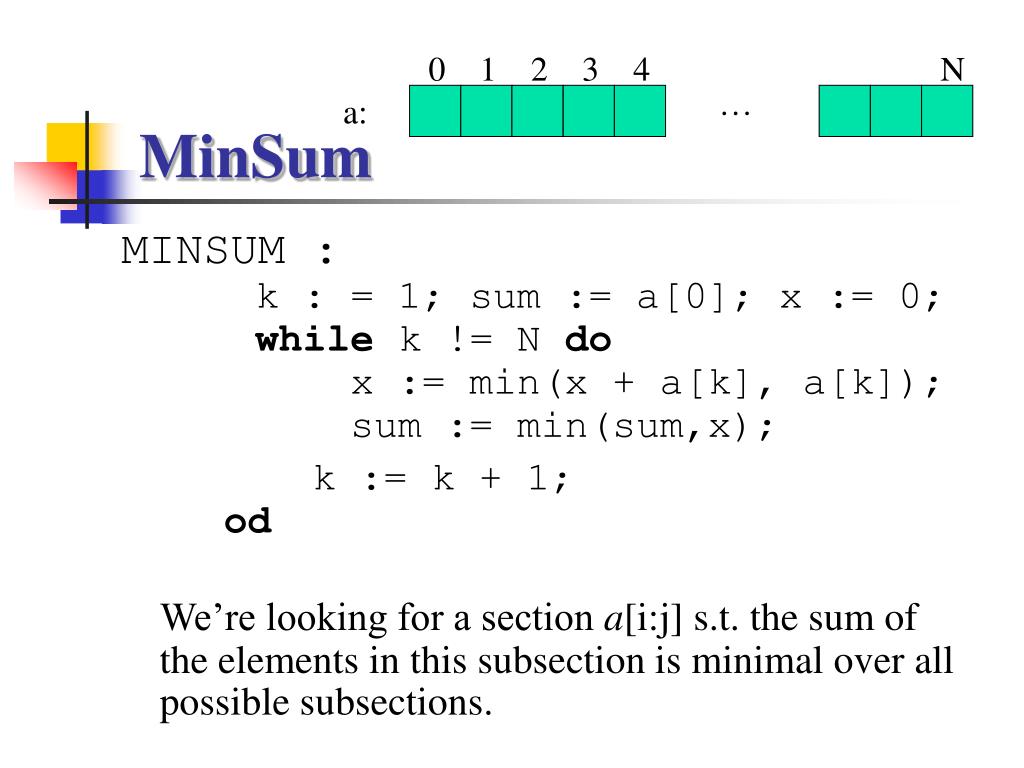

… 0 1 2 3 4 N MinSum a: MINSUM : k : = 1; sum := a[0]; x := 0;while k != N do x := min(x + a[k], a[k]); sum := min(sum,x); k := k + 1;od We’re looking for a section a[i:j] s.t. the sum of the elements in this subsection is minimal over all possible subsections.

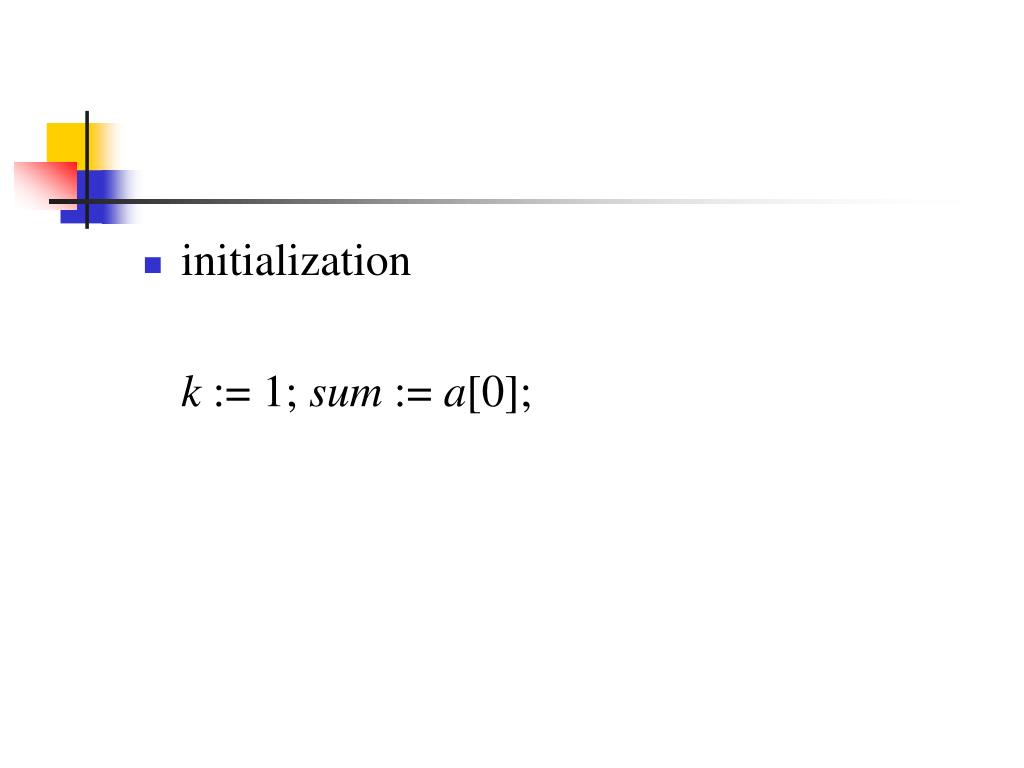

initialization k := 1; sum := a[0];

post condition The sum of the minimum-sum section of a[0:k-1]

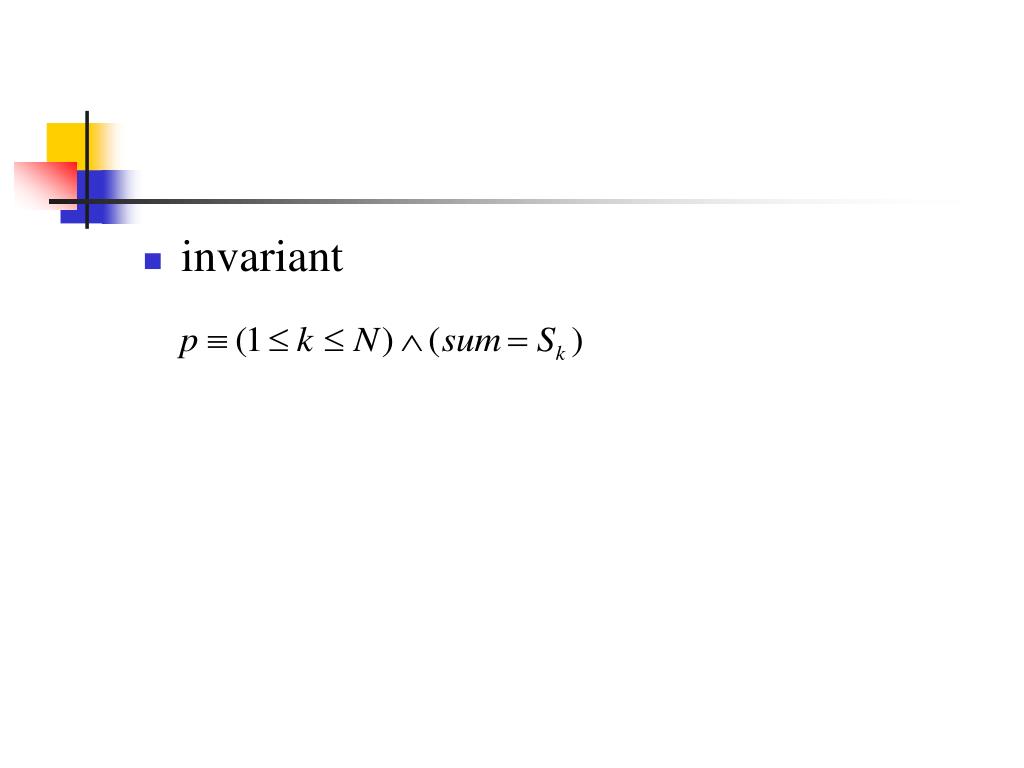

invariant

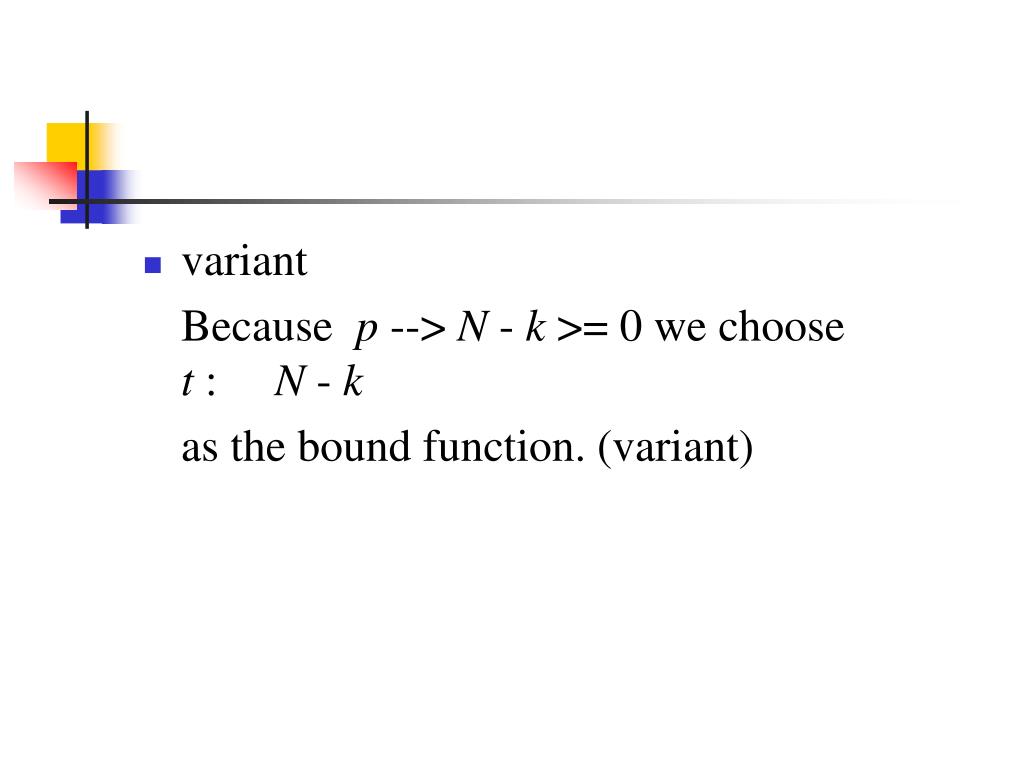

variant Because p --> N - k >= 0 we chooset : N - k as the bound function. (variant)

Product of Two natural Numbers prod := 0; count := y; while count > 0 do prod := prod + x; count := count - 1; od return prod x,y,prod,count are integer variables.

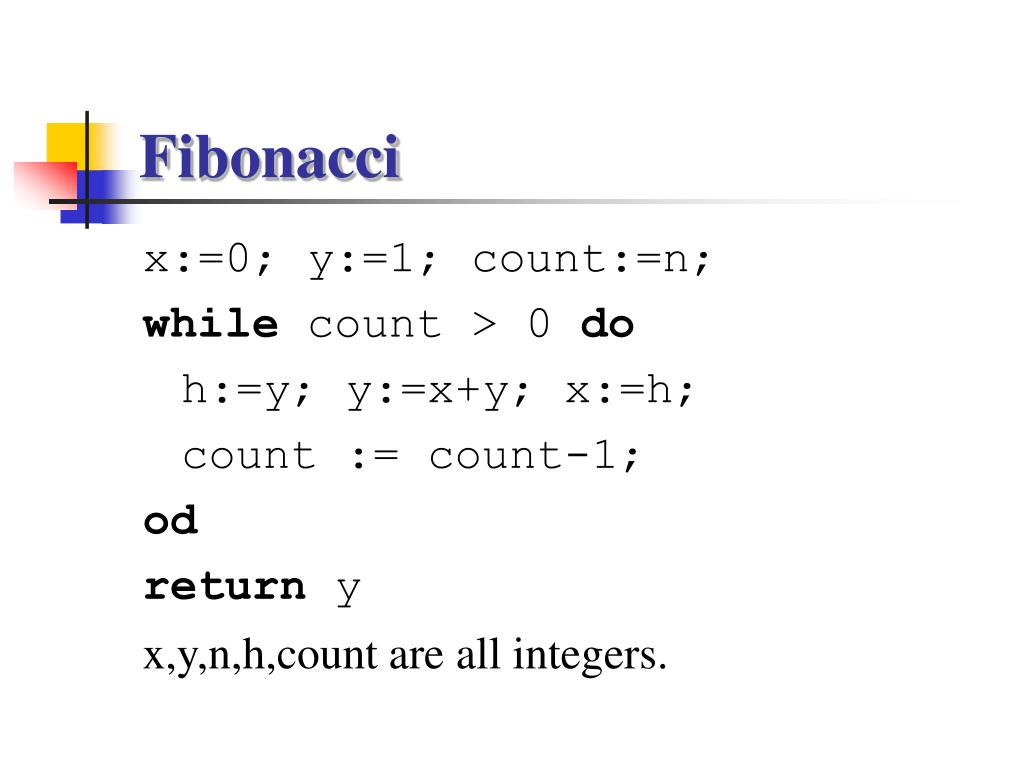

Fibonacci x:=0; y:=1; count:=n; while count > 0 do h:=y; y:=x+y; x:=h; count := count-1; od return y x,y,n,h,count are all integers.

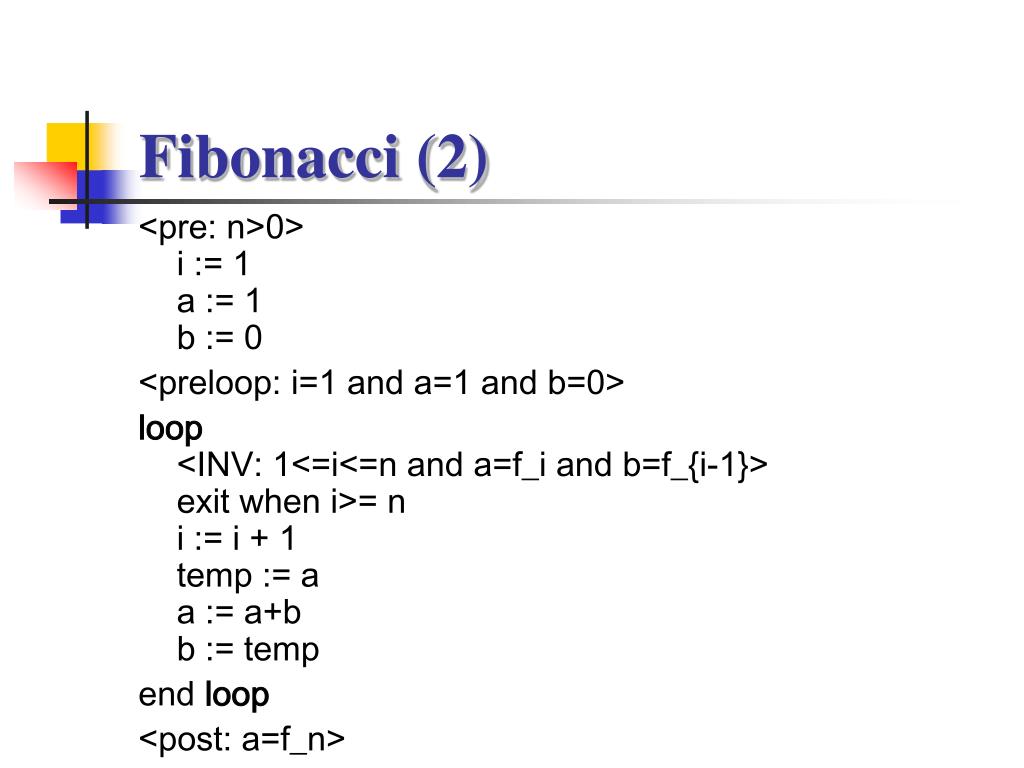

Fibonacci (2) <pre: n>0> i := 1 a := 1 b := 0 <preloop: i=1 and a=1 and b=0> loop<INV: 1<=i<=n and a=f_i and b=f_{i-1}> exit when i>= n i := i + 1 temp := a a := a+b b := temp end loop <post: a=f_n>

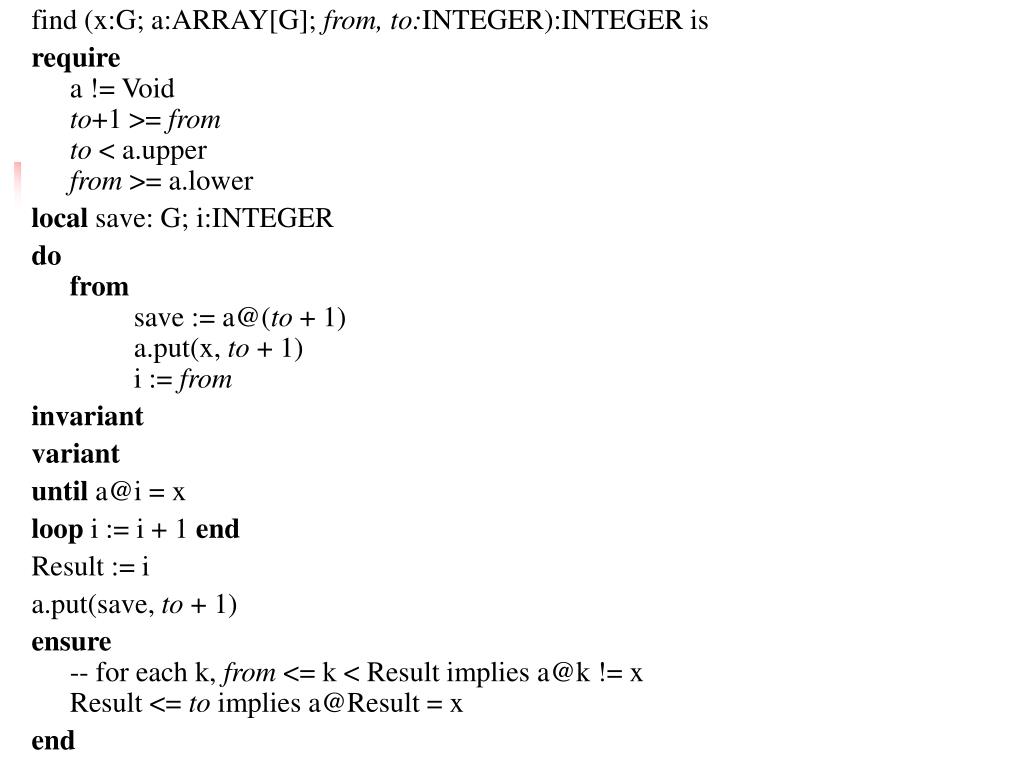

find (x:G; a:ARRAY[G]; from, to:INTEGER):INTEGER is requirea != Voidto+1 >= fromto < a.upperfrom >= a.lower local save: G; i:INTEGER dofrom save := a@(to + 1) a.put(x, to + 1) i := from invariant variant until a@i = x loop i := i + 1 end Result := i a.put(save, to + 1) ensure-- for each k, from <= k < Result implies a@k != xResult <= to implies a@Result = x end

Searches for the first occurrence of a value x between indexes from and to in an array a. • Instead of checking for the end of the search segment, it puts the value x immediately after the segment, so that the value will always be found.

variant: to + 1 - i

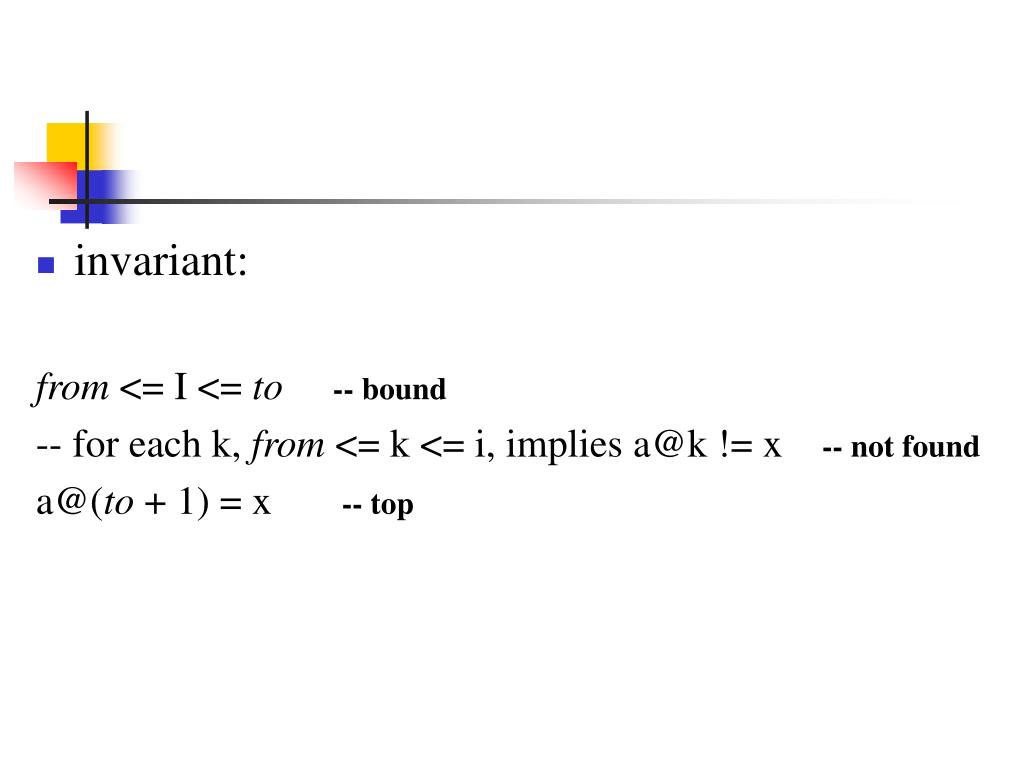

invariant: from <= I <= to-- bound -- for each k, from <= k <= i, implies a@k != x -- not found a@(to + 1) = x -- top

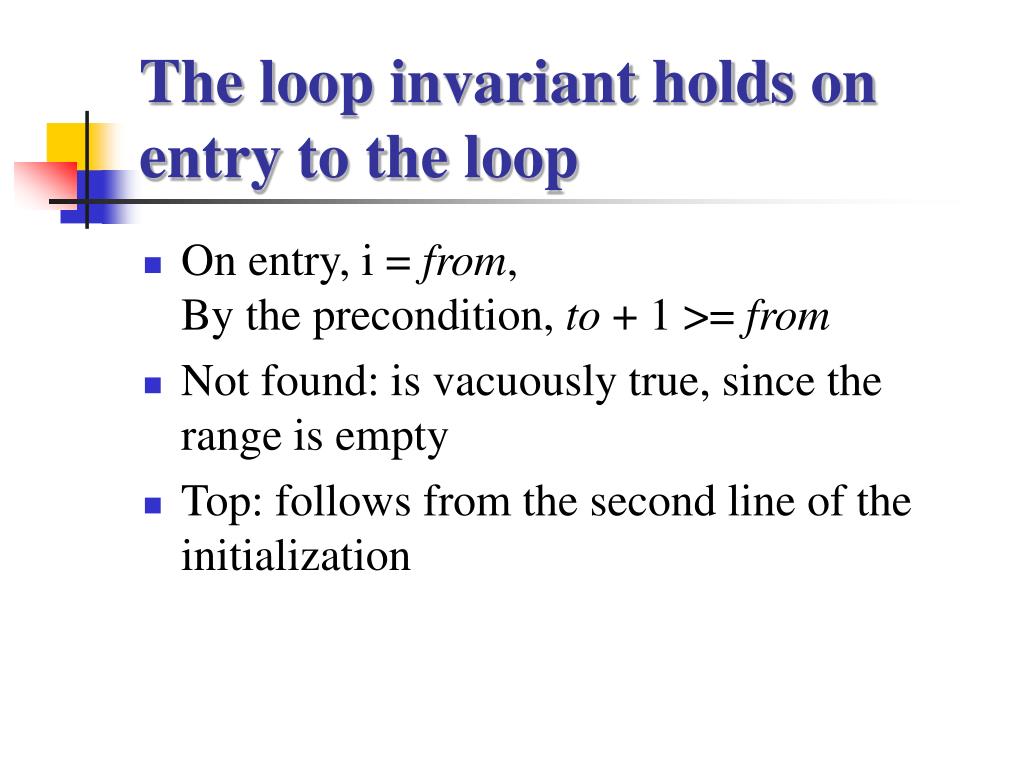

The loop invariant holds on entry to the loop • On entry, i = from, By the precondition, to + 1 >= from • Not found: is vacuously true, since the range is empty • Top: follows from the second line of the initialization

The loop invariant is maintained be one pass through the loop • i` is the previous value of i • Bound: • i = i` + 1 > i` >= from • By top: a@(to +1) = xBy exit condition, a@i` != x, so i`!=to +1therefore i` <= to and i=i`+1 <= to + 1 • Top: • Follows from the invariant, since the array, x and to aren’t modified in the loop

Not found: • For from <= k <= i-1, follows from the invariant at the beginning of the pass. • For k=i-1, we know by the exit condition that a@(i-1) = a@i` != x

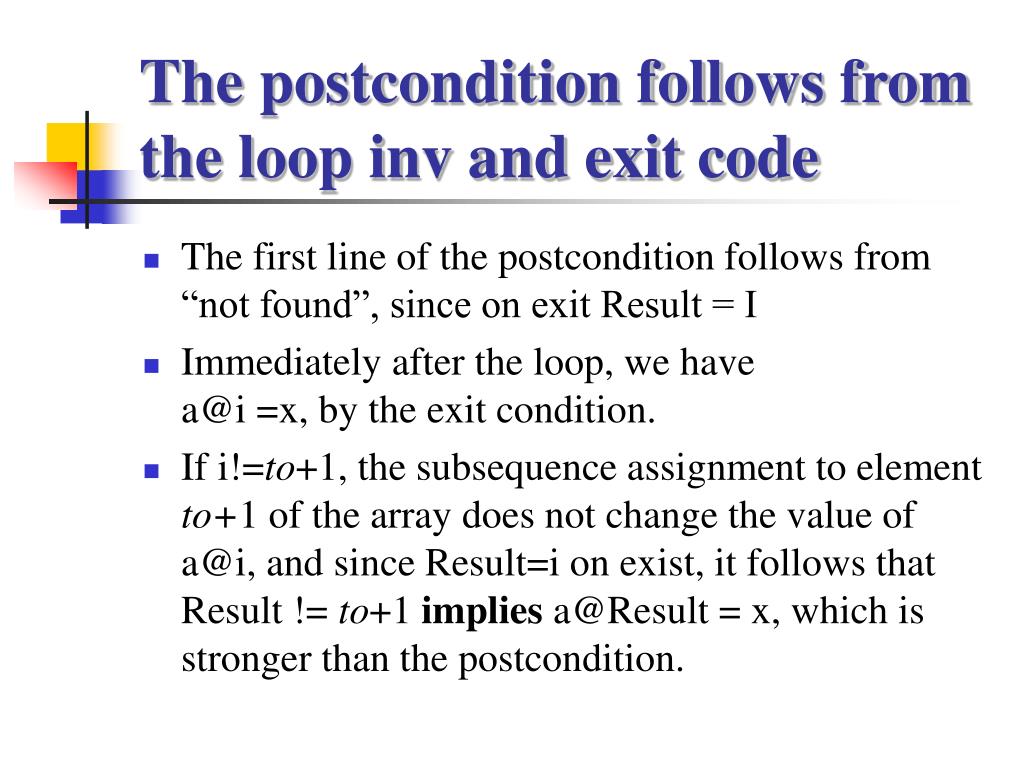

The postcondition follows from the loop inv and exit code • The first line of the postcondition follows from “not found”, since on exit Result = I • Immediately after the loop, we havea@i =x, by the exit condition. • If i!=to+1, the subsequence assignment to element to+1 of the array does not change the value of a@i, and since Result=i on exist, it follows that Result != to+1 implies a@Result = x, which is stronger than the postcondition.
