  1. Instrumentation Fundamentals Module 1 – Pressure Scales Units of Pressure Pressure Scales & Conversions Atmospheric, PSIG, PSIA, PSID, Bar Manometers

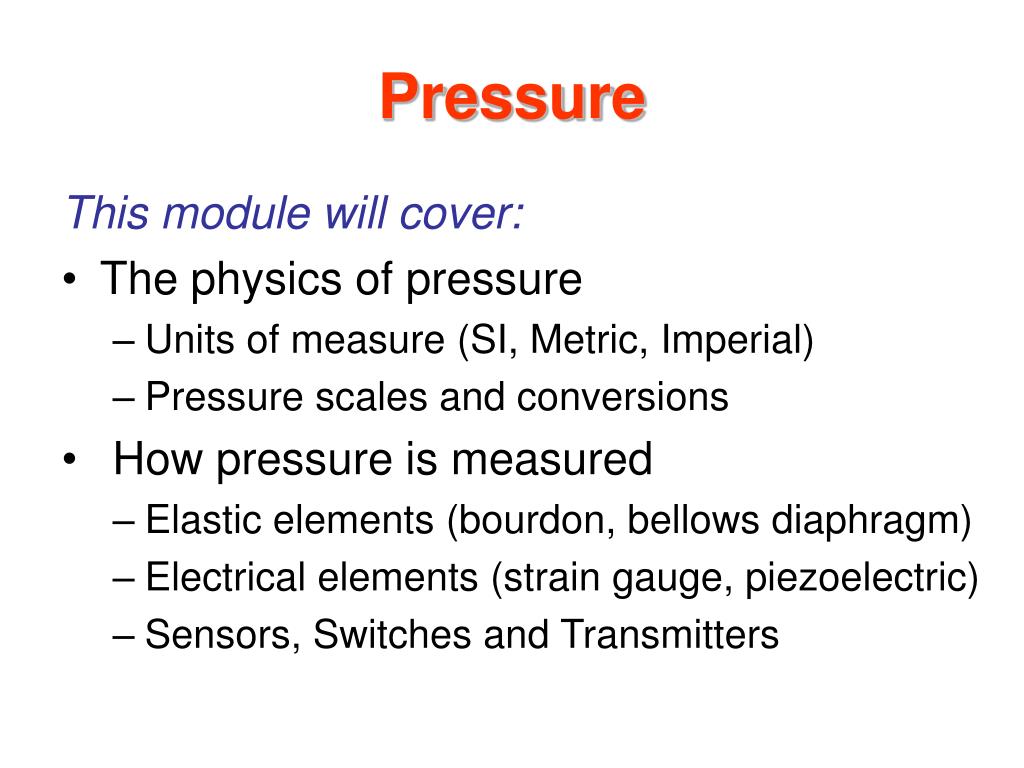

  2. Pressure This module will cover: • The physics of pressure • Units of measure (SI, Metric, Imperial) • Pressure scales and conversions • How pressure is measured • Elastic elements (bourdon, bellows diaphragm) • Electrical elements (strain gauge, piezoelectric) • Sensors, Switches and Transmitters

  3. What is it? Pressure is an operating parameter that is relevant in many applications. (similar to voltage in an electric circuit) • Pressure applied over a given area can be used for useful work. • Steam pressure, Water pressure • Pressures can be measured to infer the condition of other process parameters. • Flow, level

  4. Force Area Pressure = The Physics of Pressure Pressure is defined as “force per unit area” Therefore any object or material having a weight will exert a pressure over the area the force is acting on.

  5. Force Area Pressure = The Units of Pressure Pressure is defined as “force per unit area” Pound force, Kilogram force Newton, dyne Square Inches, Square feet Square Centimeters, Square Meters • Common units include: • Pounds per Square Inch (psi) • KiloPascals (kPa)

  6. 550 lbs 708 lbs 62.4 lbs 849 lbs Example of pressure from a 1 cubic foot pound force acting on a surface Each base has an area of 144 in2 1 cubic foot of copper 550 lbs 144 in2 = 3.8 psi 1 cubic foot of lead 708 lbs 144 in2 = 4.9 psi 1 cubic foot of water 62.4 lbs 144 in2 = 0.43 psi 1 cubic foot of mercury 849 lbs 144 in2 = 5.9 psi

  7. More Pressure Scales PSI and kPa are the most common pressure scales but there a few more: • Inches* of water • Inches* of mercury • Bar • Atmos • Torr (vacuum) * or millimeters when using metric

  8. Example of the various pressure scales The same process pressure is being applied to each gauge. Each gauge has a different scale calibration. 27.6806 “H20 2.03602 “Hg 0.068947 Bar 0.068046 Atmos Applied process pressure is 1 psi or 6.89 kPa • The choice of scales will depend on • the amount of pressure being measured (high pressure = psi/kPa, low pressure = inches H20) • The type of application ( flow = inches H20, blood pressure = inches of Hg.)

  9. Conversion Factors Need to Know:psiand kPaconversion Imperial vs Metric vs SI • 1 cubic foot of water that weighs 62.4 lbs acting over an area of 144 in2 produces a pressure of 0.433 pound per square inch (psi) • The same volume of water weighs 28.3 Kilograms over an area of 929 cm2, therefore the pressure is 0.03 kilograms per square centimeter. (30.46 g/cm2) • SI use Newton per sq. meter and call it the Pascal 1 psi = 0.006894757 Pascals = 6.895 kiloPascals

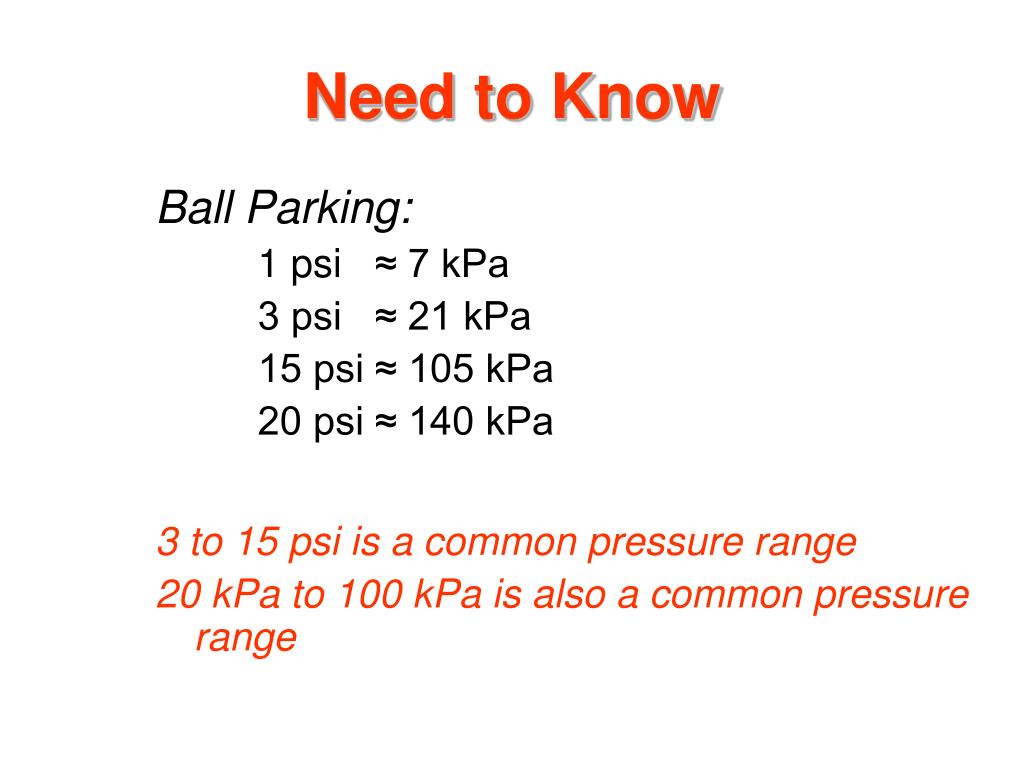

  10. Need to Know Ball Parking: 1 psi ≈ 7 kPa 3 psi ≈ 21 kPa 15 psi ≈ 105 kPa 20 psi ≈ 140 kPa 3 to 15 psi is a common pressure range 20 kPa to 100 kPa is also a common pressure range

  11. 12 inches of water exerts a pressure of 0.433 psi Inches of Water Scale This scale is used to measure small pressures. The properties of water are known and constant and can be used as a primary standard. Pressure is proportion to the height of the water column (hydrostatic head pressure)

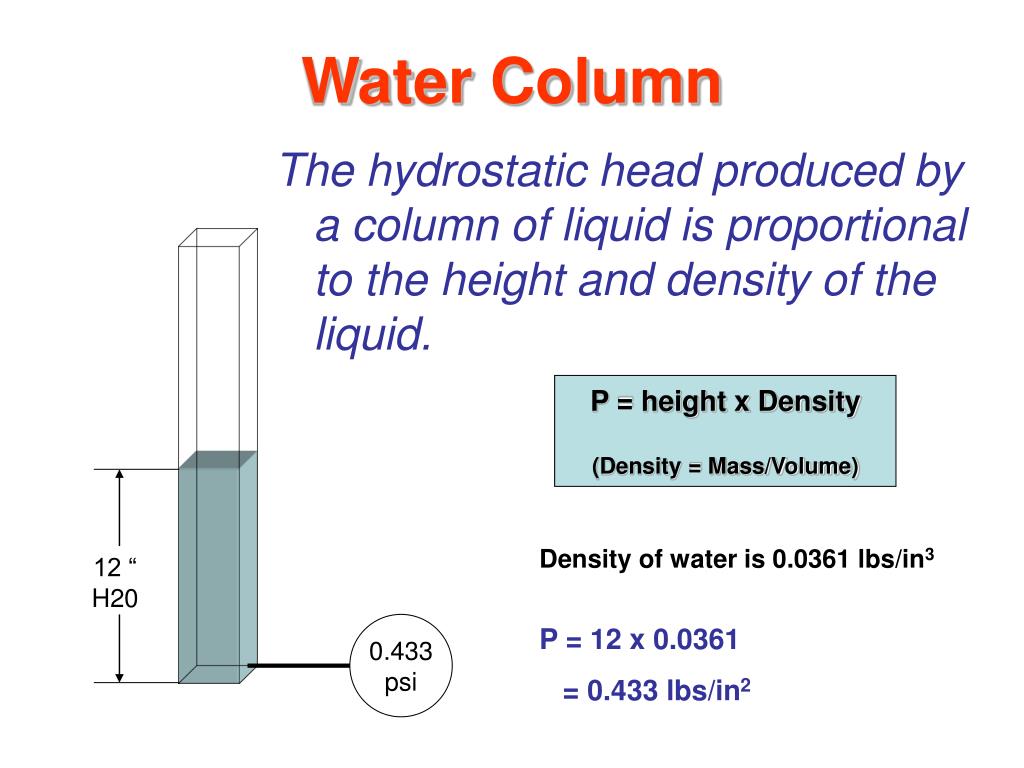

  12. Water Column The hydrostatic head produced by a column of liquid is proportional to the height and density of the liquid. P = height x Density (Density = Mass/Volume) Density of water is 0.0361 lbs/in3 P = 12 x 0.0361 = 0.433 lbs/in2 12 “ H20 0.433 psi

  13. Water Column The greater the height the greater the hydrostatic head. P = height x Density (Density = Mass/Volume) 24 “ H20 Density of water is 0.0361 lbs/in3 P = 24 x 0.0361 = 0.866 lbs/in2 0.866 psi

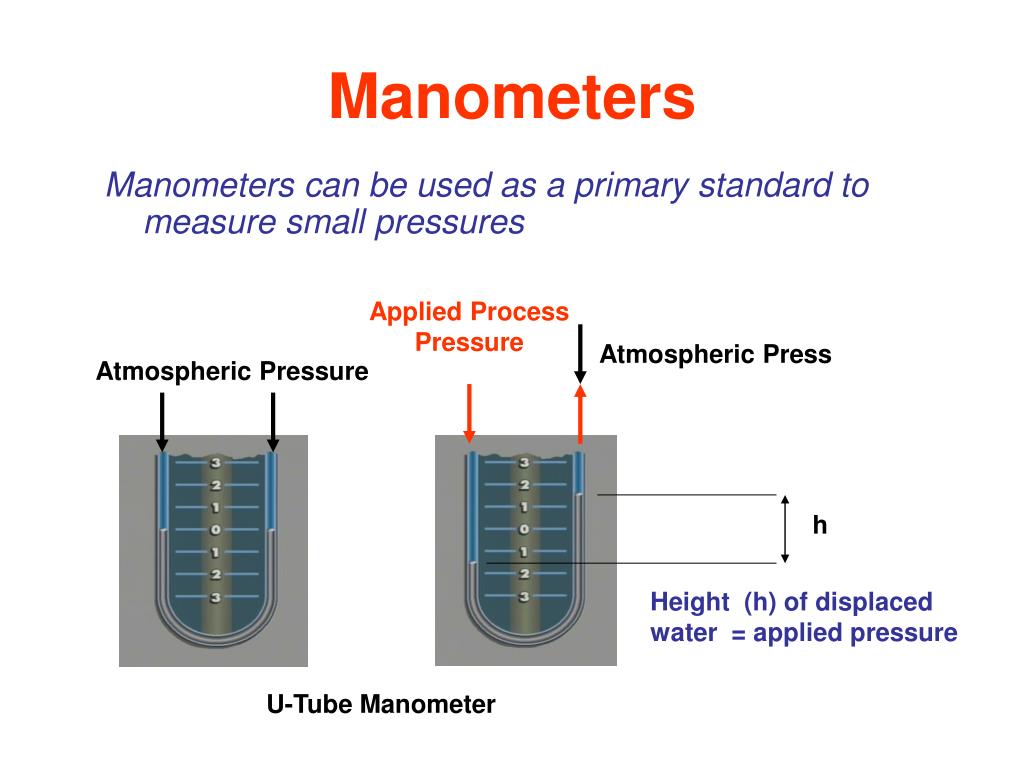

  14. Applied Process Pressure Atmospheric Press Atmospheric Pressure h Height (h) of displaced water = applied pressure U-Tube Manometer Manometers Manometers can be used as a primary standard to measure small pressures

  15. Applied Process Pressure Atmospheric Press h Height (h) of displaced water = applied pressure Reading pressure with a U-tube Manometer If the total displacement h = 3“ the applied pressure would be 3”H20 = 3”WC = 0.108 psi Using Mercury as a filling liquid increases the pressure range by 13.6 times.

  16. Well Type Manometers The well type uses one measuring arm. Gives a larger pressure range Mercury filled well type manometers can measure up to 30 psi and more. (6 footer) Can be used as a primary standard.

  17. Inclined Plane Manometer Used for very small pressure measurements. Very sensitive, often used to measure room pressures.

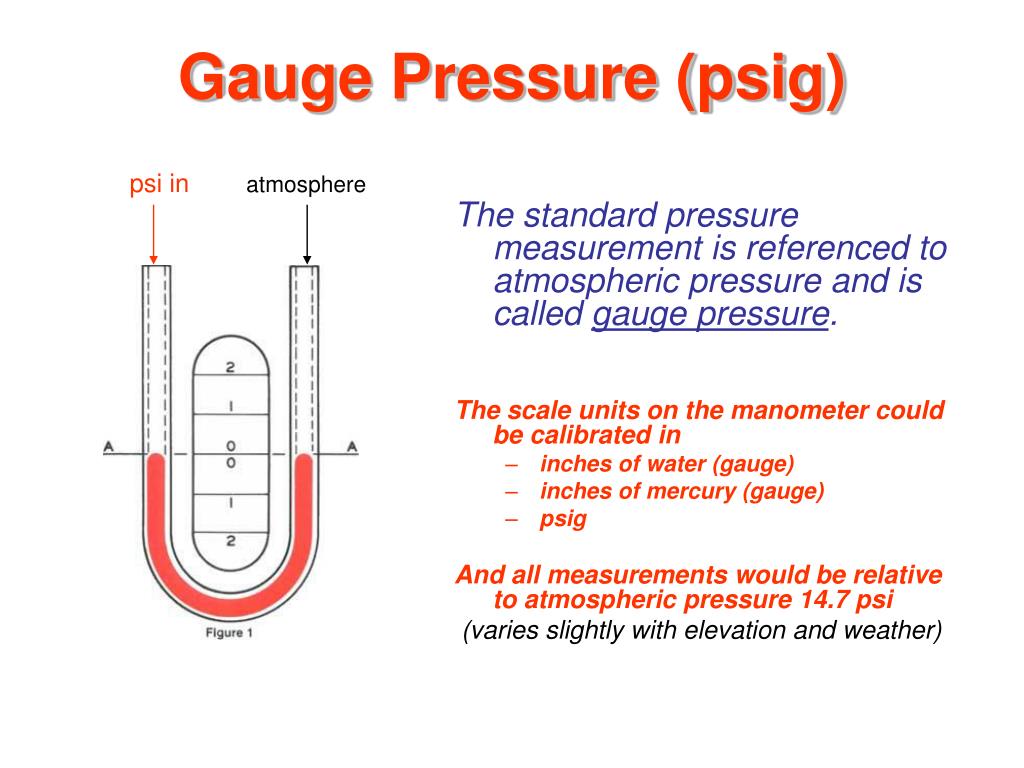

  18. psi inatmosphere Gauge Pressure (psig) The standard pressure measurement is referenced to atmospheric pressure and is called gauge pressure. The scale units on the manometer could be calibrated in • inches of water (gauge) • inches of mercury (gauge) • psig And all measurements would be relative to atmospheric pressure 14.7 psi (varies slightly with elevation and weather)

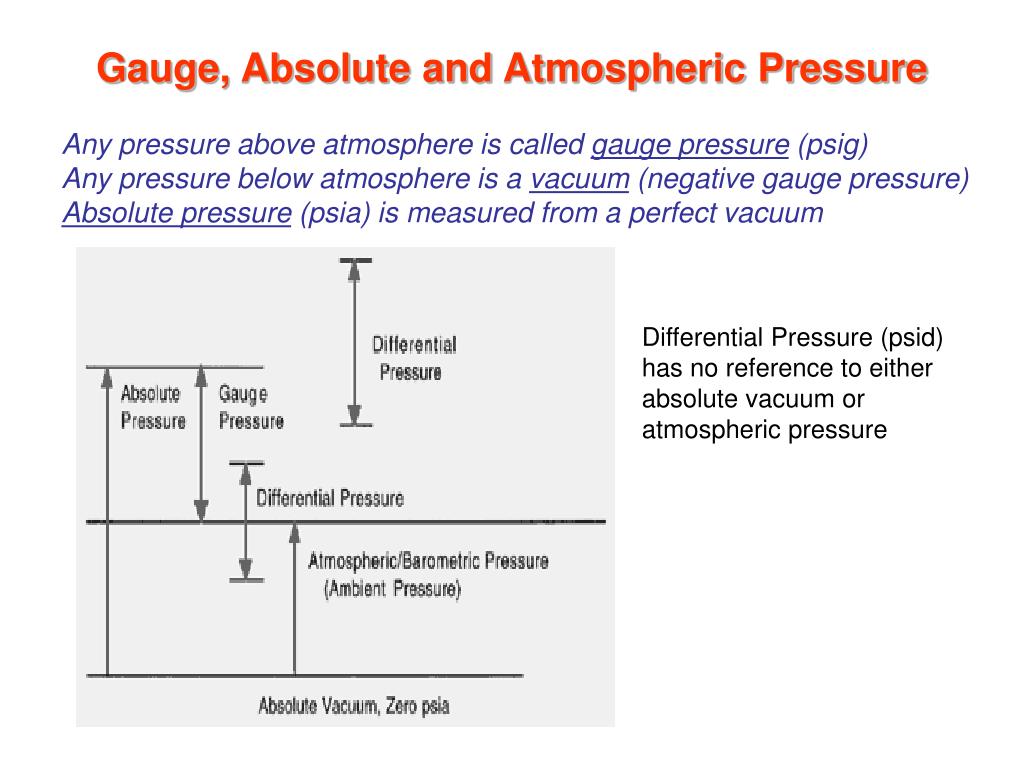

  19. Gauge, Absolute and Atmospheric Pressure Any pressure above atmosphere is called gauge pressure (psig) Any pressure below atmosphere is a vacuum (negative gauge pressure) Absolute pressure (psia) is measured from a perfect vacuum Differential Pressure (psid) has no reference to either absolute vacuum or atmospheric pressure

  20. Gauge Pressure (psig) Applying 1 psi would produce a displacement of about 2 in. Hg or 30 in. H2O Since the reference side of the manometer is open to atmosphere, the applied pressure would be read as gauge pressure i.e. 1psig or just 1 psi 1 psi Atmos h

  21. Standard Gauge • When a gauge has no input applied, it will read 0 psig • The pressure range for this gauge is 0 – 100 psi • What is the range in kPa? Some gauges may not include the “g” after psi, some will.

  22. Pressure Range & Scale This gauge has a pressure range of 0 to 30 in. H2O The pressure being measured is still gauge pressure. What is the maximum psig that can be applied? kPa?

  23. Small pressure measurements Dwyer differential pressure gauge registers a differential of 0 - 2 psi, 1/8" npt. High and low pressure input ports on side and back. Manual set point. Max 15 psi and 140ºF. 4-3/4" diameter x 2" high.

  24. Examples of psig, psia and vacuum 20 psig = 20 + 14.7 = 34.7 psia 60 psia = 60 – 14.7 = 45.3 psig 10 psia = 10 – 14.7 =-4.7 psig =-4.7=- 9.6 ”Hg 0.0361 x13.6

  25. PSIA – Absolute Pressure A gauge with a psia scale will indicate 14.7 when no pressure is applied. The compound gauge is more common than psia, it measures vacuum and gauge pressure. This gauge has a range of 0 – 30 in. Hg vacuum and 0 to 15 psig

  26. 6 psi2 psi 4 0.0361 x 13.6 h = = 8.15 inches of H20 differential Differential Pressure (psid) Differential pressure = 4 psid

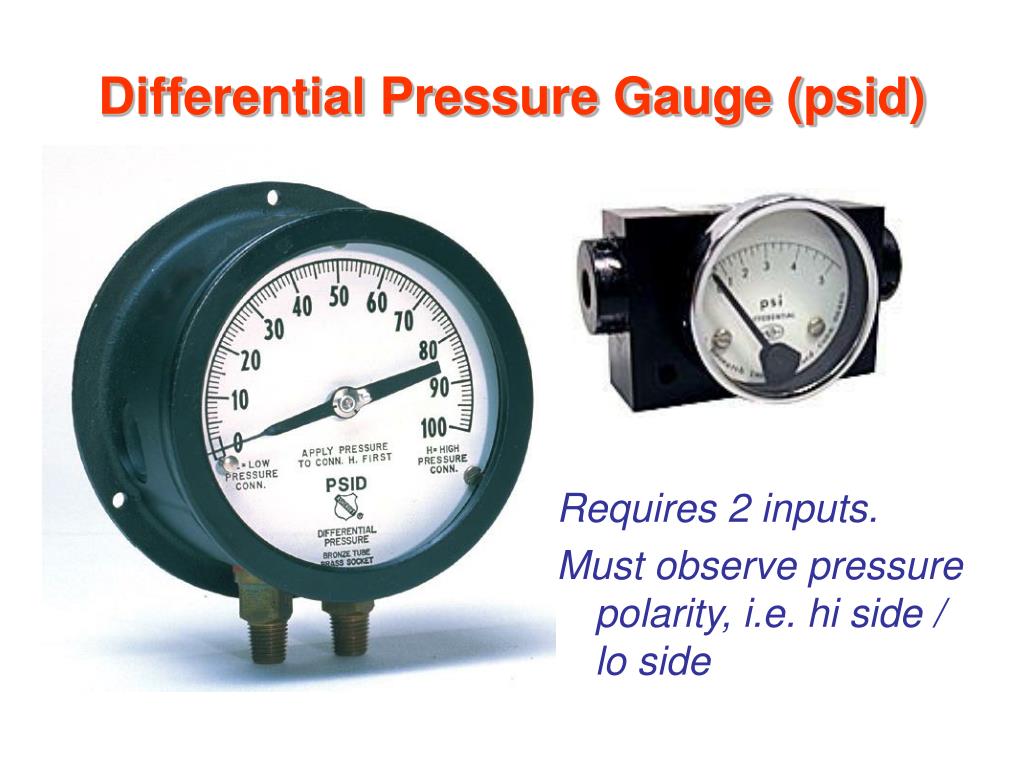

  27. Differential Pressure Gauge (psid) Requires 2 inputs. Must observe pressure polarity, i.e. hi side / lo side

  28. Differential Pressure Cell Transmitter The d/p cell is often used to measure level and flow. What is the maximum allowable input pressure in psi? 4 – 20 mA output 2 wire transmitter Differential Input 0 – 200 in. H20 Typical input range

  29. Pressure Conversion Chart • Ball Parking • 1 psi = 7 kPa • 1 inch Hg = 0.5 psi • 100 inch H20 = 3.5 psi • 1 Bar = 1 Atmos = 14.7 psi • Accurate • 1 psi = 6.89 kPa • 1 inch Hg = 0.49 psi • 100 inch H20 = 3.61 psi • 1 Bar = 14.5 psi = 100 kPa

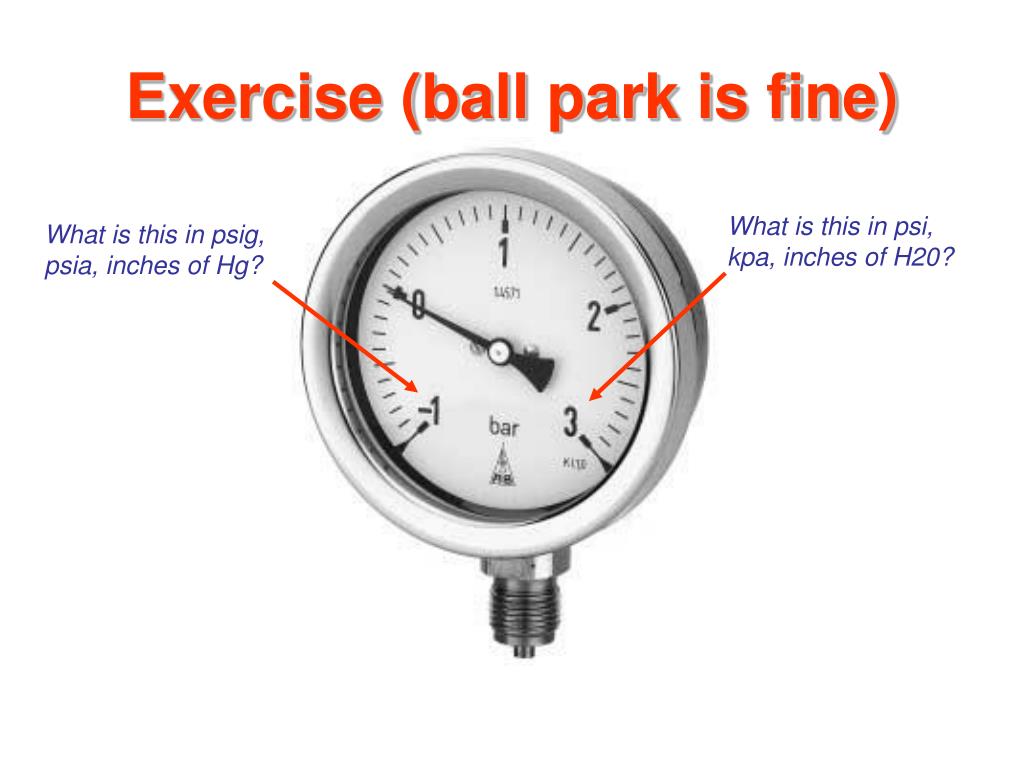

  30. Exercise (ball park is fine) What is this in psi, kpa, inches of H20? What is this in psig, psia, inches of Hg?

  31. Pressure Sensing Elements Manometers Mechanical Gauges Electrical Transducers Switches & Transmitters

  32. Psi kPa Inches H20 (WC) Inches Hg Bar Manometer Mechanical or Electrical Gauge P Pressure Indicators Pressure is sensed and measured against some calibrated scale.

  33. Pressure Switches and Transmitters Pressure is also sensed and transmitted as an electrical or pneumatic signal. 3 – 15 psi 4 – 20 mA, 1-5 V, 0-5 V Normally Closed / Normally Open Dry Contact or Digital signals Field Bus Communications (Hart, ProfiBus, ModBus) Switches Transmitters Transducers P

  34. Manometers U-Tube Well Type Inclined Plane • Manometers provide a simple method of accurately measuring pressure, can be used as a primary standard. • Typically restricted to laboratory or calibration lab applications, mercury filled have restricted use. • Limited to low pressure (<40 psi) applications • Can measure gauge, vacuum and differential pressure

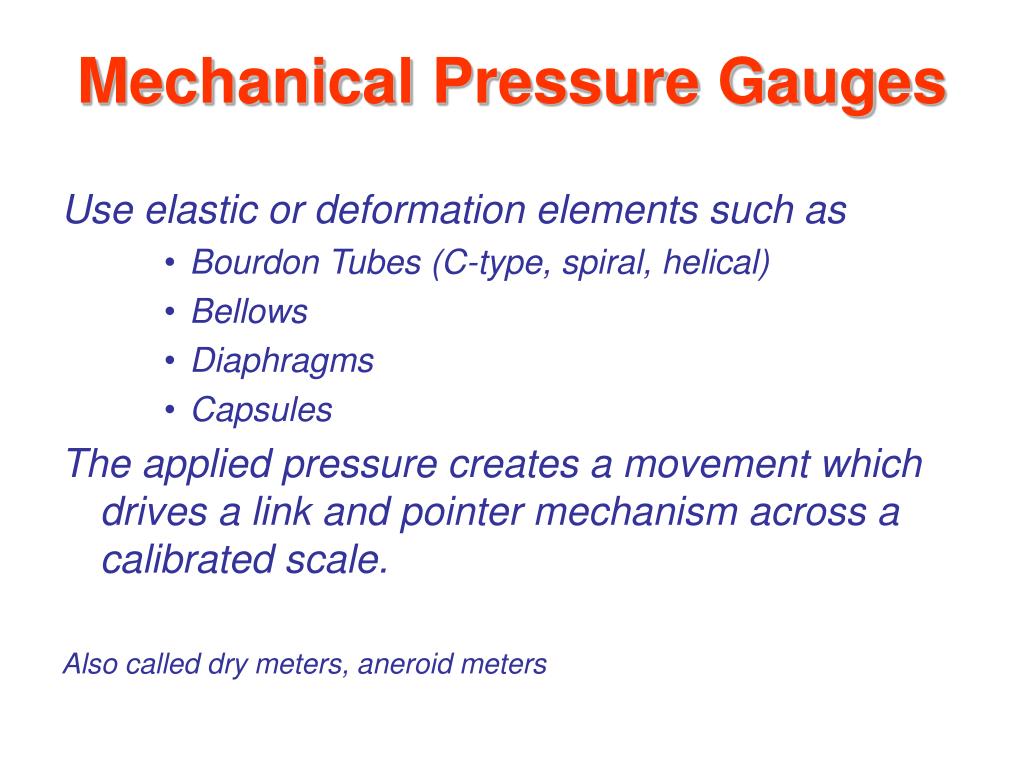

  35. Mechanical Pressure Gauges Use elastic or deformation elements such as • Bourdon Tubes (C-type, spiral, helical) • Bellows • Diaphragms • Capsules The applied pressure creates a movement which drives a link and pointer mechanism across a calibrated scale. Also called dry meters, aneroid meters

  36. C-type Bourdon Tube When pressure is applied at the inlet port the sealed tip of the tube will move in proportion to the applied pressure. The small tip movement (1/4 to 1/8 inch) drives the link and gear assembly moving the pointer across a calibrated scale.

  37. Cutaway view C-type bourdon tube The pointer and links are moved to calibrate the scale. (zero & span adjustment) High pressure gauges require a deadweight test for calibration.

  38. Bourdon Tube Pressure Gauge Ranges Vacuum / Compound to 30"HG / 0 / 200 PSI Pressures from 15 PSI to 15,000 PSI Accuracy + 1.5% of span Material Tube made from copper alloys, brass. Process Pressure Liquid, Gases, Vapour Issues: Repeatability, hysterisis, visual signal only.

  39. Spiral & Helical Bourdon Tubes This design provide a greater tip movement per psi reducing the physical size of the gauge.

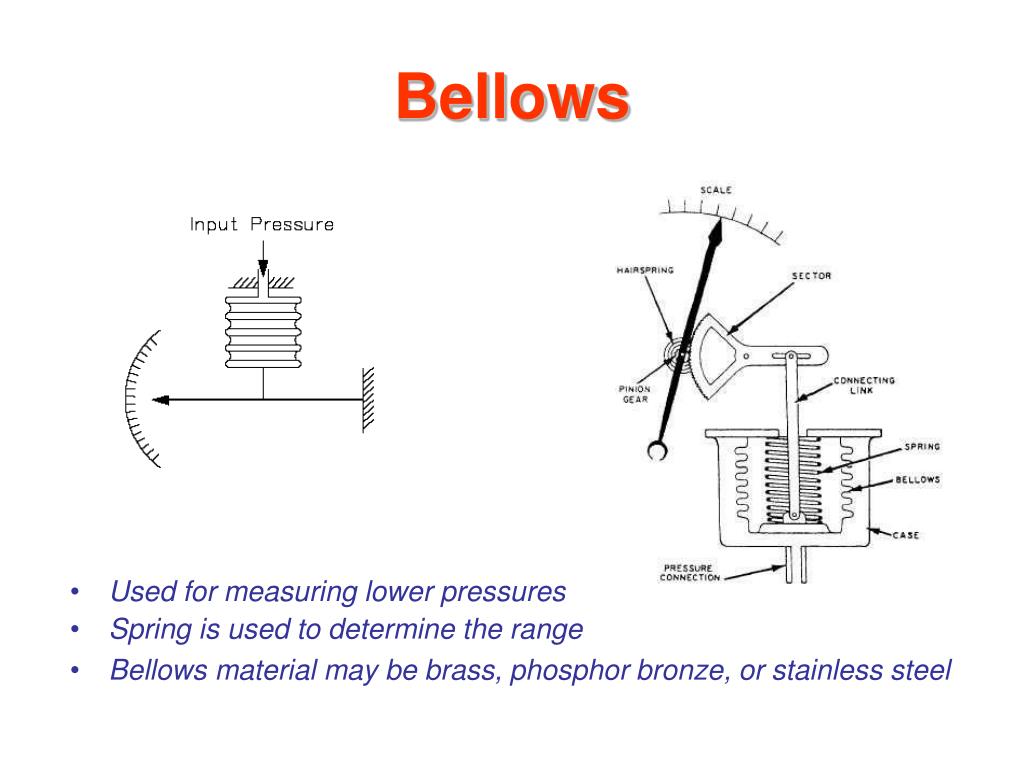

  40. Bellows • Used for measuring lower pressures • Spring is used to determine the range • Bellows material may be brass, phosphor bronze, or stainless steel

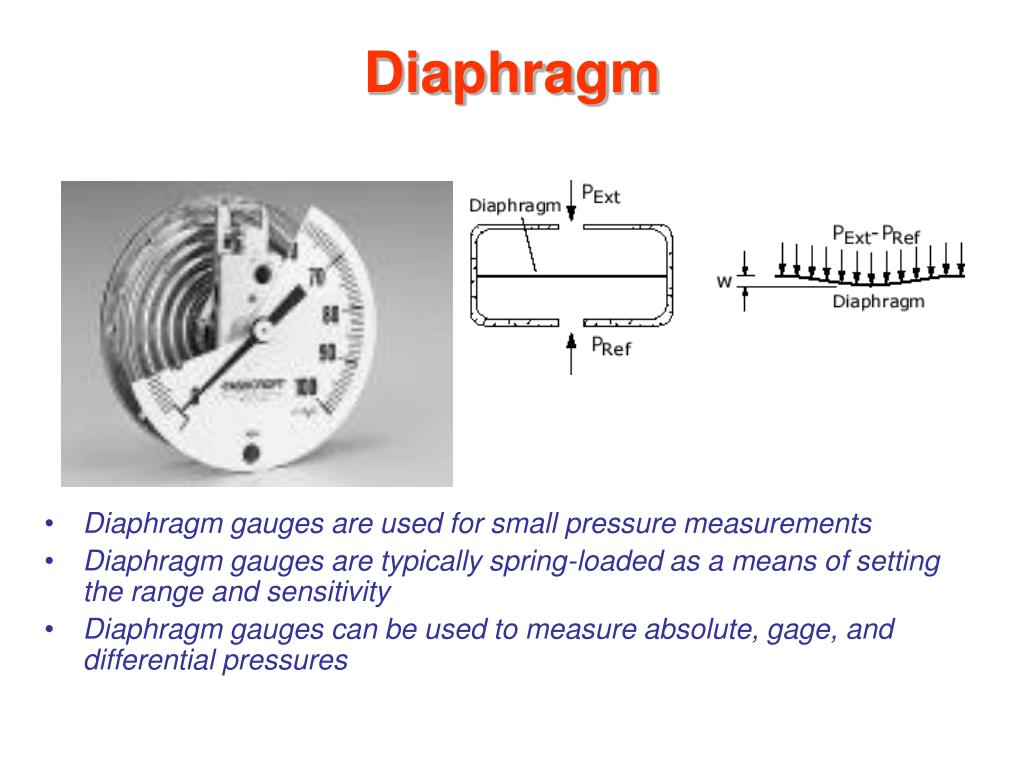

  41. Diaphragm • Diaphragm gauges are used for small pressure measurements • Diaphragm gauges are typically spring-loaded as a means of setting the range and sensitivity • Diaphragm gauges can be used to measure absolute, gage, and differential pressures

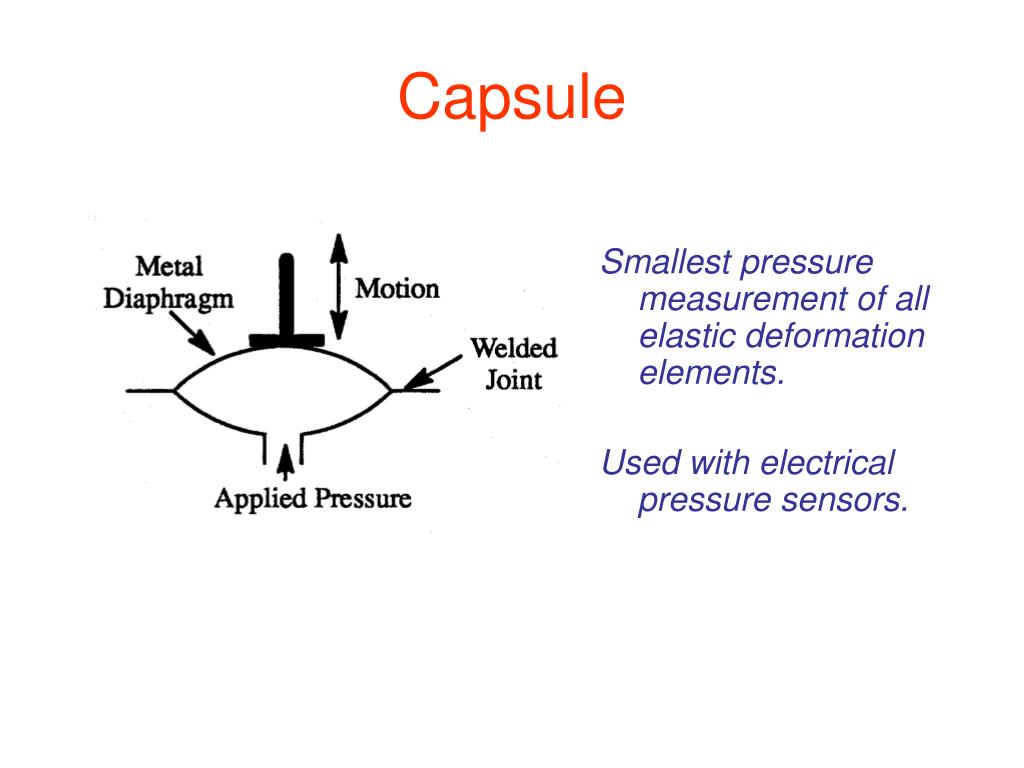

  42. Capsule Smallest pressure measurement of all elastic deformation elements. Used with electrical pressure sensors.

  43. Specialty Gauges GLYCERIN FILLED GAUGESThese types of gauges are suitable for the pressure measurement in the vibrating area. This gauge provides smooth running of the pointer. All standard ranges are available with good accuracy Sanitary Gauge The internal volume of the pressure instrument and the area from the top of the seal diaphragm are filled with a system fill fluid.Any pressure applied to the sanitary seal diaphragm is hydraulically transmitted to the pressure element of the gauge and generates a pressure reading.

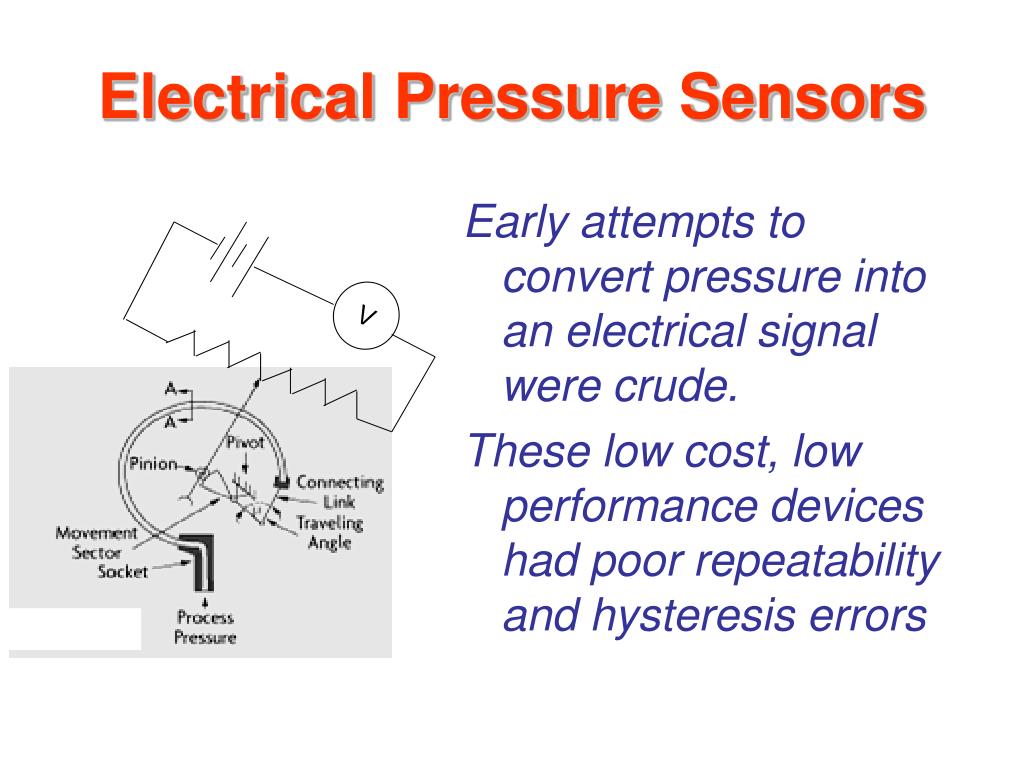

  44. V Electrical Pressure Sensors Early attempts to convert pressure into an electrical signal were crude. These low cost, low performance devices had poor repeatability and hysteresis errors

  45. Potentiometric Pressure Sensor Helical bourdon tube is used to turn a potentiometer. The output resistance is proportional to the applied pressure.

  46. Inductive Pressure Sensor A pressure sensing capsule or diaphragm is used to move an LVDT.(Linear Variable Differential Transformer)

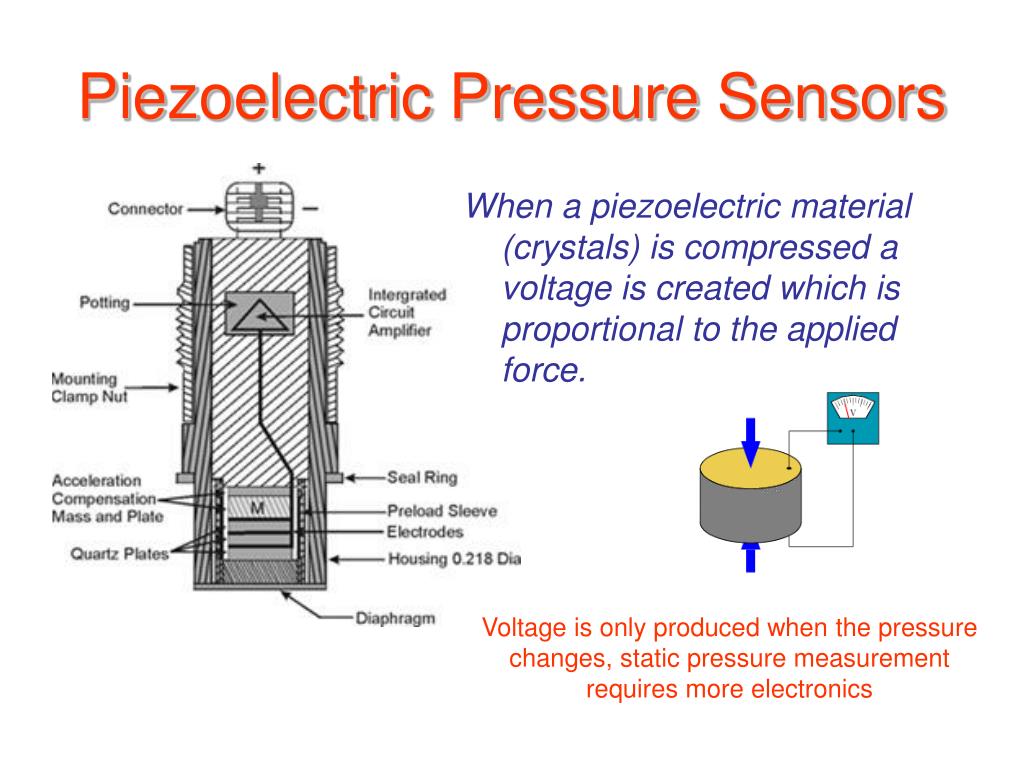

  47. Piezoelectric Pressure Sensors When a piezoelectric material (crystals) is compressed a voltage is created which is proportional to the applied force. Voltage is only produced when the pressure changes, static pressure measurement requires more electronics

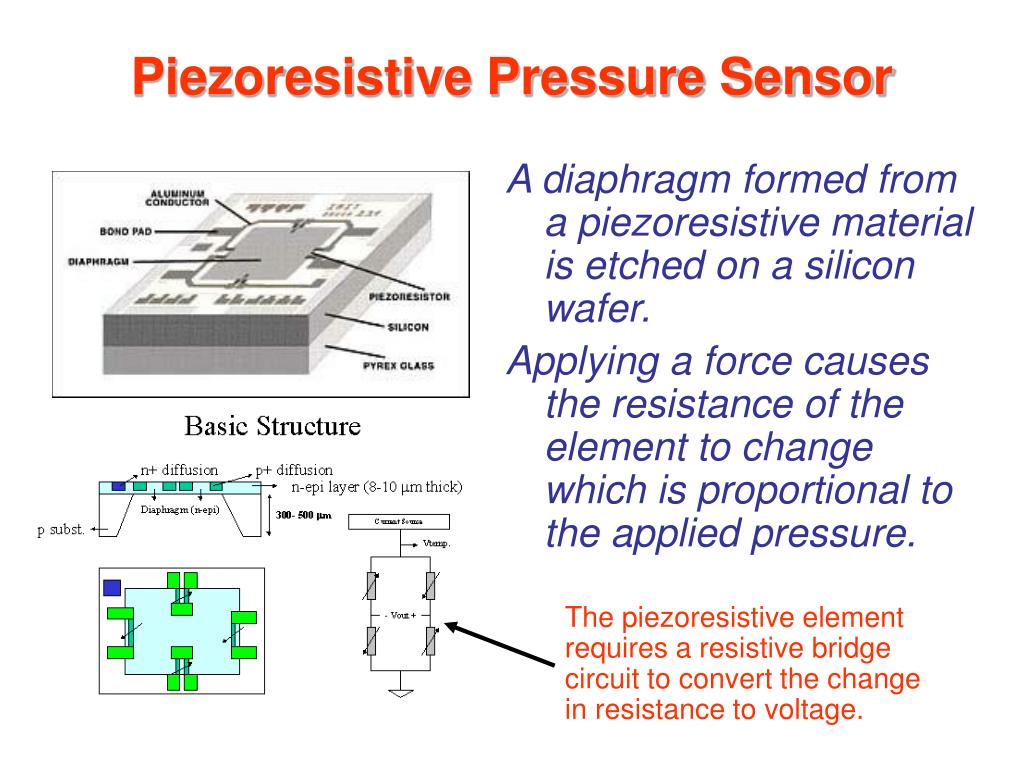

  48. Piezoresistive Pressure Sensor A diaphragm formed from a piezoresistive material is etched on a silicon wafer. Applying a force causes the resistance of the element to change which is proportional to the applied pressure. The piezoresistive element requires a resistive bridge circuit to convert the change in resistance to voltage.
