  1. Testbeds as a Service: GENI Heidi Picher Dempsey Internet2 Annual Meeting April 8, 2014 www.geni.net

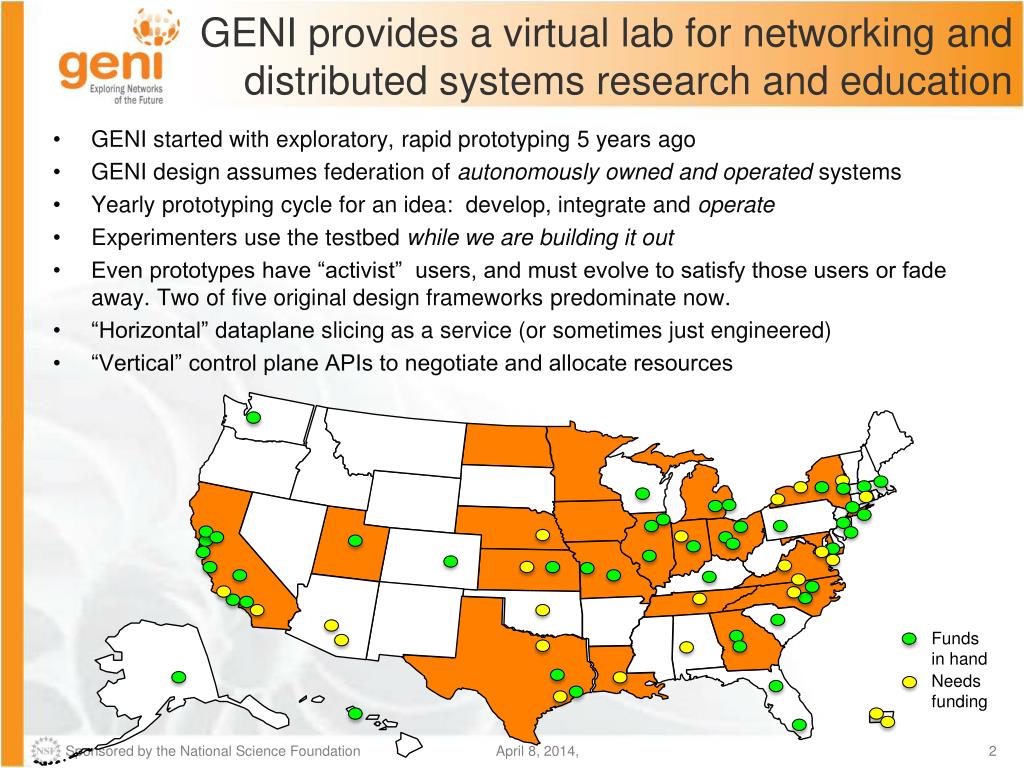

  2. GENI provides a virtual lab for networking and distributed systems research and education • GENI started with exploratory, rapid prototyping 5 years ago • GENI design assumes federation of autonomously owned and operated systems • Yearly prototyping cycle for an idea: develop, integrate and operate • Experimenters use the testbed while we are building it out • Even prototypes have “activist” users, and must evolve to satisfy those users or fade away. Two of five original design frameworks predominate now. • “Horizontal” dataplaneslicing as a service (or sometimes just engineered) • “Vertical” control plane APIs to negotiate and allocate resources Fundsin hand Needs funding

  3. GENI: Infrastructure for Experimentation GENI provides compute, network, and wireless resources that can be connected in experimenter-specified Layer 2 topologies.

  4. GENI: Infrastructure for Experimentation GENI provides compute resources that can be connected in experimenter specified Layer 2 topologies.

  5. Multiple GENI Experiments run Concurrently Resources can be shared between slices Experiments live in isolated “slices”

  6. GENI is “Deeply Programmable” I install software I want throughout my network slice (into routers, switches, …) or control switches using OpenFlow Experimenters can set up custom topologies, protocols and switching of flows

  7. United States GENI Resources ISP Internet • Flexible network / cloud research infrastructure • Over 1800 users (March, 2014) • 52 racks installed/in progress • 10 WiMAX (50 LTE planned) • VMs, bare metal nodes, SDN switches (OpenFlow 1.0), software routing or OVS OpenFlow, WiMAX/LTE base stations and clients all available to experimenters. Metro Research Backbones g Layer 2 Data Plane GENI-enabled hardware g Legend Layer 3 Control Plane g Campus Regional Networks

  8. International Federation Activities • International Federation API for clearinghouse functions. • Supported for multiple clearinghouses. • Joint GENI/FIRE (US/EU) capability demonstrated this year (not operating yet) • GENI dataplane slices extend to other research networks by special arrangement now (Japan, Korea, Australia) • Shared monitoring prototype planned for 2014 • Investigating/prototyping standards for experimenter-driven dataplane resource negotiation and provisioning • NSI, OSCARS • GENI Stitching • SDN Exchanges

  9. Campus Requirements for Shared Services • Sites provide space, power, security (as with other campus IT resources) • Provide at least 1Gbps OpenFlow/SDN path from rack to campus boundary * • Provide connection from rack to on-campus resources (varies by campus, usually SDN)* • Operate with up-to-date GENI-specified software (e.g. AM API, OpenStack) • Provide no-cost access to rack resources for GENI authorized users at other campuses • Provide points of contact for GENI response team (see http://groups.geni.net/geni/attachment/wiki/ComprehensiveSecurityPgm/Aggregate Provider Agreement v3.pdf) * * No STP or MAC learning

  10. Process Requirements for Shared Services • Standard installation processeshttp://groups.geni.net/geni/wiki/GENIRacksHome/RacksChecklistStatus • System Acceptance Testing • Production: InstaGENI, ExoGENI • Provisional: Dell (OpenGENI), Cisco • Shared site resource and access details • http://groups.geni.net/geni/wiki/GeniAggregate

  11. Process Requirements (cont.) • Site confirmation tests with logs and RSPECs • http://groups.geni.net/geni/wiki/GENIRacksHome/InstageniRacks/ConfirmationTestStatus • http://groups.geni.net/geni/wiki/GENIRacksHome/ExogeniRacks/ConfirmationTestStatus • Emergency Stop and Legal, Law Enforcement and Regulatory Event Coordination (GMOC at Indiana University) • Shared monitoring infrastructure and shared operations (6 major ops groups)

  12. University of Kentucky Ops Monitoring Dashboard of Collector

  13. Network Engineering Requirements for Shared Services • L2 dataplane engineering • campuses, regional, core and international networks • many vendors and technologies • 1-100GBE interfaces (GENI shares with other R&E projects) • Shared or exclusive experimenter VLANs on interfaces depending on experiment (mostly exclusive) • SDN (OpenFlow 1.0) switches with experimenter’s and sometimes R&E network’s controllers (many vendors, varying implementation of standards) • Standard Internet control plane • Internet2 AL2S cross-connects and ION http://groups.geni.net/geni/wiki/GENIOESSTopologiesPerformance - IONtoAL2SPerformance     

  14. NetworkEngineering (continued) • GENI dynamic stitching available at 12 racks via Internet2 ION http://groups.geni.net/geni/wiki/GeniNetworkStitchingSites • Over 16,000 stitched slivers sinceNovember, 2013 • OESS GENI Stitching Aggregate coming soon • Stitchingoperations monitoring prototyping with MAX, Internet2

  15. Software: Clearinghouse and Aggregates • Clearinghouse: manages users, projects and slices • Standard credentials shared via custom API or new Common CH API • GENI supported accounts: GENI Portal/CH, PlanetLab CH, ProtoGENICH • Aggregate: provides resources to GENI experimenters • Typically owned and managed by an organization • Speaks the GENI Aggregate Manager API (AM API) • http://groups.geni.net/geni/wiki/GAPI_AM_API_V3 most recent version • http://trac.gpolab.bbn.com/gcf download reference implementation (gcf), OMNI command line client • Examples: PlanetLab, Emulab, GENI racks on various campuses Create & Register Slice Slice credentials Aggregate Manager API - listResources - createSliver … users Tool Researcher projects Aggregate Manager Aggregate Resources slices clearinghouse

  16. GENI Slivers • Sliver: One or more resources provided by an aggregate • e.g. Bare machines, virtual machines, VLANs Campus#3 Commercial Clouds My slice contains slivers from many aggregates. Backbone #1 Campus My GENI Slice Corporate GENI suites Access#1 Backbone #2 Research Testbed Other-Nation Projects Campus#2

  17. Software: RSpecs • RSpecs: Lingua franca for describing and requesting resources • “Machine language” for negotiating resources between experiment and aggregate • Experimenter tools eliminate the need for most experimenters to write or read Rspec <?xml version="1.0" encoding="UTF-8"?> <rspecxmlns="http://www.protogeni.net/resources/rspec/2" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.protogeni.net/resources/rspec/2 http://www.protogeni.net/resources/rspec/2/request.xsd" type="request" > <node client_id="my-node" exclusive="true"> <sliver_type name="raw-pc" /> </node> </rspec> RSpec for requesting a single node

  18. Reserving Resources using RSpecsand the AM API • Experimenter tools and aggregates talk to each other using resource specifications (RSpecs) and the GENI Aggregate Manager API (GENI AM API) • Advertisement RSpec: What does an aggregate have? • Request RSpec: What does the experimenter want? • Manifest RSpec: What does the experimenter have? What do you have? I have … ListResources(…) I would like … Advertisement RSpec You have … Aggregate Manager CreateSliver(Request RSpec, …) Experimenter Tool What do I have? Manifest RSpec You have … ListResources(SliceName, …) Manifest RSpec

  19. GENI Design Activities • Open to all http://groups.geni.net/geni/wiki/GeniDesign • Mailing lists http://lists.geni.net/mailman/listinfo • geni-annouce@geni.net most general • Regular calls and design reviews announced through interest group mailing lists • IRC/chat (mostly operations)http://groups.geni.net/geni/wiki/HowTo/ConnectToGENIChatRoom • GENI Engineering Conferences (3 per year) • June 21-24, 2014 University of California, Davis (Travel grants available)
