Multi-operand Addition

Multi-operand Addition. Consider the Following Addition: SUM = a[0]; for (i=1; i<N; i++) { SUM = SUM + a[i]; }. a[7]. a[6]. a[5]. a[4]. a[3]. a[2]. a[1]. a[0]. a[7]+a[6]. a[5]+a[4]. a[3]+a[2]. a[1]+a[0]. a[7]+a[6]+a[5]+a[4]. a[3]+a[2]+a[1]+a[0].

samantha-sheppard
Télécharger la présentation

Multi-operand Addition

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

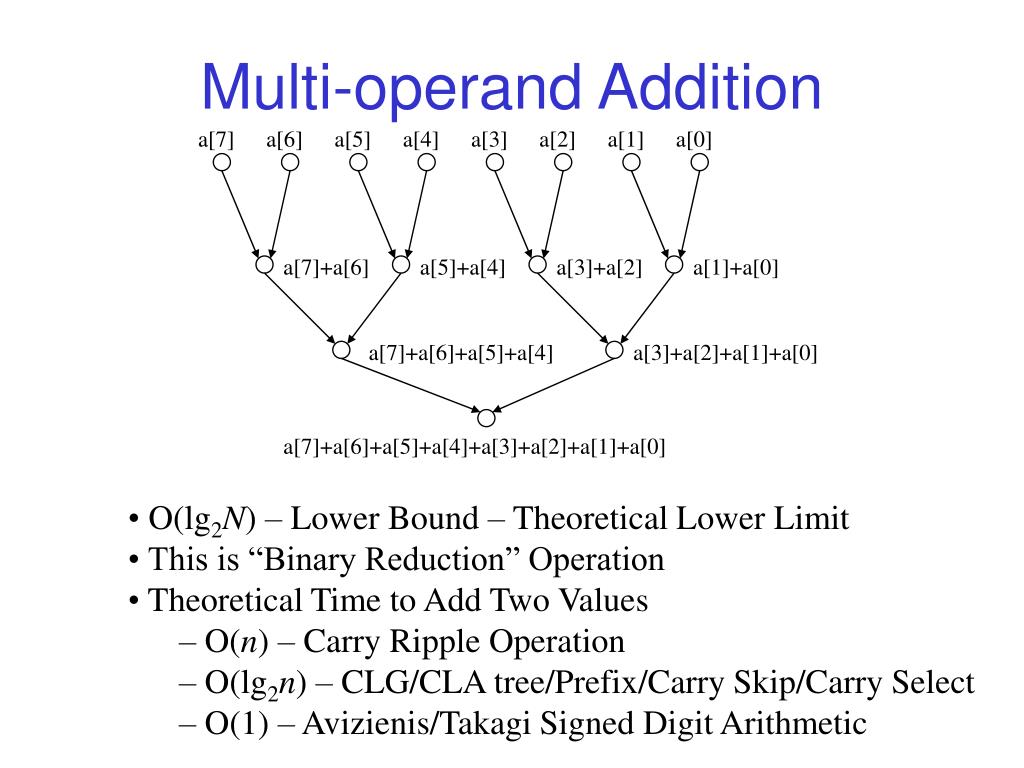

  1. Multi-operand Addition • Consider the Following Addition: SUM = a[0]; for (i=1; i<N; i++) { SUM = SUM + a[i]; } a[7] a[6] a[5] a[4] a[3] a[2] a[1] a[0] a[7]+a[6] a[5]+a[4] a[3]+a[2] a[1]+a[0] a[7]+a[6]+a[5]+a[4] a[3]+a[2]+a[1]+a[0] a[7]+a[6]+a[5]+a[4]+a[3]+a[2]+a[1]+a[0]

  2. Multi-operand Addition a[7] a[6] a[5] a[4] a[3] a[2] a[1] a[0] a[7]+a[6] a[5]+a[4] a[3]+a[2] a[1]+a[0] a[7]+a[6]+a[5]+a[4] a[3]+a[2]+a[1]+a[0] a[7]+a[6]+a[5]+a[4]+a[3]+a[2]+a[1]+a[0] • O(lg2N) – Lower Bound – Theoretical Lower Limit • This is “Binary Reduction” Operation • Theoretical Time to Add Two Values • O(n) – Carry Ripple Operation • O(lg2n) – CLG/CLA tree/Prefix/Carry Skip/Carry Select • O(1) – Avizienis/Takagi Signed Digit Arithmetic

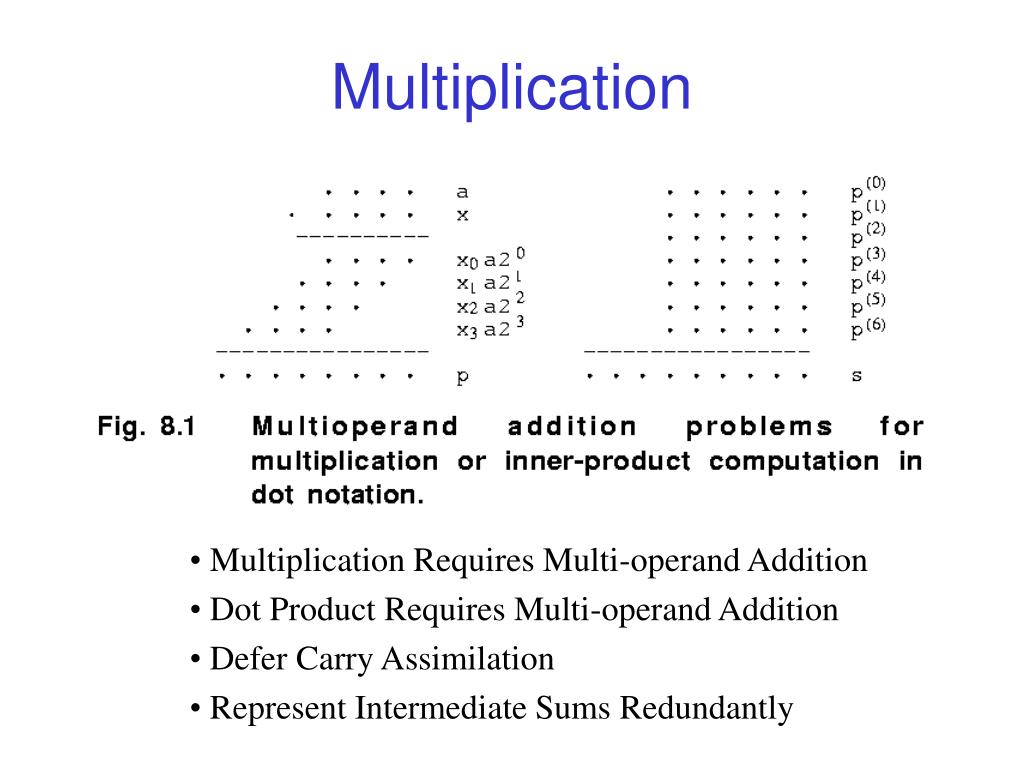

  3. Multiplication • Multiplication Requires Multi-operand Addition • Dot Product Requires Multi-operand Addition • Defer Carry Assimilation • Represent Intermediate Sums Redundantly

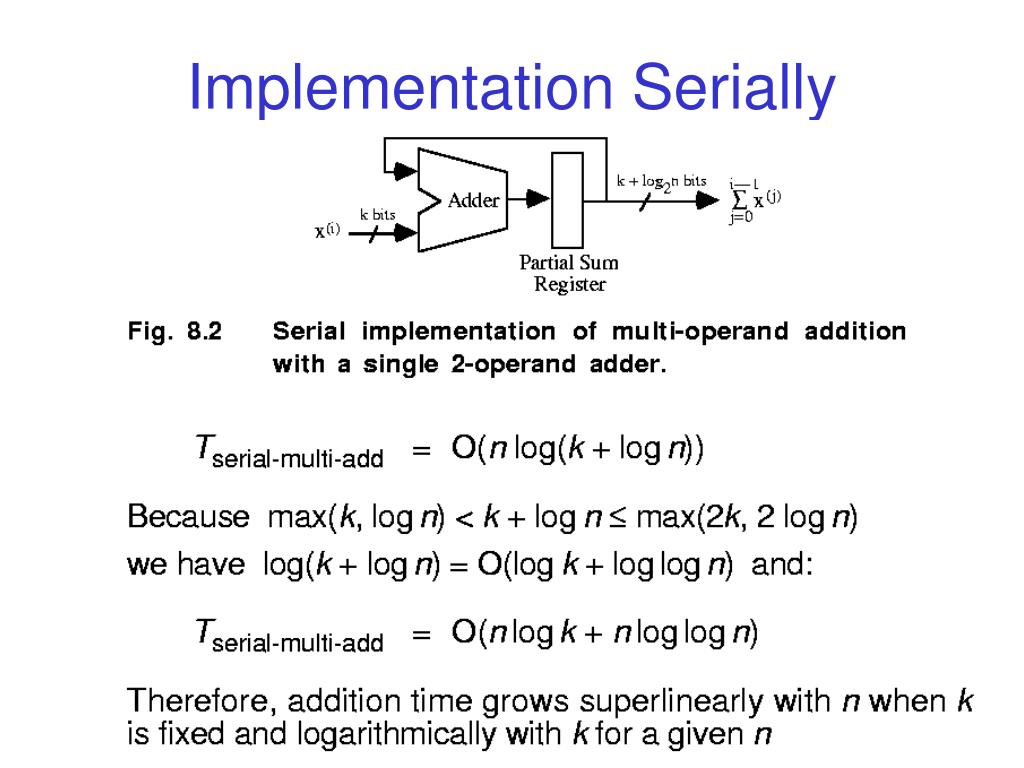

  4. Implementation Serially

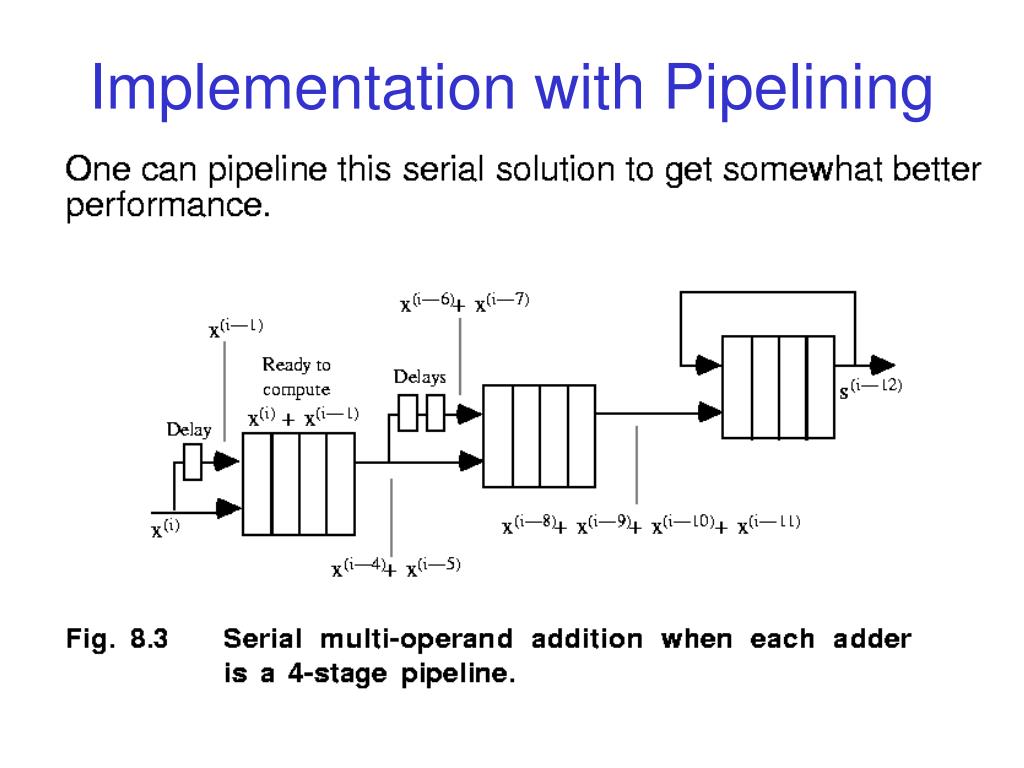

  5. Implementation with Pipelining

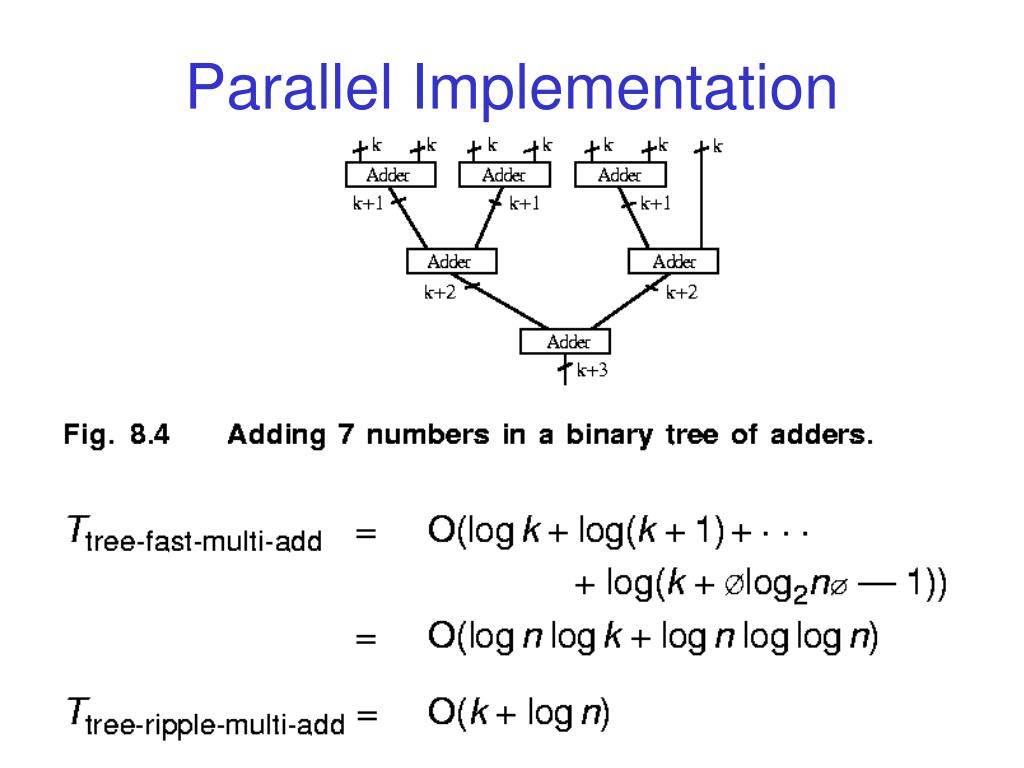

  6. Parallel Implementation

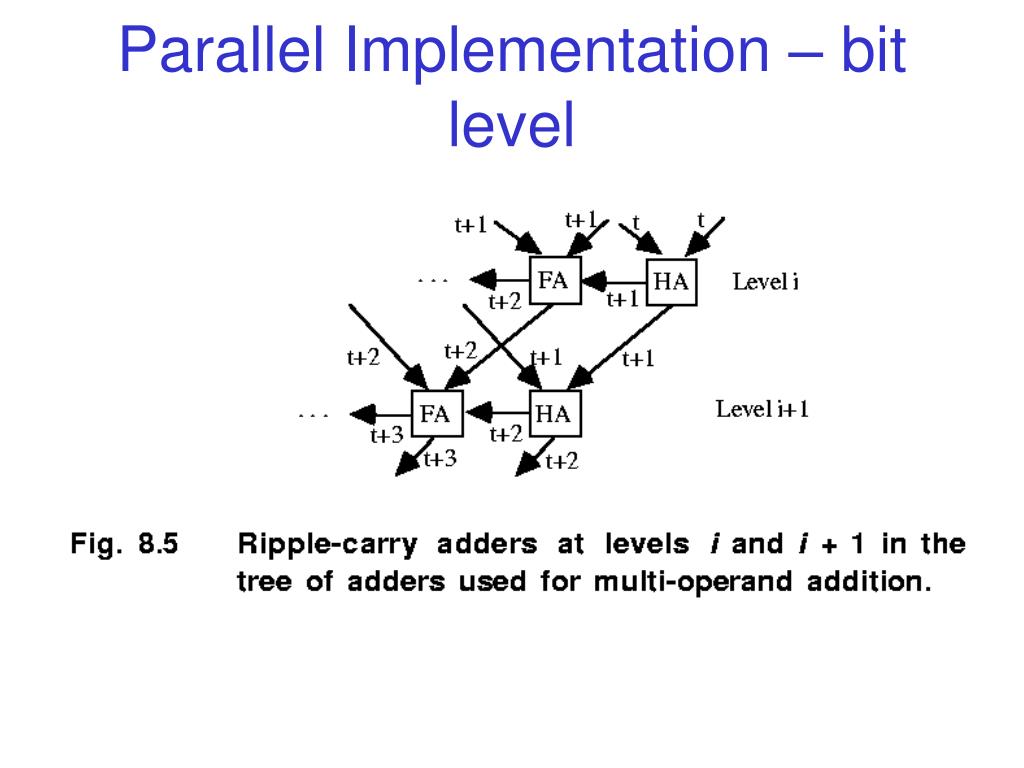

  7. Parallel Implementation – bit level

  8. Parallel Implementation – bit level

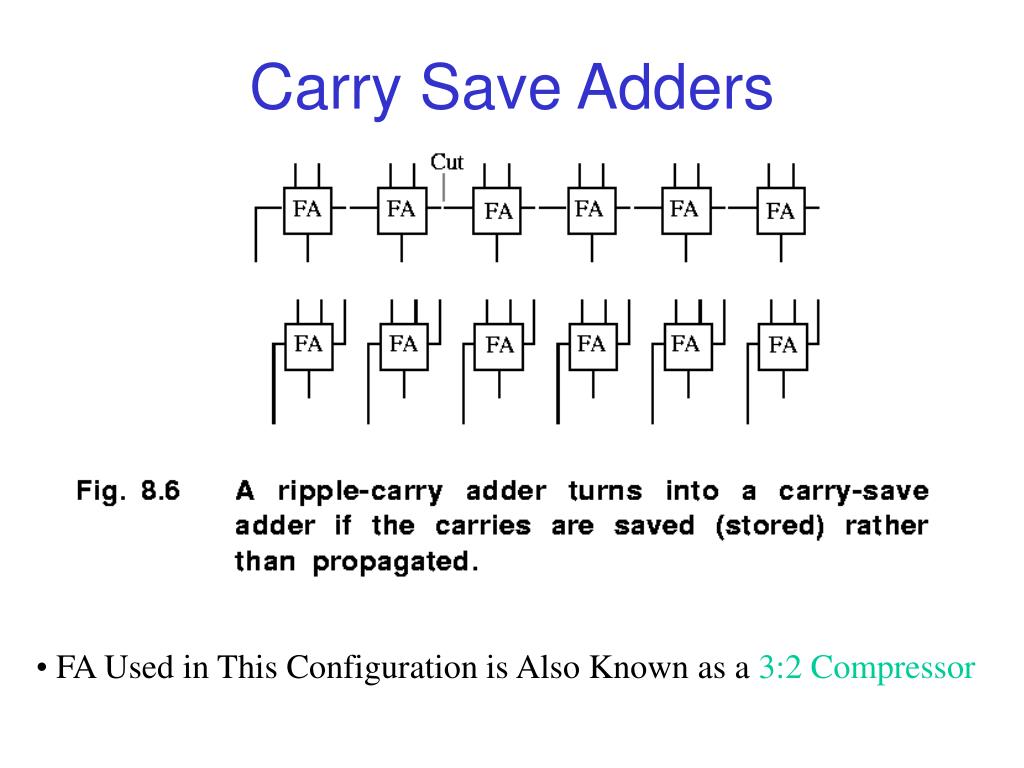

  9. Carry Save Adders • FA Used in This Configuration is Also Known as a 3:2 Compressor

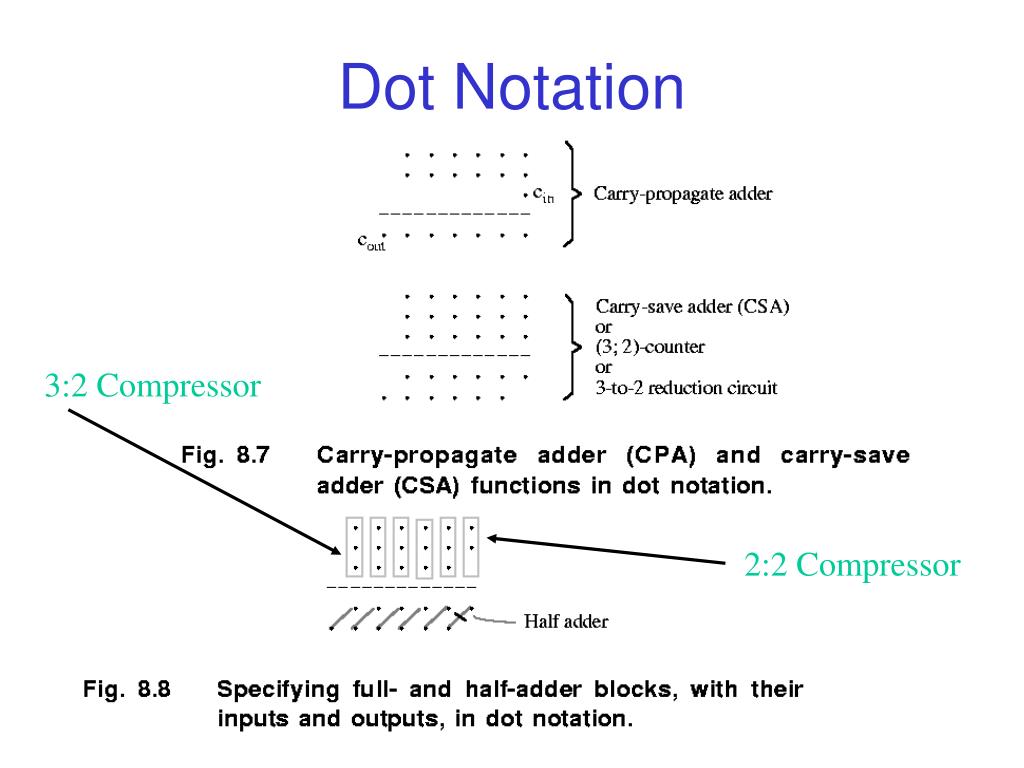

  10. Dot Notation 3:2 Compressor 2:2 Compressor

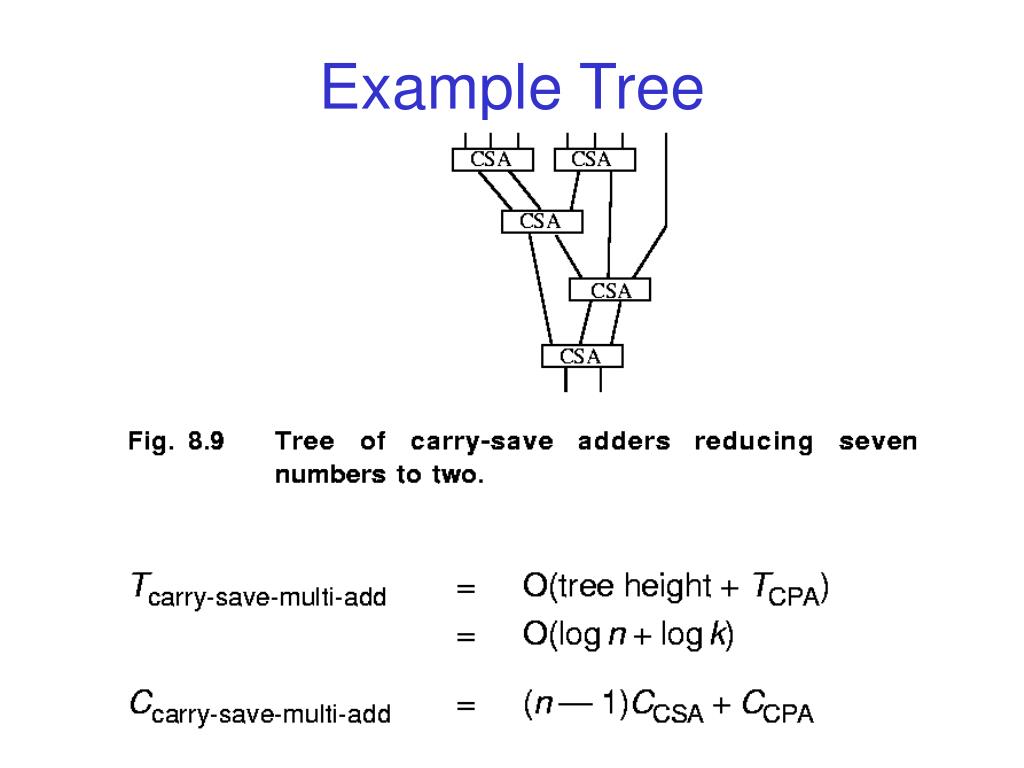

  11. Example Tree

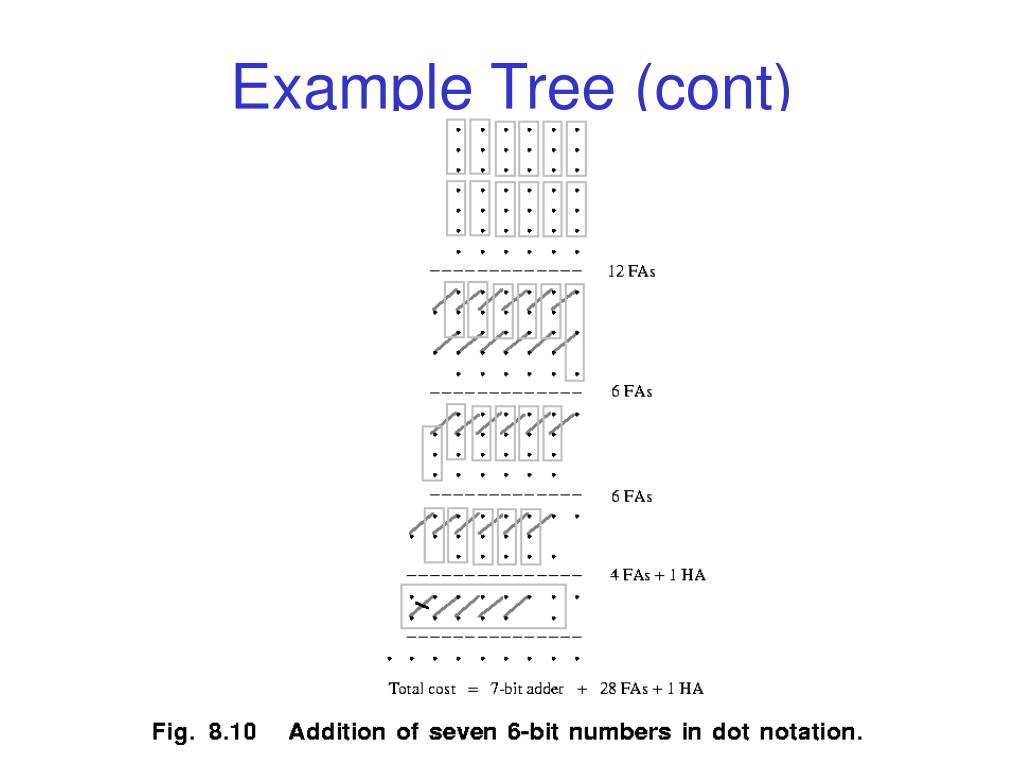

  12. Example Tree (cont)

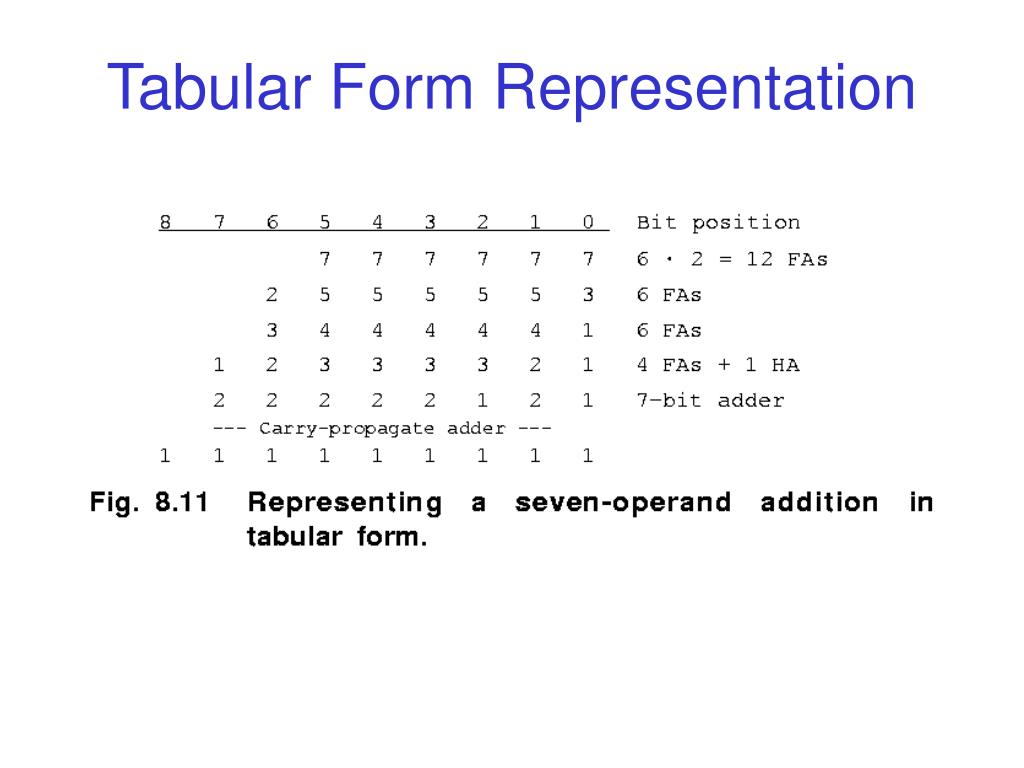

  13. Tabular Form Representation

  14. Adder Tree Bus Sizes

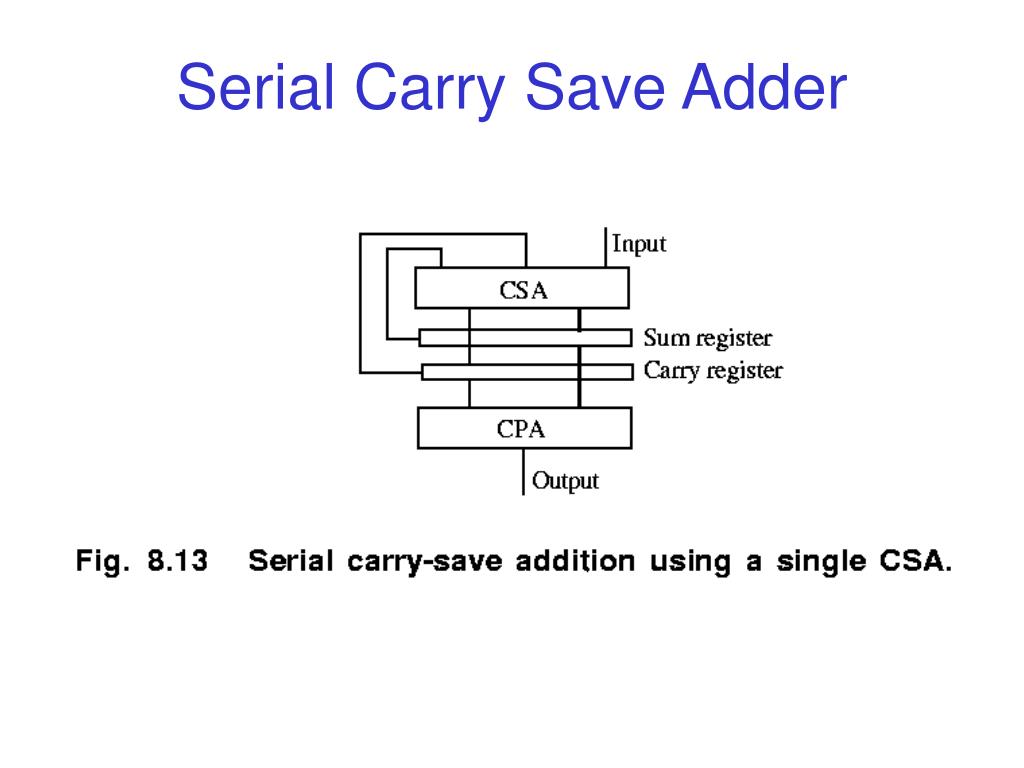

  15. Serial Carry Save Adder

  16. Serial Carry Save Adder
