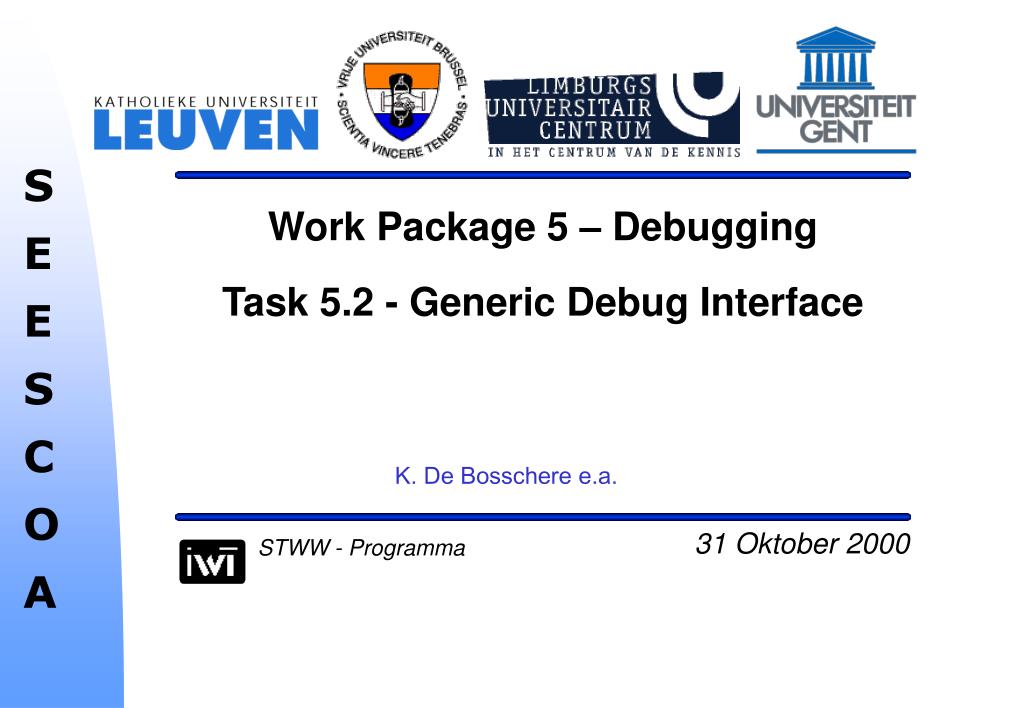

  1. Work Package 5 – DebuggingTask 5.2 - Generic Debug Interface K. De Bosschere e.a.

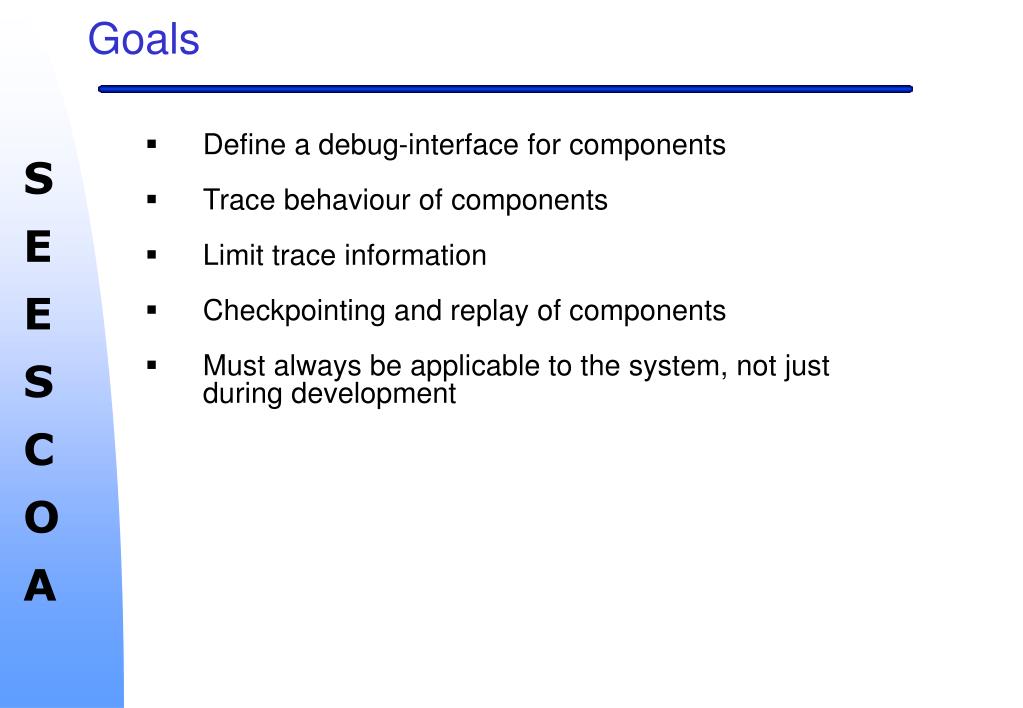

  2. Goals • Define a debug-interface for components • Trace behaviour of components • Limit trace information • Checkpointing and replay of components • Must always be applicable to the system, not just during development

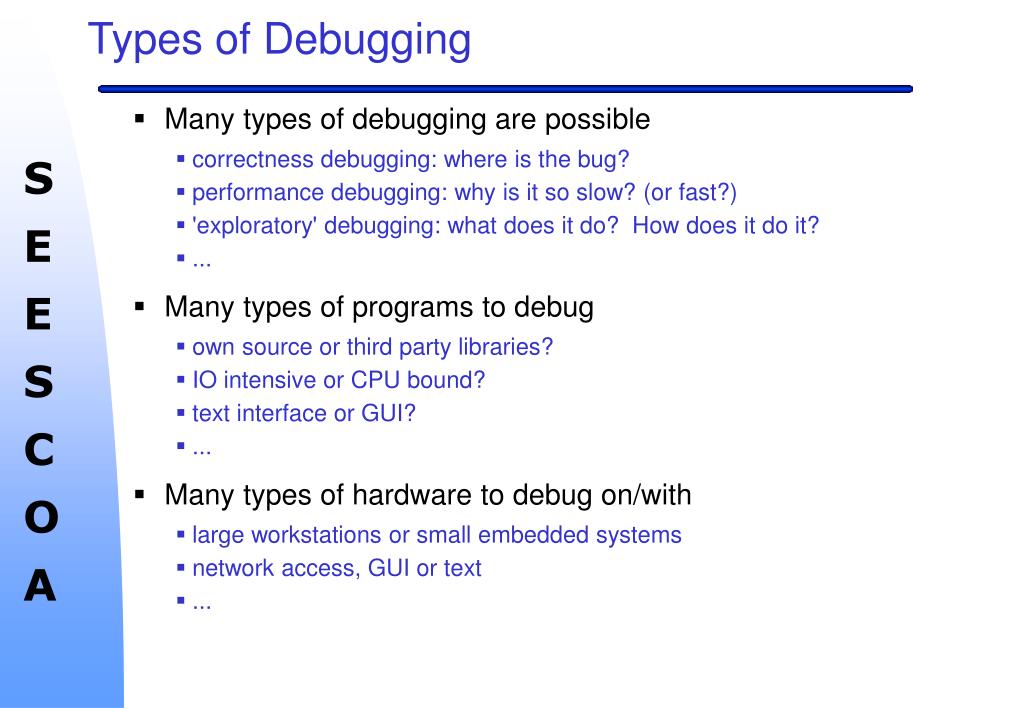

  3. Types of Debugging • Many types of debugging are possible • correctness debugging: where is the bug? • performance debugging: why is it so slow? (or fast?) • 'exploratory' debugging: what does it do? How does it do it? • ... • Many types of programs to debug • own source or third party libraries? • IO intensive or CPU bound? • text interface or GUI? • ... • Many types of hardware to debug on/with • large workstations or small embedded systems • network access, GUI or text • ...

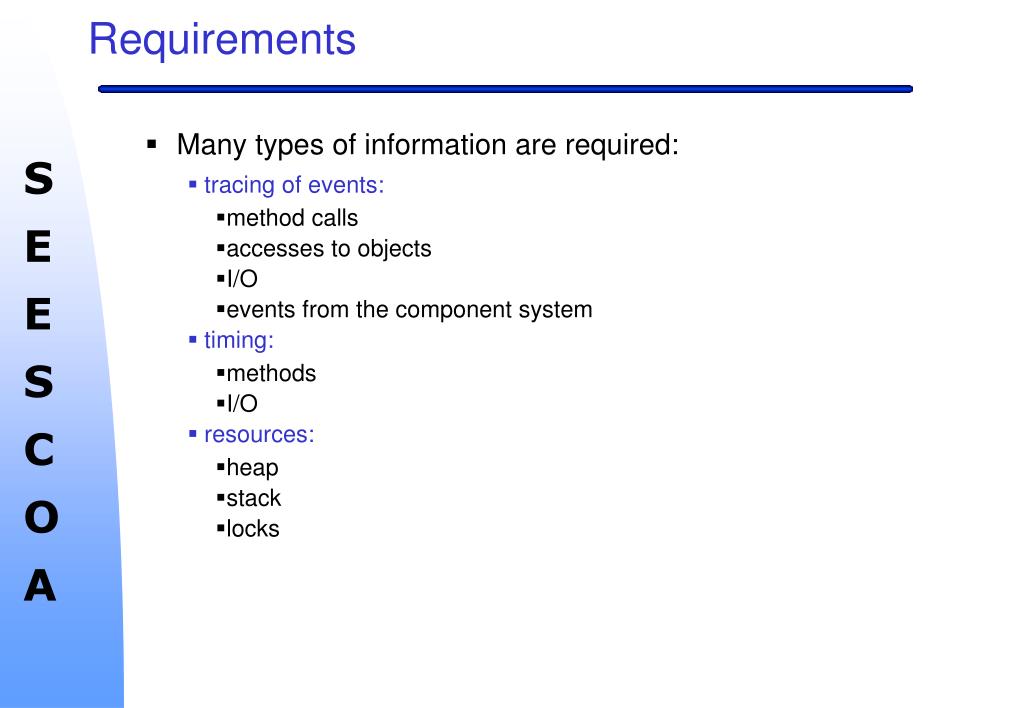

  4. Requirements • Many types of information are required: • tracing of events: • method calls • accesses to objects • I/O • events from the component system • timing: • methods • I/O • resources: • heap • stack • locks

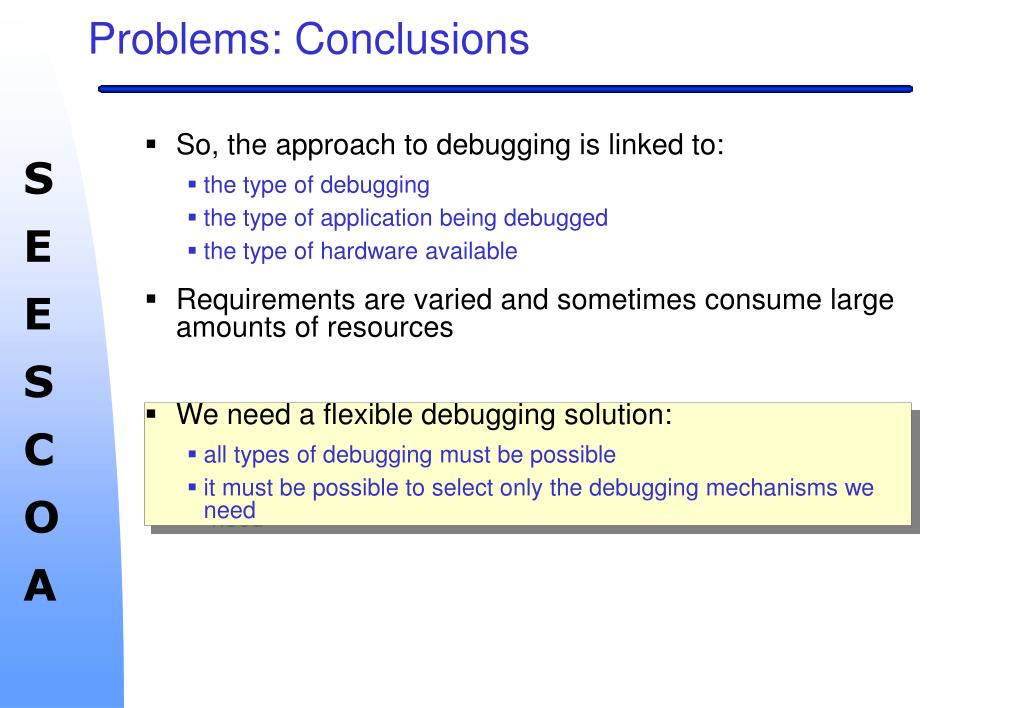

  5. Problems: Conclusions • So, the approach to debugging is linked to: • the type of debugging • the type of application being debugged • the type of hardware available • Requirements are varied and sometimes consume large amounts of resources • We need a flexible debugging solution: • all types of debugging must be possible • it must be possible to select only the debugging mechanisms we need

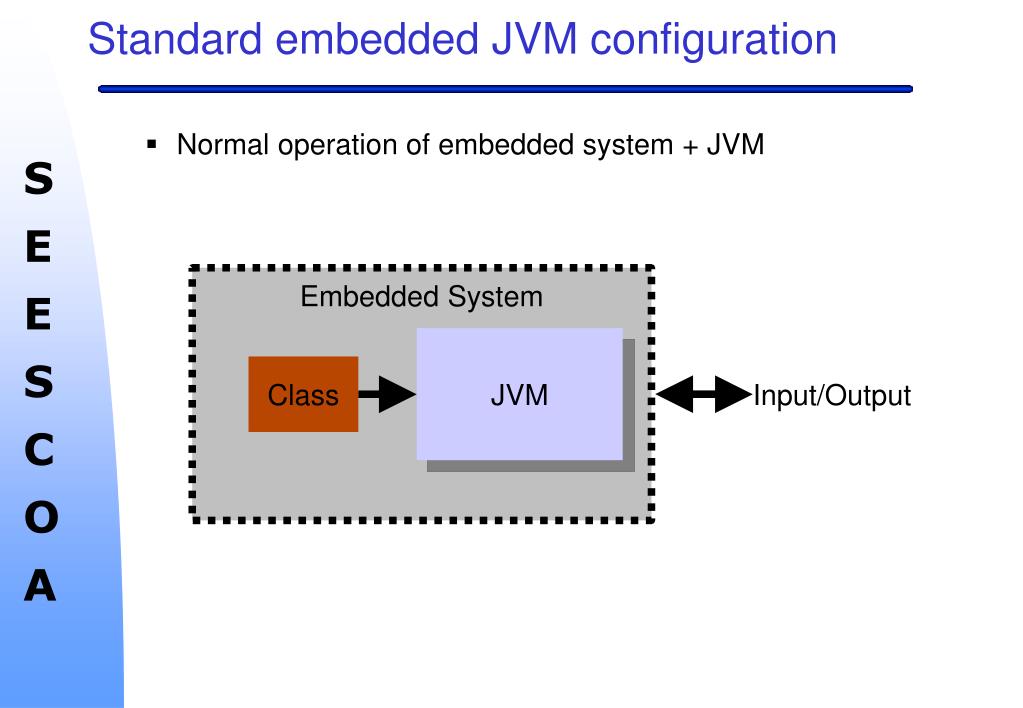

  6. Standard embedded JVM configuration • Normal operation of embedded system + JVM Embedded System JVM Class Input/Output

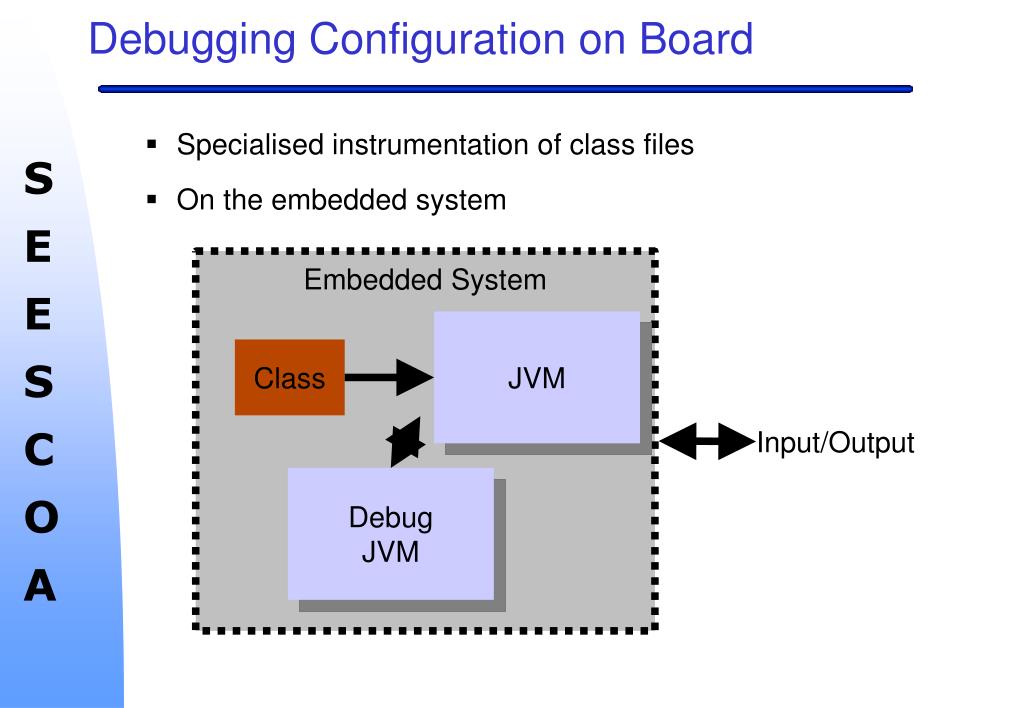

  7. Debugging Configuration on Board • Specialised instrumentation of class files • On the embedded system Embedded System JVM Class Input/Output Debug JVM

  8. Debugging Configuration on Two Systems • Specialised instrumentation of class files • Debugger is different system: minimal interference while maintaining high flexibility i.e. a component Embedded System JVM Class Input/Output Cache Instrumentor Debug JVM

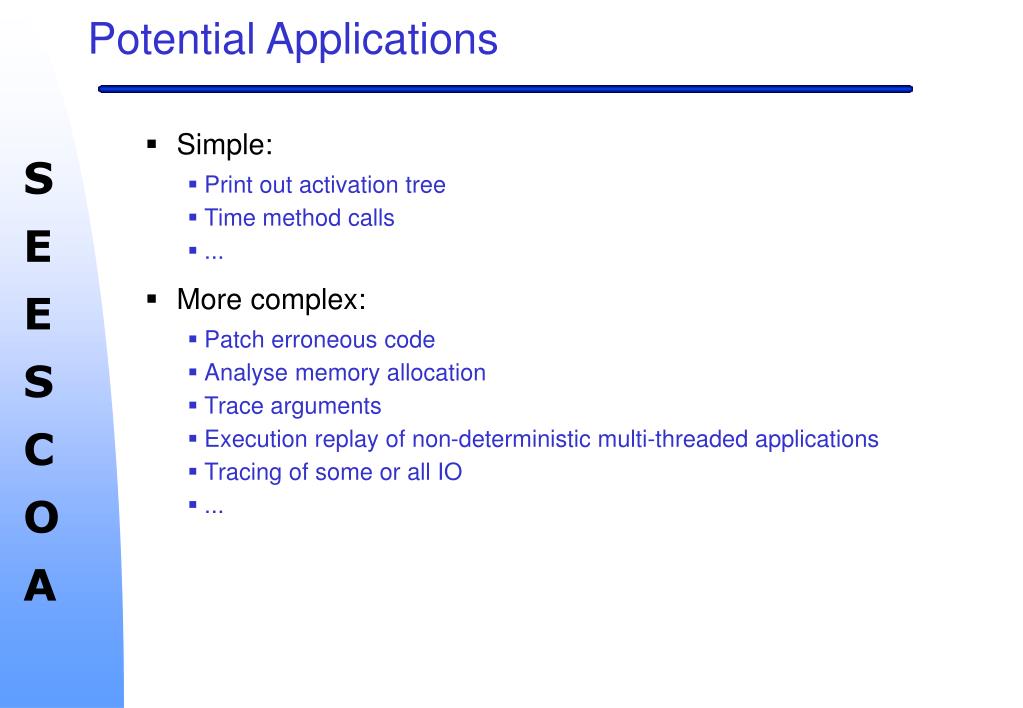

  9. Potential Applications • Simple: • Print out activation tree • Time method calls • ... • More complex: • Patch erroneous code • Analyse memory allocation • Trace arguments • Execution replay of non-deterministic multi-threaded applications • Tracing of some or all IO • ...

  10. Developping Debugger module: Record/Replay A=5 A=9 A=9 A=5 • Multiple threads • Interleaving produces different results • Non-deterministic • Record all non-deterministic behaviour to trace and replay with this trace

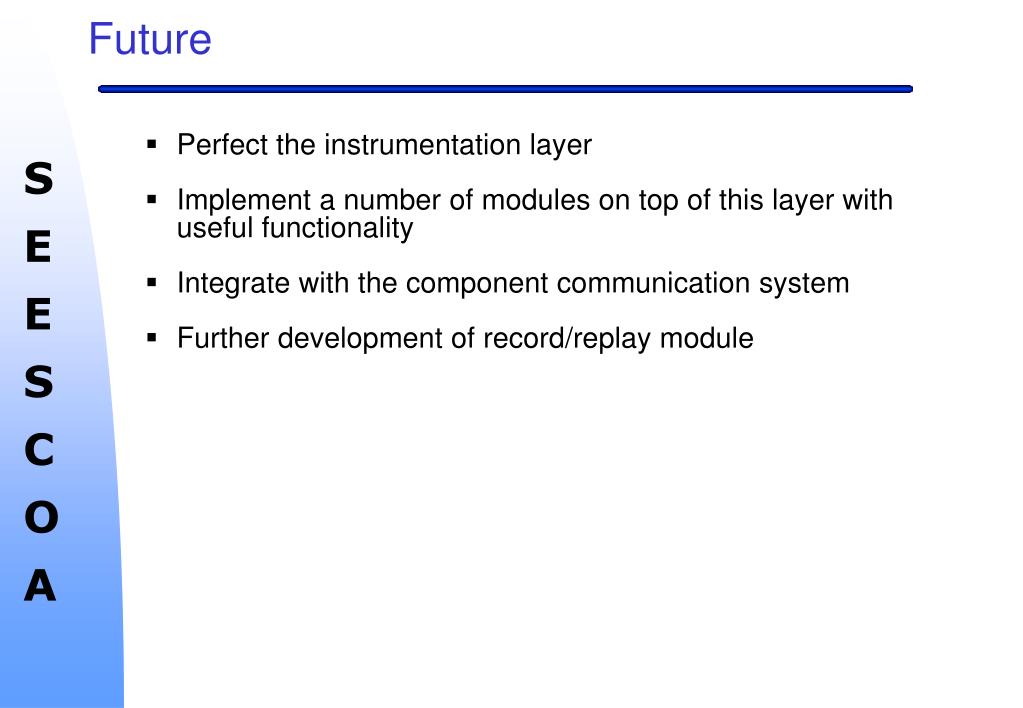

  11. Future • Perfect the instrumentation layer • Implement a number of modules on top of this layer with useful functionality • Integrate with the component communication system • Further development of record/replay module

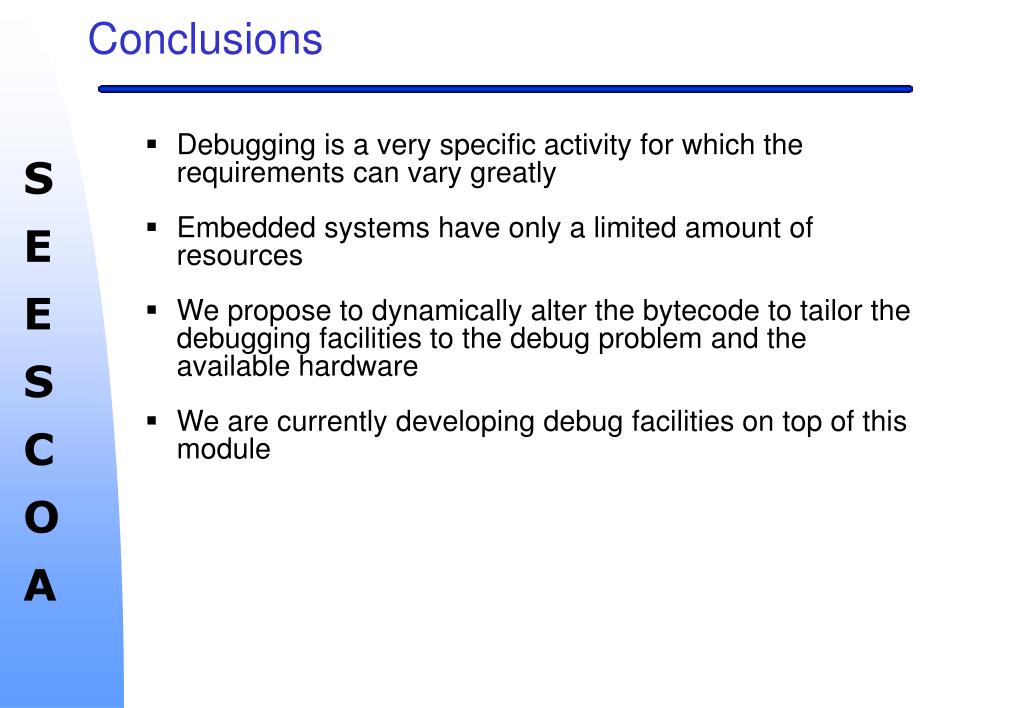

  12. Conclusions • Debugging is a very specific activity for which the requirements can vary greatly • Embedded systems have only a limited amount of resources • We propose to dynamically alter the bytecode to tailor the debugging facilities to the debug problem and the available hardware • We are currently developing debug facilities on top of this module
