cathode ray oscilloscope

cathode ray oscilloscope. tube photograph. tube diagram. y plates. x plates. anode. heater supply. -. +. phosphor screen. H.T. supply. electron gun photograph. summary. electron gun produces a beam of electrons. light produced on the screen by electron beam.

sampson
Télécharger la présentation

cathode ray oscilloscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. cathode ray oscilloscope

  2. tube photograph

  3. tube diagram y plates x plates anode heater supply - + phosphor screen H.T. supply

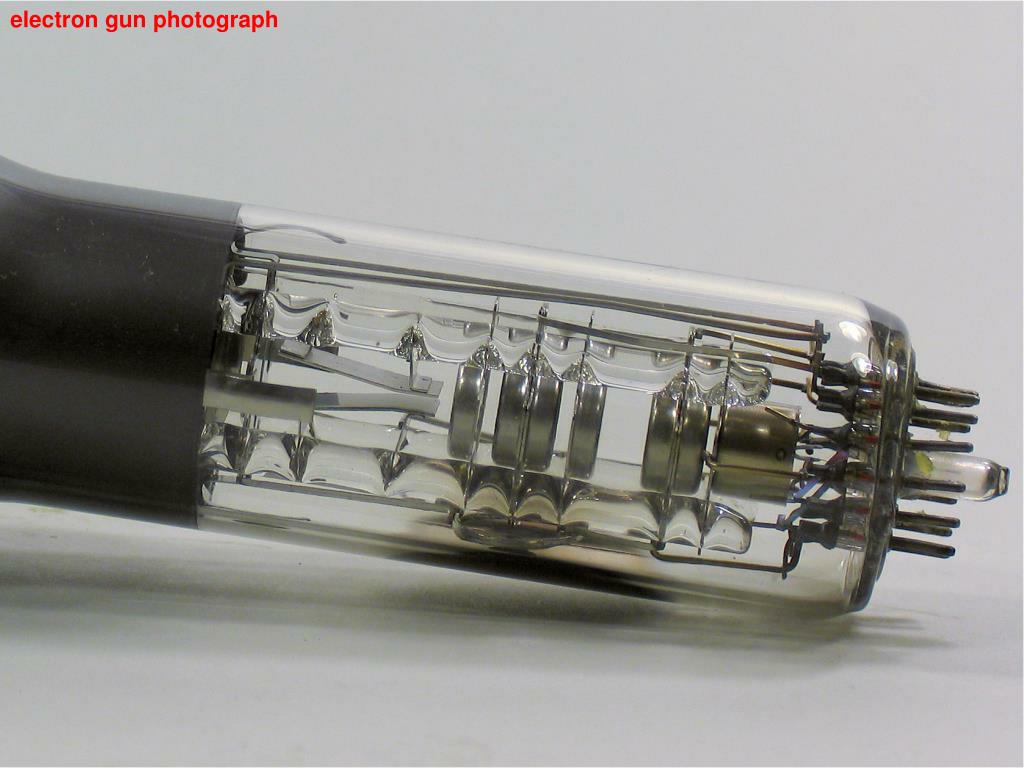

  4. electron gun photograph

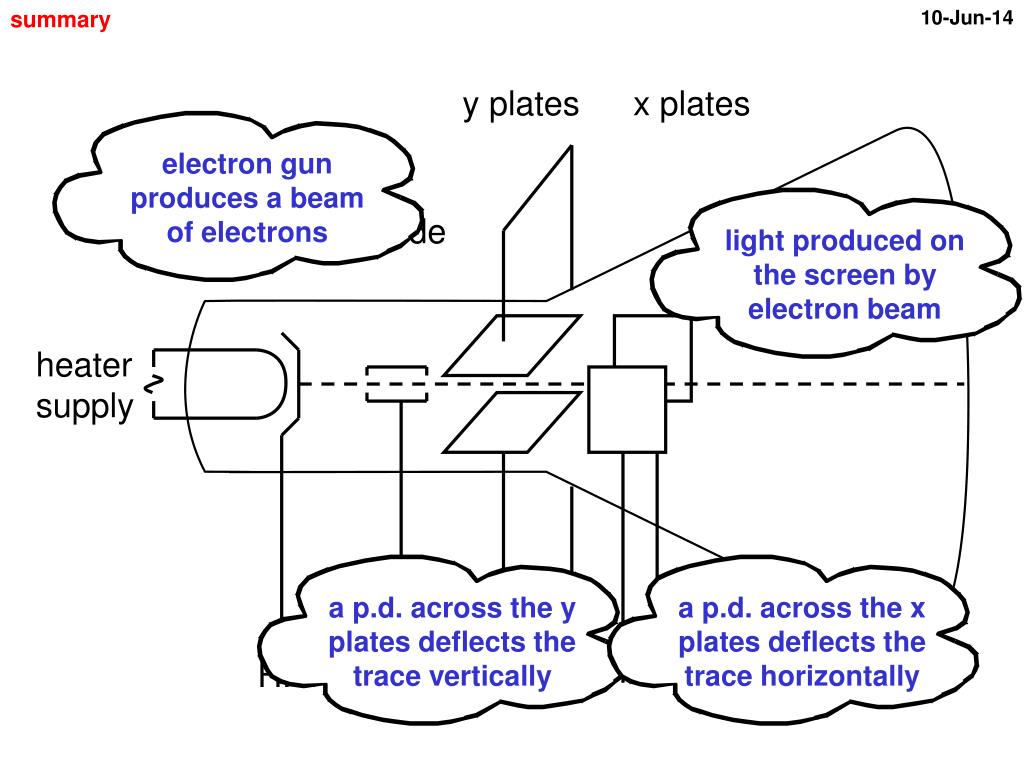

  5. summary electron gun produces a beam of electrons light produced on the screen by electron beam a p.d. across the y plates deflects the trace vertically a p.d. across the x plates deflects the trace horizontally y plates x plates anode heater supply - + phosphor screen H.T. supply

  6. gain andf time-base controls

  7. peak voltage Peak p.d. = 3 Divisions x 1.0 mV/div = 3.0 mV

  8. period & frequency period = 4.0 divisions x 1.0 ms/div = 4.0 ms frequency = 1 / period frequency = 1 / 0.004 s frequency = 250 Hz

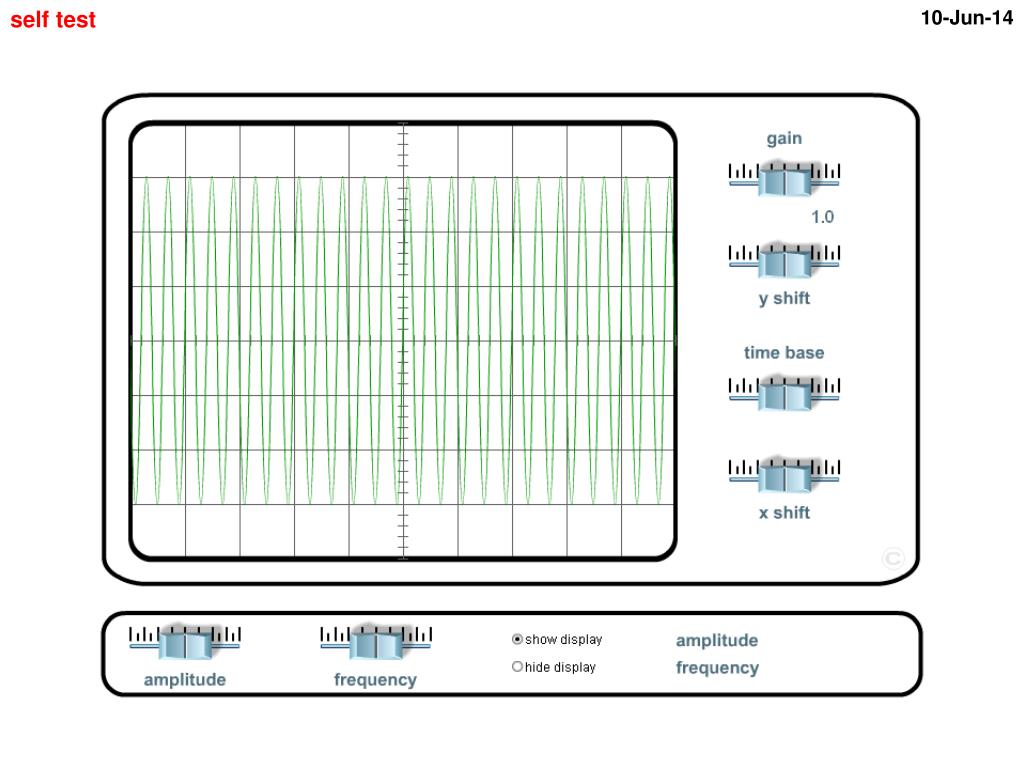

  9. self test
