  1. Spezielle Anwendungen des VLSI – Entwurfs Applied VLSI design Courseandcontest Resultsof Phase 4 Robert Mars

  2. ExpectedDifferences • frequency ↓ due towiredelay • power ↑ due towirecapacitance • ConsideredFloorplanoptimizations: • Aspect Ratio • Utilization

  3. Aspect Ratio

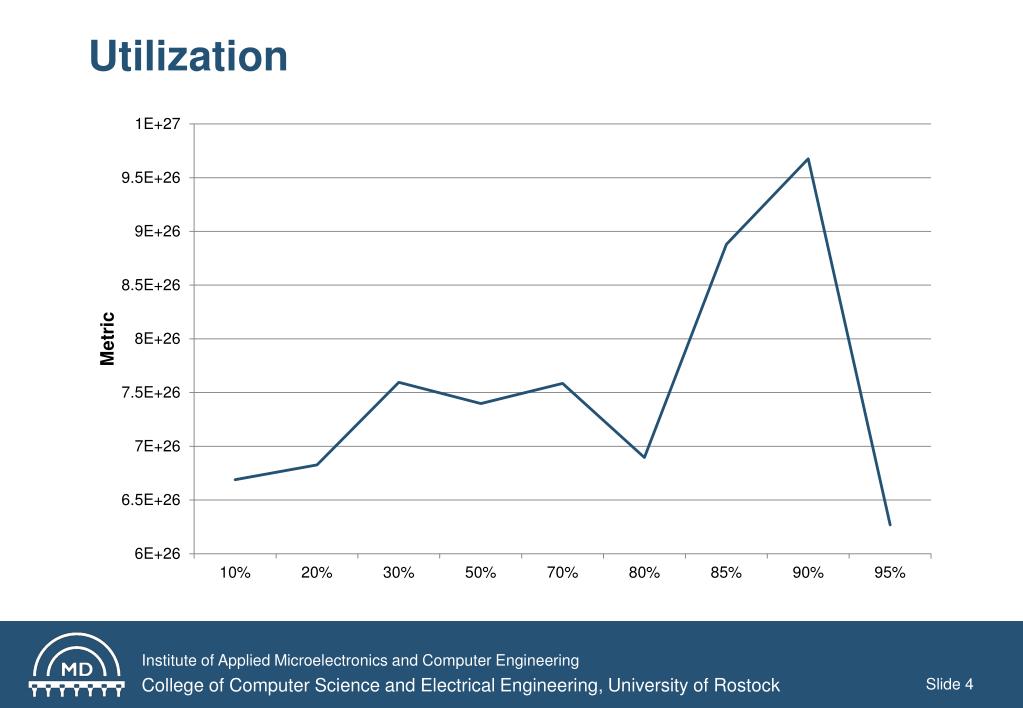

  4. Utilization

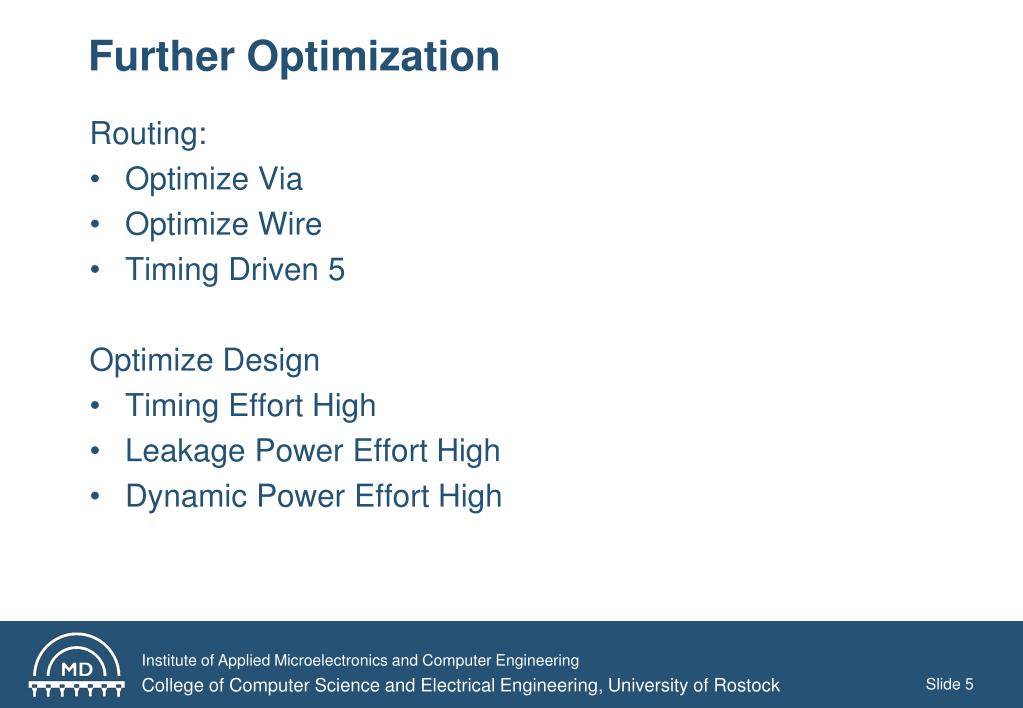

  5. Further Optimization • Routing: • Optimize Via • OptimizeWire • Timing Driven 5 • Optimize Design • Timing Effort High • Leakage Power Effort High • Dynamic Power Effort High

  6. Results

  7. Thank you for your attention

  8. Pads 99,77% power consumptionby pads!
