  2. Particles lose energy in matter. Eventually energy loss is due to ionization. An important measure is the amount of energy gained by the material as a particle passes or stops. Energy Gained

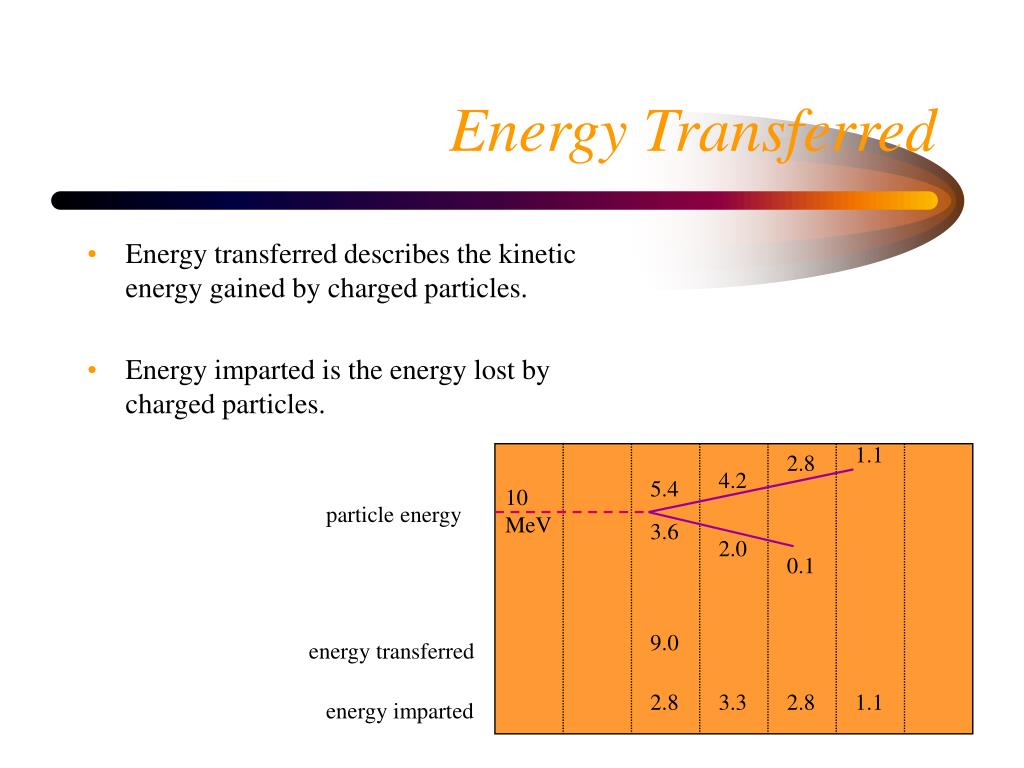

  3. Energy transferred describes the kinetic energy gained by charged particles. Energy imparted is the energy lost by charged particles. Energy Transferred 1.1 2.8 4.2 5.4 10 MeV particle energy 3.6 2.0 0.1 9.0 energy transferred 2.8 3.3 2.8 1.1 energy imparted

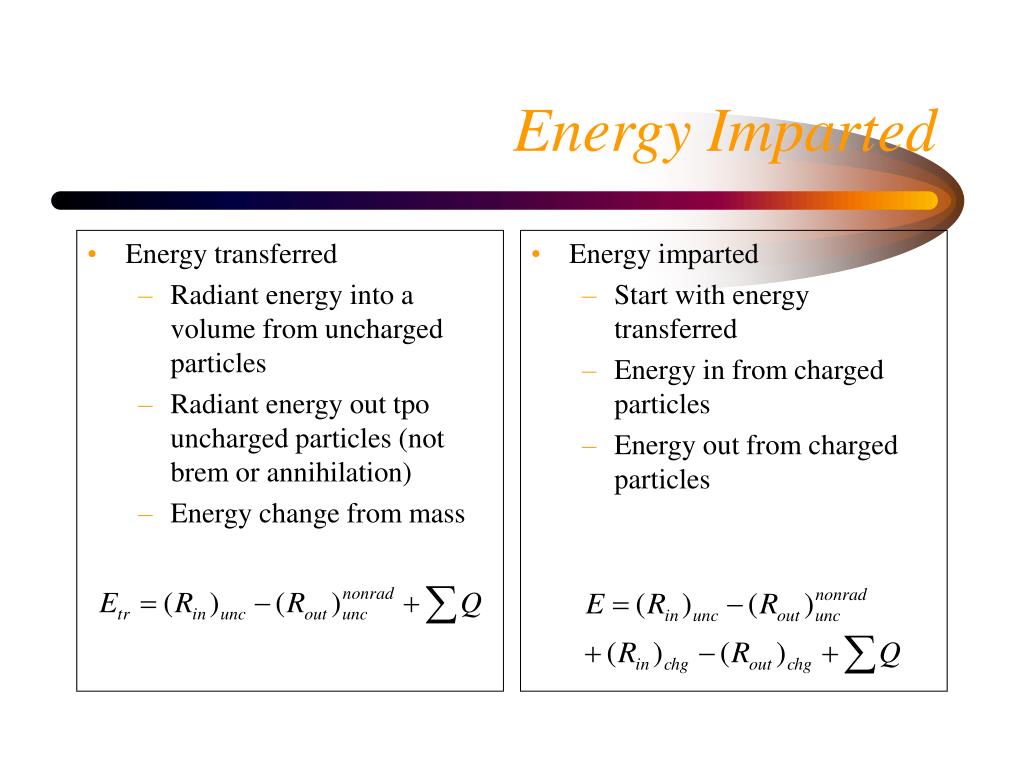

  4. Energy transferred Radiant energy into a volume from uncharged particles Radiant energy out tpo uncharged particles (not brem or annihilation) Energy change from mass Energy imparted Start with energy transferred Energy in from charged particles Energy out from charged particles Energy Imparted

  5. Kerma is the energy transferred per unit mass. Kinetic Energy Released per unit MAss Radiative kerma is the energy loss per mass due to brem and annihilation. Collision kerma subtracts the reradiated photons. Net energy transferred per mass Kerma

  6. Absorbed dose or dose is the energy imparted per unit mass. Like kerma dose is based on mean changes in energy. Two units are used. 1 gray (Gy) = 1 J / kg 1 rad = 100 erg / g (older) Absorbed Dose

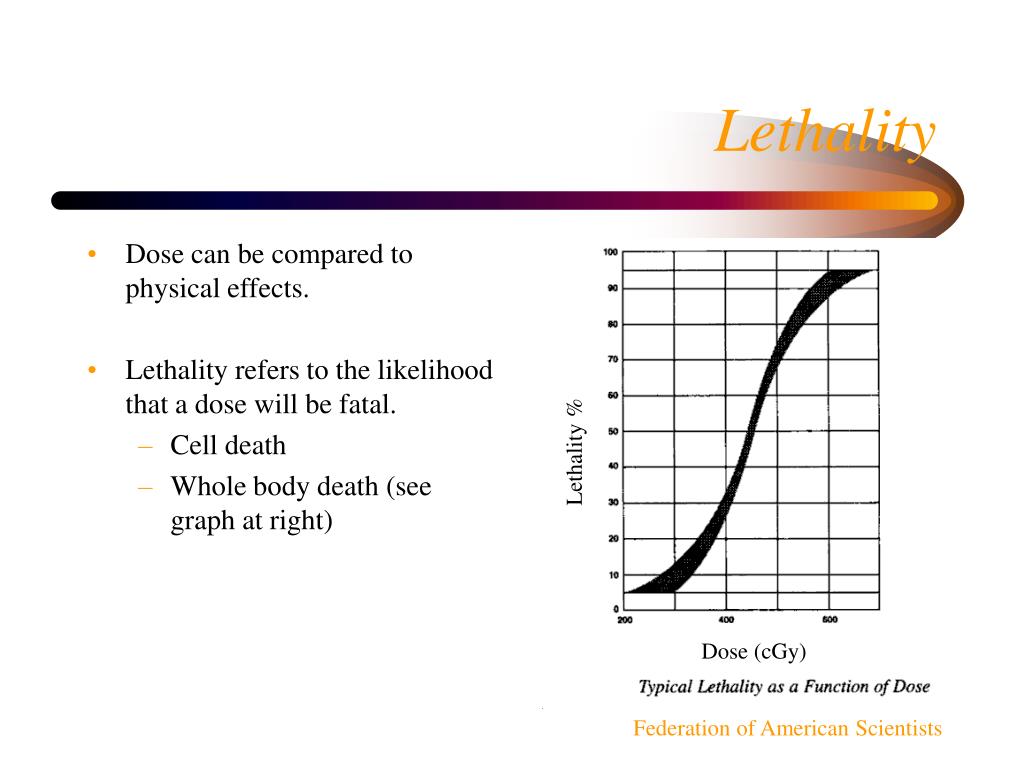

  7. Dose can be compared to physical effects. Lethality refers to the likelihood that a dose will be fatal. Cell death Whole body death (see graph at right) Lethality Lethality % Dose (cGy) Federation of American Scientists

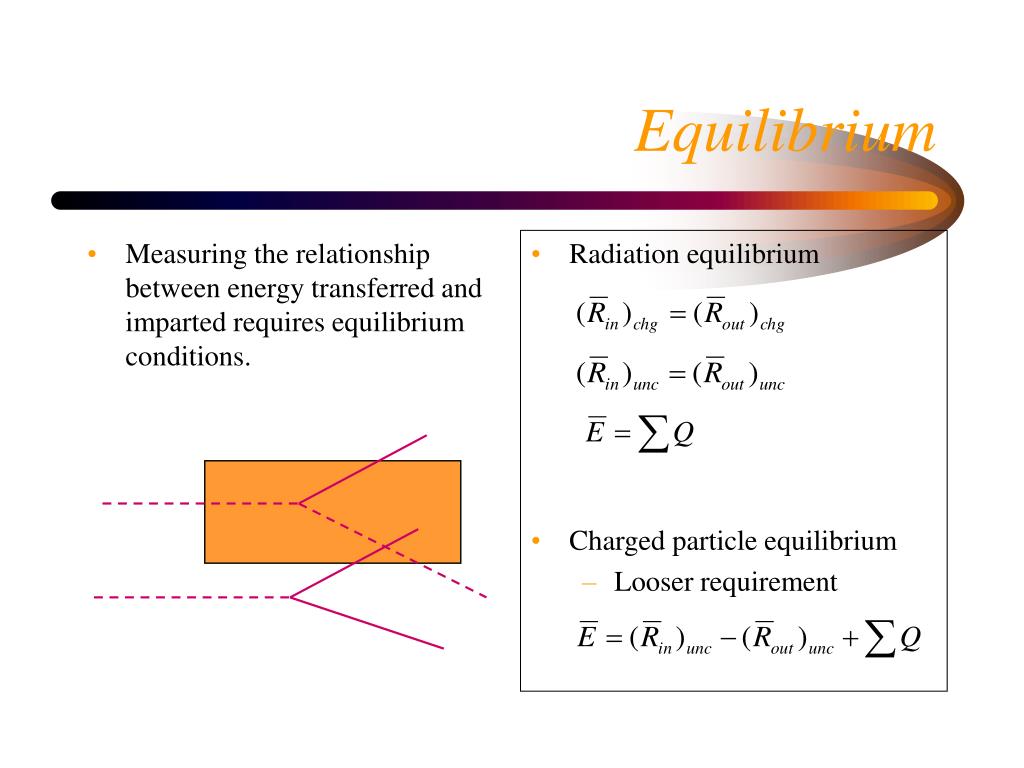

  8. Measuring the relationship between energy transferred and imparted requires equilibrium conditions. Radiation equilibrium Charged particle equilibrium Looser requirement Equilibrium

  9. Exposure is defined by the ionization produced by photons. Gammas and X-rays Charge per unit mass in air The original unit is 1 esu / cm3 of dry air at STP (1928). Roentgen (R) R = 2.58 x 10-4 C / kg (1962) Useful Conversion Show that the original roentgen is equivalent to the modern one. Look up constants: Density of air at STP is 0.001293 g / cm-3 1 esu = 3.34 x 10-10 C 3.34 x 10-10 C / 1.293 x 10-6 kg = 2.58 x 10-4 C / kg Exposure

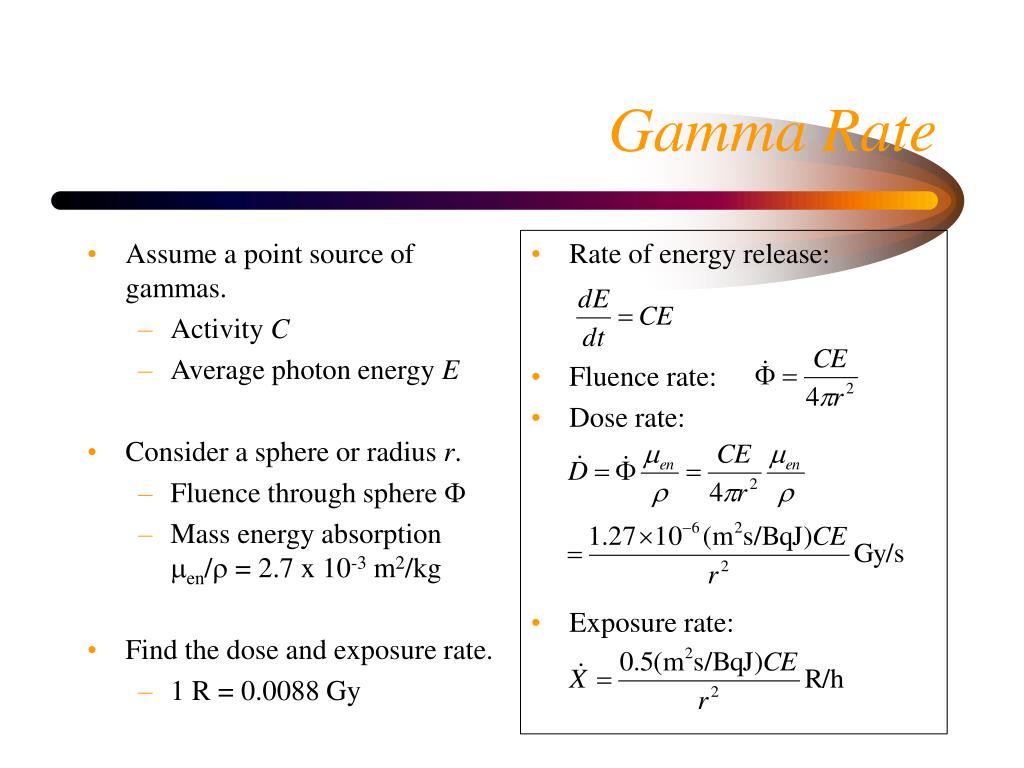

  10. Assume a point source of gammas. Activity C Average photon energy E Consider a sphere or radius r. Fluence through sphere F Mass energy absorption men/r = 2.7 x 10-3 m2/kg Find the dose and exposure rate. 1 R = 0.0088 Gy Rate of energy release: Fluence rate: Dose rate: Exposure rate: Gamma Rate

  11. The effect of radiation on tissue depends on the LET as well as the dose. Higher LET is more damaging. Radiation has a weighting factor based on particle. Factor WR or Q Updated in 1991 In terms of LET LET L (keV / mm in water) < 10; WR = 1 10 – 100; WR = 0.32L – 2.2 > 100; In terms of particle e, g, m; WR = 1 n; WR = 5 – 20 p; WR = 5 a; WR = 20 Radiation Factor

  12. Secondary electrons ejected from atoms are delta rays. Deltas deliver most of the dose Energy less effective if it’s too high Restricted stopping power measures the energy lost up to a limit D. Typical Problem Estimate a cutoff value for irradiating 300 Å viruses. Answer Most energetic delta range should not exceed 300 Å. Find range limit 3 x 10-6 cm Range in water 500 eV is 2 x 10-6 g/cm2 1 keV is 5 x 10-6 g/cm2 Estimate cutoff at 700 eV. Restricted Stopping Power

  13. The equivalent dose is a measure that combines the type of radiation and dose. Unit is Sievert (Sv) 1 Gy equivalent Older unit is rem Roentgen equivalent man 1 rad equivalent 100 rem = 1 Sv Natural doses Cosmics: 0.3 mSv / yr Soil: 0.2 mSv / yr Radon: 2 mSv / yr Total natural: 3 mSv / yr Environmental hazards Flying at 12 km: 7 mSv / hr Chest x-ray: 0.1 mSv Mammogram: 1 mSv CT scan: 20 mSv Equivalent Dose
