Advanced HAI Lighting Control (HLC)

Advanced HAI Lighting Control (HLC) January 2010

As a courtesy to all,please set your cell phones to silent. There will be a break toreturn phone calls.

Agenda HAI Lighting Control (HLC) Configuring UPB Devices Use Upstart to configure Light Level, Fade Rate, Change Dimming to Non-Dimming LED characteristics Working with Links (Scenes, Groups of Lights) Using PCAccess to configure 8 button keypad How to Request Status

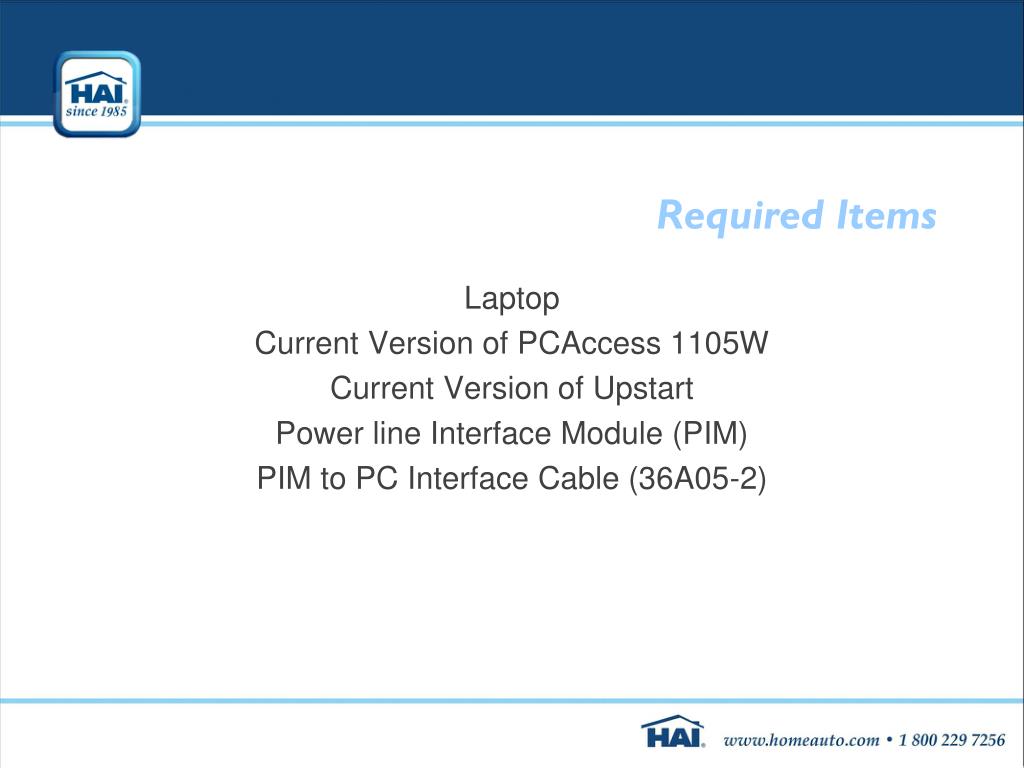

Required Items Laptop Current Version of PCAccess 1105W Current Version of Upstart Power line Interface Module (PIM) PIM to PC Interface Cable (36A05-2)

Using the Omni or Lumina you get the easiest to install, easiest to program, and easiest to operate lighting control system on the market today! The HLC family of products from HAI uses existing wires so it can be used in new or retrofit installations.

HLC (HAI Lighting Control) HLC – a structured, easy to use method of setting up HAI Dimmers, Scene Switches and House Status with an HAI controller. The HAI controller configures: • The HLC devices. • The HAI Scene Switch to work with the HLC switches in the room. • The HAI House Status to work with the HLC switches in the house. • Provides scheduling, remote control, sunrise/sunset, occupancy settings, whole house scenes (macros), etc. • Provides TWO WAY communication from HLC switches to HAI controllers and reports switch status which can be viewed from HAI Console, Omni Touch, or software.

600W UPB™ Dimmer Switch • Controls and dims lighting loads up to 600 Watts. • Requires a neutral (white) wire. • Derate dimmer to 500 Watts when in a 3 gang box. • Ships with white fronts. • Color change kits available for Ivory, Almond, Light Almond, Brown, Black, Grey.

600W UPB™ Non-Dimming Switch • Controls non-dimming loads, such as fluorescent lights, up to 600 Watts. • Requires a neutral (white) wire. • Derate dimmer to 500 Watts when in a 3 gang box. • Ships with white fronts. • Color change kits available for Ivory, Almond, Light Almond, Brown, Black, Grey.

1000W UPB™ Dimmer Switch • Controls and dims lighting loads up to 1000 Watts. • Requires a neutral (white) connection wire. • Requires deep box. Derate to 900 Watts if used in normal box. Derate to 800 Watts if you remove one side. Derate to 600 Watts if you remove 2 sides. • Order switch in the desired color.

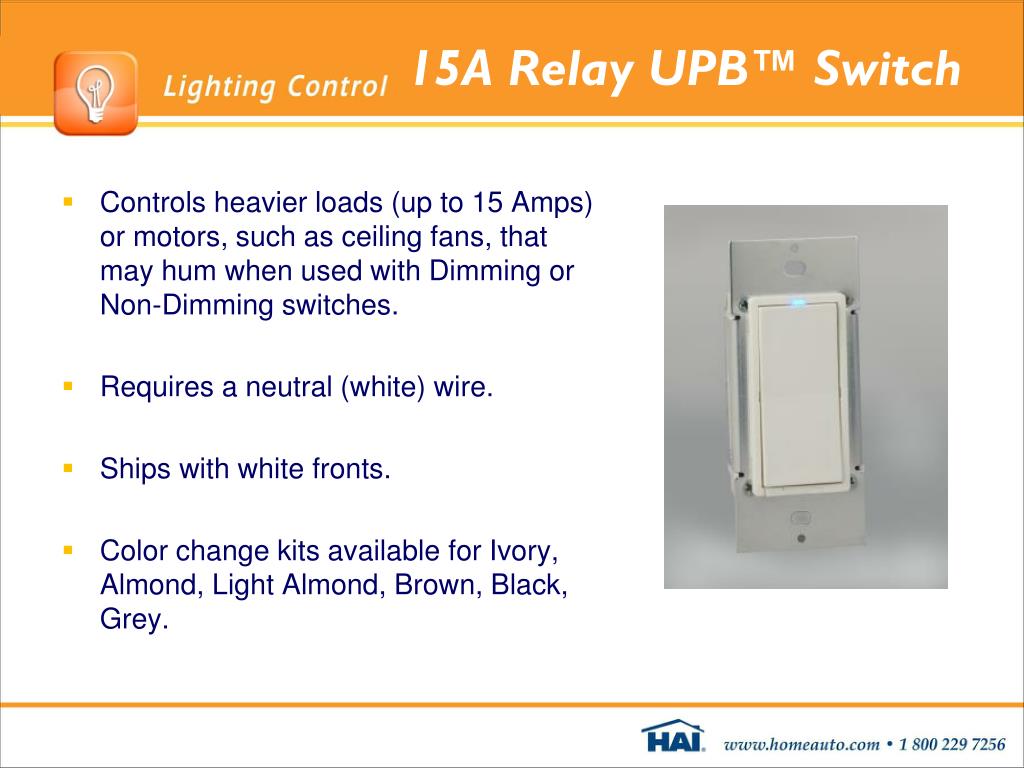

15A Relay UPB™ Switch • Controls heavier loads (up to 15 Amps) or motors, such as ceiling fans, that may hum when used with Dimming or Non-Dimming switches. • Requires a neutral (white) wire. • Ships with white fronts. • Color change kits available for Ivory, Almond, Light Almond, Brown, Black, Grey.

Auxiliary UPB™ Switch • Used with any HLC Switch to make "three-way" (two switches control one light) and multi-way (more than two switches control one light) using conventional "three-way" wiring techniques. • Requires a neutral (white) wire. • Ships with white fronts. • Color change kits available for Ivory, Almond, Light Almond, Brown, Black, Grey.

Room Scene Switch • A Scene Switch allows you to control all of the lights in a room or area. • Lights may be turned on, off, dimmed, brightened, and set to four different scenes to provide limitless options for both security and aesthetic lighting in your home. • To set a scene: • Push Scene button • Adjust room dimmers as desired • Push Scene button five times – lights blink. • Scene is memorized!

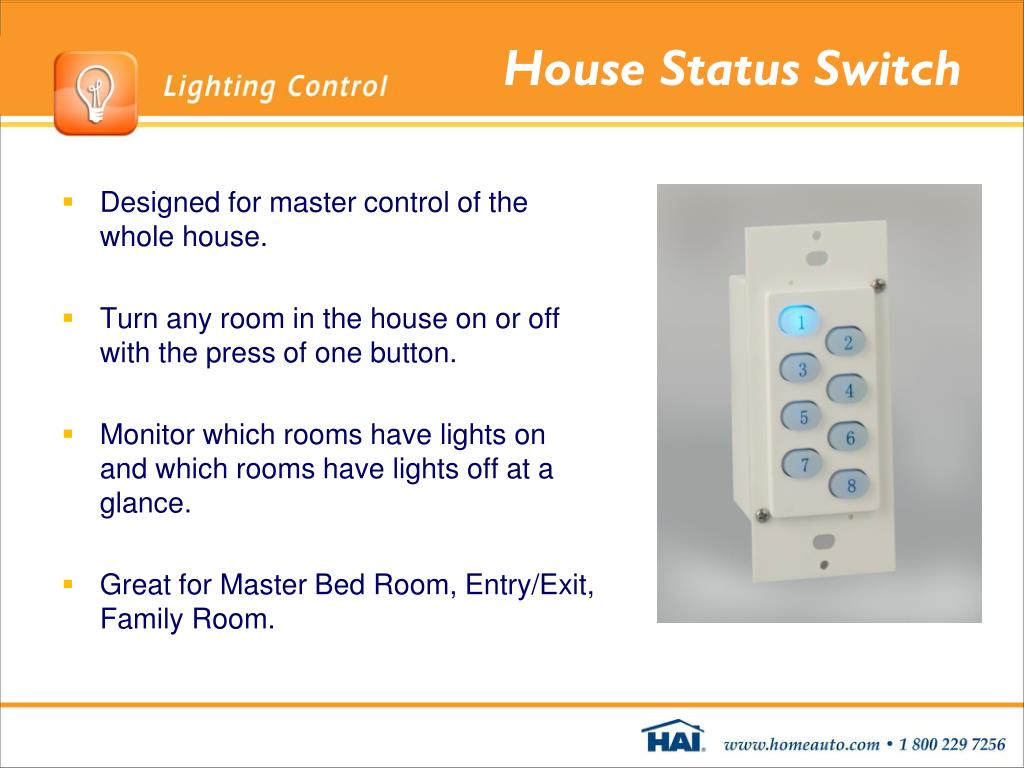

House Status Switch • Designed for master control of the whole house. • Turn any room in the house on or off with the press of one button. • Monitor which rooms have lights on and which rooms have lights off at a glance. • Great for Master Bed Room, Entry/Exit, Family Room.

Custom Engraving • It is recommended that you purchase a Custom Legend Kit part number 38A06-2 for every Scene, House Status, and Event Switch. • This allows you to customize the Button Name making it easier for your Clients to use. • Engrave before they move in, this makes it easier to use the system.

HLC Configuration • HOUSE STATUS SWITCH • MASTER BEDROOM LIVING ROOM SWITCHES LIVING ROOM SCENE SWITCH DINING ROOM SWITCHES DINING ROOM SCENE SWITCH

Set up rooms with HLC • To Use HLC: • Rooms are set up in groups of 8 units. • The first unit in a group of 8 (1, 9, 17, 25, …) is reserved for a Room Controller or a Room name if no controller is used. • All you have to do is create the rooms and HLC does the rest. • 1: Dining Room Scene switch • 2: • 3: • 4: • 5 • 6: • 7: • 8: • 9: Living Room Scene switch • 10: • 11: • 12: • 13: • 14: • 15: • 16:

Set up switches with HLC • Up to 7 loads (lights or appliances) per Room. • The Omni or Lumina automatically links Dining Room controller with loads 2-8 and Living Room controller with loads 10-16. • 1: Dining Room Scene switch • 2: Chandelier • 3: Sconces • 4: Wall Wash • 5: Lamps • 6: Picture Spots • 7: • 8: • 9: Living Room Scene switch • 10: Lights • 11: Cove • 12: Lamps • 13: Bar • 14: • 15: • 16:

Set up House Status switches with HLC • The last unit in a room can be used for a house controller. • Up to 8 house controllers can be added anywhere “on the eights” in the first 64 units to show the status of the first 8 rooms. • Status of rooms 9-16 are the next 64 units and so on. • 1: Dining Room Scene switch • 2: Chandelier • 3: Sconces • 4: Wall Wash • 5: Lamps • 6: Picture Spots • 7: • 8: • 9: Living Room Scene switch • 10: Lights • 11: Cove • 12: Lamps • 13: Bar • 14: • 15: • 16: House Status switch

Set up Event switch with HLC • A House Status switch can be used a Event switch (8-Button keypad) by placing it in a unused switch location. • Use PCAccess to program the Event switch. • Do Not put it in a Room Scene switch or House Status switch position as it will be configured wrong. • 1: Dining Room Scene switch • 2: Chandelier • 3: Sconces • 4: Wall Wash • 5: Lamps • 6: Picture Spots • 7: • 8: • 9: Living Room Scene switch • 10: Lights • 11: Cove • 12: Lamps • 13: Bar • 14: • 15: Event switch • 16 House Status switch

HLC Details • First unit in a group of 8 (1, 9, 17, 25, …) is reserved for Room Scene Switch. • Up to 7 loads (lights or appliances) per Room Scene Switch. • 8 rooms per House Status Switch. • Capacities: • Omni LT: 14 loads, 2 room Scene Switches • Omni IIe: 56 loads, 8 room Scene Switches • Omni Pro II: 217 loads, 31 room Scene Switches • Lumina : 56 loads, 8 room Scene Switches • Lumina Pro : 217 Loads, 31 Scene Switches

HAI Software PC Access • PC Access allows the installer to setup, program, and monitor a home control system by a serial or network connection. • PC Access allows you to build and use a template to quickly and easily program your Omni or Lumina controllers.

PCAccess Setup • Install PCAccess • Write down the Security Stamp. • Default Password is “password”. • Select Configure and select the Serial port on your computer. • Select File and click on New • Name the file. • Select controller type (make sure you select the correct one). • Fill out the information on the opening screen. • Select Setup and select Names / Voices.

Setup Names / Voices: Units Enter the Room Name and the switches in corresponding room. HLC units are labeled on the Left

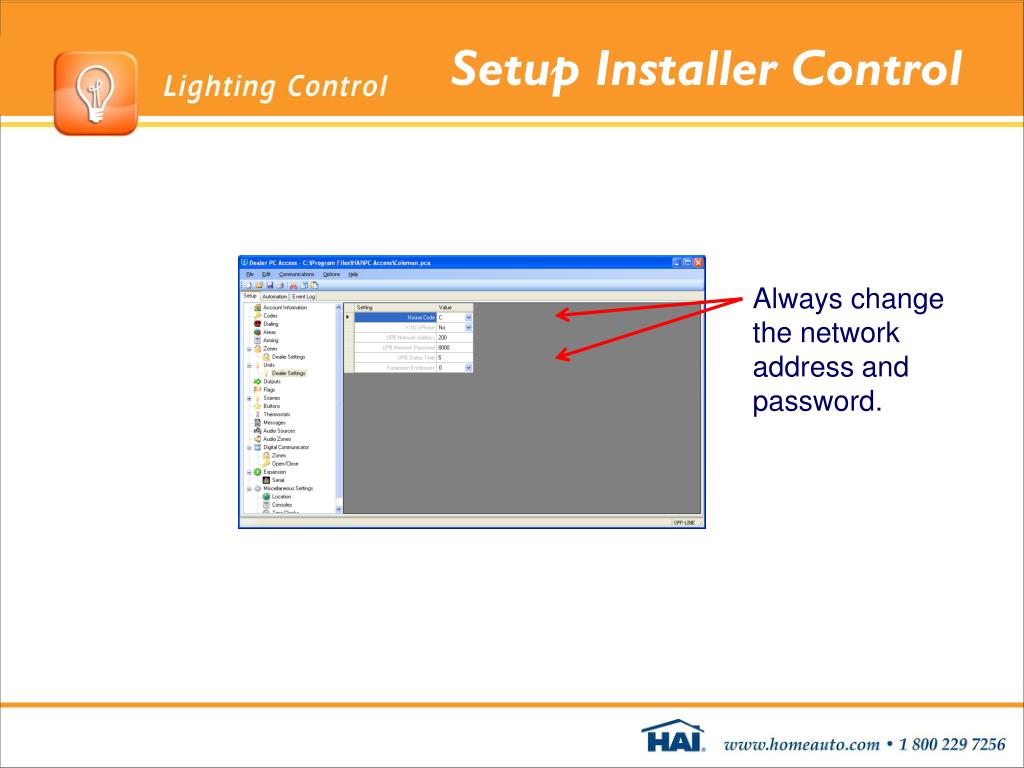

Setup Installer Control Always change the network address and password.

Download PCAccess File • Setup Names / Voices and configure the remaining items in PCAccess. • Click on File, click on “Save”. • Click on File, Click on “Download from PC”. • Once Download is complete you can now configure your devices.

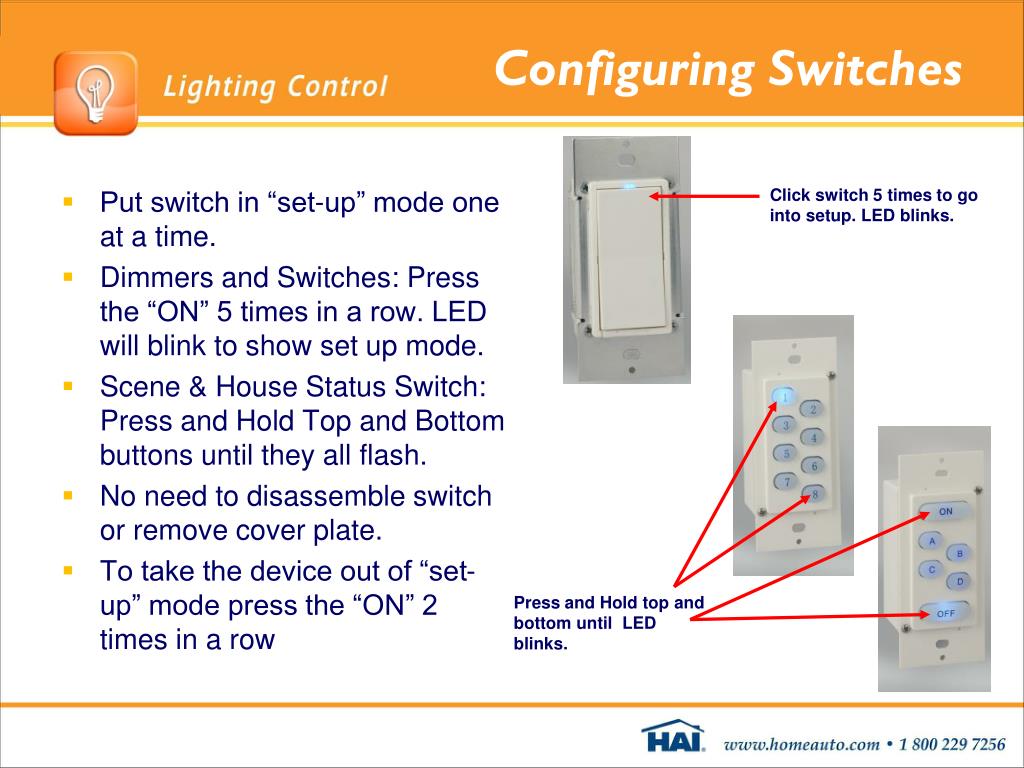

Configuring Switches • Put switch in “set-up” mode one at a time. • Dimmers and Switches: Press the “ON” 5 times in a row. LED will blink to show set up mode. • Scene & House Status Switch: Press and Hold Top and Bottom buttons until they all flash. • No need to disassemble switch or remove cover plate. • To take the device out of “set-up” mode press the “ON” 2 times in a row Click switch 5 times to go into setup. LED blinks. Press and Hold top and bottom until LED blinks.

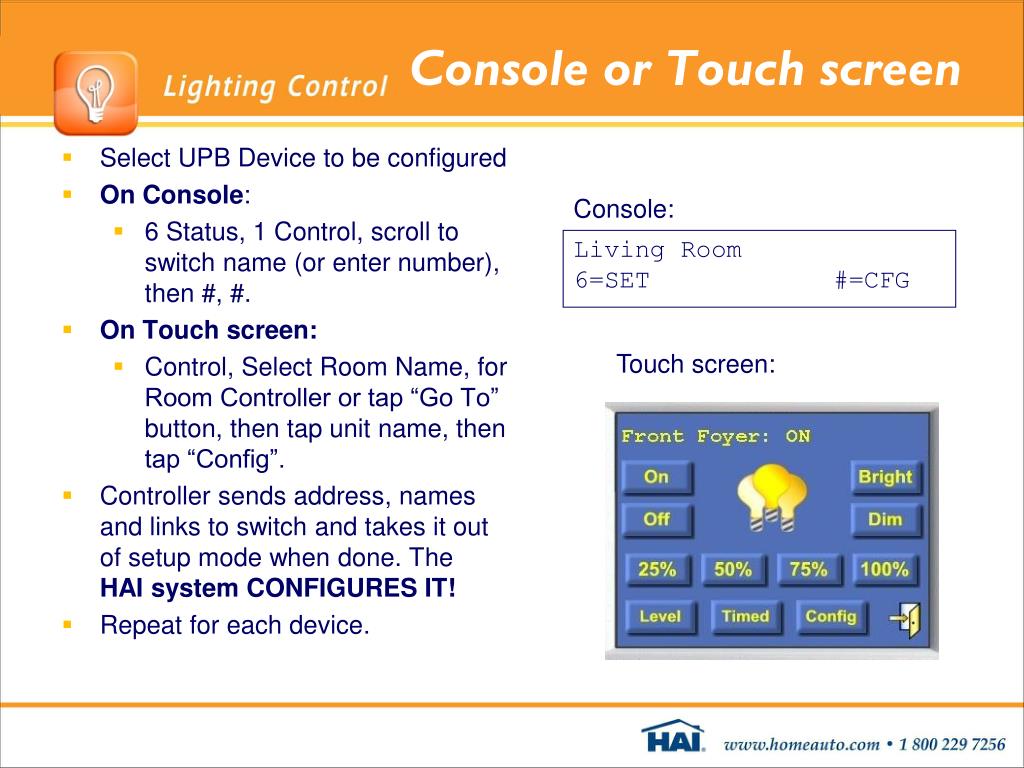

Console or Touch screen • Select UPB Device to be configured • On Console: • 6 Status, 1 Control, scroll to switch name (or enter number), then #, #. • On Touch screen: • Control, Select Room Name, for Room Controller or tap “Go To” button, then tap unit name, then tap “Config”. • Controller sends address, names and links to switch and takes it out of setup mode when done. The HAI system CONFIGURES IT! • Repeat for each device. Console: Living Room6=SET #=CFG Touch screen:

Configure all HAI UPB Devices • Each UPB device in the House will need to be configured per the previous example. • Auxiliary switches do not count as a device in the room count or overall count, they are not configured, they communicate directly to the Switch. They can be used to put the switch in program. • If you have two Scene Switches in the same room configure them in the same “position” (same unit ID) this way they will mimic each other.

UPB™ Upstart Configuration • Free software for advanced configuration of UPB™ devices. This software is provided as a courtesy to all UPB™ manufacturers. • Turn a Dimming Switch into a Non-Dimming Switch and a Non-Dimming Switch into a Dimming Switch. • Change the LED color on a switch or turn off the LED. • Change the fade rates for on and off. • Default the light level of the Dimming switch on a single tap or a double tap. Setting the switch to only turn on to 95% doubles bulb life.

UPB™ Upstart Configuration • Required Items for Upstart • Upstart Software • PIM (Power line Interface Module) (36A00-1) it is recommended to have a separate one just for Upstart (HLC and Upstart use different communication modes). • PIM to PC Cable (36A05-2). • USB to Serial adapter if your computer does not have a serial port, HAI recommends the KeySpan model USA-19HS.

Opening Screen on Upstart

Creating a New File Check “create a new network that matches an already installed network”

Configuring the PIM You may get this if your PIM is not connected Select This

Configuring the PIM Select the com port that the PIM is attached to, then click connect Select the PIM from the Interface box

Identifying the Network Place any UPB device into Setup mode

Finding the Existing Network Upstart is now reading the information stored in that UPB device, Network name, password, etc.

Network Discovery Upstart is now uploading the network Notice The devices being added

Upstart Programming File Room list Links Devices Signal meter

Working with Switches Double Click on the Switch that you want to work on and this box will open up

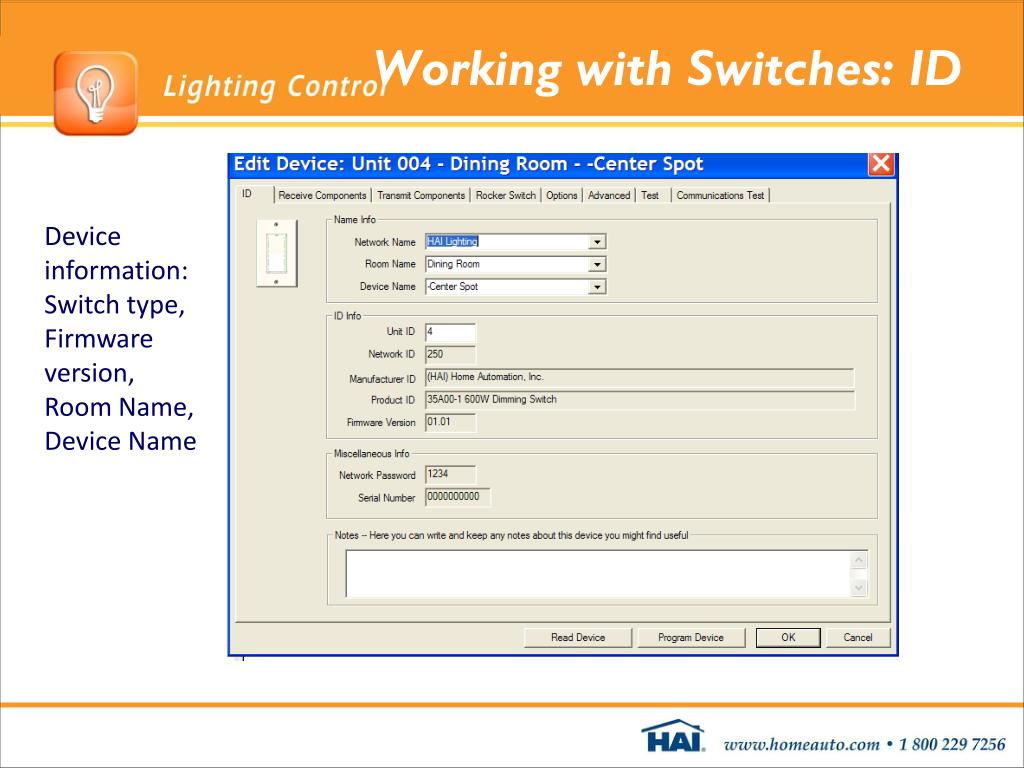

Working with Switches: ID Device information: Switch type, Firmware version, Room Name, Device Name

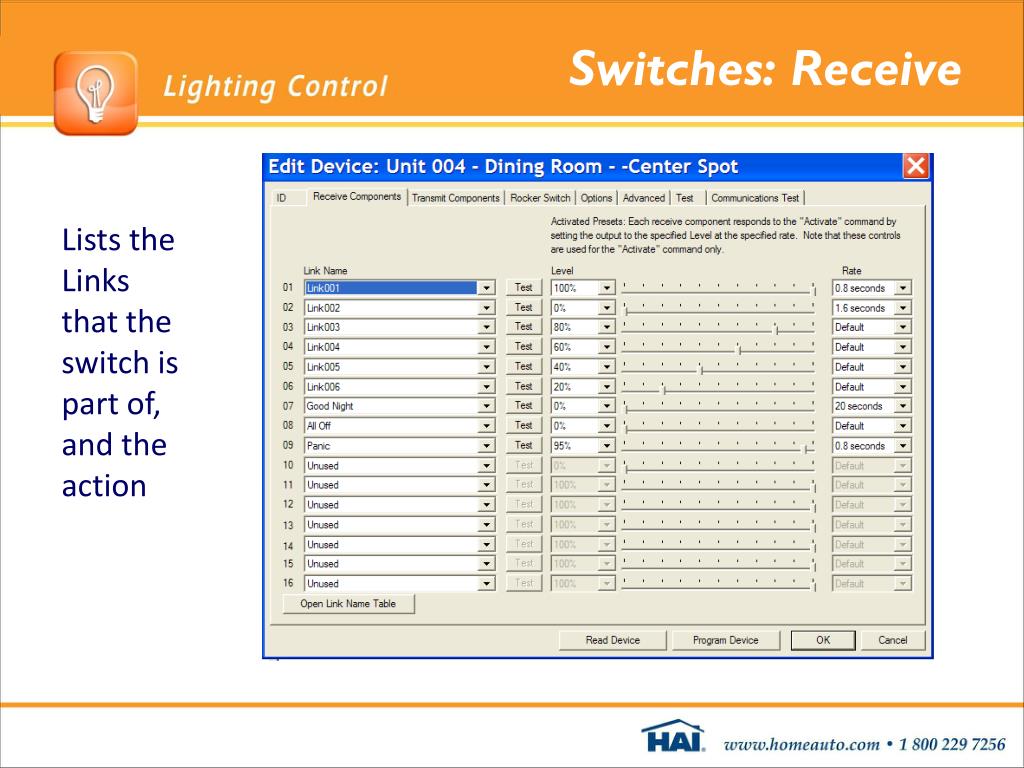

Switches: Receive Lists the Links that the switch is part of, and the action

Switches: Transmit This defaults with HLC to Link 242 and 241, for keeping track of the status of the switches

Switches: Rocker Switch Here is where you adjust the light level on a single tap or double tap of the switch You can adjust the fade rate here

Switches: Options You can change the dimming properties of the switch Change how the LED operates

Switches: Test This allows you to operate the light switch Test the fade rate See what a certain level looks like

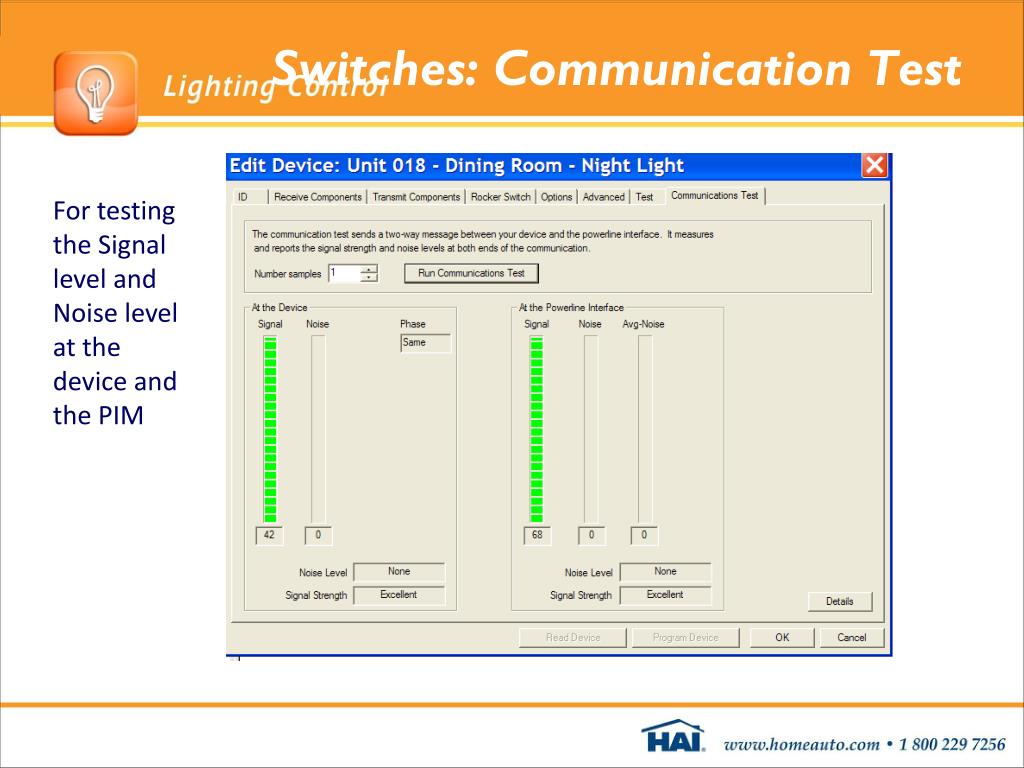

Switches: Communication Test For testing the Signal level and Noise level at the device and the PIM

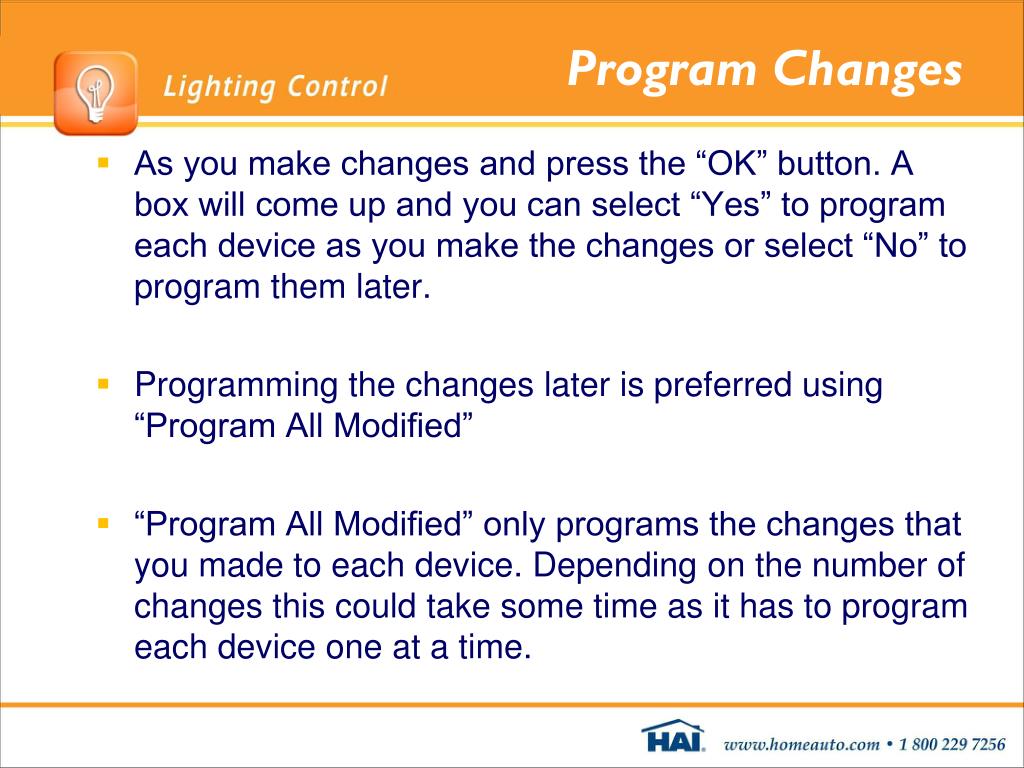

Program Changes • As you make changes and press the “OK” button. A box will come up and you can select “Yes” to program each device as you make the changes or select “No” to program them later. • Programming the changes later is preferred using “Program All Modified” • “Program All Modified” only programs the changes that you made to each device. Depending on the number of changes this could take some time as it has to program each device one at a time.

Working with Scene Switch: ID Double Click on the Scene Switch that you want to work on This box will open up

Scene Switch: Receive A list of the Links that this Scene Switch responds to

Scene Switch: Transmit A list of the Links that this Scene Switch operates

Advanced HAI Lighting Control (HLC)
