Dendrograms for Data Mining

1. Eamonn Keogh Dendrograms for Data Mining

2. What is Clustering? Also called unsupervised learning, sometimes called classification by statisticians and sorting by psychologists and segmentation by people in marketing • Informally, finding natural groupings or relationships among objects.

3. What is a natural grouping among these objects?

4. What is a natural grouping among these objects? Clustering is subjective Simpson's Family Females Males School Employees

5. Two Types of Clustering • Partitional algorithms: Construct various partitions and then evaluate them by some criterion • Hierarchical algorithms: Create a hierarchical decomposition of the set of objects using some criterion Partitional Hierarchical

6. What is Similarity? Webster's Dictionary The quality or state of being similar; likeness; resemblance; as, a similarity of features. Similarity is hard to define, but… “We know it when we see it” The real meaning of similarity is a philosophical question. We will take a more pragmatic approach.

7. Defining Distance Measures Definition: Let O1 and O2 be two objects from the universe of possible objects. The distance (dissimilarity) between O1 and O2 is a real number denoted by D(O1,O2) Peter Piotr 0.23 3 342.7

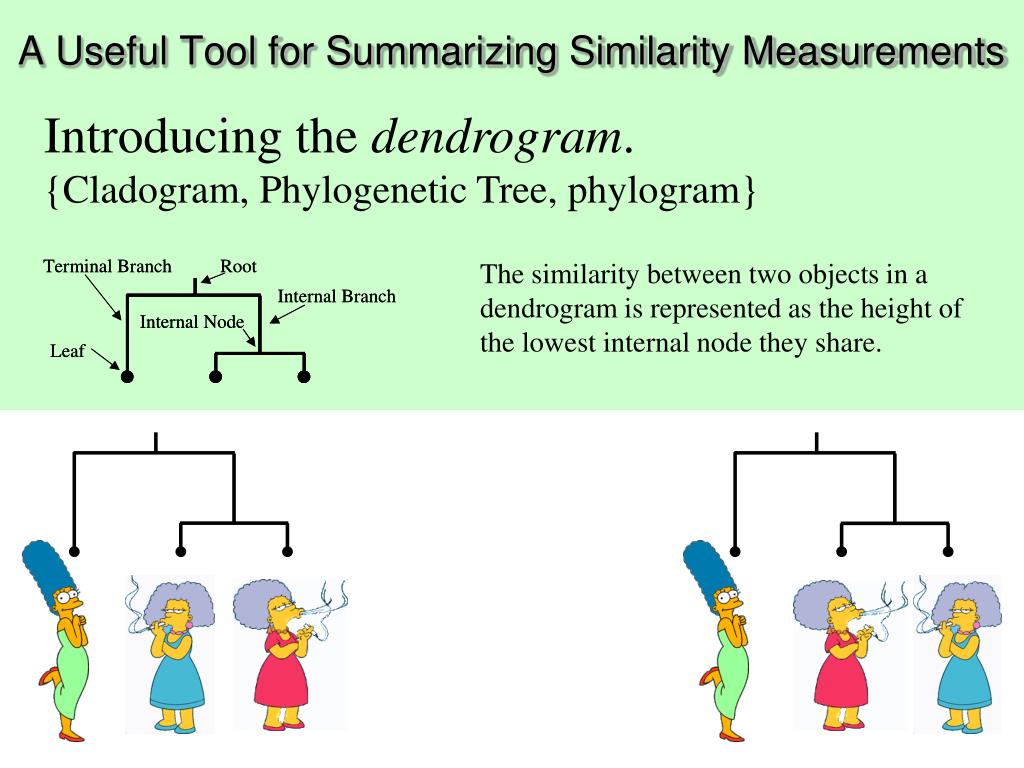

8. A Useful Tool for Summarizing Similarity Measurements Introducing the dendrogram. {Cladogram, Phylogenetic Tree, phylogram} The similarity between two objects in a dendrogram is represented as the height of the lowest internal node they share.

9. There is only one dataset that can be perfectly clustered using a hierarchy… (Bovine:0.69395, (Spider Monkey 0.390, (Gibbon:0.36079,(Orang:0.33636,(Gorilla:0.17147,(Chimp:0.19268, Human:0.11927):0.08386):0.06124):0.15057):0.54939);

10. Note that hierarchies are commonly used to organize information, for example in a web portal. Yahoo’s hierarchy is manually created, we will focus on automatic creation of hierarchies in data mining. Business & Economy B2B Finance Shopping Jobs Aerospace Agriculture… Banking Bonds… Animals Apparel Career Workspace

11. A Demonstration of Hierarchical Clustering using String Edit Distance Pedro(Portuguese) Petros (Greek), Peter (English), Piotr (Polish), Peadar (Irish), Pierre (French), Peder (Danish), Peka (Hawaiian), Pietro (Italian), Piero (Italian Alternative), Petr (Czech), Pyotr (Russian) Cristovao(Portuguese) Christoph (German), Christophe (French), Cristobal (Spanish), Cristoforo (Italian), Kristoffer (Scandinavian), Krystof (Czech), Christopher (English) Miguel(Portuguese) Michalis (Greek), Michael (English), Mick (Irish!) Piotr Pyotr Peka Peter Piero Pierre Pietro Petros Peadar Mick Pedro Peder Miguel Krystof Michael Michalis Crisdean Cristobal Christoph Cristovao Kristoffer Cristoforo Christophe Christopher

12. Pedro(Portuguese/Spanish) Petros (Greek), Peter (English), Piotr (Polish), Peadar (Irish), Pierre (French), Peder (Danish), Peka (Hawaiian), Pietro (Italian), Piero (ItalianAlternative), Petr (Czech), Pyotr (Russian) Piotr Peka Peter Pedro Piero Pyotr Peder Pierre Pietro Petros Peadar

13. South Georgia & South Sandwich Islands Serbia & Montenegro (Yugoslavia) St. Helena & Dependencies U.K. AUSTRALIA ANGUILLA FRANCE NIGER INDIA IRELAND BRAZIL • Hierarchal clustering can sometimes show patterns that are meaningless or spurious • For example, in this clustering, the tight grouping of Australia, Anguilla, St. Helena etc is meaningful, since all these countries are former UK colonies. • However the tight grouping of Niger and India is completely spurious, there is no connection between the two.

14. South Georgia & South Sandwich Islands Serbia & Montenegro (Yugoslavia) St. Helena & Dependencies U.K. AUSTRALIA ANGUILLA FRANCE NIGER INDIA IRELAND BRAZIL • The flag of Niger is orange over white over green, with an orange disc on the central white stripe, symbolizing the sun. The orange stands the Sahara desert, which borders Niger to the north. Green stands for the grassy plains of the south and west and for the River Niger which sustains them. It also stands for fraternity and hope. White generally symbolizes purity and hope. • The Indian flag is a horizontal tricolor in equal proportion of deep saffron on the top, white in the middle and dark green at the bottom. In the center of the white band, there is a wheel in navy blue to indicate the Dharma Chakra, the wheel of law in the Sarnath Lion Capital. This center symbol or the 'CHAKRA' is a symbol dating back to 2nd century BC. The saffron stands for courage and sacrifice; the white, for purity and truth; the green for growth and auspiciousness.

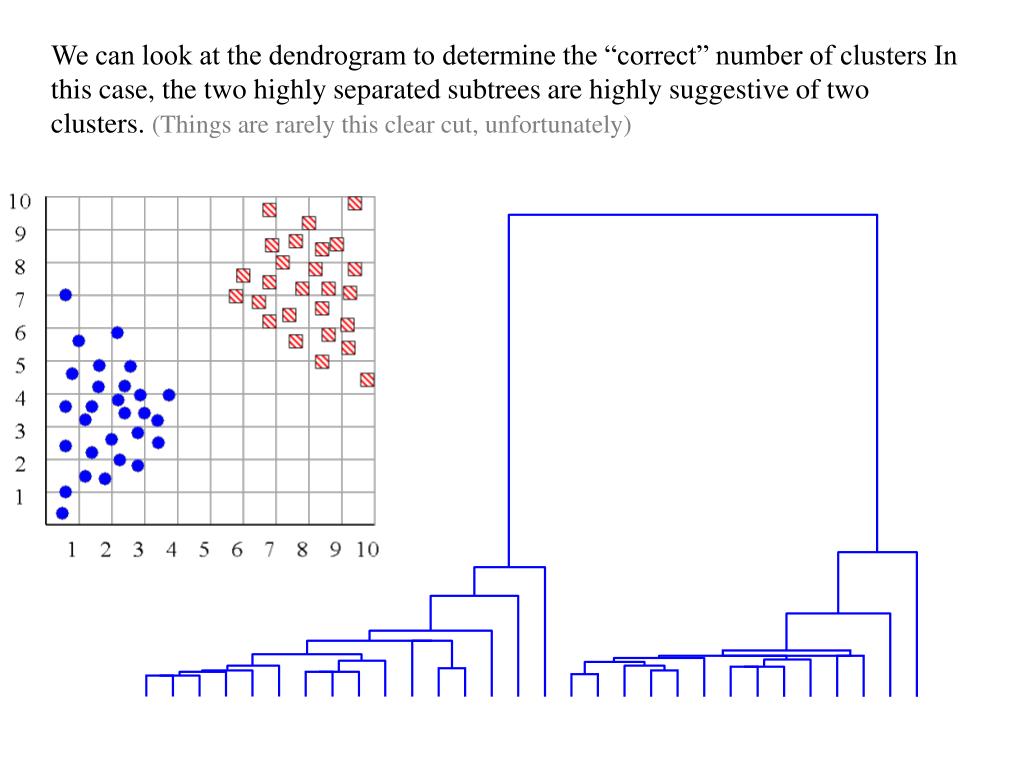

15. We can look at the dendrogram to determine the “correct” number of clusters In this case, the two highly separated subtrees are highly suggestive of two clusters. (Things are rarely this clear cut, unfortunately)

16. One potential use of a dendrogram is to detect outliers The single isolated branch is suggestive of a data point that is very different to all others Outlier

17. (How-to) Hierarchical Clustering Since we cannot test all possible trees we will have to heuristic search of all possible trees. We could do this.. Bottom-Up (agglomerative): Starting with each item in its own cluster, find the best pair to merge into a new cluster. Repeat until all clusters are fused together. Top-Down (divisive): Starting with all the data in a single cluster, consider every possible way to divide the cluster into two. Choose the best division and recursively operate on both sides. • The number of dendrograms with n leafs = (2n -3)!/[(2(n -2)) (n -2)!] • Number Number of Possible • of Leafs Dendrograms • 2 1 • 3 3 • 4 15 • 5 105 • ... … • 34,459,425

18. 0 4 8 8 7 7 0 2 0 3 3 0 1 0 4 We begin with a distance matrix which contains the distances between every pair of objects in our database. D( , ) = 8 D( , ) = 1

19. Bottom-Up (agglomerative): Starting with each item in its own cluster, find the best pair to merge into a new cluster. Repeat until all clusters are fused together. Consider all possible merges… Choose the best …

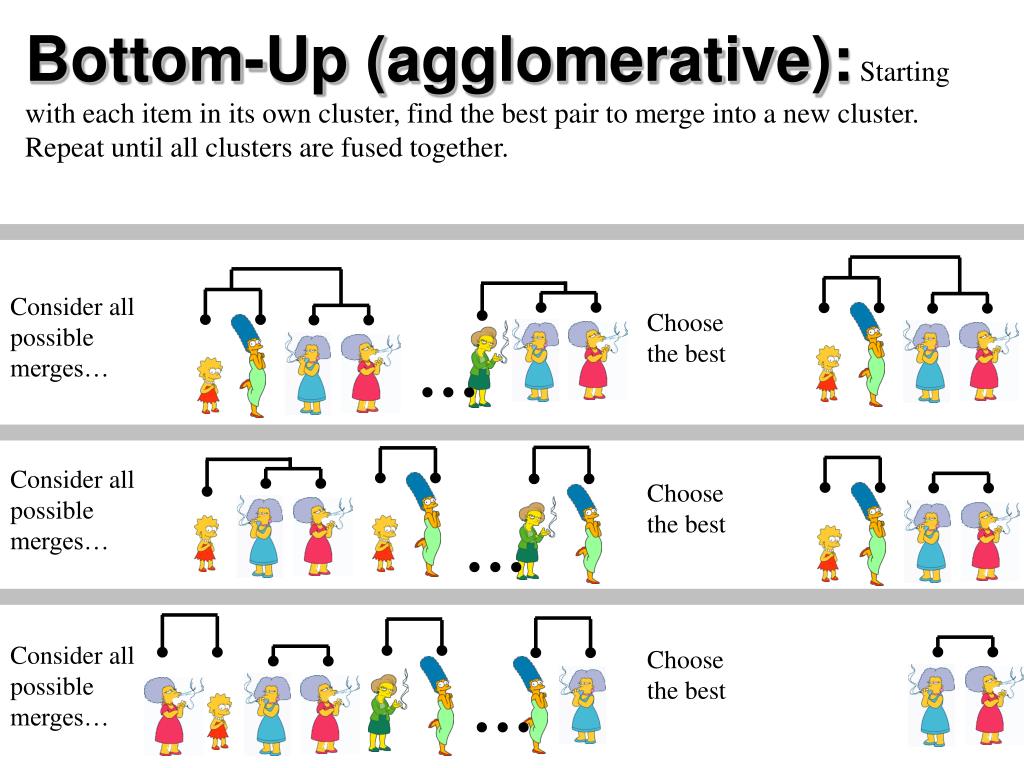

20. Bottom-Up (agglomerative): Starting with each item in its own cluster, find the best pair to merge into a new cluster. Repeat until all clusters are fused together. Consider all possible merges… Choose the best … Consider all possible merges… Choose the best …

21. Bottom-Up (agglomerative): Starting with each item in its own cluster, find the best pair to merge into a new cluster. Repeat until all clusters are fused together. Consider all possible merges… Choose the best … Consider all possible merges… Choose the best … Consider all possible merges… Choose the best …

22. Bottom-Up (agglomerative): Starting with each item in its own cluster, find the best pair to merge into a new cluster. Repeat until all clusters are fused together. Consider all possible merges… Choose the best … Consider all possible merges… Choose the best … Consider all possible merges… Choose the best …

23. We know how to measure the distance between two objects, but defining the distance between an object and a cluster, or defining the distance between two clusters is non obvious. • Single linkage (nearest neighbor):In this method the distance between two clusters is determined by the distance of the two closest objects (nearest neighbors) in the different clusters. • Complete linkage (furthest neighbor):In this method, the distances between clusters are determined by the greatest distance between any two objects in the different clusters (i.e., by the "furthest neighbors"). • Group average linkage:In this method, the distance between two clusters is calculated as the average distance between all pairs of objects in the two different clusters. • Wards Linkage: In this method, we try to minimize the variance of the merged clusters

24. Single linkage Average linkage Wards linkage

25. Summary of Hierarchal Clustering Methods • No need to specify the number of clusters in advance. • Hierarchal nature maps nicely onto human intuition for some domains • They do not scale well: time complexity of at least O(n2), where n is the number of total objects. • Like any heuristic search algorithms, local optima are a problem. • Interpretation of results is (very) subjective.

26. Johnson WE, Eizirik E, Pecon-Slattery J, et al. (January 2006). "The late Miocene radiation of modern Felidae: a genetic assessment". Science

27. “Irish/Welsh Split: Must be before 300AD. Archaic Irish inscriptions date back to the 5th century AD – divergence must have occurred well before this time.” How do we know the dates? If we can get dates, even upper/lower bounds, some events, we can interpolate to the rest of the tree. Gray, R.D. and Atkinson, Q. D., Language tree divergence times support the Anatolian theory of Indo-European origin

28. Do Trees Make Sense for non-Biological Objects? Hellenic Armenian Persian Persian Hellenic Armenian Gibbon Sumatran Orangutan Orangutan Gorilla Human Pygmy Chimp Chimpanzee “Armenian borrowed so many words from Iranian languages that it was at first considered a branch of the Indo-Iranian languages, and was not recognized as an independent branch of the Indo-European languages for many decades” • The answer is “Yes”. • There are increasing theoretical and empirical results to suggest that phylogenetic methods work for cultural artifacts. • Does horizontal transmission invalidate cultural phylogenies?Greenhill, Currie & Gray. • Branching, blending, and the evolution of cultural similarities and differences among human populations. Collard, Shennan, & Tehrani. ..results show that trees constructed with Bayesian phylogenetic methods are robust to realistic levels of borrowing

29. On trick to text the applicably of phylogenetic methods outside of biology is to test on datasets for which you know the right answer by other methods. “Canadian Football is historically derived from the ancestor of rugby, but today closely resembles the American versions of the game. In this branch of the tree geography has trumped deeper phylogenetic history.” Here the results are very good, but not perfect. Gray, RD, Greenhill, SJ, & Ross, RM (2007). The Pleasures and Perils of Darwinizing Culture (with phylogenies). Biological Theory, 2(4)

31. Why would we want to use trees for human artifacts? Because trees are powerful in biology • They make predictions • Pacific Yew produces taxol which treats some cancers, but it is expensive. Its nearest relative, the European Yew was also found to produce taxol. • They tell us the order of events • Which came first, classic geometric spider webs, or messy cobwebs? • They tell us about.. • “Homelands”, where did it come from. • “Dates” when did it happen. • Rates of change • Ancestral states

32. They tell us the order of events • Which came first, classic geometric orb webs, or messy cobwebs? An orb web is shaped like a circle with spokes A cobweb is a tangled mass of fluffy silk that catches insects

33. Most parsimonious cladogram for Turkmen textile designs. Lobed gul Lobed gul: birds Lobed gul: clovers :: 1=presence 0=absence 101 1 0 1 0 1 0 1 0 1 0 0 0 1 1 1 1 0 1 1 0 1 0 1 0 0 0 0 0 1 0 1 1 0 0 0 0 0 1 0 1 1 1 1 0 1 1 1 0 1 0 1 0 1 0 0 0 1 0 0 1 1 1 1 0 1 1 1 1 1 0 1 0 0 1 1 0 1 1 0 0 0 0 0 1 0 1 0 Salor = Data is coded as a 90-dimensional binary vector. However this is arbitrary in two ways, why these 90 features, and does this carpet really have Lobed Gul clovers? J. Tehrani, M. Collard / Journal of Anthropological Archaeology 21 (2002) 443–463

34. I. Location of maximum blade width • 1. Proximal quarter • 2. Secondmost proximal quarter • 3. Secondmost distal quarter • 4. Distal quarter • II. Base shape • 1. Arc-shaped • 2. Normal curve • 3. Triangular • 4. Folsomoid • III. Basal indentation ratio • 1. No basal indentation • 2. 0·90–0·99 (shallow) • 3. 0·80–0·89 (deep) • IV. Constriction ratio • 1·00 • 0·90–0·99 • 0·80–0·89 • 4. 0·70–0·79 • 5. 0·60–0·69 • 0·50–0·59 • V. Outer tang angle • 1. 93–115 • 2. 88–92 • 3. 81–87 • 4. 66–88 • 5. 51–65 • 6. <50 • VI. Tang-tip shape • 1. Pointed • 2. Round • 3. Blunt • VII. Fluting • 1. Absent • 2. Present • VIII. Length/width ratio • 1. 1·00–1·99 • 2.2·00–2·99 • - • 4. 4·00–4·99 • 5. 5·00–5·99 • 6. >6. 6·00 21225212 Data is coded as a 8-dimensional integer vector. Cladistics Is Useful for Reconstructing Archaeological Phylogenies: Palaeoindian Points from the Southeastern United States. O’Brien

35. An Inverted use of Dendrograms • Suppose you have a new distance measure A, and you want to claim it is better than the old method B • You could run some classification experiments and report some numbers.. • A get 95% B gets 90% • But this is not very forceful, and it does not tell you when you win/lose

36. B 3 4 2 1 8 10 11 5 12 9 6 7 One Second Tettigonioidea A Grylloidea 11 12 7 8 9 10 1 2 3 4 5 6 One Second Neocurtilla hexadactyla Cyrtoxipha columbiana Conocephalus nemoralis Aglaothorax ovata Amblycorypha huasteca Hispanogryllus nesion

37. B A

38. Note that the algorithm has no access to color information, just texture Dictionnaire D'Histoire Naturelle by Charles Orbigny. 1849

39. The algorithm can handle very subtle differences. Ornaments from the Hand-Press period. The particularity of this period is the use of block of wood to print the ornaments on the books. The specialist historians want to record the individual instances of ornament occurrence and to identify the individual blocks. This identification work is very useful to date the books and to authenticate outputs from some printing-houses and authors. Indeed, numerous editions published in the past centuries do not reveal on the title page their true origin. The blocks could be re-used to print several books, be exchanged between the printing-houses or duplicated in the case of damage. Mathieu Delalandre

40. Indexing and Mining Rock Art Rock art is found on every continent except Antarctica. To date, computer science has had little impact on analysis of rock art. Australia may have 100 million examples A decade ago, Walt et al. summed up the state of petroglyph research by noting, “Complete-site and cross-site research thus remains impossible, incomplete, or impressionistic”

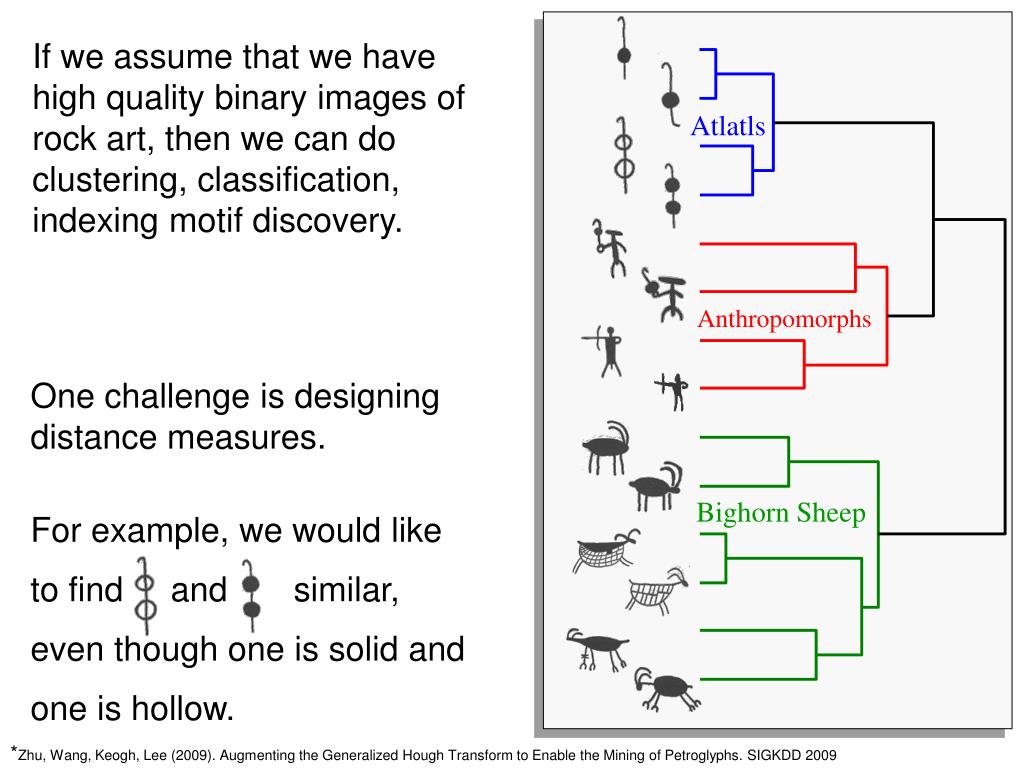

41. If we assume that we have high quality binary images of rock art, then we can do clustering, classification, indexing motif discovery. Atlatls Anthropomorphs One challenge is designing distance measures. For example, we would like to find and similar, even though one is solid and one is hollow. Bighorn Sheep *Zhu, Wang, Keogh, Lee (2009). Augmenting the Generalized Hough Transform to Enable the Mining of Petroglyphs. SIGKDD 2009

42. Eamonn KeoghComputer Science & Engineering Department University of California – Riverside eamonn@cs.ucr.edu
